QUOTE(gsan @ Mar 1 2008, 09:35 AM)

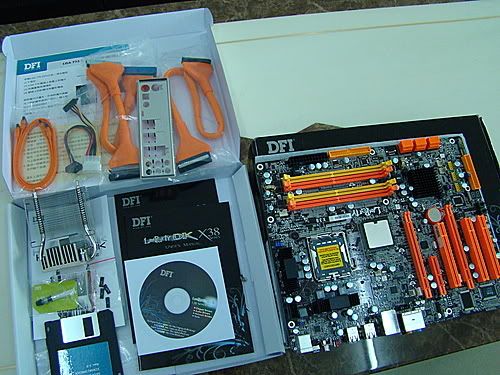

btw, below is the screenie for DK X38
look at the NB cooler
err...who want my DK P35??!!
just kidding
DFI LANPARTY DK P35-T2RS, Discussions and Results
|
|
 Mar 1 2008, 12:02 PM
Return to original view | Post
#21
|

Senior Member
1,486 posts Joined: Jun 2005 From: Cyberjaya/Kamunting
|
err...who want my DK P35??!! just kidding |
Quote|
|
|
|
|
Mar 12 2008, 05:04 PM
Return to original view | Post
#22
|
|
Senior Member
1,486 posts Joined: Jun 2005 From: Cyberjaya/Kamunting
|
QUOTE(vearn27 @ Mar 5 2008, 11:26 AM) *** Special thanks to Bro mfcm and sniper69 for sharing their OC experience, guide and knowledge with me yesterday  ***My first overclocking experience and after some trial... now it is » Click to show Spoiler - click again to hide... « CPU Q6600 3.2GHz @ 400 x 8 BIOS: +37.5mV (1.2375)? (I'm not sure if I calculate correctly for 1.2000V (stock) + 0.0375 (37.5mV) = 1.2375?  )CPU-Z Idle: 1.232V CPU-Z Load: 1.184V Maximum Temperature Reported Processor core: 65C Chipset: 55C PWM: 51C Consider a good OC? Edited: CPU-Z Idle is 1.232V   QUOTE(vearn27 @ Mar 5 2008, 01:35 PM) Posted the wrong number, actually my CPU-Z Idle is 1.232 instead of 1.216  So... my CPU VCore is 1.200 + VID Special Add 37.5mV = 1.2375V? Vdrop will be: 1.2375 - 1.232 = 0.0055 Vdroop will be: 1.232 - 1.184 = 0.0048 Consider ok? Anyway, I stopped the prime at 6 hours and 5 minutes instead of 5 hours as I'm going out QUOTE(vearn27 @ Mar 5 2008, 05:09 PM) My casing is closed, if open casing wise the temperature might drop a few more C. Honestly I felt I need a change for the case, Tsunami Dream really doesn't offer me good enough air-flow anymore. i followed vearn27 settings..but my cpuz showed 1.296v at load and 1.232 idle..i was using prime95 instead of orthos..coz someone said that orthos not good to torture quady...Initially during the earlier trial, my system passes the following setting for 30 mins prime without error at stock VCore.
2) 360MHz x 8 = 2880MHz 3) 400MHz x 7 = 2800MHz Then when I go for 400MHz x 8 = 3200MHz, the rig able to bootup but experiencing reboot when I started to prime. Then I add the VCore (VID Special Add) step by step:
2) +25.0mV : rebooted after prime for 2 hours 3) +37.5mV : successfully prime for 6 hours and 5 minutes Note: mfcm guided me all the way through this for trial OCing (thanks a lot )Final temperature reading I recorded after priming for 6 hours: Highest processor core: 67C, 60C, 67C, 59C Chipset: 57C PWM: 51C I don't think I'll do anything that stress the CPU for more than 3 hours continuous... so my rig can consider stable now and proceed with ram timings tuning? btw, my cpu EIST is on.. at load core temp show.. 69 , 65, 66, 69.. i'm using CM factory thermal paste.. no tuniq² will use it in the future and then i hv to naked my rig back  |
|
|
Mar 12 2008, 06:20 PM
Return to original view | Post
#23
|
|
Senior Member
1,486 posts Joined: Jun 2005 From: Cyberjaya/Kamunting
|
QUOTE(mfcm @ Mar 12 2008, 05:51 PM) erm y not u disable the EIST n bla bla setting there..gv try you mean, disable all cpu features except the multicore?? ok..i'll try that |
|
|
Mar 13 2008, 12:17 AM
Return to original view | Post
#24
|
|
Senior Member
1,486 posts Joined: Jun 2005 From: Cyberjaya/Kamunting
|
QUOTE(mfcm @ Mar 12 2008, 06:25 PM) yup..disable all of it..multi core dpend on u coz saw sum ppl disable it sum not.. i did disable all the cpu feature, except the multicore...result.. cpuz idle - 1.344 V cpuz load - 1.296 V max load temp improve for 2 cores only..the rest i dunno why.. 68, 62, 68, 63 btw, i didnt plug in the FDP....should i? This post has been edited by xen0: Mar 13 2008, 12:21 AM |
|
|
Mar 13 2008, 05:50 PM
Return to original view | Post
#25
|
|
Senior Member
1,486 posts Joined: Jun 2005 From: Cyberjaya/Kamunting
|
bro vearn27, can share ur bios setting? did u update your bios??
just wondering why my idle voltage is high in cpuz... |
|
|
Mar 13 2008, 07:13 PM
Return to original view | Post
#26
|
|
Senior Member
1,486 posts Joined: Jun 2005 From: Cyberjaya/Kamunting
|
QUOTE(vearn27 @ Mar 13 2008, 06:45 PM) It could be that your processor has a high VID. Use CoreTemp and tell us what's your processor VID. It is stated there its 1.3250 in core temp.. |
|
|
|
|
|
Mar 17 2008, 03:20 AM
Return to original view | Post
#27
|
|
Senior Member
1,486 posts Joined: Jun 2005 From: Cyberjaya/Kamunting
|
anybody here did some self-configure all the DRAM timing settings??
raise your hand plz |
|
|
Apr 9 2008, 05:00 PM
Return to original view | Post
#28
|
|
Senior Member
1,486 posts Joined: Jun 2005 From: Cyberjaya/Kamunting
|
bro tkh_1001,
maybe this would help u http://www.clunk.org.uk/forums/overclockin...rs-dfi-add.html This post has been edited by xen0: Apr 9 2008, 05:01 PM |
|
|
Apr 10 2008, 02:08 PM
Return to original view | Post
#29
|
|
Senior Member
1,486 posts Joined: Jun 2005 From: Cyberjaya/Kamunting
|
QUOTE(tapirus @ Apr 10 2008, 01:04 AM) @tkh i think its apply to quad proc..dual proc just a lilttle..coz i got quite high one this mobo got large vdrop and vdroop... |
|
|
Apr 10 2008, 06:24 PM
Return to original view | Post
#30
|
|
Senior Member
1,486 posts Joined: Jun 2005 From: Cyberjaya/Kamunting
|
@RokXIII
is that Smart Guardian? looks so different.. btw Smart Guardian isnt reliable.. Added on April 10, 2008, 6:25 pmand why u dont use 1:1 ratio? This post has been edited by xen0: Apr 10 2008, 06:25 PM |
