 Automatic Gate, How much do you need to install one ?

views

ycs
post Sep 1 2022, 12:10 PM

MEMBER
*******
Senior Member
4,217 posts

Joined: Jan 2003
From: Selangor
QUOTE(dblcss @ Sep 1 2022, 11:46 AM)
Yes as long under same frequency. Just set the jumper number to same setting at receiver and hand remote.
*

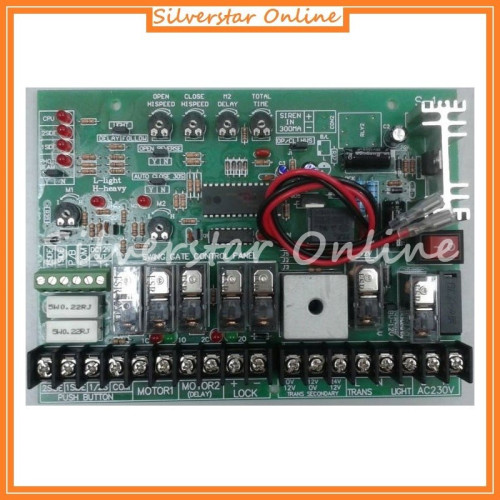

not the remote control; i mean the PCB controlling the motor
like this; can connect arm to motor 1 and motor2? same voltages for fast and slow open/close

user posted image

This post has been edited by ycs: Sep 1 2022, 12:11 PM
ycs
post Sep 1 2022, 04:43 PM

MEMBER
*******
Senior Member
4,217 posts

Joined: Jan 2003
From: Selangor
QUOTE(dblcss @ Sep 1 2022, 04:04 PM)
Yes can just connect but again hv to adjust delay to min so both side would be running almost the same speed when open close.
*
ok thanks
ycs
post Oct 22 2022, 02:46 PM

MEMBER
*******
Senior Member
4,217 posts

Joined: Jan 2003
From: Selangor
» Click to show Spoiler - click again to hide... «

try increase the timer for open and closing on the pcb
ycs
post Oct 22 2022, 03:13 PM

MEMBER
*******
Senior Member
4,217 posts

Joined: Jan 2003
From: Selangor
QUOTE(Darren @ Oct 22 2022, 02:54 PM)
actually the left side fully open/close(with some extra time)....but the right side is stop moving even the left side still moving....
last time the previous technician do increase the timer for open/close too because the right side moving too slow compare to left....
plus can hear the sound like the motor like half dying..... tongue.gif
*
use multimeter to check if got voltage output to right side motor on pcb; in my case, the wire to motor1 was broken underground, so have to replace the wire
ycs
post Aug 23 2023, 10:46 AM

MEMBER
*******
Senior Member
4,217 posts

Joined: Jan 2003
From: Selangor
» Click to show Spoiler - click again to hide... «

for Dnor 880, how to manually open the gate if no power/no battery left
ycs
post Aug 23 2023, 02:43 PM

MEMBER
*******
Senior Member
4,217 posts

Joined: Jan 2003
From: Selangor
QUOTE(dblcss @ Aug 23 2023, 02:38 PM)
Just use the key to free the motor and can manual pull push gate open close
*
if from outside, have to climb inside the house first
ycs
post Jan 20 2024, 07:11 PM

MEMBER
*******
Senior Member
4,217 posts

Joined: Jan 2003
From: Selangor
QUOTE(Sky.Live @ Jan 19 2024, 07:02 PM)
Hi, i am using li gate swing gate.. one side of the motor is weak now.. last time bought the other side of motor before but the fitting is not right, ended up lots of modifications work.

Anyone know if we can buy parts that works directly?
*
show what kind of motor is it? if underground type, then shopee got sell replacement
ycs
post Jul 3 2024, 03:04 PM

MEMBER
*******
Senior Member
4,217 posts

Joined: Jan 2003
From: Selangor
QUOTE(vicky.max @ Jul 2 2024, 11:13 AM)
Just installed Gmatic Pro since I specifically requested for the left and right swing gate to open up separately. One thing I did not liked about this is its 'siren' - not really a siren but more of a static whistle sound.
*
can share why you chose Gmatic over other brands like Dnor, Dcmoto?
ycs
post Jul 24 2024, 10:04 PM

MEMBER
*******
Senior Member
4,217 posts

Joined: Jan 2003
From: Selangor
has anyone done a 12ft folding gate to 1 side only i.e. folding 2 x 6ft gate using 1 arm ? can be done?
ycs
post Jan 3 2025, 10:26 AM

MEMBER
*******
Senior Member
4,217 posts

Joined: Jan 2003
From: Selangor
QUOTE(smon80 @ Jan 2 2025, 10:42 PM)
Hi guy, I got this sliding gate issue.
Basically when open to end, can hear the huming motor sound before it was click cut off.
When close it will also reach the close and huming sound as well.
the huming sound goes about 6s before was cut off.
My sliding gate dun have any switch trigger it stop. I wonder how the system knows when it need to stop the motor.
*
like this?
ycs
post Feb 3 2025, 11:17 AM

MEMBER
*******
Senior Member
4,217 posts

Joined: Jan 2003
From: Selangor
QUOTE(loui @ Feb 3 2025, 07:12 AM)
How to know whether it is screw or rotate type?
*

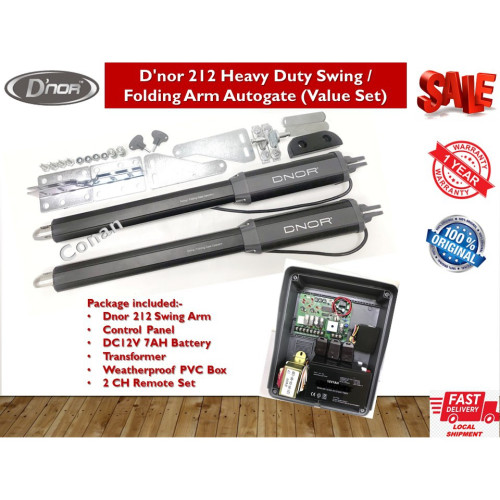

he means the arm/screw type like this

user posted image
ycs
post Feb 3 2025, 01:25 PM

MEMBER
*******
Senior Member
4,217 posts

Joined: Jan 2003
From: Selangor
QUOTE(loui @ Feb 3 2025, 01:18 PM)
Exactly like this.

So this type can just change the board without replacing arm?
*
yes, can , very easy to wire up, can diy
