just spray all interior to flat black .. and sleeve the wire to yellow .. tooless bay sprayed with rEd .. thats all .. any recommendation what else i nid to do ? dont think i can cut hole for fan ..im too noob

here is some of the work log ... skipped many picture coz forgot to take ..

Initially it looks like this

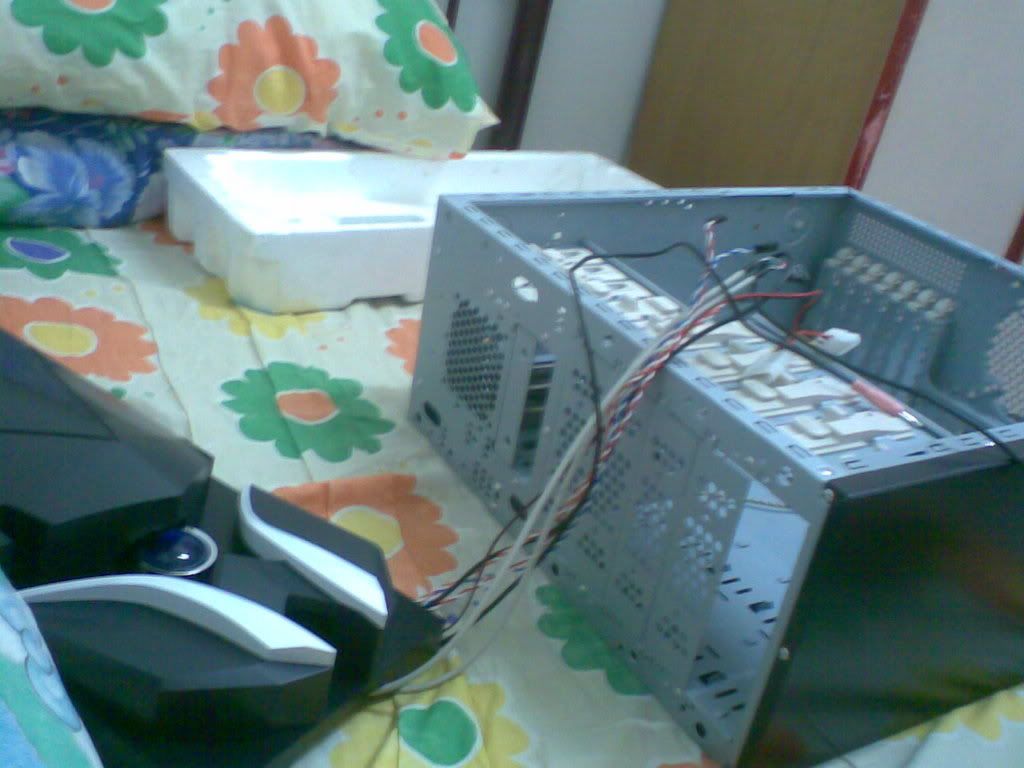

1st thing i do, of course take out everything 1st lol ...

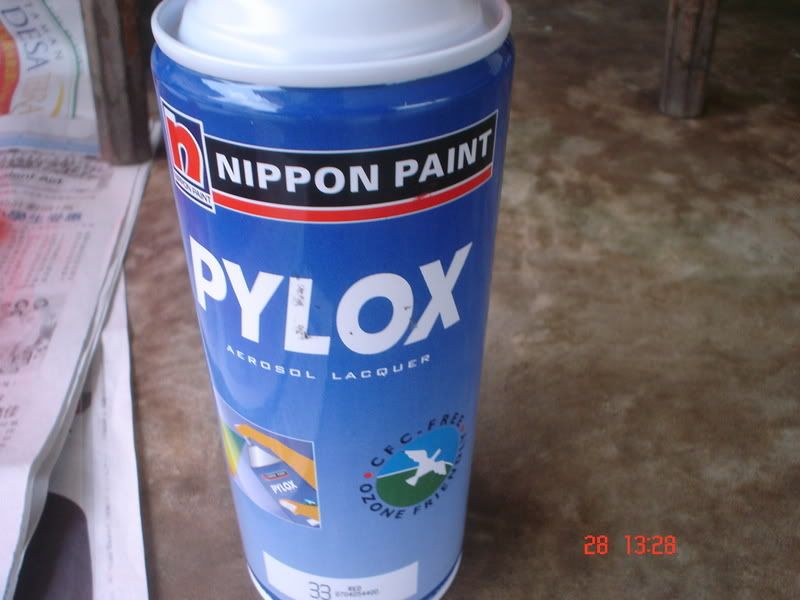

the Nippon Paint i use to spray the interior and the tooless{slider} ..

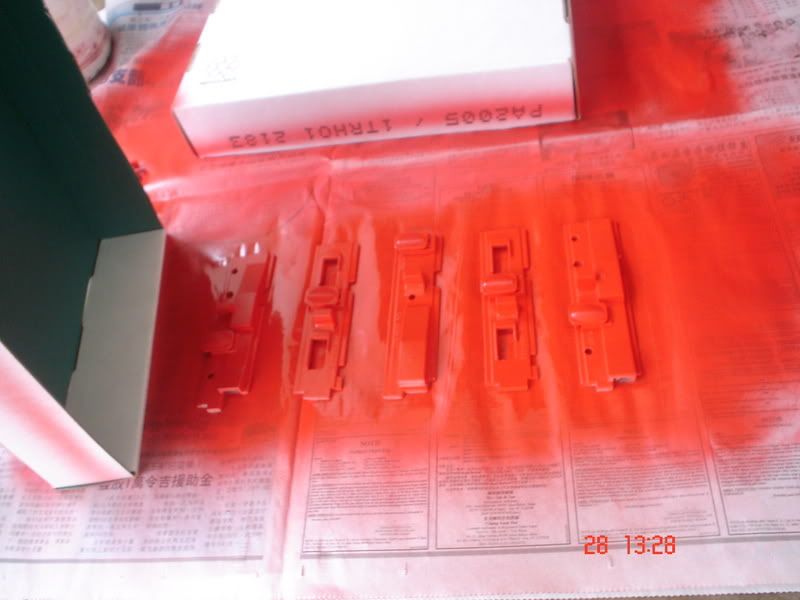

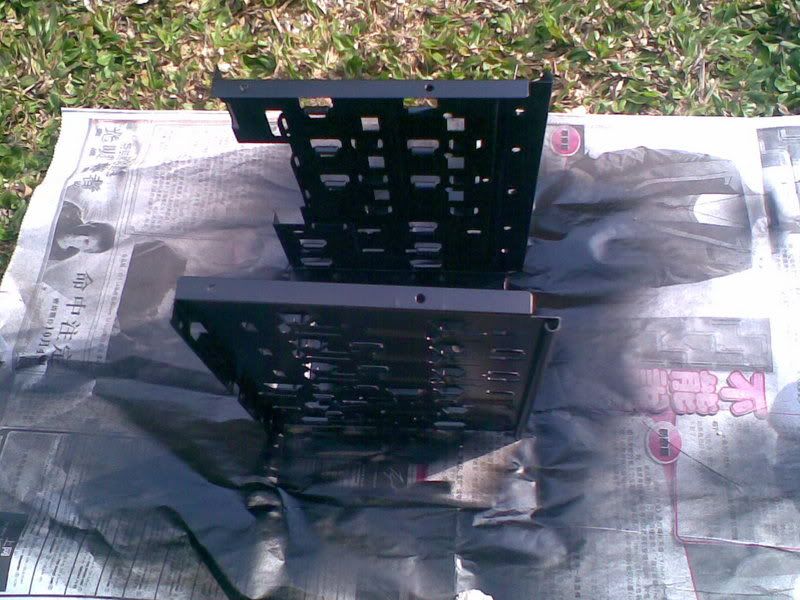

spraying on progress



This post has been edited by sheahann: Dec 10 2007, 04:46 PM

Forgot to take picture when i take out those HDD,and DVD bay ,,

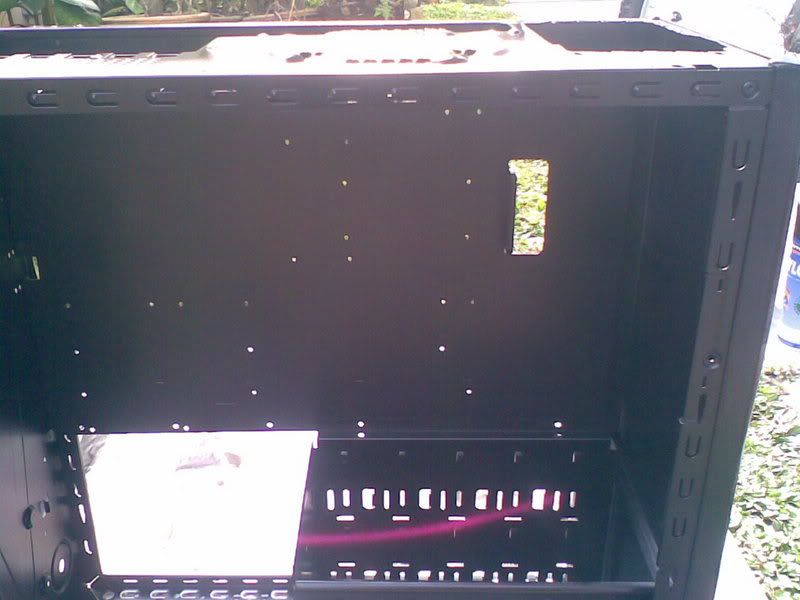

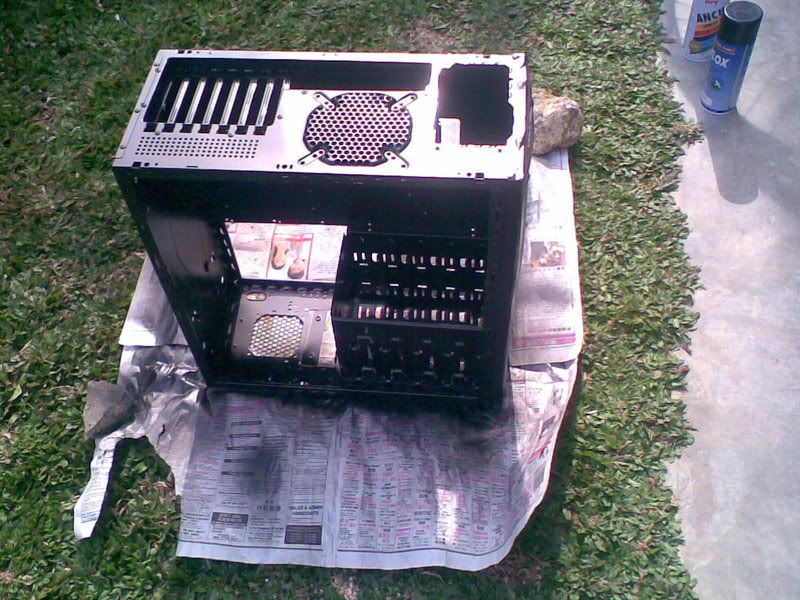

then spray casing into Flat Black ..{Nippon Paint also}

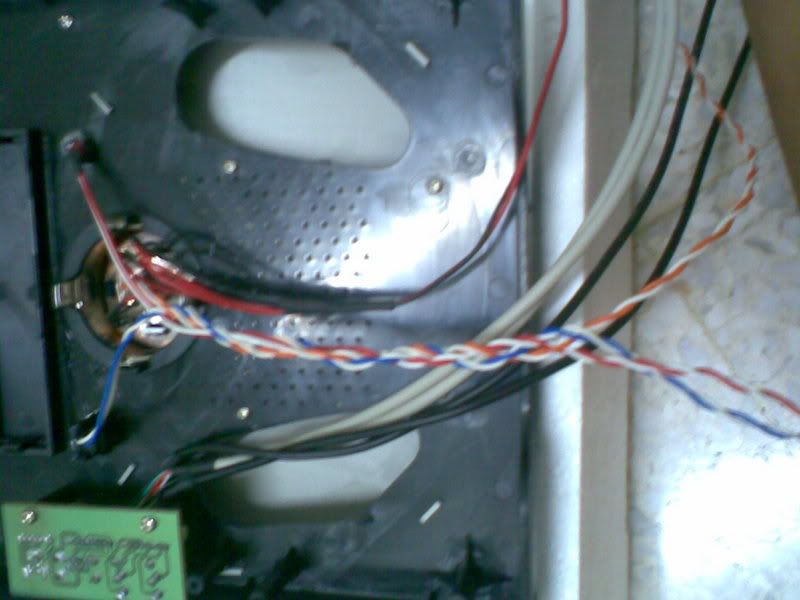

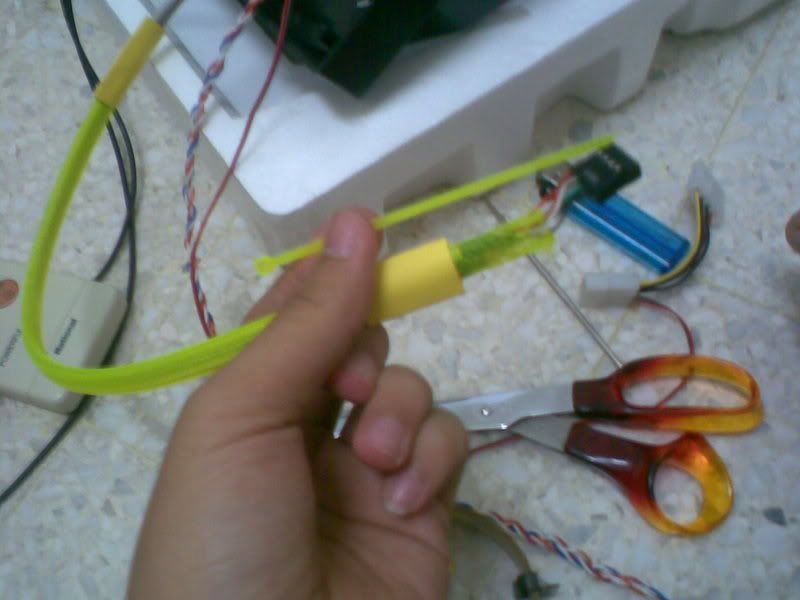

then sleeve the USB wiring and other wire ...

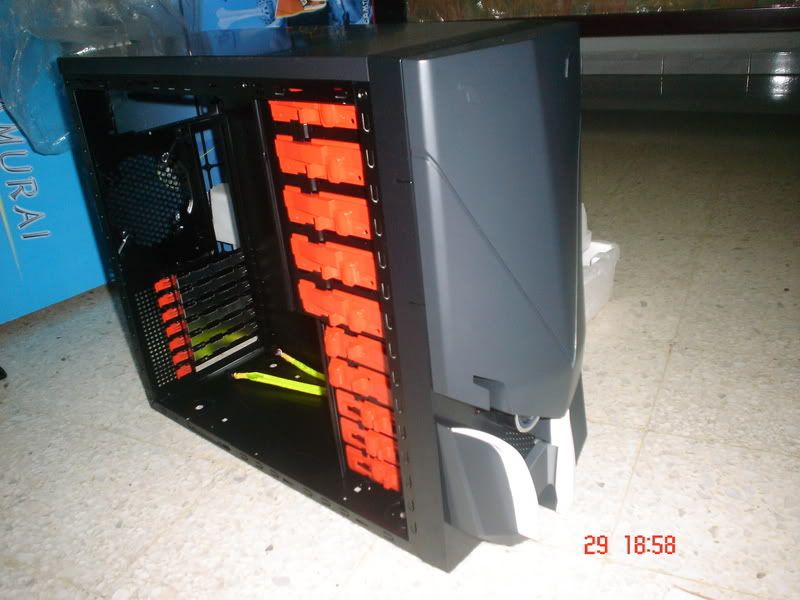

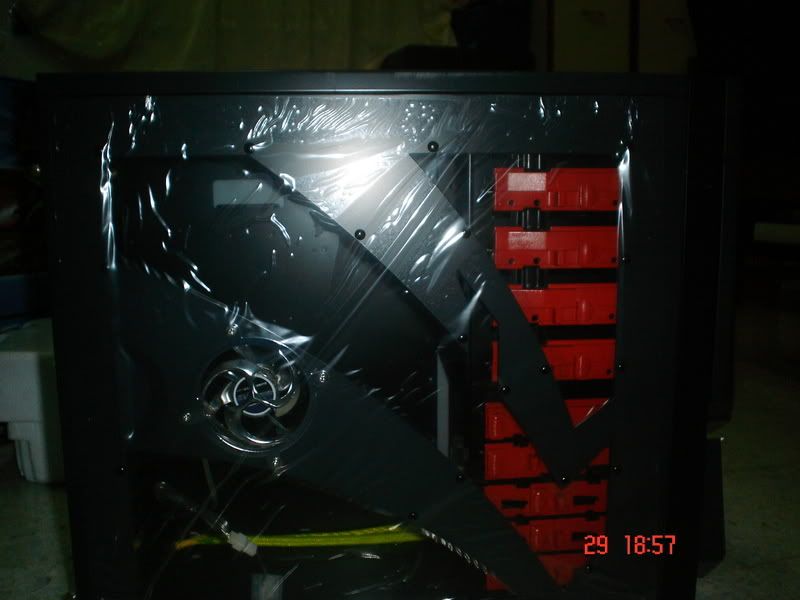

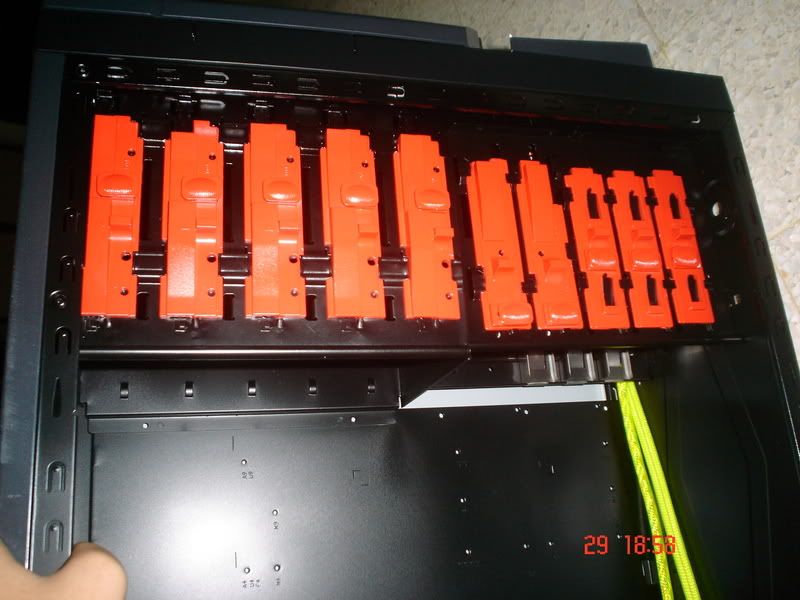

ONce everything done .. then the result is like this .........
From ZERO

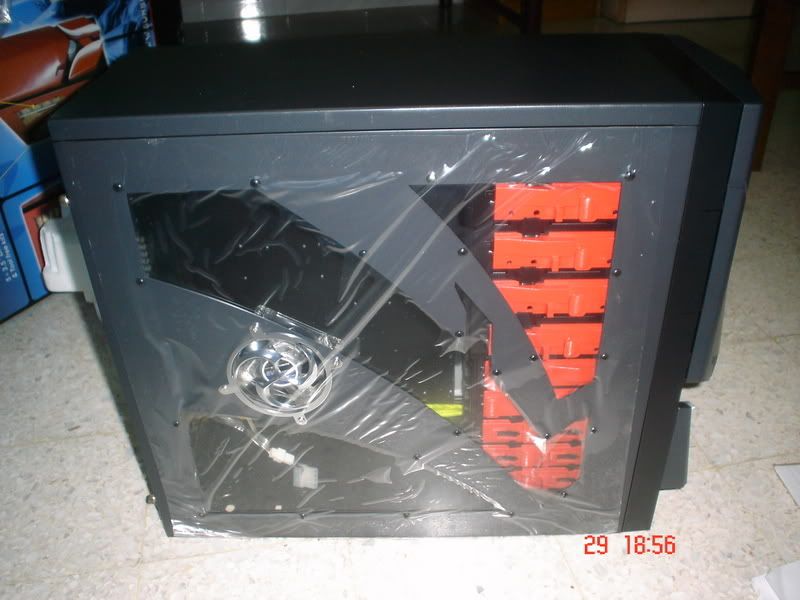

To HERO






this is my first time to MOD my casing .. super noob here ... any recommendation is WELCOMED .. thx

very nice.... i like the contra of the colors...

make sure u post pix of the entire rig installed and if u put in ccfl/ uv make sure to post pix of that as well

thx bro .. yeah after i install the whole rig with uv ccfl then i will post up the picture .. but that is few month to go .. but its worth to wait .. haha ..

wow.... really chio lei....
but 1 thing no chio....
ask u jio me when u spray u no jio

anyway it's really nice

Super geng!! i wonder how the paint last!>

haha .. aiyo, there will be another casing will be taking to mod somewhere in december .. that time sure jio u 1 ...

This is masterpiece lol,orange and black..really suits the whole thing man,good job!

haih..very nice bro..no u did it! well done

the colour is bloody red .. just my camera flash become orange .. btw thx for good comment

---

Added on September 30, 2007, 11:28 ami know that the paint will goes off if there is friction .. but i take some precaution .. i paint clear coat on the side panel that will have friction so that the paint wont goes off along with the side panel

This post has been edited by sheahann: Sep 30 2007, 11:28 AM

i tot u wanna buy bloody idiot red?
it's that u make me wanna mod too

after stpm u join la .. then we got another 2 casing to mod .. that time need cut side panel liao .. ppl use arcylic we use GLASS ..

wanna cut wor... i'll definitely think about it....

Wah .. the paint job just so brilliant ... nice and perfect color theme.

btw if u could do something to the front cover as well that would be just awesome..

paint the V shaped zone at the center with red paint and silver for the two edges besides the mouth of the ninja..

It would be just great to complete the whole ninja theme...

the casing is samurai,not ninja ....
btw thx .. will take ur idea into consideration .. wat comes into my mind now is to cut arcylic to the size of the FRONT unused DVD slot ... replace it so that it is transparent .. then inside put a nice figurine ...

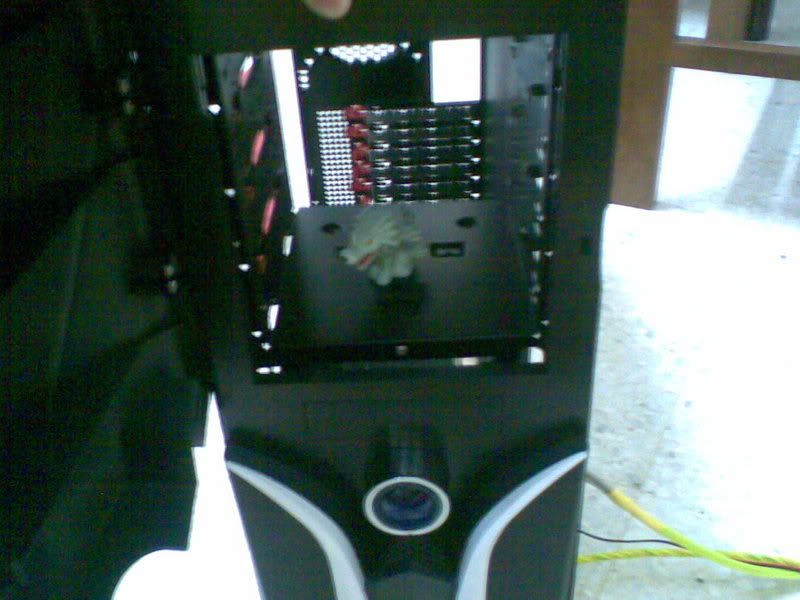

it should look something like this ....{idea stolen from uncle ianho} hehe ...

sry for low quality picture .

yeah i know that display figurine sucks .. but planning to get a nice figurine 1st ... can i just use double layer tape to tape the arcylic ?dont want to use gam or screw ..

hahah .. samurai not ninja ... my mistake ..

btw will the figurine be visible with the cover on ??

I was wondering why put it there when u could only see it upon opening the front cover ... it would be better to just place it nearby the window ... just my sense.

Yah u could just use double tape as long as it's not too visible...

haha , just planning .. mayb will just stick to wat i have now .. dont have to do anything anymore .. just see mood

hahah ... sure ..it's ur call ....

coz it's such a nice mod that should have gonna for perfect mod....

This is my idea:
Mod the casing to be Inverted ATX A.K.A. BTX Style.
