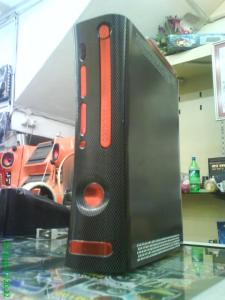

Hai this is my friends Xbox 360 which i water cooled it with Cooler Master Aqua Viva SLI

I made the front Skin but my friend made the rest...Do comment ok!!!

My own Xbox360 was died after i over baked it in the Oven hahahahaha...

Now I'm Xboxless hihihi....But that will not break my spirit to buy another one so i can water cooled it again..

Thank for watching guys....Nice to share it here.

This post has been edited by lksing78: Jul 30 2008, 08:59 PM


Attached thumbnail(s)

Care to show more pics?

Close up shots of the waterblock installed on the mobo would be nice

Wah Remaja Wawasan 2020! Doesn't that void the warranty ==

doesnt make any diffference unless you send it to MS.SG or that shop is able to solve ur regular 3r0d problem

Sadly no more pic guys...I already close the XBOX and will be delivered to my friend tomorrow

but will mod mine as soon i buy a new one..


but here's a tip:

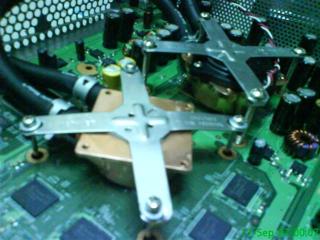

Just stick the X-clamp (the x- clamp is useful after all...hihihi) to the heatsink using 3M double sided tape (or any double sided tape)

And screw the X-clamp to the steel case...All screw are provided in the Cooler Master kit

The only extra is the washer and 4 long screw (long enough to be screw on the metal case,this is for the heatsink with pump install in it)...that's all

as for the GPU the water block is perfectly fit as the gab between the DVD-Rom is enough for the water block to be install.


Thanks for the support....Do free to PM me about the water cool project,be happy to help but don blame me if anything happen K.

Thread Moved.

Top notch stuff there...if you could get your own 360 soon, be sure to have a step by step instruction with screenshots to showcase your skill here

I was wondering end of september, maybe i will pay you a visit for water cooling for my home ntsc/j unit. It would be cooler( <--this cool) if you could change the PSU as well. Having the step down converter is annoying.

This post has been edited by PrivateJohn: Sep 17 2007, 06:11 AM

er
why ur led still showing red color??
u modded it also arr??

i also think want to change me led from green to blue

most important of all total cost how much

wow... power man...

Great job man.

Do keep us updated as to how well the water cooled box is running.

Like PJ said, any step by step instructions in the books?

I buy the watercooled yesterday from Low yatt at RM285...that all i pay.

and few sweat and 4 hours time...that's all

Maybe you should offer this service. Many ppl will want to buy from you. lol
A step by step guide would be helpful too

Nicely done btw cheers bro

This post has been edited by pmsoo: Sep 17 2007, 10:21 AM

nice. this may allow those whos xbox360 warranty has run out and want to have a permanent way of reducing the heat.

TS, how about setting up a service to mod xbox360?

I'd settle for some instructions on doing it

good job TS. Waiting this done with ur own console and showcased pic by pic

The power led is still green, it's just that the button itself is now a different colour.

intresting MOd!

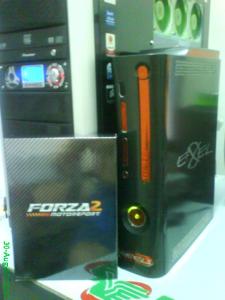

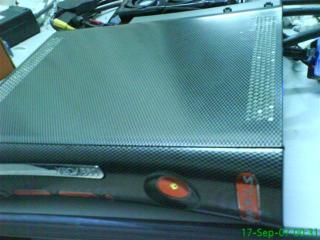

well this is my own XBOX that i skin it

this will make the picture more clearly

It's not 3ROD...hihihi


PS this is the last pic I took before it die on me


Attached thumbnail(s)

^

very nice console wor how much for the sticker skin cost?

wowww... great job...

Yesterday, iksing enduranced it for 1 night, no issue..
I will try it again tonight with forza and dirt and ghost recon..

so how much do i need to pay u for this ?

Thank you for the compliment

well I Skin the BOX meself..Took me 3 hour

So if u ask about the cost that will be

1)Carbon sticker 3ft X 4 ft = RM 38
2)Orange Taneka sticker 3" X 2" = est RM5
3)Chorome front panel = RM 84 (can get from www.play-asia.com)
4)And the look = priceless man

---

Added on September 17, 2007, 10:03 pmHold down ur horses man...I don wan to offer any service to mod it yet cause i need to do few test on it first.

Anyway what happen to ur XBOX ? If u having 3ROD I suggest u change the X-Clamp first u can find the tutorial some where in this forum that's is the cheap way to fix it

But if the X-Clamp replacement did not fix the the Problem and u fell your world is DOOM without your XBOX360 then we'll start to talk bout water cool it...




This post has been edited by lksing78: Sep 17 2007, 10:03 PM

haha was just joking bout it. My xbox is still healthy btw

Thanks ledang keep us updated.

Wow the skin is awesome dude.

Thank you....u can do it too,very easy

"All thing that created by man can be moded ,but all thing that created my God is untouchable by man"

Believe in it then you will make it...Simple fact.

This post has been edited by lksing78: Sep 19 2007, 12:04 AM

can get extra performance or not? hehehe

Possible...exp. PSP.

wow nice mod bro hahaha where you located i come kaypoh kaypoh

Wa lau eh ..No problem also want to mod meh

answer to ur question:
1)I not quite free right now cause in busy with Raya sales at my car accesory shop (location Serdang)
2)U don hav to change the X-clamp if u wan to do water cooling,cause u gonna throw the ori heatsink or post it back to M$
3)u don hav to mod if the BOX do not hav problem.


4)This is the list if u want to mod the skin
a)Chrome front panel can get from http://www.play-asia.com/paOS-14-71-dg-49-en.html
b)carbon sticker RM 38 ( can get from my shop)
c)Orange Taneka sticker rm 5 (also can get from my shop)
e)my worker charge rm 50 for the skin making (very difficult job, especially the breather hole)
So skin total is RM163

5)For water cooling
a)Cooler master Aqua gate Viva Duo RM 285 OR
Thermaltake Tide Water rm RM330(+ rm 140 for Thermaltake Aqua Blazing CPU waterblock,I'm gonna use this unit on my upcoming project.Coming to u soon )
b)Zalman ZM-RHS1 Aluminum Passive VGA Memory Cooler RM36
(I did not use this on my 1st project...not must but recommended)
c)Nyko cooling Fan for Xbox (very hard to find) est rm80
( i can take power source from the DVD-Rom but risky)
d)PC molex..this one cheap ,my house got many
e)workmanship rm (haven tinkin bout that yet )
so total Water cooled is RM 400 (for coolermaster unit)

think harder man..water cooling is not cheap toy to play with.Try to get your own stuff better.Maybe u can get them much cheaper then my price.
but i'll will only be free after Raya.So do ur shopping Now

This post has been edited by lksing78: Sep 20 2007, 01:00 AM

This is what I'm talking about...Tutorial Coming to u Soon
My new Frankenstein (Xbox360)will walk this earth again Muahahahahah...


Attached thumbnail(s)

Maybe I can try to venture into this as I already has the water pump, the radiator and the reservoir. I'm just looking for waterblocks, been looking for Koolance but very hard to get it mail to Malaysia. Since you recomended the Cooler Master, why not.

Wow the legendary tot31..come to see my Frankenstein
yalo very hard to find thing in malaysia...no demand i think..i like to say something in the Cooler master unit
if u closely exam one of the picture u can see that on the CPU side the water block tubing is blocked by on of the "Kapasitor"(indon slang)
So u need to bend it aside.bid tricky there.

Good luck.

I'll do the mounting on one of the dead X360 that I have.If everything is fine I'll put it into my own. Anyway which shop in Lowyat Plaza is selling the Coolermaster waterblock? I'm going there this afternoon during lunch break since I'm not taking any lunch.

All IT.but me and my friend buy at Thunder Match 5th floor i think...

Thanks for the info. I'll do the scouting this afternoon.

I am really happy with the performance so far.
Play daily for 1-2 hrs non-stop and no ROD or hang.
Will try this weekend for more than 3-4 hrs if not busy with family matter.

Just got back from Lowyat Plaza. Went to Thundermatch at 4th floor, no stock for the Cooler Master Aquagate Viva Duo, then headed to AllIT, very happy because the have a lot of stock but the price is RM359.....WTF... Really out of my budget.

Edit : Just ordered one from CCOM at level 2. They're selling for RM285. Nice

This post has been edited by tot31: Sep 20 2007, 02:45 PM

so tot31 and lksing78 for watercooled mod is better than any fan mod???

thanks

congrat...look like we hav new Frankenstein member soon Muahahhahaha....

---

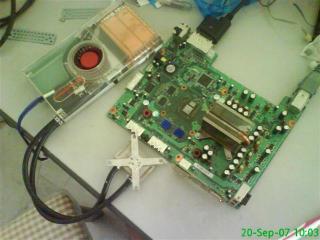

Added on September 20, 2007, 10:55 pmOK how do I explain this on..I'll try my shot k
tot31 if u read this back me up ok..

OK do u know ATI latest high end graphic the HD2900XT(do search on the internet about this latest beast)..Well the GPU of this baby is almost the same as the GPU on the XBOX360 unit
the different is the ATI HD2900XT can render DX10 but on the XBOX360 it can render only DX9..but as for the raw power there are almost the same

as u can see on the ATI HD2900XT a large heatsink is place on it to cool down the GPU and they use fan on this
which is for XBOX360 the M$ people use a very cute little heatsink to cool down the GPU and also use under power fan and that little cute heatsink is not even enough to
cool down the GPU inside the BOX.not even the new improve heatsink on Elite is enough.People in Singapore already become a victim for 3ROD in Elite unit.And one of
them claim the play it for only one week..Suwei Gile lah tu

That is why people realize that the GPU need to be cool by other method..that is by water cooling it.Which is the Best and Risky solution for now.



This post has been edited by lksing78: Sep 20 2007, 10:55 PM

As far as what I read at the various forums, all X360s that are modded with watercooling haven't been hit by 3ROD. Even some people who changed the x360 case to a PC case, putting a lot of 120mm fan also hit with this dreaded deases.

I was looking for a watercooling kit that can be fitted nicely into x360 and found out the Koolance is the best but the price and availability is out of the question. Then came Iksing78 that had successfully installed the CM Aquagate Viva Duo into it and the price is quite reasonable. So I would say watercooling is all the way.

Can't wait to get ny hands on it.

^ Nice finding and nice solution lksing / tot31. Hurry up do run testing for the stability and offer the services to community

yep tot31 i pretty interested if the watercooling solution can solve all the issue on the xbox360 permanently and with the price tag around rm400 that u guy mention it seem pretty good solution.

This post has been edited by squall_12: Sep 21 2007, 10:21 PM

I like to point out that this is not 100% guarantee on solving the 3ROD on XBOX360 but it is the BEST and RISKY(a minor pin hole on the water hose can blown ur XBOX360 to sky high) method to minimize the 3ROD to strike back.

WARNING : Do not bring your XBOX360 to LAN party as it will possibly damage the water tubing while transfer process is being carried out.

Hahahaha just kidding there

Hai It's me again with my next watercool for XBOX360 project

First of all i like to say I'm sorry that I cannot make up step by step tutorial on my project

the reason is because the tutorial is already been written by Guardian himself( ),the only part that change is to change the heatsink to waterblock

If u know how change the X-clamp u don need a tutorial on how to put a waterblock to ur XBOX360

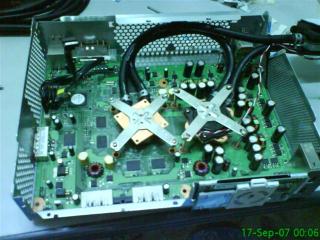

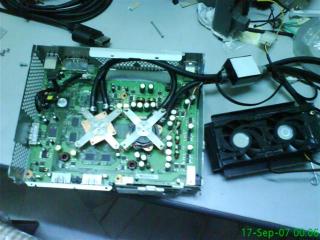

I attach some of the picture of my project...So look carefully and you'll know how's it's done.


Let me Present to you Thermaltake watercool : Frankenstein V2.0 watercool (24 hrs Leak test begin 10:45pm)

Enjoy the Pic




Attached thumbnail(s)

^ did a good job there

wow... nice neat one there...

Hai again ,this will be my final part for my project..I have so much fun by sharing my thing here at Low Yat forum.

But it's time to move on...so here are finishing for my watercool project ...Enjoy

Feel free to put on your comment or complain on this thread and if there's any question I'll be happy to answer them for you


Attached thumbnail(s)

^the finished product is really impressive, thanks for sharing your project

the best part is your design makes the x-clamps useful

very nice mod. but if i this apply this mod surely will find a way (ways) to hide the reservoir under the table. looks like the xbox lose it's nilai estetika when the reservoir attached to it

how much u wanna sold ur 360 casing
damn nice wehhh
can see thru inside 360

Priceless...

Ahhh I need to cut....I neeed a fresh BOX ahhhhh...a virgin one perhaps...Ahhh my brain...my brain is exploding with idea...hahahahahahha

lksing78, if u don't write the step by step guide maybe u can post bill of material (BOM) here. at least it will be a guide for those who want to do the diy water cooling mod.

Haik! wa kari mas....the bill is on the sekon (2nd)page on this thread...Is not that i don want to write about it..if u know how to change the X-clamp..u will see that changing the waterblock will be easier..the extra is u maybe need to blow hole for the water hose.Or u can ask me anytime.no problem one.

hahaha. sorry dude. missed that post. maybe because it's too long.

if i bring my xbox housing
how much u wil lcharge to mod like ur final product??

erm...water cooling really 100% aviod 3ROD?

So sorry bud but i don hav the time now.busy with work...After Raya OK.

If water cool can 100% avoid 3ROD then I can put XBOX out of business...hahhahaha...just kidding there Bill
It minimize the 3ROD to strike back.

how much would it cost to have you fix a water cooling system on xbox?
including price of hardware (waterblock etc) and workmanship?

i feel that you pro in modified xbox
you think before that to help people add the water cooling to earn some money?

wow, pretty crazy mod here. does it really make the difference? i mean what's the benefit of this water cooling?

hahaha..me a pro...me only newbie leh..hihihi...see my avantar below

No i don do the mod for money....I just love something different that's all.

---

Added on October 4, 2007, 1:45 amU play pc right ...what is the benefit of watercooling inside a PC?
Same concept bud...

Is that ur PC rig...Nice and neat.

This post has been edited by lksing78: Oct 4 2007, 01:46 AM

To izaman

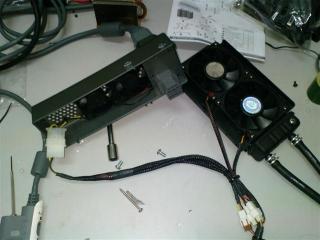

This is where i draw the power supply to drive the watercool system.



Attached thumbnail(s)

hmm...quite a mess IMHO. lksing, can i power up the watercool system using 12vdc adapter?

can we tap the 12v from the original fan supply? I mean cut the wire and re-solder a new fan to molex connector.

No.!!!!....Don do that!!!!...the ori XBOX fan hav fan controller which is sync with the processor temp.....so if u take the power source from there...
Hihihi...Booom ....The other source is from the DVD rom (Risky though).

---

Added on October 4, 2007, 4:48 pmcan but u will hav to drag all the cable here and there if u more ur BOX around..(Hav to bring Xbox360 adapter,AV cable and another extra 12vdc adapter some more WOW)

If u mean my working table yup it pretty messy...but if u refer to my mod...i don think that's messy...Your 12vDC adapter will be messier.

This post has been edited by lksing78: Oct 4 2007, 04:48 PM

lksing wat kind of head you using for both gpu and cpu ???

IMHO, maybe i go for extra adapter because it's cheaper that buying a nyko cooler.

really cool mod indeed! now i might cnsider 2 get x360 4 me!

MIAHAHAHAHA im gonna enjoy doing this mod when i get those stuff.. wonder can use those stock clipper instead of xclamp.. hideous dude

nice more.. really impressive.. i think u must color ur xbox all black.. now black and white.. hahaha.. and looks more cool if the dvd-rom itself be black.

Prototype photo only mah hihihi..
no money to make the real finish one..POkai liau lo

My finance ministry freeze my account some more

how much for the thermaltake water cooling system and what model??

This post has been edited by daTUK_SErI: Dec 5 2007, 03:24 AM

http://forum.lowyat.net/topic/521588/+20

lksng the tidewter u bought includes the full copper tt vga waterblock rite?

Yes the watertide unit comes with copper water block
U haven't started meh? i tot u started the project already..really wan to see the ur master piece
Do post some pic after finnish ya...

cant find any stock for that full copper vga

---

Added on December 6, 2007, 4:30 amothers done oleady xcept watercooling..
im not gonna post the pic now .. shud i?? naa not painted yet.. hehe

This post has been edited by lightonokira: Dec 6 2007, 04:30 AM

i'm starting my project with aquagate duo right now, i have some problem with the input, is it ok if i just get the supply from the dvd source.. does it effect the dvd drive? or maybe is much safer if im using the external 12v adapter? need ur opinion...



or maybe from here..



This post has been edited by daTUK_SErI: Dec 6 2007, 05:08 AM

Use the one below the power in ( 2nd screenshot ). Way better, direct power sauce ftw!

Edit: another sauce for you to use. 12v at dvd-rom is not recommended since dvd-rom is using it a lot and it can put heavy burden to circuitry and somehow if it could not hold it you brick your 360. Use the other free sauce.



Credit to pic owner.

This post has been edited by Taman Linkin: Dec 6 2007, 05:56 AM

NINONINONINO

Language Police Patrol..

"Another Sauce For You To use"

Source*

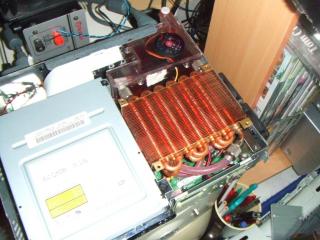

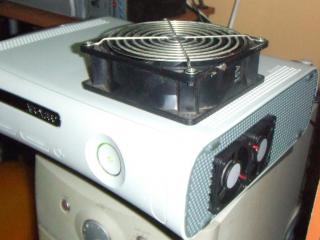

lksing78, thanks for giving this idea... I manage to revive my 3rod xbox360 and i'm using water cooling method now.. its work great..






just my first try.. I will 'touch up' a little bit later on, very busy with my own jobs right now.. need to find shorter screw and probably find new metal plat to hold down the copper.. x-clamp plat already thrown away long time a go, both of them.. hhahahahhaha

This post has been edited by daTUK_SErI: Jun 21 2009, 12:55 PM

datuk_seri ... what make are those water blocks? where did you get them and how much ?
Does the waterblock on the GPU have enough space to clear the bottom of the dvd ?

its copper.. im using collermaster aquagate viva pro duo, there a bulk section here i think ngbh sell it around rm275 (bulk). but i really need so much, so i went to loyat, cycom no stock (tot31 get it around rm285 there), pczone got stock but rm300, i just grab it.. it has plenty space under the cdrom.. my pic there just my first test.. so thats why im using long screw.. so, later on i will touch up kasi cantek2... bz maa..

Ask some X-clamp from one of our forumer Djiln (sorry if i spell ur name wrongly ).I heard he got a lot.Use the x-clamp so u can put the DVD-rom on the top of the heatsink

PS: do put some suction fan to suck out hot air from ur Box...KUDOS Good job

lksing78 better use an adapter instead have u heard the latest news about ppl getting banned for modding xbox with fan? (they detect with bios voltage meter) so wat ever u r adding that use electricity better get source from adapter or wat ever la xcept 360

I won't worry bout that cause my theory is,I draw the power from the extra cooler that i brought ( See post #64,from previous page).Which is easier.
So if ur worry about ur console been ban from LIVE ( which is a rumour and not yet proven) try using my method that i use.I don think external cooler will get u ban right.

Good job on ur mod...KUDOS

i oso dont know la.. takut la wat ever from 360 oso dont want im gonna use external adapter la for now

watercooled great.. now my gpu not hot like before...



Attached thumbnail(s)

anyone tried modify the heatsink with 3rd party cpu/gpu cooler(air-cooling)?

hi, your 360 still running great? no more 3ROD?

guys
user car coolen instead of water
how much the heat generate now??
is it reduces 50%

less than original heatsink can do. its meant it can cool out better

Don push ur horses cowboy
Try the 48 hours non stop gaming ..how??? ada berani hihihi...
