still new to intel, many thing to be learnt...
Intel Pentium Dual Core E2140/E2160/E2180 Thread, Discussion & Compilation
|
|
 Nov 7 2007, 01:00 PM
Return to original view | Post
#1
|

Elite
8,103 posts Joined: Jan 2003 From: Tanah Lot @ Dungun, Terengganu.
|
guys, just a quick check, any M0 user here? if there is, how far can it fetch?
still new to intel, many thing to be learnt... |
Quote|
|
|
|
|
Nov 7 2007, 01:30 PM
Return to original view | Post
#2
|
|
Elite
8,103 posts Joined: Jan 2003 From: Tanah Lot @ Dungun, Terengganu.
|
QUOTE(wodenus @ Nov 7 2007, 01:15 PM) M0-stepping E2140 here, I've reached 420fsb but I have to raise the vCore to 1.475 yup, mine is mo e2140 too...  I turned that one off after temps hit 76C  it's on a cheap cooler now while I wait for extremeocer to make me a phase-change cooler. If he doesn't run away with the money (LOLOL just kidding !! ) I should be able to run at least 420 fsb when I get it. Now running at 390fsb, Orthos stable for 7 hours 45 minutes, OCCT 1 hour was stable. Got to try for longer. what's ya highest clock with stock voltage (1.325v)? i'm currently burnin d chip, not doin so well (2.8GHz) but just a fore play as i'm still nuts in intel oc... QUOTE(kucingfight @ Nov 7 2007, 01:18 PM) Any recent L2/M0 should overclock decently well. Pretty simple, with a good Ocing board + HSF, juz increase the FSB..violaa ic, thanks bro. one thing i notice bout this 2140 is regardless voltage, be it stock or way up to 1.375, d load temp is alot diff then idle temp (usin coretemp 0.95.4). on load it can go as high as 60'C, while on idle d temp read is just only 30 (+-3)'C. is this normal?  btw, i'm runnin d chip on old skool 965p ds3 (rev 3.3) board with a pair of d9dcl, d chip cooled by katana2 used on my old rig b4, kinda outdated...  |
|
|
Nov 7 2007, 06:48 PM
Return to original view | Post
#3
|
|
Elite
8,103 posts Joined: Jan 2003 From: Tanah Lot @ Dungun, Terengganu.
|
QUOTE(kucingfight @ Nov 7 2007, 05:54 PM) yeah the load temps differs by a relatively huge margin over idle. feels great changing camp to intel rite? lol yeah d feelin is nice when figures are involved, but still i wun swear myself to intel... ya ur M0 is way better than my 1st batch L2. sweet spot @ 3ghz @ 1.3875v, 3.1ghz @ 1.45v. more than tat no b00t gigabyte 965p ds3 undervolt alot ar?
|
|
|
Nov 8 2007, 12:58 PM
Return to original view | Post
#4
|
|
Elite
8,103 posts Joined: Jan 2003 From: Tanah Lot @ Dungun, Terengganu.
|
QUOTE(bryanyeo87 @ Nov 8 2007, 12:02 AM) @ah_khoo stock voltage is reported as 1.325v. d stock cooler is still untouched, infact, i never use any stock cooler for my own rig... Wuts the voltage and is that temp stock cooler? and i have come across some M0 e2140 chips with 1.325v and 1.3125v as stock volts as reported in bios any 965p ds3 user here? wat bios should i load in order to adjust ram timings manually? i'm on f12 currently & there's no such feature at all...  one more thing, when u guys mentioned certain clock at certain voltage, is d voltage referring to d load voltage shown by cpu-z, or d one set in bios? there's a big diff in my case... This post has been edited by ah_khoo: Nov 9 2007, 09:45 AM |
|
|
Nov 9 2007, 02:42 PM
Return to original view | Post
#5
|
|
Elite
8,103 posts Joined: Jan 2003 From: Tanah Lot @ Dungun, Terengganu.
|
QUOTE(wodenus @ Nov 9 2007, 01:49 PM) Gigabyte hides the RAM timings for some reason. If you press Ctrl-F1 at the main BIOS menu you will see the options after you select the MIT thx for d tips bro, can't wait to tweak d ram as i think i almost hit d limit of d chip ledi...  |
|
|
Nov 11 2007, 05:13 PM
Return to original view | Post
#6
|
|
Elite
8,103 posts Joined: Jan 2003 From: Tanah Lot @ Dungun, Terengganu.
|
QUOTE(gsan @ Nov 11 2007, 12:15 PM) finally you join the intel fan club dunno yet bro, but 2140 @ 2.8GHz w plain os VS x2 @ 2.6GHz w make up os, i can feel d difference... btw, how does its performance compare to X2 s939? i have kept my 0614, waitin for a nice x-fire board / sli board...  |
|
|
|
|
|
Nov 23 2007, 09:48 AM
Return to original view | Post
#7
|
|
Elite
8,103 posts Joined: Jan 2003 From: Tanah Lot @ Dungun, Terengganu.
|
QUOTE(Are_keem @ Nov 23 2007, 03:25 AM) yesterday hand itchy, reset cmos. wanna try OC more with 2GB ram. try to push to 380 instead of normal 350FSB, but keep restarting. until now, seems something faulty. my rig keep restart, didnt even pass through POST. anybody could help me?  dont think mobo kong since it's just a month old. |
|
|
Nov 23 2007, 12:56 PM
Return to original view | Post
#8
|
|
Elite
8,103 posts Joined: Jan 2003 From: Tanah Lot @ Dungun, Terengganu.
|
QUOTE(Are_keem @ Nov 23 2007, 12:43 PM) done, reset by removing the battery and jumper, remove ram from ram slot, try one stick at a time? still the same. how? |
|
|
Nov 28 2007, 08:47 AM
Return to original view | Post
#9
|
|
Elite
8,103 posts Joined: Jan 2003 From: Tanah Lot @ Dungun, Terengganu.
|
QUOTE(Shoot@M3 @ Nov 28 2007, 01:00 AM) Not bad idle is already @ 50'c? bro, watch out ya temp...  Mine's @ 3.33GHz stock cooling and no add Vcore Not running super PI but @ around 50'C idle I think 55'C is still ok |
|
|
Nov 30 2007, 06:53 PM
Return to original view | Post
#10
|
|
Elite
8,103 posts Joined: Jan 2003 From: Tanah Lot @ Dungun, Terengganu.
|
QUOTE(Are_keem @ Nov 30 2007, 06:01 PM) my gaygaybte DS3 confirm KO, depend on how fast d board send by d shop to d distro. sent for Rosak Mai Antar aka RMA oledi.. how long usually will it takes? my condolence to ya board bro...  |
|
|
Dec 7 2007, 02:10 PM
Return to original view | Post
#11
|
|
Elite
8,103 posts Joined: Jan 2003 From: Tanah Lot @ Dungun, Terengganu.
|
any asus user here? d bios is too rich for me, dunno how to set... wats nb bootstrap...
hopefully d new board can push my crappy 2140 a 'lil further... |
|
|
Dec 10 2007, 01:36 PM
Return to original view | Post
#12
|
|
Elite
8,103 posts Joined: Jan 2003 From: Tanah Lot @ Dungun, Terengganu.
|

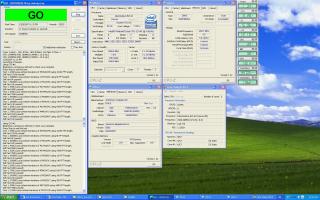

QUOTE(kucingfight @ Dec 10 2007, 09:44 AM) Colin? Colin who? those oem chips bro? wah... dun tempt me leh... yeah the FA is meant for High Volume manufacturing, not for warranty purposes. Think it's not feasible to run FA on every single RMAed CPUs or , you could loan ur cpu to our Ocing expert for a session of maxing our CPU out . Claw would love doing that  Btw, i've got my M0 E2140 @ 3.2ghz @ 1.3v (bios) prime stable. Haven tested fully yet with lower volts...don u juz love how they clock   hmm... it could be a nice chip to play with while prayin for q6600 price to drop... |
|
|
Dec 11 2007, 07:03 PM
Return to original view | Post
#13
|
|
Elite
8,103 posts Joined: Jan 2003 From: Tanah Lot @ Dungun, Terengganu.
|
QUOTE(clawhammer @ Dec 11 2007, 06:34 PM) I think 3.2Ghz is a pretty ordinary result for most people. These chip are wonders depend on luck bro, not all can do that with low voltage, like mine... manage to shave off some volt after changin to p35 board, but still my chip need quite high voltage to achieve 3.0GHz & above...
|
|
|
|
|
|
Dec 11 2007, 07:30 PM
Return to original view | Post
#14
|
|
Elite
8,103 posts Joined: Jan 2003 From: Tanah Lot @ Dungun, Terengganu.
|
QUOTE(kucingfight @ Dec 11 2007, 07:13 PM) how high isit needed for >3.0ghz? holy cow!!! default @ 1.1875v? no wonder can do 3.2GHz @ only 1.31v... My E2140 defaults @ 1.1875v .. am i the only one? mine 3.0GHz need 1.375v in bios, have yet to try 3.2GHz but it should be around 1.45v & above. |
|
|
Dec 12 2007, 11:16 AM
Return to original view | Post
#15
|
|
Elite
8,103 posts Joined: Jan 2003 From: Tanah Lot @ Dungun, Terengganu.
|
QUOTE(kucingfight @ Dec 12 2007, 10:52 AM) i mean, what does ur core temp reporting @ 3,2ghz load? coz mine, there's a HUGE temp load difference with L2 and M0 could it be d ihs is not makin proper contact with d die? |
|
|
Dec 13 2007, 12:57 PM
Return to original view | Post
#16
|
|
Elite
8,103 posts Joined: Jan 2003 From: Tanah Lot @ Dungun, Terengganu.
|
QUOTE(seanhart @ Dec 13 2007, 12:11 PM) i tried 533@948 like tat if 3.1ghz vdimm 2.45 vtt 1.5 nb 1.55 vcore 1.55 ur voltage is too high mate, watch out... cant even load to window =.=" |
|
|
Dec 16 2007, 08:20 AM
Return to original view | Post
#17
|
|
Elite
8,103 posts Joined: Jan 2003 From: Tanah Lot @ Dungun, Terengganu.
|
QUOTE(clawhammer @ Dec 16 2007, 12:17 AM) Many people overclock without running stability test. If it doesn't pass the stability test for a few hours at least, the system is not stable hence it's pointless. There's no point concluding that the chip does well at such speed. this is so true, you speak my words bro. If it's just as easy as increasing the FSB and booting up with a higher clock speed, passing PI, overclocking is so much easier. i think it's bout time for me to change hsf, never have a decent one as my case is limitin me due to its size... |
|
|
Dec 23 2007, 04:40 PM
Return to original view | Post
#18
|
|
Elite
8,103 posts Joined: Jan 2003 From: Tanah Lot @ Dungun, Terengganu.
|
chill out bros... it's always healthy to have discussions.
as for c2q vs phenom thingy, let just wait until b3 from amd & x9xx series of intel to be officially launch. d current batch of phenom is no match for c2q (performance wise) as intel are more mature in term of technolgy, they've been leadin d industry like once amd did (in s939 era) since d launch of c2d. fingers crossed till then... This post has been edited by ah_khoo: Dec 23 2007, 04:43 PM |
|
|
Dec 28 2007, 04:57 PM
Return to original view | Post
#19
|
|
Elite
8,103 posts Joined: Jan 2003 From: Tanah Lot @ Dungun, Terengganu.
|
QUOTE(rozz_1291 @ Dec 28 2007, 04:07 PM) How come I c E2140 n E2160 can OC so.... freakin high.... But mine E2180 stuck @ 2.6 cannot go higher.... S*#t.... If go higher, got blue screen blink n keeps on rebooting it self.... settin of ya ram perhaps? |
|
|
Dec 30 2007, 11:45 AM
Return to original view | Post
#20
|
|
Elite
8,103 posts Joined: Jan 2003 From: Tanah Lot @ Dungun, Terengganu.
|
QUOTE(Punish @ Dec 29 2007, 02:07 PM) no dont IP35-E no good...iam using it right now...the fsb cannot reach 400 on stock voltage.... not really as there are successful stories bout it. could be other factors holdin back ya oc. GTG Added on December 29, 2007, 2:07 pmno dont IP35-E no good...iam using it right now...the fsb cannot reach 400 on stock voltage....try the new p35 MSI board.... GTG Added on December 29, 2007, 2:10 pmyou guyz very lucky...you proc can reach 3.2 easyly....mine stuck at 2.9 stock voltage....1.4vcore doesnt do any good for me....still cannot stable at 3.2..... 2180 sux..go for 2160 instead.... GTG QUOTE(rozz_1291 @ Dec 29 2007, 02:11 PM) N.... how much dat MSI MoBo cost???? for value, go for gigabyte p35-s3l like kucing. if u have all d money to burn, i would recommend asus. I bet its gonna punch a big hole in my wallet....  QUOTE(rozz_1291 @ Dec 29 2007, 09:45 PM) Lets say.... both r Value type..... ??? depend on chipset used regardless what brand it's, even cap ayam but with any hynix or micron d9 ram will do pretty decent.   |
|
