Finally got something done ... being busy with other stuffs lately ..

Changed some hardwares and redo cable management...

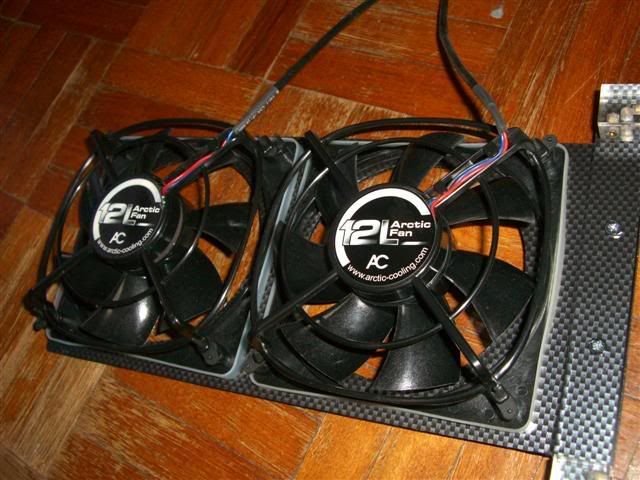

Added a custom made side fan bracket .. hohoho dual 12cm fan running in low RPM and silent ..


More photo would be uploaded tonight .. .going out now .. .chow !!!

wher u gonna install the fans??? nice fans there...

hmm where am I going to install those fans .......

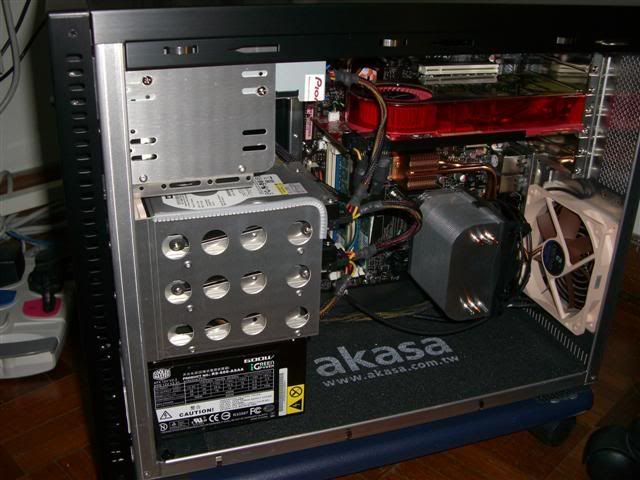

Here it is ....

Nice

How's the GC temps?

Where did you buy your silicon vibration dampening kit for the 120mm fan? The 1 put between the fan and the casing.

hmm overall drop to 54 during idle and max about 78 ,,,

thanks to the poor design of all the stock cooler found on the graphic card now days ... before that was idle at 60 and load about 85 ...

Overall the fans also lowered the chipset temperature by 4c ..

as for the dampening kit I sapu whenever it's available at All IT Hypermall last time ...

Now days it's no more available anywhere..

Wow 6 degrees cooler .

I feel like it's not the stock cooler's poor design but mainly due to the rise of performance of the GC. At least stock hsf of high end GC now utilises heatpipes.

hahah trust me the heatpipes is nothing .. coz it's only two short heatpipes that fixed to a high airflow restriction fins that doesn't help to dissipates heat fast enough to keep the card cool ..

I'm looking for Thermalrigh HR-03 R600 version right now ...

With that cooler on hand then the system would be really complete with silent and quiet yet powerful....

but that gc cooler might oso cost a bomb at around rm300...! but ur red arclic is really nice, nice choice of fans as those r very silent type... but y ur arctic freezer terbalik??? isn't facing the rear might be better??? wher u bought those fans??? owez a fan of AC fans... the frame juz looks cool (like those restaurant fans, haha)... ur case is quite tiny too... any bling bling???

Yah... I could still effort the cooler ...

The artic heat sink is mounted reversely because my rear case fan is intake and front fan is exhaust ...

I bough the AC fan 2 months back @ Singapore over Sim Ling Square....

I would be getting a CM red CCFL to light up the case ......

idea of that little boy that own casing same like urs its definitly good.
is there any bling2 inside?

U mean for the little kid's case or mine ??

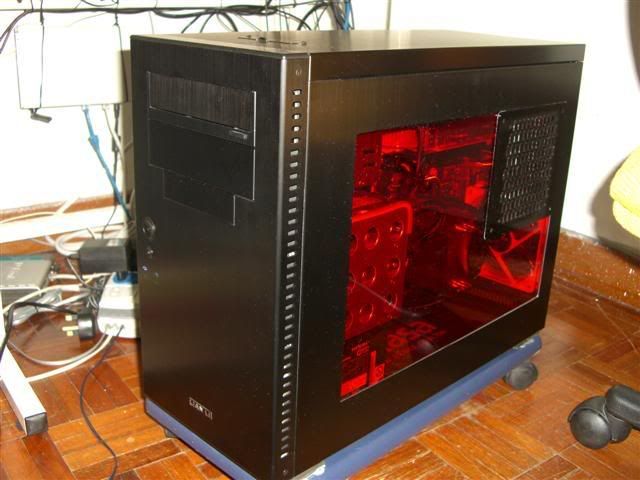

I would be getting a red CCFL if possible to light up my case ...

This post has been edited by Doom: Jul 13 2007, 11:35 PM

of course ur case la.
if u put red CCFL it will be kinda oven in ur case

doom where is ur HR-01............

red CCFL not much effect in lighting up in interior, i suggest try to get UV instead.....

My HR-01 is officially retired from my hardware list ... I put it aside ..

I find it doesn't performs the same every time after re-installation .

that's why gone for this Artic Cooler that perform more stable ...

@LExus65 ..

Why u said that red CCFL doesn't lights up the interior ...

I thought CCFL is always brighter than UV CCFL ..

The only reason that I don't go for UV coz there's nth much within my case that's UV reactive ... so what to glow with UV CCFL ..

CCFL are brighter than uv CCFL.
just put the red CCFL and see how its goin, it will add a burn effect hooot

That's what I thought and wanted to get a GTR sticker to paste within case ..

close by the side panel of course ....

Now working on the LCD temperature display .... still struggling to think off how to mount the two display with a on/off switch as well .

doom does that akasa work as u expect?

Hmm ... for certain area only .. actually I pasted one piece behind the front panel and it does absorbs the noise generated by the front fan that exhaust air though the front panel.

As for the piece that u guys seems laying at the lower section of the case is to cover all scratches mark that don't know done by whom ...

I did that, remember when we're raping the casing at ATE?
I got jealous of you and i use the carkey to scratch scratch it.

Nahh, just joking.

doom..when u go england, sell me the case, ok?
wanna build my server and this case really good for me...

so far u found any weakness of this case?
