Technical LIVE after Death...Revival SPELL?, Revived=80 3ROD Again=9 R3RODR=7

views

tot31
post Aug 6 2007, 08:05 AM

I DON'T GIVE A DAMN
*******
Senior Member
2,451 posts

Joined: Jan 2003
From: GOD's Land
rezalid, yg ko buat tu bukan heat pipe lar, tapi air duct tunnel. Heat Pipe mesti daripada bahan logam....Anyway...mmg cun ko nyer air duct tu....
tot31
post Aug 6 2007, 09:24 AM

I DON'T GIVE A DAMN
*******
Senior Member
2,451 posts

Joined: Jan 2003
From: GOD's Land
QUOTE(tailgunner @ Aug 6 2007, 09:21 AM)
the GPU and CPU is not working and only got power to go throught the LED that show me 3rod sweat.gif Fan will stop spinning only a sec then 3rod message show up. cannot masak telur somemore cry.gif
*
What's your error code?
tot31
post Aug 6 2007, 11:37 AM

I DON'T GIVE A DAMN
*******
Senior Member
2,451 posts

Joined: Jan 2003
From: GOD's Land
QUOTE(tailgunner @ Aug 6 2007, 11:30 AM)
^

tot31, error code 0002 after the burn still related to network problem sweat.gif before this is E73 and is ehternet port problem... but play game about 1 minute then graphics gone got mad glitch, after restart get E73. rclxub.gif

djinn, no the fan is not going to spinning for 2 sec. i turn on then the fan will stop and show me 3rod. the gpu and cpu just not going to heat up. cry.gif
*
So, you're saying before this you got E73 and it's 1ROD right but now you got error code 0002 with 3ROD.

rezalid, I think it's better for you to use duct tape instead of masking tape on the top of the GPU heatsink as duct tape can stand heat better than masking tape. I'm using duct tape to cover any gaps between the original air tunnel and the gpu heatsink.
tot31
post Aug 6 2007, 03:41 PM

I DON'T GIVE A DAMN
*******
Senior Member
2,451 posts

Joined: Jan 2003
From: GOD's Land
QUOTE(tailgunner @ Aug 6 2007, 12:04 PM)
bro tot31, can u fix it? the console still can turn on but cpu and gpu is not working... sweat.gif
*
E73 is hard to fix as it related to the ethernet chipset not like the most 3ROD cases that are gpu related.

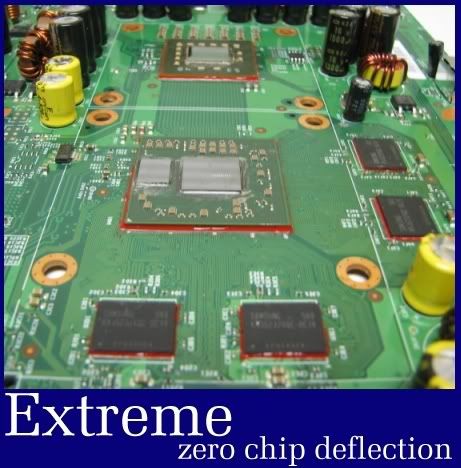

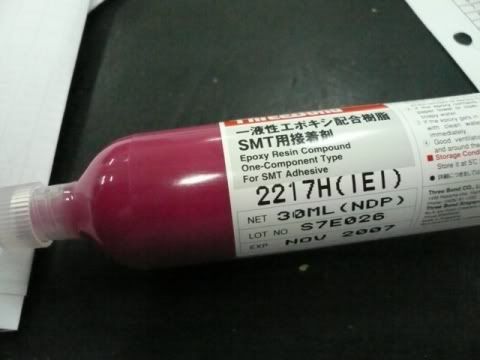

Anyway I got my hands on this special resin.

user posted image

What this special resin does.

» Click to show Spoiler - click again to hide... «


So my theory now will be , XClamp Replacement + 12V rear fans mod + Additional 50mm fan and air tunnel fan duct for the gpu + Special Resin = 98% permanent fix for 3ROD. thumbup.gif

The best fix for the 3ROD cases will be GPU reballing or reflow + XClamp Replacement but to get GPU reballing or reflow here is very expensive (around RM800 doh.gif , I've asked).

This post has been edited by tot31: Aug 6 2007, 03:56 PM
tot31
post Aug 6 2007, 04:09 PM

I DON'T GIVE A DAMN
*******
Senior Member
2,451 posts

Joined: Jan 2003
From: GOD's Land
QUOTE(Tanakwagu_noh @ Aug 6 2007, 04:05 PM)
flex.gif waiting for my revive xbox360 done by tot31..hehe rclxm9.gif
*
If you want to wait for a day or 2, I can apply this resin to your revived 360. Otherwise I'll send it to Sabah tomorrow.
tot31
post Aug 6 2007, 05:01 PM

I DON'T GIVE A DAMN
*******
Senior Member
2,451 posts

Joined: Jan 2003
From: GOD's Land
QUOTE(silencer @ Aug 6 2007, 04:44 PM)
w00t tot...i hope u dont mind that i add u in my first page for fan modding too...great job dude
*
No, I don't.
tot31
post Aug 7 2007, 08:33 AM

I DON'T GIVE A DAMN
*******
Senior Member
2,451 posts

Joined: Jan 2003
From: GOD's Land
QUOTE(DjiNn @ Aug 6 2007, 08:00 PM)
Hey... is this threebond product?
*
Yup it is a threebond product.
tot31
post Aug 7 2007, 10:31 AM

I DON'T GIVE A DAMN
*******
Senior Member
2,451 posts

Joined: Jan 2003
From: GOD's Land
QUOTE(silencer @ Aug 7 2007, 09:02 AM)
From your excellent  fan modding setup picture and your credibility in xbox live society.... I have no hesitation to refer to you first if anythin happened to my 360 again....Highly Recommended.... thumbup.gif  thumbup.gif  thumbup.gif
*
My advice bro, don't wait until it hits again, just do it. Prevention is better than cure. Same goes to any X360 than haven't been hit by 3ROD, better do all of this mods as all of X360 are like time bombs.
tot31
post Aug 27 2007, 10:08 AM

I DON'T GIVE A DAMN
*******
Senior Member
2,451 posts

Joined: Jan 2003
From: GOD's Land
QUOTE(michael9413 @ Aug 27 2007, 09:58 AM)
maybe you can mod coolmaster on to it...
it will help a lot...
table fan i duno coz now the problem is too much heat until the Mobo wrap...
*
The mobo warps not wraps...laugh.gif
