what did u do to ur keyboard...u spray it or what?

lol...... why??

Wei brother, here is Casing Modification, not Cupid's Corner larr

Anyway, to the TS, nice mod. Really respect your creativity.

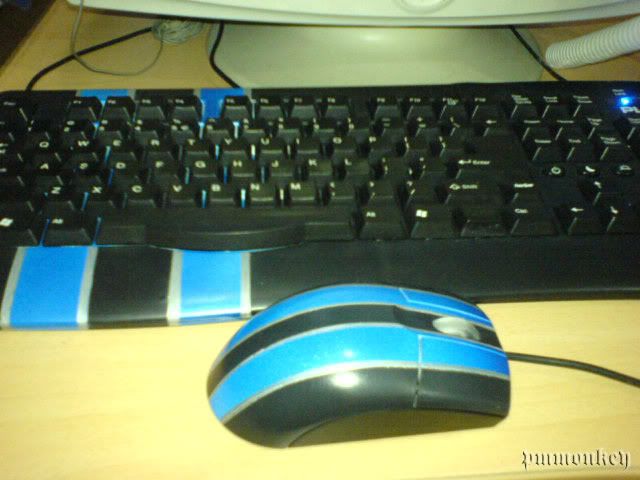

Yes, it's sprayed like the mouse.

Not a typical girl . And nothing close to a beauty.


Thank you thank you.

This post has been edited by pmmonkey: Apr 12 2007, 09:07 PM

whats the keyboard ori color b4 u spray it?

hahaha.. sry sry.. off topic d.

The keyboard is black. Only did two stripes for it, same two stripes for the mouse.

oic..forgot bout the blue stripe

Whee~ back for more updates.

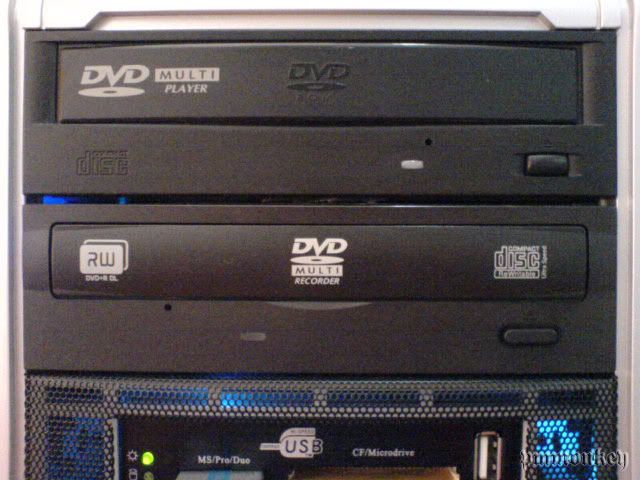

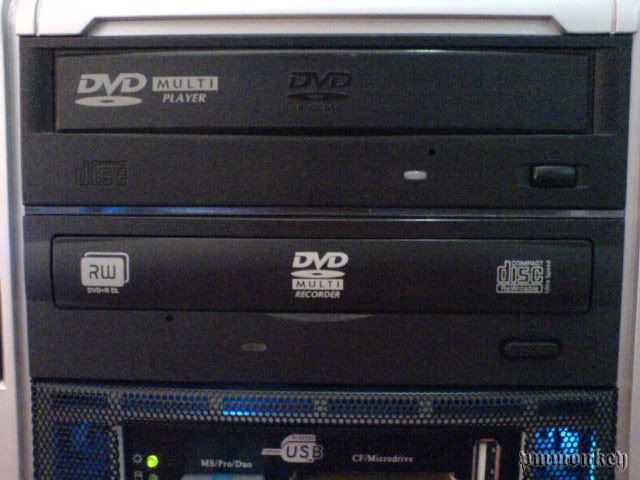

Remember the front look? Fugly with that milky coloured CD-RW.


Now it no longer has that ugly different colour look.
And my cheapo modding style is gonna be revealed. Low cost decoration at the front panel.

Firstly, I changed the position of the DVDs and multi card reader. Then there's a gap between the two DVDs. Sooooooo... to fill it up...

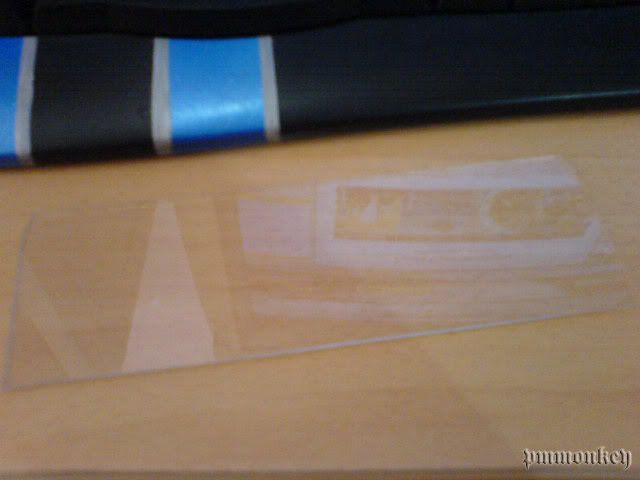

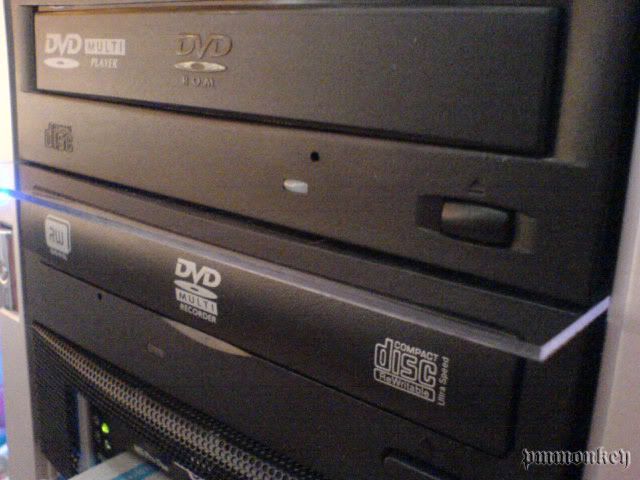

A thin and small piece of acrylic, cut to size and slid in. Ahh... the supposed result isn't reached yet. Blue LEDs will do the trick (waiting for the day I'll get my LEDs, cannot wait liao!!)









EDIT: Too many images than allowed *breaks post*

Next:

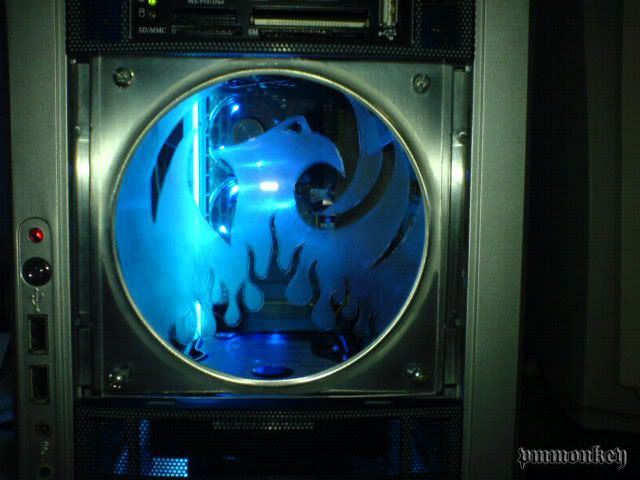

This is a 120mm fan holder. It came together with the casing and is suppose to be placed above the HDD, inside. I took it out, sand off the gray coating using a some 1000 grit sandpaper (in one direction), and polished it a little. There's the nice fine lines.

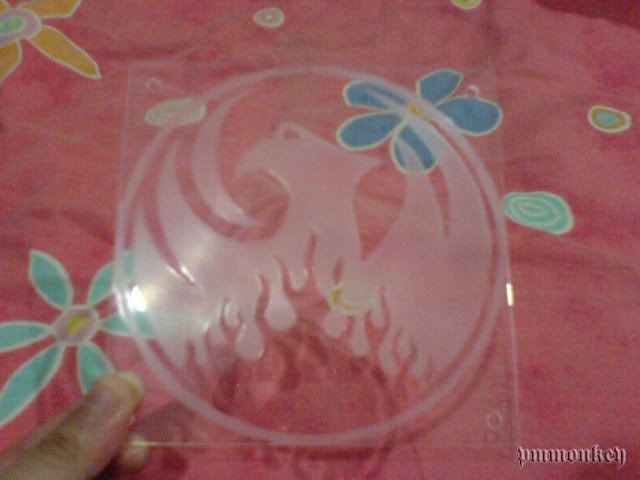

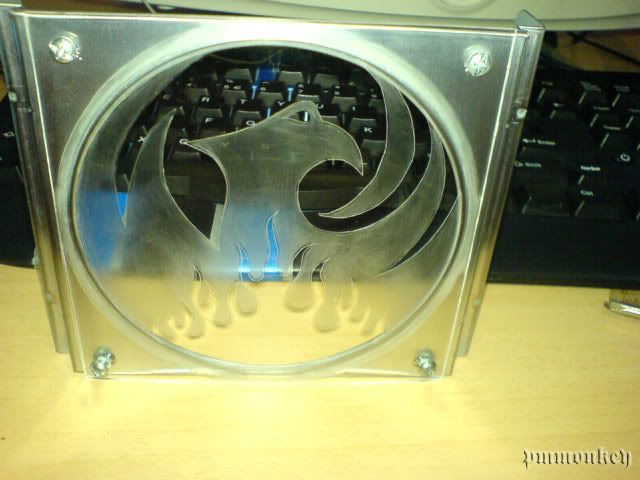

Then, I cut a small piece of acrylic, the size of the "fan holder". (I think the best way to cut smaller sized acrylic is to scratch a line a break it) And drew my design on it. ( I curi the idea from some other place and blend it with my own flames, then cut with my trusty knife)

Before tearing out the protective sheet, I cut and tear off the design part then used sand paper to blur out the design... err... if you don't get what I mean, look at the piece of completed acrylic below, then hopefully you'll understand.

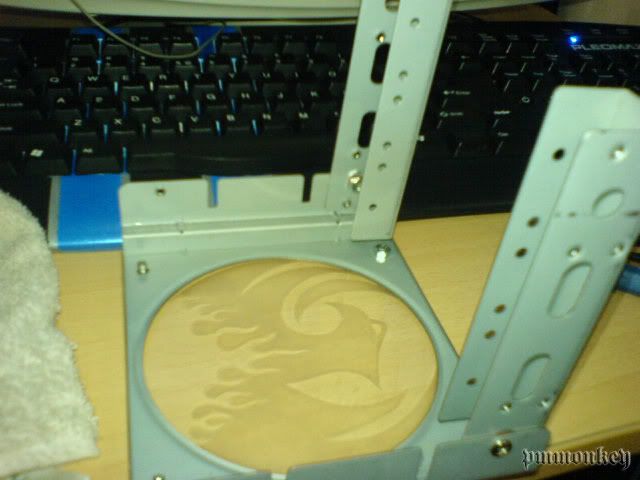

Then screw it to the fan holder. Screw up the support and screw it onto the rack and it's done. (So much screw )






So there you go... two easy and cost saving front panel deco. Will take pics of the LEDs effect after I fix them up. Cheers.

Oops... I forgot about the HDD cooler. Post next update

Wao.... ur cutting skill no joke la.. How can u able to cut till so nice? anyway, nice job N keen to see more of ur work. hehe

nice work excellent.since that you like flame so much wouldn't it be more suitable to use red led instead of blue?it would look erm.....more compatible....just my 2 cents....gonna try that out when i get acrylic for my casing......hard to find acrylic in penang. they all sell in big sizes only

This post has been edited by cskeong: Apr 13 2007, 04:15 PM

really like the way u done to fan holder.....very creative

nice cutting job

maybe u should add some lighting effect so that those flame cutting will be more exposeable..

Actually... since it's a straight line, just scratch a deep line and break it. It breaks perfectly.

Hmm... heard of blue flames? those on the stove are blue, they're more hawt!

Thank you... thank you. It's way better than just letting it collect dust sitting in the computer unused.

I've planned to add LEDs. All blue, everywhere. That's after I buy them from the master of bling bling - AllnGap.

wow, nice cheap arylic solution, you just gave me idea for my KH project hehe

thx

Cheap solutions come from how you could manipulate what you have to make something new

_____________________________________________________________________________

Kay now... HDD cooler's turn.

At first, I thought that there's no point for me to have any HDD cooler. But then... why not, since I have this powerful fan lying unused.

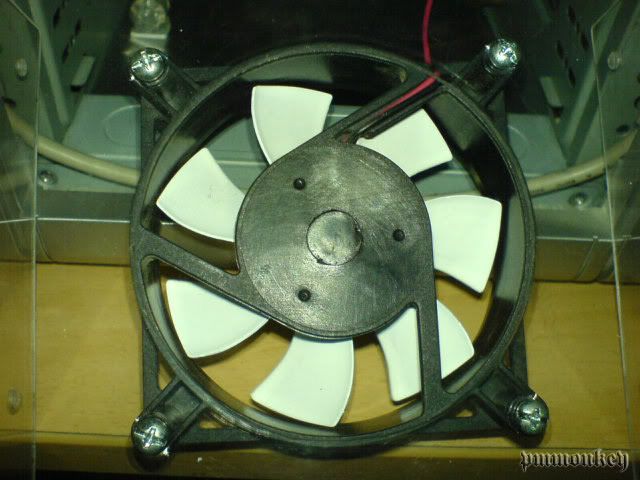

So sprayed the fan blades white. (Hee...hee~ blue LEDs later)

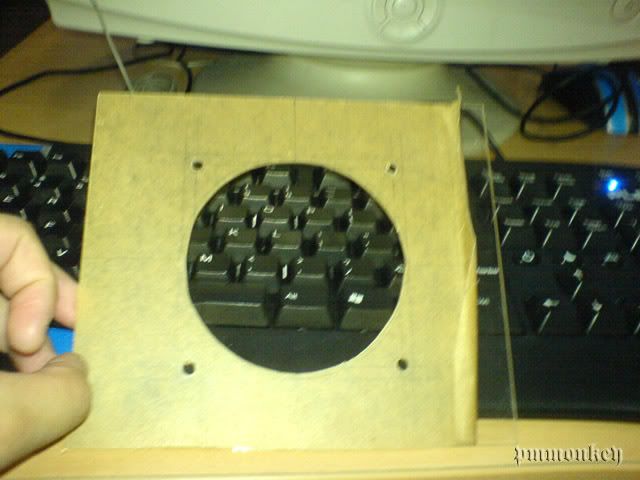

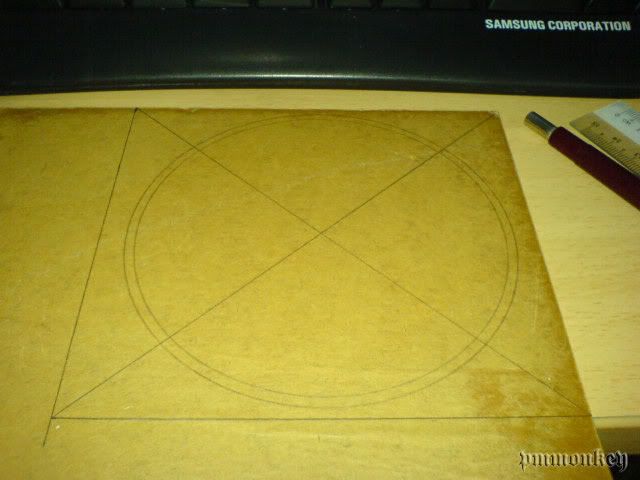

More acrylic work, minus the right tools. I'm not too sure about the accuracy, so I just had to draw lines here and there so that it's 100% perfect.

Now,

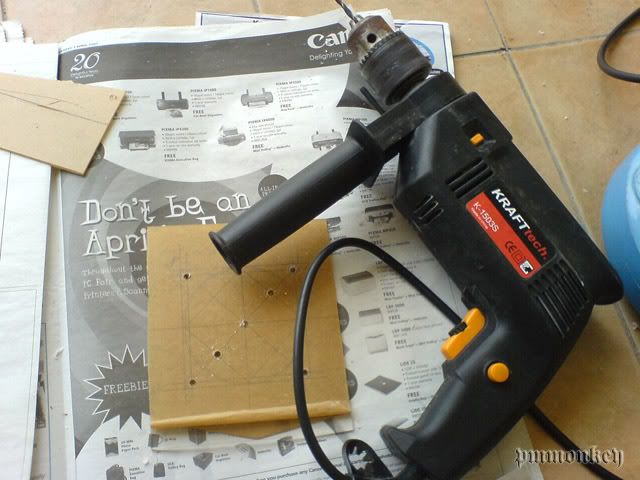

with a cheapo drill and a 4mm drill bit,
some old newspapers,
minus the safety gears/protection, the right tools or the right way to do it,
I present you... pmmonkey's not so conventional way of drilling.

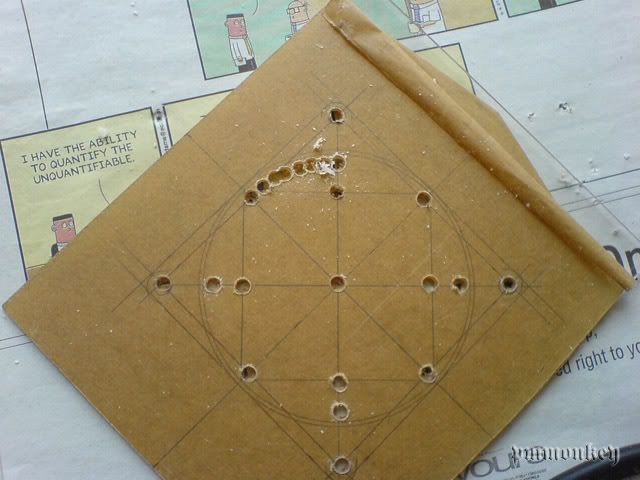

I initially planned for it to have aligned holes, so that I wouldn't need any fan grille. Then I decided that, there's no use to it, who's the idiot putting his/her hands in there anyway. So... I drilled all round. (Gimme the right tools, I swear I could do wonders!!)


And this is after sanding... WITH SANDPAPER! (Meh... blurry)


To be continued...

This post has been edited by pmmonkey: Apr 14 2007, 01:34 PM

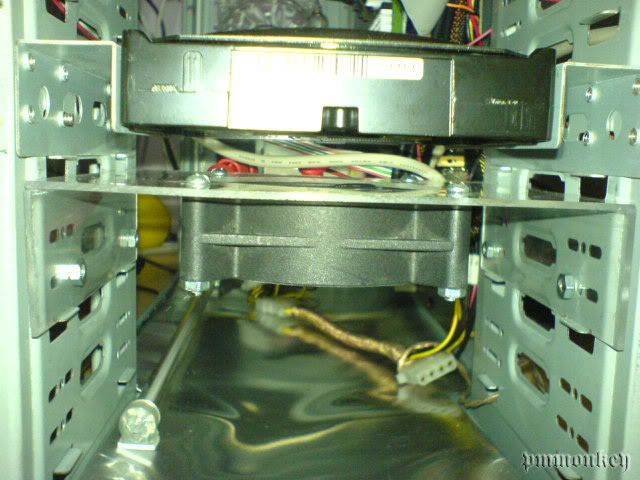

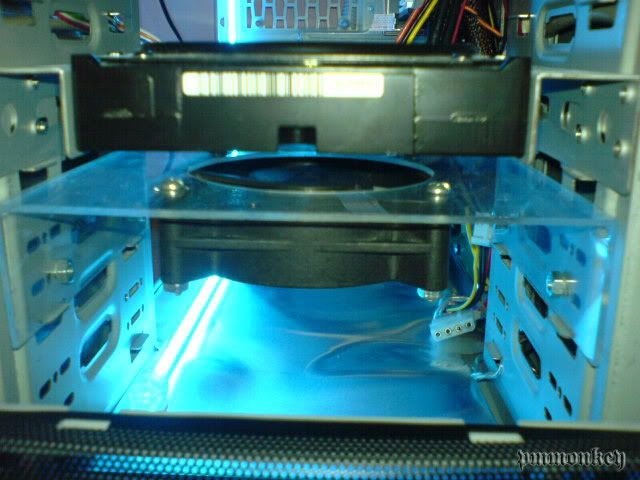

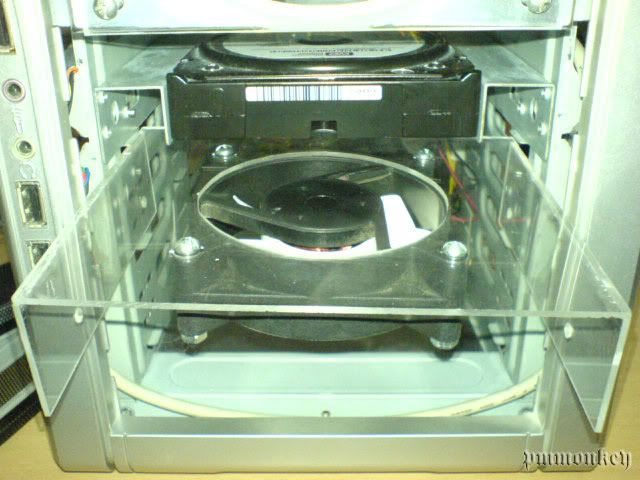

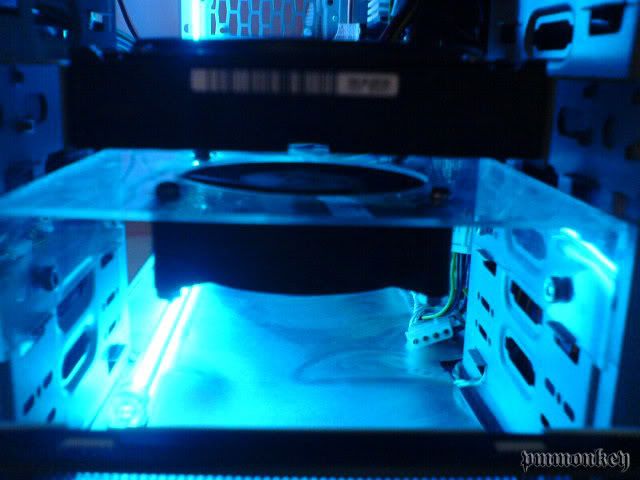

Fan in... slid nicely into compy.







With flash


Without flash


And covered. (see, no moron could put his/her hands in )

And the best thing is... this is only half done. I'm awaiting the days where I'll add LEDs (OMG I lurve lights)

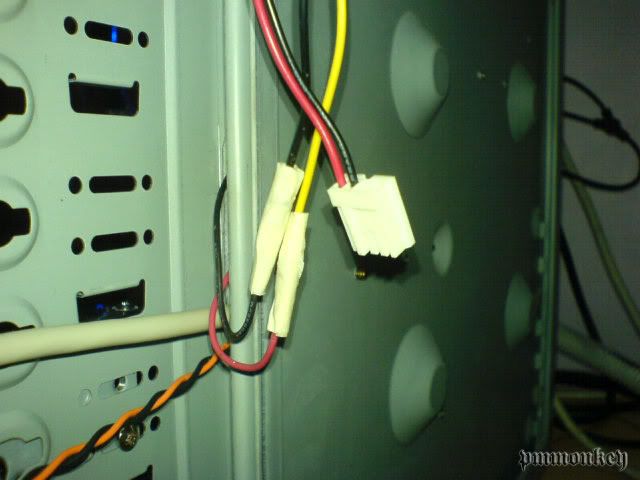

Err... and the bad thing is... there wasn't any connector for this fan, so I took off the wires from a 4 pin molex and just joined and masked it. Temporary lar ... gonna add switch some more.

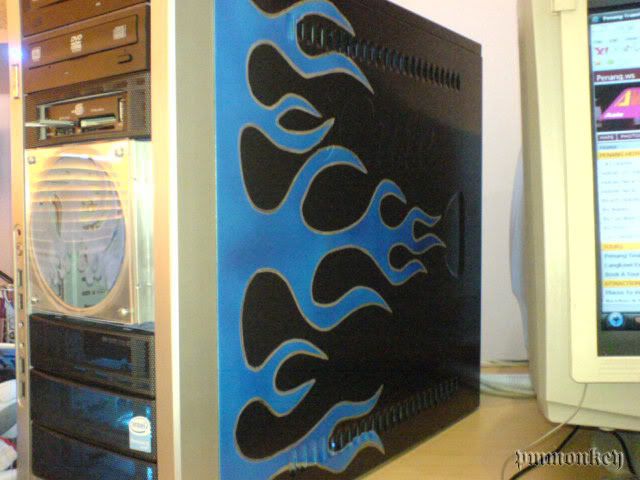

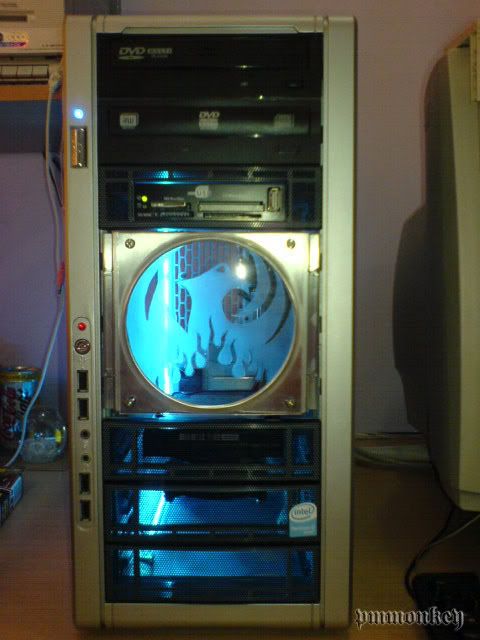

So here's the front and right panel for now.




Working on the left panel... nothing major and nothing special.
Thanks for reading.

This post has been edited by pmmonkey: Apr 14 2007, 06:16 PM

Wow wow not bad , ur modding mods , not bad as a starter

a lady which luvz modding and flame lights.


anyway any chance youll be making a hdd cooler like that anymore. was thinking of 1 like that but then dun knw where to find it.
