I just found out navi ditched amd fluid motion.

Reeeeeeeeeeeeeeeeeeeeee

Try undervolting

because 5700xt is already oc'd to the max by amd.
that's why you see all the problems online.
you need to underclock and undervolt the card.

it's enough.

if you get 1kW cap ayam, no point.
you'll get an even bigger fireworks.
what's important is the components, the capacitor preferably japanese made, the ripple control (you need reviews for this), the power delivery design.
if in doubt, get a corsair rm, tx, hx, ax or sf or seasonic.
a high tier quality 600W is better than some mediocre 1000W.
it all depends on you power draw. try to keep it 50 to 60% of the psu rated at.

1000w rm113 psu.
want? haha.
https://www.lazada.com.my/products/atx-12v-...1743684175.html

This post has been edited by shirohamada: Feb 29 2020, 10:56 PM

Rx 580 for rm190.
Try your luck haha.
https://s.lazada.com.my/s.0XTay

regretted when i sold my hyper612s as a set.

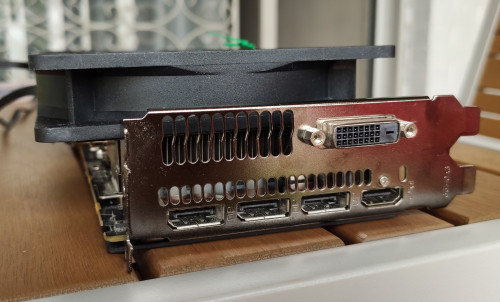

Check out my rx 580 super.



2x120mm fans.
Wire tied to heatsink.
Fan header went into mobo.
Of course it only checks mobo temp and not gpu temp.
I just set both fans to run at 65% constant.
I can see 10C lower temp on load.
And it's so much quieter. The old gpu fans were rattling at low speeds. Fine at higher speeds, but it's not as quiet as the new ones and can't get the new temps.

Nee fans are id cooling xf12025.
Advertised as hydraulic bearing, which is just another copy of fluid dynamic bearing.

Why not 92mm?
Because cost.
I have space to spare.
Why not?

//update.
stock clock 1350MHz 1.03V undervolt 100% gpu 68C. before was 71C.
oc 1400MHz 1.08V undervolt 100% gpu 75C, before was 72C because higher fan profile, it was 75% fan speed which is quite loud.
underclock 1200MHz 0.95V undervolt 61C. before 71C, this is because of the fan curve.
stock voltage 1.15V stock clock, 81C.
both tested with noctua nt-h1 thermal paste.

if anyone wants to do this, i suggest getting an arctic f9 1800rpm. it should move more air into the fins and probably can run 90% speed with low noise.
or id cooling 92mm slim if you don't want to have a 3 slot card.

i paid rm18 each for the 120mm, local seller, arctic is rm30 but ships from china.

This post has been edited by shirohamada: May 7 2020, 08:30 PM

don't buy.
new nvidia and amd soon.
