 PROTON SAGA BLM, FL & FLX Thread V70, Final thread by TS

views

dares
post Jun 19 2018, 05:39 PM

Enthusiast
*****
Junior Member
834 posts

Joined: Jul 2011
QUOTE(joeallen19 @ Jun 19 2018, 03:34 PM)
My car engine die when i release the throttle, what should I do?
*
check O2 sensor
check spark plugs
check throttlebody
dares
post Dec 29 2018, 02:06 AM

Enthusiast
*****
Junior Member
834 posts

Joined: Jul 2011
QUOTE(x3Kai @ Dec 26 2018, 10:17 AM)
hi all, newbie to cars here, so forgive me if i sound stupid.

my dad bought a saga about 6-7 years ago. if i'm not mistaken it's a FL variant. awhile back the rim was dented and a "relative" punya workshop go suggest we swap to a 15' sport rim.

mana tau after changing to 15', the tyre keep on hit the skirting when crossing over bumps and potholes. so we took it back and they modified a bit so that the skirting won't cut the tyres when crossing bumps and potholes but it will still hit the fender.

i saw many people changing to 15' rims, do you guys have any problems like this? any idea what went wrong? maybe like suspension too soft or smth.

plus now the tyre starting to run out d, i'm thinking of changing back the rims to stock. do u guys know any shops that have good 2nd hand ones or anyone letting go theirs?ย  tongue.gif
*
You didn't mention the rims offset nor the tire size you are using.

QUOTE(danialefendy @ Dec 27 2018, 07:11 PM)
Changed the steering rack bush to silicone. Small improvement. There is still "loose" feeling when driving and the steering still turn itself a little when crossing uneven road.
*
Are you on stock rim or stock tire size?

This post has been edited by dares: Dec 29 2018, 02:06 AM
dares
post Feb 18 2019, 12:33 PM

Enthusiast
*****
Junior Member
834 posts

Joined: Jul 2011
QUOTE(C2KBAS2005 @ Feb 18 2019, 11:13 AM)
need some advice.....looking into changing front tires for my saga blm as one of this tires have one bulge aka bengkak due to my children's driving and hid something, this tires only at half of it's life span.
been using only Yokohama tires 185x60R14 on all my cars for many years from A-DRIVE until C-DRIVE models.....from around rm.140 to around rm.180 nowadays per piece.
thinking of getting other options to try.....maybe cheaper but same performance and grip as Yokohama....any advice or option, thanks
*
replacements for A-drive and C-drive are the BluEarth series.

I'm using BlueEarth ES32 on my Persona, so far so good for normal driving with the occasional hard corners. Not sure about the price for 14" though.

dares
post Apr 27 2019, 05:41 PM

Enthusiast
*****
Junior Member
834 posts

Joined: Jul 2011
QUOTE(iskazulka @ Apr 26 2019, 08:08 AM)
» Click to show Spoiler - click again to hide... «


maybe in the future i will further research on SP come looking for dares V12Kompressor as they now drive non-proton car too. (hope the willing to share they input on their cars.

my 2 cents.
*
???

I drive Proton only
dares
post Apr 28 2019, 05:25 PM

Enthusiast
*****
Junior Member
834 posts

Joined: Jul 2011
QUOTE(Durianlife @ Apr 28 2019, 08:22 AM)
Dear Saga Sifu,

Can anyone advise me what are these for?
5 years ago, I had a problem with CVT gear box (Proton Saga FLX 2012). After Proton replaced the whole transmission, they left these on my passenger seat. I went back and asked, they had no idea. I'm still puzzling what they are.๐Ÿ˜…๐Ÿ™๐Ÿผ

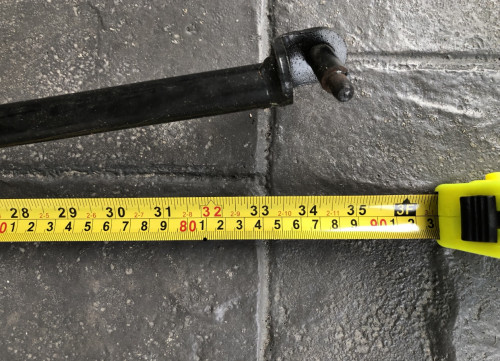

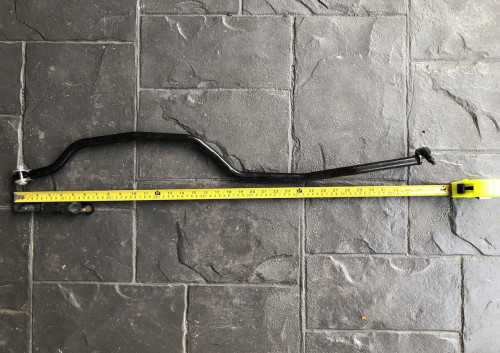

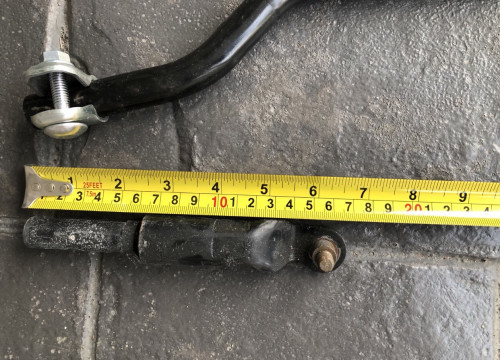

user posted image
user posted image
user posted image
*
That looks like a front antiroll bar. You didn't notice your car become more sampan all these years?
dares
post Apr 28 2019, 10:45 PM

Enthusiast
*****
Junior Member
834 posts

Joined: Jul 2011
QUOTE(Durianlife @ Apr 28 2019, 10:30 PM)
BTW, if I want to check whether the previous foreman replaced a new one to me or forgot to put it back..., may I know which part should I check whether the bar is there with my car?
๐Ÿ™๐ŸผMany thanks.
*
Note that while that looks like the front antiroll bar, I am not sure if it is from your car. That's a pretty major component to be clueless about by the mechanic who fixed your CVT.

Just bring to any Proton SC (except the one where you fixed your CVT) and ask them to check, they know where and how the front ARB looks like. It'll be kind hard to check yourself unless you know what you are looking for, it's at the undercarriage behind the bottom of the engine.

It's amazing how a 3 ft long metal bar ppear out of nowhere and the mechanic dunno what it was....more amazing it took you 5 yrs to ask anyone laugh.gif

This post has been edited by dares: Apr 28 2019, 10:47 PM
dares
post Apr 29 2019, 12:16 AM

Enthusiast
*****
Junior Member
834 posts

Joined: Jul 2011
QUOTE(Durianlife @ Apr 28 2019, 10:30 PM)
BTW, if I want to check whether the previous foreman replaced a new one to me or forgot to put it back..., may I know which part should I check whether the bar is there with my car?
๐Ÿ™๐ŸผMany thanks.
*
I just remembered a much easier way to check, dunno why I didn't think of this before I wrote my previous post.

Turn your front wheels all the way to one side, then look at your front absorber. You're looking for the stabilizer link (mechanics commonly call them "tulang anjing"), a silver color metal bar mounted vertically on the posterior side of your absorber.

The top end of the link is bolted to your absorber body.

Now look at the bottom end of the link should be bolted to a horizontal black color bar.

If both the stabilizer link and the black color bar is present, then everything is fine. If the black color bar is missing, or even the stabilizer link also also not present, then you know someone screwed up when putting your car back together.

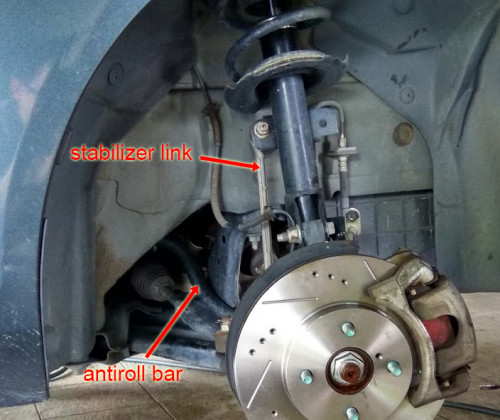

See picture below for reference, it's not a Saga but the position of the aforementioned components are similiar.

user posted image
dares
post Apr 30 2019, 02:20 PM

Enthusiast
*****
Junior Member
834 posts

Joined: Jul 2011
QUOTE(Durianlife @ Apr 30 2019, 01:22 PM)
I have checked. Based on the photo, looks like there is no anti roll bar...๐Ÿ˜…๐Ÿ˜…

user posted image
user posted image
*
I can't see clearly, but the stabilizer link is just hanging freely from the absorber then? no bar attached at the bottom?
dares
post May 1 2019, 10:56 AM

Enthusiast
*****
Junior Member
834 posts

Joined: Jul 2011
QUOTE(Durianlife @ May 1 2019, 10:07 AM)

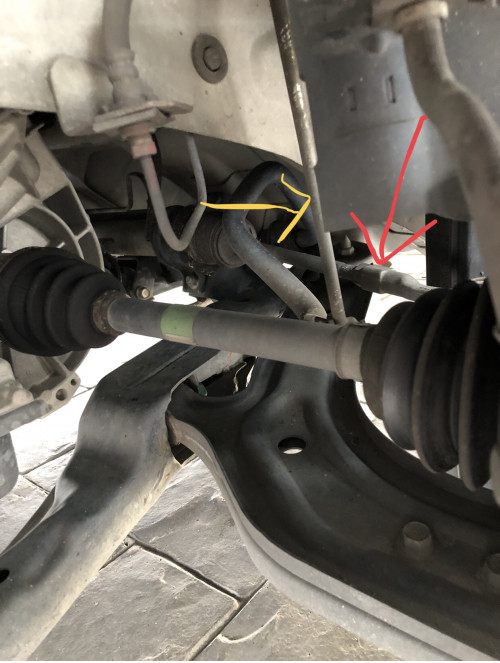

I checked again. The yellow arrow is stabilizer link. While the red one, I'm not sure if it is anti roll bar....I can only see both of these connected to the wheel (not sure what should I call-in the round plate) from the picture you shown me earlier.
For your kind advice.๐Ÿ™๐Ÿผ

user posted image
user posted image
*

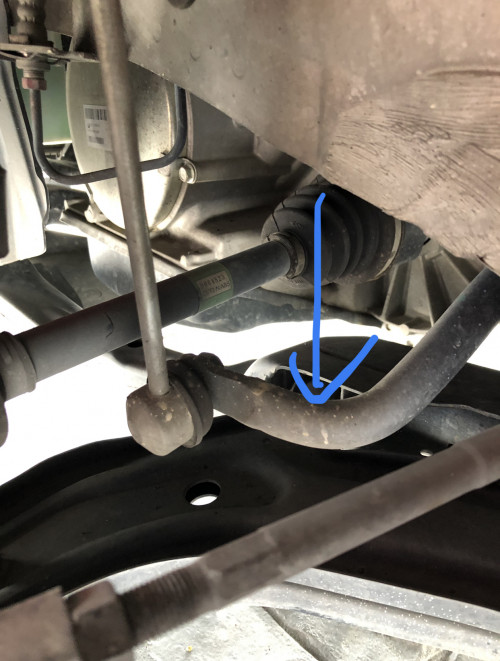

It's all good, your antiroll bar is there (indicated with blue arrow below, the black tubular bar)

user posted image

So now u really do have a random unknow bar in your possession lol!
dares
post May 1 2019, 01:49 PM

Enthusiast
*****
Junior Member
834 posts

Joined: Jul 2011
QUOTE(Durianlife @ May 1 2019, 01:30 PM)

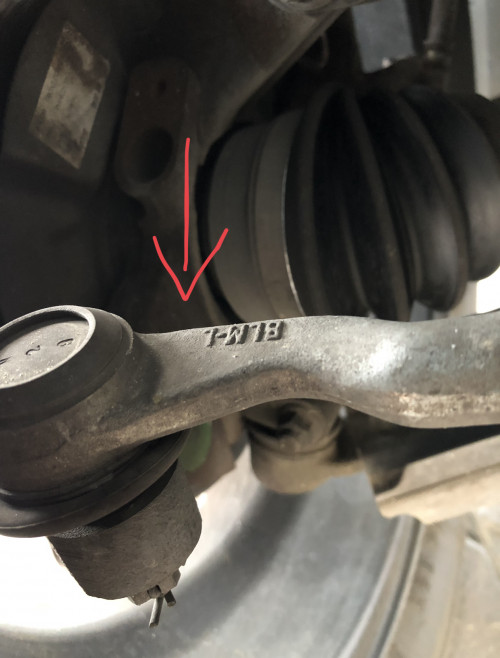

Ah...just to confirm...so the anti bar is there and connected to my stabilizer link...thanks a million! What a relief!
In this car, I think they changed a new one...and put the old one there...

user posted image
*
Yes correct, that's the antiroll bar.
dares
post Sep 29 2019, 05:52 PM

Enthusiast
*****
Junior Member
834 posts

Joined: Jul 2011
QUOTE(iskazulka @ Sep 29 2019, 11:36 AM)
yesterday change all 4 tyres to yokohama es32 tyres (13inch) from viking ct5.

and also change left drive shaft cover. i think this is the source of the front left side tyre botak and steering going left while driving let go hand. and feel steering move when drive on uneven road (besides suspect inder inflate tyre)

change tyres, change left drive shaft cover, do alignment.
steering syiok.

p/s: right now monitoring tyre pressure to find the right choice for yoko es32. just buy tyre gauge and measure 34 psi all 4 tyres (presshre measure just after drive and it's consider HOT tyre condition.

j ust that 1 front tyre is 36 psi. so deflate to 34 psi.

34 psi HOT infront is look a little bit deflated i  think s
o will keep monitor cold cold temp tyre. and test put 36 psi for front.

as for now,  set 36 psi front, 34 psi rear for hot tyre temp.

update :

for now check HOT, 34 psi front and rear. COLD : 30 psi front, 32 psi rear. keep this setting for now.
sekian my FnF blog.
*
beribu2 tahniah atas tayar baru
dares
post Oct 30 2019, 12:19 PM

Enthusiast
*****
Junior Member
834 posts

Joined: Jul 2011
QUOTE(sonicmaster @ Oct 27 2019, 10:00 AM)
Lol Proton vs Perodua is huge difference. Saga 2013 original 34k sell for 10k. Viva elite 2011 still 13k. That's the difference
*
Go check carlist.my.

2013 Saga SV fetching an average of RM15k from dealerships. 2013 Viva Elite facelift fetching an average of RM19k from dealerships.

Bear in mind when new, Viva Elite was RM45k, almost 10k more expensive than the equivalent Saga SV.
dares
post Nov 1 2019, 12:01 PM

Enthusiast
*****
Junior Member
834 posts

Joined: Jul 2011
QUOTE(elizsara @ Oct 31 2019, 09:24 AM)
Hi want to ask if anyone has had experience going to proton to get the top tether installed?
Or does anyone know which accessory shop that can help install?
Just realized how hard it is to find a suitable carseat in the market without the top tether and anchor
Currently  driving a saga flx 2015.
*
FLX is not ISOFIX ready. Just buy those child seats that uses the seatbelt.
dares
post Dec 30 2019, 11:04 PM

Enthusiast
*****
Junior Member
834 posts

Joined: Jul 2011
QUOTE(iskazulka @ Dec 17 2019, 08:07 AM)
ofkos la.
proton campro engine sure got one. BLM is the pioneer.
*
Campro before BLM takde IAFM (Early Gen2, Waja and Persona)
dares
post Jul 5 2021, 06:06 PM

Enthusiast
*****
Junior Member
834 posts

Joined: Jul 2011
QUOTE(sbsoo111 @ Jun 24 2021, 01:10 AM)
Hi Saga Sifu,

I got a 2012 flx, the car's gas tank is not able to fill in, the petrol gun keep jumping every few cents and i have to fill it super slow.

I saw some one mentioned it could be a charcoal canister clog up, i changed it but the problem are still the same.

i saw few youtube video mentioned it could also be a purge valve or vent valve, i try to search around and i could only found purge canister.

do you guys know our proton saga flx have vent valve canister?

if the purge canister faulty will it cause petrol filling issue?
*
What I did was place the nozzle at and angle instead of the normal angle.

At an angle means - twist the nozzle around 90 degrees to either side, can be before or after insertion. That worked for me.

QUOTE(erasergate @ Jun 27 2021, 09:46 PM)
2. I notice that the engine have oil leaks top engine block. My friend's 2013 person also have this issue. Is it common for proton? How much repair cost?

*
If you mean leaking from the valve cover gasket (ie, under the black cover at the top), that is a common issue with the Campro from that era. It's not a huge problem but eventually you'll want to fix it. Should be around RM100-200 including labour.
dares
post Nov 15 2021, 07:48 PM

Enthusiast
*****
Junior Member
834 posts

Joined: Jul 2011
QUOTE(neverlovegirl @ Nov 13 2021, 09:05 PM)
Hi Car sifu,

I'm grateful for any advice.
My Saga FLX 2012 got issue with the engine.
1. Engine oil is not leaking but losing. After filling engine oil for 2 weeks, I checked again and there is around 1liter remains. So I changed Valse Gasket and fill the new engine oil, but issue still not fixed.

So what is your suggestion to fix it? the engine will make noise loudly when engine oil drained. I asked for the price of Cylinder whole set - it's around RM2100...

2. Whenever I fill the petrol full, it will leak. So I only fill around RM35 per time. I changed Fuel filter, Fuel pump, Fuel hose but issue still there. I even changed the rubber under Tank's door but the leak does not reduce.

does it need to change the tank as well? haizz

Appreciate your comment.
*
1. when you rev hard, is there blue-ish/white-ish smoke coming out of the exhaust pipe?

2. how do you know it's leaking fuel? did you pinpoint the leaking location?
dares
post Nov 15 2021, 11:54 PM

Enthusiast
*****
Junior Member
834 posts

Joined: Jul 2011
QUOTE(neverlovegirl @ Nov 15 2021, 10:53 PM)
for the smoke, I don't really see any smoke from the exhaust pipe. asked my friend to press the pedal while I'm watching it, confirming no smoke.

For the leaking petrol, when I remove the rear seats, I can see petrol leaking from the door. I'm suspecting the Fuel pump is the OEM, not fully cover the door and leading to the leakage.
*
Then the only thing left to check that I can think of is to see if there are oil in your coolant. Losing 3 liters of oil in 2 weeks is pretty severe, one would think the symptoms should be fairly obvious (other than the reduction of oil) sweat.gif

As for the fuel leak, since you already know where the leak originates and you suspect the pump is the culprit....I guess the solution is to replace the pump with an original Proton fuel pump?
dares
post Dec 30 2021, 11:56 AM

Enthusiast
*****
Junior Member
834 posts

Joined: Jul 2011
QUOTE(lemonhihi @ Dec 29 2021, 11:30 AM)
FLX SAGA owner anyone have this issue ?

When pump petrol cannot make it trigger to pump automatically, even during manual the petrol gun keep jam every few secs have to repress again
*
a) take out momentarily and re-insert

or

b) rotate the gun to either side instead of the normal position.
dares
post Mar 25 2022, 06:08 PM

Enthusiast
*****
Junior Member
834 posts

Joined: Jul 2011
QUOTE(V12Kompressor @ Mar 24 2022, 09:21 PM)
It would be 11 years for me too, if I'd still have my FLX with me.
*
me too!
dares
post Jul 13 2022, 02:00 PM

Enthusiast
*****
Junior Member
834 posts

Joined: Jul 2011
QUOTE(Patrick761 @ Jul 13 2022, 11:28 AM)
Hi guys, just wondering if its normal price to do a big fixing on a Saga FLX 2013 for about RM4K-5K. It just passed its 9 years old with normal driving on kampung and rarely use to go long distance. Mechanics sayย  its for replacement on axle/drive shaft, now it's still drivable for at most 1 year but might not be safe for long travel.
*
FLX driveshaft costs RM4k-5k????????

https://www.lazada.com.my/products/proton-s...1187558749.html

https://www.lazada.com.my/products/proton-s...1187408354.html

This post has been edited by dares: Jul 13 2022, 02:02 PM
