I have my HR family combo setup and running now ....

Something to share with all here.

First Item: ThermalRight HR-01


The package come with cardboard material in rectangular shape without much printing. The only information display is the socket version which is LGA 7775 in this case.


The stuffs is well pack in the box with proper supporter, no physical damage so far thanks to the solidness of packaging.


Nothing much about the accessory, only manuals and duct clips.


The heat sink itself is well done with all the fin bond well and no visible bent or scratch .


Bottom of the heat sink.


How well the base reflect.


The air duct that comes with the package for LGA 775 version is orange while blue for K8.


The package includes screws and double side tape to hold the duct firmly.

This post has been edited by Doom: Dec 2 2006, 11:41 AM

2nd Item: HR-03


The box itself just like other Thermalright product, however other wording comes in blue color unlike black in most of other TR product.


The packaging itself, nothing much to describe. Only one white box with mounting stuffs inside.


Thermalright supplied with all the required mounting plates, fan clips and thermal paste tube.


Top of the heat sink.


The other side.


Bottom of the heat sink.


How reflective is the base. Not mirror shine but does the job well as no visible scratch .


Side view to check out the gap between the base and fins.


Ram sink comes with tall and short version.

This post has been edited by Doom: Dec 2 2006, 11:05 AM

3rd Item: HR-05


Skipped the box as it is the same as other Thermalright box. Included tip ties for mounting 7CM fan which hard to get anywhere.


The bottom of the heat sink and the supporting rectangular foam to protect the chip set from over pressure.


How well the base reflect, again not mirror but is smooth and shine.

This post has been edited by Doom: Dec 2 2006, 11:09 AM

Some photos of installation process:


HR-01 and HR-05 sitting on my DS3.


Side view.


Installing HR-03 ram sink.


Cooler installed.


Cooler installed view from the other side.


Side view to check out the gap between the PCB and cooler fin.


Another angle with the cooler installed.








This post has been edited by Doom: Dec 2 2006, 11:58 AM

Final result: (To be updated)

Non Aircond Room
Sys: Idle 40c \ Load 48c (Stock)
CPU: Idle 30c \Load 39c (TR SI-120)
VGA: Idle 60c \Load 80c (IceQ3)

Non Aircond Room
Sys Idle 35c \Sys Load 41c (HR-05)
CPU Idle 25c \CPU Load 33c (TR HR-01 mounted 12CM fan)
VGA: Idle 44c \Load 78c (TR HR-03 mounted 12CM fan X 2)

Aircond Room
Sys Idle 30c \Sys Load 38c (HR-05)
CPU Idle 22 \CPU Load 26c (TR HR-01 mounted 12CM fan)
VGA: Idle 42c \Load 69c (TR HR-03 mounted 12CM fan X 2)

Photos of new setup will be updated in another day.....

This post has been edited by Doom: Dec 4 2006, 01:00 AM

It is flexible but not good enough in my own sense .... if the tunnel could build with smaller zip zap than it make the mounting way easier...

besides the air duct seems to be too long for me .. i squished to get it installed ... don't even need the clips and double tape.

just mount it on and work well...

From bulk orders organized by elhh82 at RM 200 .. no extra charge as the custom went smoothly.....

HR-01 RM140 (Bulk orders)
HR-05 Rm110 (OC Paradise)

It wont break actually it could hold the 12cm fan without problem.....

Keep it in box now .... the result is more impressive if u make it active cooling by having another fan to blow air through the heat sink.... passive cooling with exhaust fan is meant to be silence in mind..


It is quite tall as well but some how around the same as SI-120 with standard 12CM fan...

It would definitely need a well air flow to keep the temperature low.... i am struggling a bit as there is only 1 intake and 1 exhaust for the entire system....

somehow HR-03 does not work well without fan blowing it ....

if only the air does not need to go through the front panel> HDD> VGA> CPU> Exhaust fan..... need very well airflow to use these babes together ....

running passively is suicide unless using low profile system ....

it would ruined the structure as the case isn't that solid.... furthermore i have sound card that is blocking as well.....

Lian LI OEM casing that branded under GT ... model number is OEM-007


Who are u referring here.....

Thermalright SI-120... very nice and cool well....

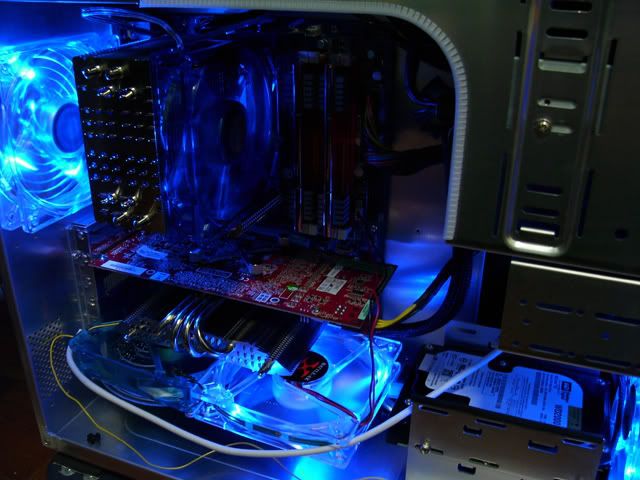

anyway tried new setup .... HR-01 with CoolerMaster 12CM fan and two thermaltake 12cm fan on HR-03.

idle result so far:

X1900XT
Voltage regulator: 51c
GPU core: 41c
Temperature chip: 37c

C2D 6600: 20c

Chip set: 32

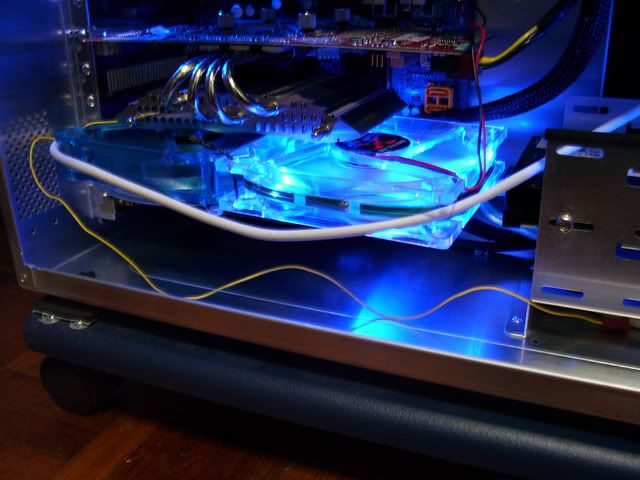

basically i tie the two 120mm fan together and place a thick uv fan grill on one of the fan as separator so that i can place the fan on my X-Fi sound card .... to blow toward the whole card...

result impressive .... of course this result was recorded under air conditioner room ...

well be recording the temperature for non air conditioner condition to see how effective is the setup ....

i use the default Easy Tune 5.......

basically it would require good air flow or enough air pressure to keep the stuffs cool....

You are right ... will post result with no air conditioner ....

i didn't fit the fans to the cooler ... i just hang there .....

i hang it without any sort of tool or wires.. it just fit there like magic...

Will get another two cooler master fan to replace the fan currently using ...

anyone has lead to CM blue UV 12cm ??? i had ask many shops and no one has it ... and i don't want to use LED as it kill my eye when look at the case....

i prefer dull blue LED that glow rather strike light ...

thanks for the compliment men .....

PCI fan card usually noisy and the air flow is considerable smaller...

there is no magic it is stuck there and depend on the sound card to hold it ....

i will be doing a customise pci bracket to hold the fan during weekend .... hopefully could get it done and upload the photo to all....

stay tune .... any more query is welcomed

surely men... if possible would snap shot the detail process of the progress.....
