I have my HR family combo setup and running now ....

Something to share with all here.

First Item: ThermalRight HR-01

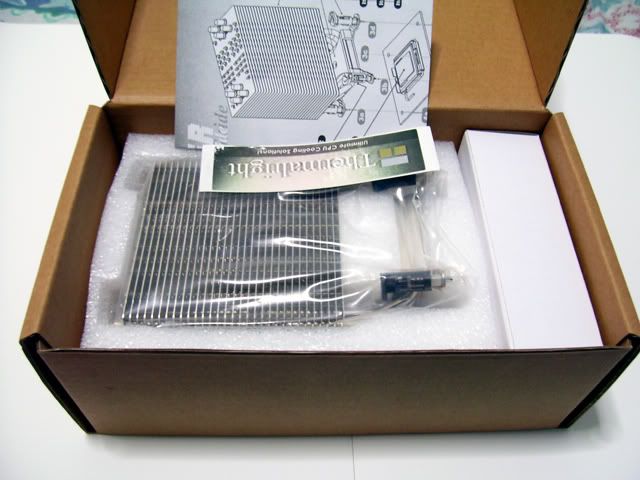

The package come with cardboard material in rectangular shape without much printing. The only information display is the socket version which is LGA 7775 in this case.


The stuffs is well pack in the box with proper supporter, no physical damage so far thanks to the solidness of packaging.

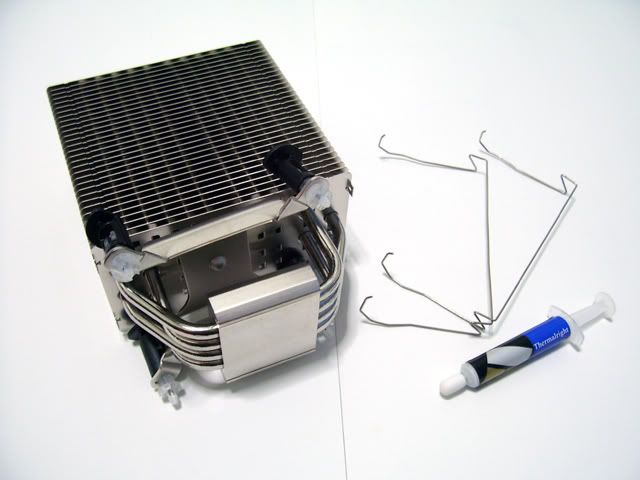

Nothing much about the accessory, only manuals and duct clips.


The heat sink itself is well done with all the fin bond well and no visible bent or scratch .


Bottom of the heat sink.


How well the base reflect.

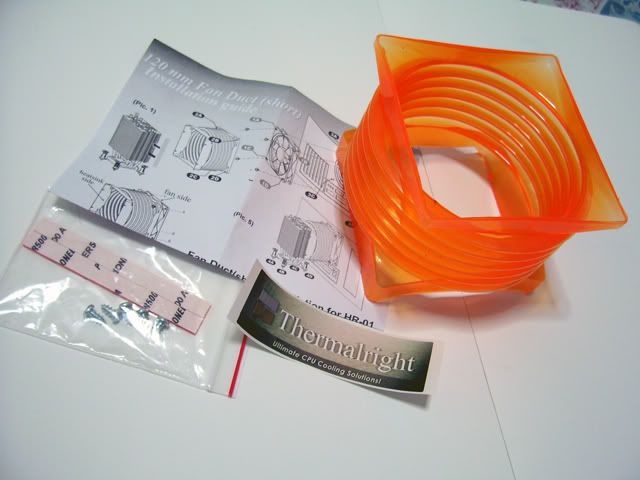

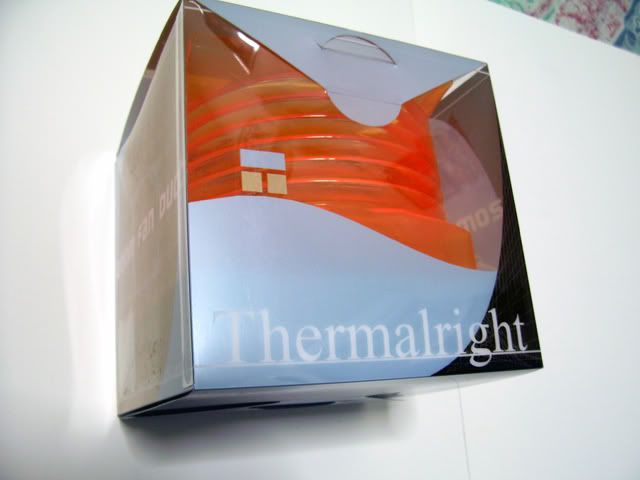

The air duct that comes with the package for LGA 775 version is orange while blue for K8.


The package includes screws and double side tape to hold the duct firmly.

This post has been edited by Doom: Dec 2 2006, 11:41 AM

2nd Item: HR-03

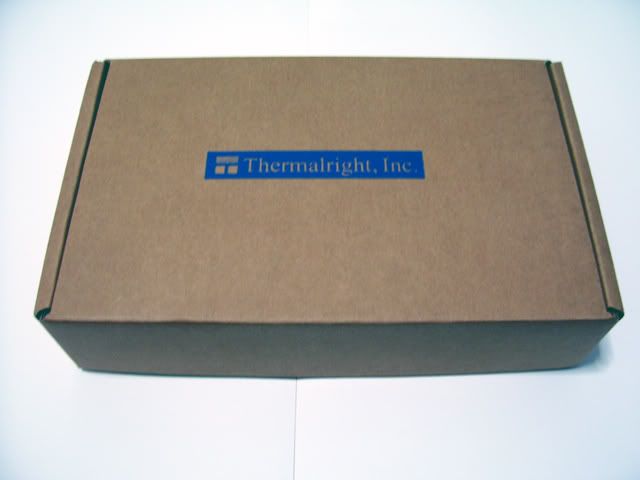

The box itself just like other Thermalright product, however other wording comes in blue color unlike black in most of other TR product.

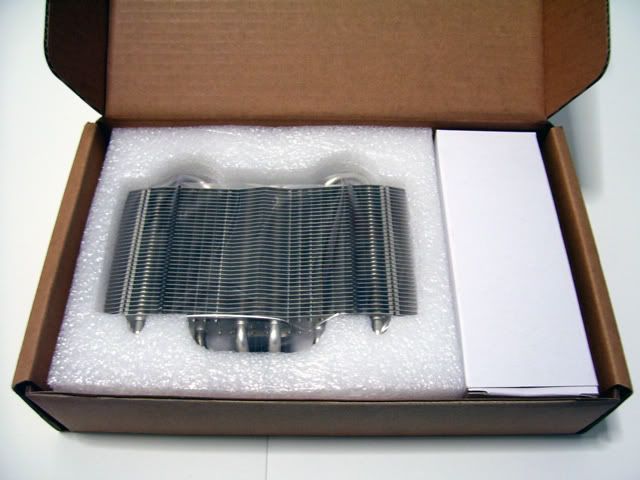

The packaging itself, nothing much to describe. Only one white box with mounting stuffs inside.

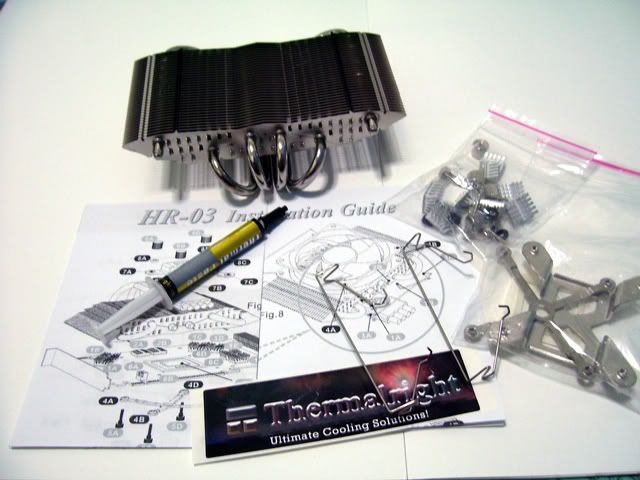

Thermalright supplied with all the required mounting plates, fan clips and thermal paste tube.

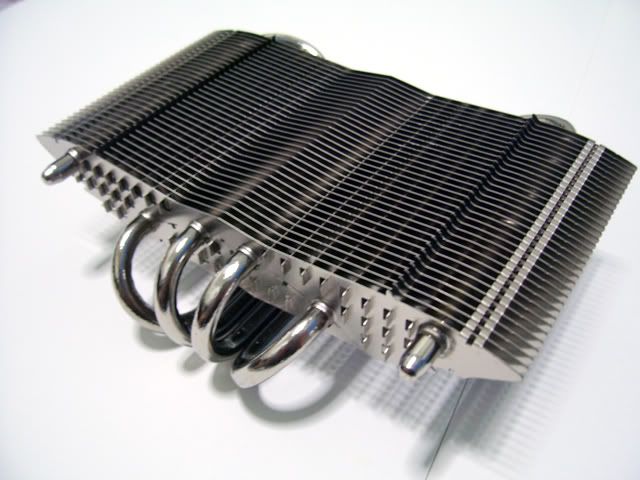

Top of the heat sink.

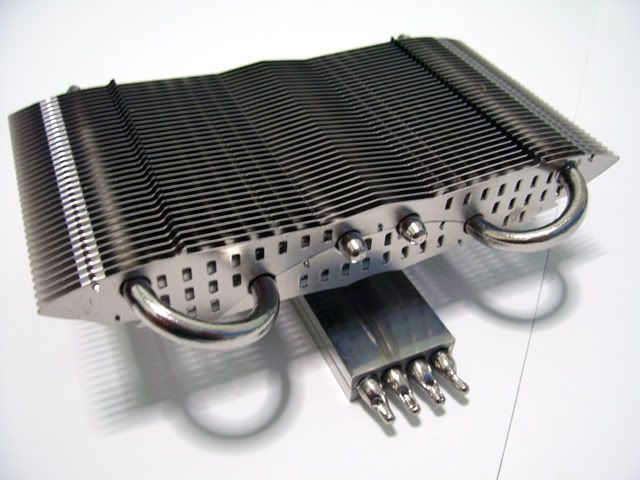

The other side.

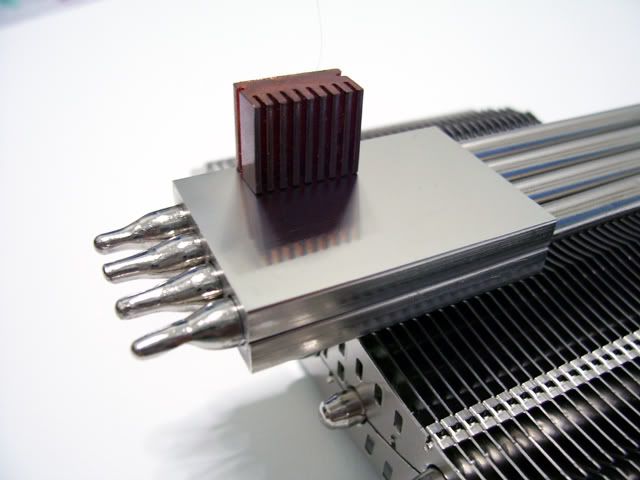

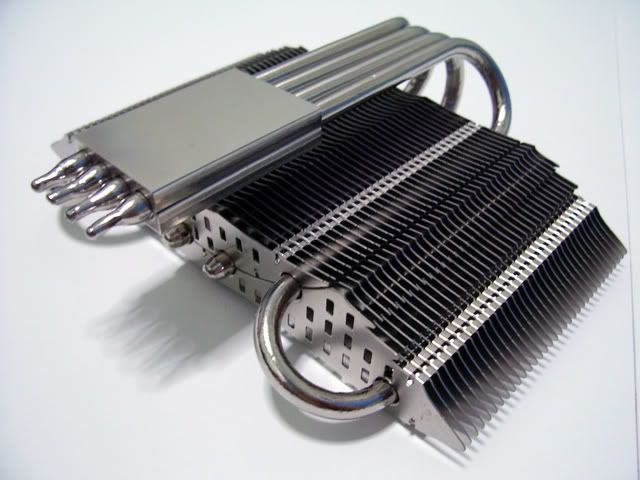

Bottom of the heat sink.


How reflective is the base. Not mirror shine but does the job well as no visible scratch .

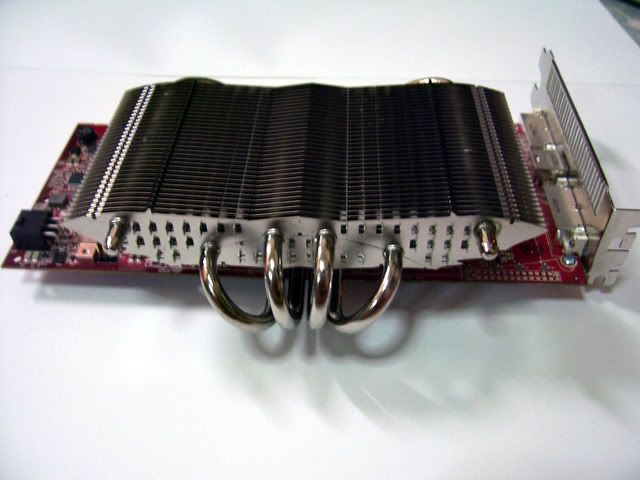

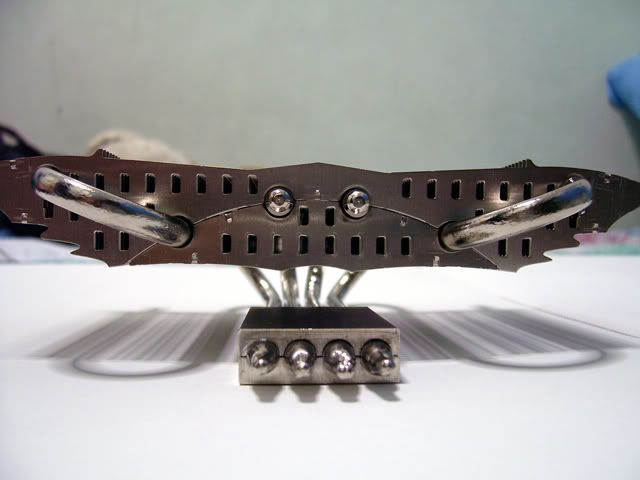

Side view to check out the gap between the base and fins.

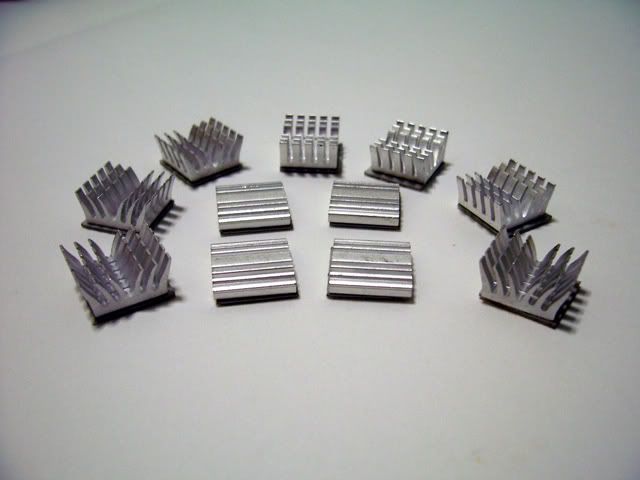

Ram sink comes with tall and short version.

This post has been edited by Doom: Dec 2 2006, 11:05 AM

3rd Item: HR-05


Skipped the box as it is the same as other Thermalright box. Included tip ties for mounting 7CM fan which hard to get anywhere.

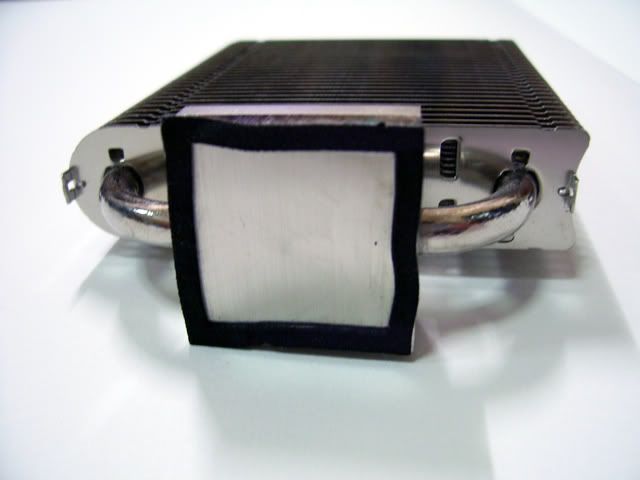

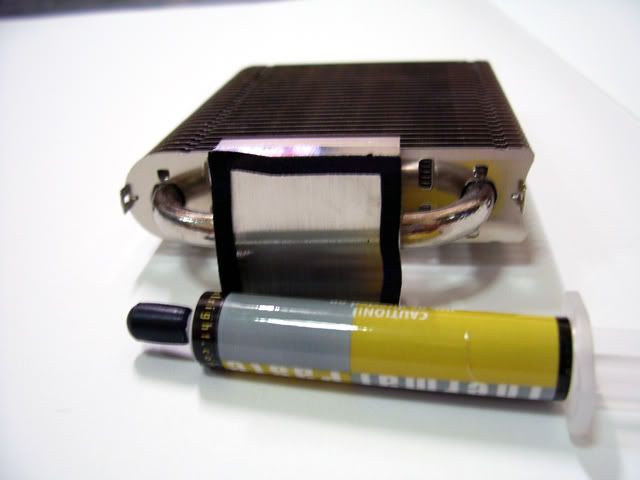

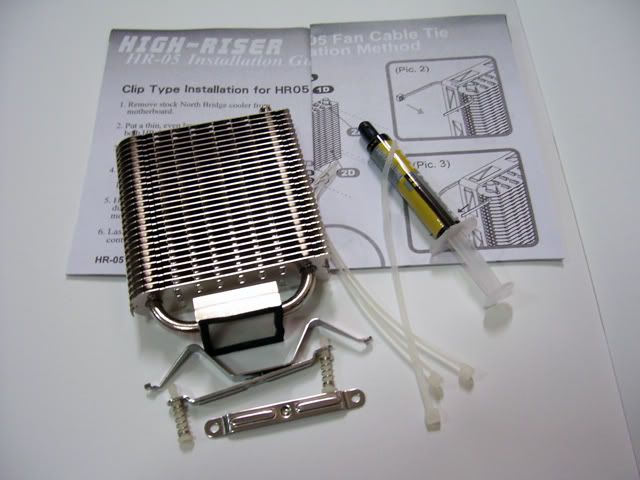

The bottom of the heat sink and the supporting rectangular foam to protect the chip set from over pressure.


How well the base reflect, again not mirror but is smooth and shine.

This post has been edited by Doom: Dec 2 2006, 11:09 AM

Some photos of installation process:

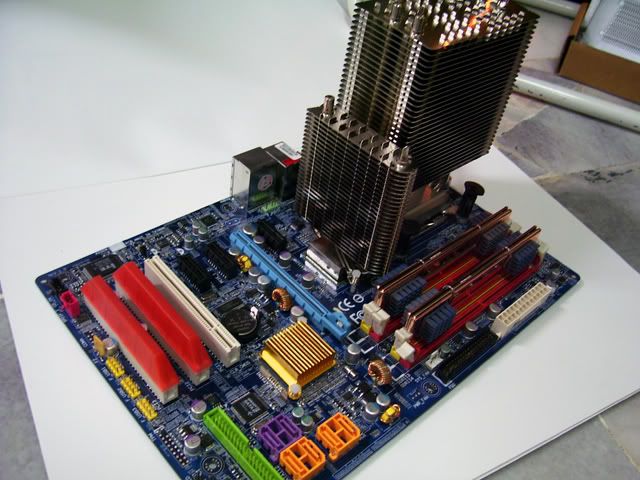

HR-01 and HR-05 sitting on my DS3.


Side view.


Installing HR-03 ram sink.

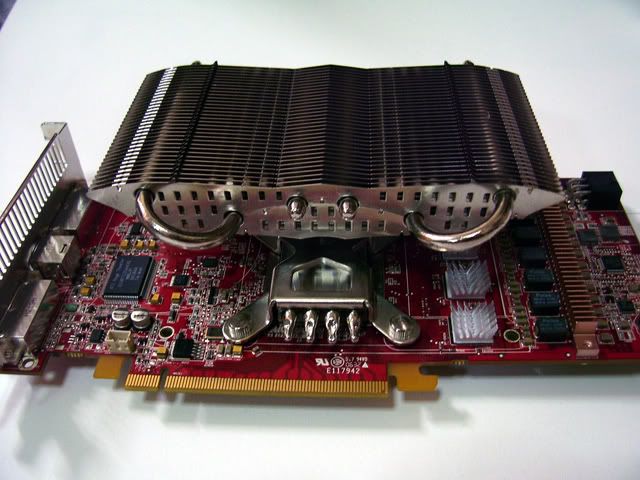

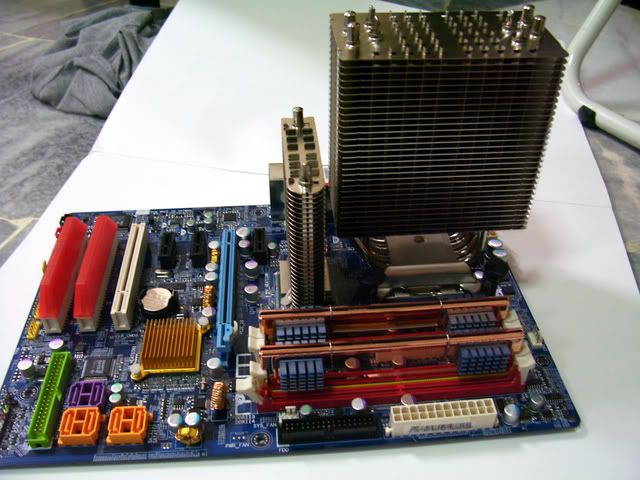

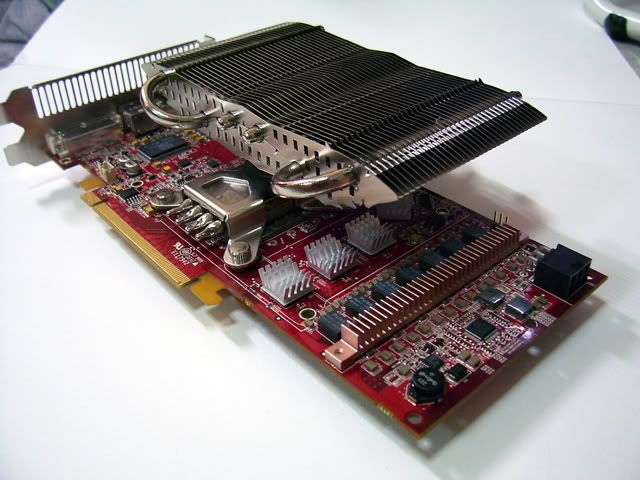

Cooler installed.


Cooler installed view from the other side.

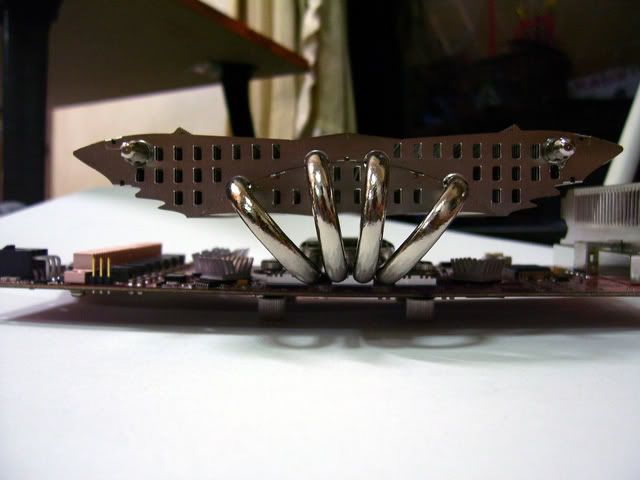

Side view to check out the gap between the PCB and cooler fin.


Another angle with the cooler installed.








This post has been edited by Doom: Dec 2 2006, 11:58 AM

Final result: (To be updated)

Non Aircond Room
Sys: Idle 40c \ Load 48c (Stock)
CPU: Idle 30c \Load 39c (TR SI-120)
VGA: Idle 60c \Load 80c (IceQ3)

Non Aircond Room
Sys Idle 35c \Sys Load 41c (HR-05)
CPU Idle 25c \CPU Load 33c (TR HR-01 mounted 12CM fan)
VGA: Idle 44c \Load 78c (TR HR-03 mounted 12CM fan X 2)

Aircond Room
Sys Idle 30c \Sys Load 38c (HR-05)
CPU Idle 22 \CPU Load 26c (TR HR-01 mounted 12CM fan)
VGA: Idle 42c \Load 69c (TR HR-03 mounted 12CM fan X 2)

Photos of new setup will be updated in another day.....

This post has been edited by Doom: Dec 4 2006, 01:00 AM

Smth 2 ask . Is the air duct flexible??? coz if i 1 2 use it to connect the HR-01 to 2 rear fan. can fit onot??? im using Tt amour Jr.

It is flexible but not good enough in my own sense .... if the tunnel could build with smaller zip zap than it make the mounting way easier...

besides the air duct seems to be too long for me .. i squished to get it installed ... don't even need the clips and double tape.

just mount it on and work well...

could u tell me the price of HR-01 & HR-05?

so good .. 3 of them also own it... may i know where u buy the HR-05? n how much?

From bulk orders organized by elhh82 at RM 200 .. no extra charge as the custom went smoothly.....

HR-01 RM140 (Bulk orders)
HR-05 Rm110 (OC Paradise)

cool man,,,,,,,,,,,,,,, it makes less nosie compare before............... nice job
.

This post has been edited by yumiex: Dec 2 2006, 01:32 PM

the HR-03 looks scary....

it looks so heavy that the card is going to break anytime

use the hr-01 once before selling it chikern, doesn't impress me much

what bout ur si-120, still using it

This post has been edited by E-J@1: Dec 2 2006, 02:32 PM

Nice heatsink"s" you have there doom...
I'm kinda interested in buying HR-01, but not quite sure about it's height...

Afraid if the height is just the same with the Ultra 120, then i can't use it too...

***Imagination Question:

Will there be Ultra-03 Vga Cooler & Ultra-05 chipset cooler?

hr-01 sama mcm ultra-120, kalau ada case fan tu memang kena kuarkan

ultra-03 vga & ultra-05 chipset??? ya right, tp klu ada ok gak...

hahaha nice one man!!! Wait until i get my HR-01 and if possible TT Armor Jr.

@doom
you've got the whole in one package lo, HR-01, HR-03 and HR-05, i wonder that'll fit in on my SLI-DR and Galaxy 7300GT gDDR3

i'm using XP-90 and BigTyphoon as well...
i don't think so, because it's Aluminium...and its not that heavy IMO

what? not impress much? HR-01 is like one of those the best cooler available, perhaps you didnt setup it correctly

mind telling me how to setup it correctly

what i meant is, maybe you put your fan blow-out not blow-in (hope you know what i mean), or maybe you don't have good case air-flow...
