I am using Yamaha emx-200+mordaunt short floor stage,aiwa bookshelf spk and Kenwood center...this audio setup I am using for my PC desktop,unfortunately when I ply any thing from my PC thy is only 2 speaker or 4 speaker working...and I Dolby test my system the speaker seems like can't identify the correct device(when it shows the Left front speaKer suppose to working but the both front speaker voice out)a...need help...

Go to Control Panel -> Speaker --> Speaker Setting Advance. Make sure you select 5.1 not Stereo ..... something like that

got pics of the installation? rear side

>5.1
>2 speakers

Kolos

wait wait wait

you have a mixer, 3 different brand of speakers and you want 5.1?

doesnt work that way bro, you need a 5.1 decoder, this can be a small sound card or something bigger like a home theatre system. without this decoder you can only get a simulated surround sound, through using software emulation.

also you need the format of the song/movie in 5.1 format, downloaded stuff from internet normally dont have.

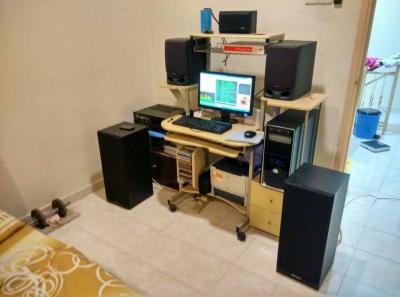

Like tis


Attached thumbnail(s)

The PC can't detect the 5.1CH it only avialable for stereo...I saw it but I can't select...is it bcoz I am using onbiard sound chip?

I think even on board chip also 5.1 nowadays. Maybe you try to update the sound driver on mobo.

can I request a pic of your pc back panel ports?

My mobo only LGA775 is old mobo

I check on Internet that the spec for audio is still 5.1. You should be able to find the 5.1 selection in drop down list. Why not reinstall audio driver

ICH5 built-in audio controller + AC97 Codec ALC655 (5.1 channel)

oooo I think it is not about the pc. Actually how do you connect to your audio system? Thru Yamaha emx-200? Will the Yamaha accept the S/PDIF output of your motherboard?

If it does, then still you need to go to Control Panel>Sound>Playbak Device .... blah blah blah and select 5.1 output

This post has been edited by Zot: Oct 22 2015, 04:39 PM

I think this mixer accept stereo signals only, i.e. stereo signals from several source. Anyway, the mixer is to mix sounds from multiple source. It is not meant to mix FrontLeft:FrontRight, RearLeft:RearRight and Center:Sub. Did not work like that like +3kk! said

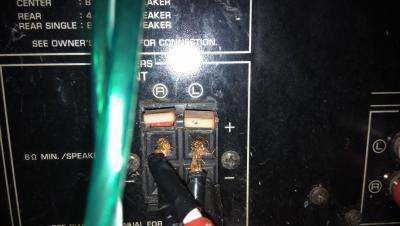

Here


Attached thumbnail(s)

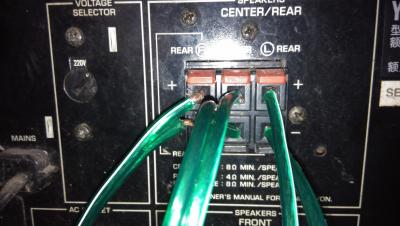

Back view


Attached thumbnail(s)

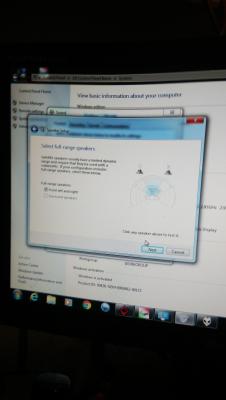

Check tis


Attached thumbnail(s)

Tis

Tis one


Attached thumbnail(s)

Check tis


Attached thumbnail(s)
