To services Joven heater problem can pm me
Joven 880p booster pump problem
|
|
 Jan 11 2018, 10:09 PM
|

Senior Member
899 posts Joined: Jan 2003 From: Bandar Sri Damansara ..Wangsa Permai
|
|
Quote|
|
|
|
|
Jan 17 2018, 09:30 AM
|
Senior Member
913 posts Joined: Feb 2005 From: Ampang, Kuala Lumpur, Seremban...
|
QUOTE(longines @ Jan 11 2018, 10:09 PM) To services Joven heater problem can pm me Hi. Can quote me price of EELS-3D Rev 2 board only. No installation. Circuit fired due to fuse burned. |
|
|
Jun 21 2018, 12:05 PM
|
Junior Member
490 posts Joined: Feb 2006 From: Somewhere I belong
|

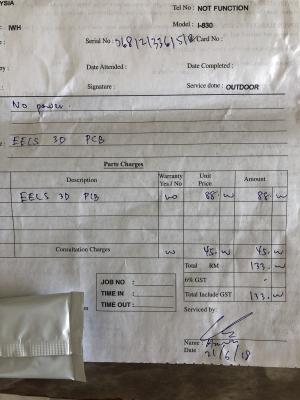

QUOTE(MGeorge53 @ May 19 2017, 12:19 PM) I just had Joven service repair done on the Model 880P due to no power or function . Service person replaced the power board EELS- 3D Rev 2. This is my first and last use of Joven Instant water heaters because of this failure. I checked bad board fuse and most components are good. If anyone has the circuitry, i would like to determine the root cause of failure. I feel u bro. I just had my 4 years+ βnewβ Joven 830i repair too, same circuit board problem. I got another 8 years+ Joven but that old model didnβt give me any problem yet. it seem the quality of the circuit board component is reduce to low cost production compare to others. Bloody greedy Joven!All other instant water heaters in my home still good after 25 years, but im curious why this Joven model failed so fast I found the transistor BC546B faulty and replaced. It is working good now. Hopefully it is reliable. My experience says Joven is not reliable compared to Panasonic based on my experience.
|
|
|
Jul 15 2018, 06:49 PM
|
Junior Member
10 posts Joined: Aug 2009
|
QUOTE(Richard @ May 19 2017, 08:15 PM) That's the magnet located inside the pipe just after the water valve in the Joven heater Hi my old water heater having the same. Symptom. How did you remove the magnetic sensor since my magnetic sensor seems embedded in the pipe?It activates a reed switch on the circuit board to switch on the water pump/heater.. If there is low pressure or as the magnet ages it loses its ability to magnetise (activate) the reed switch which in turn won't switch on the Joven built in water pump/heater.. that magnet has to be replaced and it'll work as normal.. It's a common fault.. |
|
|
Jul 15 2018, 06:50 PM
|
|
Junior Member
10 posts Joined: Aug 2009
|
QUOTE(Richard @ May 19 2017, 08:15 PM) That's the magnet located inside the pipe just after the water valve in the Joven heater Hi my old water heater having the same. Symptom. How did you remove the magnetic sensor since my magnetic sensor seems embedded in the pipe?It activates a reed switch on the circuit board to switch on the water pump/heater.. If there is low pressure or as the magnet ages it loses its ability to magnetise (activate) the reed switch which in turn won't switch on the Joven built in water pump/heater.. that magnet has to be replaced and it'll work as normal.. It's a common fault.. Attached thumbnail(s)
|
|
|
Jul 16 2018, 12:01 AM
|
|
Senior Member
1,083 posts Joined: Jan 2003 From: Kota Kinabalu
|
QUOTE(driversearcher @ Jul 15 2018, 06:50 PM) Hi my old water heater having the same. Symptom. How did you remove the magnetic sensor since my magnetic sensor seems embedded in the pipe? Get a bolt with same diameter as the hole and thread the bolt in then you can pull out the stopperThen the magnet will drop out. Just make sure you put the new magnet in the same polarity or the magnetic switch won't work After you replace the new magnet just use the same bolt to push in the stopper and unscrew |
|
|
|
|
|
Aug 12 2018, 11:25 AM
|
|
Newbie
2 posts Joined: Aug 2015
|
I just replaced the magnet and it worked. Thank you guys.
Can get the magnet from Lazada, 2 for RM30. |
|
|
Dec 23 2018, 09:23 PM
|
|
Newbie
1 posts Joined: Jun 2009
|
QUOTE(Richard @ Jul 16 2018, 12:01 AM) Get a bolt with same diameter as the hole and thread the bolt in then you can pull out the stopper What's the polarity of the magnet? Which side to face down?Then the magnet will drop out. Just make sure you put the new magnet in the same polarity or the magnetic switch won't work After you replace the new magnet just use the same bolt to push in the stopper and unscrew |
|
|
Dec 24 2018, 09:49 PM
Show posts by this member only | IPv6 | Post
#29
|
|
Senior Member
1,083 posts Joined: Jan 2003 From: Kota Kinabalu
|
QUOTE(wsh1976 @ Dec 23 2018, 09:23 PM) What's the polarity of the magnet? Which side to face down? Just pay attention when the magnet drops and replace same orientation.Worse case scenario if it doesn't work, just reorientate the magnet and test again. Otherwise the fault is something else or just have to get a new water heater ππππ This post has been edited by Richard: Dec 24 2018, 09:51 PM |
|
|
Dec 24 2018, 11:32 PM
Show posts by this member only | IPv6 | Post
#30
|
Senior Member
6,914 posts Joined: Apr 2007
|
QUOTE(Richard @ Dec 24 2018, 09:49 PM) Just pay attention when the magnet drops and replace same orientation. If due to thermal cut out the fix is easy also. Can also cause the βno powerβ symptom. Worse case scenario if it doesn't work, just reorientate the magnet and test again. Otherwise the fault is something else or just have to get a new water heater ππππ Fix is just open the unit and press a button on the thermostat. But make sure heater no electric or else will have an electrifying experience. |
|
|
Jan 13 2019, 05:16 PM
|
|
Newbie
1 posts Joined: Jan 2019
|
QUOTE(Richard @ Dec 24 2018, 10:49 PM) Just pay attention when the magnet drops and replace same orientation. Mr.Richard. Before this you said using a bolt and push the sensor down. I dont know what you mean by a bolt.can you show me the image of the bolt.Worse case scenario if it doesn't work, just reorientate the magnet and test again. Otherwise the fault is something else or just have to get a new water heater ππππ |
|
|
Jan 14 2019, 01:13 AM
Show posts by this member only | IPv6 | Post
#32
|
|
Senior Member
1,083 posts Joined: Jan 2003 From: Kota Kinabalu
|
A bolt a threaded rod which has a six sided head as opposed to a screw which is also a threaded rod but with groove on head.
 The defective magnet is in the plastic pipe while the magnetic sensor on the circuit board above that pipe. So first unscrew the top circuit board before you can remove the plastic pipe piece holding the magnet. Use a screw big enough to thread into the stopper in the plastic pipe then the magnet will fall out. Just watch the correct position of the magnet because the new one needs to go in the same way. This post has been edited by Richard: Jan 14 2019, 01:50 AM |
|
|
Jan 16 2019, 12:39 AM
|
|
Newbie
2 posts Joined: Aug 2015
|
|
|
|
|
|
|
Feb 19 2019, 06:48 PM
|
Junior Member
26 posts Joined: Oct 2015
|
Wow guys thanks for this thread now I don't have to call the repairman.
|
|
|
Oct 6 2019, 08:25 PM
Show posts by this member only | IPv6 | Post
#35
|
|
Junior Member
96 posts Joined: May 2005
|
Would like to get help to replace the small white sensor. Watched the video, but could not get it out from the water inlet pipe.
What is the best method to get it out? |
|
|
Oct 27 2023, 12:38 AM
Show posts by this member only | IPv6 | Post
#36
|
|
Newbie
9 posts Joined: Nov 2014
|
QUOTE(driversearcher @ Jul 15 2018, 06:50 PM) Hi my old water heater having the same. Symptom. How did you remove the magnetic sensor since my magnetic sensor seems embedded in the pipe? hi guys.is there a rating to the reed switch? i bought 20mm length reed switch as shopee mostly just show how long. i measured the switch in the heater and it's also 20mm. it burn immediately when i use it. |
|
|
Jan 23 2024, 08:58 AM
|
|
Newbie
9 posts Joined: Mar 2014
|
QUOTE(whyme @ Oct 6 2019, 08:25 PM) Would like to get help to replace the small white sensor. Watched the video, but could not get it out from the water inlet pipe. I had just recently working on it for Joven & Pensonic Water Heater.What is the best method to get it out? https://gr8place2go.blogspot.com/2023/04/di...-hot-water.html This post has been edited by gosleo: Jan 23 2024, 09:07 AM |
