 Aircon Discussion V3, Home Appliance

views

outpace
post Sep 15 2017, 06:07 PM

On my way
****
Junior Member
574 posts

Joined: Jan 2011


Mitsubishi Electric ac, blower can be cleaned easily by opening the air outlet
outpace
post Oct 16 2017, 06:40 PM

On my way
****
Junior Member
574 posts

Joined: Jan 2011


Only if i have seen halcyon thread much more earlier, my a/C pipes, big and small are wrapped in one black insulation loosely, that's pretty common everywhere...
outpace
post Oct 16 2017, 07:23 PM

On my way
****
Junior Member
574 posts

Joined: Jan 2011


QUOTE(halcyon27 @ Oct 16 2017, 06:59 PM)
Can redo if you want esp if AC is placed near above window and compressor is outdoor. Fastest way is to use Insulflex (locally manufactured) if you want to retain piping. Paircoil have to change piping but their pipes are very solid so long as bending is done correctly. Gas capture and refill will cost. Perhaps time this when general servicing is due.
*
thanks.

unfortunately all are burried inside the wall and ceiling for 2 rooms

can probably redo for my 2hp room. Aircond vendor will know the insuflex right?


outpace
post Oct 17 2017, 10:19 PM

On my way
****
Junior Member
574 posts

Joined: Jan 2011


» Click to show Spoiler - click again to hide... «


Thanks.

The existing contractor, when asked, he just say the normal layout out, 2 in one insulation is workable for invertor without issue.

K-flex
Insulflex

will ask around next time
outpace
post Oct 20 2017, 09:16 AM

On my way
****
Junior Member
574 posts

Joined: Jan 2011


QUOTE(halcyon27 @ Oct 17 2017, 10:42 PM)
No don't go that route. That's mixing. Insist on individual sheathed. I gather you may need to hack to widen. Wrapping two in one works but the AC will operate higher. That's the normal complaint why ppl complain inverter don't save. Two pipes with the refrigerant in different phase wrapped together in one insulation equals mixing. The compressor works harder that way.
*
Thanks, then I think I can only ask them to hack the one beside the wall, only add in one more hole.

For living room, compressor and FCU is located back to back, so very easy to reinstall the pipe. But since the space is big, I don't have any plan to upgrade into inverter AC, cause the AC will work harder but will never reach optimal temperature.


outpace
post Oct 21 2017, 12:32 AM

On my way
****
Junior Member
574 posts

Joined: Jan 2011


» Click to show Spoiler - click again to hide... «

Went to ask around and a AC vendor said, the pipe configuration (two pipes in one insulation) is standard, because both are "cold" pipes, unlike those AC that are "hot in hot out" then definitely need separating insulation...

Just pulling a fast one?
outpace
post Oct 22 2017, 10:30 PM

On my way
****
Junior Member
574 posts

Joined: Jan 2011


QUOTE(halcyon27 @ Oct 21 2017, 08:44 AM)
Read the below documents as found here and here. From them, derive your findings and conclusion.
*
OK, I got a contractor who is willing to re do the pipe, to hack off existing and reinsulate the pipes, he said armaflex...
To hack my wall and reinsulate the pipe, before installing the new air cond.


QUOTE(eacharly @ Oct 22 2017, 06:12 PM)
Hi guys,
I am interested to purchase an aircon  for the living room. Can you guys assist in selecting the right size and type. The measurements are as follows:
Length 23 ft x width 22 ft
Ceiling 8 ft.
Area facing east west
No of people : 6
Usage : occasional use below 3 hrs
What size should I purchase and is non-inverter ok. You guys are very knowledgable. I’m new to this. Appreciate your kind advise, please
*
non-inverter and 2HP / 2HP

My 0.26 cents by just a glance, what area that is "facing" East West? north south? hmm.gif

outpace
post Oct 24 2017, 08:43 AM

On my way
****
Junior Member
574 posts

Joined: Jan 2011


» Click to show Spoiler - click again to hide... «



Thanks.

Very likely I will get a R32 Air Cond , daikin (R32 Inverter), I don't see any other brands available in R32
outpace
post Nov 24 2017, 07:56 AM

On my way
****
Junior Member
574 posts

Joined: Jan 2011


Toshiba do the thing automatically, just don't switch off the main power switch after usage.
outpace
post Nov 24 2017, 05:39 PM

On my way
****
Junior Member
574 posts

Joined: Jan 2011


QUOTE(halcyon27 @ Nov 24 2017, 07:58 AM)
Wow, thanks for sharing. Means it's ON>CLEAN>OFF ?

Which model of Toshiba do you use? Any feedback or comments?
*
From what I read from the brochure, the FCU blower will run without cooling for a period of time before it stop. So i just leave the main switch on.

Not sure, but seller said Toshiba is very reliable.
http://toshiba.com.my/air-conditioner/ras-...-1-0hp.html#tab


Got the contractor install according to your guide, but no paircoil or arm a flex. Will post a photo of the pipe when I'm free

Instead, they use insulflex and suplon, installer said the surface of insflx will peel off sooner than suplon / he think superl is better.

outpace
post Nov 28 2017, 06:59 PM

On my way
****
Junior Member
574 posts

Joined: Jan 2011


@ halcyon27

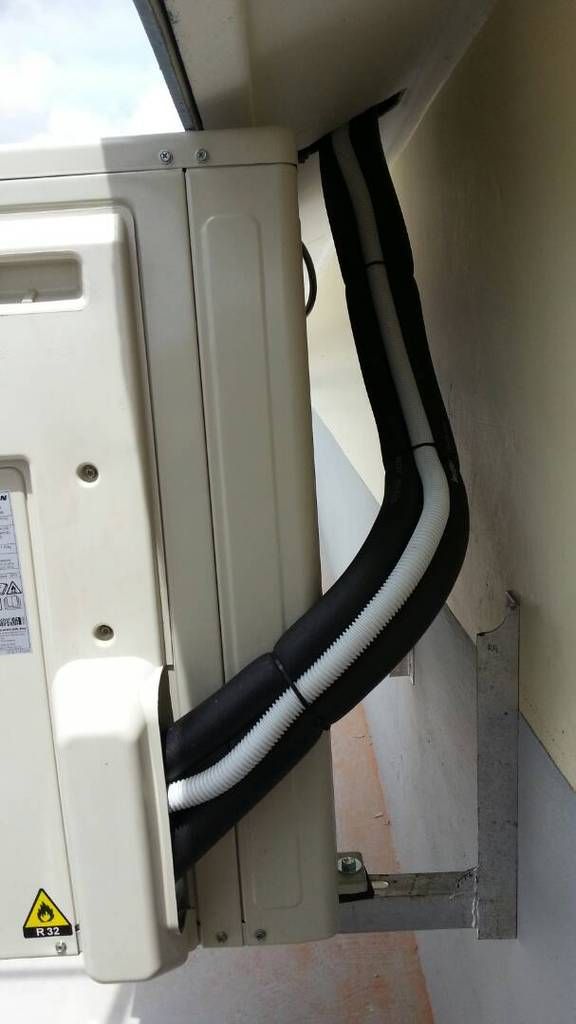

Try to follow what you guided, basically insulated separately, rubber pad on the bottom, cable conduit.


user posted image

This post has been edited by outpace: Nov 28 2017, 07:01 PM
outpace
post Jan 12 2018, 07:21 AM

On my way
****
Junior Member
574 posts

Joined: Jan 2011


QUOTE(zeefri @ Jan 4 2018, 02:23 PM)
Idk if anybody already asked the same question but I have to wonder whether it consumes lots of electricity when we put AC on standby? Because I already set the ON timer and OFF timer settings so I rarely touched the remote control let alone turn off the main switch.

What do you guys think?
*
I don't bother to because the compressor or the FCU will continue to blow air to prevent mold growth.

not quite sure about electricity usage.
outpace
post Feb 20 2018, 06:02 PM

On my way
****
Junior Member
574 posts

Joined: Jan 2011


QUOTE(Qwristews @ Feb 19 2018, 11:59 PM)
seriously im planning to grab samsung inverter aircond , 10year warranty no sure not much ppl using it ?
*
Fully warranted even after claiming the first warranty?

Or FOC parts and labour for first repair within 10 years period?


outpace
post Mar 8 2018, 06:28 PM

On my way
****
Junior Member
574 posts

Joined: Jan 2011


QUOTE(ChuanHong @ Mar 8 2018, 10:29 AM)
okay great.. then i will opt for 3 1HP inverter for all rooms while 2HP for living hall..

thanks mate..
*
So u will be installing the sliding door as well? I guess it helps
outpace
post Jun 28 2018, 07:29 AM

On my way
****
Junior Member
574 posts

Joined: Jan 2011


After my new Daikin R32 GTR running for 6months, it was off for one week as I had been away.

This morning, after using for the first night (24c), discovered water trapped in the blower housing.

My installer asked me to observe 2 more nights, my question is if it's installation problem, then this should have surfaced long time ago?

Could it be gel foaming in the condensate pipe? I see not much condensate water coming out from my toilet floor trap.

would air cond behave like this after a period of long rest?
outpace
post Dec 26 2018, 10:32 PM

On my way
****
Junior Member
574 posts

Joined: Jan 2011


QUOTE(mdnurman @ Dec 26 2018, 12:06 PM)
anyone got a calculator/calsulation on size of room and the aircon HP suitability?

tq
*
https://airconditioner.my.panasonic.com/horsepower.html
https://www.calculator.net/btu-calculator.html


outpace
post Apr 22 2021, 12:19 AM

On my way
****
Junior Member
574 posts

Joined: Jan 2011


How do you spot a good air-conditioner servicing and an average one? any difference on the detergent (red colour cleanser) they use?



By the way, service interval for a 2HP air-cond should be like? once a year?
Washed the filter once a month.
