Here have some aircon yearly serving or monthly information with Diy sharing solution by user sharing thread,

you guys also can ask for help Aircon man service needs and update here.

Some of today minor update for how to solve about aircon FCU = Fan Coil Unit vibration noise?

1. Daily use from pre-filter can collect 50% dust.
2. Fan blower can sticks around 30% dust.
3. Drain pan can collect some 5% dust or turning into jelly

how to trying to avoid around 80% dust go into aircon cooling coils?
buy additional aircon filter from "Daiso" can protects some dust get into coils that is good idea, but you guys how much can believe this? would be spoil my fan motor or turn high Amp. or made noise, my answer is wouldn't made your fan motor turn weaks or high amp.

cause i had used this solution an over 5 yrs, do you think is long or short?







but my FCU cooling coils still looking like new.

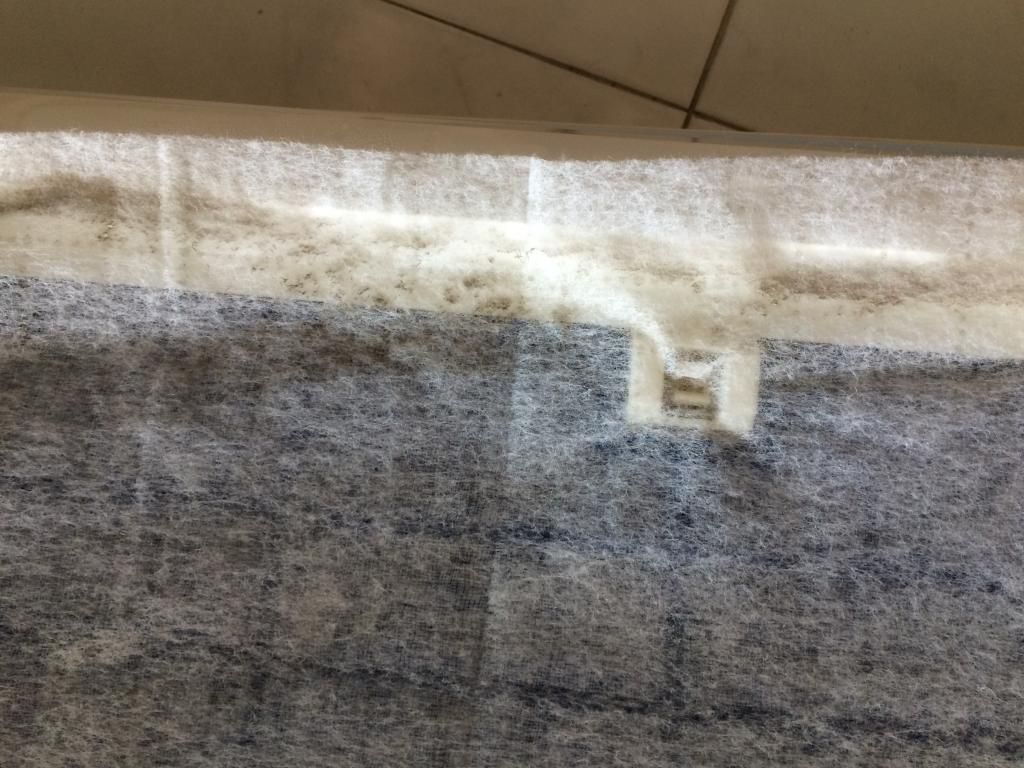

Can't believe how much dusty there had.






This room lagi worst.






you just need to apply aircon filter only

This morning sharing how to solve out about vibration noise??

Bearing from which part, usually at left hand side, due to after gas cut off then can hear the wave noise, so this morning can't tahan already and simple open out and service by own.

just remove out on left hand side of fan bearing and put some grease to be settle.


inside the bearing look like the grease has dry out.

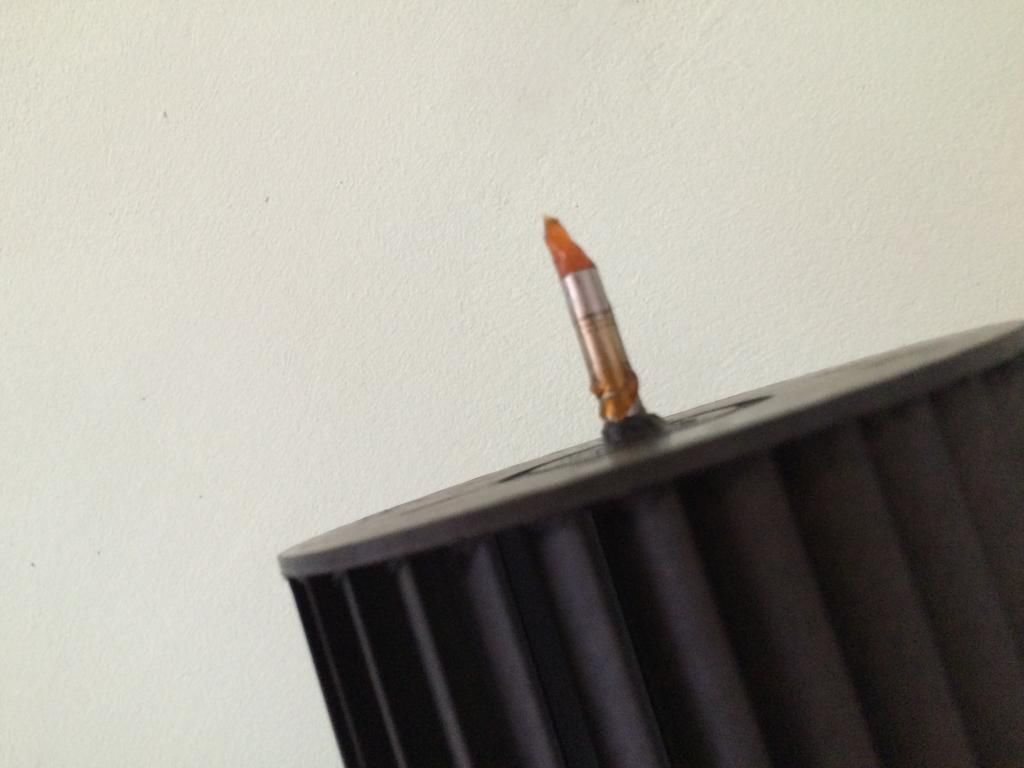

put some grease on bearing and blower end.


the power by this grease

Good diy man..

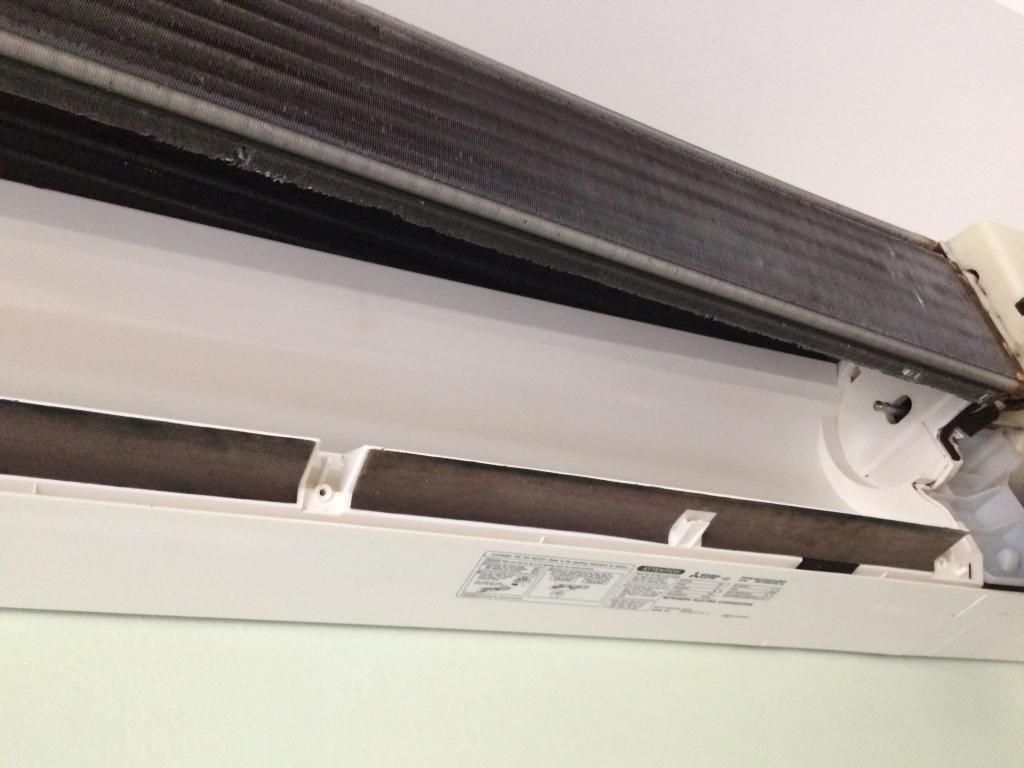

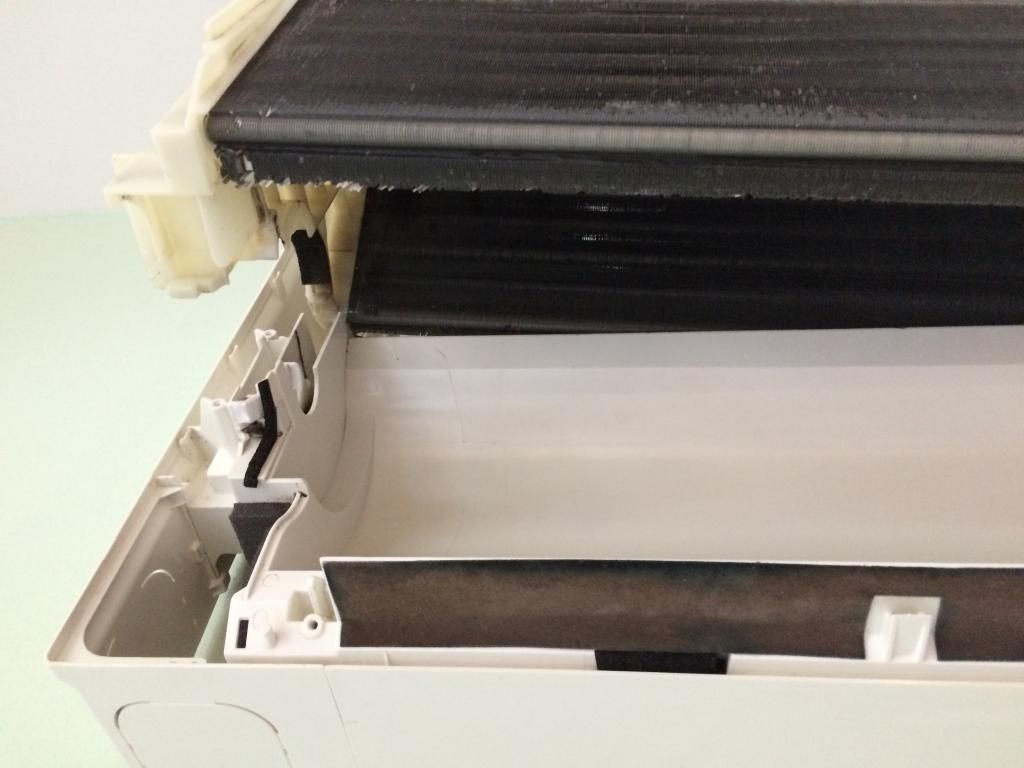

My drain pan look like quite clean, cause apply additional filter can avoid more jelly on drain pan.

good job kimsim

respect

The grease solution usually is quite common for apply to York & Daikin GA user.
can solve out vibration noise...

Hope for CNY solve my York inverter unit.. in sibu sarawak.

This post has been edited by kimsim: Jan 31 2015, 11:40 AM

my wife kampong also used it additional filters







but at the blower still got minor dust


at least at center of cooling coils these still look clean




This post has been edited by kimsim: Jan 31 2015, 11:53 AM

How bout this?

Did you seem b4? Even my toilet exhaust fan also never miss out.

well done and good sharing...guess lot of members will go look for such filter..
You get from Daiso?

good !

how do you clean the compressor ?

For me on the compressor hanging n spy strong water will do..
Unlike this unit take out from my rear bedroom just used more than 3 yrs internal FCU PCB spoil and left the compressor still working with after clean out and keep for backup.
Hitachi well done





This post has been edited by kimsim: Jan 31 2015, 07:16 PM

Ya at daiso only selling it japanese Aircon, exhaust fan with filter for hood

This post has been edited by kimsim: Jan 31 2015, 01:00 PM

Apply additional filter for my pana exhaust fan really can help up or solving difficult to empty dust or maintain less often.

Good tips....
will look for the additional filter from daiso.....really makes sense

the dust level really created problems for me and at least once a year i need to ask the aircon guy to do full service due to the dust level

This post has been edited by hushymushy: Feb 1 2015, 05:56 PM

Very common for lander properties.
Dust is travel on ground.

You want to prevent dust? Don't turn it on.

Putting a prefilter just so that the original filter doesn't get dirty so fast is stupid.
A layer of dust on the filter will drop your aircon's efficiency. Putting a pre-filter is like adding another layer of dust on top off the normal dust, dropping further the efficiency of your Aircon

Dust no matter your pre-filter design how fine or the netting these still get into the fan blower..

Adding additional filter can avoid dust get into cooling coils.

Unlike Pana pre-filter design to compare others brand of the netting hole for Pana really so much smaller n fine.

Maybe if you adding into Pana Aircon would be feedback like drop down the airflow or spoil the fan blower motor or getting high amp.

So far if my ME can't take it.. I won't introduce to your guys.

Because I am the user also will protect my aircon as well.
So far so good the solution already an over 5 yrs plus applied additional filter on top.

Can't find it when I shopping at Daiso Puchong IOI mail (only have normal table fan type).
which specific brand you get from?
Hopefully it could use for my air filter as the filter itself not longer able to purchase

This post has been edited by Jo_da48: Feb 1 2015, 06:54 PM

I Guess now already selling like hot cake.

Just depend luck now.

Brand got few japanese brands, so I can't recalled, later went back home and update here

So aircon can function like air purifier?

Bingo...

Feels sad hepa filter can't do..

Not recommended additional filter for Panasonic air-con? Planning to try it on my panasonic air-con

Can try, would be effect like keeping warm, last time my Pana, i can feel on quiet mode will be slighly warm.

Also depend you clean out pre-filter then apply for extra filter.

not too prefer like below the condition, must be clean out then apply for extra filter or just remote out the pre-filter and instead of additional filter.



This post has been edited by kimsim: Feb 2 2015, 12:01 AM

Hi I bought it brand

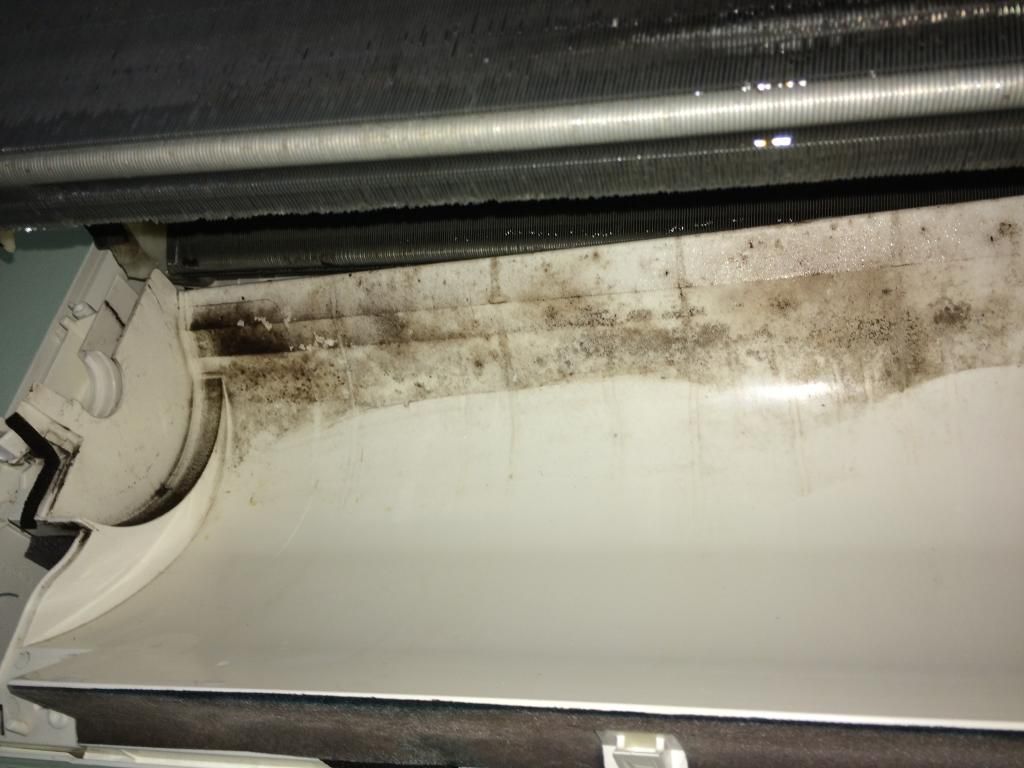

For Panasonic basic aircond, any idea how to dismantle the part where the wind blows out. Inside hard to clean, from the picture you can see the inside has turn mouldy. Thank you in advance for the advise.

This post has been edited by Chigme: Feb 2 2015, 01:26 PM


Attached thumbnail(s)

Can refer here, anyway you have to remove out front cover panel follow by few screw and then take out whole casing then you can able to do the rest.

Sorry, typo error. Which specific Daiso Branch you get from?

Not sure in KL, but in JB at bukit Indah there still have some n s'pore IMM.

Your condo in jb or singapore? Everyday cross causeway?

My single sty in JB for weekend home & my resale HDB flat for weekday home

This is a good video too. By Captain Zaharie Syah. Yes, the one who piloted the still missing MH370. Seems to be a really nice and knowledgeable chap

https://www.youtube.com/watch?v=atQZtEEcE4c

For some reason I cannot embed the video. So here's the direct link

This post has been edited by spikey2506: Feb 3 2015, 09:49 PM

Good job.

Why call DIY services n experience here.

Need you guys learn more from zero to can handle for easy job, like DIY maintenace by monthly or weekly, but usually weekly is no bothering it.
Time + lazy, cause very dusty from pre-filters.

How much would you like to know, just question this thread will you learning more.

Hope you guys can save up something here

Hi Xccess

Bro where you bought Aircon filter from which Daiso?
https://forum.lowyat.net/topic/3265377/all

Thanks

Found your replied

This post has been edited by kimsim: Feb 4 2015, 08:02 AM

Found it ..go home try on my air filter which didn't have any production anymore

Yesterday I sapu at bukit Indah Jusco for at least 10 packs + hood filter too

share for how to reused with extra filters.

Original use for 1- 2 months condition.

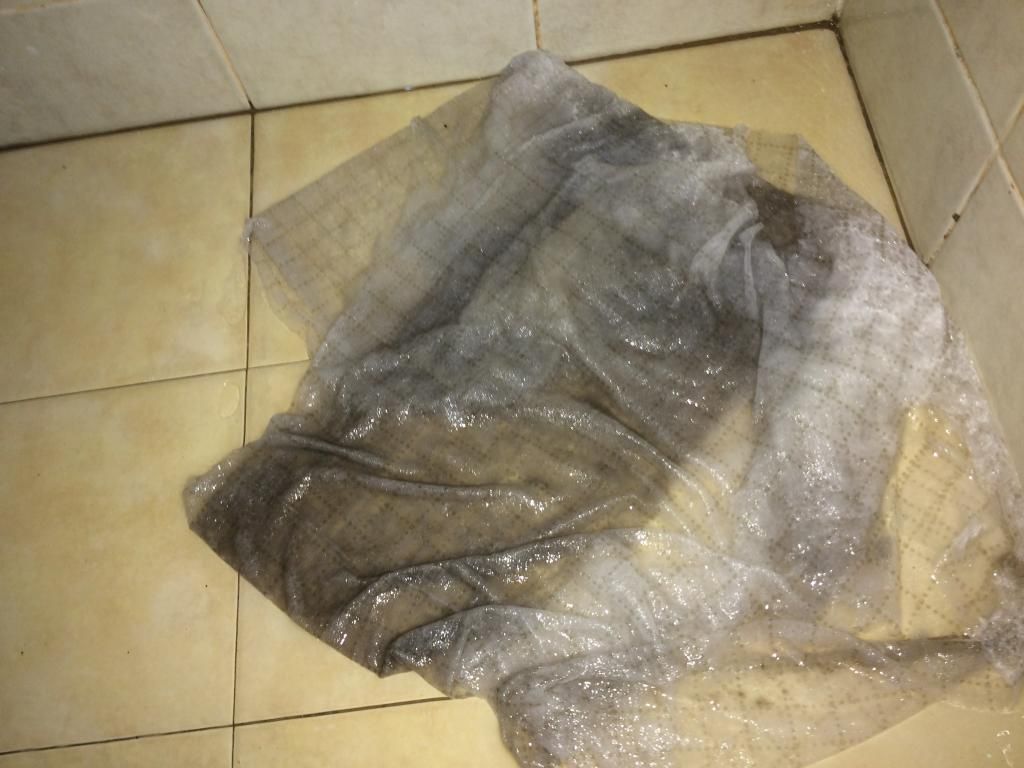

pour water 1st

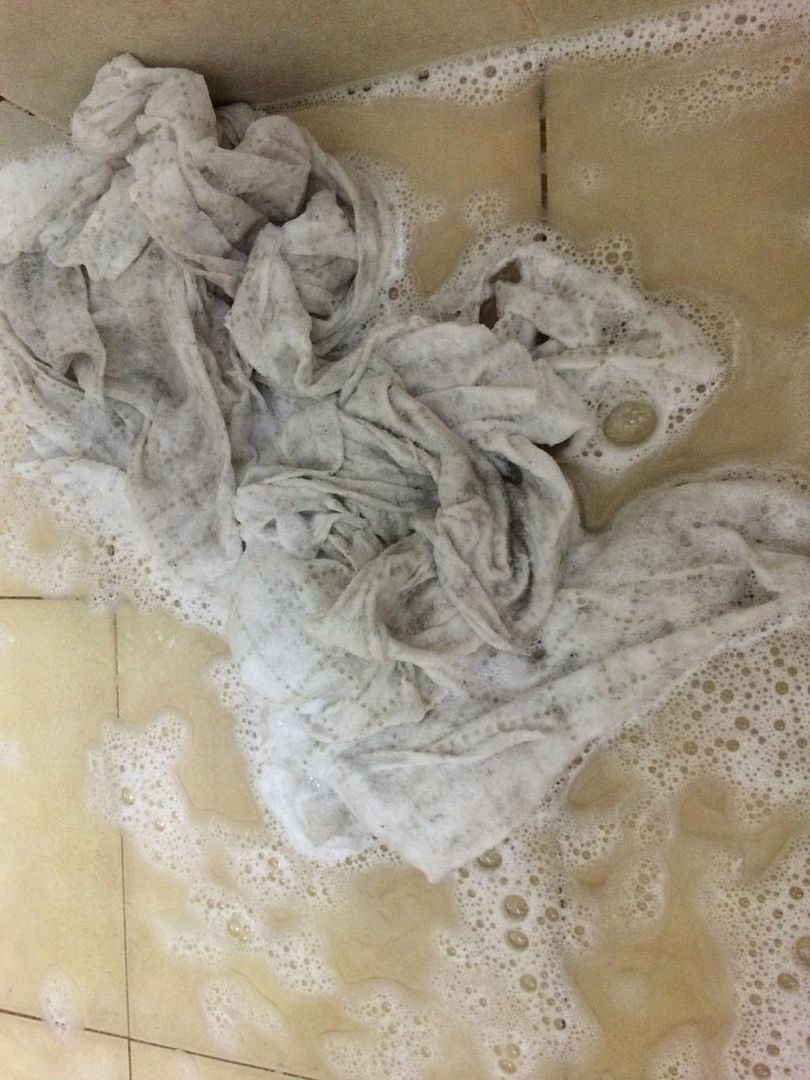

wash with dynomo detergent.


completed clean

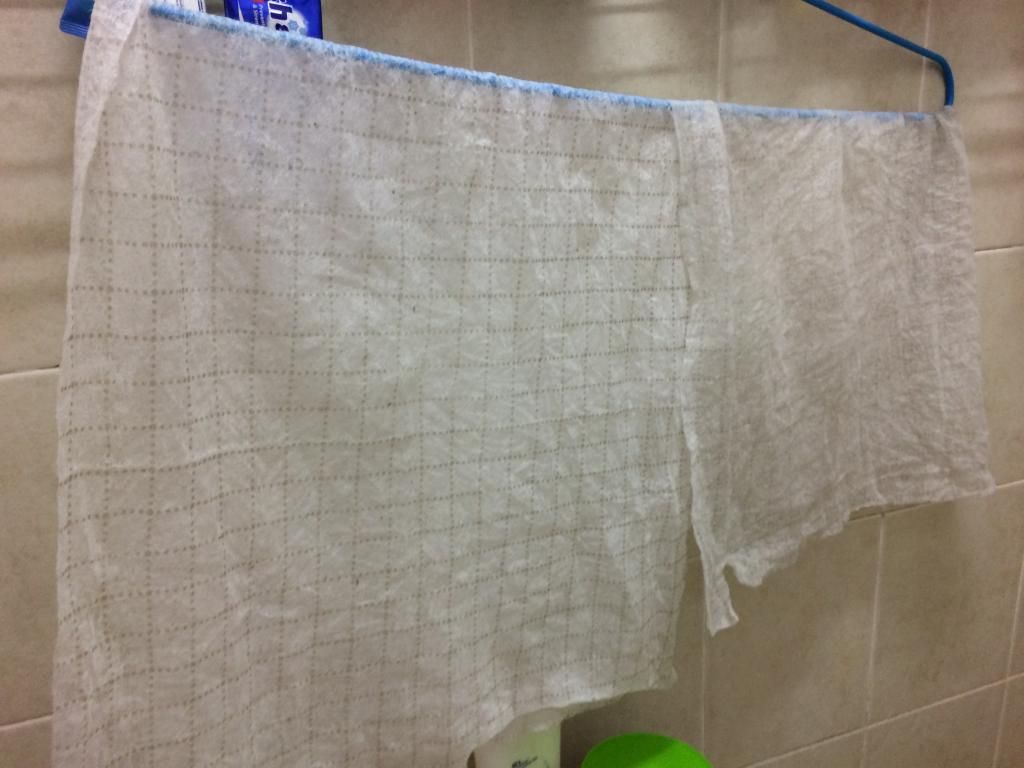

hanging on hanger for keep it dry

This morning just try to clean out on my ME blower from over 5 yrs never wash before.

lucky has apply extra filter then for more easier to maintenance

original condition


ME really easy to remove out fan blower, unlike hitachi have to take out fan blower motor.


very dusty an hide inside the blower, even easy clean to access on blower parts, but still not 100% can touch internal side.

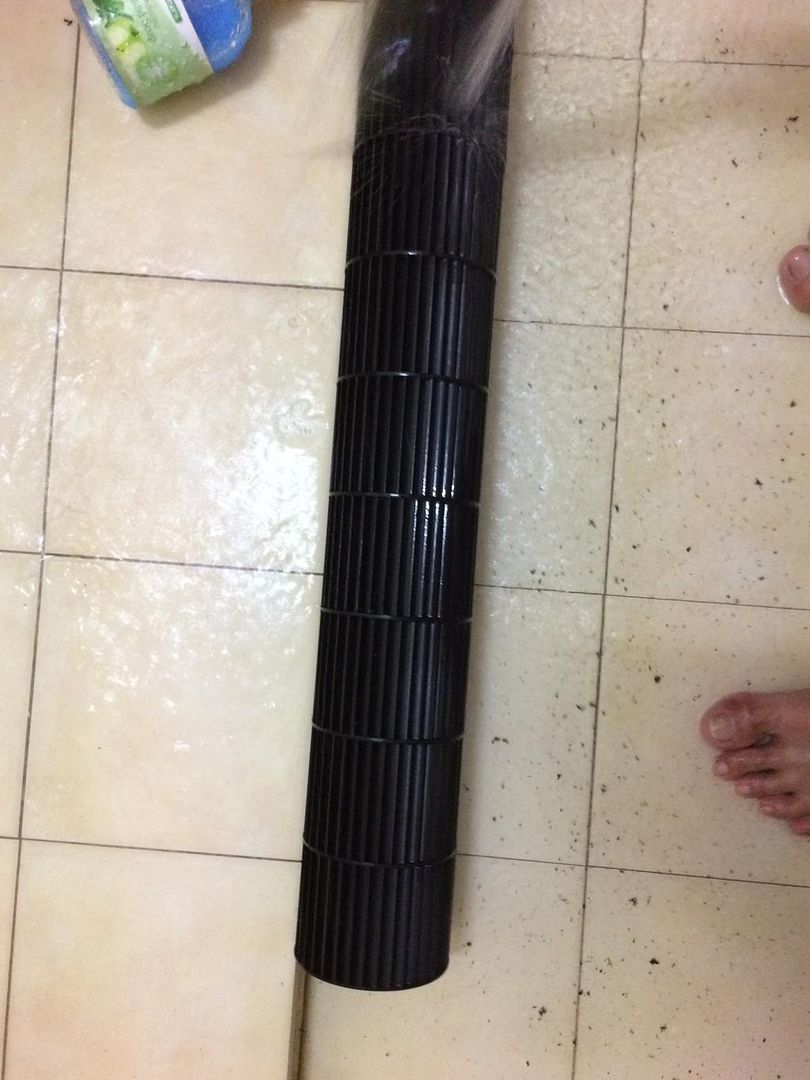

just use tap water only






after wipe out on internal casing.




but make sure the fan bearing put some grease to solve out noise

the conclusion after simple clean out on fan blower can feels the airs much stronger than before and more quiet now.

the Daiso filter can use on ME aircon aaah?

i had my hitachi All DC inverter used for spare unit only and diy clean out on blower..

very hard to remove fan blower, the only solution to remove out whole fan coil unit down.


original condition, but also had used with extra filter for this unit.



the reason need to remove out fan motor and pcb.


then remove whose parts for fan blower and coil and drain pan for clean out.


fan blower bearing look


the conclusion to own hitachi parts is worst than ME at all.
also many parts was made in china and claims it very expansive parts for sell m'sia.
even cooling coil also worst than ME.

This post has been edited by kimsim: Mar 1 2015, 07:31 PM

from only Daiso was carry for aircon filters.

This post has been edited by kimsim: Mar 1 2015, 07:28 PM

dont understand

I don't think outside of Daiso outlet you able to find the same Aircon filter selling like Daiso..

This post has been edited by kimsim: Mar 1 2015, 08:28 PM

i mean can Daiso filter fit into ME aircon?

Daiso filter was Japan design can apply for any brand of Aircon = universal aircon filter.

The daiso aircon filter cuts off airflow too much - I wouldn't recommend it.

kimsim, thank you for sharing so much on this topic... but I cann't seems to see your posted image though..
