[ Worklog ] AG's PIMP MY ICUTE.....completed !, update - final shots at page 9 !
|
|
  Sep 23 2006, 10:45 AM, updated 19y ago
Show posts by this member only | Post
#1
|

Senior Member
4,561 posts Joined: Jan 2003 From: Penangites
|
alright, this is the casing that i had around 2 years ago......
 eventually i abandoned it coz i got really bored with it already...  so i'm gonna transform this Icutie into something flaming hot and i'm gonna put in everything that i know into it .....  i'm going to post stage to stage mod and it's gonna take up a lot of space coz i'm gonna mod the whole casing and almost every part of it. So stay tuned ! this is the original look   This post has been edited by AllnGap: Jun 30 2007, 09:05 AM |
|
|
|
|
|
Sep 23 2006, 10:45 AM
Show posts by this member only | Post
#2
|
|
Senior Member
4,561 posts Joined: Jan 2003 From: Penangites
|
first of all, i dont have got a set of dremel like uncle Ianho has, so i got to go low tech a bit la....
this is called coping saw alright. and i used around 5 intense hours to cut the design out. ( have to focus on my hand movement ) It isnt that easy as it seems to be, i replaced around 15pieces of the blade to cut this design alone  basically, i've stripped down all the paint on the casing and torn the casing apart. i know it's fugly, but I have not reached the paint job stage yet.....    okay, first of all, i started drawing some amoeba ( <= correct spelling or not  ) like design with pencil. Then i made a point of entry for the blade which is a hole for each of the " tentacles ", and i cut out everything from there.as you can see in the pics, the edges arent sharp yet coz i have not made them yet.     after 1 hour of making the sharp edges, filing it to smoothen the curves, this is what i've got. it's a lot of hardwork working on this piece of crap, but i hope that i can turn this crap into a rolls royce   This post has been edited by AllnGap: Sep 23 2006, 11:31 AM |
|
|
Sep 23 2006, 10:46 AM
Show posts by this member only | Post
#3
|
|
Senior Member
4,561 posts Joined: Jan 2003 From: Penangites
|

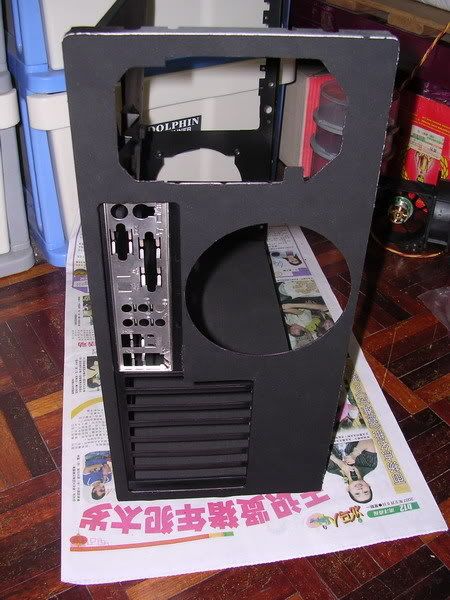

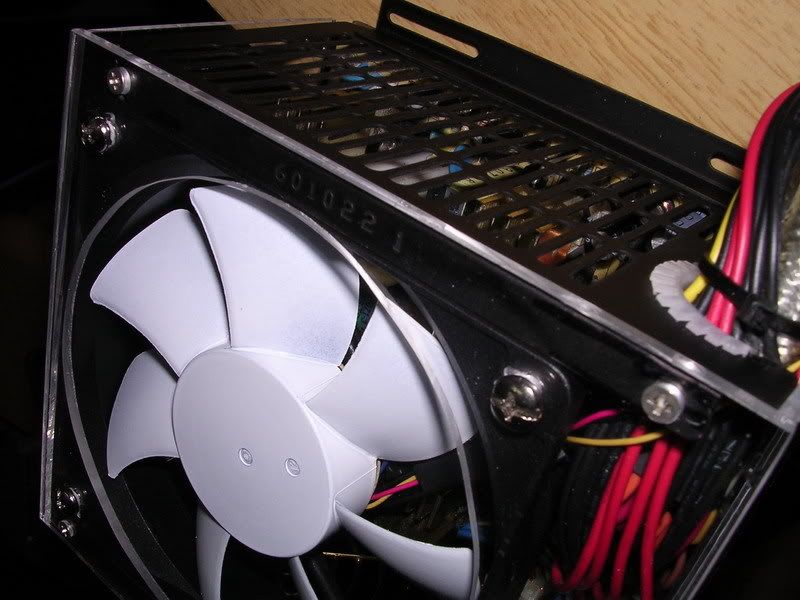

 this is from front to back when it's finally installed back to the casing      This post has been edited by AllnGap: Sep 23 2006, 11:26 AM |
|
|
Sep 23 2006, 11:09 AM
Show posts by this member only | Post
#4
|
Senior Member
1,072 posts Joined: Nov 2004 From: K.L
|
wow..u used a jigsaw or a rotary tool to cut that?
|
|
|
Sep 23 2006, 11:11 AM
Show posts by this member only | Post
#5
|
Senior Member
2,597 posts Joined: Mar 2005 From: Kuala Lumpur
|
cool top panel design
 |
|
|
Sep 23 2006, 11:38 AM
Show posts by this member only | Post
#6
|
Junior Member
24 posts Joined: Aug 2006 From: Subang Jaya
|
Wow..using coping saw alone to cut that
 |
|
|
|
|
|
Sep 23 2006, 12:05 PM
Show posts by this member only | Post
#7
|
Senior Member
1,298 posts Joined: May 2005 From: Penang Island
|
Good luck with ya mod
 btw nice top panel design u got there |
|
|
Sep 23 2006, 12:16 PM
Show posts by this member only | Post
#8
|
|
Senior Member
4,561 posts Joined: Jan 2003 From: Penangites
|
QUOTE(superdav007 @ Sep 23 2006, 11:09 AM) wow..u used a jigsaw or a rotary tool to cut that? you got dremel but no skill also useless........i certainly wont go simply whack casing until it's out of shape  QUOTE(gmail @ Sep 23 2006, 11:11 AM) cool top panel design thanks bro....QUOTE(CoDeNaMe29 @ Sep 23 2006, 11:38 AM) Wow..using coping saw alone to cut that the difference is just time and effort, result will be the same also QUOTE(sherren @ Sep 23 2006, 12:05 PM) Good luck with ya mod i see luck as proper planning....so i'll need proper planning btw nice top panel design u got there |
|
|
Sep 23 2006, 12:44 PM
Show posts by this member only | Post
#9
|
|
Junior Member
24 posts Joined: Aug 2006 From: Subang Jaya
|
Yeap, that is why respecting for your hardwork and focus in making the neat cut
|
|
|
Sep 23 2006, 06:58 PM
|
Junior Member
215 posts Joined: Sep 2004 From: Sandakan
|
QUOTE(AllnGap @ Sep 23 2006, 12:16 PM) you got dremel but no skill also useless........i certainly wont go simply whack casing until it's out of shape  Sorry for  I just couldn't resist |
|
|
Sep 23 2006, 11:45 PM
|
All Stars
14,909 posts Joined: Jul 2005
|
QUOTE(nessus @ Sep 23 2006, 06:58 PM) Sorry for I just couldn't resist    Don't know what to say... But what nessus says is damn funny... Anyway allngap, that cuts is damn nice, look close like a laser cut...  |
|
|
Sep 24 2006, 07:29 PM
|
Senior Member
3,622 posts Joined: Jan 2003
|
QUOTE(nessus @ Sep 23 2006, 06:58 PM) Sorry for I just couldn't resist Nice cut, can teach? hehehe cos I got no dremel |
|
|
Sep 24 2006, 09:42 PM
|
Senior Member
6,035 posts Joined: Jan 2003 From: Penang
|
hail nessus!!!
tats super funny allngap tailo faster complete..we wana see the finis product |
|
|
|
|
|
Sep 24 2006, 10:09 PM
|
Senior Member
3,377 posts Joined: Jan 2003 From: Kulai-Pontian (Johor)
|
nice mod....
 .. waiting for the end result |
|
|
Sep 25 2006, 12:36 PM
|
Senior Member
2,723 posts Joined: Jan 2006 From: Pekopon Planet ~~~
|
original cool enough.... huuhh
cant wait for the result... huuhuhu |
|
|
Sep 26 2006, 10:32 AM
|
Junior Member
294 posts Joined: Jan 2005 From: Cat CiteYy
|
cool, its not easy to cut into those pattern and shape, gud work
|
|
|
Sep 26 2006, 06:23 PM
|
Senior Member
705 posts Joined: Jan 2003 From: Kuala Lumpur
|
wow just the top panel alone is already so cool can't imagine what is he going to do with the side acrylic
hehe lazer etching ar ??? |
|
|
Sep 27 2006, 02:36 PM
|
|
Senior Member
4,561 posts Joined: Jan 2003 From: Penangites
|

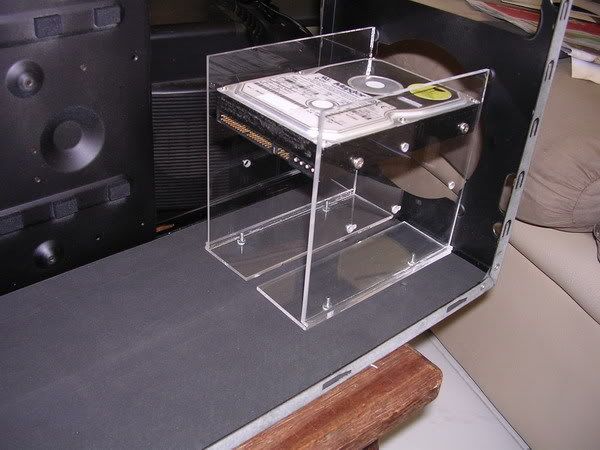

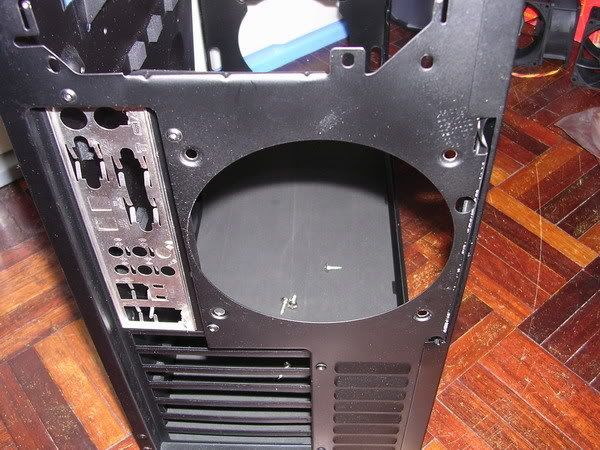

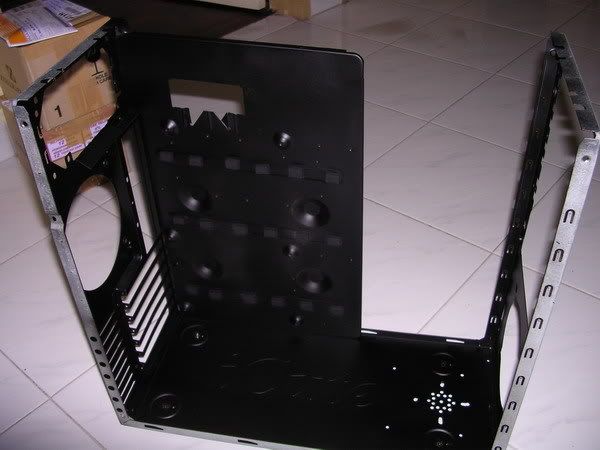

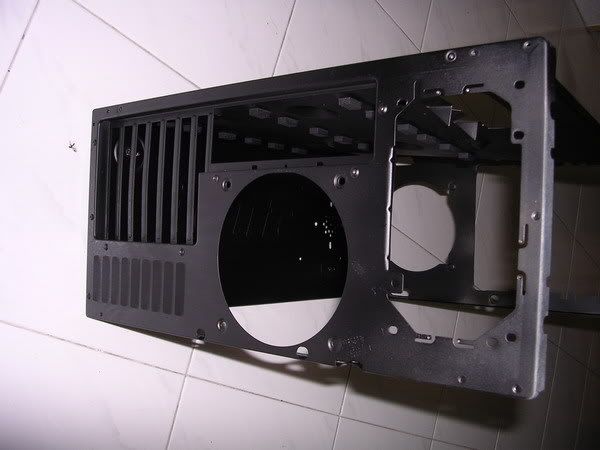

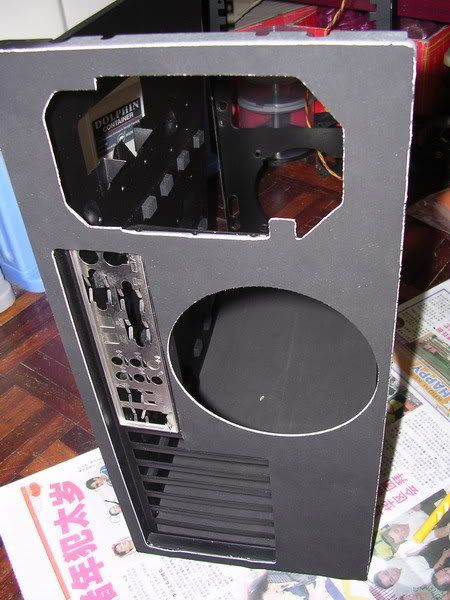

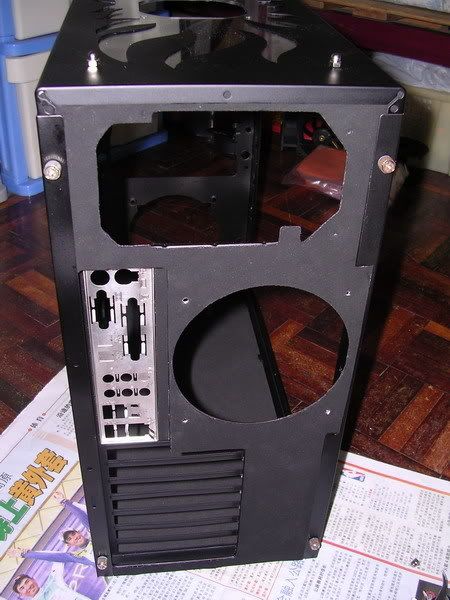

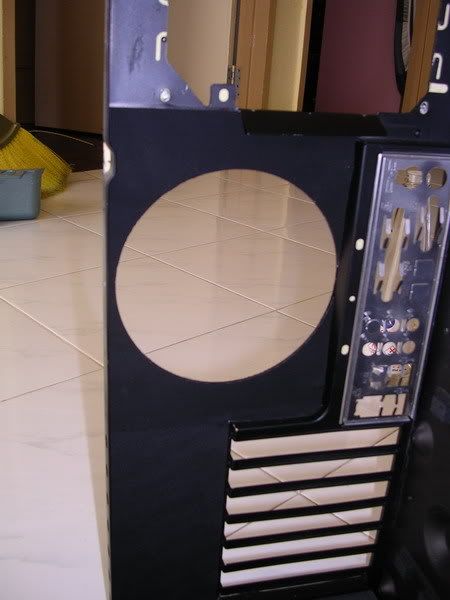

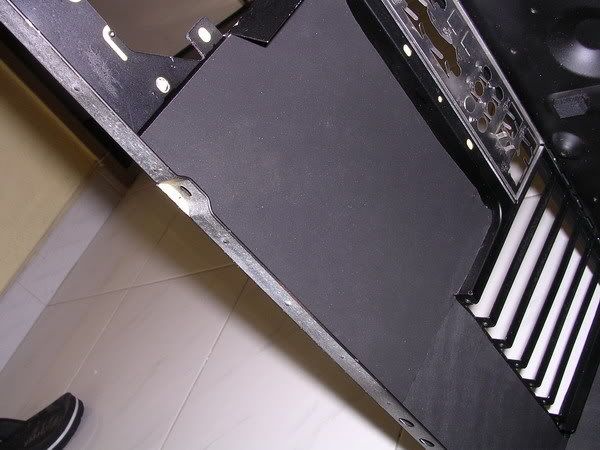

This is the strip down casing, when everything is ready, i'll repaint the whole thing.
  I've removed the whole CDROM bay, floopy and the HDD bay holder by removing all the rivets and will replace it with acrylic bracket to make all the bays look ' floating '   a 120mm fan can be fitted infornt, but i think i'll just need a 92mm in order to make my design fit nicely, so i've made a 120mm to 92mm converter to fit 92mm right in the middle of the metal casing and the plastic moulding face plate. i'll add some surprise element to the fan later   This is the shot taken from the top. I'll make windows on my PSU as well as my CDRW and put some bling blings in there.  After stripping off the metal mount for the drives, i've rebuild them using acrylic and it will be fitted with 2x HDD in front of the 92mm which will blow right pass it.  |
|
|
Sep 27 2006, 04:25 PM
|
Senior Member
2,239 posts Joined: Jun 2006 From: K.L
|
wow.. this looks much better than a whole acrylic casing
|
|
|
Sep 27 2006, 05:51 PM
|
Senior Member
2,731 posts Joined: Dec 2005 From: Hell
|
what do u use to cut round hole on the acrylic...use jigsaw oso is it??
|
|
|
Sep 27 2006, 08:34 PM
|
|
Senior Member
3,622 posts Joined: Jan 2003
|
You got very short toes. Hahahahahaha.
|
|
|
Sep 27 2006, 08:50 PM
|
Senior Member
1,521 posts Joined: Oct 2004 From: Island where you get pearl
|
QUOTE(Acey @ Sep 27 2006, 08:34 PM) You got very short toes. Hahahahahaha. Apalah go see ppls toes for wad  @AllnGap nice HDD holder u got there |
|
|
Sep 28 2006, 12:42 PM
|
|
Senior Member
4,561 posts Joined: Jan 2003 From: Penangites
|
QUOTE(Mooneyes @ Sep 27 2006, 05:51 PM) what do u use to cut round hole on the acrylic...use jigsaw oso is it?? it's called a hole cutter.....not jigsaw.....QUOTE(Acey @ Sep 27 2006, 08:34 PM) You got very short toes. Hahahahahaha. WTH QUOTE(Cloudx @ Sep 27 2006, 08:50 PM) Apalah go see ppls toes for wad thanks man @AllnGap nice HDD holder u got there |
|
|
Sep 28 2006, 02:14 PM
|
|
Senior Member
2,731 posts Joined: Dec 2005 From: Hell
|
how much hole cutter cost u(the cutter oni not drill)
|
|
|
Sep 28 2006, 08:40 PM
|

VIP
4,809 posts Joined: Jan 2005
|
dude, where did u get the hole saw for, and how much?
|
|
|
Sep 28 2006, 08:56 PM
|
|
Senior Member
3,622 posts Joined: Jan 2003
|
Ah Ngap, how u use the saw to cut out the design without drilling it????? I'm still in a Land of Confusion thinking how u start cutting the top panel design. @_@
|
|
|
Sep 28 2006, 09:21 PM
|
Senior Member
9,257 posts Joined: Aug 2005 From: Not so sure myself Status: 1+3+3=7
|
Another nice work from AllnGap...
Hmm, an echo of CloudX, the HDD holder was nice.  |
|
|
Sep 28 2006, 10:28 PM
|
|
All Stars
14,909 posts Joined: Jul 2005
|
No updates today?
|
|
|
Sep 29 2006, 01:30 PM
|
|
Senior Member
4,561 posts Joined: Jan 2003 From: Penangites
|

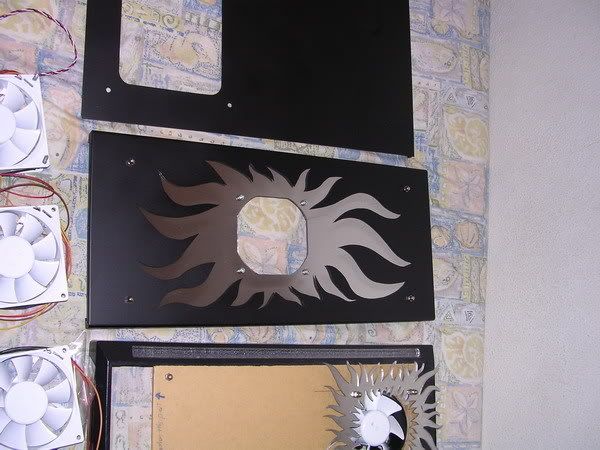

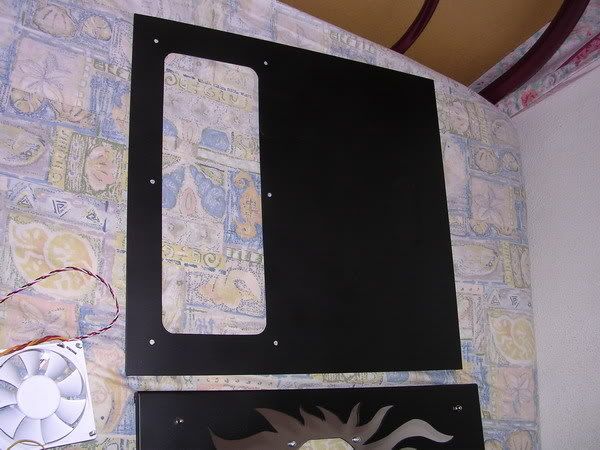

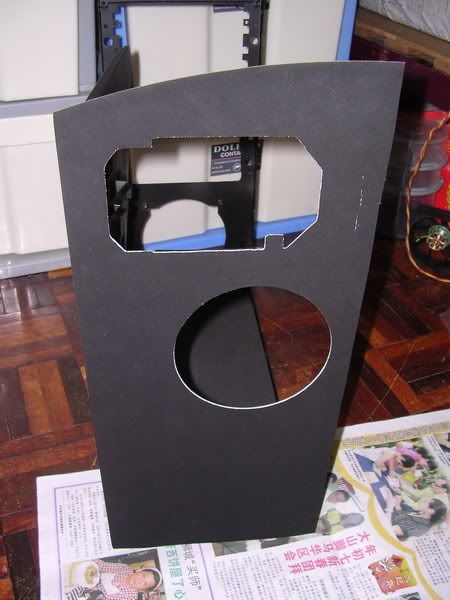

this is the front panel, the acrylic will be sprayed with flat black after i've configured all the knob and switches positions.
i've yet to install a frosted flame design in front.....  this is what i've done for my top panel.....sprayed a layer of base black at the moment....havent sand it for second layer yet i used tint and apply on the acrylic, it's a black and silver tint. you'll only be able to see inside the casing when there's light but it will remain reflective all the time.... there's also a 92mm fan installed on top as intake..... this is the blunder...when i drilled the hole, the tint layer was separated from the acrylic....looks like i've got to find a way to patch this flaw so enjoy the pics !!!       This post has been edited by AllnGap: Sep 29 2006, 01:41 PM |
|
|
Sep 29 2006, 01:39 PM
|
|
Senior Member
1,521 posts Joined: Oct 2004 From: Island where you get pearl
|
Walao... the top panel looks wicked
 wad u use to cover it up? doesnt looks looks a mirror? or izzit mirror shine alu? |
|
|
Sep 29 2006, 01:42 PM
|
|
Senior Member
4,561 posts Joined: Jan 2003 From: Penangites
|
QUOTE(Cloudx @ Sep 29 2006, 01:39 PM) Walao... the top panel looks wicked it's tint you know...... wad u use to cover it up? doesnt looks looks a mirror? or izzit mirror shine alu? |
|
|
Sep 29 2006, 01:54 PM
|
|
Senior Member
1,521 posts Joined: Oct 2004 From: Island where you get pearl
|
Acrylic on tinted??
Really doest looks like tinted to me |
|
|
Sep 29 2006, 02:21 PM
|
|
All Stars
14,909 posts Joined: Jul 2005
|
Damn, that top panel look so freaking wicked!!
Nice job bro allngap!!! |
|
|
Sep 29 2006, 02:53 PM
|
Senior Member
536 posts Joined: Jul 2006 From: Sabah, Sandakan Status: Photography Mood ON
|
wow cool!~
5 GOOD to u i also hope to get 1 modify casing like this |
|
|
Sep 29 2006, 03:34 PM
|
Senior Member
930 posts Joined: Feb 2006 From: Kuching, Hornbill Land
|
 waitin for more photos Nice man... |
|
|
Sep 29 2006, 05:30 PM
|
Senior Member
1,162 posts Joined: Aug 2005 From: museum of kopitiam
|
wonder can build a casing without original casing??
means like just using only non material from original casing?? just my curiosity |
|
|
Sep 29 2006, 07:04 PM
|
Senior Member
2,497 posts Joined: Jan 2006 From: Selangor
|
is that fan at top panel for air intake??it should exhaust fan right??
|
|
|
Sep 29 2006, 07:53 PM
|
Junior Member
62 posts Joined: Aug 2005 From: even i don't know where
|
would u mind explaining m ore bout the tinted plexi... huhuhuhu look so interesting... hihihi ~
|
|
|
Sep 29 2006, 10:32 PM
|
|
Senior Member
9,257 posts Joined: Aug 2005 From: Not so sure myself Status: 1+3+3=7
|
was wondering how a fugly stripped out top can turn into something like tat...
More pics pls! |
|
|
Sep 29 2006, 10:47 PM
|
|
Senior Member
4,561 posts Joined: Jan 2003 From: Penangites
|

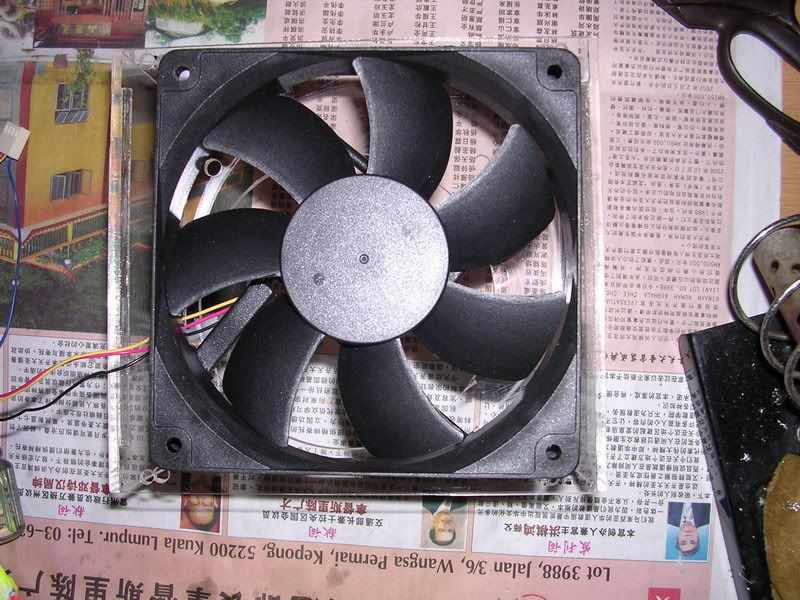

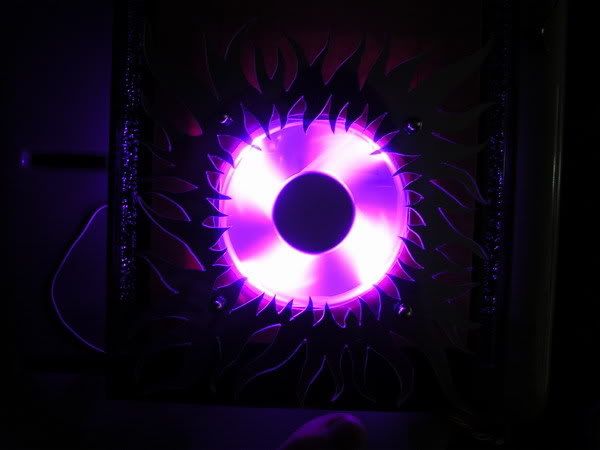

the latest update is a 92mm frosted flame fan grill on the 3.
 This post has been edited by AllnGap: Sep 29 2006, 10:54 PM |
|
|
Sep 29 2006, 10:49 PM
|
|
Senior Member
4,561 posts Joined: Jan 2003 From: Penangites
|

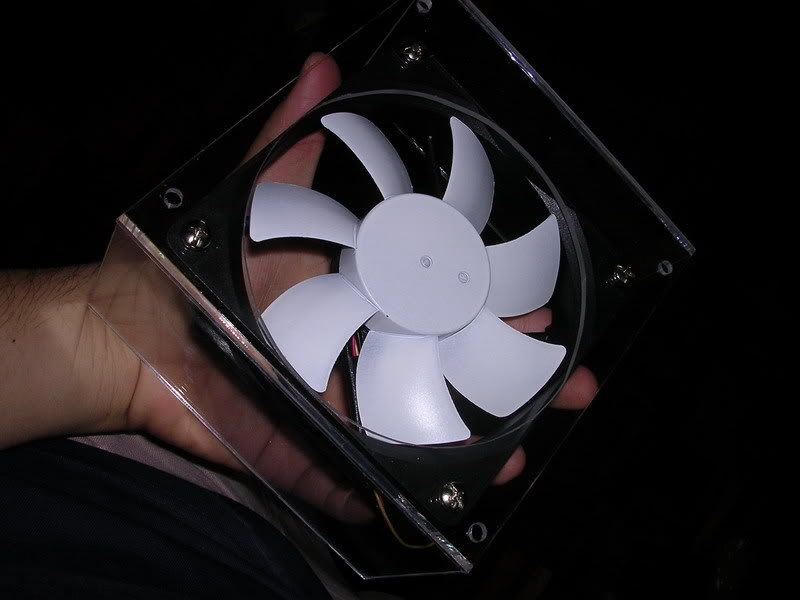

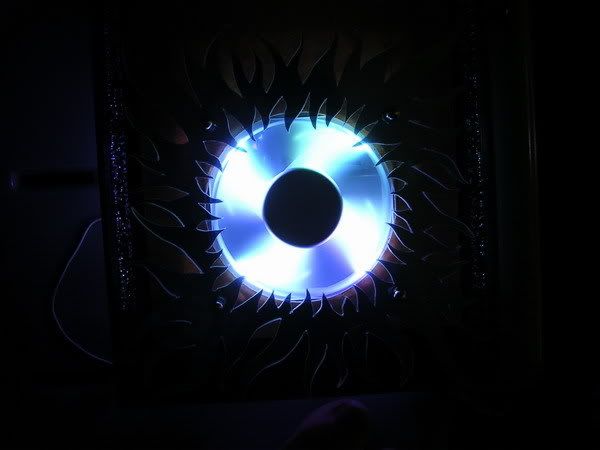

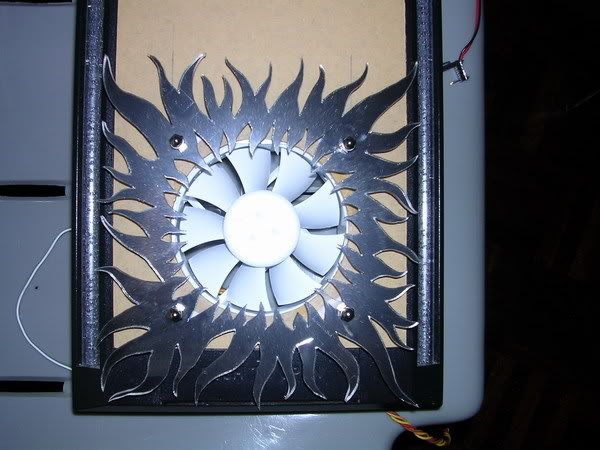

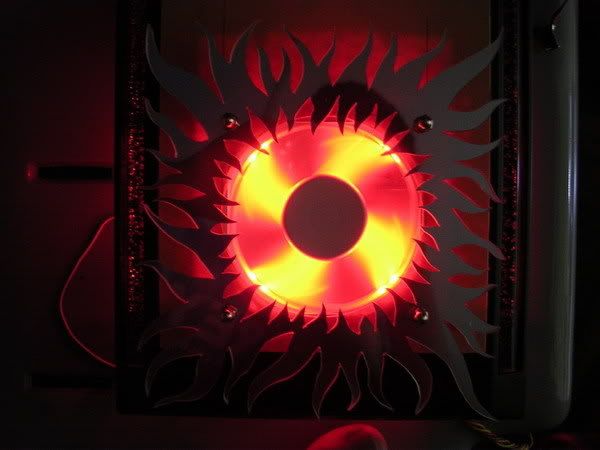

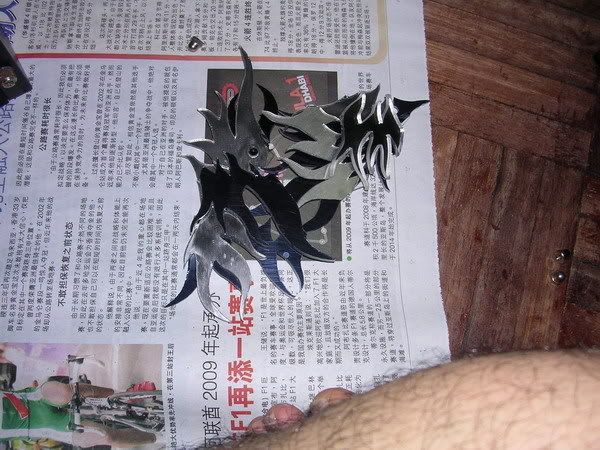

alright, here comes the frosted flame design, spent 2 hours with my coping saw to make this.
made a sketch on the acrylic and then start sawing from the side, then proceed to making the flame in the middle..... unfortunately, there's this minor crack on one of the flame, but overall, it's still nice i think           This post has been edited by AllnGap: Sep 29 2006, 10:59 PM |
|
|
Sep 29 2006, 10:51 PM
|
|
Senior Member
4,561 posts Joined: Jan 2003 From: Penangites
|

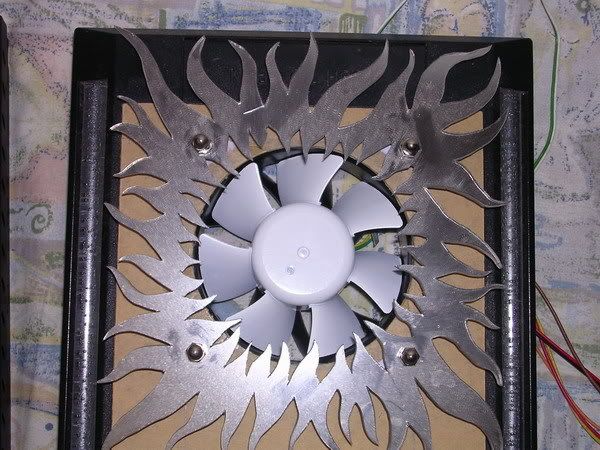

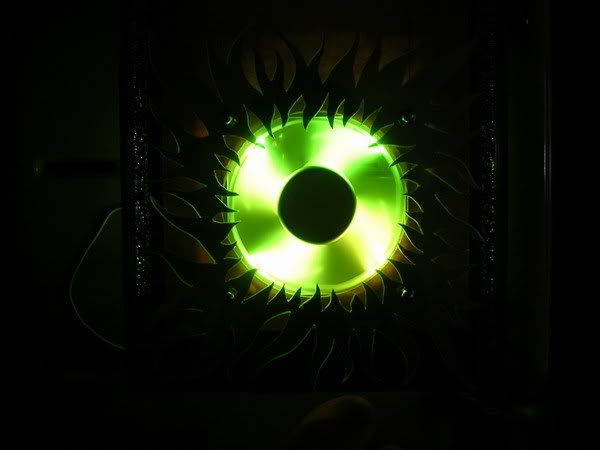

   this is how it's gonna look infront of the casing.... but dont be surprised yet coz i havent added bling bling for the fan and for the grill        This post has been edited by AllnGap: Sep 29 2006, 11:08 PM |
|
|
Sep 29 2006, 10:51 PM
|
|
Senior Member
4,561 posts Joined: Jan 2003 From: Penangites
|
   This post has been edited by AllnGap: Sep 29 2006, 11:03 PM |
|
|
Sep 29 2006, 11:01 PM
|
|
Senior Member
4,561 posts Joined: Jan 2003 From: Penangites
|
QUOTE(Cloudx @ Sep 29 2006, 01:54 PM) Acrylic on tinted?? it is tinted, i'm not bluffingReally doest looks like tinted to me QUOTE(sHawTY @ Sep 29 2006, 02:21 PM) Damn, that top panel look so freaking wicked!! thanks dood Nice job bro allngap!!! QUOTE(tmj @ Sep 29 2006, 02:53 PM) wow cool!~ thanks dood 5 GOOD to u i also hope to get 1 modify casing like this QUOTE(ekestima @ Sep 29 2006, 03:34 PM) waitin for more photos Nice man... QUOTE(jinkinz @ Sep 29 2006, 05:30 PM) wonder can build a casing without original casing?? custom casing ?means like just using only non material from original casing?? just my curiosity it can be done, just that it involves more planning and material and therefore more $$, but the design can become a very versatile one.... QUOTE(rainingzero @ Sep 29 2006, 07:04 PM) is that fan at top panel for air intake??it should exhaust fan right?? it's just for the display at the moment.....i'm not using this fan alsoQUOTE(easternC @ Sep 29 2006, 07:53 PM) would u mind explaining m ore bout the tinted plexi... huhuhuhu look so interesting... hihihi ~ do you know the tint on the car ?it's the same, just that it's on acrylic ! QUOTE(eXPeri3nc3 @ Sep 29 2006, 10:32 PM) was wondering how a fugly stripped out top can turn into something like tat... fugly ? I'll give it a hyper cosmetic surgery and bring back to life More pics pls! |
|
|
Sep 29 2006, 11:17 PM
|
|
Senior Member
1,521 posts Joined: Oct 2004 From: Island where you get pearl
|
*speachless* *take a deep breath* Cant wait to see wad ur planning to do wif ur side panel next |
|
|
Sep 30 2006, 12:17 AM
|
|
Senior Member
1,162 posts Joined: Aug 2005 From: museum of kopitiam
|
dude r u going 2 use acrylic to cover up the flame thing u made??
i scared the flame thing later cut ppl lo.. |
|
|
Sep 30 2006, 01:04 AM
|
Senior Member
1,885 posts Joined: Jan 2005 From: Sydney / Penang
|
you really have patience in modding,
|
|
|
Sep 30 2006, 02:39 AM
|
|
All Stars
14,909 posts Joined: Jul 2005
|
Allngap!!!
U can't stop from making our saliva come out from our mouth!!! DAMN!!! THAT'S BEAUUUUUUUUUUUUUUUUUUUUUTTTTTTTTTTIIIIIIIIIIIIIFFFFFFFFFFFUUUUUUUUUUULLLLLLLLLLLLLLL!!!!!!!!!!!!  |
|
|
Sep 30 2006, 07:53 AM
|

Elite
1,269 posts Joined: May 2005 From: Kuala Lumpur
|
OMG......So Creative
Good Luck Bro |
|
|
Sep 30 2006, 11:09 AM
|
|
Senior Member
705 posts Joined: Jan 2003 From: Kuala Lumpur
|
damn man that is one wicked front fan grill
can't wait to see the side panel haha hoping that you would lazer etch a design on it haha |
|
|
Sep 30 2006, 01:56 PM
|
|
Junior Member
383 posts Joined: Mar 2006
|
Lizards gonna die poked by those!
wickedd cutting! |
|
|
Oct 1 2006, 07:43 AM
|
|
Senior Member
2,723 posts Joined: Jan 2006 From: Pekopon Planet ~~~
|
aiya: sweat:
huhuu if only pc fair got competition for modding pc.. sure allngap will win ... huuhuhhh all hail... ur acrylic seem like mirror... |
|
|
Oct 1 2006, 05:44 PM
|
|
Senior Member
1,162 posts Joined: Aug 2005 From: museum of kopitiam
|
QUOTE(fantagero @ Oct 1 2006, 07:43 AM) aiya: sweat: tats acrylic?!?!!?huhuu if only pc fair got competition for modding pc.. sure allngap will win ... huuhuhhh all hail... ur acrylic seem like mirror... i tot is metal |
|
|
Oct 2 2006, 03:22 AM
|
|
Senior Member
4,561 posts Joined: Jan 2003 From: Penangites
|
QUOTE(Cloudx @ Sep 29 2006, 11:17 PM) *speachless* *take a deep breath* Cant wait to see wad ur planning to do wif ur side panel next QUOTE(jinkinz @ Sep 30 2006, 12:17 AM) dude r u going 2 use acrylic to cover up the flame thing u made?? it's purely for cosmetic purpose and i definitely wont let it hurt someonei scared the flame thing later cut ppl lo.. QUOTE(blaxez @ Sep 30 2006, 01:04 AM) you really have patience in modding, seriously, lots of patience.....i've destroyed a lot of things in my past whenever i screwed up somethingQUOTE(sHawTY @ Sep 30 2006, 02:39 AM) Allngap!!! thanks bro U can't stop from making our saliva come out from our mouth!!! DAMN!!! THAT'S BEAUUUUUUUUUUUUUUUUUUUUUTTTTTTTTTTIIIIIIIIIIIIIFFFFFFFFFFFUUUUUUUUUUULLLLLLLLLLLLLLL!!!!!!!!!!!! QUOTE(Putraskyline @ Sep 30 2006, 07:53 AM) OMG......So Creative thanks bro Good Luck Bro QUOTE(battousai_yiting @ Sep 30 2006, 11:09 AM) damn man that is one wicked front fan grill side panel got to wait for some time de, new sem starting alreadycan't wait to see the side panel haha hoping that you would lazer etch a design on it haha QUOTE(Joshiet @ Sep 30 2006, 01:56 PM) Lizards gonna die poked by those! i think it'll be confused when it sees its duplicatewickedd cutting! QUOTE(fantagero @ Oct 1 2006, 07:43 AM) aiya: sweat: i've been waiting for case mod competition for a very long time de huhuu if only pc fair got competition for modding pc.. sure allngap will win ... huuhuhhh all hail... ur acrylic seem like mirror...  QUOTE(jinkinz @ Oct 1 2006, 05:44 PM) tats acrylic?!?!!? it's acrylic.....i tot is metal |
|
|
Oct 2 2006, 03:24 AM
|
|
Senior Member
4,561 posts Joined: Jan 2003 From: Penangites
|
okay, been really busy these few days with my things.....
my new sem is starting today at 8am and i'm here at 3.40am updating this thread the rest of the mod i will do it slowly coz my time is quite limited..... alright, this is my Enermax 460W. this is what i'm gonna to do to it : 1. make an acrylic for the top cover 2. cut out a window below the PSU's circuitry 3. spray the whole thing to black 4. add blue SMD LEDs to shine the circuitry + good insulation or else it will kaboom 5. add mirror acrylic on the back of the PSU. 6. change the fans (which will be done on the next phase) 7. sleeve + change the connectors. (which will be done on the next phase) as the picture shows, 460W Enermax   this is how the internal looks like, the heatsinks are in gold colour....... and the whole bunch of wires will give me a lot of problem when i want to sleeve  the ATX and the 12V cord is insulated making the cord really hard to bend......   after removing the 4x screws that holds the circuit to the case, i'll need to remove the wires from the on/off switch so that i can strip the PSU to a metal casing only.... ( warning : it is not as easy as it seen, please dont try this at home !!! )   this is the circuit board of the PSU, notice that there is no difference with the messy soldering regardless of how high end it is. the only difference is that the components used in high end PSUs have better quality only  Okay, after removing all the parts, i can continue with making a window for my PSU.    This post has been edited by AllnGap: Oct 2 2006, 03:47 AM |
|
|
Oct 2 2006, 03:24 AM
|
|
Senior Member
4,561 posts Joined: Jan 2003 From: Penangites
|

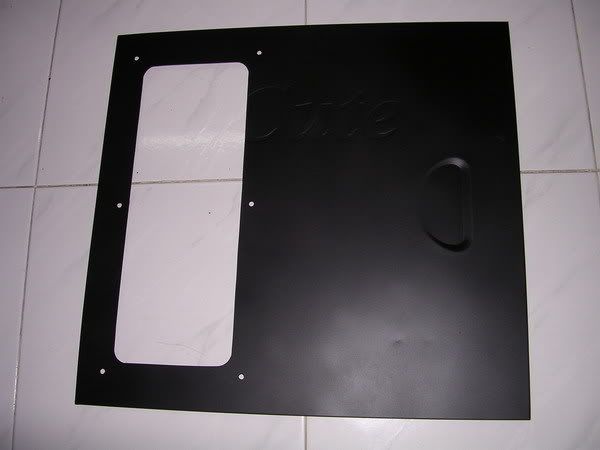

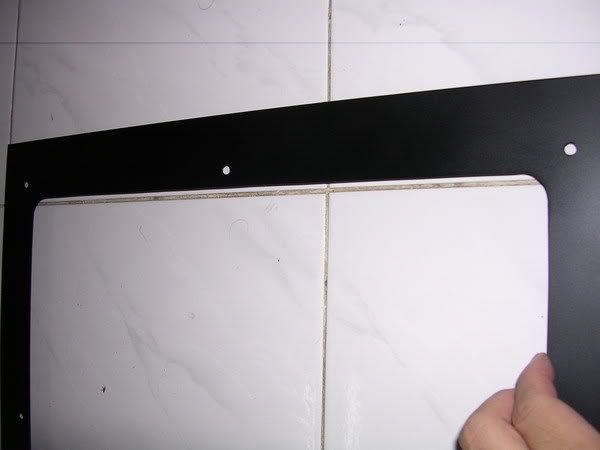

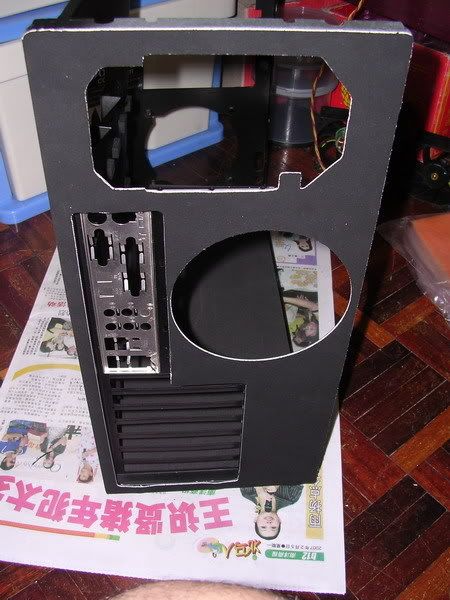

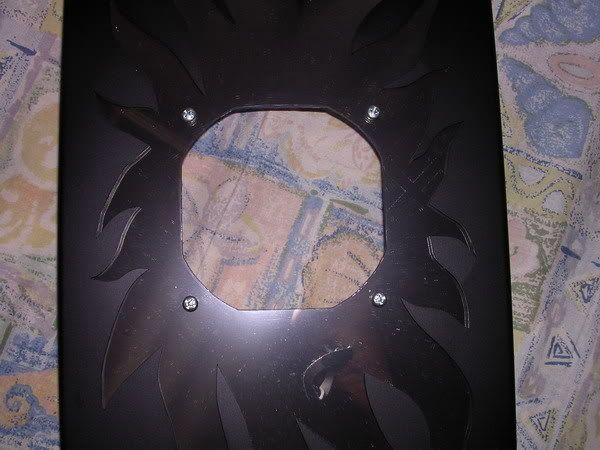

this is after i've made the window n the size of the window is within the size of the circuit board and therefore the view will be on the circuit board itself
 after spray job......    the circuit board is placed back to its original position.....  this shot is taken from the back of the PSU or the view through the window that was cut just now   for lighting purpose, i've used 16x SMD LEDs again.......clearance space is roughly around 4-5mm and there's no room for short circuit to occur coz anything goes wrong and my whole PSU and my rig will go kaboom man    This post has been edited by AllnGap: Oct 2 2006, 03:54 AM |
|
|
Oct 2 2006, 03:24 AM
|
|
Senior Member
4,561 posts Joined: Jan 2003 From: Penangites
|

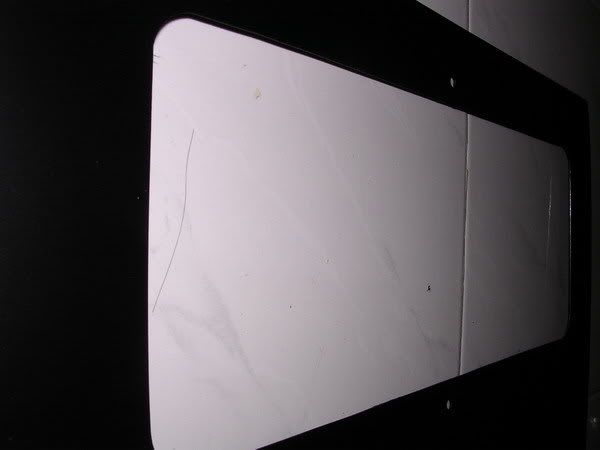

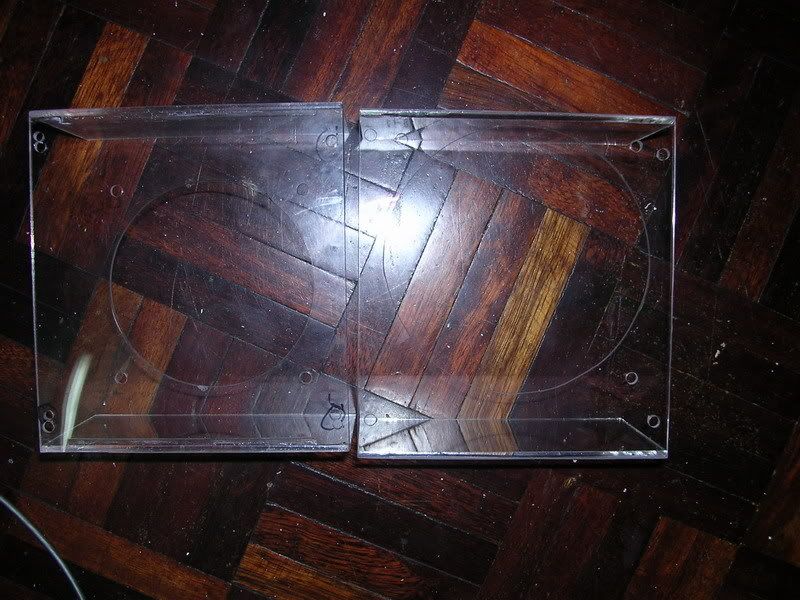

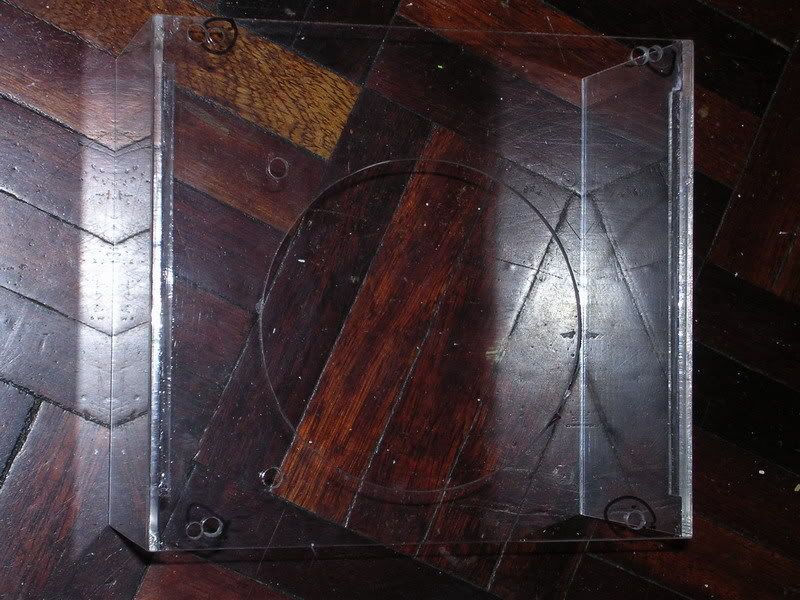

 this is the acrylic cover, there are some white stain on the acrylic......i will buff it later and i've fitted the nice screw nuts... the whole bunch of cables were too thick and because the acrylic cover was not locked to the metal casing at the side, the cables ply open the side of the acrylic..... no big deal actually, but i will fix it later.....       after fitting the LED to illuminate the back of the circuit and adding the tinted acrylic to cover the window, this is how it looks like....  DAMN !!!! potong stim man, 4x of the LEDs must have shorted and burned during installatio of the LEDs but nothing happened to my PSU coz i insulated the wirings nicely de......the acrylic blocked quite significant amount of light from the LEDs and still maintains some reflection....    This post has been edited by AllnGap: Oct 2 2006, 04:01 AM |
|
|
Oct 2 2006, 03:25 AM
|
|
Senior Member
4,561 posts Joined: Jan 2003 From: Penangites
|

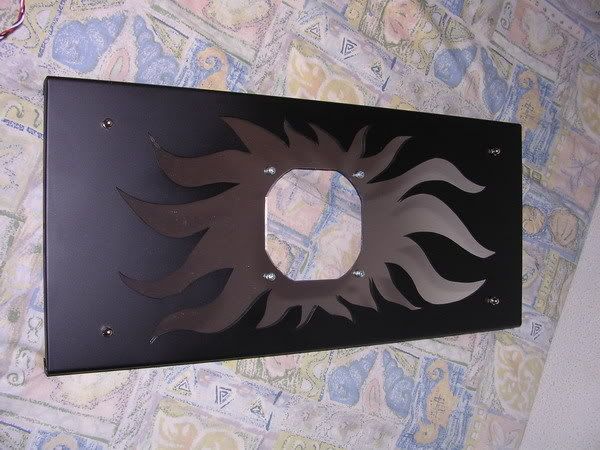

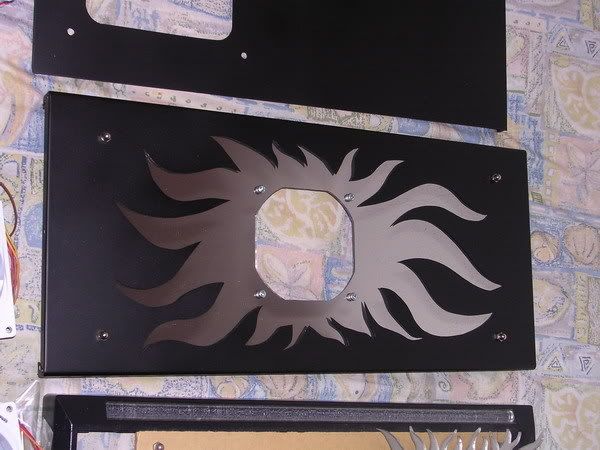

   remember the wicked top panel ? this is how it will look like when the PSU is installed to the rig........ although i can make it brighter, but i think i want to maintain it this way  This post has been edited by AllnGap: Oct 2 2006, 04:03 AM |
|
|
Oct 2 2006, 03:25 AM
|
|
Senior Member
4,561 posts Joined: Jan 2003 From: Penangites
|

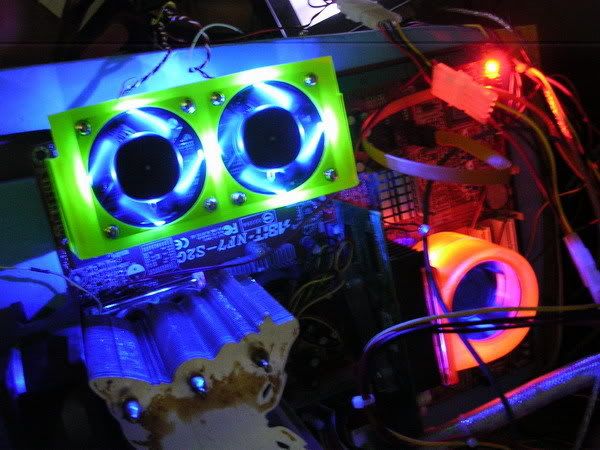

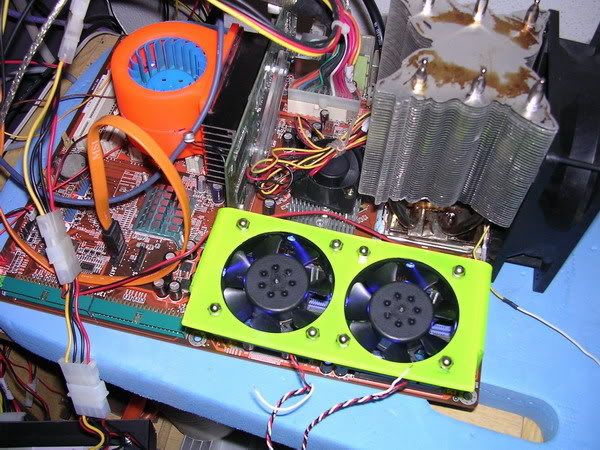

old skool rig with old skool GC, FX - 5200......
this GC was tortured quite a number of times de and the capacitor even broke off when i tried to remove the GC after removing the fugly heatsink that i modded last time, this is how it looks like..... the blower you're looking at is actually the CoolerMaster Jet7 blower, the 70*70mm version..... i sprayed the snail casing which was originally blurred, to UV orange and added 4x SMD LEDs into it....... then i mounted the whole fan onto a new heatsink which i mounted on the GC. due to the amount of pressure needed on to hold this thing, i was forced to build an acrylic backplate.....it's working so far so good as the backplate maintains the heatsink and the card's rigidity nicely......         This post has been edited by AllnGap: Oct 2 2006, 04:07 AM |
|
|
Oct 2 2006, 04:33 PM
|
|
Senior Member
536 posts Joined: Jul 2006 From: Sabah, Sandakan Status: Photography Mood ON
|
cant load all pics xD too many
|
|
|
Oct 2 2006, 09:45 PM
|
|
All Stars
14,909 posts Joined: Jul 2005
|
Nice GC heatsink mod there allngap, but...
Can i ask, what type of heatsink do u use for that gc? |
|
|
Oct 6 2006, 01:33 AM
|
|
Senior Member
1,162 posts Joined: Aug 2005 From: museum of kopitiam
|
tat gc fan soo cute!
|
|
|
Oct 6 2006, 03:12 AM
|
Senior Member
1,666 posts Joined: Jan 2003 From: Spore/JohorBP
|
ur ideals & passion on casemodding is unsurpassed here in LYN,
I truely take my hats off  |
|
|
Oct 6 2006, 04:15 AM
|
Junior Member
493 posts Joined: Aug 2006 From: Melaka
|
Wah, bro, u r very geng ar.... hope i can same as you, hah, but i dun think i can, haha.... I'm really very shocked when see the casing u modified, haha.... Gambate.
|
|
|
Oct 7 2006, 05:38 PM
|
|
Senior Member
4,561 posts Joined: Jan 2003 From: Penangites
|
QUOTE(sHawTY @ Oct 2 2006, 09:45 PM) Nice GC heatsink mod there allngap, but... heatsink for electronic cooling Can i ask, what type of heatsink do u use for that gc? QUOTE(jinkinz @ Oct 6 2006, 01:33 AM) tat gc fan soo cute! cute ? QUOTE(uglyvamp @ Oct 6 2006, 03:12 AM) ur ideals & passion on casemodding is unsurpassed here in LYN, hmm....actually i could come out with better effect if i had some of the things in your store I truely take my hats off QUOTE(Death god - Winter heart @ Oct 6 2006, 04:15 AM) Wah, bro, u r very geng ar.... hope i can same as you, hah, but i dun think i can, haha.... I'm really very shocked when see the casing u modified, haha.... Gambate. just start modding today, then one day you'll realise that its actually easy |
|
|
Oct 12 2006, 01:25 PM
|
|
Newbie
2 posts Joined: Oct 2006
|
Very cool mod...!
I am very interested in getting the tinted acrylic that you have used. Can you please tell me where exactly you bought that from. Thanks... |
|
|
Oct 12 2006, 10:39 PM
|
|
Senior Member
4,561 posts Joined: Jan 2003 From: Penangites
|
anyone can help out my front panel ?
i'm sort of jammed here with my front panel...... i need to put 2x rounded vandal switches, 4 knobs to control fan's rotation, and lots of switches for LED controls..... any suggestions ? |
|
|
Oct 12 2006, 10:42 PM
|
|
Senior Member
2,497 posts Joined: Jan 2006 From: Selangor
|
QUOTE(esmklsi @ Oct 12 2006, 01:25 PM) Very cool mod...! he just buy the tint from the car shop and stick it himself....am i right bro allan???I am very interested in getting the tinted acrylic that you have used. Can you please tell me where exactly you bought that from. Thanks... i'm thinking to make it like urs to. but since i'm using uv setup in my case, can we still saw the uv thingy inside?? |
|
|
Oct 12 2006, 10:53 PM
|
|
Senior Member
4,561 posts Joined: Jan 2003 From: Penangites
|
QUOTE(rainingzero @ Oct 12 2006, 10:42 PM) he just buy the tint from the car shop and stick it himself....am i right bro allan??? just to remind about the tint, it's really hard to get the light penetration level that you wanted, especially if the sheet is blue on the other side, the UV setup will not look nice.i'm thinking to make it like urs to. but since i'm using uv setup in my case, can we still saw the uv thingy inside?? on the UV setup, i think it's not suitable coz UV glows nicely and it's not that bright you know, if you try to block it using tint, then the colour is no longer nice looking.... |
|
|
Oct 12 2006, 11:36 PM
|
VIP
23,414 posts Joined: Jan 2003 From: Taipei
|
Very pimp
but why the blower on a low restriction heatsink like that on the vga? |
|
|
Oct 13 2006, 12:04 AM
|
|
Senior Member
4,561 posts Joined: Jan 2003 From: Penangites
|
QUOTE(sniper on the roof @ Oct 12 2006, 11:36 PM) Very pimp hmm, because i wanted to pimp it with a UV orange snail down there but why the blower on a low restriction heatsink like that on the vga? what were you expecting, it's just a FX 5200, i can simply whack with a low profile 60mm fan but that's not ghey enough right |
|
|
Oct 13 2006, 09:13 AM
|
|
Newbie
2 posts Joined: Oct 2006
|
[FONT=Arial]
QUOTE(rainingzero @ Oct 12 2006, 10:42 PM) he just buy the tint from the car shop and stick it himself....am i right bro allan??? It's a bit embarrassing... i'm thinking to make it like urs to. but since i'm using uv setup in my case, can we still saw the uv thingy inside?? Currently, I do not even know where to get acrylic... Someone said that you can get it in Jalan Pasar... I am not that familiar with Jalan Pasar but if you have the contact number or address (even better with map or directions) I would be grateful.... Any other places, it also ok.. Thanks... |
|
|
Oct 13 2006, 10:58 AM
|
|
Senior Member
1,790 posts Joined: Feb 2006 From: KL
|
QUOTE(esmklsi @ Oct 13 2006, 09:13 AM) It's a bit embarrassing... AFAIK, acrylic sheets are commonly available at shops which make signs (those name signs for shops to hang above their main entrance or door one...), jz walk into any sign making shop at that street and they should hv. Currently, I do not even know where to get acrylic... Someone said that you can get it in Jalan Pasar... I am not that familiar with Jalan Pasar but if you have the contact number or address (even better with map or directions) I would be grateful.... Any other places, it also ok.. Thanks...This post has been edited by nghj: Oct 13 2006, 11:00 AM |
|
|
Oct 15 2006, 02:48 AM
|
|
Senior Member
4,561 posts Joined: Jan 2003 From: Penangites
|
this mod is still in progress...i'm making 3 of these fans for the top exhaust, front intake and side intake....
it will be RGB coloured and will have fan speed control option as well as RPM reading connected to the Mobo.... first of all, i've sprayed the rotor and the frame of the fan to white so that it will shine nicely to the RGB LED. I've made 2x 5mm holes to be fitted with the LED later  these are the RGB LED which is diffused.  the LEDs will be mounted into those holes there. it's really difficult to drill those holes without major mistakes there  okay, after i've completed wiring the whole thing, i mounted it on the front panel to see what it's gonna look like....... i'll finally spray the front panel to black, so there will not be light from the acrylic as you can see.... btw, i'll get 7colour combination from the LEDs....... so enjoy the pics        This post has been edited by AllnGap: Oct 15 2006, 02:54 AM |
|
|
Oct 15 2006, 02:49 AM
|
|
Senior Member
4,561 posts Joined: Jan 2003 From: Penangites
|
   |
|
|
Oct 15 2006, 03:28 AM
|
|
Senior Member
3,622 posts Joined: Jan 2003
|
Wuahhh can change colours one ar??????
|
|
|
Oct 15 2006, 06:01 PM
|
|
Senior Member
9,257 posts Joined: Aug 2005 From: Not so sure myself Status: 1+3+3=7
|
That changeable fan colour... *speechless*
Salutes... You assemble those LED by yourself? |
|
|
Oct 15 2006, 06:11 PM
|
|
All Stars
14,909 posts Joined: Jul 2005
|
Allngap is a freak of:
Fans + Led = Allngap Nice fan mod there allngap... How i wish that i have the same skill like you.... |
|
|
Oct 16 2006, 04:49 AM
|
|
Senior Member
1,790 posts Joined: Feb 2006 From: KL
|
wow, nice fans.
so ur final product gonna include some fancy controller for the LEDs also? |
|
|
Oct 16 2006, 10:49 AM
|
|
Senior Member
1,298 posts Joined: May 2005 From: Penang Island
|
Woah
AweSOME!!! |
|
|
Oct 16 2006, 08:30 PM
|
Senior Member
1,313 posts Joined: Nov 2004 From: KUL, MAL
|
I think milky white make the colour more warm tuned?
|
|
|
Oct 16 2006, 09:42 PM
|
|
Senior Member
4,561 posts Joined: Jan 2003 From: Penangites
|
QUOTE(nghj @ Oct 16 2006, 04:49 AM) wow, nice fans. i am planning to build a PWM based circuit to control the brightness of the LEDs....so ur final product gonna include some fancy controller for the LEDs also? total of 6 sets to be exact, or 18 channels or 18 knobs 3 channel for each fan, 4 fans in total, and 2 strips of RGB LED consists of 24LEDs per strip.... |
|
|
Oct 16 2006, 09:43 PM
|
|
VIP
4,809 posts Joined: Jan 2005
|
QUOTE(AllnGap @ Oct 16 2006, 09:42 PM) i am planning to build a PWM based circuit to control the brightness of the LEDs.... dude, u must be some wiring expert la.total of 6 sets to be exact, or 18 channels or 18 knobs 3 channel for each fan, 4 fans in total, and 2 strips of RGB LED consists of 24LEDs per strip.... i also wanna do the same thing but am unsure of how the circuitry will be. mind sharing with me? |
|
|
Oct 16 2006, 10:23 PM
|
VIP
15,705 posts Joined: Mar 2005 From: Tg. Rambutan
|
QUOTE(DaRkSyThE @ Oct 16 2006, 09:43 PM) dude, u must be some wiring expert la. Lidat how can???????? That's like asking Colonel Sanders to gif u his super duper Secret Recipe lar. i also wanna do the same thing but am unsure of how the circuitry will be. mind sharing with me? |
|
|
Oct 16 2006, 10:43 PM
|
|
Senior Member
4,561 posts Joined: Jan 2003 From: Penangites
|
QUOTE(ianho @ Oct 16 2006, 10:23 PM) Lidat how can???????? That's like asking Colonel Sanders to gif u his super duper Secret Recipe lar. i seriously dont know what to say man......you're really creative man there are a lot of money wasted into developing the working product, but looks like nobody eager to share the loss with me, but a lot of people are eager to know how i do it |
|
|
Oct 16 2006, 10:55 PM
|
Junior Member
483 posts Joined: Jan 2006
|
sharing is caring..
super cool mon btw.. you must have been graduated in some electronic IT stuff..lol..i dont know what im saying also.. |
|
|
Oct 17 2006, 01:16 AM
|
Junior Member
259 posts Joined: Jan 2003 From: Cheras
|
all i can say is....
WOW.... u ROCK...!!! eagerly waiting for the finish product... the proess of making it happen just teasing us with a lot of eye candy... drooling over those pics man.... |
|
|
Oct 17 2006, 10:18 AM
|
Senior Member
1,067 posts Joined: Nov 2004 From: Puncak Jalil
|
whoa~ i personally like d RED effect.... looks like sumthing is being cooked inside the casing...
fried harddisk, anyone? This post has been edited by r4ydc24: Oct 17 2006, 10:19 AM |
|
|
Oct 17 2006, 12:49 PM
|
|
Senior Member
1,790 posts Joined: Feb 2006 From: KL
|
QUOTE(AllnGap @ Oct 16 2006, 09:42 PM) i am planning to build a PWM based circuit to control the brightness of the LEDs.... 18 knobs??!! wahlau....total of 6 sets to be exact, or 18 channels or 18 knobs 3 channel for each fan, 4 fans in total, and 2 strips of RGB LED consists of 24LEDs per strip.... like that u gonna use up all your front empty bays just for the panel liao, isnt it? This post has been edited by nghj: Oct 17 2006, 12:50 PM |
|
|
Oct 19 2006, 03:13 AM
|
Senior Member
1,058 posts Joined: Apr 2006 From: Penang , Malaysia
|
QUOTE(AllnGap @ Oct 16 2006, 11:43 PM) i seriously dont know what to say man......you're really creative man there are a lot of money wasted into developing the working product, but looks like nobody eager to share the loss with me, but a lot of people are eager to know how i do it mind of you to tell me are you working in Agilent? cos i'm working there last time and a product line bears AllnGap name..... similar with yr's. (LED product) AllnGap for Red colour right? Beast Pixar, Barracude, Antares, Flamenco, Jazz , Eos Flamenco, Ingan Prometheus, Sequoia........................................ are you familiar with those name?????????????? |
|
|
Oct 19 2006, 11:04 AM
|
|
Senior Member
4,561 posts Joined: Jan 2003 From: Penangites
|
QUOTE(ggoo @ Oct 16 2006, 10:55 PM) sharing is caring.. yep, sharing is caring of course, but what have you shared with others ? super cool mon btw.. you must have been graduated in some electronic IT stuff..lol..i dont know what im saying also.. i share my creativity and ideas with others, isnt that good enough ? i'm still doing my mechatronics dood...it's doesnt have to take a electronic/electrical graduate to do all this...... QUOTE(duke_hunt @ Oct 17 2006, 01:16 AM) all i can say is.... thanks bro.......but progress is slow.....hopefully i can work on something this Raya holidaysWOW.... u ROCK...!!! eagerly waiting for the finish product... the proess of making it happen just teasing us with a lot of eye candy... drooling over those pics man.... QUOTE(r4ydc24 @ Oct 17 2006, 10:18 AM) whoa~ i personally like d RED effect.... looks like sumthing is being cooked inside the casing... hey, i dont want a burnt HDD okay fried harddisk, anyone? QUOTE(nghj @ Oct 17 2006, 12:49 PM) 18 knobs??!! wahlau.... thats why i dont know how to continue, i can wire all the fans together and the lights with a different light control, but i want rainbow colours inside my PC, not just the same colour for all the fans like that u gonna use up all your front empty bays just for the panel liao, isnt it? QUOTE(overclockalbert @ Oct 19 2006, 03:13 AM) hi AllnGap, AllnGap is a LED substrate name, Aluminium, Indium, Gallium and Phosporus. mind of you to tell me are you working in Agilent? cos i'm working there last time and a product line bears AllnGap name..... similar with yr's. (LED product) AllnGap for Red colour right? Beast Pixar, Barracude, Antares, Flamenco, Jazz , Eos Flamenco, Ingan Prometheus, Sequoia........................................ are you familiar with those name?????????????? i need to clarify something #1, i'm still studying #2, i was never an Agilent worker before i just know this model of LED (Prometheus) from their brochues only, the rest i dont know I love LEDs, |
|
|
Oct 20 2006, 07:59 PM
|
|
Senior Member
1,790 posts Joined: Feb 2006 From: KL
|
QUOTE(AllnGap @ Oct 19 2006, 11:04 AM) thats why i dont know how to continue, i can wire all the fans together and the lights with a different light control, but i want rainbow colours inside my PC, not just the same colour for all the fans maybe u can figure out a combination where you can connect the led terminals in a series or parallel manner so that u can produce the same combination of colors with fewer controls. Fewer controls, but the connections not easy also |
|
|
Oct 24 2006, 02:18 PM
|
|
Senior Member
4,561 posts Joined: Jan 2003 From: Penangites
|
guys, i've done something onto me CDROM and i've completed my dual ram cooler which is temperature controlled, but too bad i dont have the camera with me right now...
i'll update around thursday okies.... i've summed up a checklist of what i still got to do......and it's really long for top panel : - cut a 92mm fan grill using tinted acrylic - add another layer of paint - put double sided tape to stick acrylic firmly - spray interior of the top panel for ram cooler : - solder the thermistor lead out and extend it. - solder 3 pin connection and sleeve the cables for motherboard : - single 60mm cooling for PWM area, using motherboard mounts, extend the thermistor and let it touch the PWM heatsink - mod the 40mm SUNON fan and add bling bling on it. - buy chipset heatsink - put 40mm fan to blow onto the heatsink base - for PSU : - change the rear fan into a blower setup, L acrylic pipe like roofing ventilation system - add 80mm fan to the front. - add multi-colour LED onto the 92mm fan - change the 92mm fan if possible, coz it's barely spinning. - cable sleeving - get UV connectors. - remove those unnecessary cables for heatsink : - make a design for the top fin/ remove the fugly glue stain - get 8mm ' nut stud ' for the heatpipes, Scythe Ninja style - make acrylic duct to get better airflow for GPU : - wire out the thermistor n touch the heatsink - run the power from the main. for HDD bracket : - throw away the old bracket, cut another bracket and make design for it. - drill holes for the bottom part. for side panel (left) : - cut a bigger window, as big as possible - frosted flame design - 92mm for the side panel - temperature sensors if it's suitable - trim the edges to make way for 127mm Delta tri-blade, 200cfm for side panel (right) : - cut 2x 80mm fan holes for panaflo 80mm L model - frosted flame design for interior : - spray to flat black, make a box to hide the messy cables. - make the PWM circuit into a design or hide it - spray the delta-tri-blade 127mm to white, blade and the inner circular frame only. - add multi-colour LEDs for the tri-blade. - use black sponge to cover the PCI and the whole interior for front panel : - hide the ugly front part - cut unnecessary parts, hide circuits over there. - align knobs, vandal switches nicely, graphical LCD as well - trim front panel to put in the CDROM exterior : - spray the back and the bottom part to black, find wheels to replace the current rounded plastic stands. - put some lightings for the bottom problems : - 1x industrial blower, dont know where to put it - wiring planning..... - 320*240 graphical LCD - a lot of controls involved, 3x 92mm fan, 1x 127mm exhaust, CPU fan, lighting controls, 1 x blower speed control... - no time - wirings !!! - PWM circuit involves 3x [ 3 channels RGB ] , 2x for lighting purposes, 1x for all the fans, 1x for 127mm, 1x for the blower exhaust. hmmm......i cant believe that my to-do list is so long let me count how many knobs do i have 3 knobs for RGB, 3 sets of RGB 1 for 127mm 1 for 92mm CPU 1 for blower exhaust total of 3*3 + 1 + 1 + 1 = 12 knobs !!!! and 2x vandal switch for the reset and power I am starting to think to wire everything into a controller box which is separate from the casing coz it's gonna make the casing look so complicated and messy...... This post has been edited by AllnGap: Oct 24 2006, 02:28 PM |
|
|
Oct 24 2006, 04:52 PM
|
|
Senior Member
1,298 posts Joined: May 2005 From: Penang Island
|
Woah this mod projcet gonna be Pimping
|
|
|
Oct 27 2006, 12:19 AM
|
|
Senior Member
4,561 posts Joined: Jan 2003 From: Penangites
|
okay, i've been using around 2 days to complete all these mod, and my battery out of juice, so i cannot show you guys my pimped 200cfm delta tri-blade which is uver cool
so this is my old Liteon CDRW........I've made a window and added around 20pcs of LEDs inside. The LEDs comprises of [ blue ] - [ white ] - [ white ] - [ blue ]- [ white ] - [ white ] - [ blue ]- [ white ] - [ white ] - [ blue ] ........ I purposely do it this way since pure white is too dull, and pure blue is way too ah beng...so i've decided to make it look like HID colour which is white with a blueish tone... actually, this mod is not that hard because all the metal part of the drive can be removed. but becareful not to damage the circuit behind and particularly the disc head. I'll put back the front bezel once i've completed my front panel design   see the array of LEDs inside ? the one with the yellow colour will emit white colour  okay, money shot !!! It will look dimmer under my top panel, but it'll be cool i guess. my initial plan was to make the colour change when it's reading, but i was too lazy to hook up the front LED to make it work....   This post has been edited by AllnGap: Oct 27 2006, 12:33 AM |
|
|
Oct 27 2006, 12:21 AM
|
|
Senior Member
4,561 posts Joined: Jan 2003 From: Penangites
|
this is the complete metal work on my casing, i'm not going to cut any metals on it anymore......
I've cut off some parts from the front panel, made the left side panel bigger, made a window on the right side panel, trim the rear part of the left side panel..... and all is ready for the acrylic and some design to be installed inside !!!! i've also finished up the spray job on the whole casing, the interior is black and i will cover it with sound absorbing material.....not capalang stuff !!!! The areas that i dont spray will not be seen when everything is assembled Finally, i think my coping saw has not disappoint me at all despite i break a lot of saw blades......the window is not crooked and i think the rounded edges are quite good also....       This post has been edited by AllnGap: Oct 27 2006, 12:39 AM |
|
|
Oct 27 2006, 12:22 AM
|
|
Senior Member
4,561 posts Joined: Jan 2003 From: Penangites
|
Okay, time for my new design !!!
Dual 60mm NMB, thermal controlled ram coolers..... I'll finish up the ugly wiring and connect the thermal sensors to my rams to make the temperature control thing working again..... my Titan heatsink top is damn ugly, but i will do something about it very soon.......  These are the money shots........actually i've assembled everything inside my casing before and it looks great ! The whole dark area under the CPU will be lighted up and the UV yellow effect is there !!!   This post has been edited by AllnGap: Oct 27 2006, 12:43 AM |
|
|
Oct 27 2006, 12:22 AM
|
|
Senior Member
4,561 posts Joined: Jan 2003 From: Penangites
|
I'll be using this to replace my chipset heatsink tomorrow.......and might be making a 60mm PWM cooler which is located beside the heatsink to cool those mofsets
 This post has been edited by AllnGap: Oct 27 2006, 12:44 AM |
|
|
Oct 27 2006, 12:33 AM
|
|
Senior Member
2,239 posts Joined: Jun 2006 From: K.L
|
QUOTE(AllnGap @ Oct 27 2006, 12:21 AM) a bit cacat, if u could do smting wiv it then nicer |
|
|
Oct 27 2006, 12:45 AM
|
|
Senior Member
4,561 posts Joined: Jan 2003 From: Penangites
|
QUOTE(z3r0717 @ Oct 27 2006, 12:33 AM) i feel this panel not so nice coz still can see the Icute word smmore the I is gone. dont worry, that is not my final product yet.....i'll cover with something flaming hot a bit cacat, if u could do smting wiv it then nicer |
|
|
Oct 27 2006, 01:08 AM
|
|
Senior Member
1,298 posts Joined: May 2005 From: Penang Island
|
woah nice work the side panel window cuts are so straight!! u cut that by using a saw? |
|
|
Oct 27 2006, 01:09 AM
|
|
Senior Member
3,622 posts Joined: Jan 2003
|
Wow... Ah Ngap really can cut straight lines. Coping saw again, Ngap?
|
|
|
Oct 27 2006, 01:15 AM
|
|
Senior Member
4,561 posts Joined: Jan 2003 From: Penangites
|
yep, coping saw again......i dont have dremel/rotary tools like you guys...
but even with dremel, your hand-eye coordination must be good also |
|
|
Oct 27 2006, 01:18 AM
|
|
Senior Member
3,622 posts Joined: Jan 2003
|
I dont htink its easy to use dremel for the first few times, considering the disc is round unlike jig blade where you know where to stop when it reaches the edge. round is like... no edge n no stopping point. Donnoh, havent got mine from Bombman yet. Oh ya Ngap, PM regarding me fans.
|
|
|
Oct 27 2006, 01:21 AM
|
Junior Member
300 posts Joined: Aug 2006 From: -AMD Inc.-
|
wow.. real matt-black.. how u achieve that effect.. cool manzz..
|
|
|
Oct 27 2006, 01:35 AM
|
|
Senior Member
2,239 posts Joined: Jun 2006 From: K.L
|
QUOTE(AllnGap @ Oct 27 2006, 12:45 AM) dont worry, that is not my final product yet.....i'll cover with something flaming hot woah... luckily, if not the whole case will be spoilt coz of tat |
|
|
Oct 28 2006, 07:42 AM
|
|
Senior Member
971 posts Joined: Aug 2006 From: Penang
|
Wow, very nice..is that a ram cooler with 60mm fan instead of 40mm? Btw where did you buy those 3 channel LED? Been looking in many electronic shops, can't find any.
A note-ever wonder why none of the PSU manufacturers leave gaps/windows on the PSU case? Its not just to avoid itchy fingers getting electrocuted, its to protect the computer from the large ammount of electromagnetic waves from the PSU switching circuits (we're talking 10++ A ripple current here, even HPs use way less in their transmitters). With the PSU so close to the processor and chipset, its likely that they would be affected-might be problematic especially for high speed processors, overclocking will be hell. In the most severe cases, it may be necessary to underclock and overvolt to ensure stable operation. PS:-took your advice on the Delta EFC and my TT pipe101, sealed the airflow and got a drop of 1-3C on lower fan speed. Modified the VR with 2 resistors, 1 in serial and 1 parallel, now have more precise adjustment of the fan speed (half circle of VR), now adjusting further to get full circle control. |
|
|
Oct 28 2006, 09:19 AM
|
|
Senior Member
536 posts Joined: Jul 2006 From: Sabah, Sandakan Status: Photography Mood ON
|
» Click to show Spoiler - click again to hide... « your CPU cooler really look like titan's vanessa s-type cpu cooler  |
|
|
Oct 28 2006, 09:35 AM
|
|
VIP
4,809 posts Joined: Jan 2005
|
thats because it is
|
|
|
Oct 28 2006, 04:18 PM
|
|
Senior Member
4,561 posts Joined: Jan 2003 From: Penangites
|
QUOTE(z3r0717 @ Oct 27 2006, 01:35 AM) woah... luckily, if not the whole case will be spoilt coz of tat actually, it's not a big problem......unless you use real air brush to spray, it will never be even.QUOTE(lohwenli @ Oct 28 2006, 07:42 AM) Wow, very nice..is that a ram cooler with 60mm fan instead of 40mm? Btw where did you buy those 3 channel LED? Been looking in many electronic shops, can't find any. that is a dual 60mm ram cooler.....controlled by thermistor which is touching the rams....A note-ever wonder why none of the PSU manufacturers leave gaps/windows on the PSU case? Its not just to avoid itchy fingers getting electrocuted, its to protect the computer from the large ammount of electromagnetic waves from the PSU switching circuits (we're talking 10++ A ripple current here, even HPs use way less in their transmitters). With the PSU so close to the processor and chipset, its likely that they would be affected-might be problematic especially for high speed processors, overclocking will be hell. In the most severe cases, it may be necessary to underclock and overvolt to ensure stable operation. PS:-took your advice on the Delta EFC and my TT pipe101, sealed the airflow and got a drop of 1-3C on lower fan speed. Modified the VR with 2 resistors, 1 in serial and 1 parallel, now have more precise adjustment of the fan speed (half circle of VR), now adjusting further to get full circle control. those LEDs i cannot reveal where i get it, but it's definitely not from here  i thought that EMT will only affect through the wires and does not comes from the circuit ? glad you're able to lower the temperature down.... your proc is actually a really hot proc QUOTE(tmj @ Oct 28 2006, 09:19 AM) » Click to show Spoiler - click again to hide... « your CPU cooler really look like titan's vanessa s-type cpu cooler QUOTE(DaRkSyThE @ Oct 28 2006, 09:35 AM) thats because it is still remember the explosion is it |
|
|
Oct 28 2006, 06:16 PM
|
|
Senior Member
1,067 posts Joined: Nov 2004 From: Puncak Jalil
|
ahahaha, i believe most enthusiast here will remember dat experimental explosion of yours la allngap..
eiyh, any plans to embed ya miniature Imac-like LCD in diz project? |
|
|
Oct 28 2006, 11:52 PM
|
|
Senior Member
971 posts Joined: Aug 2006 From: Penang
|
QUOTE(AllnGap @ Oct 28 2006, 04:18 PM) that is a dual 60mm ram cooler.....controlled by thermistor which is touching the rams.... Hmm, now that I see a 60mm ram cooler, now I'm interested. Didn't think much of your ram coolers at first (I'm very biased against 40mm fans-drive me up the wall with their noise and inefficiency and keep failing on me). After I solve my CPU, NB & VGA cooling issues (water cooling, yeah!) I might just get a dual 60mm or larger ram cooler..perhaps something for the power MOSFETs too..hope you can help me on this.. About the LEDs, maybe can buy from you? Give you some business..if can't get from here would be inconvenient for me to get..right now don't need yet, but maybe in near future..those LEDs i cannot reveal where i get it, but it's definitely not from here i thought that EMT will only affect through the wires and does not comes from the circuit ? glad you're able to lower the temperature down.... your proc is actually a really hot proc it is...basically i've raped its heatpipe still remember the explosion is it EM covers anything from radio waves to light to x-rays to gamma rays. PSUs use MOSFETs which switch many thousands of times per second, they would emit radio waves which can affect signals in a PC system-thats why they're covered in metal with fairly small gaps-bigger gaps let out too much EM waves. Actually PC casings are also meant to be that way, sheild the whole PC from potential interference from the outside using the Faraday cage effect. However cutting large holes in a casing is not as bad as exposing a PSU-a PC can live without its casing as by luck there may be no EM sources nearby (assuming PSU retains its sheilding) while removing a PSU metal case is like exposing an already well known EM source to the PCs circuitry. Components that pass the US FCC will be able to survive this even in long term, but the certification does not require the component to function properly, just survive. Read about your heatpipe accident, that was a really nasty one. Wonder how many PC enthusiasts know that heatpipes are filled with liquid/compressed gas? This post has been edited by lohwenli: Oct 28 2006, 11:53 PM |
|
|
Nov 5 2006, 07:49 PM
|
|
Senior Member
4,561 posts Joined: Jan 2003 From: Penangites
|
finished the PWM circuit de, but there are some unwanted effects....gonna have to fine tune the circuit !!
|
|
|
Nov 19 2006, 01:38 AM
|
Senior Member
3,593 posts Joined: Feb 2005 From: ***Penang***
|
hmm...is this thread dead ?
|
|
|
Nov 19 2006, 02:02 AM
|
|
Senior Member
4,561 posts Joined: Jan 2003 From: Penangites
|
QUOTE(LittleLinnet @ Nov 19 2006, 01:38 AM) hmm...is this thread dead ? temporarily still busy.....will update around next week when i settle my LED lightings..... |
|
|
Nov 19 2006, 02:06 AM
|
Junior Member
141 posts Joined: Jan 2003
|
nice mod....respect AllnGap
|
|
|
Nov 19 2006, 04:09 PM
|
|
Senior Member
1,039 posts Joined: Jun 2006 From: Malaka
|
QUOTE(AllnGap @ Nov 19 2006, 02:02 AM) temporarily still busy.....will update around next week when i settle my LED lightings..... take your time bro |
|
|
Nov 20 2006, 08:42 PM
|
Senior Member
1,014 posts Joined: Jan 2003 From: Johor
|
huwargh?
huwarghhhhh?? one word that describe all your workkk HOT!!!!!!!!!! |
|
|
Nov 20 2006, 11:21 PM
|
Senior Member
895 posts Joined: Nov 2006
|
wow , fantastic , excellent . COOL , yeng , nice , geng
mmm . can i noe where u get those led dat hav many many colors ? ^^ |
|
|
Nov 26 2006, 12:17 PM
|
|
Senior Member
4,561 posts Joined: Jan 2003 From: Penangites
|
QUOTE(MIS @ Nov 19 2006, 02:06 AM) nice mod....respect AllnGap thanks bro.....QUOTE(ResQ @ Nov 19 2006, 04:09 PM) take your time bro i'll take my time.........must be patient all the timeQUOTE(name @ Nov 20 2006, 08:42 PM) huwargh? i cant find "huwargh" in any dictionary huwarghhhhh?? one word that describe all your workkk HOT!!!!!!!!!! QUOTE(raining again @ Nov 20 2006, 11:21 PM) wow , fantastic , excellent . COOL , yeng , nice , geng thanks thanks....... mmm . can i noe where u get those led dat hav many many colors ? ^^ |
|
|
Nov 26 2006, 12:18 PM
|
|
Senior Member
4,561 posts Joined: Jan 2003 From: Penangites
|
hey guys, i was really busy since October.....and this is the latest updates.....
okay, basically, i've used a server line 127*127*38mm Delta Tri-blade fan which is capable of doing 200cfm, 4600rpm for my exhaust...... i'll be wiring up this monster with a PWM controller to control the speed because i seriously cant take this monster 24/7 on full speed and voltage controller cant do it because it's too high amp (around 2.76A) at full speed and it's gonna actually give out a lot of heat if i use voltage controller......so it's not an efficient way to do so.... this is how it looks before it's modded.....   i've added 2x multi-colour LEDs on each side and i've cut off the epoxy dome like the mod that i've done for the NMB low speed....    This post has been edited by AllnGap: Nov 26 2006, 12:26 PM |
|
|
Nov 26 2006, 12:18 PM
|
|
Senior Member
4,561 posts Joined: Jan 2003 From: Penangites
|
these things have been holding me for quite some time now, which is a PWM controller for my multi-colour LEDs for the lighting part.......
i've finally solved the problem once and for all, and do you know what's the problem ? originally, the LEDs started to flicker like the monitor at lower refresh rate........i get really dizzy staring into it and i'm sure that i dont want that in my casing....... so took some time to troubleshoot what is wrong with it... as you can see here, there are 3 individual channels on each of the PCB....each channel control one colour of the RED, GREEN and BLUE..... theoretically speaking, it can generate 23million colours, or any colour that you want !!! I've made 3 sets of this controller set, 2 sets for general lighting and 1 for the fans.... i can actually make separate sets for each of the fans, but it's gonna make it look real messy cos each channel has got 3 knobs....and currently it's standing at 9 knobs for lighting only...... well, i have to admit that i'm an LED freak and i like lightings a lot....cant escape from the bling bling fever.... anyway, i've wired up 2 sets 24pcs of multi-colour LEDs with reflector stickers at the bottom and i'll place this like those CCFL in the casing...i'll build the stand for it soon......          This post has been edited by AllnGap: Nov 26 2006, 12:37 PM |
|
|
Nov 26 2006, 01:12 PM
|
|
Senior Member
4,561 posts Joined: Jan 2003 From: Penangites
|
I've uploaded 3 sets of 40second vid in YouTube, 10mb each.....
This post has been edited by AllnGap: Nov 26 2006, 01:24 PM |
|
|
Nov 28 2006, 06:23 PM
|
Senior Member
1,823 posts Joined: Mar 2006 From: Kuala Lumpur
|
wowowowowowowo... led pwned... dam man..nice work on the leds....nice circuit board work too... bloody genius i tell u this guy is..
|
|
|
Dec 1 2006, 04:12 PM
|
Junior Member
366 posts Joined: Jan 2003 From: JB
|
bro... when u are freee to help me mod the fan for me??
|
|
|
Dec 1 2006, 05:26 PM
|
|
Senior Member
2,239 posts Joined: Jun 2006 From: K.L
|
dude, sent u a pm..
no reply one.. =/ bz? |
|
|
Dec 9 2006, 01:42 AM
|
Senior Member
2,386 posts Joined: Jan 2003 From: Many calls it "Hell"
|
Wow, ur work is damn neat there...
The fans u have there r really cool, will you help us build them on request? |
|
|
Dec 9 2006, 03:11 AM
|
|
Senior Member
2,239 posts Joined: Jun 2006 From: K.L
|
QUOTE(@meno @ Dec 9 2006, 01:42 AM) Wow, ur work is damn neat there... sure, definitely will... i just ask him do to a request for me.. hehehe.. The fans u have there r really cool, will you help us build them on request? jsut pm him.. but he's bz these few days |
|
|
Dec 9 2006, 01:27 PM
|
|
Senior Member
2,386 posts Joined: Jan 2003 From: Many calls it "Hell"
|
z3r0717, expensive ar?
The fans really damn cool... U gonna fit those in ur sidewinder? |
|
|
Dec 10 2006, 01:35 PM
|
|
Senior Member
9,257 posts Joined: Aug 2005 From: Not so sure myself Status: 1+3+3=7
|
Holy sh1t that's damn neat... Salutes...
|
|
|
Dec 10 2006, 03:59 PM
|
|
Senior Member
2,239 posts Joined: Jun 2006 From: K.L
|
QUOTE(@meno @ Dec 9 2006, 01:27 PM) z3r0717, expensive ar? havn't got the full price yet.. just ask him to do my request only..The fans really damn cool... U gonna fit those in ur sidewinder? i'm asking him to do lights not fans... yeap, putting in in my rig |
|
|
Dec 10 2006, 09:02 PM
|
Junior Member
28 posts Joined: Dec 2005 From: Kedah
|
AllnGap mod: Blue led for my 80mm Tranparent fan Blue led for my 80mm Thermaltake fan I'm very satisfied, nice jobs, thanks man.. |
|
|
Dec 11 2006, 06:06 PM
|
|
Senior Member
4,561 posts Joined: Jan 2003 From: Penangites
|
QUOTE(lolhalol @ Nov 28 2006, 06:23 PM) wowowowowowowo... led pwned... dam man..nice work on the leds....nice circuit board work too... bloody genius i tell u this guy is.. you dont need to be a genius to do all these QUOTE(xyngfei @ Dec 1 2006, 04:12 PM) bro... when u are freee to help me mod the fan for me?? please pm me personally okay...QUOTE(@meno @ Dec 9 2006, 01:42 AM) Wow, ur work is damn neat there... PM pleaseThe fans u have there r really cool, will you help us build them on request? QUOTE(eXPeri3nc3 @ Dec 10 2006, 01:35 PM) Holy sh1t that's damn neat... Salutes... i want to beat the crap out of the CCFL users QUOTE(Mirol @ Dec 10 2006, 09:02 PM) AllnGap mod: Blue led for my 80mm Tranparent fan Blue led for my 80mm Thermaltake fan I'm very satisfied, nice jobs, thanks man.. |
|
|
Dec 11 2006, 06:10 PM
|
|
Senior Member
9,257 posts Joined: Aug 2005 From: Not so sure myself Status: 1+3+3=7
|
QUOTE(AllnGap @ Dec 11 2006, 07:06 PM) you dont need to be a genius to do all these LOL... No wonder you're a LED fan xD please pm me personally okay... PM please i want to beat the crap out of the CCFL users glad you like it bro...... |
|
|
Dec 16 2006, 01:36 PM
|
Junior Member
215 posts Joined: Aug 2006 From: Ipoh & KL
|
sifu sifu, have to ask 1 question.... y the led light look uneven??
is it the angle i pasang got problem? what angle will more bright the effect? thanks! |
|
|
Dec 16 2006, 02:11 PM
|
|
Senior Member
4,561 posts Joined: Jan 2003 From: Penangites
|
QUOTE(j@y !!! @ Dec 16 2006, 01:36 PM) sifu sifu, have to ask 1 question.... y the led light look uneven?? LED brightness not even, or something wrong with that LED
is it the angle i pasang got problem? what angle will more bright the effect? thanks! |
|
|
Dec 21 2006, 01:55 AM
|
|
All Stars
14,909 posts Joined: Jul 2005
|
Last update is 16December 2006...
Where's the update bro? |
|
|
Dec 21 2006, 11:19 AM
|
Senior Member
2,524 posts Joined: Jan 2003 From: Beneath the starry night
|
He's is busy with his assignment, don't expect any updates anytime soon
|
|
|
Dec 21 2006, 02:09 PM
|
Junior Member
282 posts Joined: Apr 2005
|
QUOTE(AllnGap @ Sep 29 2006, 01:30 PM) this is the front panel, the acrylic will be sprayed with flat black after i've configured all the knob and switches positions. where u buy the bolt nut?i've yet to install a frosted flame design in front..... this is what i've done for my top panel.....sprayed a layer of base black at the moment....havent sand it for second layer yet i used tint and apply on the acrylic, it's a black and silver tint. you'll only be able to see inside the casing when there's light but it will remain reflective all the time.... there's also a 92mm fan installed on top as intake..... this is the blunder...when i drilled the hole, the tint layer was separated from the acrylic....looks like i've got to find a way to patch this flaw so enjoy the pics !!! Can let me know? |
|
|
Dec 21 2006, 05:46 PM
|
|
Senior Member
4,561 posts Joined: Jan 2003 From: Penangites
|
QUOTE(sHawTY @ Dec 21 2006, 01:55 AM) Last update is 16December 2006... i also wish i had the time to finish it ler......busy like hell........originally, our assignments are group work, 2 persons in one group.... Where's the update bro? then this sem, 2 of me subjects are personal assignments, so workload doubled !!! i just stare at my casing when i get home at nite.....cant touch it !!!! QUOTE(hypermax @ Dec 21 2006, 11:19 AM) He's is busy with his assignment, don't expect any updates anytime soon this weekend, i got to mod your order, lollahol and the other guy......cant relax over the weekend also.....damn pity ler QUOTE(ckyee88 @ Dec 21 2006, 02:09 PM) where u buy the bolt nut? pm me personally okCan let me know? |
|
|
Jan 3 2007, 10:54 PM
|
|
Senior Member
4,561 posts Joined: Jan 2003 From: Penangites
|
this mod is gonna take a while as i'm really busy......i'll continue modding it after CNY, 2nd week of Febuary to be exact.....sorry guys....
edit: thread cleaned. All sales enquiries pls use PM. Added on March 2, 2007, 3:54 pmstarted modding it already.....will be ready within 2weeks @ This post has been edited by AllnGap: Mar 2 2007, 03:54 PM |
|
|
Mar 8 2007, 12:14 AM
|
|
Senior Member
4,561 posts Joined: Jan 2003 From: Penangites
|
helloooooo guys......
i've started modding my casing since last week and there has been some ups and downs..... to start off with, i've replaced another 'mirror' acrylic for the top panel to replace the round hole with the exact blowhole of a focus flow....might mount a focus flow there, but i have yet to decide....    ok, here are all the things i intend to put in.......might increase the 92mm to around 5pcs in total...        This post has been edited by AllnGap: Mar 8 2007, 12:25 AM |
|
|
Mar 8 2007, 12:16 AM
|
|
Senior Member
4,561 posts Joined: Jan 2003 From: Penangites
|
right now, i'm covering the ugly part of my casing, which is because this is an ICUTE, a lot of components such as the rivets and metals get rusty pretty quickly.....
to give it the rolls royce shine, i had cover those parts with 'carpets' to make them shine...... i used those black insulation matt (not really sure what they are called) to cover the rear and the PCI parts..... basically, i'm using two types here...one of it is the thick one, which is around 5mm thick to use as a base for the bottom of the casing which look a bit grey and another type which is more towards furnishing surface type of matt  this is the rear part of the casing, frankly it's really ugly and the paint job was quite a shabby one too.....therefore i've decided to cover them up to make them look nicer and also to protect the surface from any form of scratches.. besides that, the matt will also act as a vibration absorber since i will mount my 127mm Delta tri-blade outside of the casing......the fan is mounted outside to give a cleaner look in the casing itself and it couldnt fit inside also  i've also trimmed off some parts of the side panel because the side panel cannot be closed if it wasnt trimmed due to the 127mm fan.....  alright, i'll just tear off the sticker off the matt and stick the whole sheet onto the rear...then i'll trim it using the art/sticker penknife.....it really comes in handy when you need to do some detailing trimming.....expensive as well because i need to trim off a lot of corners......if not mistaken, changed around 6blades just for the rear panel itself.... this pics shows the making of the blowhole  this is for the PSU  and the rest for the PCI and the I/O panel....  as you can see in the pic, some part of the matt couldnt attach nicely because there are rivets behind it....so i had to use glue to close up that gap  this is the complete (not yet completed actually) rear panel surface i use black marker pen with a fine tip to cover all those white sticker which spoils the look.....    This post has been edited by AllnGap: Mar 8 2007, 12:45 AM |
|
|
Mar 8 2007, 12:19 AM
|
|
Senior Member
4,561 posts Joined: Jan 2003 From: Penangites
|
 right now, i do have a lot of things to modify especially lightings fans and such...but my trademark frosted flame grill got KOed in the process of modding I was really devastated by that man....worked so hard on it and i forgot that i already mounted on my casing.....when i turn the casing around, i tilt my casing and heard a crack !!! thats it !!! it's gone right now, have to go on modding without that one.......have to leave that one for the last part....  after i've screwed in the sidepanel, i realized that my sidepanel couldnt shut firmly because the matt is not compressible...hence i started trimming the matt again !!!    this is the interior of the casing which i used the 5mm black sponge to cover it.... do note that this is not the final layer which i will use for the flooring of the base....... as i still have a lot of wirings to do, i will have to make way for the wirings through the sponge itself and cover it with another layer of black matt for the final surface..  i've covered the 'sharkfin' vents using the black matt    this will be the final looks for the interior.... this is how it looks without flash.....the joint lines arent that noticeable under normal condition  This post has been edited by AllnGap: Mar 8 2007, 12:57 AM |
|
|
Mar 8 2007, 12:21 AM
|
|
Senior Member
4,561 posts Joined: Jan 2003 From: Penangites
|
          This post has been edited by AllnGap: Mar 14 2007, 12:51 AM |
|
|
Mar 14 2007, 12:52 AM
|
|
Senior Member
4,561 posts Joined: Jan 2003 From: Penangites
|
          |
|
|
Mar 14 2007, 12:54 AM
|
|
Senior Member
4,561 posts Joined: Jan 2003 From: Penangites
|
          This post has been edited by AllnGap: Mar 14 2007, 01:00 AM |
|
|
Mar 14 2007, 01:01 AM
|
Senior Member
1,008 posts Joined: Mar 2006 From: Kuantan Pahang
|
lol ur HSF geng super ben fin n dirty
|
|
|
Mar 14 2007, 01:01 AM
|
|
Senior Member
4,561 posts Joined: Jan 2003 From: Penangites
|
          |
|
|
Mar 14 2007, 01:02 AM
|
|
Senior Member
4,561 posts Joined: Jan 2003 From: Penangites
|
   Added on March 14, 2007, 1:05 amwill post the comments tomorrow.......very sleepy already This post has been edited by AllnGap: Mar 14 2007, 01:05 AM |
|
|
Mar 14 2007, 09:51 AM
|
|
Senior Member
971 posts Joined: Aug 2006 From: Penang
|
Very nice work bro! Thinking of a design similar to yours (thanks for the inspiration) but without the flame design; prefer clean lines. Maybe will try it out later this year; will be my first adventure into case modding (or rather case building, as I plan to construct it from scratch)
I've mentioned this before-with no metal sheilding covering your PSU expect overclocking to suffer due to EM emissions from the PSU. If you're unlucky (I hope not), you may even have trouble keeping it stable at stock. Share your experience when you have time. |
|
|
Mar 14 2007, 08:59 PM
|
Senior Member
1,701 posts Joined: Jul 2006 From: Malaysia
|
bro .i wan ask...how much is ur budget doing all this?
|
|
|
Mar 14 2007, 10:02 PM
|
|
Senior Member
4,561 posts Joined: Jan 2003 From: Penangites
|
QUOTE(lohwenli @ Mar 14 2007, 09:51 AM) Very nice work bro! Thinking of a design similar to yours (thanks for the inspiration) but without the flame design; prefer clean lines. Maybe will try it out later this year; will be my first adventure into case modding (or rather case building, as I plan to construct it from scratch) err.......my barton is still running at the OCed speed without a glitch....I've mentioned this before-with no metal sheilding covering your PSU expect overclocking to suffer due to EM emissions from the PSU. If you're unlucky (I hope not), you may even have trouble keeping it stable at stock. Share your experience when you have time. btw i think i can run my PC at full load without a CPU fan blowing onto the heatsink.....my airflow is strong and efficient enough to do that already QUOTE(dj.eRicZzz @ Mar 14 2007, 08:59 PM) bro .i wan ask...how much is ur budget doing all this? i have not really calculated yet.....but i think will go near to RM 600 at least.....the most expensive part is yet to be seen i estimate that i'll have around 18knobs for lightings, 2 Vandal switch for RESET and POWER, a few knobs for the fan speed, a few flip switch for the pulsating lightings there will be roughly around 90pcs of multi-colour LEDs and some Luxeons if i have the time to mod them crap...one week left only....got to hurry up |
|
|
Mar 20 2007, 12:00 PM
|
Senior Member
1,496 posts Joined: Jan 2006 From: Baling, Kedah
|
wo bro, very nive mod.... wish can go kl to see the party, but bz with assignment.... bro post more pict and ur last product...
|
|
|
Mar 26 2007, 09:21 AM
|
|
Senior Member
1,823 posts Joined: Mar 2006 From: Kuala Lumpur
|
the winning rig,.,.....lol....congrats
|
|
|
Mar 26 2007, 09:56 AM
|
Junior Member
296 posts Joined: Apr 2006 From: My Sanctuary @Klang Valley
|
QUOTE(lolhalol @ Mar 26 2007, 09:21 AM) the winning rig,.,.....lol....congrats of course the his rig won.....that's the sickest rig ever.... total of 50 leds inside....crazy!! |
|
|
Mar 26 2007, 11:16 AM
|
Junior Member
357 posts Joined: Sep 2005 From: ampang,selangor
|
QUOTE(Zyntherius @ Mar 26 2007, 09:56 AM) of course the his rig won.....that's the sickest rig ever.... total of 50 leds inside....crazy!! yupe wit all 21 controller......really crazy!! |
|
|
Apr 1 2007, 11:16 AM
|
|
Senior Member
2,524 posts Joined: Jan 2003 From: Beneath the starry night
|
Brother, time for updates
 |
|
|
Apr 1 2007, 11:31 AM
|
Senior Member
1,231 posts Joined: Aug 2006 From: teh intehnets
|
can`t wait to see.. any new mod to show us?
|
|
|
Apr 14 2007, 02:21 AM
|
Junior Member
438 posts Joined: Jul 2005
|
very nicely modded...cant wait for the complete works.... sure its a award winning design....
|
|
|
Apr 14 2007, 06:48 AM
|
|
All Stars
14,909 posts Joined: Jul 2005
|
QUOTE(djdevan @ Apr 14 2007, 02:21 AM) very nicely modded...cant wait for the complete works.... sure its a award winning design.... Complete work?  Allngap work is a neverending work. He will continue modding, modding & modding until he kiok also he wont stop modding. |
|
|
Apr 14 2007, 11:49 AM
|
|
Senior Member
971 posts Joined: Aug 2006 From: Penang
|
QUOTE(sHawTY @ Apr 14 2007, 06:48 AM) Complete work? Lol..modding from the grave..now that would be an interesting theme.. Allngap work is a neverending work. He will continue modding, modding & modding until he kiok also he wont stop modding. But yeah, would like to see when the casing looks like something that is no longer looks like a -work in progress- thing. |
|
|
May 5 2007, 06:02 AM
|
|
Senior Member
2,386 posts Joined: Jan 2003 From: Many calls it "Hell"
|
Huh...still waiting for this case to be completed...
It will be one of the best we've seen on LYN thanks to his motto: Modding with Passion. Bro, maybe someday you can start ur own label, then my modded by Allngap Nidec will be the trademark of my rig... Btw, just realised how cool those multi channel leds are, hmm...thinking of something now. Will find u when budget allows... |
|
|
Jun 11 2007, 06:29 AM
|
|
VIP
15,705 posts Joined: Mar 2005 From: Tg. Rambutan
|
All finished or active worklogs bumped to avoid deletion.
|
|
|
Jun 30 2007, 08:30 AM
|
|
Senior Member
4,561 posts Joined: Jan 2003 From: Penangites
|
          |
|
|
Jun 30 2007, 08:32 AM
|
|
Senior Member
4,561 posts Joined: Jan 2003 From: Penangites
|
         |
|
|
Jun 30 2007, 08:32 AM
|
|
Senior Member
4,561 posts Joined: Jan 2003 From: Penangites
|
        This post has been edited by AllnGap: Jun 30 2007, 08:35 AM |
|
|
Jun 30 2007, 08:34 AM
|
|
Senior Member
4,561 posts Joined: Jan 2003 From: Penangites
|
|
|
|
Jun 30 2007, 08:50 AM
|
|
Senior Member
4,561 posts Joined: Jan 2003 From: Penangites
|
|
|
|
Jun 30 2007, 08:51 AM
|
|
Senior Member
4,561 posts Joined: Jan 2003 From: Penangites
|
|
|
|
Jun 30 2007, 08:51 AM
|
|
Senior Member
4,561 posts Joined: Jan 2003 From: Penangites
|
|
|
|
Jun 30 2007, 08:52 AM
|
|
Senior Member
4,561 posts Joined: Jan 2003 From: Penangites
|
|
|
|
Jun 30 2007, 08:53 AM
|
|
Senior Member
4,561 posts Joined: Jan 2003 From: Penangites
|
|
|
|
Jun 30 2007, 08:55 AM
|
|
Senior Member
4,561 posts Joined: Jan 2003 From: Penangites
|
|
|
|
Jun 30 2007, 08:57 AM
|
|
Senior Member
4,561 posts Joined: Jan 2003 From: Penangites
|
|
|
|
Jun 30 2007, 08:58 AM
|
|
Senior Member
4,561 posts Joined: Jan 2003 From: Penangites
|
     Added on June 30, 2007, 9:01 amafter going back to the first page, i've just realized this........ This post has been edited by AllnGap: Jun 30 2007, 09:01 AM |
|
|
Jun 30 2007, 09:02 AM
|
|
Senior Member
4,561 posts Joined: Jan 2003 From: Penangites
|
after going back to the first page, i've just realized the transformation.....
From this This post has been edited by AllnGap: Jun 30 2007, 09:04 AM |
|
|
Jul 1 2007, 11:57 AM
|
Senior Member
625 posts Joined: Aug 2006 From: Subang Jaya
|
Whoaaa....... Just look at all that bling...
No one would even recognize the iCute until they stare straight at the logo. |
|
|
Jul 1 2007, 11:01 PM
|
Elite
5,434 posts Joined: Dec 2006
|
WS,nice job u have there!!!!
may i know what is the purposes of those controller at the 525 bays there? |
|
|
Jul 1 2007, 11:16 PM
|
|
Junior Member
357 posts Joined: Sep 2005 From: ampang,selangor
|
nice2....like the variety of light color.....
can show us the function all those ctrl u hav there? |
|
|
Jul 1 2007, 11:23 PM
|
Senior Member
2,247 posts Joined: Jan 2007
|
WOW...i love all the bling bling..its really dam cool
|
|
|
Jul 1 2007, 11:32 PM
|
Senior Member
644 posts Joined: Dec 2006
|
how u make many many many colour one.. =.= btw good job.
|
|
|
Jul 3 2007, 12:59 AM
|
|
Senior Member
971 posts Joined: Aug 2006 From: Penang
|
Wah, LED mania..
But one thing, the front panel now looks like a HiFi set with all the knobs...some more with all the fans it really looks like a super bling-ed up amplifier that needs lotsa cooling.. And I see a DFI board there, when did you upgrade your Barton? |
|
|
Jul 3 2007, 01:13 AM
|
|
Senior Member
2,386 posts Joined: Jan 2003 From: Many calls it "Hell"
|
OMG...
Those LEDs are so damn cool... I just never get tired with AllnGaps works... True masterpiece... |
|
|
Jul 3 2007, 12:58 PM
|
Senior Member
1,995 posts Joined: May 2005
|
the white fan are very nice............ and very adaptive to the ambient light u projeted on it.........may be i should do the same
|
|
|
Jul 3 2007, 03:12 PM
|
Senior Member
2,139 posts Joined: May 2007
|
love the multi colour led mod ^^
|
|
|
Jul 4 2007, 10:42 PM
|
Senior Member
871 posts Joined: Jun 2005 From: A Galaxy Far Far Away...
|
truly awesome! that's one hell of a mod bro!
|
|
|
Jul 9 2007, 05:22 PM
|
|
Senior Member
4,561 posts Joined: Jan 2003 From: Penangites
|
QUOTE(Samanoske Akechi @ Jul 1 2007, 11:57 AM) Whoaaa....... Just look at all that bling... ICUTE ROxxx !!!! No one would even recognize the iCute until they stare straight at the logo. QUOTE(AceCombat @ Jul 1 2007, 11:01 PM) WS,nice job u have there!!!! those are to control the colours, 18 colour channels altogether....may i know what is the purposes of those controller at the 525 bays there? the colour control are like those nice colours you see in Pubs, Hotels...those that can change many many colours..... QUOTE(peaceofluck @ Jul 1 2007, 11:16 PM) nice2....like the variety of light color..... the explanation is somewhere in pg 3........i suggest you read thru all ok or not ?can show us the function all those ctrl u hav there? QUOTE(shinjun @ Jul 1 2007, 11:23 PM) WOW...i love all the bling bling..its really dam cool thanks !! QUOTE(angelic-x @ Jul 1 2007, 11:32 PM) how u make many many many colour one.. =.= btw good job. thanks !!QUOTE(lohwenli @ Jul 3 2007, 12:59 AM) Wah, LED mania.. ya, my barton failed me during last minute But one thing, the front panel now looks like a HiFi set with all the knobs...some more with all the fans it really looks like a super bling-ed up amplifier that needs lotsa cooling.. And I see a DFI board there, when did you upgrade your Barton? QUOTE(@meno @ Jul 3 2007, 01:13 AM) OMG... Thanks Those LEDs are so damn cool... I just never get tired with AllnGaps works... True masterpiece... QUOTE(LExus65 @ Jul 3 2007, 12:58 PM) the white fan are very nice............ and very adaptive to the ambient light u projeted on it.........may be i should do the same those are my trademarks....anyway, thats the only way you can get the maximum lighting effects for the fans QUOTE(zzloo @ Jul 3 2007, 03:12 PM) love the multi colour led mod ^^ Thanks QUOTE(Ryo @ Jul 4 2007, 10:42 PM) truly awesome! that's one hell of a mod bro! Thanks |
|
|
Jul 9 2007, 06:21 PM
|
Senior Member
1,138 posts Joined: Dec 2006
|
OMG!!!
|
|
|
Jul 9 2007, 08:01 PM
|
Senior Member
905 posts Joined: Aug 2006
|
*jaw drop* This case is definately bling bling bling....
|
|
|
Jul 10 2007, 04:50 PM
|
Senior Member
628 posts Joined: Oct 2006
|
MOG, it's so impressive, if allngap bring that to penang beach, all those ships might think it's a light house...
can really make it for pub or lite cafe decoration... those controllers looks cool too... |
|
|
Feb 6 2008, 11:53 PM
|
Senior Member
615 posts Joined: Jan 2008
|
tats one hot moma!!!!!!!!!yeah!!!!!!!
|
|
|
Feb 7 2008, 01:22 AM
|
Junior Member
492 posts Joined: Apr 2007 From: kedah
|
very2 colourfull !!!!!! |
|
|
Feb 7 2008, 03:05 AM
|
Junior Member
59 posts Joined: Feb 2007 From: alor star
|
i really like the multi colored led fan
cool and got bling2 factorThis post has been edited by tetamu_kehormat: Feb 7 2008, 03:05 AM |
|
|
Mar 9 2008, 08:54 PM
|
Senior Member
2,892 posts Joined: Oct 2007 From: Penang
|
QUOTE(AllnGap @ Sep 29 2006, 02:30 PM) this is the front panel, the acrylic will be sprayed with flat black after i've configured all the knob and switches positions. where u hav tis typre of paint???i've yet to install a frosted flame design in front..... this is what i've done for my top panel.....sprayed a layer of base black at the moment....havent sand it for second layer yet i used tint and apply on the acrylic, it's a black and silver tint. you'll only be able to see inside the casing when there's light but it will remain reflective all the time.... there's also a 92mm fan installed on top as intake..... this is the blunder...when i drilled the hole, the tint layer was separated from the acrylic....looks like i've got to find a way to patch this flaw so enjoy the pics !!! |
|
|
Mar 15 2008, 12:41 PM
|
Senior Member
698 posts Joined: Sep 2006 From: KK, Sabah
|
Very nice job there.
|
|
|
Mar 18 2008, 11:56 PM
|
Senior Member
1,626 posts Joined: Dec 2007
|
BLING BLING GREAT WORK BRO AG
the design should be more perfect if slide in a rubber for the tube for the edge This post has been edited by sepulgilo: Mar 18 2008, 11:57 PM |
|
|
Mar 21 2008, 09:18 PM
|
Junior Member
132 posts Joined: Mar 2008
|
any update?
|
|
|
Apr 22 2008, 06:54 AM
|
Junior Member
95 posts Joined: Apr 2007
|
best thread ever. nice
|
|
|
Nov 7 2008, 01:36 PM
|
Junior Member
71 posts Joined: Dec 2007
|
too bad to say cant view complete picture
but can imagine is nice n cool mod |
|
|
Nov 9 2008, 02:43 AM
|
Junior Member
58 posts Joined: Dec 2006
|
aww i`m heartbroken liao... really excited to see the finised product but then the image is gone...
|
|
|
Nov 16 2008, 07:18 PM
|
Senior Member
3,158 posts Joined: Jun 2005 From: Planet Earth
|
i also .. interested to know how the finished look ..
|
|
|
Dec 8 2008, 07:20 PM
|
|
Senior Member
1,592 posts Joined: Feb 2008 From: Penang
|
omg bro, why did the completed picuture is not exist??
post it again pls!! |
|
|
Feb 2 2009, 01:11 AM
|
Senior Member
2,458 posts Joined: Apr 2008 From: M A N C A V E
|
QUOTE(zs3889 @ Dec 8 2008, 08:20 PM) omg bro, why did the completed picture is not exist?? Yeahhh...cant see the complete picture to....post it again pls!! |
|
|
Mar 6 2009, 04:01 PM
|
Junior Member
8 posts Joined: Dec 2008
|
nice one dude.. = )
|
|
|
Mar 7 2009, 12:51 AM
|
Senior Member
2,165 posts Joined: Aug 2006 From: P4ИD0R4
|
QUOTE(Mooneyes @ Sep 27 2006, 05:51 PM) what do u use to cut round hole on the acrylic...use jigsaw oso is it?? I think TS drilled some pilot holes on the round hole 1st before using jigsaw to cut... |
|
|
May 13 2009, 09:45 PM
|
Senior Member
728 posts Joined: Mar 2009 From: Pulau, Penang
|
where the AFTER one ma... huhu, cant view the pic lor
|
|
|
May 16 2009, 12:43 PM
|
Senior Member
595 posts Joined: Mar 2008 From: Petaling Jaya, Bangi
|
aaaa....pics cant load~!!!!!T_T
|
|
|
May 16 2009, 05:07 PM
|
|
Senior Member
2,165 posts Joined: Aug 2006 From: P4ИD0R4
|
QUOTE(Susaiput @ May 16 2009, 12:43 PM) aaaa....pics cant load~!!!!!T_T Please notice the date of 1st post...This thread is almost 3 years ago, so some pics might not be available anymore... |
| Change to: |  0.0874sec
 1.27
 6 queries
 GZIP Disabled
Time is now: 19th December 2025 - 05:13 AM |
Quote
