okay, basically, i've been working on graphical LCD, with the dimension of 240*128 pixels that is.
this is not mine, but a forummer here, i will COD with him maybe on friday in LYP.

The journey

i spent my sundays and monday to work on the exact one as this.......
the modding of the graphical LCD is the hardest because i have ever attempted it and neither do i have any experience in it. But i still got to make sure that it's really cool and it will be inherit great features as well.

so i started off with how is it going to look at the first place....i got the idea from IMAC, the model which has got a half sphere as the rig and the LCD mounted on top.

the idea was fresh and good, but there are a lot of complications to it like :
- make the wiring doesnt look messy
- mount the graphical LCD nicely without dust getting into the viewing glass
- not making any scratches on the acrylic during modding
- making all edges smoothly and rounded
- and many many more !

when i completed the first one, i was totally devastated to discover that there's problem with the display ......thus i scrapped the whole thing and i was got really upset and discouraged by it.

after i rest for half a day, i began to pick up my spirit to make a new one again......and take note that i spent at least 9 hours to make a new one, and it must be done with full concentration and dedication, or else it's screwed up !

so, after so much struggle, i was able to present to you my idea and my design of the graphical LCD.

Hope that you guys will like it.

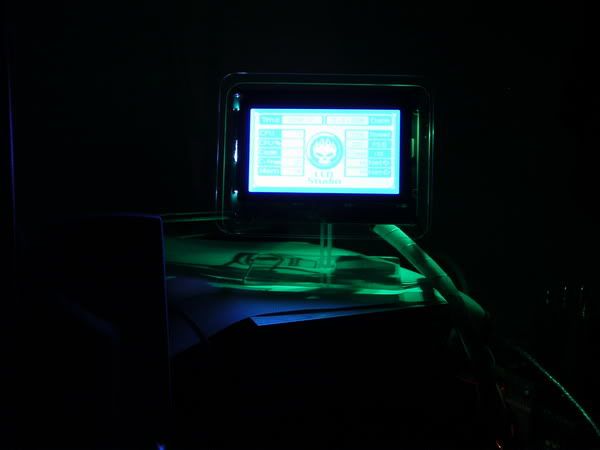

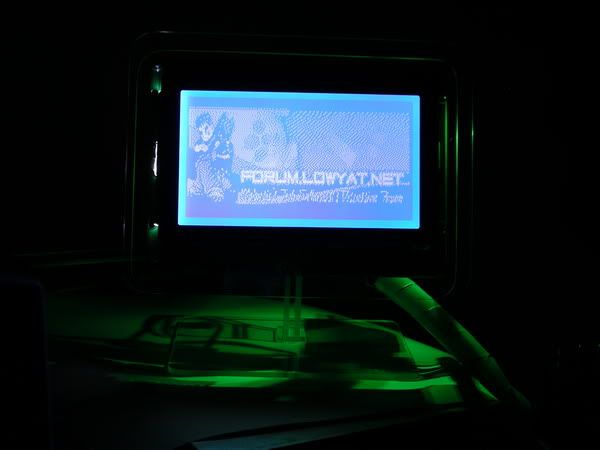

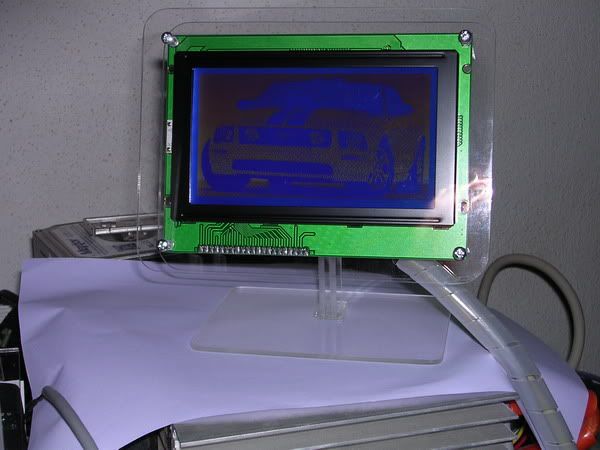

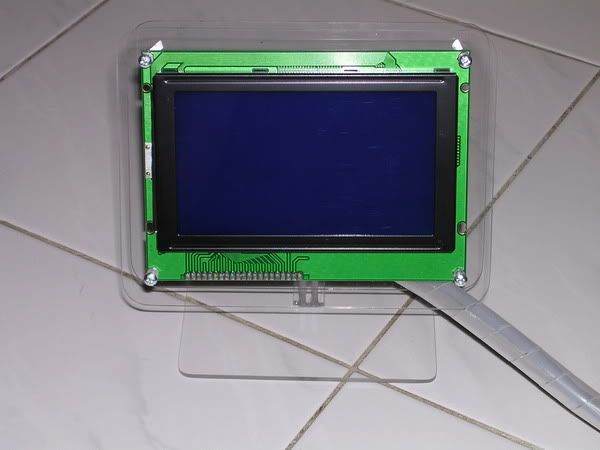

basically, this is the graphical LCD.
everything is built on 3mm acrylic and all the edges is rounded and smooth

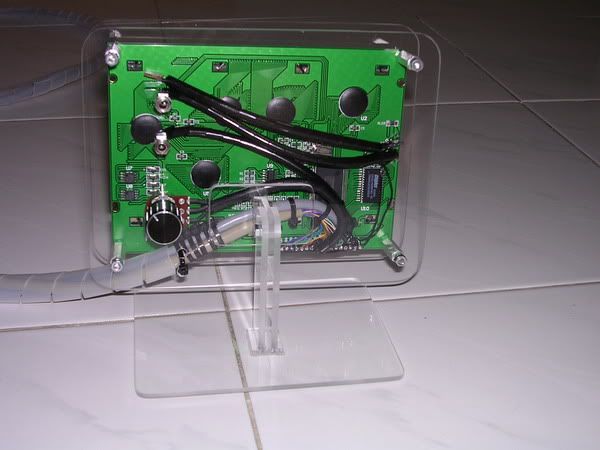

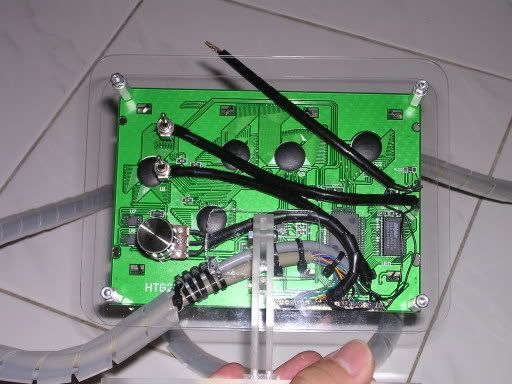

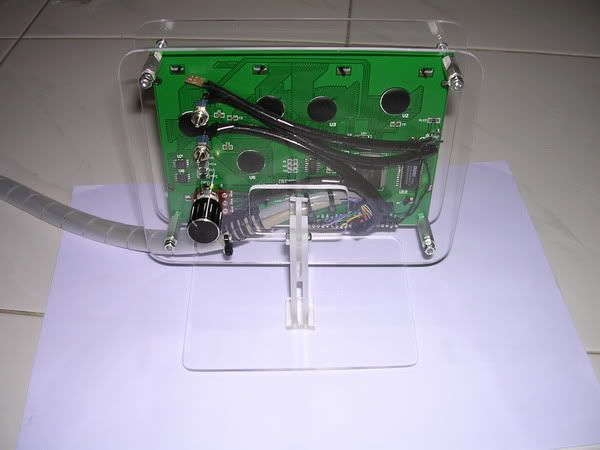

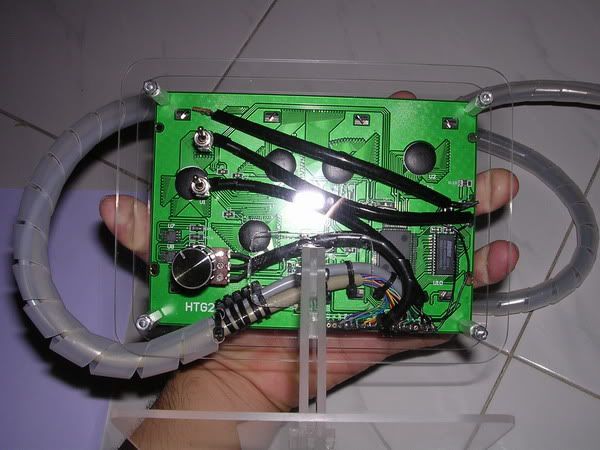

this is the rear part of the LCD,
as you can see in the picture, the black cable wrap is hiding some of the wires...





there's a small piece of circuit board(in brown) which holds the green SMD LEDs

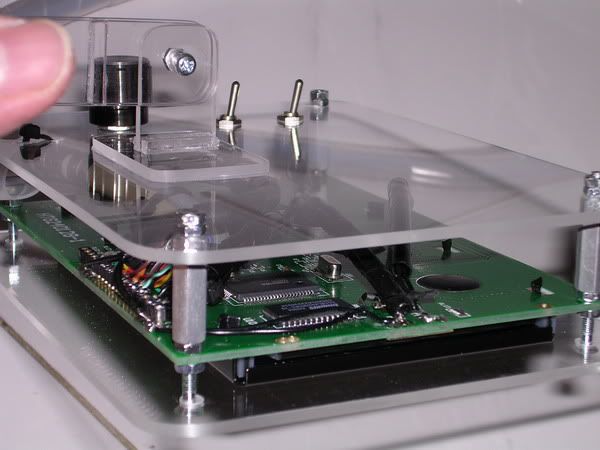

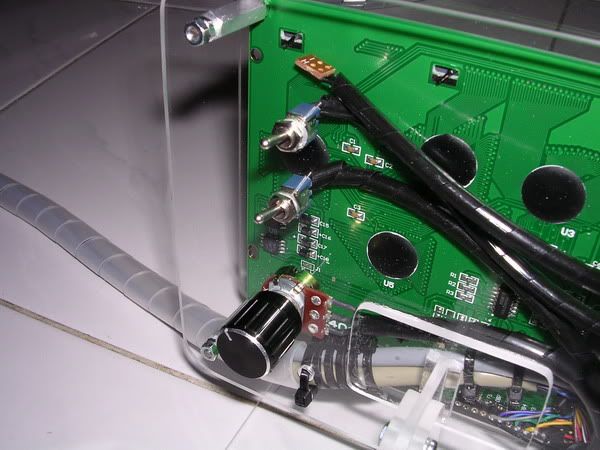

basically there are 2 switches and 1 knob.
the first flip switch(on the top) is for the 2x green SMD LED while the second one is for the power for the whole LCD

and the knob is something like brightness control

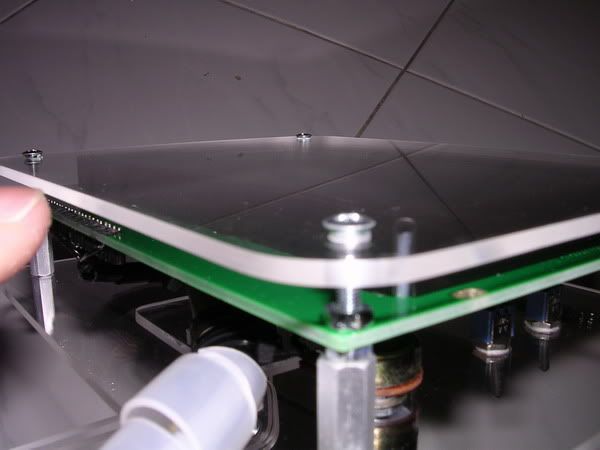

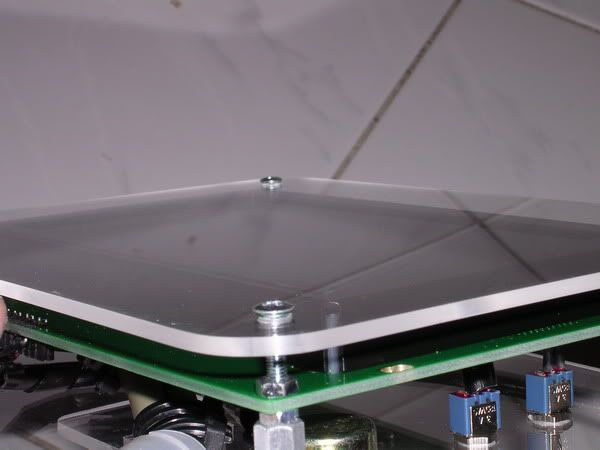

the mounts (the silver colour 'stick' in between the graphical LCD and the rear acrylic is to form a spacing between the two)

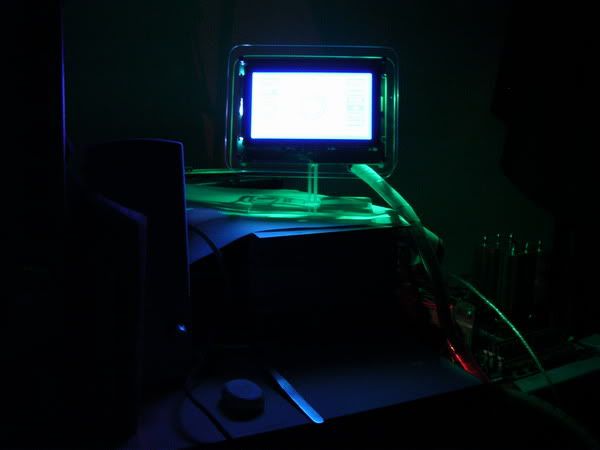

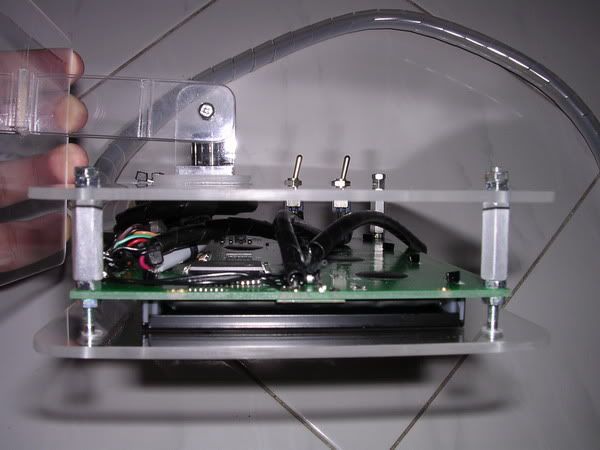

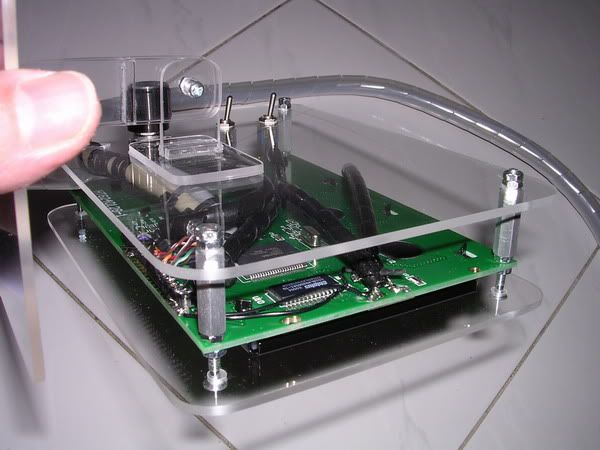

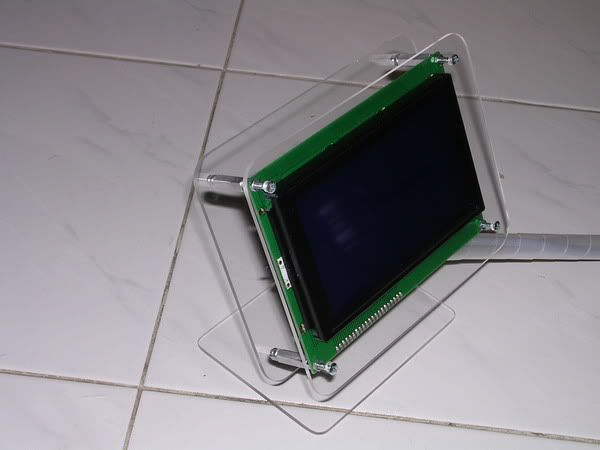

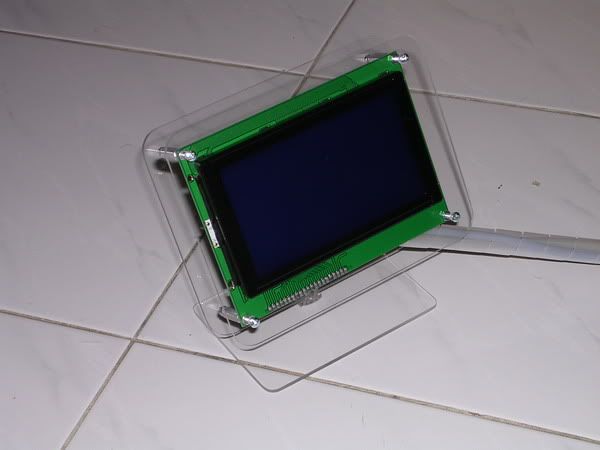

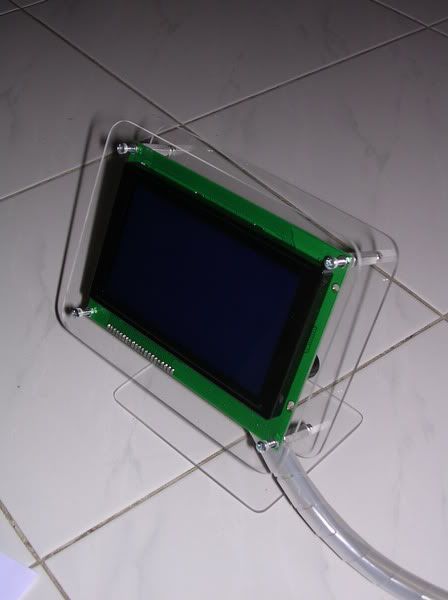

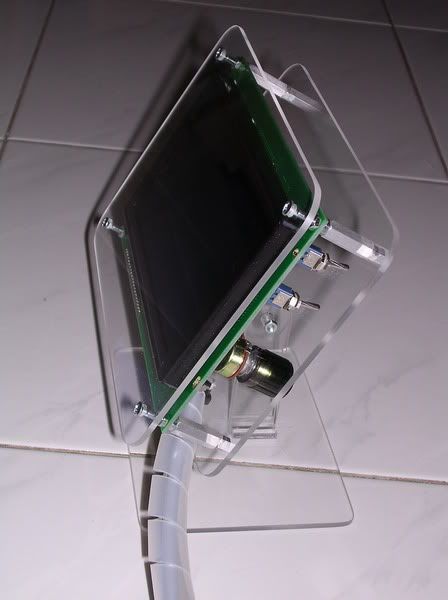

this is a side view of the graphical LCD........enjoy the pics !








This post has been edited by AllnGap: Aug 28 2006, 10:19 AM

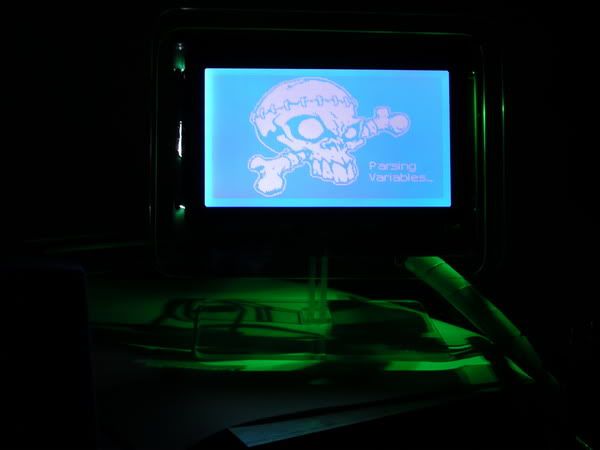

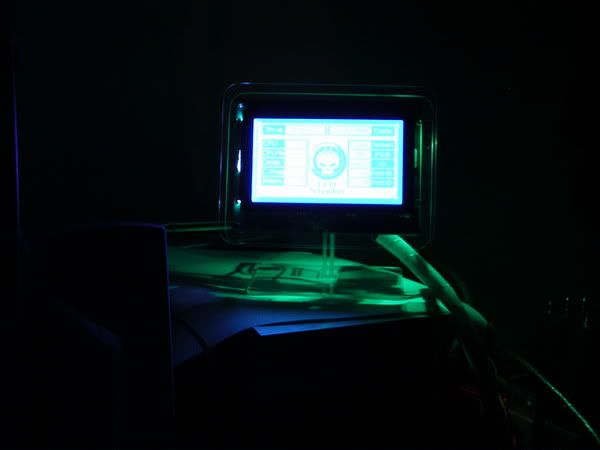

okay, so many asked what can this display do......
basically, you can display anything with it as long as you know how to program what you want into the software.......

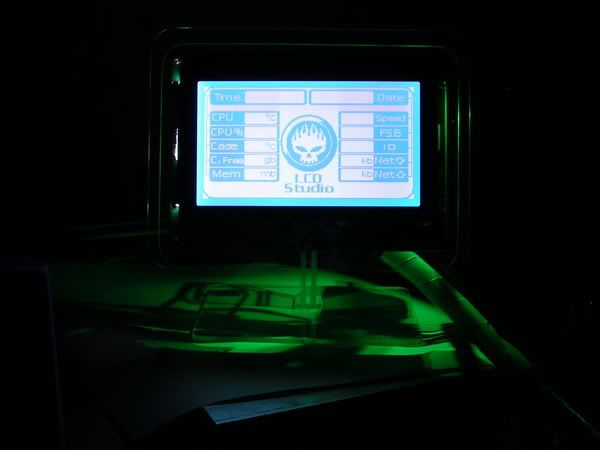

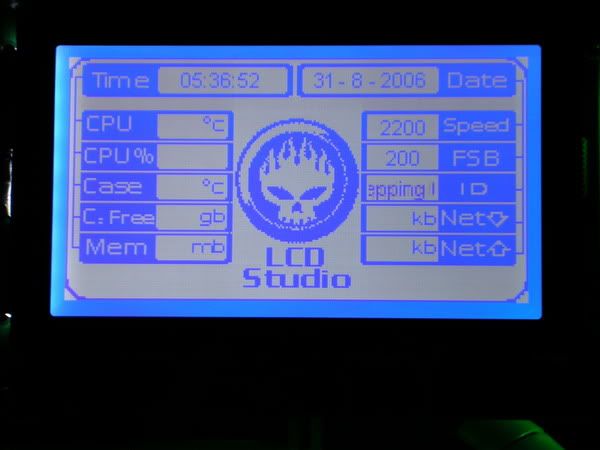

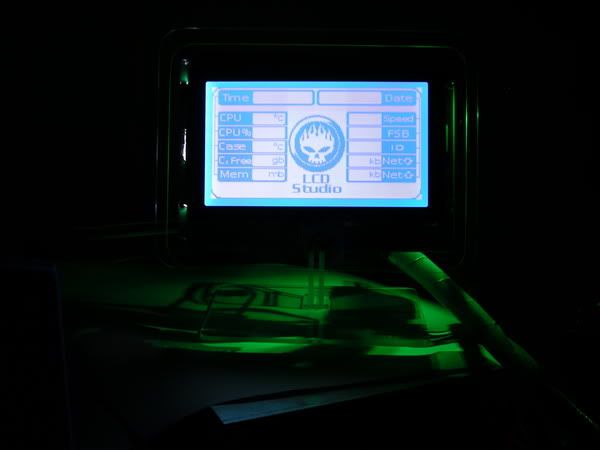

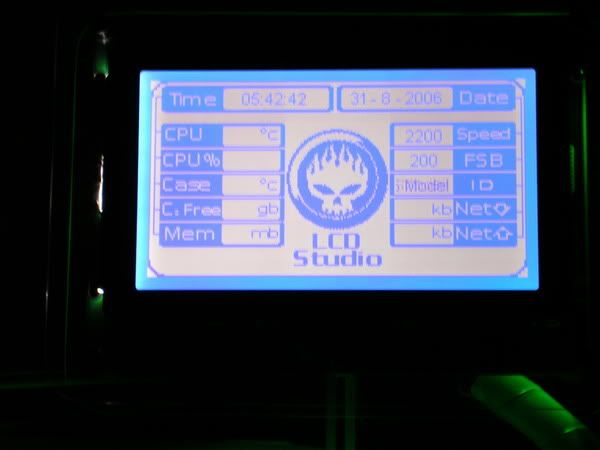

for me, i let it display my HDD space, upload and download speed, CPU speed, time/data, temperatures and so on..







This post has been edited by AllnGap: Aug 28 2006, 10:17 AM

This post has been edited by AllnGap: Aug 23 2006, 06:26 AM

feel free to drop me a pm if you are interested in getting one of this as i still have got a few pieces left

This post has been edited by AllnGap: Aug 28 2006, 10:18 AM

reserved.............

how surpise is it???waiting ur pic here
fast fast upload it

must be something hebat

A drink squirting casefan?

hu hu hu... so tension.. i wanna bump this post ,... hehehe

enjoy the pics ya!!!

OK>. that's leet.. huhuhh
btw... if u and led at the lining.. sure look more gempak..

hmm....how is this suppose to work?? i dun understand...through USB port?

respect, you have god hands in cutting the acrylic too. anyway, can the program interate with samurize?

Cool man

nice one dude

Woah nice mod there bro.. frm far it looks like a miniture monitor
Ur the god in modding

bro...wats the 2 switches and the knob at the back for?

EDIT: nice mod by the way

This post has been edited by mADmAN: Aug 23 2006, 01:08 PM

put it near your keyboard, u got a logitech G15 wannabe

how muchie this mod cost? can ask u build one if dun cost my arm n leg

i'm really sorry, i seriously cant think of a way to make that happen.....maybe you should propose it to japanese modders



actually i thought of doing so, but the wiring is gonna spoil the clean look in front.....
those that look nice on the LED lining thing is usually those big screens which the wiring is not that noticeble compared to this.


i will explain later.....still cleaning up my room......

what software are you talking about ? havent heard before.....


thanks man !

thanks again !

actually my idea is based on the IMAC theme again....i will explain later....


i will explain later.....it's a long one...
thanks man ! i love your casing design too.....so evil

this is far better than G15 bro......so much better than that.....G15 users will definitely drool over mine

lets just say that it's quite expensive to us, but the price is definitely cheaper than the retail product available on the market
