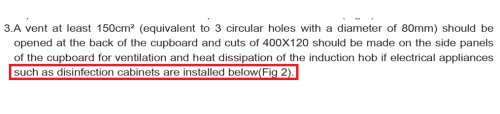

if no other appliances under the hob then no nd, do not do drawers under the hob, then u should have sufficient space for ventilation. If u plan to use it for long hours then u can add louver on ur cabinet door for better ventilation

prefer double gas hob side by side instead of front n back.
was 850m really very light cooking wo

is there any cooker hood no need to drill the wall hole for the hose

if u r using electric hob, u can make ur table higher 900mm no nd 850mm.


performance wise JQG9009T will be better than EMG9035 because of the design

Easier to clean or not is a matter of design regardless which type you choose.

I think no matter what type of stove, the height rule probably the same. It is all about how the air flows inside the kitchen. Too far the cooking vapor get carried away before being suck into chimney. The windows too close, the hood is sucking external air but not the cooking vapor.

Noise is related to suction power which is depends on fan type and size. As you can see, the smaller fan makes more noise and bigger one

My hob is both induction and ceramic. I use modular type. So each one is independent. If anything wrong with power supply, I still have other hobs to use    I have been using the slant type hood. Most of the time I use speed 1 (very quiet) and have good suction. The kitchen cabinet is clean and never felt oily due to oil vapor. Well, my hood vents out air, not circulating anyway. Been using this for almost 20 years and extremely satisfied with it.

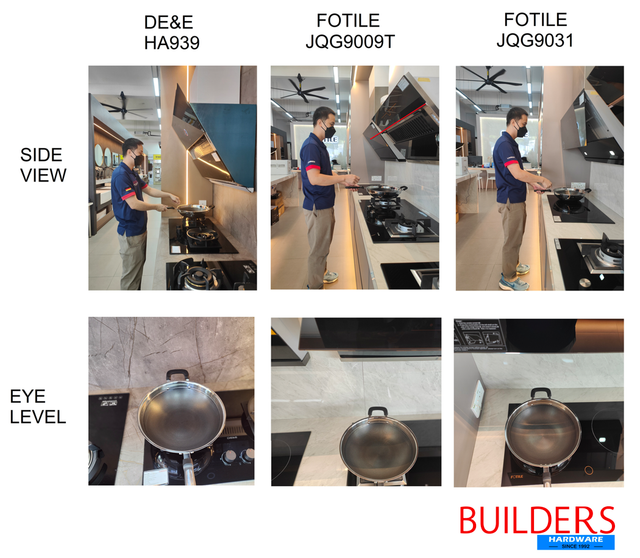

Most showroom cabinets are not installed based on actual kitchen height and size, here are some photos in my showroom, i specifically designed my showroom to be same as kitchen height, so these photos are more accurate

still cant decide? Drop by my shop to get a feel of the product before buying

The modular type normally has 2 burners vertically arrange. I have 1 pair ceramic, 1 pair induction and 1 grill arranged with grill in the middle

[attachmentid=11444931][attachmentid=11444933][attachmentid=11444934]

Yes. Each one has its own circuits. By having own circuit I don;t need too big wire gauge but just normal 2.5mm². Each one is under 20A MCB. I pulled it from a DB I installed in kitchen. The cable to DB was pulled from main DB in hall before the main DB switch. So, it is independent.

My bad... it is 4mm². Normal for socket.

The cable is the same size as the cable from TNB pole to the house. JUst tap is before the 63A main DB switch.

During renovation time the cable was put under concrete, go up through a riser, laid across ceiling, down through another riser at the back of the house, under concrete again and up to the kitchen DB.All inside a white PVC. The riser actually is for water piping

Done this with my friend. Cost me just about 1k perhaps. Long time already. If contractor probably 10x the cost

My house is still single phase and it has been almost 20 years.

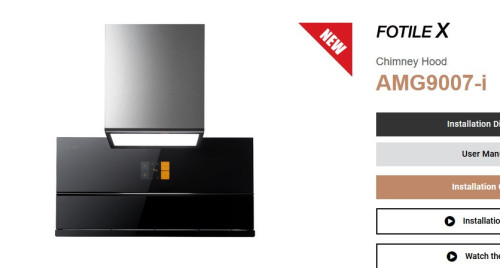

Hi, my condo will be VP by mid of 2024. I have surveyed and planning to get Fotile AMG9007i and GAG86210 combo for my kitchen. I might get them this year if the price is attractive during year end sales or some other promotions. Same goes to other electrical appliances (especially the built in one like oven, microwave, dishwasher and refrigerator). The reason of doing so are:
1. Getting at a cheaper price
2. Can start paying earlier with monthly instalment
3. Secure the appliances and get the dimensions ready for my ID to design and build kitchen cabinet

May I know if you shop is able to do booking and deliver later like my scenario above? Thanks.

1) If u r using induction hob, u can consider to make ur table top higher too, standard 850 to 900mm to offset the wok support height

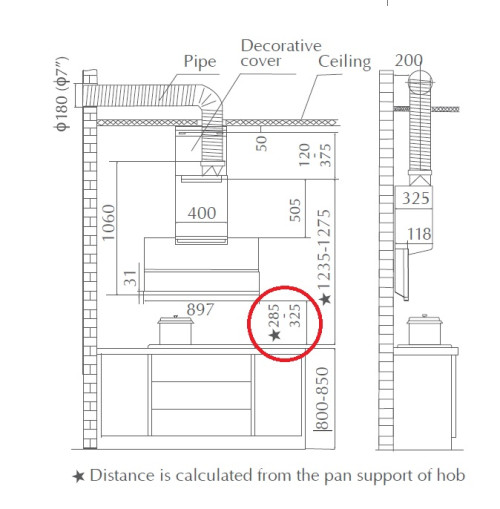

2) For hood installation, i would prefer max height in case u got any tall pots. so 325mm

I had the same thought but I think the chances are very rare because there is normally a mesh/filter of some sort blocking the entry of insects to the fan and other parts so there is nothing for them to eat. And when I opened my very old style hood to clean, there were no signs of dead bugs or droppings which I was expecting. But if you are still worried about it, there are kitchen vent covers which have a mesh that can prevent lizards and adult roaches from going in. I bought one online but haven't installed yet.

Hi,

(1) Who will do the installation, the shop or the cabinet maker or need to hire a separate installer? I asked 2 shops and both said they just sell, no installation.

(2) Can the hood be fixed on a tiled wall?

(3) What is the required amp for hood and induction hob?

(4) Planning to get below. Any comment?

Hood - RCH Monza X-BL
Hob - induction RIH Rekka 44-BL

Requirement for hood is flat top, above 1500 suction, less noise and easy to clean. I think Fotile is out budget. Any similar combo/non-combo from Livinox, Midea or Elba sub 2.5K?

TQ
