is it possible u take a pic with flash from 45 degree so it win reflect like my pics. One thing I am curious tho do u route cables beneath the mobo?

lol not possible now as the rig is not with me. outstation now.

its alright tonight I'm going to re-try to fit those cables again in that small area xD will update again. Hopefully this time will work out. ><

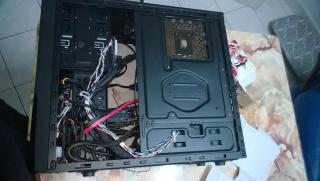

So after thinking a while I decided to throw the box idea away and stick to hiding the cable as much as possible. I think I'm almost done as most of the cables are hidden. Now only left the whole big bunch of cable at the bottom of part.

So here are the end product after making some adjustment from front and behind. Need ideas to hide the bunch in the middle part of the PSU now.

I think you've already done a good job. If you refer to the photos that I've shared with you earlier, you can see that the bunch of cables in the middle part of the PSU are basically there, the best that you can do is to tuck it to the side, as much as you can.

This post has been edited by rav3n82: Sep 25 2013, 08:51 AM

Thanks a lot. Gonna try that when i building new rig. Now i lazy to open the casing anymore.

yup i use your pic as a reference to make my current management. But still need a little more time to push the remaining cables in. But ytd accidentally cut my finger veins and had 4 stitches. T__T so i guess gonna have to pause with this work for a while

no problem. Here got a lot of sifu can help de XD

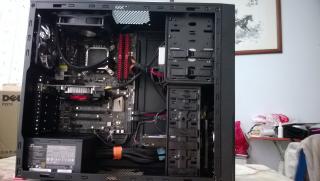

After resting a few days I finally can finish it. Here's the final product. Base on your picture as reference. Slowly and tidy putting those cable in one small box is possible. I used the tie that u can buy for cables. (gonna find black to hide those ties)

I think I'm sastified already. Or it can be more better?


This post has been edited by gxthelord: Oct 3 2013, 04:37 PM

Fuiyoh....ayam satisfied also! Excellent job on the cable management man. I think you've done the best you can already. Now it's time to get a MSI GTX 780 Lightning and everything will be just perfect.

Danger! Poison below.

damn!! that's one hell of a sexy card!!! >< How much ah that cost

SRP RM2999.

Actually the reference 780 is also very nice. It has a green "Geforce GTX" green bling bling. Can get Zotac's 780 at around RM2199.

whoa~! 3k~! T____T need to save at least a few months mann~~ >< The zotac 780 reference words are in greeen too? cuz the other day I bought a 760 but the words are upside down when attached to the mobo ._."

Yes, the reference 780's LED lighting is only in green. Only the 780 Lightning have 3 different color modes depending on the card's load.

This card also nice ehh~~ so sad the owner of this card.. Now I think EOL already ba this.

This post has been edited by gxthelord: Oct 4 2013, 08:38 PM
