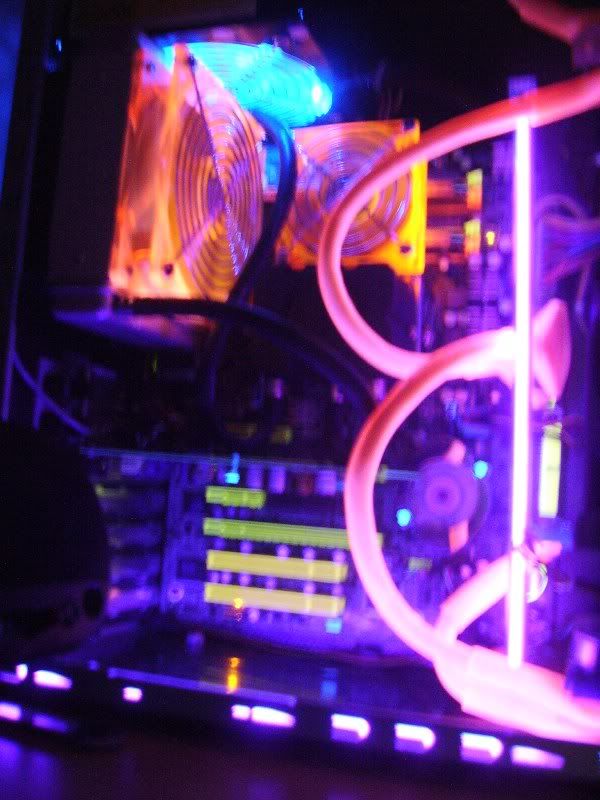

my UV Setup once with Cooler Master aquagate mini R120




-sorry for the blurry pic..

now change to Asetek WC Kit oledi...will post up a new pics later after i've change the tubing and UV Coolants back

mine mine....reserved....hahaha

My Venice Rigs!

Without side panel


With side panel


Front view


UV mode!


Another view


My Graphic card


Last, the spoiler

» Click to show Spoiler - click again to hide... «

Materials:
12" Sunbeam UV CCFL
TT case fan [TT 8025] ;front and side panel
HSD case fan; top and back fan hole
Fluoroscence sticker

This is my first time doing UV things...Any comment are welcome!!

Actually, these pic were transfered from previous V1 UV-League. Some update has been made, and will be uploaded in here soon.

This post has been edited by kurikuraX: Mar 30 2006, 07:41 AM

I want to reserved one too. hahahaha

wah got new thread ah... well then i post later when i done wif cable management and buy new uv sticks.. my old 1 died aledi...

nu league? .. dun hav nu pic to show..

this is mine....-reserved-

Not mine but like the setup.

Nice ... Real nice Wished mine would glow like that.

Edit: @sidewinderz, then I reserve this post for pics of my rig okay?

This post has been edited by Dreamworks: Mar 30 2006, 07:28 PM

haha...try to keep the thread clean la...try to make it as lil words as possible and more on pics...

MUH MAIN RIG

took me over a year to complete this UV project coz of lack of time....

theres gonna be loads of pix (of course alot la..took me so long to finish ) so brace urselves. dont complain about quality..this is the best i can get using a 1 year old DV cam borrowed from a friend... some colors kinda changed bcoz of the camera. anyway, on with the gambar gambar lucah.. hehe

*CLICK ON THE THUMBNAILS FOR A LARGER VIEW.... TRUST ME, YOU'LL WANT TO CLICK ON THE THUMBNAILS*

full rig shot


mobo section/ bottom section


diff angle


top section/PSU section


HSF (XP-120 w/Delta FFB), rear exhaust, and rams


HSF and rams closeup

GC and NB Cooler (using highlighter)


rear exhaust fan (the blue color is actually just plain white a4 paper )


muh PSU


HDDs, inverter tray (modded by friend and wiring by me) and CMOS battery (the star is supposed to be orange, not pink...camera laaaa)


to be continued....


This post has been edited by mADmAN: Mar 31 2006, 12:43 PM

continued...

the top of muh PSU


the entire top view


yes yes, my top blowhole window has fangs

the uneven black paint is actually touch ups coz cutting with an industrial grinder aint easy

my favourite closeups (the ones im most proud of)


and this is my favourite of all....gotta love the grim reaper...im so fascinated by this dude.


other angles


my best friend did all the cuttings and the inverter tray. and my gf helped me out with the fluoro stickers. especially cutting the demon and the grim reaper to such perfection.


hope u enjoyed it.....a little different than usual eh? hehe...and of course... comments pls...

This post has been edited by mADmAN: Mar 31 2006, 12:44 PM

THIS WOULD BE MUH HTPC (previous posts were of my main rig)

did this from spare parts lying around from my main rig. pic quality aint as excellent as most of u as it was taken using a 1 year old DV camera (it was either that or a k700i) so dont complain about the quality....anyway... on with more hardcore pix :twisted:

full view -> full front angle view ->

full rear angle view -> another full view ->

time for closeups...

HSF n back of GC Fan (had to put the fan there coz for some reason the PCB on that area of muh MSI FX5200 is friggin HOT!!!
HSF Fan mounting bracket taken from my DFI Lan Party....its an Asus board by the way


HSF, GC Fan and UV Led Fan cap Uglyvamp (took out the LED)


closeup of the GC Fan


i happen to really like this one... its the NB Fan


yes, i know i know...i should change them crappy DFI cables...but like i said...spare parts!

Specs of my HTPC:-
AMD Sempron64 2500+
Asus K8N-E Deluxe
Advanced Module 512mb DDR400 x1
Maxtor 20GB PATA HDD
MSI FX5200 GC
Samsung DVD Rom & Samsung CDRW
Powerlogic 500w PSU (Pre-sleeved, sort of UV reactive. changed the stupid white molex to UV reactive ones)
Cheapo RM38 Wireless Mini KB & Mouse
Linksys Wireless USB Adapter
Edifer R501 MK-II connected to on-board audio
(yeah yeah i know...but trust me...this mobo has excellent on board audio)
Panasonic 21" TV (Waiting for cash for a 29" or mebbe even a 34")
Some brandless 4 or 5 year old beige ATX Casing

okie...thats it for now....think i already posted up too much...hehhehe...

comments are most welcome of course..

This post has been edited by mADmAN: Mar 31 2006, 12:45 PM

MADman, frikin long lolz your post


this slot is mine pleaseeeeeeeeeeeee

did'nt put the UV yet..juz finish my modified

wait2..i'll wiill post the UV


my old UV




new look but didnt finish yet..lot thing to do..didnt hav a time









sorry for the pic quality

This post has been edited by nelza_ax: Mar 31 2006, 08:16 PM

@madman..
how many uv ccfl in ur rig?

i think maybe 3 uv lamp lor hehehehe
btw wait for my UV rig, coming soon. still under mod

actually........... theres 6 sticks

2x12" as clearly seen in the pic (sunbeam)
2x6" 1 can see the other hidden (bought from uglyvamp)
2x4" above muh PSU, hidden (bought from uglyvamp)

theres also 2x12" white sunbeam CCFL which are right next to the 12" subeam UV CCFL

complete coverage

Hahaha. 6 sticks of UV? ZOMFG! U gonna get sunburned very soonz. U better go buy sum Coppertone.
