anyone know whether using intel 975xbx motherboard you can overclock the Pentium D 920 to that of D930. I used to see one article in tomshardware that can do it. Anyone can give a fool proof way to overclock ?

AFAIK, intel's own mobo do not let u o/c at all

perhaps it's different brand of mobo with 975 chipset?

ya.. i have 2 intel mobo and not get any cpu adjustable setting.

ouch im hoping to see some OC result inside this..
anyone bought intel 9series edi?..

Yeah, I'm eager to upgrade my rig to the 920 / 930 too. I called Cycom today and confirm that the 920 is RM 990, which is VERY CLOSE to U.S. Prices. However, Intel announced that they'll reduce their prices on 23rd April making the 920 (2.8GHz Dual core) US$207 and the 930 (3.0GHz) at US$241. Some sites even publish that the 3.0 price will be the same as the 2.8 in April (i.e. US$207 = RM 800!!!) It is certainly worth a wait. Maybe if you all are interested, I can organise a bulk. I got contact in U.S. who can ship the procs over.

Intel's 975 Mobo will have to option to OC. This is the 1st time I have seen an Intel board with OC-ing features.

intel or mobo or mobo with intel chipset?

Best way is to ask Intel. Anyone know the telephone number of intel penang's office technical engineer for motherboard enquiries ? I would like to get them to answer some question. Please help.
By the way, I read another article in Star saying that PC motherboard like 975XBX is actually designed in Penang by one Penang Chap. Anyone happen to know him ?
Any Penang folk from intel here ?

u wan ask wat?wan ask that mobo can oc or not ? intel dun ppl oc their product.

Anyone with this baby pls post your oc result.
I'm considering buying D920/D930 or Opty165/A64 x2 3800+. Need to see the oc result first. Opty 165 can easily go over 2.5GHz which is more than 25% oc. If this baby can give 30% oc, sure I'll go for it.

Actually I want to ask for the tel number and contact person for Intel Malaysia that can answer question on motherboard like 975XBX.
Questions can be asked in many way but not all are related to Overclocked. Any help appreciated

Anyhow, I managed to find out that someone has tried and successfully overclocked their 975XBX motherboard but while I am using pentium D920 (2.8Mhz) the report is based on Pentium 840EE (3.2GHz, 800FSB, Dual-Core, 2x1MB L2, HT).
I would be using Pentium D 920 and ddr2 557Mhz and I wish to increase the processor from 2.8Mhz to say 3.4Mhz (like Pentium 950). and FSB to 800Mhz.


Oh I am a newbie in oveclocking so if anyone can give me a foolproof step by step guide I would most probably buy you a SPA treat.

Link for Pentium D spec
http://www.intel.com/products/processor/pentium_D/index.htm

link for overclocking for pentium D
http://www.anandtech.com/cpuchipsets/showdoc.aspx?i=2681&p=4

This post has been edited by fred131: Feb 21 2006, 03:53 PM

this is telefon number for Intel Field Sales Office at kuala lumpur : (603) 2733 6677 . if wan penang telefon number then ask them la.

so, basically, what u mean is that u wanna oc your d920 on a mobo with 975 chipset, NOT on intel's 975 mobo, rite?

of coz can. and it's easy

just make sure u get urself a good PSU

I want to overclock on Intel original motherboard "975XBX".
Anyone can show how ?

alritie. got confirmation from anandtech that the mobo is from INTEL and it's one of the first intel mobo that allows o/c

so, now u r asking how to o/c?

read the pin-ups thread in the o/c forum. period.

dun expect to be spoonfed.

and we expect those who purchase high end procs should at least know the basics of o/cing

that mobo really can oc 1 ?

Read above post for answer.

I've seen this board in the labs with Crossfire as well. It allows overclocking either from bios or from IDCC (Intel's own software). There's a burn-in option in the software to allow OC on the fly. Be wary though, warranty due to burnt CPUs/boards might not be entertained.

really ha?that maybe first intel oc-able mobo right?

Nope, there's Intel D955XBK, D955XCS and a few others that already has overclocking capabilities. Shoo shoo, dun be lazy, go and google for info. Google is POWER.

lol .. lazy google for that intel mobo actually intel mobo is big one and many space at that pcb (from what i see).hehe

No one own a Pentium D 920 yet ? I want to know how much OC room this CPU line has. If can OC pass 4GHz, it would be a great bargain.

u buy and make some review here la.we are not rich ppl so cannto buy 1

I'm thinking of buying D920 or x2 3800. x2 3800 is known to be able to oc beyond 2.5GHz. So need feedback on D920 before I make the final decision.

just try it..easy ly can hit 4GHhz



This post has been edited by xeratos_85: Feb 28 2006, 12:21 PM

Interesting..... what's the temp for full load ? Can you still push further ?

temp at full load i not test yet . now running with stock fan so i think oc too much not good la.

As far as i know, D9xx series run much cooler than D8xx series since it's 65nm and using lower vcore. If it can go beyond 4.2GHz (50% oc) with high end air, I will go for it.

More result pls........

here

lol...cannot tahan anymore to try 5ghz..but must change cooler first la..later proc burn

This post has been edited by xeratos_85: Mar 2 2006, 07:28 PM

Why dont u wait for upcoming conroe. Keep ur money and buid an extreme setup on conroe based PC.

Hand itchy cannot tahan liao. Latest by next month I will build my new rig. Plus there will always be a better product to anticipate for.....

nowadays, intel mobo have OC features..

Intel D925XCV Review

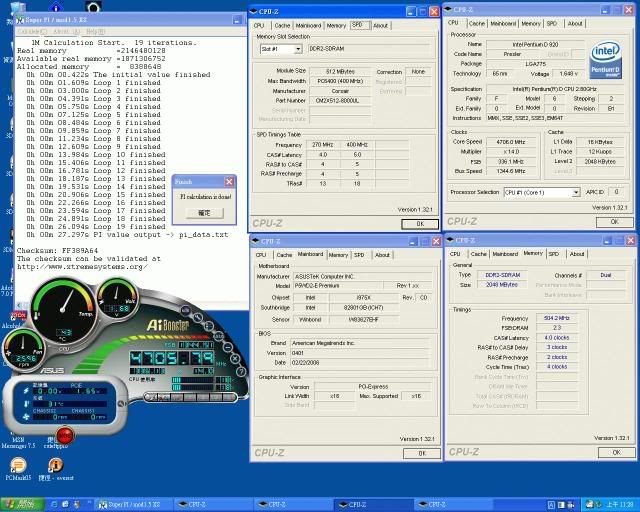

2.8ghz can oc to 4.2ghz with this pentium d 920 . so i think u will like this proc too .

I wonder how's the performance compare to Athlon64 x2 @2.7GHz. I'm still incline to buy AMD.

if your X2 can do 2.7ghz, are u really gonna run that as your everyday setting?
even the 4.4ghz on the Pentium, i'm pretty sure that's only for benching

so if you're comparing performance, compare on stock, or on slightly overclocked settings instead
IMO of course

For me if at 4.4Ghz is stable enough for daily use. I'd let run full load 24/7 with folding..

And my P4 3.8Ghz able to do 4.3Ghz on air, 24/7 folding. Now waiting for bwan to return it.

ahh, guess if you're a folder thats a different case
for non-folders, it wouldnt make a difference, other than taking more energy
guess its also a matter of preference

Yes, I fold. So stable oc does mean a lot to me. Dual core is really great for folders as we can do other stuff on one core and fold on the other core.

On stock, x2 3800+ sure win over D920. My concern is whether a D920@4.2GHz can beat 3800+@2.7GHz or not.

the X2 would have been overclocked by 900mhz, that's 50% over its stock speed
the 920 would have been overclocked by 1.4ghz, that's also 50%

since the X2 wins on stock, i'm guessing it'll win on those settings too?
just my guess la

btw, dont u guys take in power consumption when choosing procs?

Overclocking Pentium D!!???!!?!?

OMG, it is a toaster. I guess ur mobo cant stand with the heat and the
high power consumption at peak over a long period.

Ur mobo is the 1st thing to die.

most of the Pentium processor start throtling at 65C. Just keep under the temperature will be fine. Good Luck.

I guess not, especially when you are buying a desktop chip. If you are getting a chip for your laptop then you have to take into account for battery life and heat.

But for a desktop, no! Free flowing from the wall socket and my PC isn't going anywhere - my PC + Mach 2 GT weighs a TON! ehhehehe

This post has been edited by kcnyc: Mar 16 2006, 03:46 PM

dude, this is Presler not Prescott
i think the temperature won't be so high.
a good oc chip i must say

After some survey through google, I believe this is a great oc chip. Can easily go beyond 4GHz with air cooled. Somemore it is RM300 cheaper than x2 3800

http://valid.x86-secret.com/show_oc?id=80337

according to the site:
M/B:ASUS P5WD2-E Premium
MEM:CORSAIR DDRII D9 512X4
HDD:MAXTOR SATAII 300G 16M Cache
VGA CARD:7900GT 256MB
POWER:ENHANCE 650W
OS:WIN XP SP2
CPU COOLER:Tower 120
CPU:Intel Pentium D920

ambient: 26C
idle: 39C
load: 57C

do u have Pi 1M result at that setting?..

geeeezzz..
should i regret on my newly built amd x2 rig. setup..`?
arggh..!!` hope i did made a right choice for my new built..`

heat ? what i saw is my northwood is hot that this d 920 . now install watercooler and if got time want to push more . maybe try 5ghz last time onli can get 4.2ghz only

This post has been edited by xeratos_85: Mar 25 2006, 01:24 PM

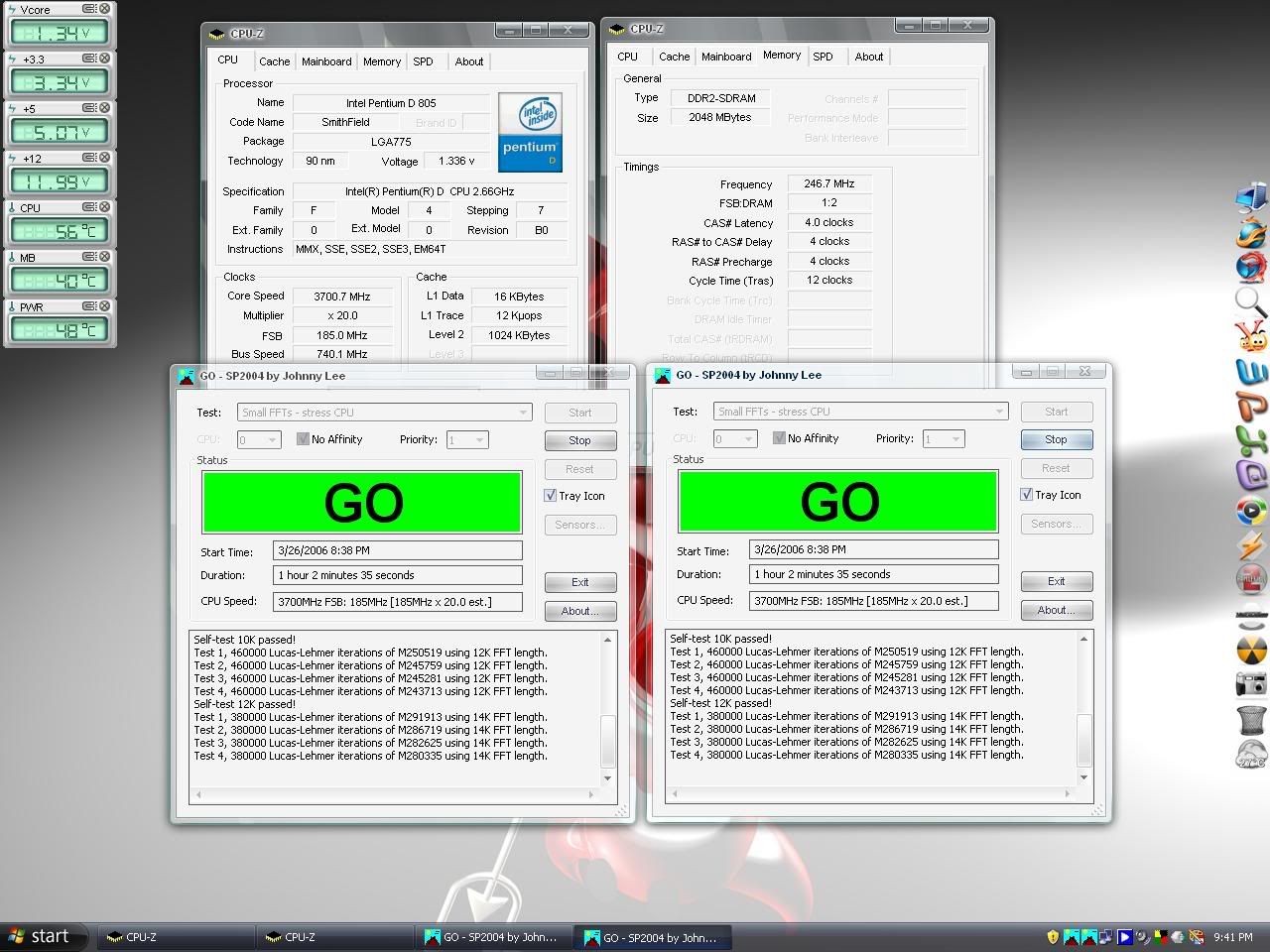

Pentium D 805 1st run......

M/B - ASUS P5SD2-X
RAM - PQI 1024*2 DDR533
PSU - ICUTE 500W fakepower
HDD - Maxtor 80GB 8MB PATA
Cooling - Intel's Stock Heatsink + Table fan

Procs temp Idle/load --> 50C/58C

This post has been edited by newbieockids: Mar 26 2006, 03:03 AM

good oc there . 2.66 --> 3.6ghz . try push more la.make 4ghz

carefull burning in progress..
this time i really feel dat ICute im using will bottlenecking the result..
8pin 12V for this motherboard is really required to fully utilize it..

Nice OC there newbieockids, btw, any performance differences felt with the previous P4 HT u had? Was thinking of trying the 805 too.

compared to previous P4 530(that procs kong edi ) and A64 3000+ venice..
P4 530 vs Pentium D 805 not much diff.. just with 805 multitasking is really3x syiok.. much better.. lag free in every task in OS.. and much more overclockable.. venice in multitasking is quite bad i can say..
but gaming, 3dmark, superPI, both intel lose to simple 3000+ venice.. believe me..

This post has been edited by newbieockids: Mar 26 2006, 07:21 PM

wah
this cpu make me icthy to get 1
haha
can bypass 4Ghz?
worry bout power consume...

there goes another one..

still in burning process plus got lot of assgnment todo..
prepare for 8pin 12V for more stability..

This post has been edited by newbieockids: Mar 27 2006, 12:09 AM

u got the right ppl...
i'm using P.D 930

but i tryed to over clock.... but not sure bout that lar...
can some i tell me how to over clock???
in d forum i don't understand wat a hell u all talking bout...
----------------------------
my pc spec:
Intel Pentium D 3.00 930 ,
cooler master Hyper 48,
intel mother board D945PSLK ,
Kingston 1 GB 533Mhz 4 GB (coming),
Casing i-cute 0508ULA-5G1-BS ,
W.D 160GB HDD & Maxtor 80GB HDD ,
Gigabyte PCI-E X1600 pro 256MB ,
Creative S.B Audigy 2 ZS video Editor,
Creative GigaWorks S750 (Coming) ,
Lite-on CD-WR x 4 Lite-on DVD-R x2 ,
1k AVR x2.


This post has been edited by davidhomestudio: Jul 15 2006, 04:06 AM

hi may i know how u o all this stuff??? i'm a newbie in overclocking.... em over cooking i know... but not overclocking...

--------------------------------------
my pc spec:
Intel Pentium D 3.00 930 ,
cooler master Hyper 48,
intel mother board D945PSLK ,
Kingston 1 GB 533Mhz 4 GB (coming),
Casing i-cute 0508ULA-5G1-BS ,
W.D 160GB HDD & Maxtor 80GB HDD ,
Gigabyte PCI-E X1600 pro 256MB ,
Creative S.B Audigy 2 ZS video Editor,
Creative GigaWorks S750 (Coming) ,
Lite-on CD-WR x 4 Lite-on DVD-R x2 ,
1k AVR x2.

davidhomestudio, time for you to get a new board if u want to oc.
AFAIK, intel 945 board doesn't have OC option.

Intel 975 mobo can oc lar..Performance was something like an ASUS 975 mobo oso when oc-ed according to CHIP magazine..

wah nice temp on oc proc.. not like mine.. dam hot !! all stock stuff . 4 min on sp2004 . got almost 62c .. if go to 1 hour.. almost 70c . using abit il8 board and 1gb 667 patriot.
