Sifus

pls give me some suggestion

my 3770k oc to 4.3ghz in 1.92v, memory us XMP mode (1600mhz) and stable in prime95 around 8 hours, intel burn test run stable in LEVEL maximum in 20 runs - 3 and 1/2 hours

temp idle 34'C, max is aound 80'C

using Asus p8z68-v

212 evo with two ac f12 fans...

I hope sifu give any suggestion to my bios setting:

I set manual voltage is 1.20V = idle and load voltage is the same (is this normal?)

I dunno how to set offset ...every time I set +0.005 or -0.005...the idle voltage will low but loading voltage still high (around 1.25v-1.3v) so I give up in offset...

ai over clock tuner =xmp
bclk:100
turbo ratio: cannot adjust in os
1 core:43
2 core:43
3 core:43
4 core:43
pll: auto
load calibration: 75%
cpu voltage frequency: auto
spread spectirm: disable
power phase control: extreme
power duty control: t.probe
cpu current capality: 140%
cpu manual votage: 1.20v
others : auto

I have try manual 1.95 for 4.3ghz but failed....I have try manual 1.215 for 4.5ghz but failed too... so give up
only 1.2v stable in 4.3ghz....
if I use asus auto OC...its run 4.4ghz in 1.288v....I feel it high so I don't use auto oc..

I still learning from all sifus here...pls teach me tqvm

This post has been edited by shin6619: Mar 24 2013, 01:39 PM

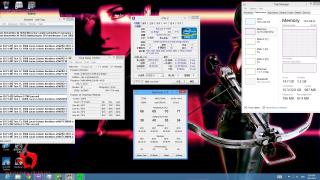

Attached thumbnail(s)

after upgrade to Noctua d14...
3770k oc 4.5ghz in 1.30v
max temp is 83'C : ....no good enough

This post has been edited by shin6619: Mar 30 2013, 09:59 PM


Attached thumbnail(s)

Ya, I know.. Before upgrade, I using 212 Evo. The temp shoot to 95"c in 4.5ghz 1.3v...
Now feel better..

Ya, i wish to but This is a high risk project!!

http://forums.anandtech.com/showthread.php?t=2242252

But some say no different too??

This post has been edited by shin6619: Mar 31 2013, 01:04 AM

May I know what good wc u use? Aio?
My 3770k oc 4.5ghz with 1.305v with noctua d14, max temp oso reach 83"C...

I tot u going to buy custom WC ..
U bought h100 from pc image rm4xx..?
Actually rm4xx oledi can go xspc raystorm 750..

This post has been edited by shin6619: Apr 28 2013, 05:24 PM

How about ur h100?
I oledi bought d5 ex240

In aircorn room? Because I notice ur min temp is 19 degree.. It impossible happen in Malaysia if without aircorn.

bro, I wish to ask any different about the oc result after change to ROG?

I oso wish to get one...
