 Raspberry Pi, Rm100 computer that beats iPhone4S

views

quadcube
post Feb 2 2015, 09:20 PM

Regular
******
Senior Member
1,924 posts

Joined: May 2009
From: Yokohama, JP


QUOTE(azrash @ Feb 2 2015, 09:13 PM)
eh true la  doh.gif  doh.gif  doh.gif  doh.gif hahaaha. was too excited and didn't read properly. lol.
*
laugh.gif btw,they also do warranty too,i returned my raspberry pi and they send me a new one the next day (i think i blown the poly fuse that time)
quadcube
post Jun 21 2015, 10:32 PM

Regular
******
Senior Member
1,924 posts

Joined: May 2009
From: Yokohama, JP


what would u guys do if u had a cluster of Pi 2? smile.gif
quadcube
post Jun 22 2015, 08:12 PM

Regular
******
Senior Member
1,924 posts

Joined: May 2009
From: Yokohama, JP


QUOTE(buyoq @ Jun 21 2015, 11:18 PM)
web server ?
*
hmm...currently using it for parallel computing,probably would do image processing using the cluster first as i don't think my lab line is able to host a web server laugh.gif
quadcube
post Jul 1 2015, 08:07 AM

Regular
******
Senior Member
1,924 posts

Joined: May 2009
From: Yokohama, JP


QUOTE(haturaya @ Jun 30 2015, 09:42 PM)
I have a cluster of 32 + 1 Pi...  thumbup.gif Proof of concept for distributed processing problem such as calculating pi number.
*
Nice one,got pic of the hardware? biggrin.gif MPI based?
quadcube
post Jul 1 2015, 08:40 AM

Regular
******
Senior Member
1,924 posts

Joined: May 2009
From: Yokohama, JP


QUOTE(haturaya @ Jul 1 2015, 08:34 AM)
Here you go... MPI based. Maybe going to try different framework later  whistling.gif

[attachmentid=4523187]

[attachmentid=4523188]

[attachmentid=4523189]
*
Wow,cable management damn nice! thumbup.gif mine is a mess... Academic,corporate or hobby? laugh.gif
quadcube
post Jul 1 2015, 08:57 AM

Regular
******
Senior Member
1,924 posts

Joined: May 2009
From: Yokohama, JP


QUOTE(haturaya @ Jul 1 2015, 08:50 AM)
Hahaha

It's academic + hobby. Ultimate satisfaction  thumbup.gif
*
thumbup.gif which uni? Mine is also funded by academic,nothing much to do with the clusters except proof of concept. I did write a very small message passing program to try out parallel programming.noticed that the more nodes u have,the more difficult it is to manage laugh.gif
quadcube
post Jul 2 2015, 11:03 PM

Regular
******
Senior Member
1,924 posts

Joined: May 2009
From: Yokohama, JP


QUOTE(haturaya @ Jul 1 2015, 08:50 AM)
Hahaha

It's academic + hobby. Ultimate satisfaction  thumbup.gif
*

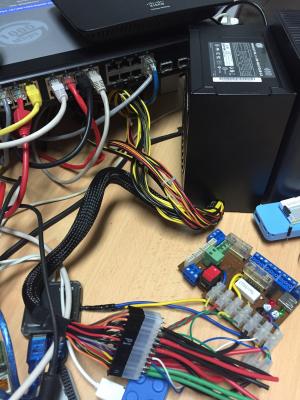

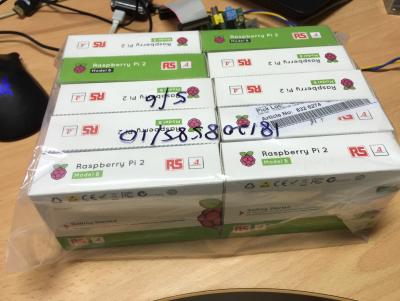

my built,5+1..initially plan to built 10+1 but i find no use of adding the other 5 Pi after writing some parallel program sweat.gif
Attached Image
Attached Image
Attached Image
quadcube
post Jul 3 2015, 09:17 AM

Regular
******
Senior Member
1,924 posts

Joined: May 2009
From: Yokohama, JP


QUOTE(joytest @ Jul 3 2015, 01:38 AM)
Nice setup...want to let one go? tongue.gif

BTW....your exposed conductors on the power connector does pose a shock risk. Be careful.
*
Let one go?haha..I thought u can order it from RS or element laugh.gif

Noted,still thinking what to do with it

QUOTE(haturaya @ Jul 3 2015, 05:51 AM)
Nice  thumbup.gif  Yah, some program doesn't benefit much after a certain amount of node being used, but some do. I'm still exploring, but my rig had been sitting idle for some time. Too busy  whistling.gif
*
There are a lot of C based MPI program on the net,tested Prime number program,useful for up to 19 threads only laugh.gif
quadcube
post Jul 14 2015, 12:48 PM

Regular
******
Senior Member
1,924 posts

Joined: May 2009
From: Yokohama, JP


QUOTE(Reeson @ Jul 12 2015, 08:34 PM)
what usb wifi dongle do you guys use?
any that is compatible out of the box with RPi 2 & Raspbian Wheezy?

do i must use the one built specifically for RPi because i read somewhere that the USB ports doesn't provide enough power for common dongle.
anyone can clarify this?
*
am using TL-WN727N,have no problem with it so far
quadcube
post Aug 3 2015, 03:31 PM

Regular
******
Senior Member
1,924 posts

Joined: May 2009
From: Yokohama, JP


QUOTE(sin2010 @ Aug 3 2015, 02:52 PM)
hi, wanna ask how to use LAN connect the raspberry pi from OSX? from what i get from internet, they said OSX wil automatically assigen the Rpi an IP, but my raspberry  does not get any ip. any solution?
*
lan to connect to raspberry pi? sweat.gif I'm using OS X,usually the Rpi LAN into the router and SSH from Terminal
quadcube
post Aug 4 2015, 12:05 AM

Regular
******
Senior Member
1,924 posts

Joined: May 2009
From: Yokohama, JP


QUOTE(sin2010 @ Aug 3 2015, 04:31 PM)
yup.. LAN to Rpi, then SSh form OSX, because mine one is headless Rpi, so when wifi is not available, i still can ssh buy LAN directly to it.
*
hmm,i don't have my Ethernet-to-USB adapter with me,couldn't test it for you laugh.gif what about sharing your internet connection from OSX?your macbook will then act as DHCP and distribute IP to your Pi
quadcube
post Aug 4 2015, 09:08 AM

Regular
******
Senior Member
1,924 posts

Joined: May 2009
From: Yokohama, JP


QUOTE(sin2010 @ Aug 4 2015, 08:49 AM)
Tried, but no working...is it because the RPi is running both eth0 and wlan0 at the same time? because i need wifi to ssh into RPi, when setting up the eth0 from OSX.
*
Shouldn't be a problem if wifi is not connected?if you share the network,your Mac should assign IP to your Pi.usually when I don't know/can't find the IP of the Pi,I would use Pi Finder to get its IP address. Then only I would ssh with the Pi IP
quadcube
post Aug 4 2015, 11:41 AM

Regular
******
Senior Member
1,924 posts

Joined: May 2009
From: Yokohama, JP


QUOTE(sin2010 @ Aug 4 2015, 10:38 AM)
But the wifi in RPi is connected, is this reason it fail to get ip from osx?
i tried to ifdown and up the eth0, i saw it requesting ip through 255.255.255.255, is this normal? because the OSX self assigned ip (on OSX) is something like 169.254.XXX.XXX
*
try disconnecting the wifi and see? sweat.gif for me,169.254.xxx.xxx only appear when the OS X cannot get an IP,hence self assign
quadcube
post Aug 4 2015, 05:43 PM

Regular
******
Senior Member
1,924 posts

Joined: May 2009
From: Yokohama, JP


QUOTE(sin2010 @ Aug 4 2015, 05:40 PM)
Tried before...and it is no problem to get ip when connect it to router, so maybe osx side need to set something?but so far i only can check the internet sharing, nothing much i can do.
*
Your internet sharing setting?can print screen?
quadcube
post Aug 5 2015, 12:59 PM

Regular
******
Senior Member
1,924 posts

Joined: May 2009
From: Yokohama, JP


QUOTE(wcypierre @ Aug 5 2015, 11:39 AM)
Try and run your parallel program and run top. Look for wa and if it is high then IO is the issue in your setup(I guess IO should be the main issue for distributed or parallel for nodes in the same network)
*
I don't have access to the cluster currently,on holiday laugh.gif

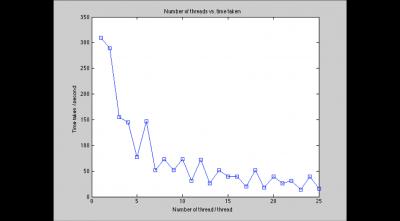

but i made a no. thread vs time taken graph for two program

Attached Image
- MPI Prime number program

Attached Image
-MPI 2D Poisson equation using Jacobi algorithm

by right the performance graph should decrease exponentially,but the Prime number program doesn't perform as expected,as u mentioned,most probably caused by high IO

for the 2D Poisson equation using Jacobi algorithm,initially i set the no. of interior vertices and fractional accuracy for the program to complete faster,which almost the same graph as the prime program.
so i change the no. of interior vertices and fractional accuracy to be higher,which increase the required computing power for each Pi to get the exponential decrease graph,which indicates that the IO latency have become insignificant
quadcube
post Aug 5 2015, 04:47 PM

Regular
******
Senior Member
1,924 posts

Joined: May 2009
From: Yokohama, JP


QUOTE(sin2010 @ Aug 5 2015, 04:30 PM)
here is the setting.... just check the sharing option only..
[attachmentid=4696740]
*
seem like your setting from OS X is ok,did u set static IP or DHCP assigned for your Pi? sweat.gif
quadcube
post Aug 5 2015, 09:09 PM

Regular
******
Senior Member
1,924 posts

Joined: May 2009
From: Yokohama, JP


QUOTE(wcypierre @ Aug 5 2015, 08:41 PM)
for your 2nd one, when you wanted more accuracy, everything takes a longer time to complete. but eventually as you add more nodes your issue should still be on IO, because as you can see from the prime num test, when the requests is faster, the possibility of each node sending data back to the server at the same time is higher, so if your server node still runs on sd card, or even worse usb thumb drive(for storage of data), you should consider using a normal computer(desktop/laptop) or at least run raspi with HDD as the server node to solve the io issue and you should see a better result.

btw, you should plot it with nodes/time taken, because let's say you have 6 threads, I don't know if you're giving node 1 and spawn 5 threads and node 2 spawn 1 thread or node 1 2 threads, node 2 2 threads, node 3 2 threads, and the combination etc.

I believe this is some academic research stuff for uni/company?  brows.gif
*
the Pi cluster was just a proof of concept not performance crunching and yea,its really cool to have a cluster brows.gif laugh.gif i drawn to a conclusion that it all depends on how you split the task between all the nodes,good programming is required (some take decade just to write an optimised program).

the threads are actually simple,each Pi have 4 cores,so 4 threads,its balanced out (if u try to assign 5 process into one Pi,you would end up slowing down the whole program)

i did it just for fun since my lecturer had so many Pi 2 and didn't know what to do with it,but of course,academic ($$$++) brows.gif
quadcube
post Aug 17 2015, 03:56 PM

Regular
******
Senior Member
1,924 posts

Joined: May 2009
From: Yokohama, JP


QUOTE(justnits @ Aug 17 2015, 03:35 PM)
wow didn't know there's so many rpi users here! biggrin.gif
i'm a noob to rpi, just recently bought a rpi2 and load up raspbian into it.
at the moment i'm using it for torrenting (transmission), file sharing, and my personal cloud storage (owncloud).

not sure what other stuff i can put on it yet...is there any central page for all the uses you guys use for your rpi2?
*
central page? hmm.gif hmm.gif
quadcube
post Aug 17 2015, 06:15 PM

Regular
******
Senior Member
1,924 posts

Joined: May 2009
From: Yokohama, JP


QUOTE(justnits @ Aug 17 2015, 06:07 PM)
something like having a first page with some of the popularly used functions from the users here on their rpi2
*
that you would have to PM the TS icon_idea.gif i guess a lot of ppl used the Pi as a media box?
quadcube
post Aug 17 2015, 07:11 PM

Regular
******
Senior Member
1,924 posts

Joined: May 2009
From: Yokohama, JP


QUOTE(justnits @ Aug 17 2015, 07:01 PM)
i believe so, since there's even dedicated OS for media box haha!
but i mainly use it for torrenting since it's a low power device, better than running my rig just for torrenting.
*
used to do torrenting with the Pi,same setup as yours (transmission,file sharing).
after sometime,i have nothing to download,end up using it to test all sort of nonsense (Pi cluster, IoT stuff,lap timer..) laugh.gif
now its collecting dust
