hello guys..assalammualaikum and salam satu lowyat

after month lurking around see-ing other ppl modding..so here i am..modding my 500r to fit rx and rs 240 inside case with red and black theme

haha..today i've started my wc project for mid sem break..well..u might notice that i did post few thread on gs regarding downgrade my system to 2600k...

after alot of consideration..having x79 not a bad idea..besides it does benefit me on my uni work..and gaming for future quad-sli..and gen3 matured gc..

anyway here are some list of my hardware

the theme is red n black *so predictable

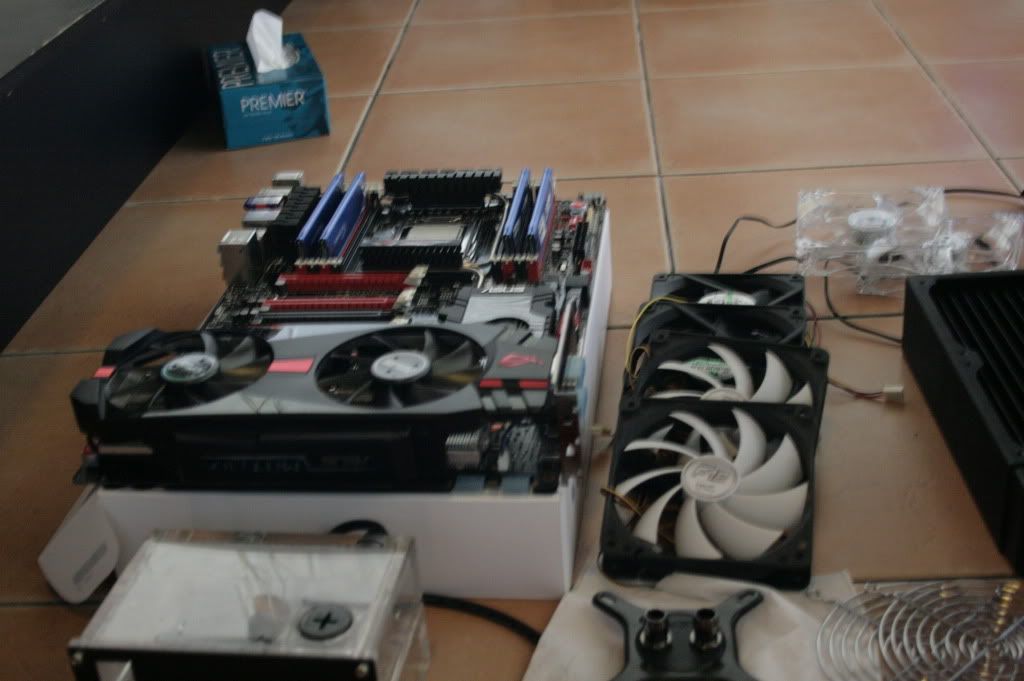

rig:
corsair 500R
i7-3930k
asus rampage iv extreme
hyper-x 16gb
gtx580 matrix oc @ 1ghz
seasonic gold 80+ 850W
corsair f60
500gb

wc
xspc rasa kit rx240
7/16 5/8 compression silver *2
rs240 (after im back from umrah)
rampage iv mobo block( not sure yet to get this..after umrah)
led kit (white) 2 metre(after umrah)
colortrail sleeve 6 packs (after umrah..no no stock)

[CODE][/CODE]

the plan:

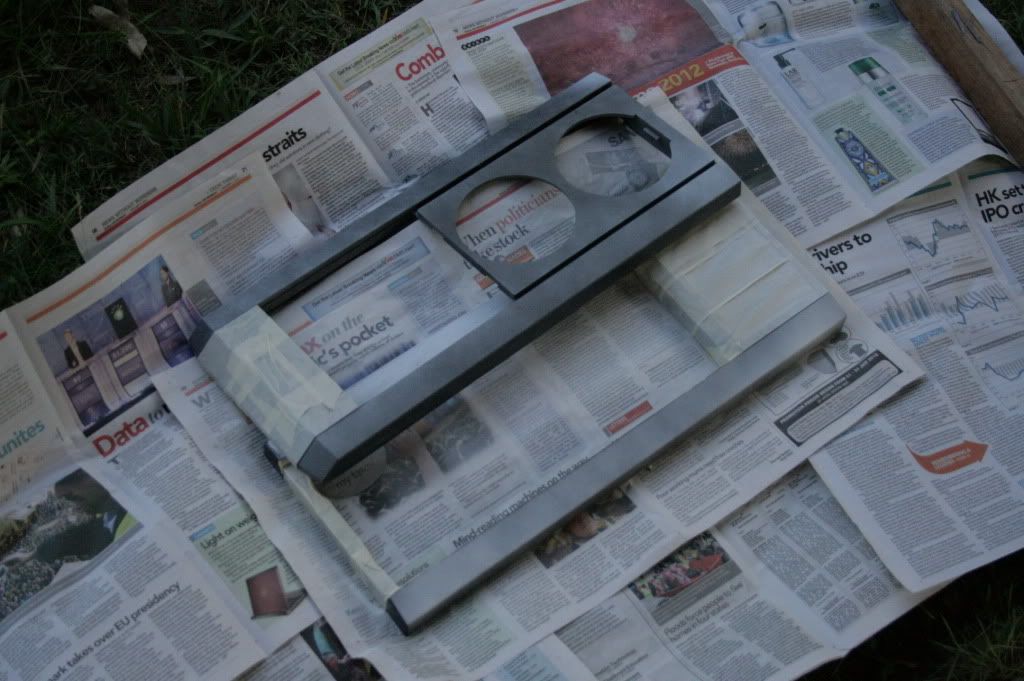

spray red and black theme( in progress)
cut 5.25 bay to fit rx240 (standby queuing)
mod removable 3.25 bay(standby queuing)
side panel mesh to window (standby queuing)
mod top panel to fit rs240+fan (standby )
psu sleeving(standby )

This post has been edited by marsha1l: Jan 30 2012, 02:41 PM

lucky u

hopefully everything is good..hahaha..she insisted on helping me ..

xbg kang merajuk..hahaha

what ur gf is doing for life?? (job)
1st time hear girl interested in this kind of thing??

---

Added on January 27, 2012, 4:51 pmhope to c more~ hehe~
try cut a window~

This post has been edited by 1qaz1qaz: Jan 27 2012, 04:51 PM

she's a student civil engineer..im an electrical electronic engineer student major in computer ..both of us are student..haha..she sibuk kacau2 only...give her something to do ..should get tday

anyway latest update...rx240 now fix in front of the case and the hardrive bay were modified to fit with psu on bottom..now waiting for acrylic

---

Added on January 27, 2012, 4:56 pmwaiting for the acrylic..then i remove the mesh and replace it with window instead

This post has been edited by marsha1l: Jan 27 2012, 04:56 PM

update

as i said..done making space for the rad paint job is done..got it just now..drive bay cut to fit with the psu..

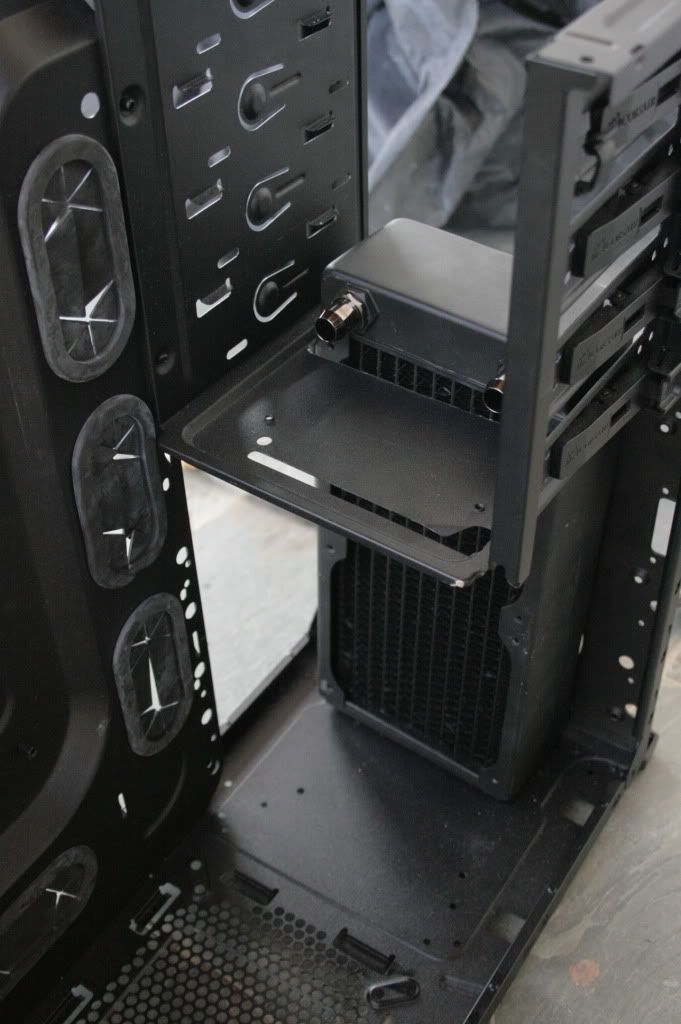

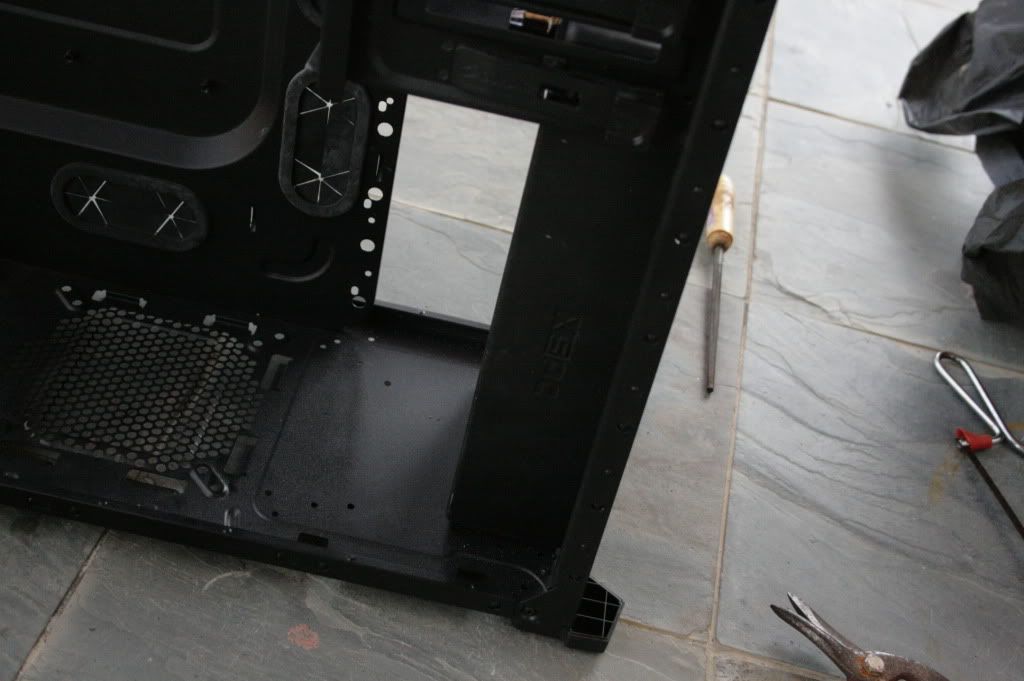

picture 1 and 2 shows the modifide 5" bay to fit the rx 240..so now i have extra space for rs240 rad on top woot

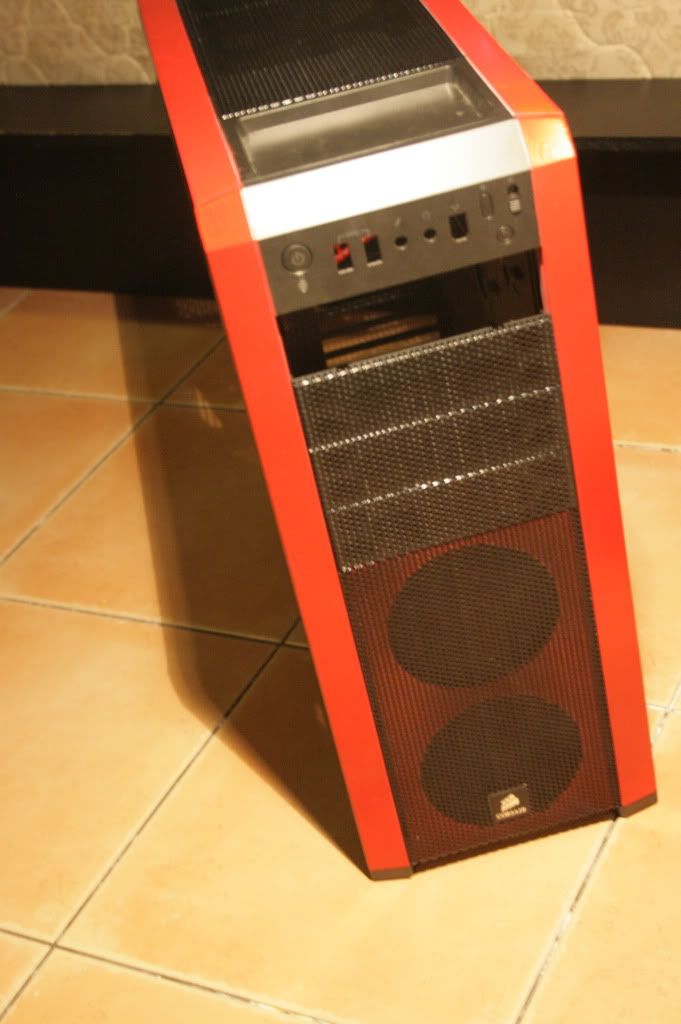

picture 3 shows the finish paint job..



now sadding..need to wait for acrylic and sleeve and led light..the rs240 will wait for mobo block that if im consider getting one

Want mdpc sleeve??? I want to sell off le

u might save me..u g pee m

what colour bro?? how many u have??

^
White and red
100 and 80m

u got pm.

nice start, must support tis one

---

Added on January 28, 2012, 10:57 pmu direct order from Germany ? so manyy

This post has been edited by lun1986: Jan 28 2012, 10:57 PM

support ma...for now i need sleeve and acrylic..then i can call it 80% finish..hehe

having trouble tday fixing the fan with front panel..need to grind and cut few area only to fit the fan in front

will update more tommorow

RIG org kaya mmg macam ni

+1

tapi rig awak~ lagi hebat~
ar3e & gtx 570 sli~

r3e sli 570 cant be compared with 3930k,r4e and 580 martix hahaha

ya laa...570 sli..woot under water also..total same price with already..even more i think

580 matrix lose with 570 sli..ur wc set is godlike

anyway..just finish out grinding and cutting..now fan can fit infront of the casing

will upload the picture soon..now waiting for sleeve and acrylic

any1 have 30m red sleeve and 3meter heatshrink to sell??

+ all ur WC part = HOLYSHIT!!!!!

ya la~
like a BOSS!!!!

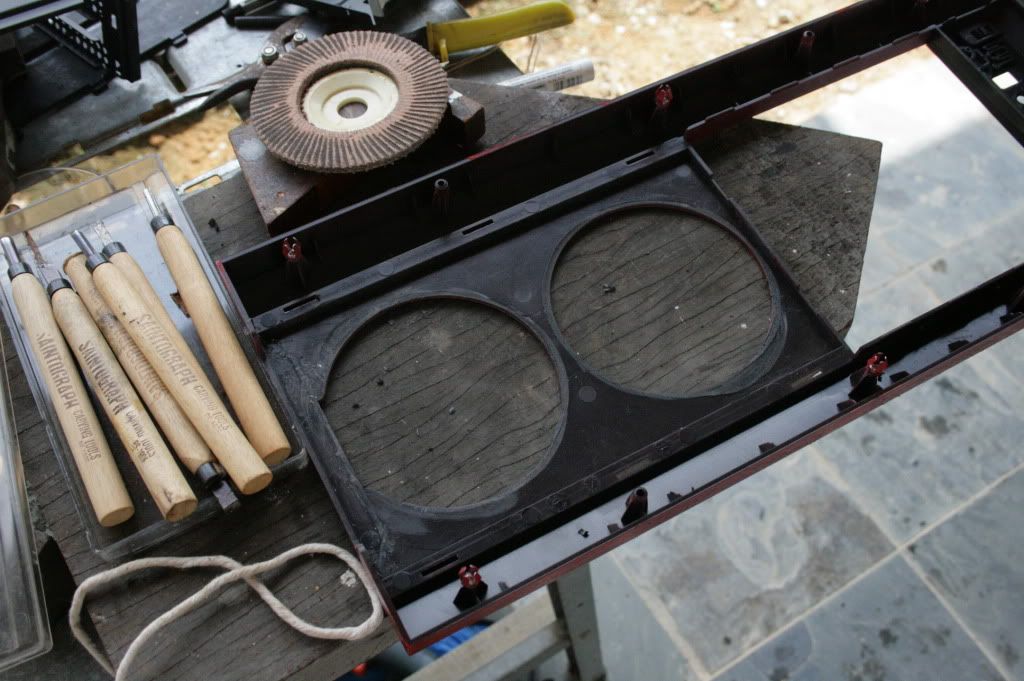

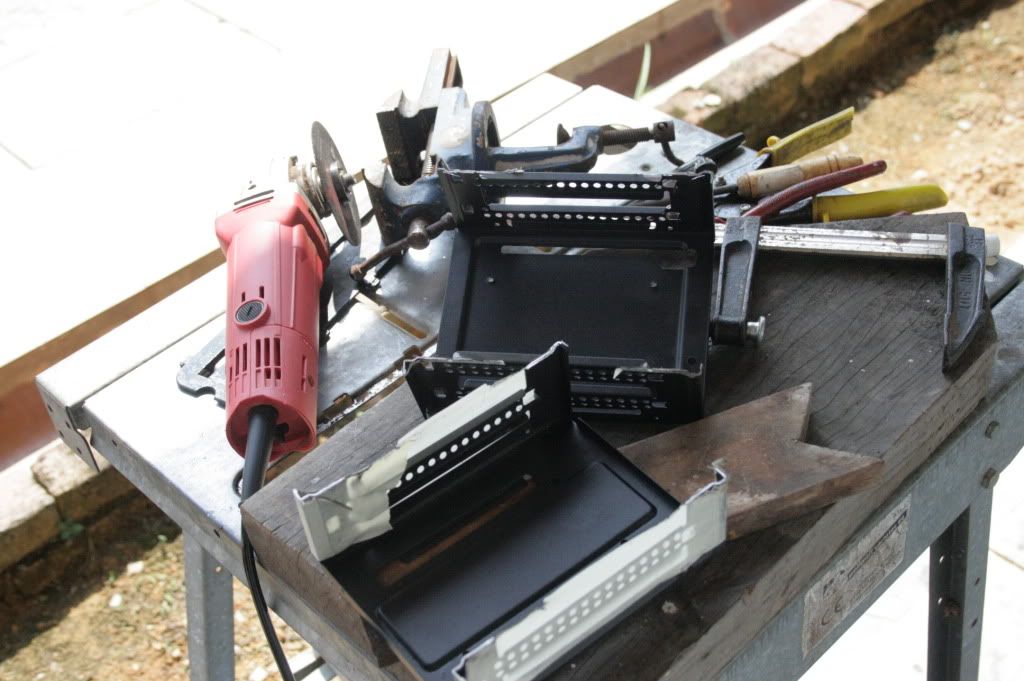

update picture..now the fan can fit..clearance on the front panel has been made...hdd drive has been cut..

its a long wait for the acrylic and the sleeve cable

anyone can help here



ps:any1 has extra 30m red sleeve+ 3m heatshrink..pm me

whr will u mount ur hdd??

Will need to wait for my acrylic to arrive..the seller havnt reply my pm yet

agak agak mana ye??

I will hide it with psu..so u wont see it..will use acrylic to make some box shape at the bottom of the case

oic~ now i know what u mean~

i haven check out with pos laju leh, estimated shipping for the sleeve, should be cheap???
last week public holiday, never open -.-

looking great
i wonder how much u've spent haha

^few k la..well kalo dh minat..any price also wil do..hahah

Anyway just recieve maximus gen-z and 2500k for free..so decided to use it on this project..

For now gonna find bigger case for sb-e..500r too crowded when u add mobo wb..

Will upload photo soon..

Btw can recommend good case for wc setup at same range as 800d corsair?or modded tj07 which is good?

NZXT cases?
Antec cases?
Silverstone cases~
Lancool cases~

but all in all, i myself would prefer Corsair cases now >.< especially 600T white!

tj 07 house 480 plus 240
800 house 480 top and 240 bottom also

depends on the mod needed

xspc ?
3x480 no mod
MM
LD
caselab?

Hehehe..my mod 500r is good enough for that range..looking for extreme cooling case..

Interested in caselab casing..is there any for 800d price range?

800d fall at 450-500sgd, jb i not sure...

Fyi, My tj07 can house 480+240+360...

what i mean is...caselab casing price is around 800d pricing??


urs is modded rite?
btw..u change ur rig? going to go big on ivy is it?

caselab price will be nearly LittleDevil price, or abit expansive if u import urself

my 2600k remain lol. details refer to my sig

800d prices x2 plus plus
Tj07 with 60mm rad fit internally wo koolance shrOud ???

erhhh permulaan yg gempak ...tapi kesudahan yg sepi ..bro bajet kering ke....

hahaha..sorry bro..alot of thing happen lately since rumah sewa kena pecah masuk..

so..tpaksa beli low tier gaming rig...3930k nye build simpan kat rumah..

anyway..here are few updates..

the 500R casing actually 80% complete..leh tgk kat corsair league casing thread for pict..but some1 really interested in buying my 500r case..so tpaksa let go with good price..

now for this coming semester break..will start new one on cosmos S which was recently bought..

will upload more photo..soon when i have free time..skang busy on uni assignment and project..

here are some list of the updated spec from previous 500R

hardware:
maximus-geneZ batch3
i5-2500k
ripjawx 16gb 1600
250gb seagate hdd raid-0
60gb corsair ssd
seasonic 850-x gold modular
samsung dvd combo
msi gtx580 oc
cosmos S with side panel window(lil too big for M-atx mobo)

WC stuff:
intel raystorm cpu block
silver compression 7/16" id
xspc ex360
mcr320 360 rad
mcp355 + xspc top reservoir
ek bloody red coolant
