my bad. i was never good at taking photos. hands shake too much



Here's another one. next time i'll just gather some pics and post all one time

So will it look ugly having a floppy drive since it doesn't have anything to cover the border ?
I really hope to get a side panel without any transparent side window panel.

How many fans it provide free when buying the casing ?

the CM690 comes with floppy drive bay cover,just that u have to change to it.

and it comes with 3 fans(with transparent side panel) 2 black and 1 blue led CM fan

This post has been edited by karthyhu: Apr 4 2008, 08:24 AM

Ok...since no one want to show their 590 then i'll go first....got it form bro @ngbh shop in ss2 pj...


the box

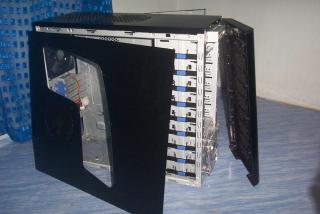

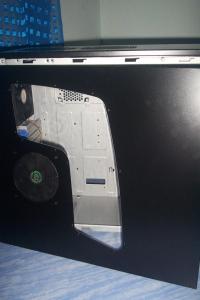

taken out the chassis and found out that it has the same side panel as cm690 they said asian model all come with this side panel
onli europe is the same as website shows...


top side has two blow out ready for two fans (my son want too see if he can fit in the case )


the rear mobo tray looks like 690 very much...

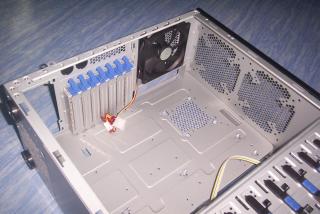

internal view...


naked front view...

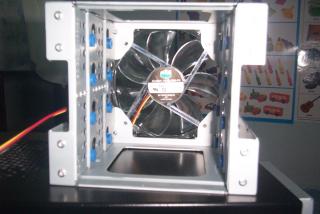

this is the removable hd tray...sadly the only thing holding hd is the blue rubber washer thing with screw of coz but it looks and feels fragile too...

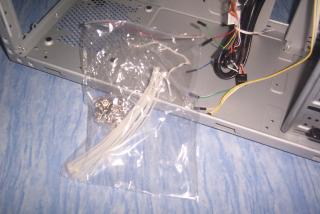

cooler master bundled a plastic of cable tie too and a whole bunch of screws...

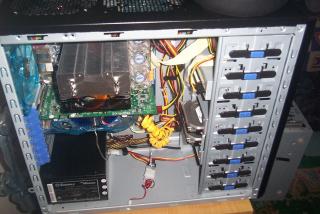

put all my stuff in in it but the cables are still like cacings later i'll do cable management....

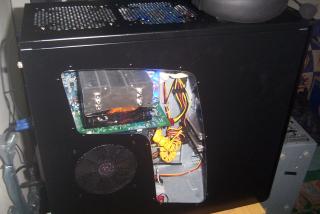

put back the side panel and run it...

thats all folks...so for who ever wanna have a cheap bottom place psu and a removable hd rack also close look alike of CM690
can try this casing it has a very good air flow too...but do take not that it doesnt have a reset switch which i am a bit disappointed its a shame
that cooler master didn't put it in... now need to make one ...
but overall its ok la for a low budget casing...

This post has been edited by fuzore: Apr 4 2008, 10:52 AM

the top panel look kinda ugly IMHO

well it does look kinda ugly, but i don't really care bout it....

i prefer not having any reset button since my son loves to push every button available on my cpu just to hear the click sound.

it looks ugly, but when u put 2x 120mm fans there, with bling bling led summore, then it will look

This post has been edited by suicideroach: Apr 4 2008, 11:16 AM

yup u read my mind even when i was taking pic my son already wanna explore the casing.... i even have too give him a mouse and a keyboard
just too make sure he doesn't disturb mine...

yes going too put two vizo bling2...

Wouldn't turning your CPU cooler 90 degrees anti-clockwise make it work better? Anyways, couldn't wait for the 690? mehh.. The 590 doesn't suit my taste. so hard to find a nice looking, cheap and functional casing

he..he..bro socket AM2 need to use some type of special clip to turn the cooler...

---

Added on April 4, 2008, 12:08 pmfor the ugliness look i think if send to uncle ianho sure he can make some good cosmetic surgery to make it prettier rite....

This post has been edited by fuzore: Apr 4 2008, 12:08 PM

prefer 690 coz the hard disk bay is side-facing. can also remove individual disks easily.

Bro since we have same psu placing at the bottom and the fan sucks in air from below our case rite...
any idea where to get a good material for filter....wanna put at the holes under the psu la...

one more thing where can get this 4 in 3 device module...



This post has been edited by fuzore: Apr 4 2008, 01:08 PM

what is that thingamabob ? it's my first time looking at it.

its actually a removable hdd rack they named it 4in3 device module....

was looking for that 4in3 device module, but nobody sell it 2nd handly..

looks like Cable Management still Cm690 better abit

cm690 is now available... check here http://forum.lowyat.net/topic/546378

Stock might come on this monday
