(NOTE: This is a completed project, for the final pictures, jump to page 3. thx for viewing )

prologue (lolz....): this mod has been ongoing for the past 2+ months (and its pretty slow going due to bz-ness) but recently only i got time to do this worklog. hope u guys enjoy this mod and i truly welcome and appreciate all criticisms and constructive point outs. anything u think i'm doin wrg plz do correct me as this is my first case mod project. i codenamed this project "Insendious"

i'll be writing this worklog accordingly with the sequence of my work. enjoy



after a long long long time of awwing and oogling at other ppls awesome works.... i've finally decided to start mine

bear with me ladies and gentlemen, and take a seat, its gonna be a bumpy ride, lolz

my fren upgraded his casing from a storm scout to a rv-02 *lucky bustered*
so y not buy over his case to mod since its a cheap case? lets do this thumbup.gif since i'm kinda reluctant to work on my bigger haf 932 cuz err.... it kinda cost me alot? lolz

an intro to this rig i'm gonna build, this rig will have a evga nforce 790i ultra sli for a mobo and a Q9650 for my cpu. well, this old school mobo and cpu is something i've wanted for a long time, and i'm finally getting those. hahaha. both of these i got from ebay, the guy sent it to my friend studying in us and she brought it back for me haha thats awfully sweet of her dun u think? lolzzzzz. thx anyways!!! the rest of the rig i'll show u as we go along aites?
sry to say that i cannot show u any initial pictures of the casing's condition cuz i kinda tore it apart the second he took all his
hardware out from the scout...

but i'm glad to say that i CAN show u the inital pictures in bits and pieces of the casing





well, since it was used for quite some time it was pretty dusty, normal stuff. UNTIL i took out the steel handle bars. i was like OH EM GEE



well, i really didnt expect handles to rust this bad. seriously, no protective coating? i gonna need to do something bout those.

so first things first, i've decided to make this a very high air flow case. which means mounting a LOT of fans onto my case which includes making blowholes for additional fan inputs and improve the existing ones. i kinda look high and low for holesaws but nobody sells a holesaw around 120mm or 140mm which is quite a bummer. worst case scenario, dremel it myself? lolz. i asked my dad and he told me to send it to a engineering workshop to do it. so y not? time to make measurements and mark all the points for drilling and cutting.

i use masking tape to draw on the dimensions and stuff.





yup, 2 140mm fans on the top. 1 i juz gonna cut it to improve airflow and the other gonna cut a fresh new hole. same goes for the plastic.



likewise, cut a hole for the front intake for better airflow



and i have special plans for the sidepanel without the acrylic window so i used masking tape again to allow me to draw the template of the sidepanel window and what else better to use as a template if not the existing one







so with that done its time to send it off to the pros at metal cutting lol. and i'll move on to the sleeving XD

This post has been edited by valor89: Mar 28 2014, 02:17 PM

yup, sleeving time!!!!!
this will be my first time sleeving and hell, i went through hell learning all the hooks and crooks of cable sleeving. so i started sleeving the cm sickle flow fans and normal 140mm fans which i ordered.





lolz. i think 6 120mm and 4 140mm is juz nice dun u think?
so meddling around, decided that it'll be too troublesome to keep the 3 pin to 4 pin adapter that most fans has. so y not juz cut them off and rewire them???



yes i know the right one was the fail one. wakakaka i eventually cut it open again and rewire to the left one. lolz.

well, since this a green and black themed mod it isnt right to leave the red power and hdd leds right?



so off they go, and green is the new red (no offence to fans of red leds, i myself am one, with my red led haf 932 lolz. its juz i wanna try different colour nia. chill k?)

lolz, so with that outta the way, bring in the picture galore of my new sleeved cables i'm so loving sleeved cables, its so awesome its blinding me

if anyone of u caught sight of the lamptron humvee 5.25" bay switch, yes i'm planning to make all my fans led to on and off at my direct command.

lolz. problem was, it didnt work. i rewire the fans led exactly from this website, http://forums.bit-tech.net/showthread.php?t=154804 while his worked, mine didnt. 3 of the leds will work. but 1 wont. finally at my last test, the led burnt with a big pop, sparked and fzzzz with a small jet of fire. and smoke was visible and my sis was like, what smell is that????

sry no pics for that incident. so i decided to go with an alternative and cut every single led off. since the fans are transparent, y not use ccfl to make it shine instead? since it'll be my first time using ccfl, decided to do a bit of research. well, someone said the cm aurora was good. well, got it, and to me it was hands down junk it was yellow when it was suppose to be green. and not even a pleasant yellow. if anyone wants a peek at it i'll upload it aites.

finally ordered some from niclasteoh. nucleartech ccfl. and package arrived!!



hooked it up, and walllaaa!!!! brilliant and awesome green.



heres a few more pics in low iso and low aperture to captivate only the ccfl radiance. wakakaka.





well, the ccfl wasnt the only thing in the package from niclasteoh. it came in this big box lol



here comes the acrylic sidepanels which i ordered and engraved on.









all i can say is niclasteoh made a fine job for this. making sure that he has every detail i want and he even went as far as redesigning it for me so that the cnc machine could engrave it. really recommended if u guys planning to get ur acrylics

well, now u understand y i'm cutting a window for the other side panel. well, since its green its only befitting for a snake to be its emblem, and the name insendious, well, i kinda created the name for a snake for a novel i was working on, and was inspired by the fire spell in harry potter the picture of the snake is NOT mine, i found it on google images lolz. so i dun hold ownership or copyright for this images in case the owner comes looking for me lolz >.< the font for insendious is the kingdom hearts font which i downloaded from dafont.com

background stories aside, here are some acryllic fan grills which will be stuck onto the top plastic part of the case where the newly formed blowhole is at



This post has been edited by valor89: Sep 2 2011, 02:46 AM

well well well, here are the freshly cut (well, not very fresh right now though ) top and sidepanel of the case!!!! the top is pretty well cut. and not to mention they use a dremel to do it. pretty sweet skills i must say.



and here is the sidepanel. well, if u ask me it looks as if they abit like simply cut la. lolz. the edges they didnt curve properly and so. and the edge towards the front of the panel they cut more than they shud. so a lot of repairing will need to be done.





here is the panels side by side for ur viewing pleasure



and i was deciding if i wanna put the acrylic grill on top or btm.





and oh well, i settled for btm

and i forgot to mention package from lingloong!!!!



yea, what else is more beffiting than the xfx black edition psu to go with this theme? haha.



and the purpose i put the psu in is to measure up for the psu cover that i'm gonna make from green acrylic. i've decided to mount my psu this way cuz well, the fan on the psu is juz gorgeous and the psu side label here is nicer as well. haha.

more cable sleeving action as i've got more sleeves and a 24pin and 8pin extension from topazzatale. his sleeves are awesomely good. high density at a very good price. thumbs up bro
here goes sleeving the extension. i use a led leg and a tweezer to remove the pin haha







a pretty good first shot i guess. except i accidently broke 1 contacting pin and had to salvage the pin from another psu. its in good working order now but 1 cable is shorter than the rest. i think i'll fix it on a later date. anyhoo, heres the final product





spanking, dun u think?

well, woke up and package arrival!!! yup, i ordered something new from lingloong





yup, the thermaltake jing. a pretty good spec cpu cooler with an awesome colour to suit this theme.
opened it to take a look at this beauty.



and juz mounted it onto the mobo to make sure the mobo heatsink doesnt clash with the cpu cooler



and what do u know? err...... 2 maybe 1 mm clearance. phew... that was close. lolz.
and disassembled for a possible makeover *hint*



well, and now you're up to date with my work log

today i juz done the hardmods for the steel handles, the top metal and plastic, and side panel. and overall also the painting. i thought i was gonna take a week but done it in 1 day. what do u know?

so heres my current dilemma. the thermaltake jing, as u all know, it has a well, pretty ugly beige grey kinda colour but an awesome coloured fan. so i need all of ur opinions. shud i paint it to black? looking forward to ur opinions

This post has been edited by valor89: Sep 2 2011, 04:33 AM

haha. juz trying new colour. i wasnt a fan of green till now XD

haha thx bro

will update tonight

true. worst case scenario i can repaint it back to the original colour. lets see what others think first aites. thx for the input

haha. i muz agree with the mobo
i kinda like long heat shrinks. haha personal preferences i guess. thx though

hahahaha. yea 4 pairs of ccfl. thats y i'll be including some mods to make sure it doesnt really light the whole thing up. main purpose of the ccfl is to replace the fan green led which i lost.
thx for the compliment on the cable sleeving



wakakaka. i transforming ur dust collector to a vacuum cleaner wakakaka. hows that??? lolz

UPDATE!!!! wakakaka~ this is what i did yesterday... er... 1/9/2011 lolz

got started on the hardmods. so first things first i took out my powertools to start with the grinding to remove all the rust that accumulated (my bad i took so long before i started the hardmod lol)
and well, i kinda forgot to take pics while i was doin all those so very very sry hahaha.

i also popped all the rivets holding the top part of the case so i can grind it easier, sand a bit then start with the paint job.
nothing spectacular though. but the paint had a very nice coat. i used the flat black TOA brand. for me TOA is the best cheapo spray paint. only rm6 for acrylic lacquer which is a pretty good price compared to the crappy aerosol spray paint cans useless one.

heres the top part of the case where i removed being painted on



well, after so many years of learning the art of spray painting i can gladly say that i am satisfied with the outcome hahaha. my first real spray paint job was to paint my silver toshiba satellite L310 in 2009. well a lil sidetrack pics







coming back heres the side panel which i took my time with this. lolz. took a while to smoothen and curve the edges. also included 2 bumps towards the front to mask the chunk metal they took off when cutting it. but i'm pretty satisfied with the outcome its already sanded with 120, 200, 400 grit sandpaper to smoothen it out.



heres the front panel where the front intake fan is suppose to be. here i juz grinded, lightly sanded and sprayed on the flat black. take note for this metal parts i did NOT use any primer as i'm pretty confident with a few coats this paint wont chip easily



heres my work area haha. juz for picture sake lol.



and heres the spray paint i'm using. i'm using the ace premium for the sidepanel cuz i wan a nice good coat over it. this i will spray a primer for better surface. almost everything else i'm using the TOA brand. except for plastics. we'll get to that later.



heres the plastic top ready for painting.



for plastics i'm using the krylon fusion for plastic. its very good for plastics. cuz i realize regular acrylic lacquer or aerosol paints on plastic chips off very very easily so i got this instead for a good bond. heres a link http://www.krylon.com/products/fusion_for_plastic/ i kinda forgot to take a photo of mine hehe

This post has been edited by valor89: Sep 3 2011, 06:52 AM

heres the sidepanel already went through the priming and now the surface coat. while learning spray painting a lot of ppl say that we shud sand the primer before applying the surface coat. but from experience i dun think thats really necessary unless u mess the primer coat pretty badly though. juz my 2 cents



i went through 3 coats of primer for each side and 3 coats of surface coat for each side as well

my messy wet sanding area lol



ah.... heres the steel handlebars grinded and sanded as much as i could to get the rust off (i got lazy after a while lolz) i'll be spraying multiple coats of paint to make sure it doesnt happen again. i was considering the rustoleum paint but then well, its not really worth it for something i cant see so oh well lolz.



well i sprayed and i sprayed and i sprayed sommor. inhaling all those toxic gas is gonna kill me good and young lol. continued next post

This post has been edited by valor89: Sep 3 2011, 06:09 AM

and more UPDATES!!! whee~~ i'm on fai-yar!! lolz. anyway heres for what i did on 2/9/2011

in summary what i did today was bought more paint and continued with where i left off yesterday, mostly juz spray painting whatever thats needs to be painted. okok so enuf talk and lets move on

i got my hands on a cooler master 4-in-3 device module (freaking long name ) and well, i want it in black. since they dun have it, i juz have to make it black myself kekeke

disassembled and rdy to paint



ok, so heres the deal. i've decided to paint the thermaltake jing grey plastic parts to BLACK. well, this is a do or die thing and i'm taking a huge leap of faith with my fingers crossed that it'll turn out alright

i covered the fans with pieces of a4 paper which i cut and used cellophane tape to hold everything together. lets juz hope this works



and heres my spray painting area. haha. wonder where i get so many boxes? lolz



the cm 4in3 chillin in the sun. as u can see from the cardboard i've been spamming the TOA flat black on it. i actually lost count how many coats i gave it. though i can safely presume its roughly 2 cans of spray paint lol.



cuz this part is gonna scratch againts the 5.25" bay itself and hopefully in its tight fit it'll still be scratched and black. haha.

moving on heres the fan bracket for the jing goin through an extreme makeover. for the fan mount and bracket i'm using the krylon fusion for plastic as well.





here's my sister doin a stencil of the cm storm logo for me. in exchange i buying her snowflakes
to use or not i'm not too sure yet and i'll see how it goes lolz



and here i was testing out the stencil



and lastly here's my stupid dog disturbing me lolz. say hi to max at the back in the cage is dex



This post has been edited by valor89: Sep 3 2011, 06:15 AM

come nightfall, after chilling with some friends of mine in AC and Snowflakes time to check on my sprayed stuff. so get rdy for a run through a gallery of pics

first up is the side panel. personally i'm pretty satisfied with the outcome



as u can see the surface is quite rough. i'm guessing its because of some paint which dried while airborne at the last remaining of the paint (yes i finished the can ) cuz when i run my finger its smooth but my finger will have a lil black black powder lol. i'm still leaving out to cure cuz the instruction says 5 days so lets not be hasty (dam kan chiong lolz) and once after i'll give it a thorough wipedown and we'll see how it is

front and back of the side panel





heres the top plastic parts and the plastic handle. i sprayed the plastic handle to match the texture of the other piece.



as u can see its a bit rough. same case as the side panel. so have to wait till it cures then i'll wipe it down. but to me it looks pretty nice like that. like its military hardened from extensive usage kinda feel lolz





heres the metal top which i sprayed. very very satisfied with all the metal parts which i used the TOA brand. a very good finish. the matte black is very smooth and when tap it still has that nice metal ting. haha

and heres the cm 4in3 which went through some serious amount of paint. very smooth finish and very nice matte shade. couldnt ask for a better result





heres the rusted steel handles which i saved. now it looks very nice haha. sadly cannot show off cuz its inside haha.



and last but not least, the finisher, the JING plastic brackets.
well, i would say the painting went very well and it turned out pretty good. but i'm really not feeling it la. the bright lime green for me not goin very well with the extremely dark shade the krylon gave. i think this will need more working on. but i'll let the paint cure for now while i think for a solution to satisfy my fussy-ness lolz









well, thats all for now. my next mods will be to make the psu cover and hdd cover so stay tune. and please do tell me what u think of this so far. ur inputs on this project is greatly appreciated XD

---

Added on September 3, 2011, 6:48 amhaha. thx a lot. glad u like it. hope u enjoy the rest

This post has been edited by valor89: Sep 3 2011, 06:48 AM

lolz.... dun la drool afterwards floor wet

haha. maybe i shud change name to hulk???

---

Added on September 5, 2011, 4:49 amUPDATE!!!! 3/9/2011

so now i'm getting to the cosmetics of the case. well, ever since i saw some mods with psu cover and hard disk cover i was like hm... great idea so its time to do some myself.

so i got some leftover acrylic from the side panels i ordered from niclasteoh. so time to experiment with the acrylic to see what its capable of.

so to start things off nice and easy, i wanted to see how easy it is to bend acrylic and what temperature i would require to bend it easily. guides which i checked out didnt really state what temperature to use. but come to think of it different kinds of acrylics and thickness will have different temp ranges before it losses its rigidity and becomes malleable. so i manage to get a nice easy bend with 500c using the heat gun with a distance of say 5-10cm away moving constantly side to side. and this i what i got

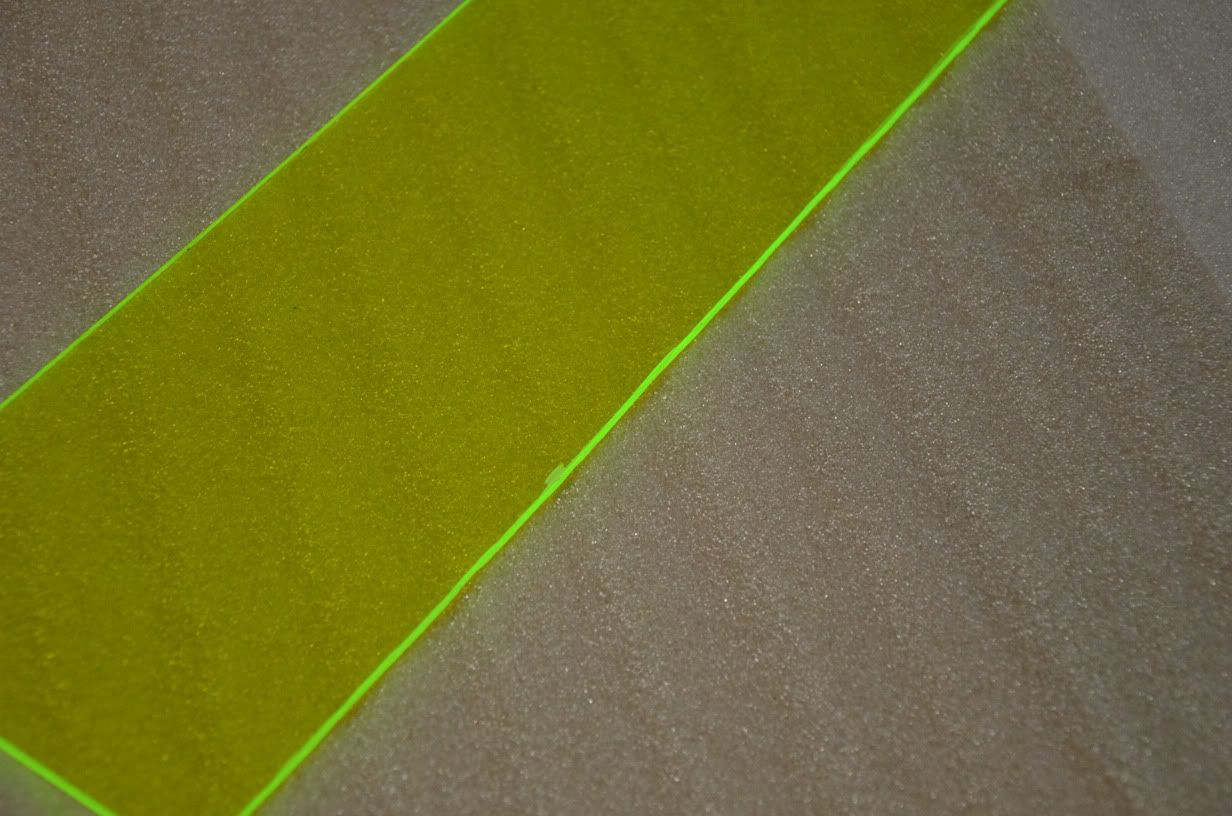

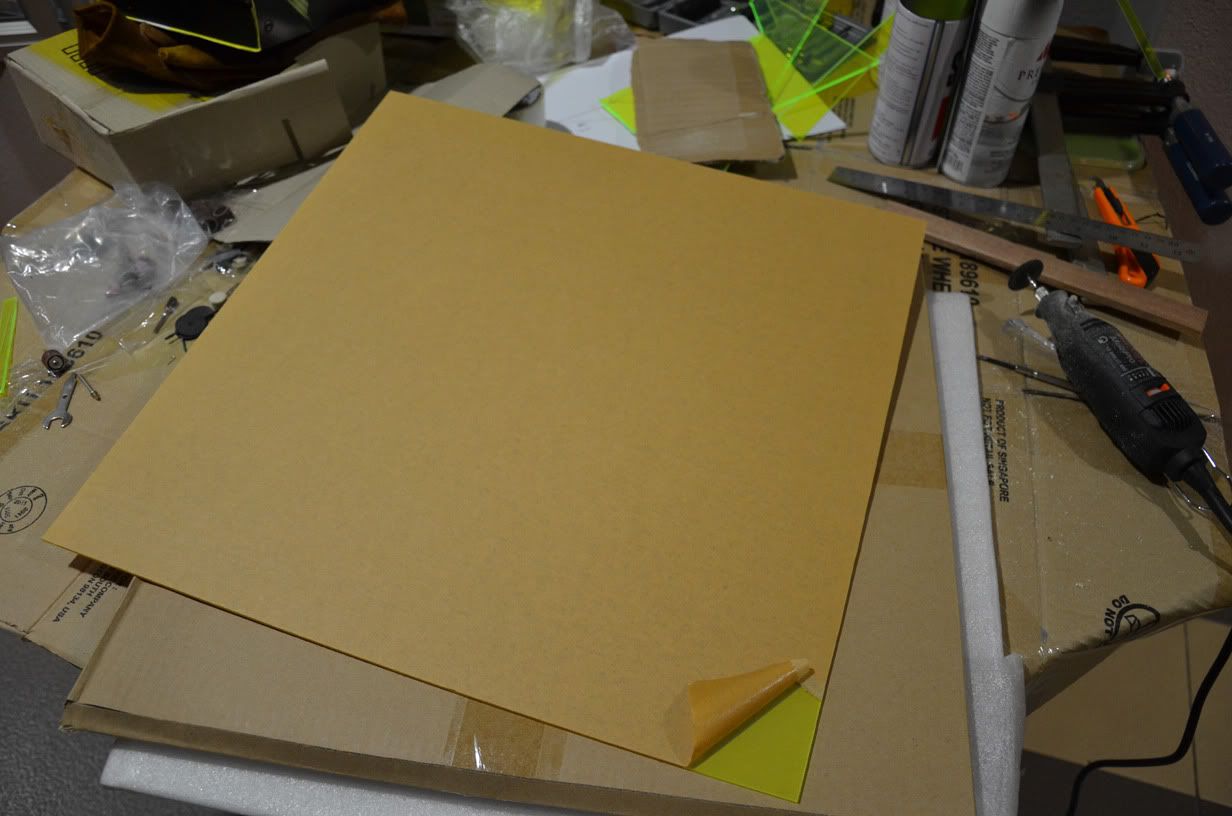

not too bad. so now with the bending test done, time to cut a nice long piece. first up i use the trusty dremel but err..... houston, we have a lil problem

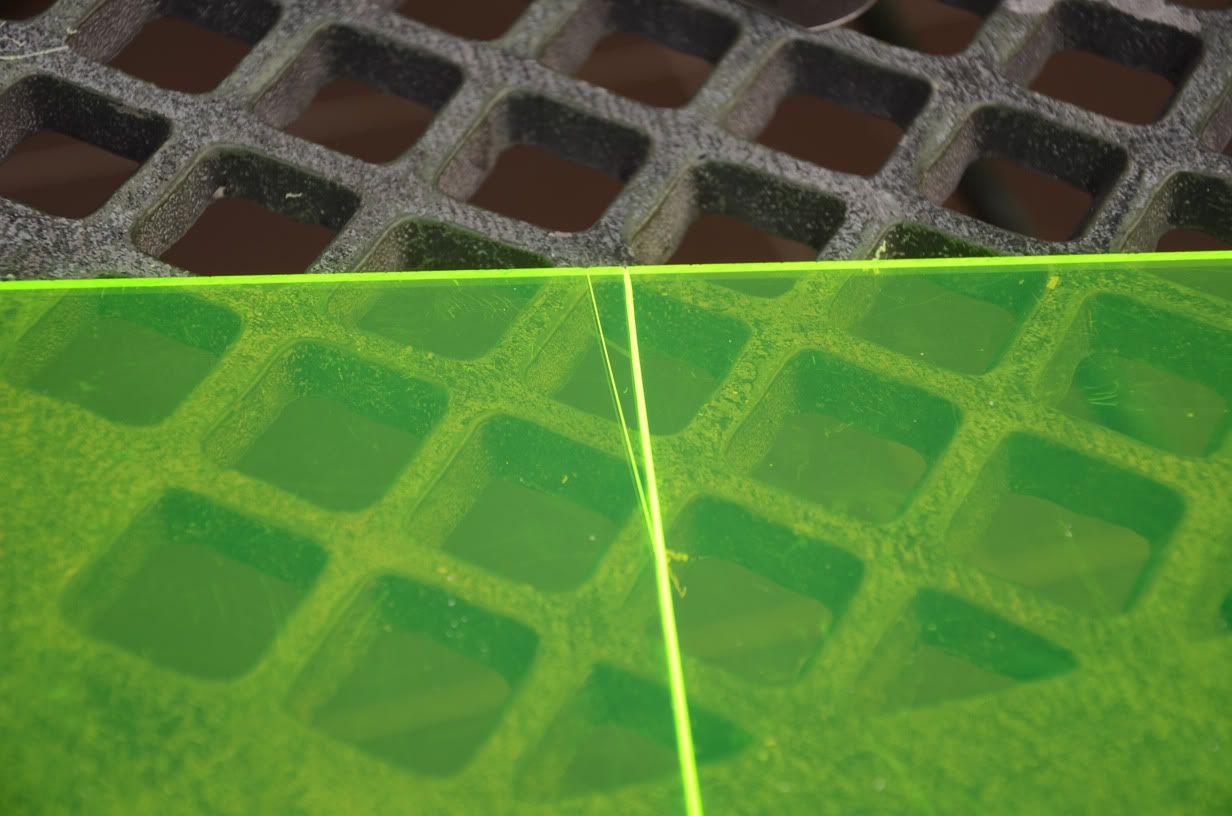

well, it looks ok here but i didnt like the rough edges and it was not a very clean cut. which is pretty sad.

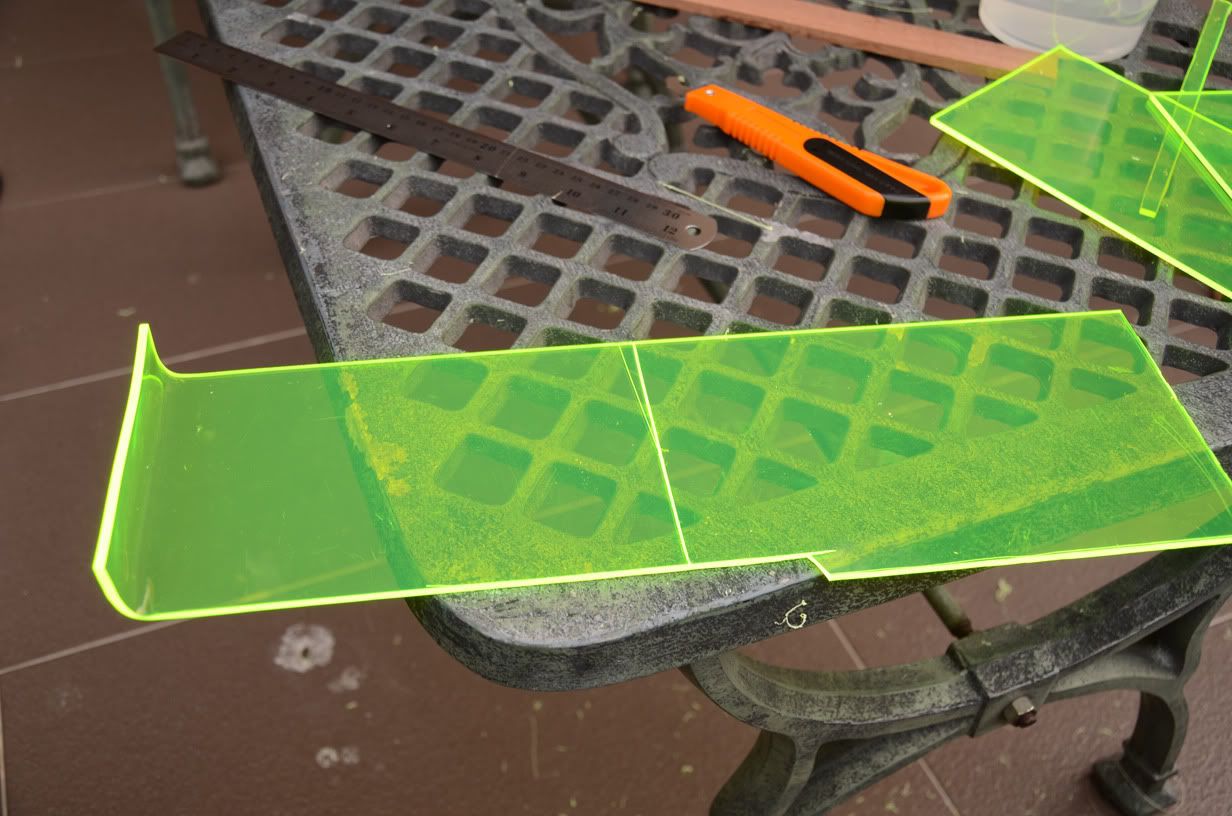

so lets upscale a bit and go nuts. good thing i bought a spare sheet in case of err... bad worksmanship on my end lol.

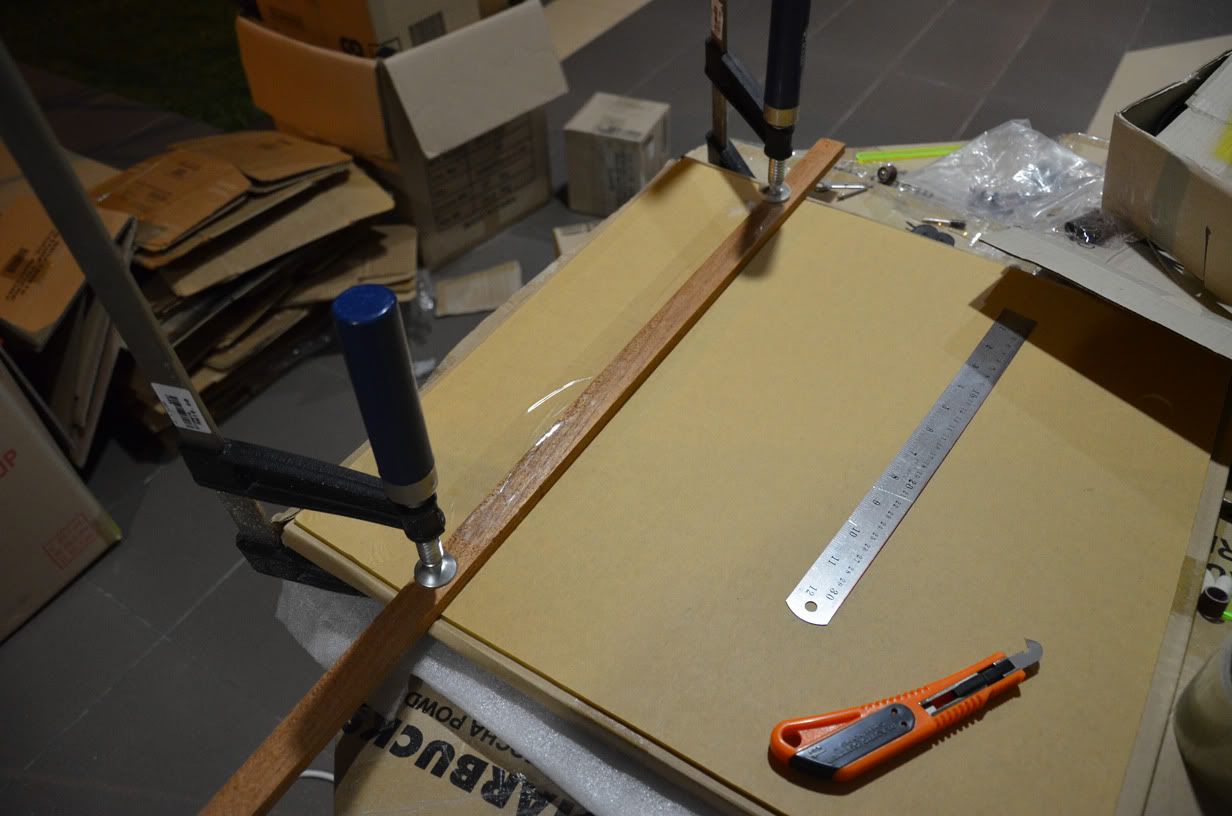

so i used clamps and use a piece of wood to hold it down and this will give me something to guide the dremel rotary blade to go along and hopefully get a str8 line.

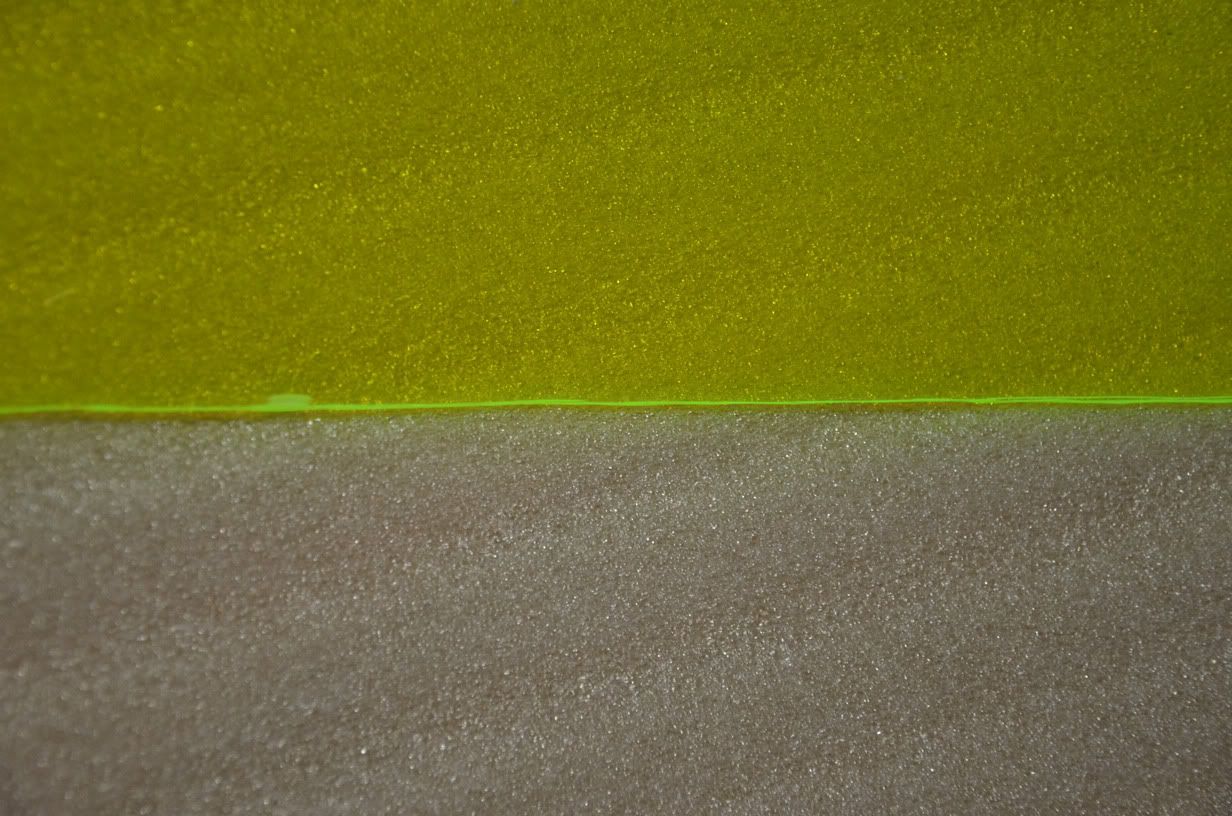

well, with that much, its not really much of an improvement.



and with the day finally coming to a close, i packed up my stuff frustrated with a not very good result and vow to try again the next day (drama betul )

This post has been edited by valor89: Sep 5 2011, 04:49 AM

and the next day, UPDATE 4/9/2011

well, did i forget to mention i bought an acrylic cutter? hahaha. oops. honestly telling u i didnt really know how to use an acrylic cutting blade thats y i opt for the rotary cutter? hahaha. anyway juz to let u guys know i got my b&d drill, the dremel and most of the modding tools and powertools from reiben thumbs up bro. haha. err... i think even reiben didnt know that cuz i ask my fren to buy from him for me wakakaka.

anyway, coming back, oh and heres to start the day with



MY NEPHEW!!! so cute and chubby!!! he's getting heavier wakakaka. uhhm... comin back, i finally googled how to cut an acrylic with an acrylic cutter and heres what i got http://www.youtube.com/watch?v=jCeHx-vvJ7k so easy

fine, so with that knowledge in hand, (sry i got excited and forget take pictures lol) i used that newly learnt "skill" and put it to good use. and its not as easy as it looks in fact its pretty difficult to do it when u wanna cut about 40cm in length its not even funny. but i manage to do it and wallaaaa!!!!



yup, and my dad asked me to use whetstone to shave the ends to make it cleaner instead of using the dremel or sandpaper (monster hunter style *shing shing shing shing PING sheeekk* )

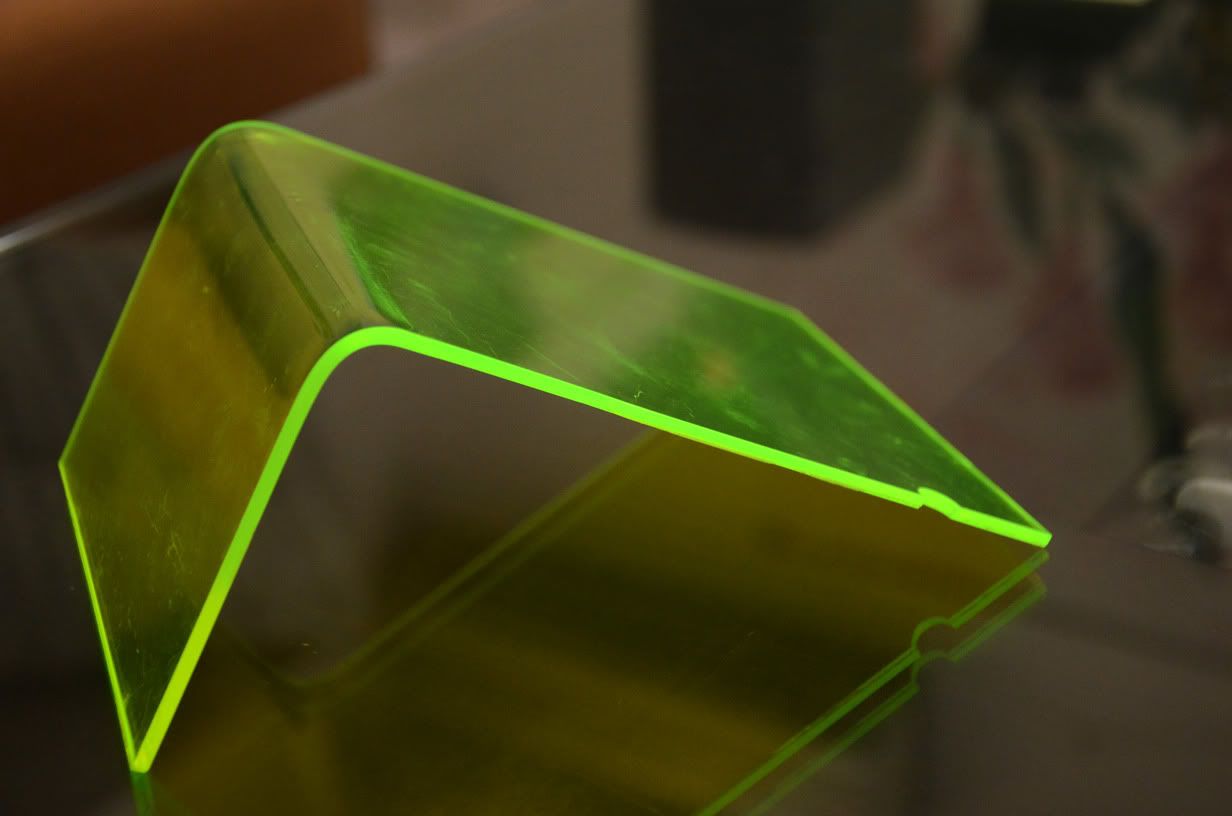

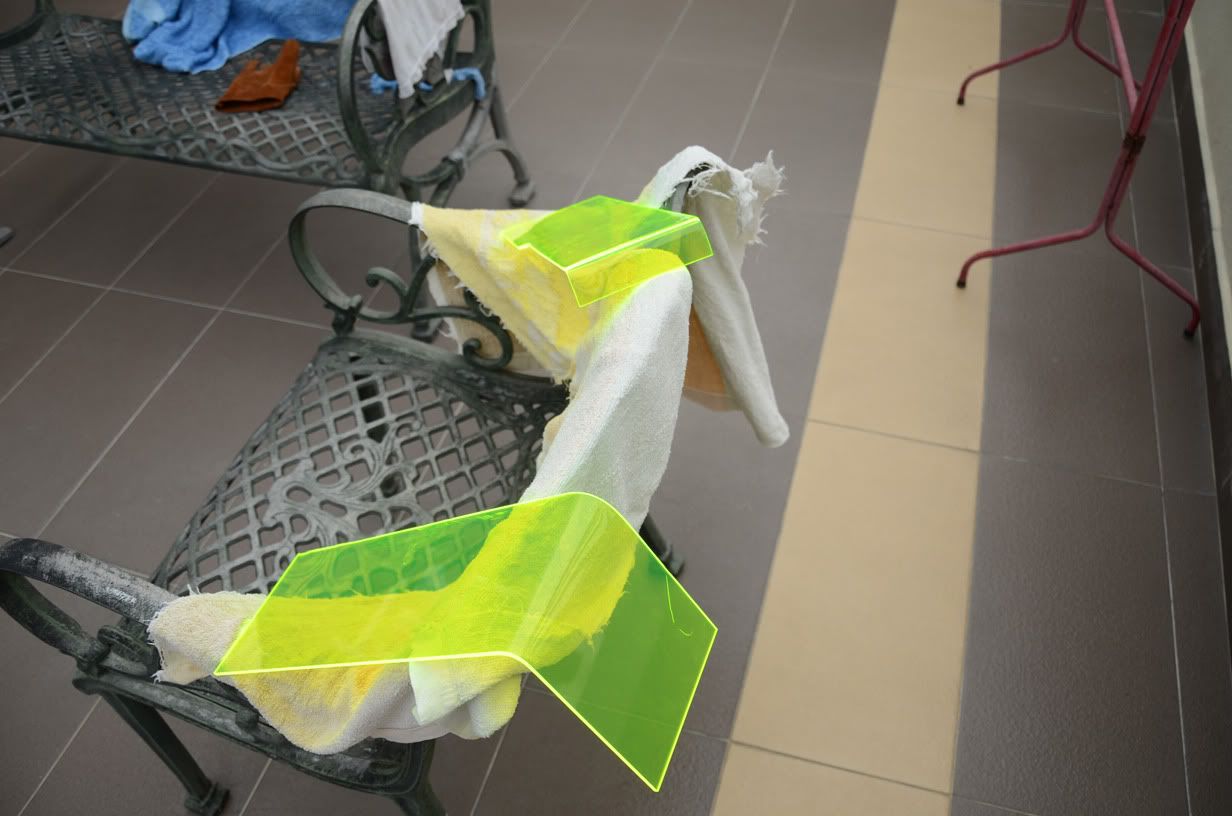

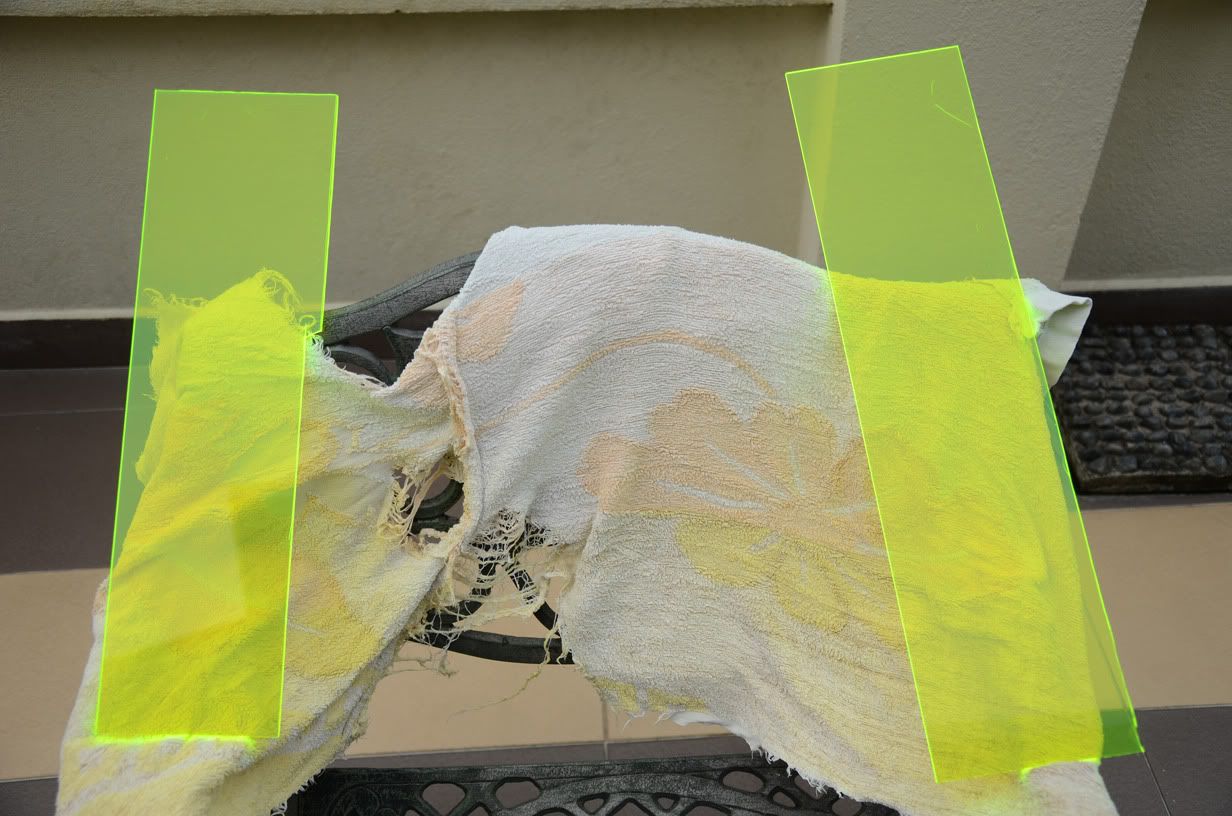

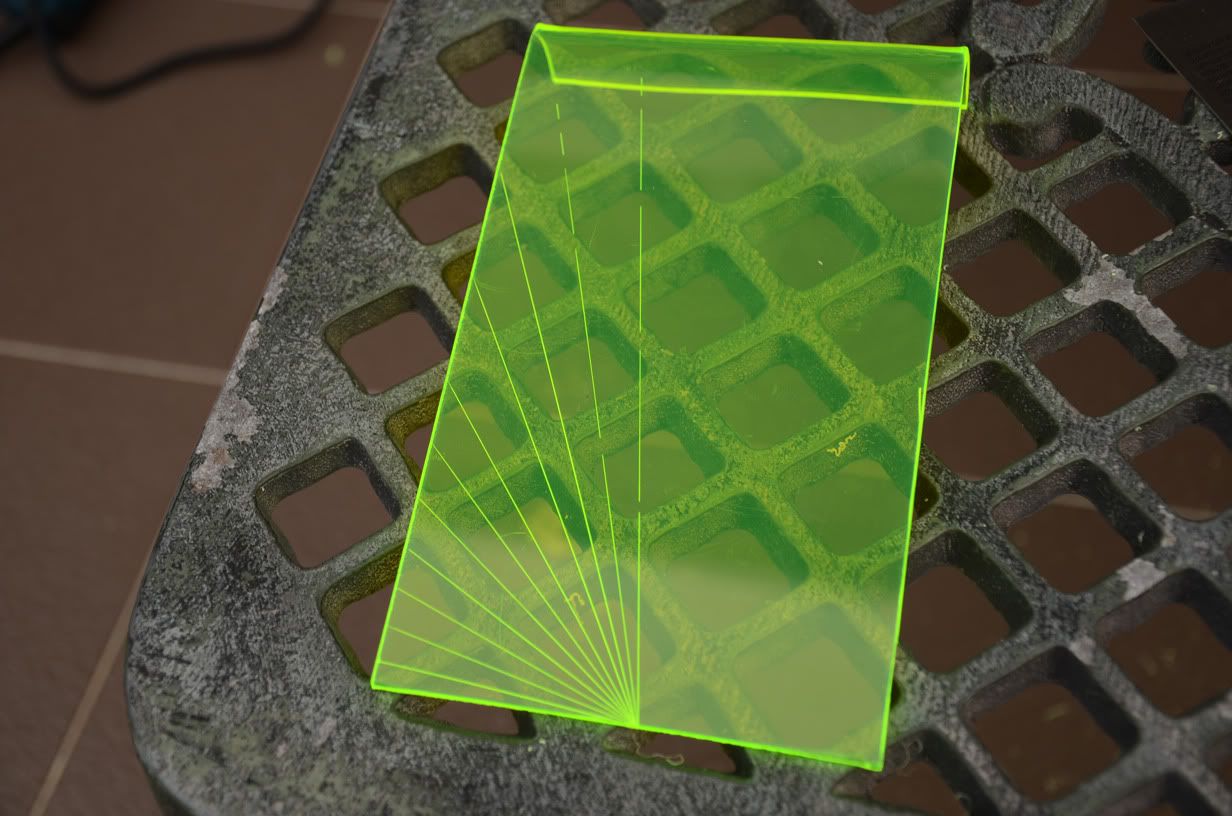

and moving on to the bending of the sheets. seriously bending it is like so fun and easy. and cutting it is like ARGH!!! OMGBBQFTL!!!



and on my next cutting venture i was like whoops~~ sheeeeek.... uh oh





yup, the blade slipped and cut to the side. well, i was in luck cuz my sis and cousin's wife gave me some artistic advice and came up with a brillliant idea



ta-da!!! artistic lol~ applause for the save

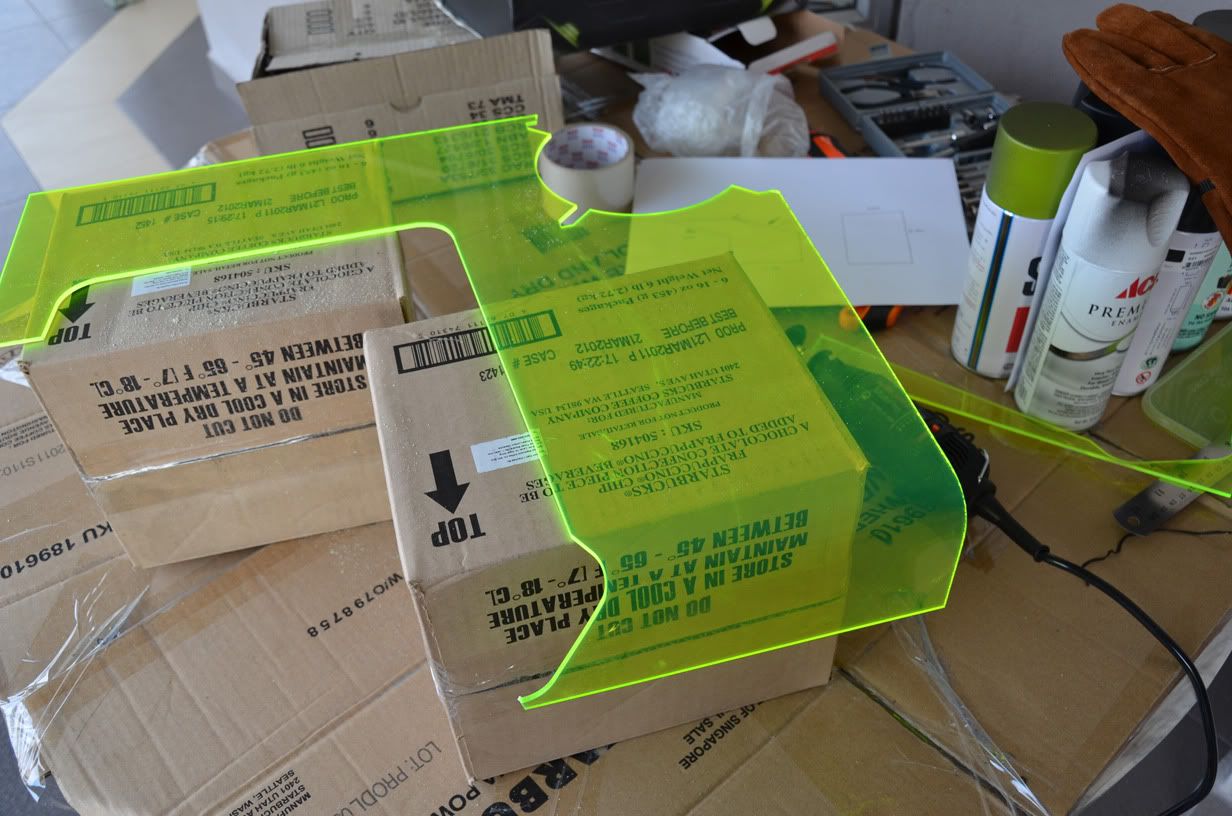

so moving on after much cutting and measuring and bending a lil sneek preview?

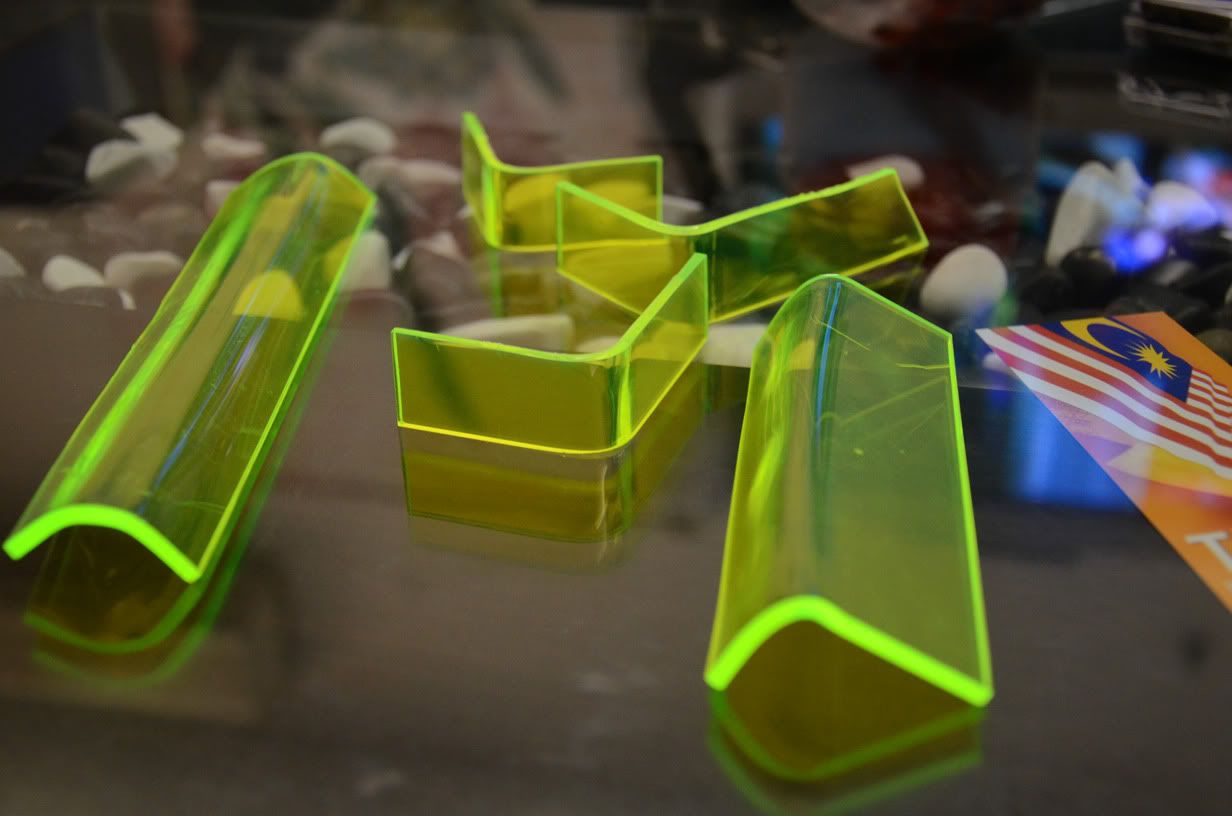

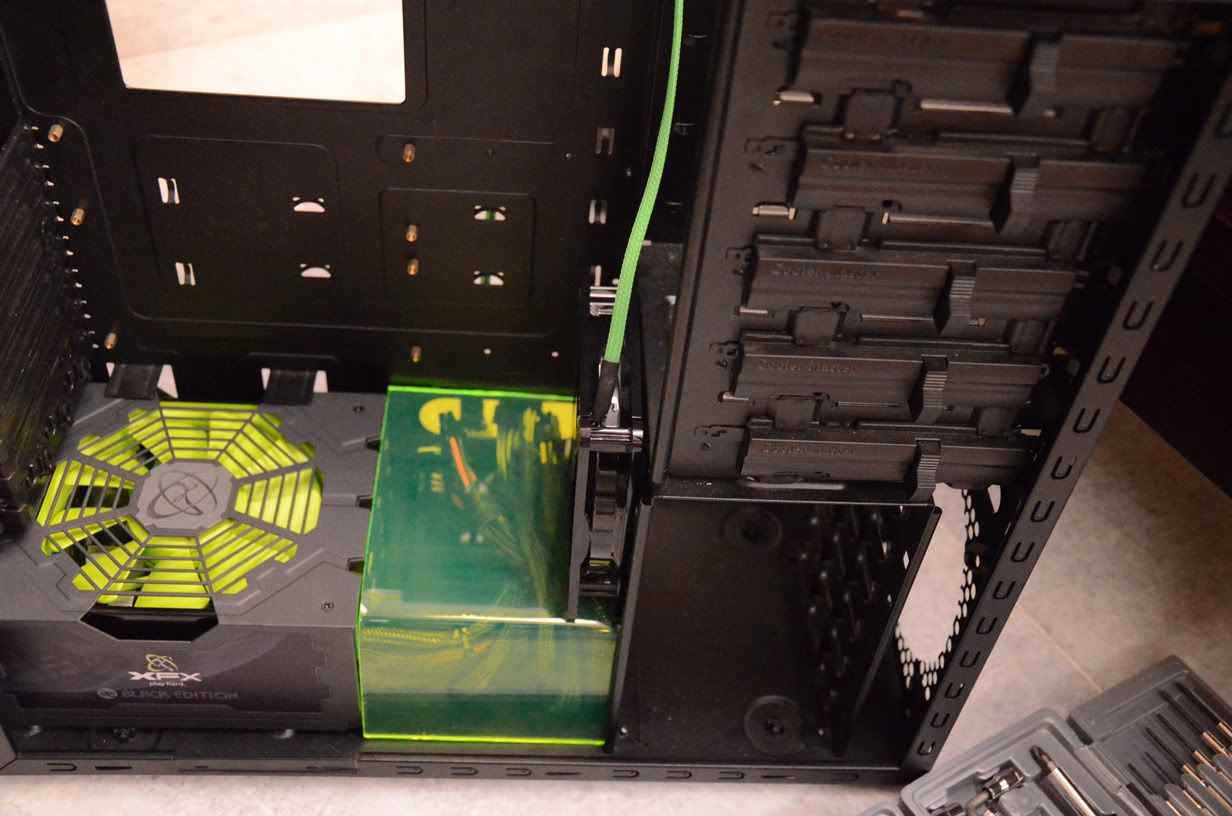

that would be my psu cover. a close up here

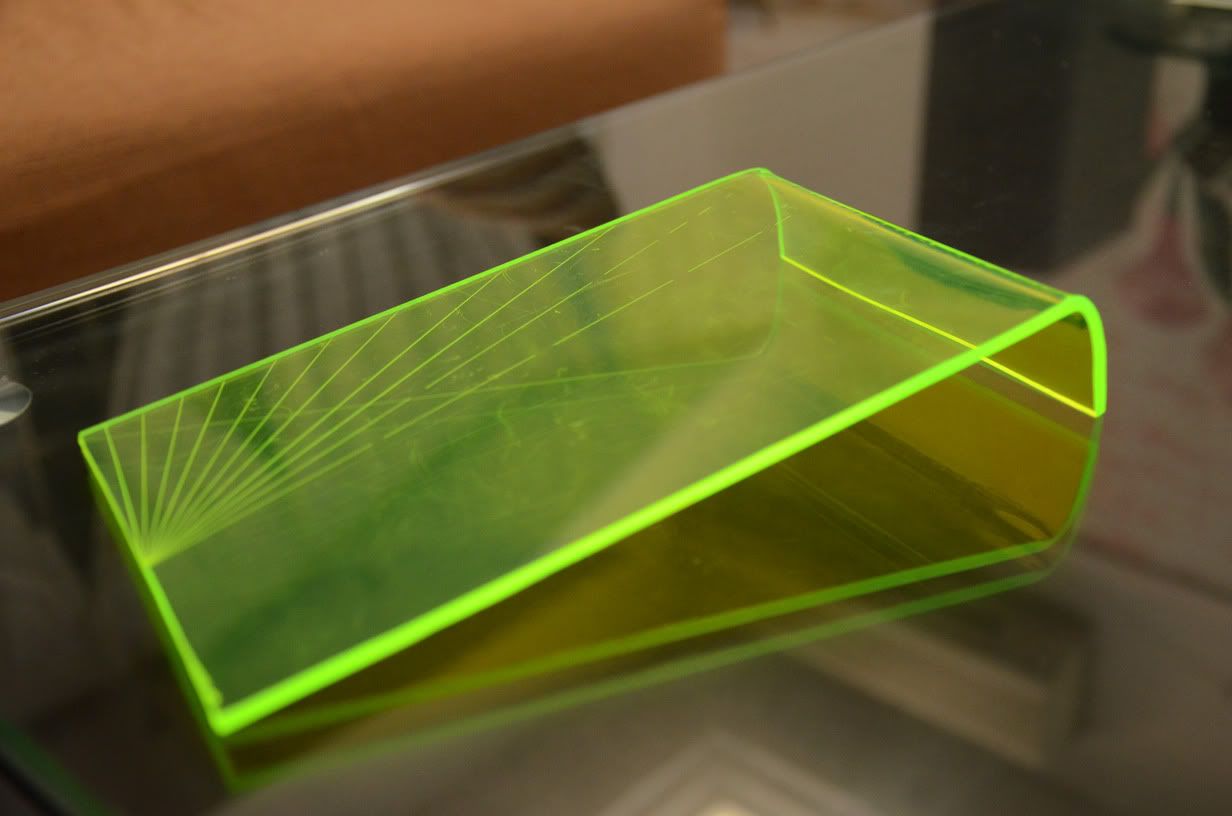

and my hard disk bay cover with the very artistic design



and the many spoils of the day that would make up the supporting parts to hold everything up

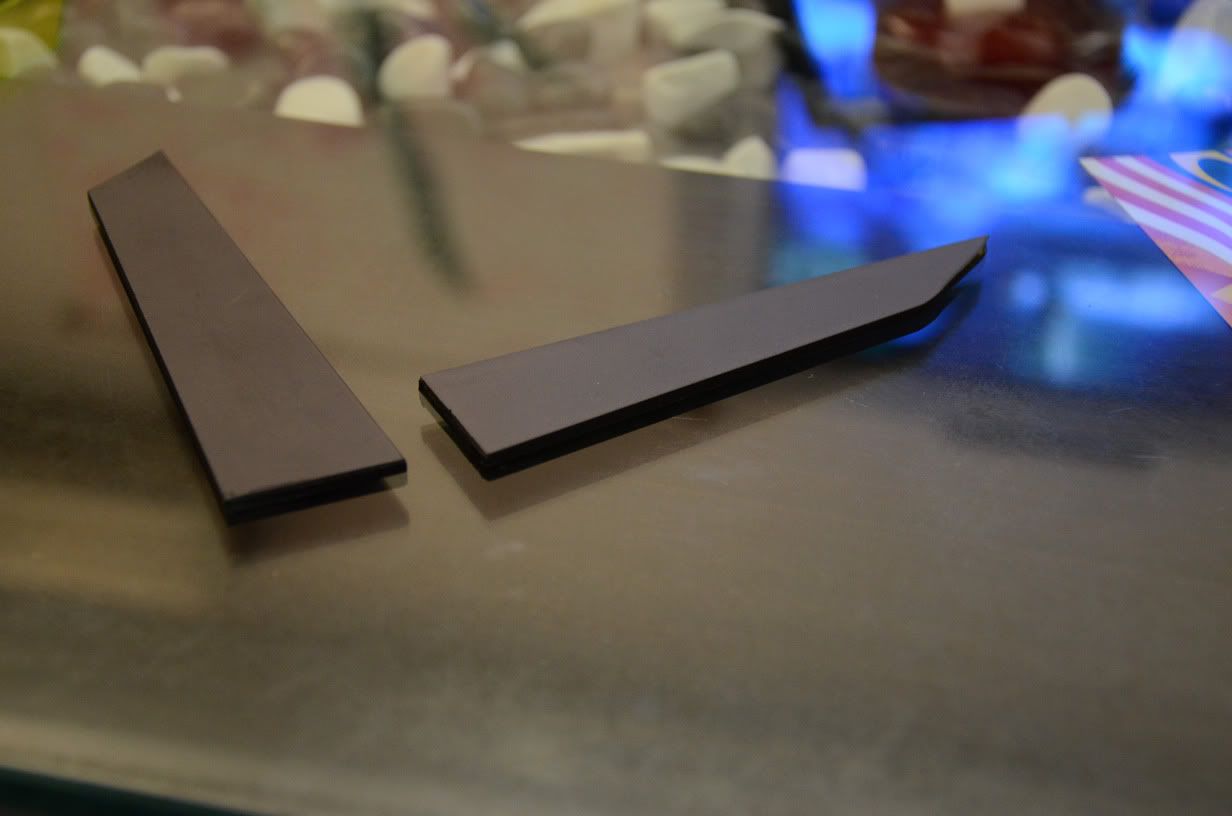

some parts for the cosmetics department



well, i'm feeling that much closer to this project's completion!!!!

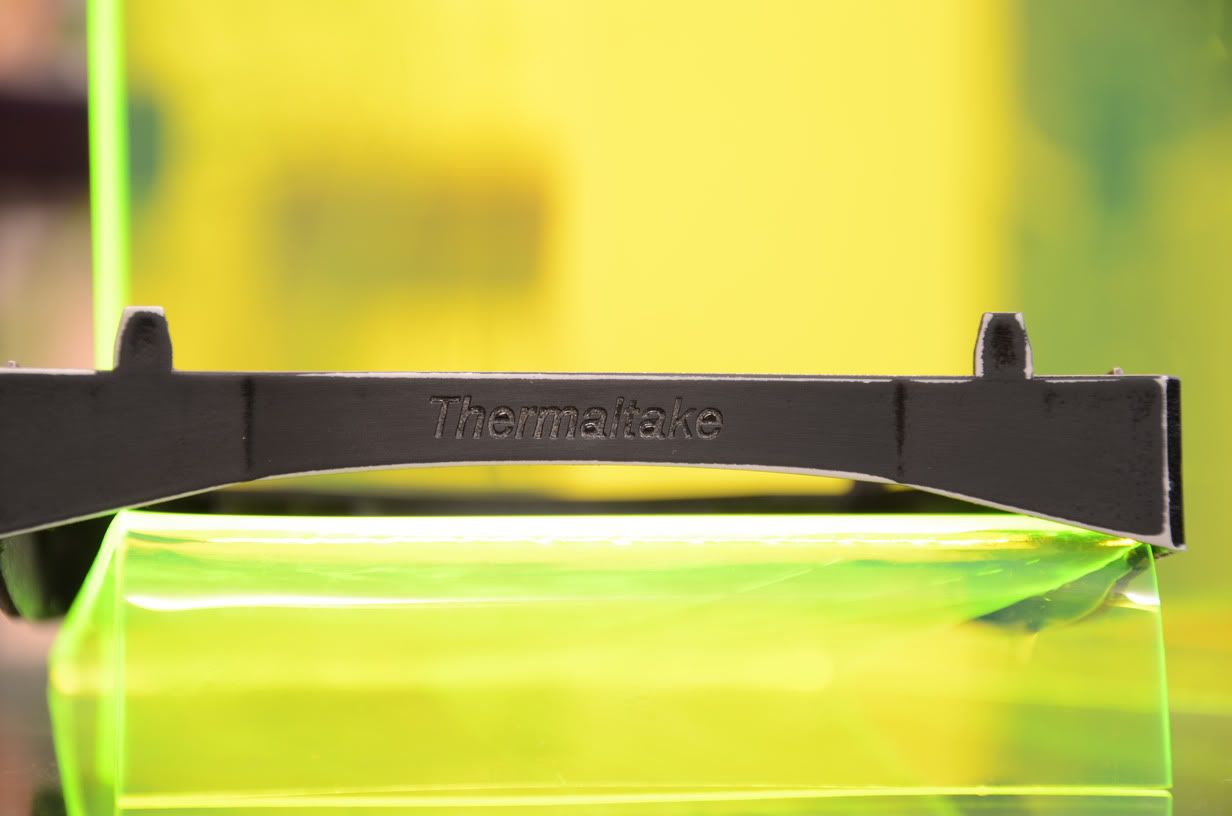

so my next venture would be to choose a perfect match for the acrylic to hide everything. i mean, theres not much point to have a psu cover if its transparent right? lol

and whats this? a sneek peek of whats become of the jing?



please do let me know what u think and whats nice and not nice and what i can do to make this project even better. really appreciate it

thx bro. i was thinking of that option as well. maybe i'll try that and see which is nicer? haha. thx for the feedback man. really appreciate it

haha. of coz la. my haf932 completely stock. haha. hopefully i'll finish this by this week. thx. glad u enjoyed my work

Oh haha. Sry la last week i was real busy so didnt had the time to cont with my work. Anyway i'll be working on today and tonight i'll update ya. Thx for following

sry for the delay guys, wanted to update but then sadly my rivet gun spoilt on monday =.= then today i went to hardwareshop buy new 1
came back also cannot work. sian. so 2moro i have to change haha. i promise i'll update 2moro or day after aites. haha. so sry

Haha sry bro. Been really busy lately. And hit a few minor problems which i trying to solve la haha. And also been planning for another rig. I'll post that as well later. So sry ya. Thx for ur support XD
