OMG! i totally forgot this little sucker, the little part should be cut on my original plan.
I won't be able to cut it right now, the reason will be show in the photo later.




Thanks bro, hope the result won't dissappointed.



I got my parts back from powder coating factory, the result was so cool...
But bro owikh point out 1 important part that i should mob a little but i didn't.
I afraid if i cut it right now it will affect my powder coating on that part, so right now i shall remain like that.
Might cut the little sucker later, i'll see how this thing go.

Just took a few shoot on some powder coating result.





Test assembly, this is so cool with internal black... yet still long way to go.
I think all the TJ07 should be manufacture internal black by silverstone haha, what do you guys think.




Thanks for checking in.

I think I smell an epic rig is coming out from u.

wow..nice...how much for powder coat cost...?can give some hint..? ..looking frwd for more update..

Cut this piece then the casing not will shaking ? Because this is used to support the panel

there's still a portion of this piece supporting the panel to PCI hole.
so u can cut it partially just to allow that molex connector passing thru.

Thanks bro, the powder coat cost me RM150 for whole internal black.
If you in Kl area, Ronzmod should provide you better price on that.
the only problem is he too busy.

Bro owikh already answer ur question.
As i think there will be reduce some degree of rigidity (minor), but still within acceptable level.
It confirm workable and proof by our legend modder Mr. Ianho.

I'll test fit 1st then only decide whether to do a plastic surgery for that little sucker or not.

bro your inverted mobo plate who did for u..? very nice

before this i didn't know Ronmodz can fabricate, so i bought it from Chillpc UK.
Really cost me a bomb haha.




And the progress going on.
today gonna show you guys the radiator and fan that i'm using.
Its TFC480 and Scythe S-Flex 1600RPM.

Here you go:



Small box underneath hehe.



Fan wire going underneath with p-clip attach.



Black color fan molex.



Overall shot.




Test fit to check the space between bottom and mid plate of my tj07.
Exactly the height that i want.



On the othere side.



Thanks for checking in.....again.

TFC480 is a damn thick rad. push pull fan is highly recommended.
but for this setup to in order to close the side panel u need to push in the rad a lil bit towards the PSU. and this time u gonna need 2 slim fans to fit into the clearance between PSU and the rad.
inverted ATX, I'm sure u need to extend that casing cables as well as USB cables right coz the Q connector and USB connectors are at the top now. correct me
ehh that day I also forgot to paint the two vertical supporting metals at the back case.

ic..how much did u pay for it..? if u dont mind sharing.. and how are u planning to mount your rad at bottom case..? are those doublesided tape..?

how heavy for that TFC480 and Scythe S-Flex fan?
dont think so to double side tape that. must need other support material.
if that rad get fill up with coolant, lagi berat.

Yes TFC is a thick rad, but now doesn't have plan to use push pull configuration since its fpi doesn't as high as BI rad.
I'm not a hardcore OC'er, and i'm searching for balance between OC/temp/noice/performance/appearance.
I need some clearance between rad and psu for tube looping, it will more clear after i show you the picture......later(not so soon).
You are right, i need to extend the power switch cable and usb cable. Thats why until now i haven't sleeve the power switch cable.
Actually i purposely leave the 2 supporting frame like that just to creat some contrast effect. And most important its murdermod style ha.
Thanks for the suggestion.

For the price you can always check it on chilledpc's website.
Very eye sharp bro, yes i'm using doublesided tape upside down hehe.


Not so sure about the weight, but the 3M doublesided tape is quite strong.
Try shake a bit after i tape the rad, it remain steady.

This post has been edited by nej: Feb 20 2011, 10:58 PM

ic thanks bro.. cant wait to see u finish it. hahaha

looking good there bro ..

wish i got a case to stuff a 480 too

Not so soon, i'm still lack of 1 important item.
Will update when i have prpogress.

Thanks bro, you can always have a.....FEW case for 480 rad if you want to.

---

Added on February 23, 2011, 1:23 amHi all, no progress until now.
Received 1 parcel few days ago from far far away, haven't try all the stuff out there.
But decide to show you guys what's inside.



Well.... i guess all of you will know what's inside after i show you the 1st picture haha.
Here it is...

No! Its not sleeve inside, its some other things.

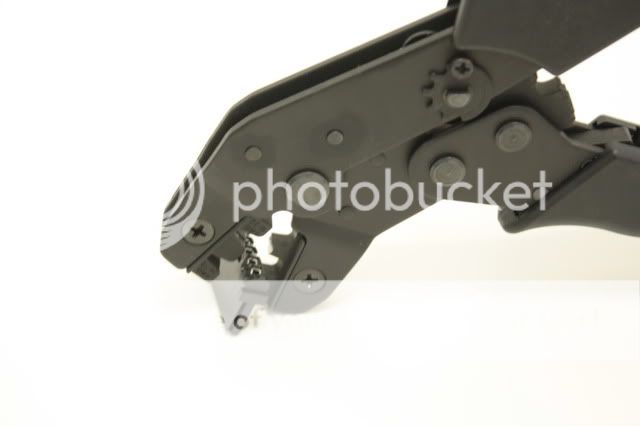

A crimping tool, i know it can be purchase locally.
Just cannot resist to spend money to Nils' MDPC-X when i saw the stuff.
Well, i guess i have to stop browsing MDPC website..... or maybe not too offen hehe.



Here is another shot of the crimping tool or can i call her a "T-Rex"?


Its pretty much a "T-Rex" right now.



The molex power connector.





And the crimp contact for fan.





The crimp contact for ATX and PCIE.





Try to fabricate some wire for cable management with all the stuff above.
A bit worry on that, because never done all this before.
It should take me a week or 2 to make some cable.
If the next update i'm showing other things than this, you know i'm fail haha.

Thanks for viewing.




This post has been edited by nej: Feb 23 2011, 01:23 AM

nice bro, i hope u can do a bulk so other can join to

aiya.. but nvm i will wait.. hehehe this is gonna awesome i guess

DHL snail took u 3 weeks to arrive. That's damn long.
Guys who wanna do bulk order for cable sleeve take note that it's a taxable item, 23% tax, unless if total value+shipping is less than RM500 then u will get away from tax. Just to share.

if the item is marked as 'gift' also wun get taxed right? i bought shoes from outside, the values itself already more than RM500.
