4G 3G WiFi Wireless Network Accessories

** Clear stock sale **

Products Listing:

Post No.#2 ~ RF Adapters / Converter
Post No.#3 ~ Coaxial Cables
Post No.#4 ~ Accessories
Post No.#5 ~ Antenna


Shipping info:
=========
Generally most stuffs shipping rate as below:
Poslaju RM7.50 peninsular, RM10 Sarawak, RM11 Sabah

COD: yes, available, but only at my preferred location.




This post has been edited by coolstore: Aug 7 2019, 03:09 PM

Post No.#2 - RF Adapters / Converter

================
A) Single piece Adapters
================

Item 1: SMA male to RP-SMA female
One side inner thread inner pin, one side outer thread inner pin
Applications: widely used adapters in RF field
price: RM5 each
ready stock: SOLD OUT





Item 2: SMA female to RP-SMA male
One side outer thread inner hole, one side inner thread inner hole
price: RM5 each
ready stock: SOLD OUT





Item 3: N male to RP-SMA female
One side N is inner thread inner pin, one side RP-SMA female is outer thread inner pin
price: RM7 each
ready stock: 3 units left





Item 4: N female to RP-SMA female
One side N is outer thread inner hole, one side RP-SMA female is outer thread inner pin
price: RM7 each
ready stock: 1 unit left





Item 5: N male to TNC male
One end is N male (inner thread inner pin), one end is TNC male (inner thread inner pin)
price: RM7
ready stock: 1 unit left (rarely available)





Item 6: TNC male to SMA female
One side TNC is inner thread inner pin, one side SMA female is outer thread inner hole
price: RM7 each
ready stock: 2 units left (rarely available)





Item 7: Tawian made WiFi-Link CRC9 to RP-SMA female
One side standard CRC9 pin, one side RP-SMA female is outer thread inner pin
price: RM10
ready stock: SOLD OUT







=====================
B) Adapters with short cable
=====================
Item 1: TS9 to RP-SMA female
One side TS9 standard inner pin, one side RP-SMA is outer thread inner pin
TS9 connector type (straight / L shape): L shape
Cable: RG174 flexible type, not rigid, 15cm
Applications: widely used by 3G, LTE modem to connect external antenna
price: RM5 each
ready stock: SOLD OUT






Item 2: CRC9 to RP-SMA female
One side CRC9 standard inner pin, one side RP-SMA is outer thread inner pin
CRC9 connector type (straight / L shape): straight
Cable: RG174 flexible type, not rigid, 15cm
Applications: widely used by 3G, LTE modem to connect external antenna
price: RM5 each
ready stock: SOLD OUT



This post has been edited by coolstore: Aug 7 2019, 02:49 PM

Post No.#3 - Coaxial Cables - 50ohm impedance


Item 1:
RG316 silver coated cable
=================
cable grade: ordinary grade
impedance: 50ohm
length: 1 meter
connectors: [one side] RP-SMA male (inner thread inner hole); [one side] no connector
price: RM10
ready stock: SOLD







Item 2:
RG58/u N male to N male
=================
cable grade: ordinary grade
attenuation (signal loss) @ 2.4GHz: ~0.77dbi per meter
* advise: to avoid 3db loss, advisable not exceed 3.5 meter
impedance: 50ohm
length: 1 meter
connectors: [one side] N male (inner thread inner pin); [one side] N male (inner thread inner pin)
price: RM20
ready stock: SOLD OUT






Item 3:
RG58/u N male to RP-SMA male
====================
cable grade: ordinary grade
attenuation (signal loss) @ 2.4GHz: ~0.77dbi per meter
* advise: to avoid 3db loss, advisable not exceed 3.5 meter
impedance: 50ohm
length: 1 meter
connectors: [one side] N male (inner thread inner pin); [one side] RP-SMA male (inner thread inner hole)
price: RM20
ready stock: SOLD OUT




This post has been edited by coolstore: Aug 7 2019, 02:54 PM

Post No.#4 ~ Accessories:

Item 1: Heatsink (large size) extracted from P1 modem
price: RM10
quantity: 1 unit only
condition: P1 modem is used unit, so consider this as used unit as well.

SOLD






Item 2: Flat type Cat 5e network cable - easy cable management
price: RM5
condition: new

SOLD





Item 3: TP-Link Nice purple color Cat 5e network cable
price: RM5
condition: new
origin: extracted from TP-Link router package
ready stock: 1 unit





Item 4: RJ11 phone cables x2 + lightning arrestor + ADSL streamyx splitter
phone cable product condition: new set
lightning arrestor & ADSL splitter product condition: used set
price: RM10 for all

SOLD






Item 5: NEC ADSL TM Streamyx splitter good quality (made in Malaysia)
~ Made by NEC Tokin Corporation
~ Made in Malaysia
~ Good quality splitter, no longer found in local network accessories shop as most stuffs selling today are made in china with cheaper cost lower quality.
~ 50 gram splitter, no cut cost.

Product condition: old stock, but first hand, not used/refurbished stuff.
Warranty: Nil. As no longer selling in market.
Price: RM5
ready stock: 1 unit

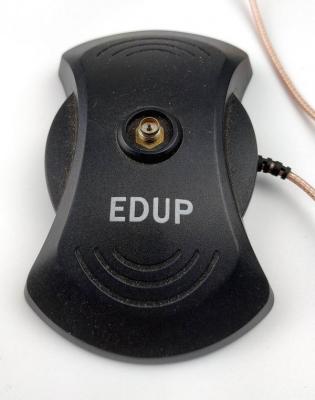

Item 6: EDUP Antenna cradle / base with extension coaxial cable
* added on 7/8/2019

Brand: EDUP
Usage: To relocate antenna distance position from wifi adapter/router/ap, 4g cpe, MiFi, etc to get better signal.
Connector on cradle: RP-SMA male port (inner pin outer thread)
Connector of cable: RP-SMA female port (inner hole inner thread)
Cable length: 1 meter to minimise signal loss.
Cable type: coaxial cable, 50ohm, RG316.
With magnetic base, can fix to window steel frame, etc.

Condition: demo unit.
Price: RM25
Ready stock: 1 unit only





This post has been edited by coolstore: Aug 7 2019, 03:52 PM

Post No.#5 - Antenna:


Item 1: Portable panel directional antenna for 2.3GHz band
~ Extracted from used P1 dv230 wimax modem
~ Directional antenna, panel category.
~ For 2.3GHz usage (2300MHz)
~ Stock: 1 set only
Price: RM10






Item 2: 3G 2.1GHz omni-directional antenna 9dbi RP-SMA
Frequency: 2.1 GHz (2100MHz0
Gain: 9dbi
Connector: RP-SMA female (inner hole inner thread)
Category: Omni-directional antenna
Physical: rubber duck dipole antenna to put indoor. Length around 39cm.
Usage: Receiving or Transmitting signal
Stock: 1 unit left
Price: RM20

* This antenna to boost 2.1GHz (2100MHz) band usage, regardless what kind of wireless technology. But since Malaysia runs 3G services under 2.1GHz band, so this antenna for local 3G usage.

** 9dbi omni-antenna is meant for broader and further HORIZONTAL scope of receiving or tranmitting signal compare to lower dbi omni-directional antenna such as 5dbi.

*** loose pack, would ship in packaging of hard backdrop added with front hard plastic protector to secure shipment.







Item 3: 3G 2.1GHz omni-directional antenna 5dbi RP-SMA
Frequency: 2.1 GHz (2100MHz0
Gain: 5dbi
Connector: RP-SMA male (inner pin inner thread)
Category: Omni-directional antenna
Physical: rubber duck dipole antenna to put indoor. Length around 20cm.
Usage: Receiving or Transmitting signal
Stock: 1 unit left
Price: RM10

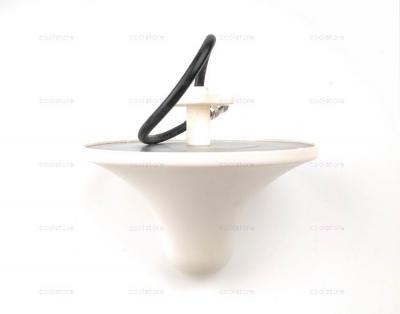

Item 4: Ceiling mount omni-directional antenna
*added on 7/8/2019

Specification:
========
Frequency bands: 806-960MHz / 1710-2500MHz
(support Malaysia 2G, 3G, 4G LTE (LTE1800 band and mobile unifi 850 band), Wifi 2400MHz

Coaxial cable: SYV 50-5 (thicker than 50-3)
Connector: N type, female
Usage: Indoor antenna. Ideal for broadcasting signal within repeater/signal booster solution.
Mounting: ceiling mounting.
(If ceiling mounting not possible, there is wall mounting option by applying wall mounting bracket at a cost)

Quality?
Dare open up cover casing let you view internal component = the antenna core ~ METAL CORE.
(external plastic casing is just a protective cover, the actual component of antenna that responsible for receiving / broadcasting signal is the Antenna CORE inside. Poor quality of antenna core render poor result or short durability, example: using plastic board with laminated aluminium foil on it.)

Condition: This is inventory display stock, surface may not looks great, but is NOT USED STOCK.
Stock: 1 unit available
Price: RM40








This post has been edited by coolstore: Aug 7 2019, 06:13 PM

[reserved]

This post has been edited by coolstore: Sep 7 2016, 10:32 PM

interested on RP-TNC to RP-SMA converters, pm me total cost together with
Antenna coaxial cable RG58/u 3 meter, plus pos laju

interested on RP-TNC to RP-SMA converters. SmS me 019-339 3468

ok

interested to buy 3 meters cable of N Male to RP-SMA to connect outdoor anteena to router. if available please let me know ASAP. thanks

yes, pm replied. but also take note of longer cable more signal loss. if neccesarilly, then had to compromise loh.



This post has been edited by coolstore: Jan 13 2011, 12:28 PM

notes:

rg58 50-3 cable type 3 meter: got 1 cable last. (after this, i shall be no getting any NORMAL GRADE extension cable any more, as more & more users finally realise the best result is shortest cable possible to minimise signal / dbi loss unless willing to pay premium to get best grade cable ...)

rg316 50-1.5 cable type 1 meter: got 1 cable too.

This post has been edited by coolstore: Jan 14 2011, 12:56 PM

how much the LLC400 3M cable?

my mistake, LLC400 is available in 10 meter & 20 meter only. (i corrected the spec now)

for 3 /5/ 7meter, LLC200 is available.

do u have RP-SMA to N male cable? the shortest possible. less than 1 meter is ok. pls quote me the price.

yes, i do. it is pleased to see users understanding shortest cable to avoid wifi signal loss.
details in pm.

This post has been edited by coolstore: Jan 17 2011, 01:13 PM

price for LLC400 10M in length?

Replied details through PM, thankyou.

can u suggest to me which booster appropriate to use at outdoor environment. And also, how much dBi in Yagi antenna needed to spread wifi from 3 storey terrace to 3 condominium condos?
the distance between the terrace and nearest condo is about 160m.
Or should I use other type of antenna?

This post has been edited by faxxli: Jan 25 2011, 01:22 AM

your scenario - distance is not a matter, but better PM me in details the environment condition, especially how say deliver wifi to 3 condomimium condo?

outdoor signal booster is very very expensive yo. need to have sufficient budget for that. i assume u r doing private hotspot to cover that 3 condo to earn hotspot income $$??
