 Fiio E9 + E7 - Review, Updated with pictures

views

TSxiang49
post Nov 2 2010, 02:15 PM, updated 16y ago

Getting Started
**
Junior Member
118 posts

Joined: Oct 2005


So this is it, after weeks of waiting, the Fiio E9 has finally landed on my desktop.

1st impression? Solid built. Nice metallic surface with no sharp edges on the side, something u don't expect from the Mainland manufacturer. But hack, who cares about the cosmetic, we are after all, an audiophile, not art collector.

Ok, let's start with the bad. The bass boost function is practically gone once you mount E7 on E9. Yes, you can still use the bass boost, but not when you mount it on E9 (ie: use E7 as DAC and connect to E9 via 3.5mm cable). But why must I go through the additional step?? E7 as pre-amp and E9 and power amp is, in my own opinion, the best concept Fiio has ever came up with. The lack of bass boost has spoil the otherwise perfect combination. On a side note, I've tried the 3.5mm connection method and notice no loss of SQ comparing to the docked E7, but it is eating too much of my desktop space.

Bass: Sigh. To be honest, bass is the least noticeable enhancement that E9 has to offer. Maybe it's due to the lack of E7's bass boost function. Anyway E9's bass is on par with E7's at SQ0 level, most likely because of DAC work is handled by E7 anyway.

Mid/High: Here's where E9 shines. E7 alone is already a great DAC that's capable of bring out the musicality from the tunes. Hence, by docking it to E9, the signal will then skips the rather puny amp in E7 and get power up in E9. By the way of description, one can easily imagine E9 (with E7 docking) is like E7 after steroid, metaphor. The additional hint of added warmth is what I like most about the E7 + E9 combo. All in all, the mids are very clean and pleasant and the highs are detailed and not over analyzed.

Ok, above is my 1st 30 mins of review on E9. It's a shame that I only have a pair of MS1i to test with, I heard this baby has enough juice to power up HD650. Any proud owner of HD650 is willing to loan me their baby for testing? brows.gif brows.gif

Lastly, some FAQ for you audiophiles.

1. Q: Where did you buy it (E9 stand alone) and how much it cost?
A: MP4 Nation, USD115.07 (after USD6.06 discount for early birds)

2. Q: Warranty?
A: refer here --> Warranty

3. Q: How long was the shipping time?
A: Oh man, I waited 1 damn month for this!! After payment, I had to wait for MP4 nation to process the order (1 day), send it to HK post office (2 days), wait for HK post office to process the mailing (another 1 week), finally send it for shipping (1 week) and reach my doorstep (2 weeks). But credits must be given to Mp4 nation in replying my queries, mostly pertaining to the delivery status. That's the thing, once the item is sent for post, it's basically out of their control and you're left with "good luck to yourself". But they do provide mail tracking service, making their delivery safer than normal post.

4. Q: Is it worth buying if you don't have a E7?
A: That really depends. I can certainly say it's worth if you have a E7, because it'll just power up the E7 and make it a beasty desktop amp. The beauty of this deal is E7 for DAC-ing and E9 for amping. Unless you have a good sound card or some kind of pre-amp devices, otherwise E9 is just another power amp.

5. Q: Any comparisons with other similar setup?
A: Nope. This audiophile thingy is my most recent developed dark hobby (Damn you lowyat.net and Jaben!). Other than E7, I have a PA2v2 portable amp which is not from the same league. Of cos my E9 is always available for audiophile gathering, provided I have time to attend. My job has cost me my social life. cry.gif cry.gif cry.gif

Oh ya, I think this setup is most suitable for desktop/laptop user.

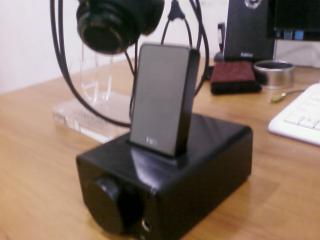

Some pictures taken from my mediocre handphone.

Attached Image
Attached Image
Attached Image
Attached Image
Attached Image
Attached Image
Attached Image
Attached Image
Attached Image
Attached Image
Attached Image
Attached Image





This post has been edited by xiang49: Dec 9 2010, 10:19 PM
antonio
post Nov 2 2010, 02:17 PM

AMD Phenom II & Intel i7 Overclocker
Group Icon
VIP
4,032 posts

Joined: Jan 2003
From: MSR Headquaters
launch already meh the E9???

why you put E7 on the topic??
ssyycc
post Nov 2 2010, 02:18 PM

Mr.
*****
Senior Member
920 posts

Joined: May 2008
From: Kuala Lumpur



Yeah loh strange topic. But nice E9, is it really launched?
TSxiang49
post Nov 2 2010, 02:20 PM

Getting Started
**
Junior Member
118 posts

Joined: Oct 2005


wah damn fast rite you! topic changed to Fiio E9.

Apparently available for pre-order, according to this site.

Micca

so, planning to get 1? brows.gif brows.gif
CoolBoy89
post Nov 2 2010, 03:23 PM

Hear No Evil.
******
Senior Member
1,801 posts

Joined: Sep 2010
Nice one. But I thought there's already a thread for Fiio Amp? biggrin.gif
E1 - AKG
post Nov 2 2010, 04:10 PM

Your personal audio store!
*******
Senior Member
6,439 posts

Joined: Aug 2009
From: Kuala Lumpur


d e9 is available 4 pre-order (dec delivery) now ...
alankhoo
post Nov 2 2010, 04:19 PM

Getting Started
**
Junior Member
252 posts

Joined: Feb 2006


Price of the Fiio E9?
KenDiriwan
post Nov 2 2010, 05:56 PM


*******
Senior Member
2,277 posts

Joined: Sep 2007
From: It's a tarp


Looks sexy, waits for review !
DarthMaus
post Nov 2 2010, 06:33 PM

Now u see me... now u don't... really...
******
Senior Member
1,238 posts

Joined: Feb 2009
From: JB


very very pretty smile.gif
CoolBoy89
post Nov 2 2010, 06:46 PM

Hear No Evil.
******
Senior Member
1,801 posts

Joined: Sep 2010
QUOTE(E1 - AKG @ Nov 2 2010, 04:10 PM)
d e9 is available 4 pre-order (dec delivery) now ...
*
Wonder how much will it cost? hmm.gif
antonio
post Nov 2 2010, 07:29 PM

AMD Phenom II & Intel i7 Overclocker
Group Icon
VIP
4,032 posts

Joined: Jan 2003
From: MSR Headquaters
I'm confused...does it have a DAC or not?? huh.gif
E1 - AKG
post Nov 2 2010, 07:45 PM

Your personal audio store!
*******
Senior Member
6,439 posts

Joined: Aug 2009
From: Kuala Lumpur


QUOTE(antonio @ Nov 2 2010, 07:29 PM)
I'm confused...does it have a DAC or not?? huh.gif
*
nope ... its purely an amp wif d option 2 dock d e7 usb/dac ...
antonio
post Nov 2 2010, 10:24 PM

AMD Phenom II & Intel i7 Overclocker
Group Icon
VIP
4,032 posts

Joined: Jan 2003
From: MSR Headquaters
QUOTE(E1 - AKG @ Nov 2 2010, 07:45 PM)
nope ... its purely an amp wif d option 2 dock d e7 usb/dac ...
*
Owh..no wonder it can dock an E7 then...I was thinking it has a DAC function also which makes me wonder, why on earth do Fiio made a decision like this tongue.gif

A Fiio desktop amp??? Certainly interesting brows.gif
E1 - AKG
post Nov 2 2010, 10:35 PM

Your personal audio store!
*******
Senior Member
6,439 posts

Joined: Aug 2009
From: Kuala Lumpur


QUOTE(antonio @ Nov 2 2010, 10:24 PM)
Owh..no wonder it can dock an E7 then...I was thinking it has a DAC function also which makes me wonder, why on earth do Fiio made a decision like this tongue.gif

A Fiio desktop amp??? Certainly interesting  brows.gif
*
thrs an optional ipod / iphone dock base in xchg wif d e7 dock ...
silver69
post Nov 2 2010, 11:26 PM

Getting Started
**
Junior Member
154 posts

Joined: Jul 2009
From: Ipoh


tis thread was seen last two/three month ago in head-fi,last time i remember e9 will oni dock the e7,and if anyone using ipod,they nid L1 for tat......correct me if i was wrong
E1 - AKG
post Nov 2 2010, 11:58 PM

Your personal audio store!
*******
Senior Member
6,439 posts

Joined: Aug 2009
From: Kuala Lumpur


QUOTE(silver69 @ Nov 2 2010, 11:26 PM)
tis thread was seen last two/three month ago in head-fi,last time i remember e9 will oni dock the e7,and if anyone using ipod,they nid L1 for tat......correct me if i was wrong
*
1st, d lod fr fiio 4 ipod / iphone is d l3 ... e9 onli started shippg last mth 2 selected mkts onli, thrs now d option of dockg 4 ipod / iphone ...


Hitman66
post Nov 3 2010, 05:51 AM

Wow COD clone f**k blizzard
*****
Senior Member
707 posts

Joined: Nov 2004
Found it in head-fi blush.gif





This post has been edited by Hitman66: Nov 3 2010, 05:55 AM
antonio
post Nov 3 2010, 10:13 PM

AMD Phenom II & Intel i7 Overclocker
Group Icon
VIP
4,032 posts

Joined: Jan 2003
From: MSR Headquaters
QUOTE(Hitman66 @ Nov 3 2010, 05:51 AM)
Found it in head-fi blush.gif




*
the second vid I watched before, the 1st not yet...thanks rclxms.gif thumbup.gif

Still waiting for the complete specs to surface... rolleyes.gif

Hitman66
post Nov 4 2010, 06:43 AM

Wow COD clone f**k blizzard
*****
Senior Member
707 posts

Joined: Nov 2004
This probably will give you more then enough thumbup.gif

user posted image


QUOTE

From panel:

1. 6.5mm headphone output socket: connect to big headphone , like hd600, akg k701/702, dt880/dt990 ....

2. 3.5mm earphone output socket: connect to IEM and other earphone, the output is smaller than the 6.5mm , because we put a 33ohm resistor between the 6.5mm socket and the 3.5mm socket! in case the high output damage the small earphone!

Back panel:

1. RCA output socket : the line out from E7 will be amplified by OPA2134 to standard 2V rms line out signal. the output level is constant!

2. 3.5mm output socket: the line out from E7 is send to the volume control and them amplified by another OPA2134, so the output level is adjustable, it is designed to connect to some pure amplifier which have not volume control, in this case, the E9 can work as a pre amplifer!


This post has been edited by Hitman66: Nov 4 2010, 06:45 AM
egyprince
post Nov 4 2010, 07:12 AM

On my way.....getting stronger each day
******
Senior Member
1,277 posts

Joined: Sep 2010


So is this E9 like a upgraded version of E7?
