 AMD Radeon™ Discussion V4, Cut Cut Cut!~ Go Red !

views

Revamperz
post Dec 3 2010, 08:24 PM

im freaking IN! ™
*******
Senior Member
5,164 posts

Joined: Jan 2003


guys. a lil help please

currently having nighmare installing spahire 6850 toxic. after installing bundle driver me system going haywire n keep bod after restart

manage to clear everything now n also throw the saphire cd at longkang. now at amd official site n it sez newest 10.10 not supporting 68xx!? wth!
so what driver should i use? im downloading 10.10e but want to make sure with u all here bfore installing it sweat.gif
Revamperz
post Dec 3 2010, 08:46 PM

im freaking IN! ™
*******
Senior Member
5,164 posts

Joined: Jan 2003


QUOTE(TDUEnthusiast @ Dec 3 2010, 08:36 PM)
10.10e should be right hmm.gif.
*
install this one n only good for few minutes before bsod. omg this turnout to be total nightmare! doh.gif

the bluescreen shows atikmpag.sys error

any ideas?
Revamperz
post Dec 3 2010, 09:28 PM

im freaking IN! ™
*******
Senior Member
5,164 posts

Joined: Jan 2003


any 6850 owner in here? what driver do u use

am i bought a beautiful lemon? cry.gif
Revamperz
post Dec 3 2010, 10:26 PM

im freaking IN! ™
*******
Senior Member
5,164 posts

Joined: Jan 2003


QUOTE(don^don @ Dec 3 2010, 10:15 PM)
what's wrong? the latest driver in amd's site already support hd6800 cards. hmm.gif
*
ive try the latest, the old bundle in cd n 10.10e

all of em make me pc bsod. its a spanking new saphire 6850 toxic ed.
Revamperz
post Dec 3 2010, 10:47 PM

im freaking IN! ™
*******
Senior Member
5,164 posts

Joined: Jan 2003


QUOTE(xen0 @ Dec 3 2010, 10:25 PM)
its recommended to use cat 10.10e
*
tried this one too both full n driver only

still bsoding after restart! i think im giving up.. been trying since i bought it around 4 pm until now. mobo tweaking , casing cleaning, ram swapping , forum lurking n yea drivers jugling! i ran out of solutions edy repacking everything n going to return it. no mode to try at my other pc edy. so sad.

» Click to show Spoiler - click again to hide... «


Revamperz
post Dec 3 2010, 11:48 PM

im freaking IN! ™
*******
Senior Member
5,164 posts

Joined: Jan 2003


QUOTE(Kaellis @ Dec 3 2010, 11:21 PM)
try von modded driver

im using it so far no bsod

never notice gpu core didnt go to lower clock when idle hmm.gif

gonna wait 10.12, this driver didnt give me problem currently
*
do u own a 6850 too?

downloading this right now but im not holding my breath sad.gif
Revamperz
post Dec 4 2010, 12:10 AM

im freaking IN! ™
*******
Senior Member
5,164 posts

Joined: Jan 2003


QUOTE(xen0 @ Dec 4 2010, 12:04 AM)
maybe not enough power..psu?
*
R8 800w

it sez min 500w so i dunt think so
Revamperz
post Dec 4 2010, 12:33 AM

im freaking IN! ™
*******
Senior Member
5,164 posts

Joined: Jan 2003


QUOTE(Kaellis @ Dec 4 2010, 12:15 AM)
your card not overheat or anything?

try reference setting from amd
*
i wouldnt know bought it 4pm today n until now keep bsoding on me

watching me pc restart on von moded driver now ph34r.gif


Added on December 4, 2010, 12:39 amand it still hang on von modded driver. sigh. thats it. repacking n f*** the 8800gt back on me pc pcie slot. waste me time n money lah.

4 drivers tested all hang. conclution? f*** up card i got doh.gif hope can 1to1 coz this is like doa already.

This post has been edited by Revamperz: Dec 4 2010, 12:39 AM
Revamperz
post Dec 4 2010, 12:51 PM

im freaking IN! ™
*******
Senior Member
5,164 posts

Joined: Jan 2003


thank fo ya all feedback manage to return the card today for 1to1. but not the same i change to asus 6850 direct cu

heading home now. wish me luck!
Revamperz
post Dec 4 2010, 03:43 PM

im freaking IN! ™
*******
Senior Member
5,164 posts

Joined: Jan 2003


QUOTE(Kaellis @ Dec 4 2010, 01:57 PM)
seems really low, you in air con room?
mine
user posted image
*
may i know why ure selling asus 6850 dcu? sweat.gif

finaalyy got free time time to pasang me .. er .. also asus 6850 dcu sweat.gif
Revamperz
post Dec 4 2010, 08:31 PM

im freaking IN! ™
*******
Senior Member
5,164 posts

Joined: Jan 2003


QUOTE(TDUEnthusiast @ Dec 4 2010, 04:10 PM)
Working fine? hmm.gif.
*
in a short. No. It didnt work. Already spend 5 hours tweaking it. de ja vu? lol
I am now more baffled then before. My rig ran both 8800gt n 240 flawlesly BUT bsod on 2 6850s from asus n saphire.

i went back n ran both card on the shop pc. both ran ever so smoothly!! i was like wtf!?

btw guys what is the best deal. i think imma going to built a spanking new rig

5850 rm700
saph toxic 6850 rm655
assus dcu 6850 rm700

within few days i get to change the card. lol


Revamperz
post Dec 4 2010, 08:56 PM

im freaking IN! ™
*******
Senior Member
5,164 posts

Joined: Jan 2003


QUOTE(TDUEnthusiast @ Dec 4 2010, 08:32 PM)
hmm.gif. You have the HD6870 which is at RM749, just RM49 more expensive than the ASUS DirectCU HD6850 smile.gif
*
eh!? how do u know that? icon_idea.gif
Revamperz
post Dec 4 2010, 09:13 PM

im freaking IN! ™
*******
Senior Member
5,164 posts

Joined: Jan 2003


QUOTE(Kaellis @ Dec 4 2010, 09:05 PM)
psu culprit maybe fpr bsod?

make sure u have enough room for 6870 before u purchase

get myself 6850 and just enough too fit in this asus

recommend get gc from rockrock, he have the best deal in lyn
*
my acbel r8 handle 8800gt sli flawlessly before so i dont think psu is the culprit unless a 6850 suck more power then 8800gt sli? unsure.gif

i think it got do with my intel mobo , haih also not sure. but i updated mobo bios already too

ram 100% prob free as previous 8800gt n just tried 450 ran flawless ( finished 2 mission of starcraft ii laugh.gif )

weird isnt it? rolleyes.gif maybe my rig a pro nvidia haha


Added on December 4, 2010, 9:15 pm
QUOTE(freeman85 @ Dec 4 2010, 09:08 PM)
@Revamperz
possible formatting the pc ?
incase some leftover causing bsod
*
already did smile.gif

This post has been edited by Revamperz: Dec 4 2010, 09:15 PM
Revamperz
post Dec 4 2010, 09:58 PM

im freaking IN! ™
*******
Senior Member
5,164 posts

Joined: Jan 2003


QUOTE(freeman85 @ Dec 4 2010, 09:42 PM)

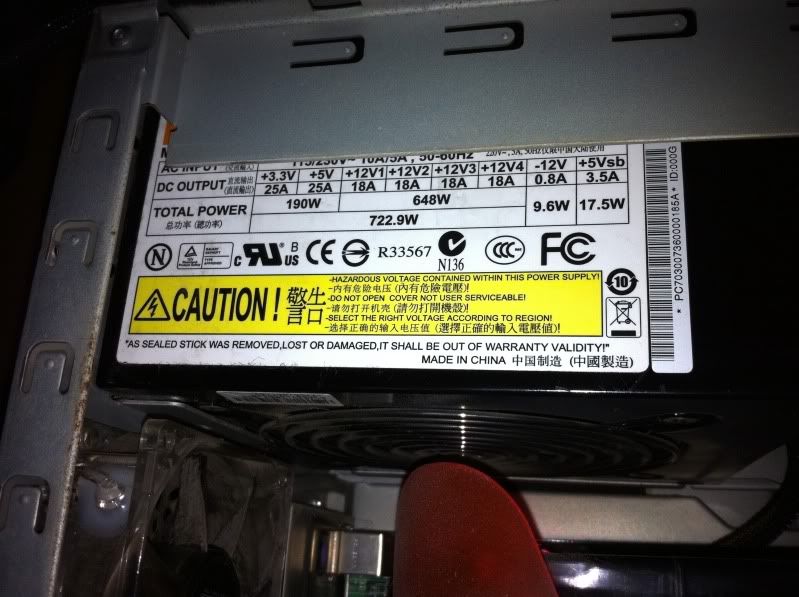

maybe it need different kind of psu 12v rail
what your psu 12v rail ?
*
how to check that sweat.gif

will this help?

user posted image

Revamperz
post Dec 4 2010, 10:40 PM

im freaking IN! ™
*******
Senior Member
5,164 posts

Joined: Jan 2003


QUOTE(TDUEnthusiast @ Dec 4 2010, 10:03 PM)
Wow. Rusty and dust casing you have there hmm.gif.

How old is the power supply? The 12V rails should provide enough power even for two HD6850s. There's a possibility though, where the power supply can no longer work properly. Have you tried testing the whole system with a different power supply?
*
no i got no other working psu n the psu is 3 years edy. btw psu now is on me old system now sweat.gif gonna test the psu on a whole other rig


QUOTE(freeman85 @ Dec 4 2010, 10:06 PM)
also check this thread discussing the hd6850 rails requirement
http://hardforum.com/showthread.php?t=1560740

my silverstone st560 can provide enough juice for 6850+3 hdd+dvd rom+ i7 920 +sound card +7 fans
iirc it all about good rails when it gfx smile.gif

also..my friend told me that if it got lot of 12v rails..that extra rails power will be given exclusively  to the another pcie connector
so that mean u already lost 18 A on another rails  hmm.gif
i'm not sure if it true or not maybe some guru here can provide some insight to this

also i can confirm that ss 400watt with dual 12v rails..18a each can run hd6850 + e5200+ 2 hdd + dvd rom
(my neighbours run this setup)
*
so in other word my old r8 is no go?

wah dont tell me a working psu doesnt mean its "working" properly sweat.gif

any way to check it?
Revamperz
post Dec 4 2010, 11:00 PM

im freaking IN! ™
*******
Senior Member
5,164 posts

Joined: Jan 2003


QUOTE(freeman85 @ Dec 4 2010, 10:48 PM)
can give your full spec..
or did i miss it in this thread
*
no prob

cpu : q6660
psu: r8 800w
ram : 2gb (got another 2gb)
hdd :1x 1tb
mobo : intel dp43tf

step taken
- tried 10.10 n 10.10e drivers
- ram swap
- format pc on another hdd

cards tested
Asus 6850 direct cu oc - bsod
Saphire 6850 toxic oc - bsod
8800gt - a ok
450 - a ok

This post has been edited by Revamperz: Dec 4 2010, 11:08 PM
Revamperz
post Dec 4 2010, 11:13 PM

im freaking IN! ™
*******
Senior Member
5,164 posts

Joined: Jan 2003


QUOTE(TDUEnthusiast @ Dec 4 2010, 11:06 PM)
hmm.gif. Just get another power supply for now to test. A 450W power supply should be sufficient ( 450W as its true power, not the powerlogic power supplies where it states 450W but in reality only produces 230W of power ).
*
i will try to get one tomorow

QUOTE(freeman85 @ Dec 4 2010, 11:07 PM)
i believe that your psu is ok for what u have
but it depends on the power available on the 12v rails and which ones power the CPU and gfx.
did u try second pcie connector ?
or if u have ..molex to pcie connector to try it smile.gif
*
ehhh!? using the molex to pcie i havent try bcoz its a no brainer as my psu got dedicated 6pin

i will try it nao!

QUOTE(Kaellis @ Dec 4 2010, 11:07 PM)
somehow i suspect that intel motherboard is the culprit hmm.gif

if it can support 8800gt sli, it should be fine supporting single card
*
the intel mobo now is not a sli mobo sweat.gif the sli era was ended ages ago when my sli mobo i think asus, went kaput n i sold the other 8800gt
Revamperz
post Dec 4 2010, 11:27 PM

im freaking IN! ™
*******
Senior Member
5,164 posts

Joined: Jan 2003


QUOTE(freeman85 @ Dec 4 2010, 11:16 PM)
8800GT have a TDP of around 105w (on the nets)
hd 6850 got around 121 watts based on guru3d power consumption
so it is higher than previous

105/12=8.75A
121/12=10.08A

2 Amps more than before
*
so if sli mean times 2 rite? i ran sli before
Revamperz
post Dec 4 2010, 11:34 PM

im freaking IN! ™
*******
Senior Member
5,164 posts

Joined: Jan 2003


QUOTE(freeman85 @ Dec 4 2010, 11:30 PM)
yea but sli power will pull from second pcie connector which probably from another rails...i guess  no problem
but single high amps gfx probably going to have problem.
either u tried hd6870 just to check your mobo not bias to nvidia and it got no compatibilty problem with hd6800 series
*
owh so its difrent rails on difrent "cable" eh?

n yea the molex method ( whoa sweet underground band name alert lol ) dont work. still bsod on the very boot up. i got no such luck sigh
Revamperz
post Dec 4 2010, 11:40 PM

im freaking IN! ™
*******
Senior Member
5,164 posts

Joined: Jan 2003


QUOTE(freeman85 @ Dec 4 2010, 11:35 PM)
oo..yea maybe different rails on different cable
that molex thing dont work....i'm start running out of idea..
possible irq management problem ?
*
irq management?
please enlightent me! haha
