not stable or not able to boot into windows?

post some CPU tweaker SS.. and play alot with vdimm..some chip wont clock well with high vdimm..some just need ngam2 vdimm..

guys.. u got any rams to lend or sell? prefer value rams.. kekeke..

u tried with lower vdimm? since asus have quite a fine vdimm increment, u can try
i have weird exp last time.. where my vdimm need the exact amount..( my exp might not even occur to u..but no harm trying)

eg :
1.4XX instant fail
1.52XX stable 30mins only
1.54XXv stable 1hr
1.56XXv stable 30mins only
1.65v instant fail

above is example.. same setting different vdimm only

same goes to the NB-vid.. but not as strict as vdimm.. if disable/auto the load line calibration, the interval of stable volt is getting bigger but need more vIMC lah..

@skyll
i assume u using deneb..
with that vcore and 4cores enable, u might end up killing ur mobo..
try touch the mosfets when stressing, if hot, u should cool them down..

if i were u, i will tune down to around 3.7ghz so that the vcore can stay <1.4v

not to refrain u from OC..but if u value ur mobo, u should not go to that point.. if u want to burn ur mobo, u can go ahead..just put fans direct blow ur mosfets then..

---

Added on October 11, 2010, 10:39 pmfree show.. kekeke

u dont have prob to fit in verdict...xixo (and me perhaps) might face some "space" issue..kekeke

This post has been edited by kuntawakaw: Oct 11 2010, 10:39 PM

small update..

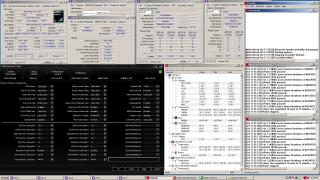

abit better.. will burn to high clock loose timings later..doing slowly

vdimm is 1.50v as stated in HW monitor VIN1

oit.. that is against my personal policy..
i never used high end HW unker..kekeke..

just noticed last night, the trfc is 160ns..that is y can go abit higher with better volt compared to the evo.
at 1st i was this mobo not bad also..
but not much time to play.. so tonight will go highest clock possible ( no slow burn in for me this time)

---

Added on October 12, 2010, 2:27 pmi think u prime 2hrs will kill ur mobo faster compared to 2months 24/7 with that setting..
prime95 is no benchmark (got benchmark tool in p95, but not stress testing)
that is stress stability tool..

put some ramsink and put on top of the mosfets.. and directly blow the sinks.. that is the best to preserve ur mobo.. the for 4ghz, maybe thats the wall edi with ur current setup (mobo, proc, cooling)

same with ppl here.. i think non will make the OC stays 24/7..kekeke

This post has been edited by kuntawakaw: Oct 12 2010, 02:27 PM

sure can..why cannot..but depends on ram also..
just lower down the divider if ur ram cant do that..

how about disable channel interleaving.. and loosen the row to precharge to atleast 7... and CMD drive strength to 2x (but not advisable with high vdimm.. )

mind to post cpu tweaker or AOD mem tab?

those are what i read..i also never try those tweak..so im not that "class"..kekeke

better watch out with ur vcore sir..
last time i only unlock 3cores of 555BE.. and the vcore stays below 1.4v.. but once i touch the mosfets while priming, i decided not to prime anymore (eventho before that i prime several time)
i donno how high the mosfets able to withstand heat, but at that time, it was very hot ( i confirmed it several times).. i donno its me or the mobo..but the mobo is exactly as ur's..

and ur KVR is what chip eh?

This post has been edited by kuntawakaw: Oct 13 2010, 02:54 PM

cpu llc very good id say.. compared to other mobo that dont have it

but for cpu-nb..abit tricky.. it can be better or worse.. kekeke

i wonder why alot of ppl using this mobo eh? m4a77td? is this because of the HW Q&A crap recommendation?

This post has been edited by kuntawakaw: Oct 13 2010, 04:19 PM

have u tried touching the mosfets?

@XiuKeong
now its ur turn.. go buy now.. i recommend 1090t..it will suits u well..kekeke

if u buy 1090t, u must pair it with a great mobo..so id say not worth it if u seek for performance..
if u seek for fun, and ure an AMD fanboy, it worth it.. great IMC clock it can do

kkekeke.. no offense bro..
that mobo ok actually for normal use..
i think very few of them actually using the HW they recommending.. sometimes wrong fact also.. that is why i called crap..kekeke
not all..but few..

i dont think MSI have mid line product that have solid volt regulator..
even the GX i consider near-high edi since the price comes not to my liking
( plus i dont like the AMI award-like bios...these reasons refrain me from taking MSI board even i have less exp with em)

u got points there with the HTT.. agree.
but ppl that own a 1090t usually have loads of money that they willing to spend rm300+ for just BE. so they usually aiming for a high end mobo possible..kekeke

i really miss biostar.. which shop bringin em eh? FXE no where to be found.. GX where can i find and what price range eh? browsing GS yield nothing

This post has been edited by kuntawakaw: Oct 14 2010, 12:20 AM

too bad will not be in msia..



ahh..both wall at 1660mhz
have to ditch the target 1700mhz

@verdict
u fall in love with MSI edi?
msi quite late in releasing their 8series.. clear old stock i suppose..
u have any MSI board for me to test? i dont play much with them la



This post has been edited by kuntawakaw: Oct 14 2010, 09:00 PM

cant understand fully.. u want to change ur thuban to bulldozer eh?kekek
if want quick solution..just get a 1090t tho..

the old 790fx indeed legendary..
but i read less about 800series msi..
mind to loan 1 week to me? i can loan to u my mobo if u want to even lowly G54 i also dont mind

@cloudwan
gee..
if send to me..it be back as a very good p4 mobo
