after doing some research and got adviced by my mech, i decided to go from modifying my iswara stock 4g13(to 4g16 by using 4g16 stroker kit) to have engine transplant... as i cant get any suitable engine at my place (my aim is get a 4g91 or 4g92 or 4g92 mivec), at last i go for 4g93t gsr engine (the only halfcut i can get after searching for 1 month... haiz)
i dont want to hear any commen that 4g93T is not suitable for iswara because I HAD DECIDED TO GO WITH IT!!! i just want to know what to do do make iswara so that it can withstand the power of the engine...
for what i had done:
1. taking out stock 4g13
2. disassemble the 4g93T GSR halfcut
3. put 4g93T into iswara engine bay to design for custom made engine mounting... (not relocate engine mounting but is costom made mounting which connect the engine to the chassis)
4. disassemble the whole 4g93T to do overhauling n cleaning (almost die cleaning all pistons with petrol)
what i will do onto the 4g93T...
1.port n polish cylinder head

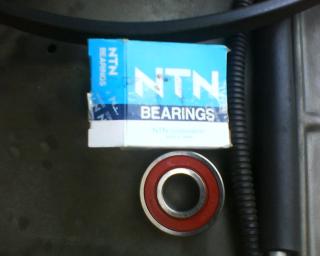

2.install racing bearings (king bearings)
3.upgrade turbo to td05 16g (coz want to be street drived)
4.upgrade injector to 650CC each
5.use microtech
6.use custom turbo manifold with wastegate
7.use profect b boost controller
8.use big intercooler (bigger than GSR, evo3)
as the gsr halfcut comes with automatic transmission and i haven't found suitable lsd gearbox so i will use back stock gearbox 1st...
i will put on all ultra racing bars if needed after engine installation... i just want any advice if i just had to put necessary bars or i had to put all bars... got someone advice me if i put all bars some parts of the chassis will torn easily... is that true???
i know that for fwd car with big hp engine, when turbo kick in the front wheels will lose traction (except if use semi xxx i 4get already tyres)... i m using 16inch rims with 205/45/r16 tyres n how about if i use bigger tyres??? like 205(215)/50/r16??? i have another set of 2nd hand japan enkei rims, front 205/50/r16 back 225/50/r16... haven't tried on my car... if the tyres was too big and will knock onto mudguard then i will do a little bit wide body... hehe...
below is some of the process picture... (lasy to post all pictures... about 100++)

my car stock 4g13 engine

4g93t in halfcut

AT taking apart from engine

4g93t with 4g13 transmission

smaller housing... haiz...

4g93t put into engine bay 1st for disigning custom made engine mounting

engine disassembly

head with cams

engine disassembly in process

valves
ur sifu catacomb installed all the bars d but so far dint heard him crack his chasis
