AMD 64/SEMPRON ---- OC DATABASE, Ocing results..OC problem?ask here..

views

dinster	May 18 2005, 11:58 PM Return to original view \| Post #1
..................... Senior Member 1,115 posts Joined: Jan 2003 From: Klang / Shah Alam	guys, anyone here using this mobo ? DFI NF4 DAGF selling at ATE for RM 420 great for those who cant afford DFI NF4 ULTRA-D the max vdimm is 3.2V This post has been edited by dinster: May 18 2005, 11:58 PM
Card PM	Report Top Like Quote Reply

dinster	May 19 2005, 12:36 AM Return to original view \| Post #2
..................... Senior Member 1,115 posts Joined: Jan 2003 From: Klang / Shah Alam	QUOTE(PCcrazy @ May 19 2005, 12:11 AM) I dont think anyone in here is using that mobo... Its a great budget mobo, maybe less feature than the SLI version but as far as performance is concerned, that particular mobo is not inferior at all to ultra-D... but over 300HTT i dun know if the board can take it or not.. Are u planning on another bulk More pics here: http://forums.vr-zone.com.sg/showthread.ph...3178#post673178 Detail here: http://www.madshrimps.be/?action=getarticl...274&articID=318 these board can hit 300++ FSB easily bro.. check out review at XS forum.. of course they used TCCD ram la.. bulk.. dont think so la.. but i already asked winc87.. This post has been edited by dinster: May 19 2005, 12:40 AM
Card PM	Report Top Like Quote Reply

dinster	May 21 2005, 09:19 AM Return to original view \| Post #3
..................... Senior Member 1,115 posts Joined: Jan 2003 From: Klang / Shah Alam	QUOTE(remysix @ May 21 2005, 08:58 AM) nailed the culprit...i think i got a bad stick...tried one stick at a time...1st one can do 220@2226 with 3.20vdimm...ran for 10hrs...no error...the second one...at 200@2226 with 3.20vdimm...70K of errors without finishing a single round...i did full test...so, set the timing down to the spd...200@2.5338 with vdimm 3.20v...same results...tons of errors...i tested it on yellow dimm...so changed to orange...same result...using 510-2 bios which is optimized for bh5/utt type of rams and also...that bad stick couldnt load windows at spd...always got that SOB BSOD screen...now using windows using the good stick...aiya...hate to do the RMA thingy... remysix, i highly recommend u to post your problem here.. they have dedicated OCZ Support Forum... the OCZ support team is great ! give them a try.. http://www.bleedinedge.com/forum/forumdisplay.php?f=45 http://www.xtremesystems.org/forums/forumdisplay.php?f=138
Card PM	Report Top Like Quote Reply

dinster	Jun 13 2005, 09:04 PM Return to original view \| Post #4
..................... Senior Member 1,115 posts Joined: Jan 2003 From: Klang / Shah Alam	QUOTE http://forum.donanimhaber.com/m_2004126/printable.htm have fun 3500+ CBBLE 0515?????? - 2705 MHZ 1.552V AIR - Rickster_64 XS 3200+ LBBLE 0516?????? - 2800 MHZ 1.680V H2O - Badge56 XS 3200+ LBBLE 0517APHW - 2850 MHZ 1.520V AIR - PITer TWEAK.PL 3200+ LBBLE 0518APDW - 2853 MHZ 1.696V H2O - htkm1 XS 3000+ LBBLE 0517APIW - 2800 MHZ 1.440V AIR - peter lu XS 3000+ LBBLE 0517APIW - 2700 MHZ 1.360V AIR - peter lu XS 3200+ LBBLE 0515APAW - 2800 MHZ 1.400V AIR - Burnt_Ram XS - SuperPI 32M , XP-90 + FAN 3200+ LBBLE 0515APAW - 2850 MHZ 1.450V AIR - 4rory XS 3200+ LBBLE 0515APAW - 2800 MHZ 1.408V AIR - D3kMatrix XS/OCforums - prime stable 8 h 3200+ LBBLE 0515APAW - 2850 MHZ 1.520V AIR - D3kMatrix XS/OCforums - prime stable 24 h 3200+ LBBLE 0515APAW - 2906 MHZ 1.550V AIR - s7e9h3n XS , SuperPI 32M stable 3200+ LBBLE 0515APAW - 2900 MHZ 1.408V H2O - musk XS 3200+ LBBLE 0515APAW - 2700 MHZ 1.360V ??? - jinu117 XS - prime stable 3200+ LBBLE 0515APAW - 2950 MHZ 1.500V H2O - JfRsQ XS - stable ??? , Bought from NCIX Computers, Canada 3500+ LBBLE 0516CPAW - 2754 MHZ 1.616V AIR - Dani XS - stock cooler 3000+ CBBLE 0512DPAW - 2902 MHZ 1.500V AIR - SmokeyTheBandit XS 3000+ CBBLE 0504DPAW - 3000 MHZ 1.648V PC - Gorod XS 3000+ CBBLE 0512DPAW - 2700 MHZ 1.360V AIR - =STE=BloodAngel XS 3000+ CBBLE 0504DPAW - 2800 MHZ 1.616V AIR - Gorod XS 3000+ CBBLE 0512DPAW - 2857 MHZ 1.632V AIR - DesertShooter XS - Zalman 7700CU , stable ? 3000+ CBBLE 0512DPAW - 2880 MHZ 1.520V AIR - vrtn XS - XP120 + FAN , SuperPI 16M Stable 3000+ CBBLE 0512DPAW - 2800 MHZ 1.520V AIR - =STE=BloodAngel XS 3500+ CBBLE 0512DPAW - 2840 MHZ 1.456V PC - Onepagebook XS 3500+ CBBLE 0512DPAW - 2750 MHZ 1.660V AIR - mcbarnet007 XS 3800+ CBBLE 0507DPAW - 2906 MHZ 1.360V PC - Cranox XS 3200+ CBBLE 0504EPAW - 2800 MHZ 1.520V AIR - Kane XS 3500+ CBBLE 0504EPAW - 3003 MHZ 1.480V PC - TodB XS 3000+ LBBLE 0517EPAW - 2700 MHZ 1.475V AIR - SoboL XS - FreeZone QC-80 CU - http://www.esc.pl/index.php - prime stable 3000+ LBBLE 0517EPAW - 2925 MHZ 1.522V AIR - Vosh tweak.pl - 12 h prime stable , Freezer64 + AS5 , BEST CPU IVE SEEN 3000+ LBBLE 0517EPAW - 2961 MHZ 1.616V AIR - Vosh tweak.pl - 12 h prime stable , Freezer64 + AS5 , BEST CPU IVE SEEN 3000+ LBBLE 0517EPAW - 2781 MHZ 1.480V AIR - Pure tweak.pl - stock cooler , prime stable 3000+ LBBLE 0517EPAW - 2942 MHZ 1.580V H2O - wampir XS - SuperPI 16 M stable 3000+ LBBLE 0516EPAW - 2700 MHZ 1.552V AIR - SDX XS - XP120 + FAN , prime stable 3500+ LBBLE 0515FPAW - 2850 MHZ 1.648V AIR - Joe Camel XS 3500+ LBBLE 0515FPAW - 2750 MHZ 1.440V AIR - Tibu XS 3500+ LBBLE 0515FPAW - 2900 MHZ 1.648V AIR - Tibu XS 3800+ LBBLE 0515GPAW - 2856 MHZ 1.488V H2O - Jaco XS - 14h prime stable 3000+ LBBLE 0516GPAW - 2754 MHZ 1.504V ??? - Trevor XS - prime stable 3000+ LBBLE 1516EPHW - 2700 MHZ 1.536V AIR - MassiveOverkill amdforums 3200+ LBBLE 0517BPEW - 2845 MHZ 1.376V H2O - Fintas-XP XS 3200+ LBBLE 0517BPEW - 2800 MHZ 1.560V AIR - KamE38 XS - stock cooler stable 3200+ LBBLE 0516EPEW - 2800 MHZ 1.616V AIR - vapb400 XS 3200+ LBBLE 0516EPEW - 2700 MHZ 1.700V AIR - Deus Falsus XS 3200+ LBBLE 0516EPEW - 2650 MHZ 1.584V AIR - dnottis XS 3000+ LBBLE 0516CPBW - 2700 MHZ 1.664V AIR - HousERaT XS 3000+ LBBLE 0516CPBW - 2765 MHZ 1.744V AIR - trans am XS 3000+ LBBLE 0516CPBW - 2700 MHZ 1.750V AIR - clockedOut XS - NOT STABLE 3000+ LBBLE 0516CPBW - 2700 MHZ 1.488V AIR - stang8118 Ocforums 3000+ LBBLE 0516CPBW - 2808 MHZ 1.664V AIR - stang8118 Ocforums 3000+ LBBLE 0516CPBW - 2610 MHZ 1.568V AIR - patrck17 Ocforums 3000+ LBBLE 0516CPBW - 2475 MHZ 1.472V AIR - JDizzle Ocforums 3000+ LBBLE 0516CPBW - 2700 MHZ 1.400V H2O - Craptacualr Ocforums 3000+ LBBLE 0516CPBW - 2765 MHZ 1.648V AIR - TheMeatFrog XS 3000+ LBBLE 0516CPBW - 2450 MHZ 1.520V AIR - Geforce4ti4200 XS - 2500 NOT STABLE 3000+ LBBLE 0516CPBW - 2610 MHZ 1.488V AIR - shiznit93 XS 3000+ LBBLE 0516CPBW - 2700 MHZ 1.552V H2O - ociadotnet XS 3000+ LBBLE 0516CPBW - 2600 MHZ 1.632V H20 - bmaffin13 XS - 12+ Hours prime stable 3800+ CBBLE 0513CPBW - 2750 MHZ 1.500V AIR - Seriola XS - stock cooler - prime stable 5h 3000+ LBBLE 0516CPBW - 2630 MHZ 1.536V AIR - Skratch XS - stock cooler 3000+ CBBLE 0512DPBW - 2901 MHZ 1.680V H2O - mongoled XS 3000+ CBBLE 0512DPBW - 2916 MHZ 1.664V H2O - Jimbo Mahoney XS 3000+ CBBLE 0512DPBW - 2922 MHZ 1.580V AIR - Torman XS - stock cooler 3000+ CBBLE 0512DPBW - 2826 MHZ 1.500V H2O - xpr-k XS 3000+ LBBLE 0516EPBW - 2160 MHZ 1.400V AIR - PURE TWEAK.PL - EXTREME BAD 3000+ LBBLE 0516EPBW - 2860 MHZ 1.730V H2O - Yotomeczek TEAK.PL 3000+ LBBLE 0516EPBW - 2806 MHZ 1.600V H2O - Yotomeczek TEAK.PL 3200+ LBBLE 0515FPBW - 27500 MHZ 1.450V ??? - oasked XS 3200+ LBBLE 0515FPBW - 2700 MHZ 1.408V AIR - Techwarrior XS - 24 h prime stable , XP-90 + FAN 3200+ LBBLE 0515FPBW - 2800 MHZ 1.552V AIR - Techwarrior XS - 24 h prime stable , XP-90 + FAN 3500+ LBBLE 0515FPBW - 2972 MHZ 1.648V AIR - charlie XS - Hyper6 , bought from monarch 3000+ LBBLE 0516GPBW - 2808 MHZ 1.552V H2O - arj XS 3200+ LBBLE 0515GPBW - 2800 MHZ 1.392V H2O - H2OGun XS 3200+ LBBLE 0515GPBW - 3000 MHZ 1.600V H2O - H2OGun XS 3200+ LBBLE 0515GPBW - 2700 MHZ 1.450V AIR - bonzer XS 3200+ LBBLE 0515GPBW - 2929 MHZ 1.664V AIR - PcCI2iminal XS 3200+ LBBLE 0515GPBW - 2700 MHZ 1.328V ??? - leotonch XS - prime stable 3000+ LBBLE 0516CPCW - 2610 MHZ 1.650V AIR - KamE38 XS - stock cooler stable 3000+ LBBLE 0516CPCW - 2600 MHZ 1.550V AIR - Vroom - from Trend4PC.de XS 3800+ LBBLE 0516CPCW - 2751 MHZ 1.460V H2O - Computersmsa Bel-Hardware.be 3200+ LBBLE 0516EPGW - 2840 MHZ 1.660V ??? - TheMeatFrog XS 3200+ LBBLE 0516EPGW - 2763 MHZ 1.664V AIR - politenessman XS 3200+ LBBLE 0516EPGW - 2808 MHZ 1.580V AIR - Rubescen XS 3200+ LBBLE 0516EPGW - 2670 MHZ 1.700V AIR - Deus Falsus XS 3200+ LBBLE 0516EPGW - 2500 MHZ 1.550V AIR - Dermen Ocforums 3200+ LBBLE 0516EPGW - 2700 MHZ 1.456V AIR - Ziku TWEAK.PL 3200+ LBBLE 0516EPGW - 2700 MHZ 1.504V AIR - 4X4N XS 3200+ LBBLE 0516EPGW - 2800 MHZ 1.696V AIR - Wayway XS 3200+ LBBLE 0516EPGW - 2670 MHZ 1.700V AIR - Deus Falsus amdforums 3200+ LBBLE 0516EPGW - 2700 MHZ 1.568V H2O - aMp XS 3200+ LBBLE 0515EPGW - 2800 MHZ 1.504V ??? - daddy_fizz XS - prime stable 2h 3800+ CBBLE 0513CPDW - 2950 MHZ 1.664V ??? - kamui XS 3800+ CBBLE 0513CPDW - 2929 MHZ 1.650V H2O - xxmartin XS 3800+ CBBLE 0513CPDW - 2700 MHZ 1.360V PC - spiritedandy Ocforums 3000+ LBBLE 0515FPDW - 2845 MHZ 1.530V AIR - sinsinking XS - Hyper6 3000+ LBBLE 0512FPDW - 2700 MHZ 1.480V ??? - SillySider03 - prime stable 3000+ LBBLE 0516DPMW - 2712 MHZ 1.536V H2O - zwierzak24dg TWEAK.PL 3000+ LBBLE 0516DPMW - 2627 MHZ 1.536V ???? - zwierzak24dg TWEAK.PL 3000+ LBBLE 0516DPMW - 2745 MHZ 1.550V AIR - VerB TWEAK.PL 3000+ LBBLE 0516DPMW - 2844 MHZ 1.648V H2O - Mardok TWEAK.PL 3500+ LBBLE 0516DPMW - 2700 MHz 1.550V H2O - Sillen XS 3000+ LBBLE 0517EPMW - 2700 MHZ 1.376V AIR - qk4722 XS - prime stable 3800+ CBBLE 0504EPMW - 3306 MHZ 1.664V PC - s7e9h3n , Mach2 3000+ LBBLE 0515FPMW - 2808 MHZ 1.600V AIR - askimo XS 3000+ LBBLE 0516EPKW - 2700 MHZ 1.696V AIR - Cornelious0_0 XS 3200+ LBBLE 0517BPDW - 3201 MHZ 1.608V DICE - Dj_Rudy XS - stable ?? 3000+ LBBLE 0516DPJW - 2800 MHZ 1.568V AIR - UCmajewski XS - stock cooler
Card PM	Report Top Like Quote Reply

dinster	Jun 19 2005, 09:45 AM Return to original view \| Post #5
..................... Senior Member 1,115 posts Joined: Jan 2003 From: Klang / Shah Alam	does anyone know whether San Diego core is supported with MSI Neo2 Platinum or not ?
Card PM	Report Top Like Quote Reply

dinster	Jun 23 2005, 12:38 PM Return to original view \| Post #6
..................... Senior Member 1,115 posts Joined: Jan 2003 From: Klang / Shah Alam	ABIT AN8 Ultra.. is coming soon !! damn scary..
Card PM	Report Top Like Quote Reply

dinster	Jun 23 2005, 09:37 PM Return to original view \| Post #7
..................... Senior Member 1,115 posts Joined: Jan 2003 From: Klang / Shah Alam	foreigner with AN8 SLI.. 3.55 VDIMM..
Card PM	Report Top Like Quote Reply

dinster	Jul 3 2005, 12:33 AM Return to original view \| Post #8
..................... Senior Member 1,115 posts Joined: Jan 2003 From: Klang / Shah Alam	guys.. i need help.. my next system gonna be.. Venice 3000+ 2x256mb Kingston HyperX PC3200 BH5 DFI LP NF4-D / DFI NF4 DAGF i'm thinking of these settings.. HTT = 300mhz HT Freq = 3x Multiplier = 9x Set Memory Divider = DDR 333 Vdimm = 3.2V ( my BH5 can do DDR500 @ 3.1V ) the result would be.. CPU Speed = 300 x 9 = 2700mhz Memory Speed = DDR 500 @ 300 HTT (using divider) 1. is there any known issues when running BH5 + NF4 + dividers ? 2. does my calculation on divider correct ? 3. which board should i go DAGF = RM 380 or NF4-D = RM 560 ? is it worth to add another RM 180 for NF4-D This post has been edited by dinster: Jul 3 2005, 12:35 AM
Card PM	Report Top Like Quote Reply

dinster	Jul 3 2005, 12:52 AM Return to original view \| Post #9
..................... Senior Member 1,115 posts Joined: Jan 2003 From: Klang / Shah Alam	QUOTE(Evogenix @ Jul 3 2005, 12:44 AM) // dinster : 1. yes bh-5 can run well on nf-4 board 2. yes it correct 300*5/6 = 250MHz 3. go for ultra-d, its worth it... can mod into SLI-D anytime =) Evogenix correction, it's not Ultra-D, it's NF4-D but it's still modable to SLI-D thanks for the reply !!!!!!
Card PM	Report Top Like Quote Reply

dinster	Jul 3 2005, 01:47 AM Return to original view \| Post #10
..................... Senior Member 1,115 posts Joined: Jan 2003 From: Klang / Shah Alam	@ babyelf @ Evogenix okay.. sorry but.. i do not need SLI, NCQ, 4.0 Vdimm and Sata 2 3.2 vdimm is enough for me.. so.. in my case.. should i go for DAGF ? me really really have to minimise the cost.. This post has been edited by dinster: Jul 3 2005, 01:52 AM
Card PM	Report Top Like Quote Reply

dinster	Jul 6 2005, 08:06 AM Return to original view \| Post #11
..................... Senior Member 1,115 posts Joined: Jan 2003 From: Klang / Shah Alam	QUOTE(PCcrazy @ Jul 4 2005, 09:37 PM) DFI DAGF is a good choice considering you are not going for SLI setup. If you are really on a budget, you don't need bling stuffs IMO. Furthermore you've mentioned that the RAM is capable of pulling impressive figures at 3.2v. But I ask most of the shop at LYP, they are not selling DAGF. Personally dinster, DAGF is a good choice, in fact perhaps I should be getting one. My NEO2 is just too old. already bought the DFI NF4 DAGF = RM 365 from Viewnet according to Kenn Lim (Robyncom) the DFI NF4 Infinity is coming next week.. but if u look at DFI website. all i can say is DFI DAGF = DFI Infinity
Card PM	Report Top Like Quote Reply

dinster	Aug 13 2005, 11:57 PM Return to original view \| Post #12
..................... Senior Member 1,115 posts Joined: Jan 2003 From: Klang / Shah Alam	good news for DFI NF4 DAGF = DFI NF4 Infinity like me there's a new Beta BIOS available (August 1st, 2005) using it right now.. far better than the official 2005/06/13 here's the link.. QUOTE http://www.dfi.com.tw/Upload/BIOS/CK84D801.zip Beta - 2005/08/01 1. Patch TRC, TRFC, TRP setting incorrect. 2. Patch DDR Output driving makes no effect after save and exit. 3. Refresh Rate (TREF) adjustment method turns into cycle time. 4. CPU Voltage Control: 0.025V each step. anyways, in my Super Bulk v7, there will be OEM AMD64 Venice Rev. E6 This post has been edited by dinster: Aug 14 2005, 12:01 AM
Card PM	Report Top Like Quote Reply

dinster	Aug 14 2005, 03:44 PM Return to original view \| Post #13
..................... Senior Member 1,115 posts Joined: Jan 2003 From: Klang / Shah Alam	thanks ahpaul, for sharing your BIOS settings.. currently i'm stucked at 270 HTT.. but i still use stock chipset cooler perhaps that's the culprit is it just me and ahpaul82 who are using DFI NF4 DAGF/INFINITY ? This post has been edited by dinster: Aug 14 2005, 03:45 PM
Card PM	Report Top Like Quote Reply

dinster	Aug 15 2005, 08:56 PM Return to original view \| Post #14
..................... Senior Member 1,115 posts Joined: Jan 2003 From: Klang / Shah Alam	yay.. another Beta Bios for DAGF/Infinity 2005/08/11 http://www.dfi.com.tw/Upload/BIOS/CK84D811.zip QUOTE 1. fix IDE channel 2 access mode issue.remove CPU temp (outside) item. 2. Change DRAM configuration item value. 3. CPU voltage 1.55~1.85 one step 250mv. 4. add chipset fan control 90%, 70% and 60% This post has been edited by dinster: Aug 15 2005, 08:57 PM
Card PM	Report Top Like Quote Reply

dinster	Aug 16 2005, 02:11 AM Return to original view \| Post #15
..................... Senior Member 1,115 posts Joined: Jan 2003 From: Klang / Shah Alam	3. CPU voltage 1.55~1.85 one step 250mv = TRUE 4. add chipset fan control 90%, 70% and 60% = CRAP ?
Card PM	Report Top Like Quote Reply

dinster	Aug 22 2005, 01:51 AM Return to original view \| Post #16
..................... Senior Member 1,115 posts Joined: Jan 2003 From: Klang / Shah Alam	QUOTE(ahpaul82 @ Aug 21 2005, 11:53 PM) I found out this BIOS is for DFI NF4 Ultra Infinity and NF4 Infinity-DAGF. both using same BIOS... no worries paul, DAGF = Infinity confirmed !
Card PM	Report Top Like Quote Reply

dinster	Sep 7 2005, 02:23 AM Return to original view \| Post #17
..................... Senior Member 1,115 posts Joined: Jan 2003 From: Klang / Shah Alam	attention DFI NF4 DAGF / INFINITY users.... the Beta BIOS dated 11/8/2005 is now official..... Download = http://www.dfi.com.tw/Upload/BIOS/CK84D811.zip Date = 11/8/2005 Desciption = 1. fix IDE channel 2 access mode issue.remove CPU temp (outside) item. 2. Change DRAM configuration item value. 3. CPU voltage 1.55~1.85 one step 250mv. 4. add chipset fan control 90%, 70% and 60%
Card PM	Report Top Like Quote Reply

dinster	Sep 25 2005, 01:24 AM Return to original view \| Post #18

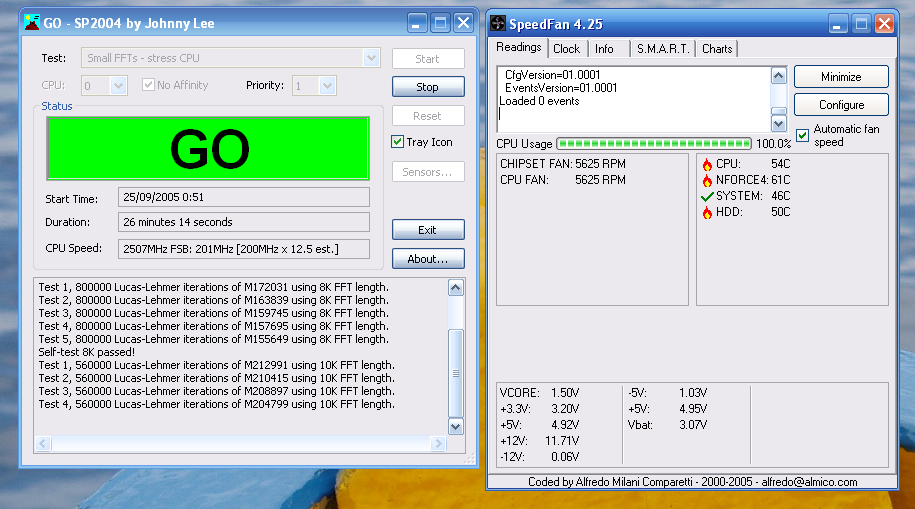

..................... Senior Member 1,115 posts Joined: Jan 2003 From: Klang / Shah Alam	temperature while overclocking 3200+ Winchester ..... speed = 2.5 ghz cpu cooler = stock AMD64 chipset cooler = stock DFI NF4 Infinity system cooler = nothing PSU = 2x80mm fans after this gonna invest on cooling kaw kaw.......
Card PM	Report Top Like Quote Reply

dinster	Sep 27 2005, 02:10 AM Return to original view \| Post #19
..................... Senior Member 1,115 posts Joined: Jan 2003 From: Klang / Shah Alam	QUOTE(moderno @ Sep 27 2005, 12:58 AM) can anybody got any reviews on how's the venice e6 3200++ oc performs?.... beside din punyer lah... thinking of grabbing ur bulk e6 3200 there... thinking of my winnie outdated oledi...huhu mine is Winchester dude....
Card PM	Report Top Like Quote Reply

dinster	Oct 21 2005, 05:26 AM Return to original view \| Post #20
..................... Senior Member 1,115 posts Joined: Jan 2003 From: Klang / Shah Alam	it's time to get listed..... AMD64 3200+ Venice E3 / Stock Cooler This post has been edited by dinster: Oct 21 2005, 06:13 AM
Card PM	Report Top Like Quote Reply
