can i make a suggestion please. can those of you who oredi install the unifi please post the pictures of the back input/output of the devices like iptv, dlink router, optical termination?? how it connect to each other and so on. can create new thread and can a mod please stick it please?

i know the pics been posted but its everywhere now and in 4 version of this thread. kind of hard to find. i want to show my bro/father how is installed and so on.

i think coming months more people will want to know and its nice to be able to find it easily.

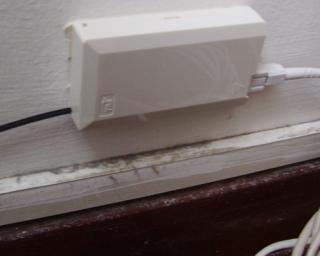

is this placed outside the house?





This post has been edited by surreall: Apr 8 2010, 03:23 PM


Attached thumbnail(s)

inside? so they must drill a hole in the wall to pass though the black cable?
OMG.

i have nother question, can help me. i asked it in the pic.




Attached thumbnail(s)

how it works i just read wiki?
http://en.wikipedia.org/wiki/Digital_Enhan...ecommunications

can't use your existing number. i read it before.

people can call your dect phone if they know the number lar

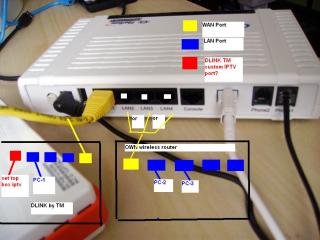

can the LAN 2 or LAN 3 or LAN 4 on the fiber modem be used?

can i connect my own wireless router to any 1 of the 3 LAN ports?

if possible, will my PC-3 be able to see PC-1 on the D-LINK router? share files?


## pls help me answer, i want this UNIFi but my eldest brother will only pay for it if it doesnt make his life hard

This post has been edited by surreall: Apr 8 2010, 05:10 PM


Attached thumbnail(s)

ok but then my wireless router become useless? not doing dhcp?
do they give access to the fiber modem (fiberhome)?

what is the LAN 2, 3 and 4 used for in the fiber modem?

is that how to set vlan on the modem (image)




Attached thumbnail(s)

Really cannot turn off the wireless? How come is like that?

Can the dlink from tm be set to prevent wireless access to the router config gui and also using mac address filter and hide ssid?

i read that routers with gigabit switch cannot support vlan tagging even with dd-wrt

WRT610N v2 and tagged VLAN






What model wireless router with gigabit lan ports will support vlan? My dad is going to kill me since I just begged him too buy me an expensive router.

@rizzy

how is the setup with smart switch? fibermodem to 5 port switch, then connect 1 port from switch to own router and another port from switch to set top box for iptv?

I read it here http://www.dd-wrt.com/phpBB2/viewtopic.php...82c0572b7e74125

So can WRT610N use vlan? I think mine is ver 1 not ver 2, still can?
I read a little bit for flashing DD-WRT but still not confident to try it. If failed my whole family will kill me, except my mom.

Really this is very confusing for me. I can feel the vomit in my mouth sometimes after reading. DD-WRT got mega, micro, mini, eko, brainslayer, K26, K24 version

Aiiiigh, I want to ask. That Fibermodem got 4 Lan port, that means it has a switch right?
Why can't we set it so Port 1 is for internet (Vlan 500) and can connect any router we want and set Port 2 (Vlan 600) for IPTV and connect to the set top box? Even my ADSL modem got simple routing function which I disabled sigh.

I mention this is because the VOIP is straight from Fibermodem to the Dect Phone. That means it can segregate (Vlan 700, assuming not sure) as VOIP into the telephone port.

Rizzy, if we connect the Fibermodem to a 5 Port Smart Switch (SW). Port 1 of the SW connect to the Fibermodem. Port 2 of the SW to a router and Port 3 to the set-top-box. Can the Port 4 & 5 of the SW be used?

Can we connect a PC to Port 4 or 5 and we can share files etc with PCs connected to the router on Port 2?
Are PCs connected to Port 4/5 on a different network from the ones connected to the router?

I thought the set top box was still connected to the iptv port on the DIR-615 and at the same time you managed to stream it to your laptop wirelessly from the DIR-615. Wishful thinking but I thought my little bro could watch Cbeebies downstairs on the TV and I could watch FashionTV in my room.




is it caused by PCR jitter?
http://documents.exfo.com/appnotes/anote175-ang.pdf

This post has been edited by surreall: Apr 13 2010, 12:56 PM

Oh ok but then I would not be able to surf the web if I am on the IPTV subnet right? Unless I load a VM and make it use my wifi for iptv and my normal os uses the wired lan port for internet. I guess that will work? But then again I should not bother too much since the Unifi people will just make spoil and block everything

They so insistent for us to use their FREE router with their custom firmware so they can throttle us at home instead? Great job rizz.

Sigh for me too
