Try this:

Vdimm - 2.9V
DRAM Freq: 200 Dram Frequency 1:1
CPC: Enable CPC
CAS (TCL): 2.5
Trcd: 03
Tras: 07
Trp: 04
Trc: 07
Trfc: 14
Trrd: 05
Twr: 03
TwTr: 02
Trwt: 05
Tref: 3120
Twcl: 05
DRAM Bank Interleave Enabled

DQS Skew Control = INCREASE
DQS Skew Value = 0 (zero)
Dram Drive Strength= Auto
Dram Data Drive Stregth= Level 4
MAX ASYNCH LATENCY = 7ns
READ PREAMBLE= 5ns
IDLE CYLCE= 256 cycles
DYNAMIC Counter= Disabled
R/W Que Bypass = 16x
ByPass Max 7X
32 Byte Granularity = Disable 8 Bursts.

I am using SLI-DR and ULTRA. I have problem earlier too at default setting.

Do you facing any problem with your current setings?No harm in trying

me also running on DFI NF3 Ultra with AMD 64 3000+ but however using KVR BT-D43 512MB x 2.....i can oc mine to only 9 x 260FSB with no prime error (nothing great here but wish could get better memory sticks)....so with ur twinmos i believe shud be no problem....

sure it can, but it might not be the best
the settings depends on your rams and mobo, different ones will give better results with different settings
it's best to try it out yourself then tweak further, or use someone else's with the exact same hardware

I'm using AMD Athlon64 3000+ s939 & DFI LP NF3 Ultra-D.....
just wanna ask u all, is the voltage normal....??

dun trust d software readins too much, esp on dis nF3 ultra-d, for more accuracy, use dmm to measure (voltage readins)...

mine doesnt even have a +2.5 reading
dont bother with it

btw just got an Ultra-D
there are 2 extra power connectors on the mobo, 1 the standard molex and another for FDD kind
what do they do and are they important?
remember reading that they're for the vga card or something

d 4-pin is for d 4.0v vdimm support, no idea for d other one thou...
not a nF4 Ultra-D user...

may be is the ddr ram voltage. nvr see +2.5v b4

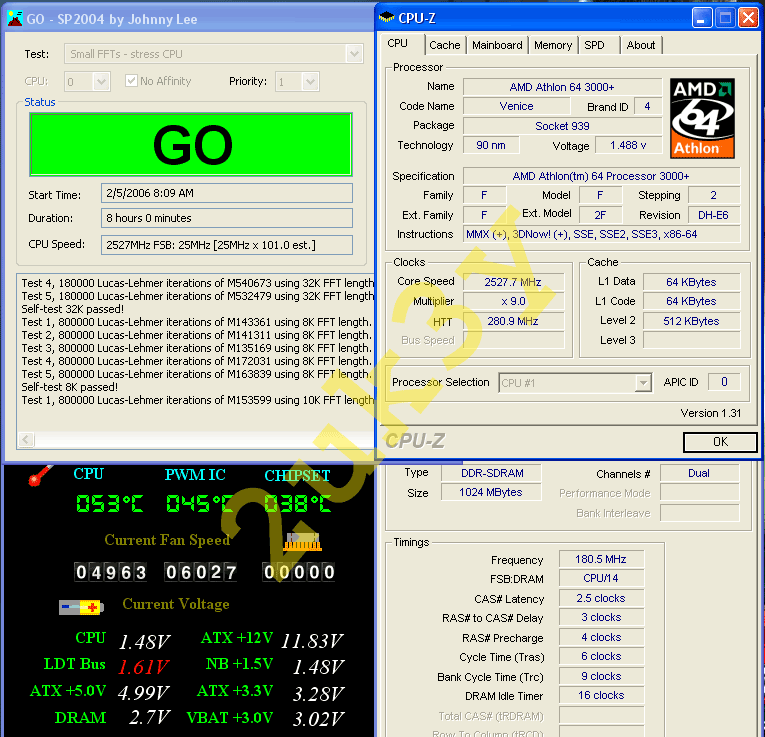

mine 9 x 260 is using single sided 512mb KVR Hynix BT-D43 as 2.5-3-3-8 (1T), going to save this two stick for other rig of mine....however the screenie shown below using 2 x 256mb using also the same single sided Kingston Hynix BT-D43 but however the setting is 2.5-4-4-8 (1T) running at 267 FSB & won't be able to do other setting ....not all Hynix BT-D43 can run highest FSB, all of them have different highest speed...my two other stick each of it can run at 268 & 275fsb...so running both will be able to the highest 268fsb.... ...

[attachmentid=79055][

that 38 is idle or load temp...what about ur room temp...i wish mine got that kinda temp...but not so lucky...idle at 48-49...sux...

mayb ur room temp cold?
depending...
mine get idle for 42
and during loading, 45~46

what chipset u using?

owh..
use divider ka?

May 27 2006, 11:12 AM
haa.. haa.. haaaa.. dya expect to get 3.0Ghz wif KVR wif cheapop chippy?? dont dream
You men the RAM?

This is what I have after some tweaking....

1.) 280HTT x 9 with divider 100Mhz
2.) 240HTT x 9 with divider 200Mhz

Which one is better for gaming? HF2 Source. BF2...
