Today start my midsem break so hv nothing to do

i wanna try to do sumthing with my HAF

My objective to paint my case to black color for interior n some red colour only..

Not involve any cutting2 coz i dun hv any cutting tool

1st off all i forgot take any photo of my haf complete ori set

NVM bout it

i buy [3 anti-rust primer][2 RED][1 WHITE][2 FLAT BLACK]

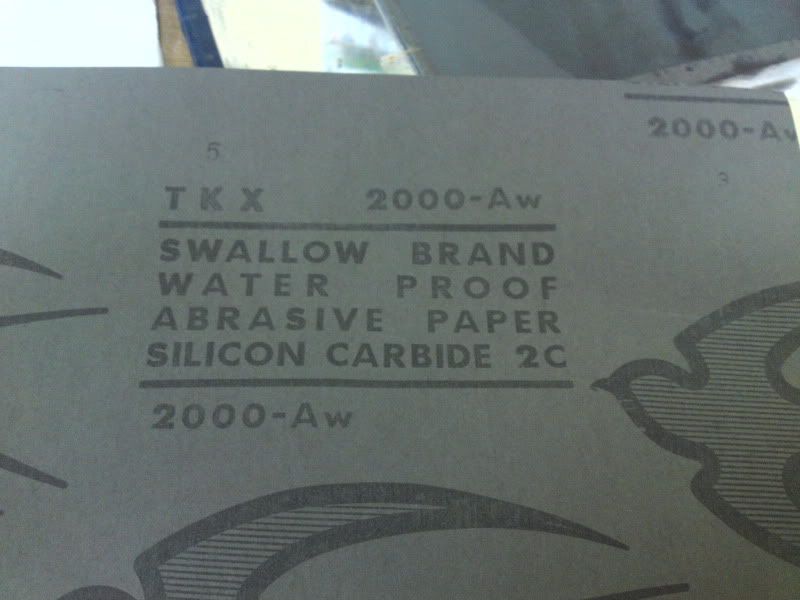

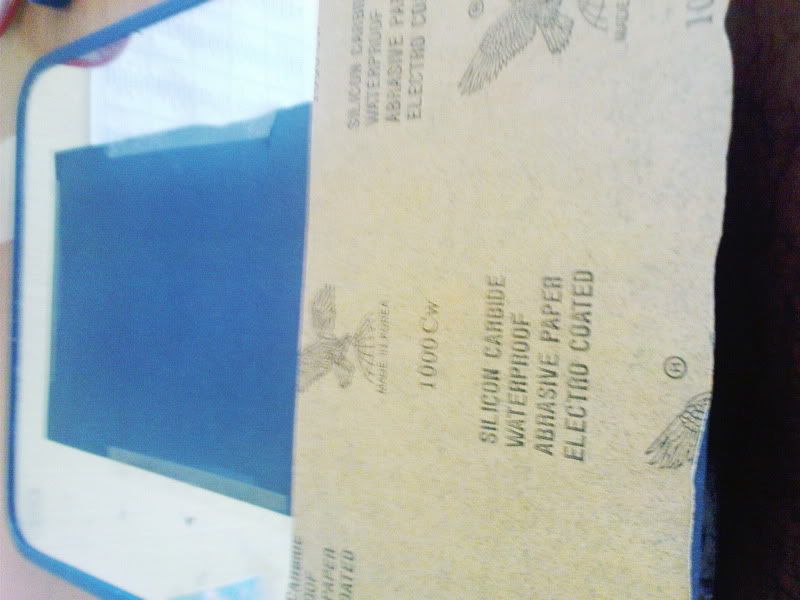

i use 800,1000,1500,2000 Grid sand paper for sanding process[cap burung2 terbang]



Take out all mesh on front panel



drill out all rivets



done "kekah"-ing my case



to post my update here i hv to build my rig on my table



tmr will start sanding part by part
sorry for bad quality pic.Using phone camera only

This post has been edited by doob: Feb 15 2010, 02:17 AM

gud luck mate

thanks 4 d sapport

mod on CNY ?

hahaha..yup
nothing to do then got idea to mod

gonna paint your case into pure red?

design some logo.....
look nice...

juz some small part put red
the mobo tray n outer put flat black

i oso think wanna do tat
but dunno put wat logo
no idea

Put some metalic colour like red metalic

already bought red colour only
today n tmr sure shop still close
i only got extra white colour
still thinking wat to do with it

if for me , i will change the top and side of the casing

looking forward to seeing ur "artwork" haha
happy chinese new year

y all ppl like to put red color on haf ??
coz of the amd version ??

top put white??
i put flat black for top
i think wan put red
but i think not enuf red spray i bought =.=


coz they provide red led fan on d front
n i use red ccfl inside
i think red will make my case more "meriah"

No , because the fan come with HAF 932 is Red colour

That 100% rite

wah..my ex-932 going to mod!!
good luck bro

tuan asal dh kasi lampu ijau ni

gud luck ye mate

thanks 4 d sappork bro

---

Added on February 15, 2010, 2:15 amupdate 4 today

done sanding part by part

[side panel]


[mobo tray]


dunno is it consider good or bad sanding job
my hand already feel very smooth rite now


then it taken outsite to do primer spray
very windy today..many habuk stick on it


PSSSSTTT PSSSTTTTT[spraying the primer ]


Biggest part done


Side panel + mobo tray


Done primer spray for today 3pm goin to eat coz starving


Final result on primer coat



This post has been edited by doob: Feb 15 2010, 02:15 AM

looking good .. u should cut the upper mesh at least and replace it with better 120mm fans .. and maybe some acrylic

i got no cutting tool
only got drill
BTW how's ur project??
cant wait to see the final result

u can use hand hacksaw

that steel a bit thick
if use hand hacksaw dunno how long it take
mayb my hand gonna ripped off 1st

This post has been edited by doob: Feb 15 2010, 01:37 PM

if cutting straight line, hacksaw is ok, but if curve abit hard for hacksaw

great. do u test the paint chipped off easily or not?

if use hacksaw how to start d 1st cutting??

already try
even d primer already hard to chipped off if using nail
use playar or other metal tool,then it will easy to peel

how come mine chip so easily zzzz.. any material with a good amount of force will chip it..

i already sand it with 200 grit sander lol.. .. u apply some clear coat??

wow 200??
i use 800 1000 n 1500 only

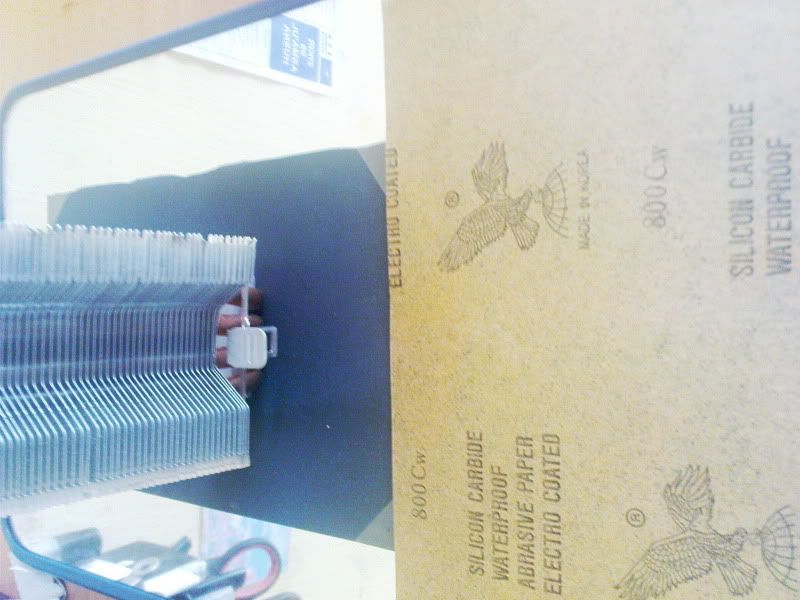

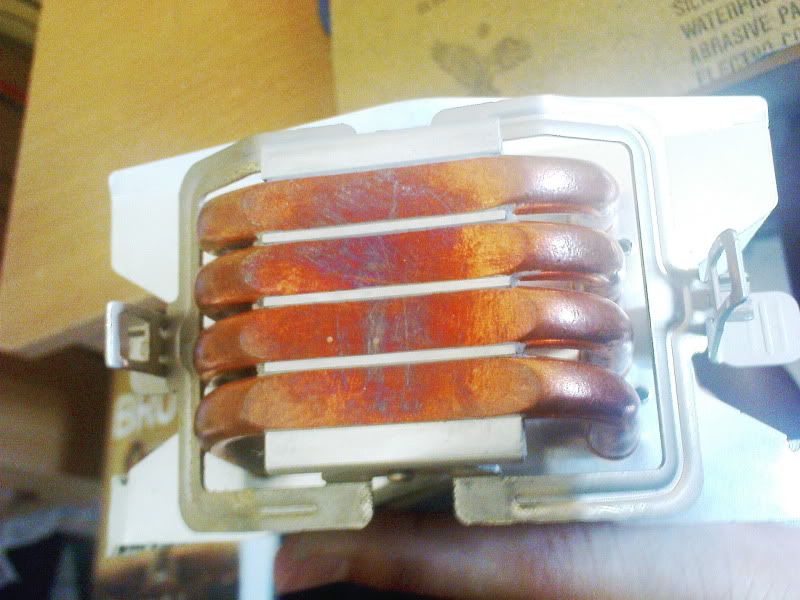

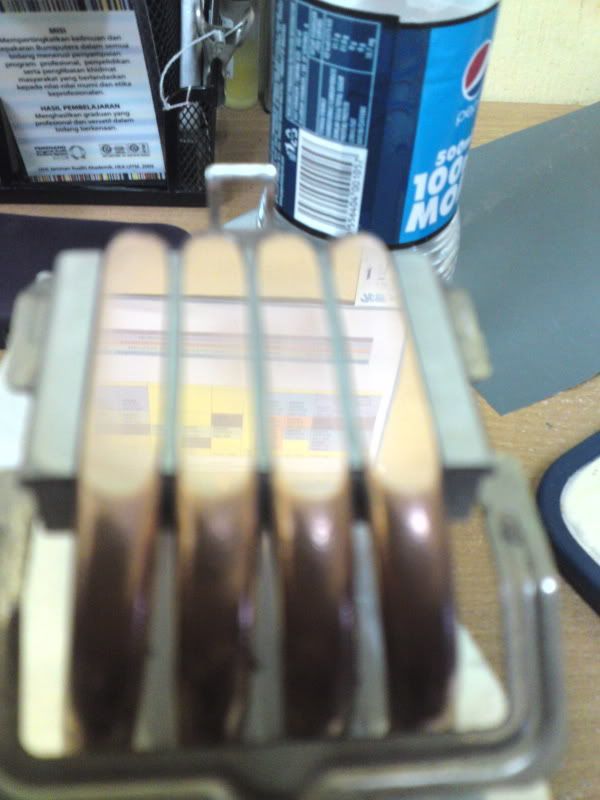

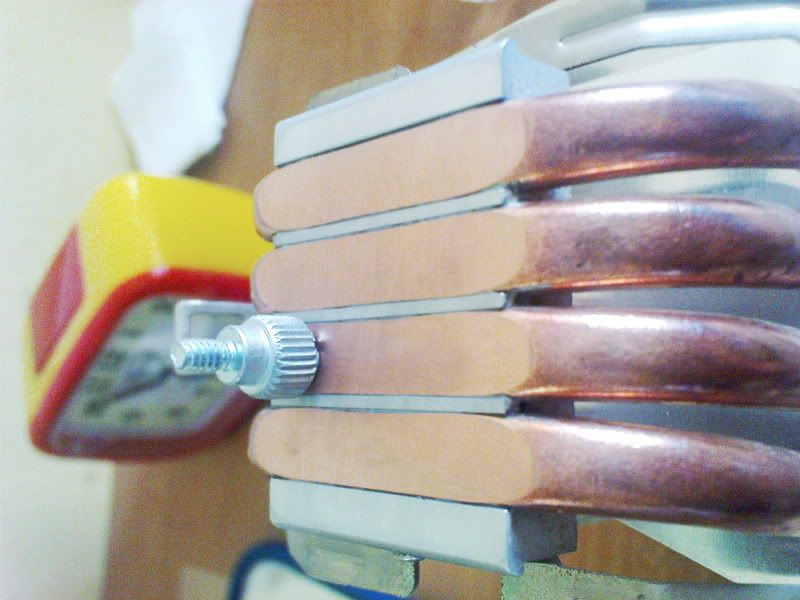

tat 2000 i wan use for lapping my proc
today i juz spray 1st layer only
mayb evening i spray another layer
i dun buy clear coat
is it important??
it use for wat??

its for making the paint resistant to scratches... clear coat is a clear transparent layer that u put on top of your paint ..

price?
same as normal spray??

i think if the purpose to make it a stealth look using a flat black paint don't need any clear coating unless you want make a piano finish at once.

i dun think can make that shiny
my house very windy
when spray got many small particle stick on it
FML

buy an air can compressor to blow out the small particles out of the case

no use anymore coz that small particles already dry-ed with the paint

where'd you get your paint from. a bit hard to find cheap paint nowadays. unless from those kedai runcit of hardware. haha.

yup
i buy from hardware
very cheap 1

drill 1 hole that can allow the blade of hacksaw to get through..then yeah u can start saw it

not sure if a drill can fit o.O.. most people use dremel first or a rotary tool to cut a small line for the hacksaw to go in..

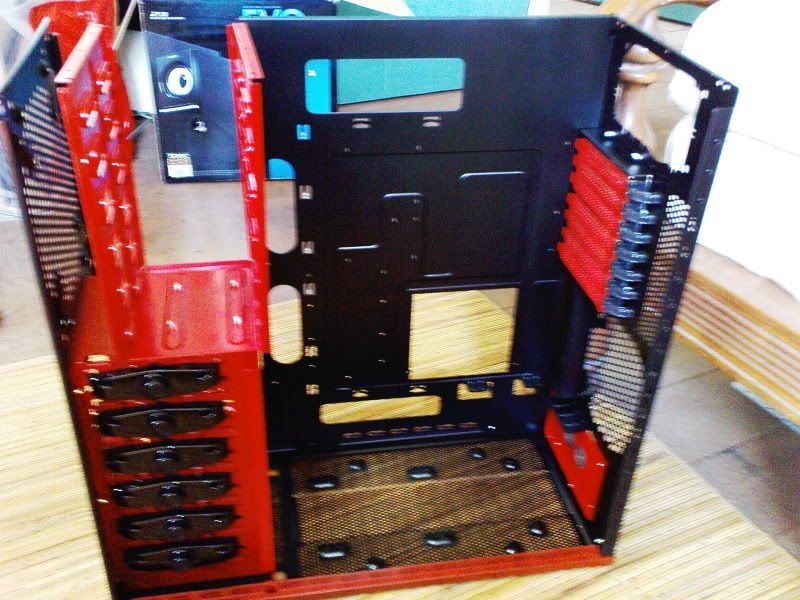

new update for today

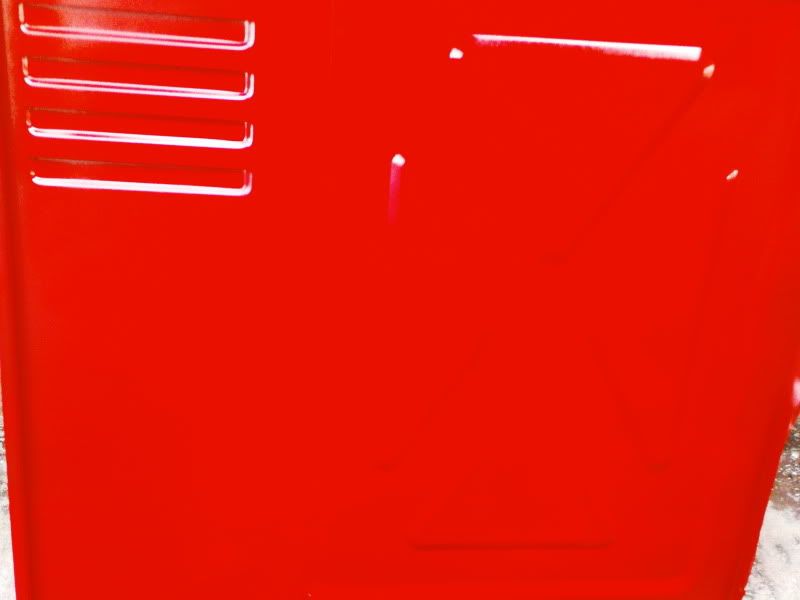

done spraying my side panel[actually the colour a bit not fully red but when snap pic it look fully red..ull know when u see it with bare eyes]

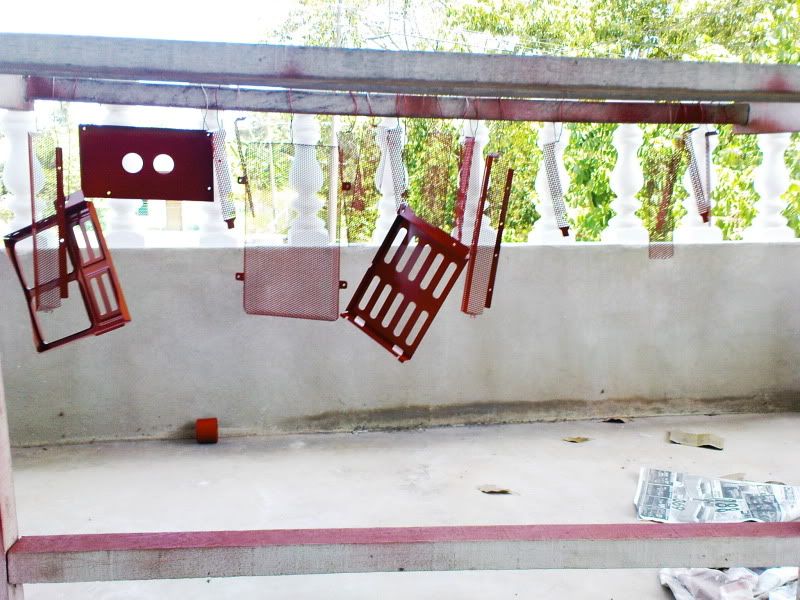

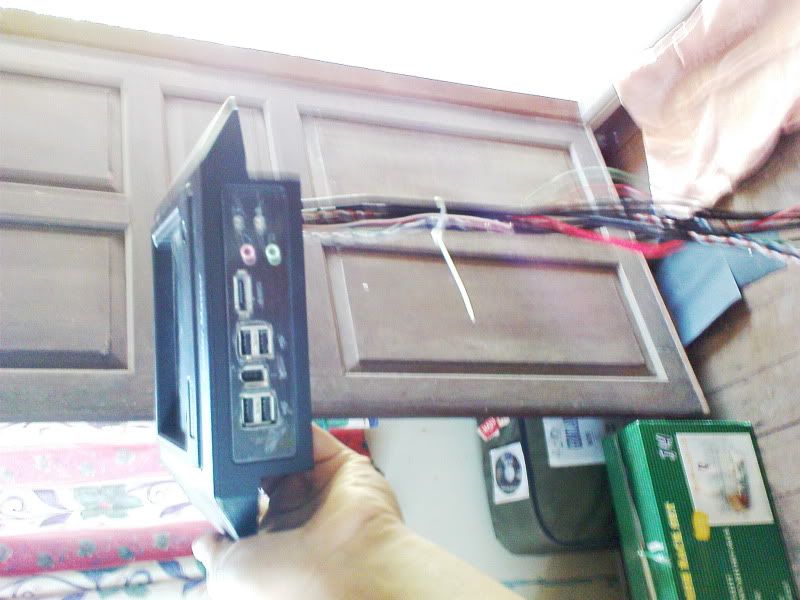

spraying the mesh front panel[DONE!]

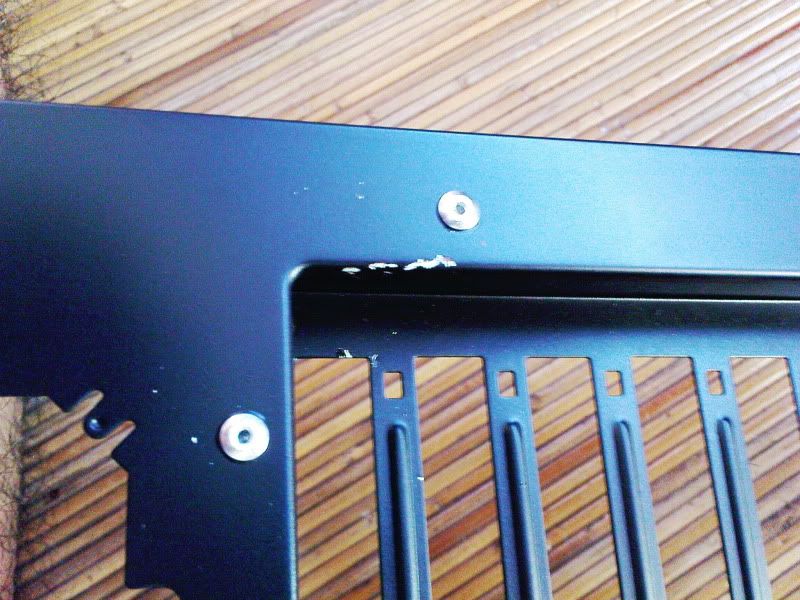

so sad..that part actually no need to rivet yet n my riveter slide on it

but done spraying 1 more layer on it

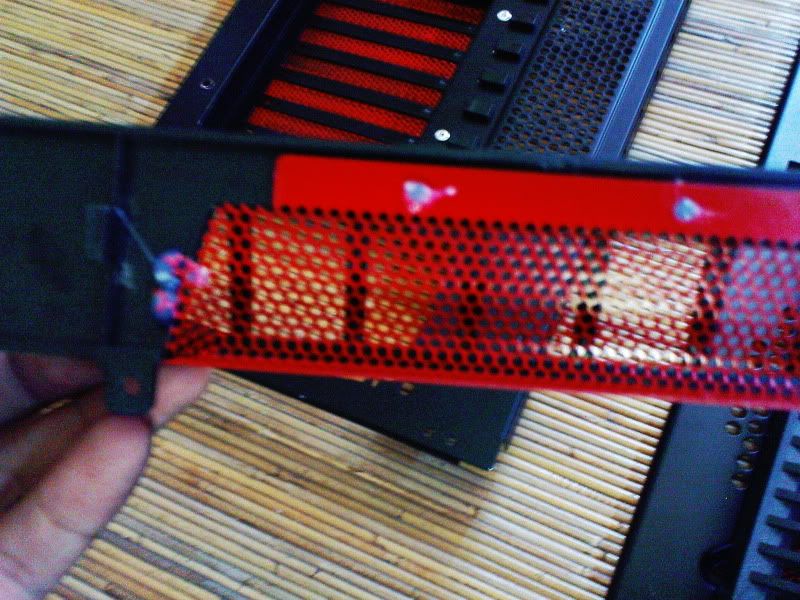

put it back using glue

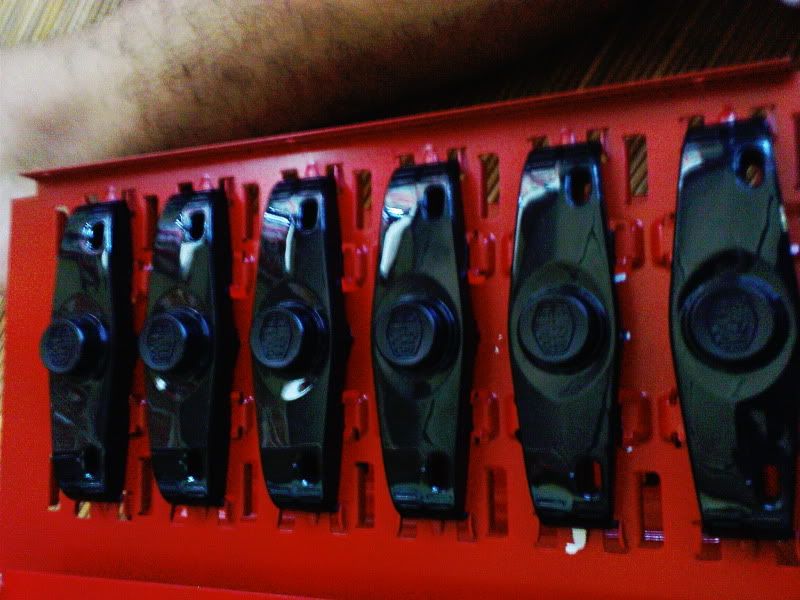

the hardest part of all

its nearly imposible to put the clip back without tearing the paint

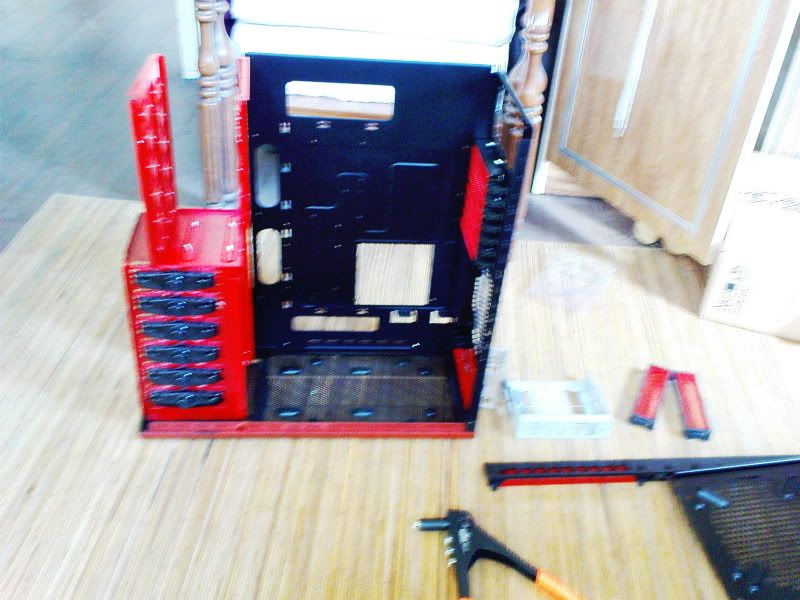

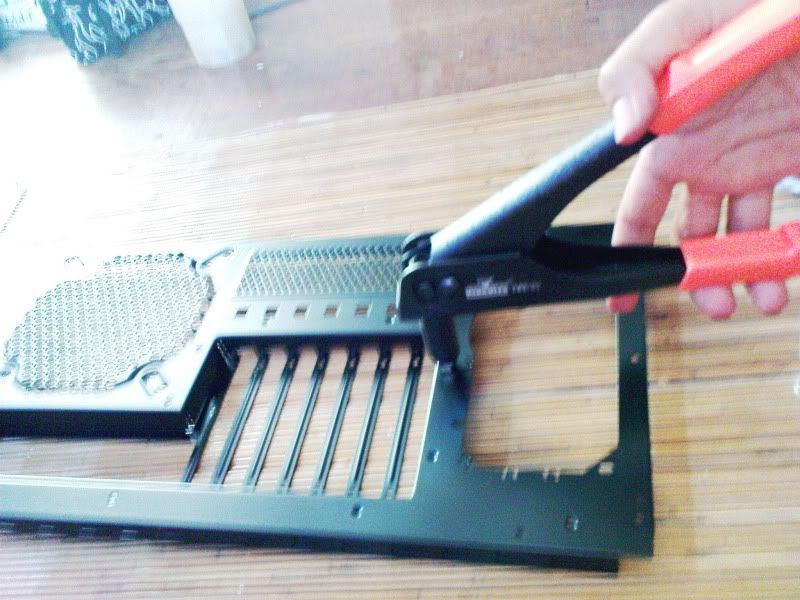

start rivet-ing



my hand so gatal already to put it back

luckily got no defect on it



my room become like this

kena scold by my father 99

nice red HAF there...but if more red shots on that case,will be more like hell..more ganazzz

p/s : wow..clean room..

hehe sure can..but need to move abit the drill to get bigger hole rather than hacksaw i more prefer the choping saw..easier when cutting the curve area but take time to complete due to thin blade

@doob
nice..oredi applied with clear coat?

fuh.. very nice room there haha..

u got the clips back in so easily.. i had some bruises on my fingers and some deep cuts zzz working on those stuffs.. what do u use to pull it out?? flat head screwdriver??

run out of red spray
over use it on side panel

my place no got clear coat
hv to drive 40 minutes to get it
so sad

i got bed but i sleep on floor
already state there[the most difficult part]
hahaha
my nail feel like gonna peel off to put the clip back in
juz use my finger to take out n put it back
guna jari pon boley

This post has been edited by doob: Feb 16 2010, 04:47 PM

at my place, yes clear coat same price as normal color RM5 per can

if use metallic color, clear coat will bring out the shiny especially on flat surface

LOL, purposely mod your HAF for CNY?..

haha!.. good luck, following your thread

i use wanna make matte black
if put clear coat will make it shiny too??

thanks 4 d sapport

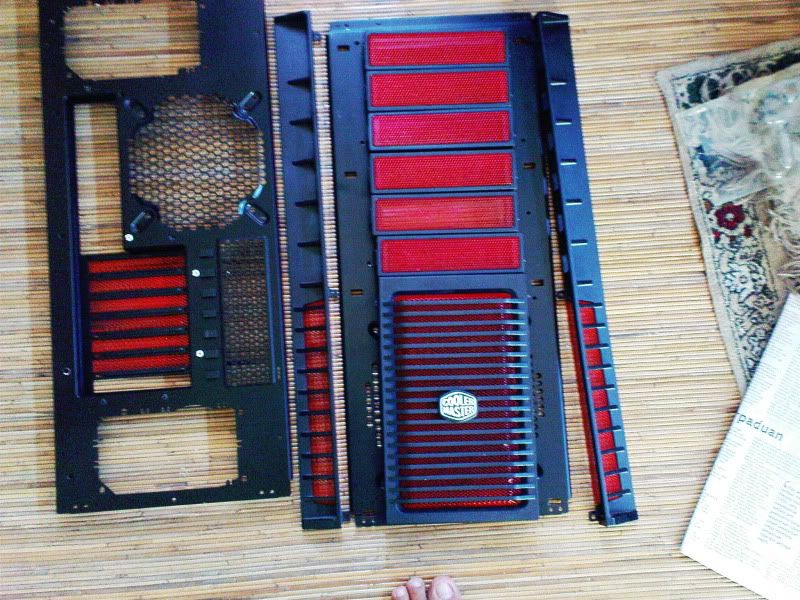

90% finised
juz a lil bit more work to finish my project

havent try it on matte color, i think it will give out shiny surface.

yep.. it wont be matte anymore..

nice job there.. keep it up bro!!

zzz i got girlish fingers, arms and wrist.. thats the weakest part of my body
ur paint was pretty much in tact too.. mine peeled quite a lot when sliding those thing back in

This post has been edited by reiben05: Feb 17 2010, 12:22 AM

like that matte gonna turn to metalic


go to gym bro make ur hand got otot2
that tear part is where i start the 1st clip
other part seem got no probs much

yeah im going to the gym alright.. biceps and forearms are quite strong for my size D: and i just started working heavy, before this was light2 ..

salute u on the paint.. mine was chipping all over when i drag/slide the clips in..

This post has been edited by reiben05: Feb 17 2010, 01:25 AM

mayb u can spray on it again
try to sand it kaw kaw 1st then spray

btw, it look like the HAF AMD dragon version, just without the AMD logo

i am dragon
i already finish my project
will upload final picture ASAP

Waiting for your dragon casing

i only do spray job
no cutting2
not very kewl

faster2..i want look u dragon pc!!!

sorry 4 d late update

here some pic 4 u all

Rivet-ing



close-up

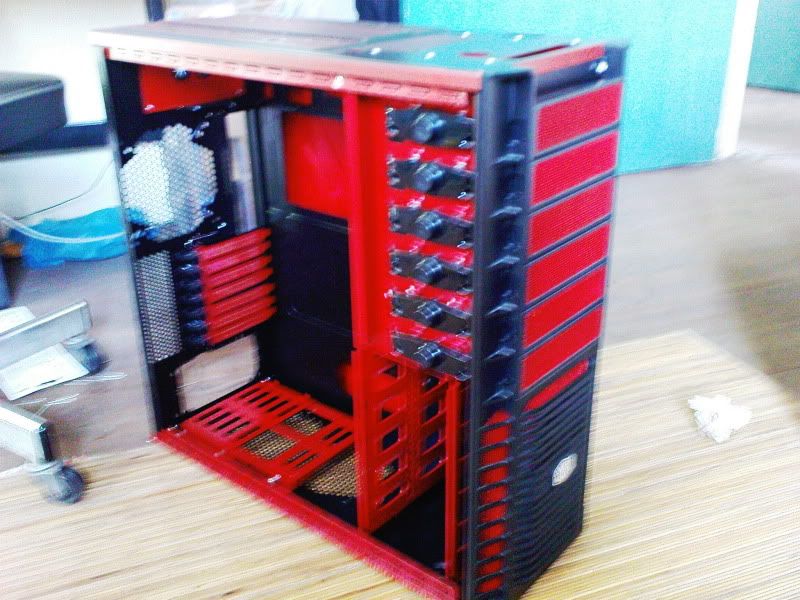

99% finish



[my sis call this obor2 =.=]

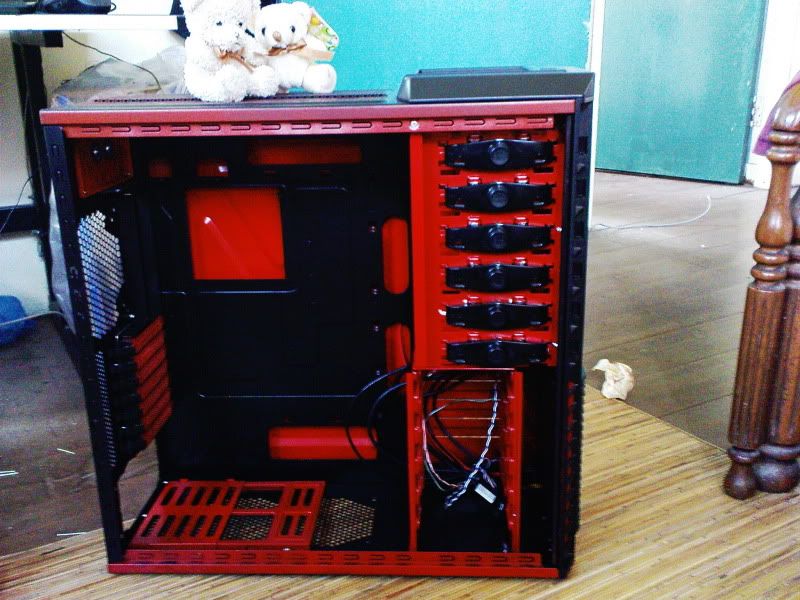

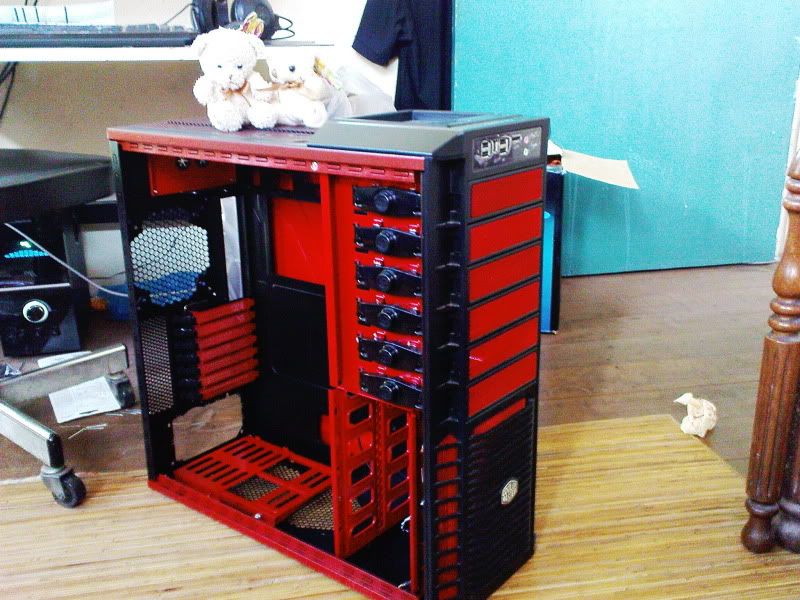

Finish!!



Front view



Side view




done my simple project for this HAF932

Hope got ppl give me borrow cutting tool

wanna try cut2 this time

nice job bro..
later can bring to Uni ,show off abit
im going to get back HAF 932 form ace combat..hahaha

nice.

tat back interior haf rite??
gila haf lol this guy
haha
[pastu klu kaw xnk gitau aku..ada org mau haf tu]

This post has been edited by doob: Feb 18 2010, 02:50 PM

yup...thats cool bro..dont'cha just loves the smell of a new paint after a work well done...wicked dude...

i got some ultimax md if u want

ya i luv the smell
till i cant feel my nose anymore
lulz


i wish i got money

CNY sure get a lot of angpau

good job bro..nice colour....ati version!!

but his using a nvidia graphic card

my aunty is chinese
she only give me rm50

never try ati card yet

topup 30 sikit can get a rotary tool edi

poison..poision..

haha
nvm
i wan saving 1st
wanna get dremel
so can mod casing kaw kaw like u

wowww... very nice color combination there.. i think it's better than CM HAF932 AMD edition itself.. bravo~ bravo~

i is very kembang now kena puji by an otai

u should try paint it green next time lol.. since u got an nvidia card XD..
most haf uses ati xD, even the one that i was modding was using an ati one..
the 260 is a really good card if u wanna go for tri-sli setup

saving money for a multipro ??
bagus2 :

dremel is the best rotary brand in the world imo

This post has been edited by reiben05: Feb 19 2010, 03:27 AM

instead, better to color the nvidia logo on gc with a red theme.. hahahaha

i oso wanna b a pro modder
mayb another 10 year ill achieve it
hahahaha


ill try change the dual fan with red led fan
if possible

Actually u din have Rotary Tools but got jigsaw also can do the work

i wanna make a good finish
if use jigsaw scare there will some defect on it
u all already know im not that rich to buy new casing to replace my haf if sumthing bad happen

ok , if u use rotary tool, u must have good skill

done some cutting job at my campus
mayb i can use my uni workshop to cut cut
may next month ill try to mod summore

Need to get permition if u want to use uni workshop ??

yup
but if b friendly to the lecturer mayb u can borrow it

keke nice..i got fren lastime work as technician in my uni workshop..been use the factory machinery there to mod my case oso

yup, i remember how u abusing uni facilities to mod ur casing.

p/s: long time not seeing u. still active in this thread ya??

then help me potong2 la bro

haha
that not abusing
if we dun use them then who will use it


This post has been edited by doob: Feb 19 2010, 05:35 PM

hahahah..sangkot tang c 2 la..lari tema teros!!

but the GC red & black colour theme..nice..but not ATI

This post has been edited by uknown: Feb 19 2010, 07:55 PM

spray my hsf n gfx card to red

try la doob...i want see k..

haha
i think its imposible to me la bro
