 Phenom II steppings and max OC database!, OCX on first boot ! ! !

views

TSverdict
post Apr 19 2009, 04:17 PM, updated 14y ago

Time is Flying By
*******
Senior Member
2,458 posts

Joined: Apr 2008
From: M A N C A V E
user posted image


.:: LOWYAT.NET Phenom II steppings and max OC database ::.

This thread will be dedicated to making a list of all the Phenom II steppings and the max stable overclocks LYN users have attained with those steppings. I don't want to argue about what "stable" is, so please use good judgment that your OC is stable before you spread the news...this is here to help people, so I would like solid info. That doesn't mean 24hr Prime, it just means that your system isn't crashing when its being stressed by stress programs or intensive gaming, at whatever interval you deem to prove stability.

:: Minor Info Before Start ::

- These chips love low temperatures, and low voltage.
- Instability can be helped a lot by upping the CPU NB Vid a few notches.
- Bluescreen crashes are related to IMC/Memory instability, Black screens related to cpu clocks/voltage and freezes/sudden restarts related to temperatures.
- Higher overclocks are reached in 32-bit windows
- When OCing, start with the Ram and NB OCs FIRST. This helps to ensure that you eliminate all other factors holding back a core OC from stability.
- win 7, win xp, win vista.......it doesn't matter anymore, chips clock just as high in all OS now 64 bit or 32 bit......

Minimum 1 Hour PRIME Is Required for Stability Test !!!


.:: PRIME STABLE ::.
» Click to show Spoiler - click again to hide... «


.:: SUICIDE ::.

» Click to show Spoiler - click again to hide... «


PLEASE post a screenshot of your CPU-Z data with both the CPU and Memory tabs viewable... it makes it easier for me to find certain information for the database.

And please feel free to re-submit updated OC's, but be sure to note any changes to the system and/or specs.


"SPECIAL TAG" - special tag for "AMD LY.Net WR" has been added in! For those user who want to compete for this tag! at least must post 3x 3.8Ghz and above Ocing result!

To submit a listing, please submit a post containing the following:

- Phenom II type (9xx, 9x5, etc)
- CPU stepping (printed on the CPU IHS) or whatever you have.
- Revision (check CPU-Z) ( Latest )
- Max CPU clock speed, reference clock and multiplier
- CPU voltage
- CPU-NB voltage
- Northbridge clock (check CPU-Z) and voltage
- HTT link speed and voltage
- Motherboard used
- Type of cooling

| My ex@mple on Submitting Result |

- Phenom II 955
- CPU stepping : CCACYC AC 0911EPDW
- Revision : RB-C2
- Max CPU clock speed : 3890.5 MHz (251* 15.5)
- CPU voltage : 1.496 V
- Northbridge clock : 2510.0 MHz MHz @ 1.40 V
- Motherboard used : MSI 790FX-GD 70
- Type of cooling : CUSTOM WC

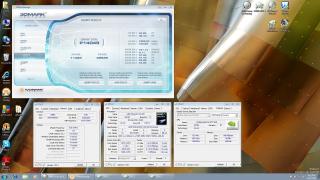

Attached Image

This post has been edited by verdict: Mar 22 2010, 11:48 PM
-pWs-
post Apr 19 2009, 04:22 PM

Look at all my stars!!
Group Icon
Elite
8,545 posts

Joined: Aug 2006
From: 224.0.0.6
Hi TS,

It is better for you yourself to post a example of your entry. smile.gif

-pWs-
TSverdict
post Apr 19 2009, 04:25 PM

Time is Flying By
*******
Senior Member
2,458 posts

Joined: Apr 2008
From: M A N C A V E
.:: PRIME STABLE ::.

Phenom II 955 BE | 3890.5 Mhz | verdict | MSI 790FX-GD 70 | KVR | 1675 Mhz | 9-9-9-24-33 | Custom WC Kit

- Phenom II 955
- CPU stepping : CCACYC AC 0911EPDW
- Revision : RB-C2
- Max CPU clock speed : 3890.5 MHz (251* 15.5)
- CPU voltage : 1.496 V
- Northbridge clock : 2510.0 MHz MHz @ 1.40 V
- Motherboard used : MSI 790FX-GD 70
- Type of cooling : CUSTOM WC


Thanks You Bro -pWs-...

Excited until forgot to show it... sweat.gif notworthy.gif

This post has been edited by verdict: Dec 16 2009, 08:03 PM
xixo_12
post Apr 19 2009, 04:28 PM

i!Retired!i
*******
Senior Member
7,318 posts

Joined: Nov 2006
From: Pulau Sipadan
+1.. nice effort..
malaysia always got bad stepping laugh.gif
TSverdict
post Apr 19 2009, 04:48 PM

Time is Flying By
*******
Senior Member
2,458 posts

Joined: Apr 2008
From: M A N C A V E
QUOTE(xixo_12 @ Apr 19 2009, 05:28 PM)
+1.. nice effort..
malaysia always got bad stepping laugh.gif
*

Agree sis xixo..so now i just wanna gather few info on Phenom BATCH Stepping... laugh.gif

See weither any one here in LYN got GOLDEN one...ekekeke... wub.gif

This post has been edited by verdict: Apr 20 2009, 02:12 AM
SUSone3rd
post Apr 19 2009, 05:45 PM

Getting Started
**
Junior Member
58 posts

Joined: Jan 2008
rclxms.gif Phenom II 720BE
flex.gif CPU stepping : CACZC AC 0904EPMW
nod.gif Revision : RB-C2
notworthy.gif max CPU clock speed : 3900.2MHz (200 * 19.5)
thumbup.gif CPU voltage : 1.520V
whistling.gif Northbridge clock : 2400.2 Mhz @ default
cool.gif motherboard used : DFI DK790FXB-M2RSH
rclxm9.gif type of cooling : CUSTOM WC

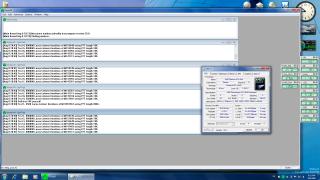

Attached thumbnail(s)
Attached Image
picksickrick
post Apr 19 2009, 06:01 PM

Getting Started
**
Junior Member
299 posts

Joined: Aug 2008
wow... very the nice punya results for x3 smile.gif
TSverdict
post Apr 19 2009, 06:23 PM

Time is Flying By
*******
Senior Member
2,458 posts

Joined: Apr 2008
From: M A N C A V E
QUOTE(one3rd @ Apr 19 2009, 06:45 PM)
Phenom II 720BE
CPU stepping : CACZC AC 0904EPMW
Revision : RB-C2
max CPU clock speed : 3900.2MHz (200 * 19.5)
CPU voltage : 1.520V
Northbridge clock : 2400.2 Mhz @ default
motherboard used : DFI DK790FXB-M2RSH
type of cooling : CUSTOM WC
*

Done updating your result... wub.gif

please do send me your 1 hour PRIMING TEST SS... nod.gif

Other wise i will put your result as "SUICIDE" brows.gif
QUOTE(picksickrick @ Apr 19 2009, 07:01 PM)
wow... very the nice punya results for x3 smile.gif
*

Come on dude...fast FATS using Phenom II... whistling.gif


This post has been edited by verdict: Apr 19 2009, 08:15 PM
picksickrick
post Apr 19 2009, 08:18 PM

Getting Started
**
Junior Member
299 posts

Joined: Aug 2008
let me kumpul $$$ dulu hehhee...

for now play my f3 6000+ first smile.gif
cwk88
post Apr 20 2009, 12:12 AM

On my way
****
Senior Member
653 posts

Joined: Dec 2006
i cant oc well on win 7.. hv to chg bac to vista 1st =(
SUSone3rd
post Apr 20 2009, 12:45 AM

Getting Started
**
Junior Member
58 posts

Joined: Jan 2008
Bro,here u go... rclxms.gif rclxms.gif

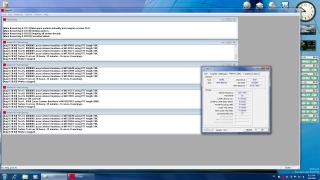

Attached thumbnail(s)
Attached Image
AceCombat
post Apr 20 2009, 01:13 AM


Group Icon
Elite
5,434 posts

Joined: Dec 2006
Guys,Phenom II is what ya? using DDr3 one?
tangan gatai la,wanna buy one and hit u all tongue.gif
And bro verdict,i think it's better to record down idle and load temp and the cooler being used smile.gif
shinjun
post Apr 20 2009, 01:16 AM

Look at all my stars!!
*******
Senior Member
2,247 posts

Joined: Jan 2007
QUOTE(AceCombat @ Apr 20 2009, 01:13 AM)
Guys,Phenom II is what ya? using DDr3 one?
tangan gatai la,wanna buy one and hit u all tongue.gif
And bro verdict,i think it's better to record down idle and load temp and the cooler being used smile.gif
*
Phenom II is currently latest AMD processor line up.

Got both DDR2 and DDR3 memory controller, so it can be use in both AM2+ mobo with DDR2 or latest AM3 mobo with DDR3.
TSverdict
post Apr 20 2009, 01:51 AM

Time is Flying By
*******
Senior Member
2,458 posts

Joined: Apr 2008
From: M A N C A V E
QUOTE(AceCombat @ Apr 20 2009, 02:13 AM)
Guys,Phenom II is what ya? using DDr3 one?
tangan gatai la,wanna buy one and hit u all tongue.gif
And bro verdict,i think it's better to record down idle and load temp and the cooler being used smile.gif
*

Thanks for the opinion Ace Mei Mei...i will consider it... wub.gif nod.gif
QUOTE(cwk88 @ Apr 20 2009, 01:12 AM)
i cant oc well on win 7.. hv to chg bac to vista 1st =(
*

Ho Ho Ho...i will wait for you dude...come2 fast show us ur result bro... rclxms.gif
QUOTE(shinjun @ Apr 20 2009, 02:16 AM)
Phenom II is currently latest AMD processor line up.

Got both DDR2 and DDR3 memory controller, so it can be use in both AM2+ mobo with DDR2 or latest AM3 mobo with DDR3.
*

Yes ur rite shinjun...he he he...after this i will give you 1+... wub.gif
QUOTE(one3rd @ Apr 20 2009, 01:45 AM)
Bro,here u go... rclxms.gif  rclxms.gif
*

Done noted and updated...


This post has been edited by verdict: Apr 20 2009, 02:00 AM
gamers maniac
post Apr 20 2009, 01:56 AM

Casual Gamers
******
Senior Member
1,070 posts

Joined: Jan 2003
From: Ipoh
ace should join amd clan thumbup.gif . many leng lui here wub.gif whistling.gif
TSverdict
post Apr 20 2009, 02:01 AM

Time is Flying By
*******
Senior Member
2,458 posts

Joined: Apr 2008
From: M A N C A V E
QUOTE(gamers maniac @ Apr 20 2009, 02:56 AM)
ace should join amd clan  thumbup.gif . many leng lui here  wub.gif  whistling.gif
*

He He He...Thermalright tu yg x tahan tu...ekekeke... brows.gif brows.gif

Amacam...ada improve x ??? wub.gif

Wait for Ace Mei Mei to join us...its "G POWER" wub.gif

This post has been edited by verdict: Apr 20 2009, 02:02 AM
AceCombat
post Apr 20 2009, 02:26 AM


Group Icon
Elite
5,434 posts

Joined: Dec 2006
but i have not much experience in overclocking an AMD processor cry.gif
this little lenglui sure kena bully kaw kaw by toikor taikor here cry.gif

anyway,can recommend me some nice setup for Phenom II?
iwan6996
post Apr 20 2009, 02:42 AM

Getting Started
**
Junior Member
67 posts

Joined: Jun 2008
im phenom ii 940 be user
but dont know how to oc la plak
hehe...
TSverdict
post Apr 20 2009, 03:10 AM

Time is Flying By
*******
Senior Member
2,458 posts

Joined: Apr 2008
From: M A N C A V E
QUOTE(iwan6996 @ Apr 20 2009, 03:42 AM)
im phenom ii 940 be user
but dont know how to oc la plak
hehe...
*

Self learning is a must bro...reffer to the AMD Thread ler...

laugh.gif thumbup.gif whistling.gif

cyberloner
post Apr 20 2009, 03:16 AM

Regular
******
Senior Member
1,560 posts

Joined: May 2005
From: Penang
- Phenom II X4 810 Am3
- CPU stepping HDX810WFK4FGI CAC2C AC 0904APMW
- Revision RB_C2
- Max CPU clock speed 3601Mhz 277X 13
- CPU voltage +0.15 1.45 Vcore
- CPU-NB voltage Default
- Northbridge clock 2215 Default Voltage
- HTT link speed 2215 Default Voltage
- Motherboard DFI 790FXB M2RSH
- Thermaltake V1 Air Cooling

14 Hours Prime stable tongue.gif


Attached thumbnail(s)
Attached Image
TSverdict
post Apr 20 2009, 04:30 AM

Time is Flying By
*******
Senior Member
2,458 posts

Joined: Apr 2008
From: M A N C A V E
QUOTE(cyberloner @ Apr 20 2009, 04:16 AM)
- Phenom II X4 810 Am3
- CPU stepping HDX810WFK4FGI CAC2C AC 0904APMW
- Revision RB_C2
- Max CPU clock speed 3601Mhz 277X 13
- CPU voltage +0.15 1.45 Vcore
- CPU-NB voltage Default
- Northbridge clock 2215 Default Voltage
- HTT link speed 2215 Default Voltage
- Motherboard DFI 790FXB M2RSH
- Thermaltake V1 Air Cooling

14 Hours Prime stable  tongue.gif
*

Great bro cyberloner... thumbup.gif

I luv the 14Hours time... wub.gif

SUSProtester
post Apr 20 2009, 05:08 AM

Casual
***
Junior Member
328 posts

Joined: Sep 2008
From: Fox River Status:Wanted
your animated avatar is irritating yo !
TSverdict
post Apr 20 2009, 05:21 AM

Time is Flying By
*******
Senior Member
2,458 posts

Joined: Apr 2008
From: M A N C A V E
QUOTE(Protester @ Apr 20 2009, 06:08 AM)
your animated avatar is irritating yo !
*

Thanks for the compliment...so SHUT UP...ha ha ha... laugh.gif

Come fast2 submit your Phenom II SS to me... brows.gif

SUSProtester
post Apr 20 2009, 05:32 AM

Casual
***
Junior Member
328 posts

Joined: Sep 2008
From: Fox River Status:Wanted
But i forgot my batch lol. i remember is 0851 bpew iinm.
Just like normal 1. My max can do 3.6 @ 1.44 only. aim for 24/7 stable.
This few days very hot, reduce to 3.4 @ 1.34.
Wait for next monsoon season i post ss lah. laugh.gif
TSverdict
post Apr 20 2009, 05:55 AM

Time is Flying By
*******
Senior Member
2,458 posts

Joined: Apr 2008
From: M A N C A V E
QUOTE(Protester @ Apr 20 2009, 06:32 AM)
But i forgot my batch lol. i remember is 0851 bpew iinm.
Just like normal 1. My max can do 3.6 @ 1.44 only.  aim for 24/7 stable.
This few days very hot, reduce to 3.4 @ 1.34.
Wait for next monsoon season i post ss lah. laugh.gif
*

Ok will wait for you to show up... whistling.gif

fuzore
post Apr 20 2009, 07:57 AM

<motion sickness around>
*******
Senior Member
2,142 posts

Joined: Jan 2008
From: who wants to know?
Whoa.... bro great one will post mine later....
shinjun
post Apr 20 2009, 12:39 PM

Look at all my stars!!
*******
Senior Member
2,247 posts

Joined: Jan 2007
QUOTE(verdict @ Apr 20 2009, 01:51 AM)
Thanks for the opinion Ace Mei Mei...i will consider it... wub.gif  :nod:Ho Ho Ho...i will wait for you dude...come2 fast show us ur result bro... rclxms.gifYes ur rite shinjun...he he he...after this i will give you 1+... wub.gifDone noted and updated...
*
Give me your 940BE instead. wub.gif

I would like to OC that baby. wub.gif wub.gif

This post has been edited by shinjun: Apr 20 2009, 12:39 PM
ah_khoo
post Apr 20 2009, 02:31 PM

- No Action Talk Only -
Group Icon
Elite
8,103 posts

Joined: Jan 2003
From: Tanah Lot @ Dungun, Terengganu.
QUOTE(shinjun @ Apr 20 2009, 01:16 AM)
Phenom II is currently latest AMD processor line up.

Got both DDR2 and DDR3 memory controller, so it can be use in both AM2+ mobo with DDR2 or latest AM3 mobo with DDR3.
*
u forgot bout 940BE & 920 of AM2+ flavor which can only be used on AM2+ board bro. wink.gif
shinjun
post Apr 20 2009, 02:41 PM

Look at all my stars!!
*******
Senior Member
2,247 posts

Joined: Jan 2007
QUOTE(ah_khoo @ Apr 20 2009, 02:31 PM)
u forgot bout 940BE & 920 of AM2+ flavor which can only be used on AM2+ board bro.  wink.gif
*
Yea, thanks for reminding sis ah_khoo. icon_rolleyes.gif

Sum up,

AM2+ Phenom II :

1) AMD Phenom II x4 920
2) AMD Phenom II x4 940 Black Edition

AM3 Phenom II :

1) AMD Phenom II x3 710
2) AMD Phenom II x3 720 Black Edition
3) AMD Phenom II x4 805
4) AMD Phenom II x4 810
5) AMD Phenom II x4 910
6) AMD Phenom II x4 955 Black Edition

This post has been edited by shinjun: Apr 20 2009, 02:45 PM
fuzore
post Apr 20 2009, 03:18 PM

<motion sickness around>
*******
Senior Member
2,142 posts

Joined: Jan 2008
From: who wants to know?
- Phenom II : X3@X4 720 B.E with unlocked 4th core
- CPU stepping : 0904EPQW
- Revision : RB-C2
- Max CPU clock speed, reference clock and multiplier : 3306.7MHz x 14.5
- CPU voltage : 1.424v
- CPU-NB voltage : 1.2v
- Northbridge clock (check CPU-Z) and voltage : 2052.2MHz @stock voltage
- HTT link speed and voltage : 1824.4MHz @stock voltage
- Motherboard used : Biostar TA790GX 128M
- Type of cooling : Air Cooling@CCF

Attached Image
ah_khoo
post Apr 20 2009, 03:27 PM

- No Action Talk Only -
Group Icon
Elite
8,103 posts

Joined: Jan 2003
From: Tanah Lot @ Dungun, Terengganu.
forgot that i once owned a deneb... tongue.gif

- Phenom II : X3 720 B.E @ 3.3GHz (4th core unlocked)
- CPU stepping : 0904BPMW
- Revision : RB-C2
- Max CPU clock speed, reference clock and multiplier : 200MHz x 16.5
- CPU voltage : 1.392v
- CPU-NB voltage : stock
- HTT voltage: stock
- Northbridge clock (check CPU-Z) and voltage : 2000MHz
- HTT link speed and voltage : 1600MHz
- Motherboard used : Biostar TA790GX3 A2+
- Type of cooling : Zerotherm FZ120

ss HERE
TSverdict
post Apr 20 2009, 05:16 PM

Time is Flying By
*******
Senior Member
2,458 posts

Joined: Apr 2008
From: M A N C A V E
QUOTE(shinjun @ Apr 20 2009, 03:41 PM)
Yea, thanks for reminding sis ah_khoo. icon_rolleyes.gif

Sum up,

AM2+ Phenom II :

1) AMD Phenom II x4 920
2) AMD Phenom II x4 940 Black Edition

AM3 Phenom II :

1) AMD Phenom II x3 710
2) AMD Phenom II x3 720 Black Edition
3) AMD Phenom II x4 805
4) AMD Phenom II x4 810
5) AMD Phenom II x4 910
6) AMD Phenom II x4 955 Black Edition
*

Woott...955 bro...he he he... wub.gif
QUOTE(fuzore @ Apr 20 2009, 04:18 PM)
- Phenom II : X3@X4 720 B.E with unlocked 4th core
- CPU stepping : 0904EPQW
- Revision : RB-C2
- Max CPU clock speed, reference clock and multiplier : 3306.7MHz x 14.5
- CPU voltage : 1.424v
- CPU-NB voltage : 1.2v
- Northbridge clock (check CPU-Z) and voltage : 2052.2MHz @stock voltage
- HTT link speed and voltage : 1824.4MHz @stock voltage
- Motherboard used : Biostar TA790GX 128M
- Type of cooling : Air Cooling@CCF
*

QUOTE(ah_khoo @ Apr 20 2009, 04:27 PM)
forgot that i once owned a deneb...  tongue.gif

- Phenom II : X3 720 B.E @ 3.3GHz (4th core unlocked)
- CPU stepping : 0904BPMW
- Revision : RB-C2
- Max CPU clock speed, reference clock and multiplier : 200MHz x 16.5
- CPU voltage : 1.392v
- CPU-NB voltage : stock
- HTT voltage: stock
- Northbridge clock (check CPU-Z) and voltage : 2000MHz
- HTT link speed and voltage : 1600MHz
- Motherboard used : Biostar TA790GX3 A2+
- Type of cooling : Zerotherm FZ120

ss HERE
*

Done and updated guys...

Come Come Phenom II user...submit your result... wub.gif
QUOTE(cwk88 @ Apr 20 2009, 01:12 AM)
i cant oc well on win 7.. hv to chg bac to vista 1st =(
*

Owh really bro..i just wanna change my OS to Windows 7...ekekeke...

So now will wait for you to submit your SS result...

This post has been edited by verdict: Apr 21 2009, 03:36 AM
SUSProtester
post Apr 21 2009, 06:20 AM

Casual
***
Junior Member
328 posts

Joined: Sep 2008
From: Fox River Status:Wanted
940BE
DFI 790FXB M2RSH
KVR 2g 800
CCF+tx2

1 question,
Is my temperature normal? ambient around 25 i guess. rainy day. wub.gif

This post has been edited by Protester: Apr 21 2009, 06:21 AM


Attached thumbnail(s)
Attached Image
TSverdict
post Apr 21 2009, 06:46 AM

Time is Flying By
*******
Senior Member
2,458 posts

Joined: Apr 2008
From: M A N C A V E
QUOTE(Protester @ Apr 21 2009, 07:20 AM)
940BE
DFI 790FXB M2RSH
KVR 2g 800
CCF+tx2

1 question,
Is my temperature normal? ambient around 25 i guess. rainy day.  wub.gif
*

Yup...its normal for me...he he he...

Im OC my deneb now...still on progress...with higher ram speed ler... brows.gif

bro...can you please provide more details on your system voltage ???

Your batch also liao... whistling.gif

really appreciate it if you can make it possible...

example given :

- Phenom II 940
- CPU stepping : CACVC AC 0850CPMW
- Revision : RB-C2
- Max CPU clock speed : 3797MHz (245 * 15.5)
- CPU voltage : 1.552V
- Northbridge clock : 1225 Mhz @ 1.39V
- Motherboard used : DFI DK790FXB M2RSH
- Type of cooling : CUSTOM WC

This post has been edited by verdict: Apr 21 2009, 06:50 AM
SUSProtester
post Apr 21 2009, 03:35 PM

Casual
***
Junior Member
328 posts

Joined: Sep 2008
From: Fox River Status:Wanted
Max core i did
- CPU stepping : 0851 BPEW iinm
- Revision : RB-C2
- Max CPU clock speed : 3600(200 * 18)
- CPU voltage : 1.44V
- Northbridge clock : auto
- Motherboard used : DFI DK790FXB M2RSH
- Type of cooling : CCF

now 3400 (200 x 17)
voltage 1.34v
TSverdict
post Apr 21 2009, 07:46 PM

Time is Flying By
*******
Senior Member
2,458 posts

Joined: Apr 2008
From: M A N C A V E
QUOTE(Protester @ Apr 21 2009, 04:35 PM)
Max core i did
- CPU stepping : 0851 BPEW iinm
- Revision : RB-C2
- Max CPU clock speed : 3600(200 * 18)
- CPU voltage : 1.44V
- Northbridge clock : auto
- Motherboard used : DFI DK790FXB M2RSH
- Type of cooling : CCF

now 3400 (200 x 17)
voltage 1.34v
*

Thanks bro for the fast respond...done and already update it... wub.gif

Kclee2002
post Apr 21 2009, 08:29 PM

Look at all my stars!!
*******
Senior Member
5,135 posts

Joined: Jan 2003
- Phenom II : X3 720 B.E @ 3.36GHz (4th core unlocked)
- CPU stepping : 0904EPQW
- Revision : RB-C2
- Max CPU clock speed, reference clock and multiplier : 210MHz x 16.0
- CPU voltage : 1.392v
- CPU-NB voltage : stock
- HTT voltage: stock
- Northbridge clock (check CPU-Z) and voltage : 2100MHz
- HTT link speed and voltage : 1680MHz
- Motherboard used : Biostar TA790GX 128M
- Type of cooling : Xigmatek S1283 Red Scorpion

user posted image
SUSProtester
post Apr 21 2009, 09:45 PM

Casual
***
Junior Member
328 posts

Joined: Sep 2008
From: Fox River Status:Wanted
I just noticed that combo between ht and multi will not get u high freq @ low voltage.
it's calculated like 3600 needs 1.4x volts. no matter what combination u set for ht and multi,the wall is still there.

amisayingitright?
TSverdict
post Apr 21 2009, 10:46 PM

Time is Flying By
*******
Senior Member
2,458 posts

Joined: Apr 2008
From: M A N C A V E
QUOTE(Kclee2002 @ Apr 21 2009, 09:29 PM)
- Phenom II : X3 720 B.E @ 3.36GHz (4th core unlocked)
- CPU stepping : 0904EPQW
- Revision : RB-C2
- Max CPU clock speed, reference clock and multiplier : 210MHz x 16.0
- CPU voltage : 1.392v
- CPU-NB voltage : stock
- HTT voltage: stock
- Northbridge clock (check CPU-Z) and voltage : 2100MHz
- HTT link speed and voltage : 1680MHz
- Motherboard used : Biostar TA790GX 128M
- Type of cooling : Xigmatek S1283 Red Scorpion

user posted image
*

Nice clock there mate...love the vcore wub.gif
QUOTE(Protester @ Apr 21 2009, 10:45 PM)
I just noticed that combo between ht and multi will not get u high freq @ low voltage.
it's calculated like 3600 needs 1.4x volts. no matter what combination u set for ht and multi,the wall is still there.

amisayingitright?
*

Im agree with you protester...but it depends on luck also...

Plus do remember a good cooling also needed for the HT and multi combo....

for me...am always stick with lower Multi and play with higher HTT... whistling.gif

DO CLICK ME : 3.7Ghz Passed with 790FXB TIPS !!!

This post has been edited by verdict: Apr 21 2009, 10:53 PM
cwk88
post Apr 21 2009, 11:25 PM

On my way
****
Senior Member
653 posts

Joined: Dec 2006
i'll post mine in these few days
TSverdict
post Apr 22 2009, 01:09 AM

Time is Flying By
*******
Senior Member
2,458 posts

Joined: Apr 2008
From: M A N C A V E
QUOTE(cwk88 @ Apr 22 2009, 12:25 AM)
i'll post mine in these few days
*

Owh great bro...i'll be waiting for your result... wub.gif thumbup.gif

SUSProtester
post Apr 22 2009, 03:54 AM

Casual
***
Junior Member
328 posts

Joined: Sep 2008
From: Fox River Status:Wanted
QUOTE(verdict @ Apr 21 2009, 10:46 PM)
Nice clock there mate...love the vcore :wub:Im agree with you protester...but it depends on luck also...

Plus do remember a good cooling also needed for the HT and multi combo....

for me...am always stick with lower Multi and play with higher HTT... whistling.gif

DO CLICK ME : 3.7Ghz Passed with 790FXB TIPS !!!
*
Damn the poster now running 3.8 on 1.46 lol. But speaking of nb. How to mount fan over there? i got lotsa 80mm fans, but 40mm mine kinda noisy.

htt need good ram though. tmr i gotta rma my KHX at robyn XD .


TSverdict
post Apr 22 2009, 11:21 AM

Time is Flying By
*******
Senior Member
2,458 posts

Joined: Apr 2008
From: M A N C A V E
QUOTE(Protester @ Apr 22 2009, 04:54 AM)
Damn the poster now running 3.8 on 1.46 lol.  But speaking of nb. How to mount fan over there? i got lotsa 80mm fans, but 40mm mine kinda noisy.

htt need good ram though. tmr i gotta rma my KHX at robyn XD .
*

Ha Ha Ha...i see...like always la bro...you have to find an alternative way to mount it...

Usually we didt use tower or casing..we run NAKED wub.gif

Or you can get a good fan from Xk2 Mei Mei... wub.gif

I and bro fuzore will be at ROBYN this afternoon... whistling.gif

This post has been edited by verdict: Apr 22 2009, 11:22 AM
gamers maniac
post Apr 22 2009, 01:28 PM

Casual Gamers
******
Senior Member
1,070 posts

Joined: Jan 2003
From: Ipoh
QUOTE
I and bro fuzore will be at ROBYN this afternoon


jgn dating lama2... later kene racun br tau tongue.gif . btw kipas da order hmm.gif ?
SUSProtester
post Apr 22 2009, 04:48 PM

Casual
***
Junior Member
328 posts

Joined: Sep 2008
From: Fox River Status:Wanted
QUOTE(verdict @ Apr 22 2009, 11:21 AM)
Ha Ha Ha...i see...like always la bro...you have to find an alternative way to mount it...

Usually we didt use tower or casing..we run NAKED wub.gif

Or you can get a good fan from Xk2 Mei Mei... wub.gif

I and bro fuzore will be at ROBYN this afternoon... whistling.gif
*
I just got back from there. Bought pioneer dvd drive and rma kingston KHX. now priming. forgot to ask news about 955 doh.gif .

just pm'd xk mei mei. I need some ideas to mount either 4cm or 7cm fan on it. double sided? cable tie?

if use 7cm, can cool the sb as well.

btw i like to run naked too. but whenever my parents and my sis got in my room will tease me kaw kaw. say about radiation, cancer, die younger, mandul.

even some worst case scenario like what if someone accidentally pour water on it. laugh.gif so i just keep in casing, now they saying my cables alot. i'm going crazy.

This post has been edited by Protester: Apr 22 2009, 04:50 PM
SUSProtester
post Apr 22 2009, 05:14 PM

Casual
***
Junior Member
328 posts

Joined: Sep 2008
From: Fox River Status:Wanted
Finally KHX able to prime for 30mins.
NB temp bukan main gurau. highest of all.



Attached thumbnail(s)
Attached Image
pikacu
post Apr 22 2009, 09:18 PM

male tag rosak
*******
Senior Member
7,740 posts

Joined: Jun 2006
From: Some Yih
hey nikka, use Unganged mode , will get better performance at most apps/games biggrin.gif
SUSProtester
post Apr 23 2009, 01:53 AM

Casual
***
Junior Member
328 posts

Joined: Sep 2008
From: Fox River Status:Wanted
QUOTE(pikacu @ Apr 22 2009, 09:18 PM)
hey nikka, use Unganged mode , will get better performance at most apps/games biggrin.gif
*
o rly. i'll try.
TSverdict
post Apr 23 2009, 12:32 PM

Time is Flying By
*******
Senior Member
2,458 posts

Joined: Apr 2008
From: M A N C A V E
QUOTE(Protester @ Apr 23 2009, 02:53 AM)
o rly. i'll try.
*

He He He...pura-pura act NOOB erk... sweat.gif

GO GO GO.... wub.gif

cwk88
post Apr 23 2009, 10:31 PM

On my way
****
Senior Member
653 posts

Joined: Dec 2006
my cpu batch is CACVC AC 0852GPDW

week 52 d =/
TSverdict
post Apr 24 2009, 02:42 AM

Time is Flying By
*******
Senior Member
2,458 posts

Joined: Apr 2008
From: M A N C A V E
QUOTE(cwk88 @ Apr 23 2009, 11:31 PM)
my cpu batch is CACVC AC 0852GPDW

week 52 d =/
*

Owh really bro...can you please OC it and submit the OC SS to me...

I need it...thanks ya... wub.gif

fuzore
post Apr 24 2009, 09:36 AM

<motion sickness around>
*******
Senior Member
2,142 posts

Joined: Jan 2008
From: who wants to know?
woi wheres the secret weapon bro.... post la...
xixo_12
post Apr 24 2009, 09:38 AM

i!Retired!i
*******
Senior Member
7,318 posts

Joined: Nov 2006
From: Pulau Sipadan
ape nie.. sorang pown xmau post ya dollar million am3.. doh.gif
TSverdict
post Apr 24 2009, 03:51 PM

Time is Flying By
*******
Senior Member
2,458 posts

Joined: Apr 2008
From: M A N C A V E
QUOTE(fuzore @ Apr 24 2009, 10:36 AM)
woi wheres the secret weapon bro.... post la...
*

Nak post celah mana...ekekeke...

MOBO kiok..so mls nak main ler...tunggu anda saja...ekekeke... whistling.gif wub.gif
QUOTE(xixo_12 @ Apr 24 2009, 10:38 AM)
ape nie.. sorang pown xmau post ya dollar million am3.. doh.gif
*

Wooott..bang fuzore the only one eho have the 955...ekekeke... wub.gif


This post has been edited by verdict: Apr 24 2009, 03:52 PM
fuzore
post Apr 24 2009, 03:58 PM

<motion sickness around>
*******
Senior Member
2,142 posts

Joined: Jan 2008
From: who wants to know?
- Phenom II : X4 955 B.E
- CPU stepping : 0911
- Revision : RB-C2
- Max CPU clock speed, reference clock and multiplier : 3913.1MHz @ 200x 19.5
- CPU voltage : 1.475v
- CPU-NB voltage : 1.2v
- Northbridge clock (check CPU-Z) and voltage : 2006.8MHz @stock voltage
- HTT link speed and voltage : 2006.7MHz @stock voltage
- Motherboard used : ASUS M4A79 DELUXE
- Type of cooling : Air Cooling@CCF

this is for the SUICIDE database arrr bro...

Attached Image
Kclee2002
post Apr 24 2009, 04:52 PM

Look at all my stars!!
*******
Senior Member
5,135 posts

Joined: Jan 2003
ah...tempted to change my 720be for a 955be now laugh.gif
TSverdict
post Apr 24 2009, 06:30 PM

Time is Flying By
*******
Senior Member
2,458 posts

Joined: Apr 2008
From: M A N C A V E
QUOTE(fuzore @ Apr 24 2009, 04:58 PM)
- Phenom II : X4 955 B.E
- CPU stepping : 0911
- Revision : RB-C2
- Max CPU clock speed, reference clock and multiplier : 3913.1MHz @ 200x 19.5
- CPU voltage : 1.475v
- CPU-NB voltage : 1.2v
- Northbridge clock (check CPU-Z) and voltage : 2006.8MHz @stock voltage
- HTT link speed and voltage : 2006.7MHz @stock voltage
- Motherboard used : ASUS M4A79 DELUXE
- Type of cooling : Air Cooling@CCF

this is for the SUICIDE database arrr bro...

Attached Image
*

Tonight i will update it...BTW thanks for the support... wub.gif
QUOTE(Kclee2002 @ Apr 24 2009, 05:52 PM)
ah...tempted to change my 720be for a 955be now laugh.gif
*

No need to think...fast fast grab the 955 bro... whistling.gif

New 790FXB flash your BIOS with this new one -

Date Code 2009-03-2Z File R7SD327.zip

Major Reasons of Change : update AMD Agesa micro code to 3.3.2.2 for support AMD AM3 Phenom II 945/955 CPUs.

Date Code 2009-04-15 File R7SD415.zip

Major Reasons of Change : Update uCode to support AMD Athlon II 400 and 600 series CPUs.

This post has been edited by verdict: Apr 24 2009, 06:38 PM
SUSone3rd
post Apr 26 2009, 03:41 PM

Getting Started
**
Junior Member
58 posts

Joined: Jan 2008
Where r the rest of our "AMD CHAMPIONS".....?
TSverdict
post Apr 26 2009, 11:08 PM

Time is Flying By
*******
Senior Member
2,458 posts

Joined: Apr 2008
From: M A N C A V E
QUOTE(one3rd @ Apr 26 2009, 04:41 PM)
Where r the rest of our "AMD CHAMPIONS".....?
*

I also dont know...they have a rest at this moment i think... whistling.gif

gamers maniac
post Apr 26 2009, 11:27 PM

Casual Gamers
******
Senior Member
1,070 posts

Joined: Jan 2003
From: Ipoh
QUOTE
I also dont know...they have a rest at this moment i think...


retired lah laugh.gif
cyberloner
post Apr 26 2009, 11:35 PM

Regular
******
Senior Member
1,560 posts

Joined: May 2005
From: Penang
QUOTE(gamers maniac @ Apr 26 2009, 11:27 PM)
retired lah  laugh.gif
*
Finish OC .. use the PC.. not retired... tongue.gif
gamers maniac
post Apr 26 2009, 11:51 PM

Casual Gamers
******
Senior Member
1,070 posts

Joined: Jan 2003
From: Ipoh
QUOTE(cyberloner @ Apr 26 2009, 11:35 PM)
Finish OC .. use the PC.. not retired...  tongue.gif
*
who ask u to use the pc mad.gif . u should sell in garage sale & buy another chip and start again. kan verdict kan laugh.gif ?
TSverdict
post Apr 27 2009, 12:14 AM

Time is Flying By
*******
Senior Member
2,458 posts

Joined: Apr 2008
From: M A N C A V E
QUOTE(gamers maniac @ Apr 27 2009, 12:51 AM)
who ask u to use the pc  mad.gif . u should sell in garage sale & buy another chip and start again. kan verdict kan  laugh.gif ?
*

Ha Ha Ha...you guys are crazy... laugh.gif laugh.gif

Playing OC as my Hobby...nothing much dude... whistling.gif

release my working stress by OC.... wub.gif

mozact89
post Apr 27 2009, 04:07 AM

~KAWASAKI NINJA~
******
Senior Member
1,137 posts

Joined: Oct 2007
From: ~Somewhere only we know~
hi verdict, i try to oc my proc until 3.9 ony.. when set to 4ghz, it restart.. so, here some suicide oc..


Attached thumbnail(s)
Attached Image
ah_khoo
post Apr 27 2009, 10:21 AM

- No Action Talk Only -
Group Icon
Elite
8,103 posts

Joined: Jan 2003
From: Tanah Lot @ Dungun, Terengganu.
QUOTE(mozact89 @ Apr 27 2009, 04:07 AM)
hi verdict, i try to oc my proc until 3.9 ony.. when set to 4ghz, it restart.. so, here some suicide oc..
*
finally, a dfi user u are eh bro? congrats... thumbup.gif

have u tried w/ multi < 20 to reach 4.0GHz? some chips just don't like high multi. i'm not tellin u to do super high htt thou, any htt < 250 will do just fine if u set d htt & nb freq multis rite. smile.gif
xixo_12
post Apr 27 2009, 10:53 AM

i!Retired!i
*******
Senior Member
7,318 posts

Joined: Nov 2006
From: Pulau Sipadan
waa mozact play with 955.. sweat.gif i thought still 940
fuzore
post Apr 27 2009, 11:07 AM

<motion sickness around>
*******
Senior Member
2,142 posts

Joined: Jan 2008
From: who wants to know?
that boy is cop duit i guess la.... so fast grab that chip edy...
xixo_12
post Apr 27 2009, 11:20 AM

i!Retired!i
*******
Senior Member
7,318 posts

Joined: Nov 2006
From: Pulau Sipadan
u pown ape kurang tongue.gif rolleyes.gif

wonder where he throw 940.. to gf maybe laugh.gif

This post has been edited by xixo_12: Apr 27 2009, 11:21 AM
hengmy
post Apr 27 2009, 12:25 PM

Regular
******
Senior Member
1,991 posts

Joined: Jan 2007
From: Seri Kembangan
nice thread, just see this thread today.
btw, may i suggest TS to link the result Screanshot to the database?
when there is alot of result summited, its hard to find the screanshot cry.gif
and also restricted the screanshot to uploaded at lowyat database, next time when ppl want to refer will not come out "the picture has been removed" smile.gif
apexiwildchild
post Apr 27 2009, 12:32 PM

Getting Started
**
Junior Member
277 posts

Joined: Dec 2008
hey guys.i have a question here..how come my amd overdrive cannot detect my phenom II proc??it says it cant detect any 7 series chipset..

This post has been edited by apexiwildchild: Apr 27 2009, 12:32 PM
fuzore
post Apr 27 2009, 12:34 PM

<motion sickness around>
*******
Senior Member
2,142 posts

Joined: Jan 2008
From: who wants to know?
QUOTE(apexiwildchild @ Apr 27 2009, 12:32 PM)
hey guys.i have a question here..how come my amd overdrive cannot detect my phenom II proc??it says it cant detect any 7 series chipset..
*
may i know which version is it..
apexiwildchild
post Apr 27 2009, 12:47 PM

Getting Started
**
Junior Member
277 posts

Joined: Dec 2008
QUOTE(fuzore @ Apr 27 2009, 12:34 PM)
may i know which version is it..
*
amd phenom II 810..btw my mobo is XFX nforce 750a
xixo_12
post Apr 27 2009, 12:48 PM

i!Retired!i
*******
Senior Member
7,318 posts

Joined: Nov 2006
From: Pulau Sipadan
Nvidia mobo detected.. whistling.gif of course can't
apexiwildchild
post Apr 27 2009, 12:51 PM

Getting Started
**
Junior Member
277 posts

Joined: Dec 2008
QUOTE(xixo_12 @ Apr 27 2009, 12:48 PM)
Nvidia mobo detected.. whistling.gif of course can't
*
so,this amd overdrive is just for ATI mobo only la?sigh.... doh.gif
xixo_12
post Apr 27 2009, 12:52 PM

i!Retired!i
*******
Senior Member
7,318 posts

Joined: Nov 2006
From: Pulau Sipadan
laugh.gif time to change.. doh.gif
fuzore
post Apr 27 2009, 12:55 PM

<motion sickness around>
*******
Senior Member
2,142 posts

Joined: Jan 2008
From: who wants to know?
ha..ha.. of coz la only for ATI chipset no..no.. nvidia
apexiwildchild
post Apr 27 2009, 12:55 PM

Getting Started
**
Junior Member
277 posts

Joined: Dec 2008
QUOTE(xixo_12 @ Apr 27 2009, 12:52 PM)
laugh.gif time to change.. doh.gif
*
well..i guest..its time for me to change rolleyes.gif ..thanks for answering my question.. notworthy.gif
xixo_12
post Apr 27 2009, 12:57 PM

i!Retired!i
*******
Senior Member
7,318 posts

Joined: Nov 2006
From: Pulau Sipadan
nvidia + phenomII look gay.. doh.gif laugh.gif
good luck in hunting time..
mozact89
post Apr 27 2009, 01:45 PM

~KAWASAKI NINJA~
******
Senior Member
1,137 posts

Joined: Oct 2007
From: ~Somewhere only we know~
QUOTE(ah_khoo @ Apr 27 2009, 10:21 AM)
finally, a dfi user u are eh bro? congrats...  thumbup.gif

have u tried w/ multi < 20 to reach 4.0GHz? some chips just don't like high multi. i'm not tellin u to do super high htt thou, any htt < 250 will do just fine if u set d htt & nb freq multis rite.  smile.gif
*
after this i will try to change the freq.. i heard changing the freq will effect the proc.. thats why i x brani..

bro, why u sell ur dfi?? wanna upgrade to what?

Added on April 27, 2009, 1:50 pm
QUOTE(xixo_12 @ Apr 27 2009, 10:53 AM)
waa mozact play with 955.. sweat.gif i thought still 940
*
QUOTE(fuzore @ Apr 27 2009, 11:07 AM)
that boy is cop duit i guess la.... so fast grab that chip edy...
*
no laa bro.. someone offer me best price for 940.. thats why i sell it.. then i just some money to get 955..

I also work part time at mid to get some money to buy those thing...

This post has been edited by mozact89: Apr 27 2009, 01:50 PM
OC4/3
post Apr 27 2009, 03:42 PM

.
Group Icon
Elite
4,746 posts

Joined: Dec 2007
From: Speed rule
No one hit 4.1ghz for suicide screen yet?Kinda looking forward to it smile.gif
» Click to show Spoiler - click again to hide... «
fuzore
post Apr 27 2009, 03:53 PM

<motion sickness around>
*******
Senior Member
2,142 posts

Joined: Jan 2008
From: who wants to know?
still waiting for the TS for the 4ghz screenie bro.... i post 3.9ghz alredy ...
TSverdict
post Apr 27 2009, 06:29 PM

Time is Flying By
*******
Senior Member
2,458 posts

Joined: Apr 2008
From: M A N C A V E
QUOTE(fuzore @ Apr 27 2009, 04:53 PM)
still waiting for the TS for the 4ghz screenie bro.... i post 3.9ghz alredy ...
*

Ho Ho Ho...it will late la bro...as my beloved DK and my promos chip is on HOLIDAY (RMA) wub.gif

gamers maniac
post Apr 27 2009, 08:36 PM

Casual Gamers
******
Senior Member
1,070 posts

Joined: Jan 2003
From: Ipoh
QUOTE(verdict @ Apr 27 2009, 06:29 PM)
Ho Ho Ho...it will late la bro...as my beloved DK and my promos chip is on HOLIDAY (RMA)  wub.gif
*
got 2 DK's, 6 pairs of ram, 2 ati cards, 4 xbox 360 sweat.gif .. its not a problem ler doh.gif


This post has been edited by gamers maniac: Apr 27 2009, 08:38 PM
TSverdict
post Apr 27 2009, 10:58 PM

Time is Flying By
*******
Senior Member
2,458 posts

Joined: Apr 2008
From: M A N C A V E
QUOTE(gamers maniac @ Apr 27 2009, 09:36 PM)
got 2 DK's, 6 pairs of ram, 2 ati cards, 4 xbox 360  sweat.gif .. its not a problem ler  doh.gif

*

Woi Woi Woi....diam ler...

Dont let everyone know about it...haishh...

wub.gif wub.gif wub.gif

cyberloner
post Apr 28 2009, 01:28 AM

Regular
******
Senior Member
1,560 posts

Joined: May 2005
From: Penang
mozact89 pls find the best OC prime95 in maybe 4 hours.... =P
hengmy
post Apr 28 2009, 11:43 AM

Regular
******
Senior Member
1,991 posts

Joined: Jan 2007
From: Seri Kembangan
anyone has tested the highest stable bus speed that phenom II can handle and stable? feel want to get a 710 to play around biggrin.gif
mozact89
post Apr 28 2009, 03:33 PM

~KAWASAKI NINJA~
******
Senior Member
1,137 posts

Joined: Oct 2007
From: ~Somewhere only we know~
QUOTE(cyberloner @ Apr 28 2009, 01:28 AM)
mozact89 pls find the best OC prime95 in maybe 4 hours.... =P
*
okok.. will try it..
mozact89
post Apr 28 2009, 03:47 PM

~KAWASAKI NINJA~
******
Senior Member
1,137 posts

Joined: Oct 2007
From: ~Somewhere only we know~
im trying to oc my proc to get 4ghz.. but still cant stand for long time.. after i oc it, i forgot to open the new cpuz.. here some ss..


Attached thumbnail(s)
Attached Image
TSverdict
post Apr 28 2009, 06:15 PM

Time is Flying By
*******
Senior Member
2,458 posts

Joined: Apr 2008
From: M A N C A V E
QUOTE(mozact89 @ Apr 28 2009, 04:47 PM)
im trying to oc my proc to get 4ghz.. but still cant stand for long time.. after i oc it, i forgot to open the new cpuz.. here some ss..
*

Done updating your result, but please use the template provided next time when posting a new SS...

Thanks... wub.gif

Im putting your result under suicide due to you cant provide me with the 1 hour Prime result...

This post has been edited by verdict: Apr 29 2009, 12:22 AM
fuzore
post Apr 29 2009, 08:08 AM

<motion sickness around>
*******
Senior Member
2,142 posts

Joined: Jan 2008
From: who wants to know?
Banzai... Kamikaze.... Hangman..... Suicide.....

- Phenom II : X4 955 B.E
- CPU stepping : 0911
- Revision : RB-C2
- Max CPU clock speed, reference clock and multiplier : 4013.4MHz @ 200x20
- CPU voltage : 1.550v
- CPU-NB voltage : 1.2v
- Northbridge clock (check CPU-Z) and voltage : 2006.7MHz @stock voltage
- HTT link speed and voltage : 2006.7MHz @stock voltage
- Motherboard used : ASUS M4A79 DELUXE
- Type of cooling : Air Cooling@CCF

Attached Image
cwk88
post Apr 29 2009, 07:44 PM

On my way
****
Senior Member
653 posts

Joined: Dec 2006
here is mine rclxms.gif

- Processor : Phenom II x4 940BE
- CPU stepping : CACVC AC 0852GPDW
- CPU revision : RB-C2
- Max CPU clock speed, reference clock and multiplier : 3612.2MHz @ 200.7x18
- CPU voltage : 1.438v
- CPU-NB voltage : DEFAULT voltage
- Northbridge clock and voltage : 1806.1MHz @ DEFAULT voltage
- HTT link speed and voltage : 1806.1MHz @ DEFAULT voltage
- Motherboard used : ASUS M4A79 DELUXE
- Type of cooling : Air @ ASUS SILENT KNIGHT II
- OS : Windows 7 beta build 7000 (opps) sweat.gif

user posted image

This post has been edited by cwk88: Apr 29 2009, 07:46 PM
TSverdict
post Apr 30 2009, 09:23 AM

Time is Flying By
*******
Senior Member
2,458 posts

Joined: Apr 2008
From: M A N C A V E
Done updating for both of you... wub.gif

955 user...x kan tu je kot bro...ekekeke...

laugh.gif laugh.gif laugh.gif

- Northbridge clock (check CPU-Z) and voltage : 2006.7MHz - should be below than that....1800Mhz - 1400Mhz
- HTT link speed and voltage : 2006.7MHz - should be below than that....1800Mhz - 1400Mhz

HTT and Northbridge clock - 1800Mhz - 1600Mhz will give you more headroom as you playing with suicide bro.... brows.gif



This post has been edited by verdict: Apr 30 2009, 09:26 AM
mozact89
post Apr 30 2009, 02:06 PM

~KAWASAKI NINJA~
******
Senior Member
1,137 posts

Joined: Oct 2007
From: ~Somewhere only we know~
here my second try.. can get more stable than before.. here some ss..

- Phenom II : X4 955 B.E
- Max CPU clock speed, reference clock and multiplier : 4000.4MHz @ 200x20
- CPU voltage : 1.472v
- CPU-NB voltage :1.29v
- Northbridge clock (check CPU-Z) and voltage : 1800.5MHz @ stock voltage
- HTT link speed and voltage : 1800.2MHz @stock voltage
- Motherboard used : DFI DK 790FXB-M2RSH
- Type of cooling : Air Cooling@Core contact freezer


Attached thumbnail(s)
Attached Image Attached Image
TSverdict
post May 2 2009, 07:15 AM

Time is Flying By
*******
Senior Member
2,458 posts

Joined: Apr 2008
From: M A N C A V E
QUOTE(mozact89 @ Apr 30 2009, 03:06 PM)
here my second try.. can get more stable than before.. here some ss..

- Phenom II : X4 955 B.E
- Max CPU clock speed, reference clock and multiplier : 4000.4MHz @ 200x20
- CPU voltage : 1.472v
- CPU-NB voltage :1.29v
- Northbridge clock (check CPU-Z) and voltage : 1800.5MHz @ stock voltage
- HTT link speed and voltage : 1800.2MHz @stock voltage
- Motherboard used : DFI DK 790FXB-M2RSH
- Type of cooling : Air Cooling@Core contact freezer
*

Bukan boleh pergi jauh lagi ke???

Come on guys...its 955 BE AM3...not the 9850 and 9950... doh.gif

SUSProtester
post May 2 2009, 08:53 AM

Casual
***
Junior Member
328 posts

Joined: Sep 2008
From: Fox River Status:Wanted
QUOTE(mozact89 @ Apr 30 2009, 02:06 PM)
here my second try.. can get more stable than before.. here some ss..

- Phenom II : X4 955 B.E
- Max CPU clock speed, reference clock and multiplier : 4000.4MHz @ 200x20
- CPU voltage : 1.472v
- CPU-NB voltage :1.29v
- Northbridge clock (check CPU-Z) and voltage : 1800.5MHz @ stock voltage
- HTT link speed and voltage : 1800.2MHz @stock voltage
- Motherboard used : DFI DK 790FXB-M2RSH
- Type of cooling : Air Cooling@Core contact freezer
*
P95 stable? adding a 70mm fan at ur nb can reduce ur temp at least 6c smile.gif
TSverdict
post May 3 2009, 09:35 AM

Time is Flying By
*******
Senior Member
2,458 posts

Joined: Apr 2008
From: M A N C A V E
QUOTE(Protester @ May 2 2009, 09:53 AM)
Prime95 stable? adding a 70mm fan at ur nb can reduce ur temp at least 6c smile.gif
*

Yeahh agree with you...but this boy mozact only play with full casing setup... whistling.gif

955 suicide only at 4Ghz ??? yawn.gif

come on, 4.3Ghz for sucide is not going to kill your PROC...haishh... doh.gif

Sakit hati ni... vmad.gif, i expect moar !!! cool2.gif

This post has been edited by verdict: May 3 2009, 09:35 AM
SUSProtester
post May 3 2009, 12:05 PM

Casual
***
Junior Member
328 posts

Joined: Sep 2008
From: Fox River Status:Wanted
QUOTE(verdict @ May 3 2009, 09:35 AM)
Yeahh agree with you...but this boy mozact only play with full casing setup... whistling.gif

955 suicide only at 4Ghz ??? yawn.gif

come on, 4.3Ghz for sucide is not going to kill your PROC...haishh... doh.gif

Sakit hati ni... vmad.gif, i expect moar !!!  cool2.gif
*
I'm also full casing mode, and the space between 8pin wire and heatsink ngam ngam can hold the 70mm fan.
if 4ghz is the wall, not worth the upgrade though,from 940 .
TSverdict
post May 4 2009, 07:11 AM

Time is Flying By
*******
Senior Member
2,458 posts

Joined: Apr 2008
From: M A N C A V E
QUOTE(Protester @ May 3 2009, 01:05 PM)
I'm also full casing mode, and the space between 8pin wire and heatsink ngam ngam can hold the 70mm fan.
if 4ghz is the wall, not worth the upgrade though,from 940 .
*

Owh really....then all the best to you bro on OCing it...ekekeke...

Oppsss !!!! DK RMA is it...ekekeke...sorry... notworthy.gif whistling.gif

alapic
post May 4 2009, 11:03 AM

New Member
*
Newbie
2 posts

Joined: May 2009
Thanx for the database... here's my contribution smile.gif

Edit: Here is a pic with a second prime95 test @ 6Hrs (Don't have one for the original 17Hrs test)
Oh and disregard the 117C temp, it's a bug (My CPU would have shut down at 65C)

Attached Image


- Phenom II 940
- CPU stepping : CACVC AC 0901APMW
- Revision : RB-C2
- Max CPU clock speed : 3625MHz (250 * 14.5)
- CPU voltage : 1.475V
- Northbridge clock : 2250 Mhz @ 1.22V
- CPU-NB voltage : 1.29
- Motherboard used : Foxconn Destroyer
- Type of cooling : Full Air -Cooler Master V8
-XCLIO Windtunnel Advance

Stabillity on vista64 Ultimate
- 3.7 Hrs with IBT (100 Pass)
- 17 Hrs with Prime95
- 9 Hrs with Everest

Temp readings from Everest sensor monitor (Load = highest of all test performed)
CPU ---------- Idle 32C Load 52C
CPU Core 1-4 Idle 38C Load 57C
SB ----------- Idle 59C Load 65C
NB ----------- Cooler than SB @ the touch

Feel free to give advice/feedback on my OC... I'm a newb when it comes to overclocking.
Thanx again cool2.gif

This post has been edited by alapic: May 4 2009, 07:26 PM
fuzore
post May 4 2009, 11:14 AM

<motion sickness around>
*******
Senior Member
2,142 posts

Joined: Jan 2008
From: who wants to know?
bro u need to post ur prime95 screen shots too...
alapic
post May 4 2009, 11:25 AM

New Member
*
Newbie
2 posts

Joined: May 2009
QUOTE(fuzore @ May 3 2009, 11:14 PM)
bro u need to post ur prime95 screen shots too...
*
Yeah I just finnished reading some of the other results and realized that. mega_shok.gif
Will run another one and post a pic

Edit: Ok, reposted a picture on My original reply Thanx for pointing it out to me

This post has been edited by alapic: May 4 2009, 07:30 PM
TSverdict
post May 4 2009, 09:15 PM

Time is Flying By
*******
Senior Member
2,458 posts

Joined: Apr 2008
From: M A N C A V E
QUOTE(alapic @ May 4 2009, 12:25 PM)
Yeah I just finnished reading some of the other results and realized that.  mega_shok.gif
Will run another one and post a pic

Edit: Ok, reposted a picture on My original reply Thanx for pointing it out to me
*

Yo dude...all ready update it...thanks for your support !!! wub.gif laugh.gif

cwk88
post May 4 2009, 10:26 PM

On my way
****
Senior Member
653 posts

Joined: Dec 2006
try oc again after format to win7 rc

Added on May 4, 2009, 10:38 pm@fuzore

lets update bios to 1402 >.<
» Click to show Spoiler - click again to hide... «


This post has been edited by cwk88: May 4 2009, 10:42 PM
fuzore
post May 5 2009, 09:16 AM

<motion sickness around>
*******
Senior Member
2,142 posts

Joined: Jan 2008
From: who wants to know?
BIOS 1402 still under consideration after reading feedback from extremesystems they say got issue with it...
TSverdict
post May 5 2009, 08:41 PM

Time is Flying By
*******
Senior Member
2,458 posts

Joined: Apr 2008
From: M A N C A V E
Still waiting for you guys...come on... wub.gif
cwk88
post May 5 2009, 08:52 PM

On my way
****
Senior Member
653 posts

Joined: Dec 2006
still haven dl finish win 7 ma T_T
dafreak
post May 5 2009, 11:13 PM

Regular
******
Senior Member
1,064 posts

Joined: Jul 2008
From: Star Stuff
720 overclock limited by the unlocked core? hmm.gif

sry noob here...

This post has been edited by dafreak: May 5 2009, 11:13 PM
cloudwan
post May 5 2009, 11:47 PM

- Knob -
*******
Senior Member
8,514 posts

Joined: Jan 2003
From: The Jungle Of Pahang
Bro verdict, only prime ss ker? OCCT cannot accept eh? tongue.gif
TSverdict
post May 6 2009, 03:07 AM

Time is Flying By
*******
Senior Member
2,458 posts

Joined: Apr 2008
From: M A N C A V E
QUOTE(cloudwan @ May 6 2009, 12:47 AM)
Bro verdict, only prime ss ker? OCCT cannot accept eh? tongue.gif
*

Sure can...but Prime is preferable lar...

But its ok if you using the OCCT strest test... wub.gif

My rule are simple as 1,2,3... whistling.gif
QUOTE(dafreak @ May 6 2009, 12:13 AM)
720 overclock limited by the unlocked core? hmm.gif

sry noob here...
*

720 BE is unlock multi ler...please go to AMD thread to ask... whistling.gif

And please do revision before posting...otherwise your posting will consider as SPAM...thanks... whistling.gif

This post has been edited by verdict: May 6 2009, 03:09 AM
cloudwan
post May 6 2009, 08:37 AM

- Knob -
*******
Senior Member
8,514 posts

Joined: Jan 2003
From: The Jungle Of Pahang
Nah bro my stablest setting yet, will oc again when i have the time sweat.gif

- Phenom II 720 BE
- CPU stepping : CACZC AC 0904EPQW
- Revision : RB-C2
- Max CPU clock speed : 3400MHz (200 * 17)
- CPU voltage : 1.456V
- Northbridge clock : 2000 Mhz @ Stock Volt
- Motherboard used : MSI DKA790GX Platinum
- Type of cooling : Xigmatek HDT-SD964

» Click to show Spoiler - click again to hide... «


This post has been edited by cloudwan: May 6 2009, 10:51 AM
TSverdict
post May 7 2009, 02:14 AM

Time is Flying By
*******
Senior Member
2,458 posts

Joined: Apr 2008
From: M A N C A V E
QUOTE(cloudwan @ May 6 2009, 09:37 AM)
Nah bro my stablest setting yet, will oc again when i have the time sweat.gif

- Phenom II 720 BE
- CPU stepping : CACZC AC 0904EPQW
- Revision : RB-C2
- Max CPU clock speed : 3400MHz (200 * 17)
- CPU voltage : 1.456V
- Northbridge clock : 2000 Mhz @ Stock Volt
- Motherboard used : MSI DKA790GX Platinum
- Type of cooling : Xigmatek HDT-SD964

» Click to show Spoiler - click again to hide... «

*

Done updating your result...thanks... wub.gif laugh.gif

SUSone3rd
post May 11 2009, 12:11 AM

Getting Started
**
Junior Member
58 posts

Joined: Jan 2008
Have anyone tried to reach 4.0Ghz with Phenom II 720BE..? Anybody got good BIOS ver. for overclocking 790FXB-M2RSH...i wanna try..
TSverdict
post May 12 2009, 12:35 AM

Time is Flying By
*******
Senior Member
2,458 posts

Joined: Apr 2008
From: M A N C A V E
QUOTE(one3rd @ May 11 2009, 01:11 AM)
Have anyone tried to reach 4.0Ghz with Phenom II 720BE..? Anybody got good BIOS ver. for overclocking 790FXB-M2RSH...i wanna try..
*

Not sure bro...but you can always try the new beta bios from DFI...

try it and see the DIFF... thumbup.gif

SUSone3rd
post May 13 2009, 01:41 PM

Getting Started
**
Junior Member
58 posts

Joined: Jan 2008
Which beta BIOS r u talking about.....? Is it for X3 or X4...? Provide link pls..
TSverdict
post May 14 2009, 05:36 AM

Time is Flying By
*******
Senior Member
2,458 posts

Joined: Apr 2008
From: M A N C A V E
QUOTE(one3rd @ May 13 2009, 02:41 PM)
Which beta BIOS r u talking about.....? Is it for X3 or X4...? Provide link pls..
*

Here you go : http://img.lanparty.tw/Upload/BIOS/CM/R7SD327.zip

Major Reasons of Change:
update AMD Agesa micro code to 3.3.2.2 for support AMD AM3 Phenom II 945/955 CPUs.

try tp play with it... thumbup.gif

This post has been edited by verdict: May 14 2009, 05:36 AM
fuzore
post May 15 2009, 09:46 AM

<motion sickness around>
*******
Senior Member
2,142 posts

Joined: Jan 2008
From: who wants to know?
TS update here on mild OC....tq

- Phenom II : X4 955 B.E
- CPU stepping : 0911
- Revision : RB-C2
- Max CPU clock speed, reference clock and multiplier : 3500MHz @ 250x 14
- CPU voltage : 1.400v
- CPU-NB voltage : 1.25v
- Northbridge clock (check CPU-Z) and voltage : 2500MHz @stock voltage
- HTT link speed and voltage : 2500MHz @stock voltage
- Motherboard used : ASUS M4A79 DELUXE
- Type of cooling : Air Cooling@CCF

Attached Image
TSverdict
post May 15 2009, 09:51 AM

Time is Flying By
*******
Senior Member
2,458 posts

Joined: Apr 2008
From: M A N C A V E
QUOTE(fuzore @ May 15 2009, 10:46 AM)
TS update here on mild OC....tq

- Phenom II : X4 955 B.E
- CPU stepping : 0911
- Revision : RB-C2
- Max CPU clock speed, reference clock and multiplier : 3500MHz @ 250x 14
- CPU voltage : 1.400v
- CPU-NB voltage : 1.25v
- Northbridge clock (check CPU-Z) and voltage : 2500MHz @stock voltage
- HTT link speed and voltage : 2500MHz @stock voltage
- Motherboard used : ASUS M4A79 DELUXE
- Type of cooling : Air Cooling@CCF

» Click to show Spoiler - click again to hide... «

*

No nO No....955 3.6 and above will be in data base...ekekeke... whistling.gif laugh.gif

Later i will update all the details bro...btw x kan 955 3.5G je ???

come on la...ekekekeke... wub.gif

This post has been edited by verdict: Jun 6 2009, 11:04 PM
fuzore
post May 15 2009, 11:46 AM

<motion sickness around>
*******
Senior Member
2,142 posts

Joined: Jan 2008
From: who wants to know?
QUOTE(verdict @ May 15 2009, 09:51 AM)
No nO No....955 3.6 and above will be in data base...ekekeke... whistling.gif  laugh.gif

Later i will update all the details bro...btw x kan 955 3.5G je ???

come on la...ekekekeke... wub.gif
*
TS update here on mild OC....tq
TSverdict
post May 16 2009, 07:30 AM

Time is Flying By
*******
Senior Member
2,458 posts

Joined: Apr 2008
From: M A N C A V E
QUOTE(fuzore @ May 15 2009, 12:46 PM)
TS update here on mild OC....tq
*

Ha Ha Ha...dont get angry bang fuzore...later no WR for 955...

laugh.gif laugh.gif laugh.gif

Been busy lately, later will update one...im going nowhere bro... wub.gif

BTW im done updating your result bro fuzore... wub.gif
QUOTE(OC4/3 @ Apr 27 2009, 04:42 PM)
No one hit 4.1ghz for suicide screen yet?Kinda looking forward to it smile.gif
» Click to show Spoiler - click again to hide... «

*

Ho Ho Ho...its a challenge to AMD user bro...

ekekeke...as i dont have the stuff to play with me now, if not sure will accept the challenge...

user posted imageuser posted imageuser posted image

This post has been edited by verdict: May 21 2009, 10:03 AM
mozact89
post May 21 2009, 06:33 PM

~KAWASAKI NINJA~
******
Senior Member
1,137 posts

Joined: Oct 2007
From: ~Somewhere only we know~
another suicide from me..

- Phenom II : X4 955 B.E
- Max CPU clock speed, reference clock and multiplier : 4060MHz @ 203 x 20
- CPU voltage : 1.520v
- CPU-NB voltage : 1.29v
- Northbridge clock (check CPU-Z) and voltage : 1800MHz @stock voltage
- HTT link speed and voltage : 1800MHz @stock voltage
- Motherboard used : DFI DK 790fxb-M2RSH
- Type of cooling : Air Cooling@CCF

This post has been edited by mozact89: May 22 2009, 12:37 AM


Attached thumbnail(s)
Attached Image
TSverdict
post May 22 2009, 09:35 AM

Time is Flying By
*******
Senior Member
2,458 posts

Joined: Apr 2008
From: M A N C A V E
QUOTE(mozact89 @ May 21 2009, 07:33 PM)
another suicide from me..

- Phenom II : X4 955 B.E
- Max CPU clock speed, reference clock and multiplier : 4060MHz @ 203 x 20
- CPU voltage : 1.520v
- CPU-NB voltage : 1.29v
- Northbridge clock (check CPU-Z) and voltage : 1800MHz @stock voltage
- HTT link speed and voltage : 1800MHz @stock voltage
- Motherboard used : DFI DK 790fxb-M2RSH
- Type of cooling : Air Cooling@CCF
*

Will update yours when im free....thanks for the post...

BTW i will replaced your previous suicide result... wub.gif

mozact89
post May 26 2009, 04:58 AM

~KAWASAKI NINJA~
******
Senior Member
1,137 posts

Joined: Oct 2007
From: ~Somewhere only we know~
now im getting stable at 3.8ghz.. hope bro verdict will update soon..

- Phenom II : X4 955 B.E
- Max CPU clock speed, reference clock and multiplier : 3800.3MHz @ 200 x 19
- CPU voltage : 1.420v
- CPU-NB voltage : 1.27v
- Northbridge clock (check CPU-Z) and voltage : 2000MHz @stock voltage
- HTT link speed and voltage : 2000MHz @stock voltage
- Motherboard used : DFI DK 790fxb-M2RSH
- Type of cooling : Air Cooling@CCF


Attached thumbnail(s)
Attached Image
TSverdict
post May 26 2009, 11:17 AM

Time is Flying By
*******
Senior Member
2,458 posts

Joined: Apr 2008
From: M A N C A V E
QUOTE(mozact89 @ May 26 2009, 05:58 AM)
now im getting stable at 3.8ghz.. hope bro verdict will update soon..

- Phenom II : X4 955 B.E
- Max CPU clock speed, reference clock and multiplier : 3800.3MHz @ 200 x 19
- CPU voltage : 1.420v
- CPU-NB voltage : 1.27v
- Northbridge clock (check CPU-Z) and voltage : 2000MHz @stock voltage
- HTT link speed and voltage : 2000MHz @stock voltage
- Motherboard used : DFI DK 790fxb-M2RSH
- Type of cooling : Air Cooling@CCF
*

Bro why you did not provide me your 1 hour Stress Test ???

Even though i do belive you, but what say others ???

Please follow the simple rule bro...1 hour successful strest test SS... wub.gif

mozact89
post May 26 2009, 01:10 PM

~KAWASAKI NINJA~
******
Senior Member
1,137 posts

Joined: Oct 2007
From: ~Somewhere only we know~
QUOTE(verdict @ May 26 2009, 11:17 AM)
Bro why you did not provide me your 1 hour Stress Test ???

Even though i do belive you, but what say others ???

Please follow the simple rule bro...1 hour successful strest test SS... wub.gif
*
thats show prime in one hour rite?? i start at 3.51a.m, and then the the time there is 4.53.. thats is 1 hour.. and then the prime is still running without any error..

Added on May 26, 2009, 1:14 pmadoi.. i should stop all the workers rite?? hahahah.. later laa i will update new one..

This post has been edited by mozact89: May 26 2009, 01:14 PM


Attached thumbnail(s)
Attached Image
fuzore
post May 26 2009, 01:22 PM

<motion sickness around>
*******
Senior Member
2,142 posts

Joined: Jan 2008
From: who wants to know?
perghhh.... a very god job there lad... keep it up...
mozact89
post May 26 2009, 01:39 PM

~KAWASAKI NINJA~
******
Senior Member
1,137 posts

Joined: Oct 2007
From: ~Somewhere only we know~
QUOTE(fuzore @ May 26 2009, 01:22 PM)
perghhh.... a very god job there lad... keep it up...
*
but bro verdict did not accept it.. cry.gif cry.gif huhuhuhu
ah_khoo
post May 26 2009, 01:44 PM

- No Action Talk Only -
Group Icon
Elite
8,103 posts

Joined: Jan 2003
From: Tanah Lot @ Dungun, Terengganu.
QUOTE(mozact89 @ May 26 2009, 01:10 PM)
thats show prime in one hour rite?? i start at 3.51a.m, and then the the time there is 4.53.. thats is 1 hour.. and then the prime is still running without any error..

Added on May 26, 2009, 1:14 pmadoi.. i should stop all the workers rite?? hahahah.. later laa i will update new one..
*
prefer to let it run to show d load temp, so don't stop it if possible... smile.gif

QUOTE(fuzore @ May 26 2009, 01:22 PM)
perghhh.... a very god job there lad... keep it up...
*
powa of dfi... lalalalalalla.... tongue.gif
fuzore
post May 26 2009, 02:02 PM

<motion sickness around>
*******
Senior Member
2,142 posts

Joined: Jan 2008
From: who wants to know?
QUOTE(mozact89 @ May 26 2009, 01:39 PM)
but bro verdict did not accept it..  cry.gif  cry.gif  huhuhuhu
*
what ... no la he just didnt realize it was alredy 1 hour and i prefer to show it while running also temp wise...

wei verdict terima je la kenyataan nie... tongue.gif
TSverdict
post May 26 2009, 06:02 PM

Time is Flying By
*******
Senior Member
2,458 posts

Joined: Apr 2008
From: M A N C A V E
QUOTE(fuzore @ May 26 2009, 03:02 PM)
what ... no la he just didnt realize it was alredy 1 hour and i prefer to show it while running also temp wise...

wei verdict terima je la kenyataan nie... tongue.gif
*

Ha Ha Ha... laugh.gif laugh.gif laugh.gif

So sorry mozact for the miss understanding... doh.gif SHIT do happen... wub.gif

Result updated... thumbup.gif

==============================================

.:: Suicide Result ::.

- Phenom II 940
- CPU stepping : CACVC AC 0850CPMW
- Revision : RB-C2
- Max CPU clock speed : 3936.33 MHz (192.02 * 20.5)
- CPU voltage : 1.550V
- Northbridge clock : 1728.1 Mhz @ 1.15V
- Motherboard used : J&W 790GX EXTREME
- Type of cooling : Thermalright SA-97 (RAWK)



Attached Image

This post has been edited by verdict: May 26 2009, 07:22 PM
ventrilocks
post May 30 2009, 05:29 AM

So Nyuh Shi Dae
*******
Senior Member
3,030 posts

Joined: Sep 2006
From: GGWP
1st attempt
Prime Stable - 1 hour

Phenom II 940BE
CPU stepping : CACVC AC 0852GPMW
Revision : RB-C2
max CPU clock speed : 3637.0MHz (202.1 * 18)
CPU voltage : 1.438V
Northbridge clock : 1818.1 Mhz @ default
motherboard used : ASUS M4A78-E
type of cooling : Sunbeam CCF

user posted image

This post has been edited by ventrilocks: May 30 2009, 05:29 AM
linkinpark
post May 30 2009, 07:44 AM

Casual
***
Junior Member
454 posts

Joined: Jan 2003
From: KL
- Phenom II : X4 955 B.E
- CPU stepping : 0911EPDW
- Revision : RB-C2
- Max CPU clock speed, reference clock and multiplier : 3717MHz @ 200x18.5
- CPU voltage : 1.376V
- CPU-NB voltage : Default
- Northbridge clock (check CPU-Z) and voltage : 2009.1MHz @stock voltage
- HTT link speed and voltage : 2009.1MHz @stock voltage
- Motherboard used : MSI 790FX-GD70
- Type of cooling : Air Cooling(Xigmatek Thor Hammer)

Prime 7hours. Time start 12.55am-7.07am

This post has been edited by linkinpark: May 30 2009, 07:48 AM


Attached thumbnail(s)
Attached Image
TSverdict
post May 31 2009, 11:15 AM

Time is Flying By
*******
Senior Member
2,458 posts

Joined: Apr 2008
From: M A N C A V E
Done updating both result... wub.gif

All da best on second attempt guys !!!!
linkinpark
post May 31 2009, 04:06 PM

Casual
***
Junior Member
454 posts

Joined: Jan 2003
From: KL
Guys when u oc yr 955BE above 3.7GHz what is yr cpu temp when prime?
ventrilocks
post May 31 2009, 07:23 PM

So Nyuh Shi Dae
*******
Senior Member
3,030 posts

Joined: Sep 2006
From: GGWP
QUOTE(ventrilocks @ May 30 2009, 05:29 AM)
1st attempt
Prime Stable - 1 hour

Phenom II 940BE
CPU stepping : CACVC AC 0852GPMW
Revision : RB-C2
max CPU clock speed : 3637.0MHz (202.1 * 18)
CPU voltage : 1.438V
Northbridge clock : 1818.1 Mhz @ default
motherboard used : ASUS M4A78-E
type of cooling : Sunbeam CCF

user posted image
*
QUOTE(verdict @ May 31 2009, 11:15 AM)
Done updating both result... wub.gif

All da best on second attempt guys !!!!
*
AM2+
OS = Vista Ultimate 64bit
TSverdict
post Jun 4 2009, 03:45 AM

Time is Flying By
*******
Senior Member
2,458 posts

Joined: Apr 2008
From: M A N C A V E
QUOTE(ventrilocks @ May 31 2009, 08:23 PM)
AM2+
OS = Vista Ultimate 64bit
*

Will update it later....thanks for the correction... wub.gif

ah_khoo
post Jun 5 2009, 11:46 PM

- No Action Talk Only -
Group Icon
Elite
8,103 posts

Joined: Jan 2003
From: Tanah Lot @ Dungun, Terengganu.
ok, i'm done w d chip, returnin it soon so here's d best attempt: nod.gif


- Phenom II X4 810
- CPU stepping : CACZC AC 0901GPBW
- Revision : RB-C2
- Max CPU clock speed : 3614MHz (278 * 13)
- CPU voltage : 1.424V
- Northbridge clock : 1668Mhz @ 1.28V (CPU-NB Voltage)
- Motherboard used : Biostar 790GXE 128M
- Type of cooling : Scythe Mugen II


Attached Image


This post has been edited by ah_khoo: Jun 6 2009, 07:48 AM
TSverdict
post Jun 6 2009, 11:02 PM

Time is Flying By
*******
Senior Member
2,458 posts

Joined: Apr 2008
From: M A N C A V E
QUOTE(ah_khoo @ Jun 6 2009, 12:46 AM)
ok, i'm done w d chip, returnin it soon so here's d best attempt:  nod.gif
- Phenom II X4 810
- CPU stepping : CACZC AC 0901GPBW
- Revision : RB-C2
- Max CPU clock speed : 3614MHz (278 * 13)
- CPU voltage : 1.424V
- Northbridge clock : 1668Mhz @ 1.28V (CPU-NB Voltage)
- Motherboard used : Biostar 790GXE 128M
- Type of cooling : Scythe Mugen II


» Click to show Spoiler - click again to hide... «


*

Wahhhh !!!!!

notworthy.gif notworthy.gif notworthy.gif

later i will update it bro...

Is it Team running in your system ??? hmm.gif

This post has been edited by verdict: Jun 6 2009, 11:03 PM
ah_khoo
post Jun 7 2009, 12:20 AM

- No Action Talk Only -
Group Icon
Elite
8,103 posts

Joined: Jan 2003
From: Tanah Lot @ Dungun, Terengganu.
QUOTE(verdict @ Jun 6 2009, 11:02 PM)
Wahhhh !!!!!

:/respect:  :/respect:  :/respect:

later i will update it bro...

Is it Team running in your system ??? :/hmm:
*
nothing to brag about sis, d result is peanut compared to all d 940/955BE... sad.gif

d ram in use was d old twinmos, d chip/board doesn't like ddr667 divider, ddr800 is outta d capability of it, so gotta settle w ddr533... doh.gif
bobiac
post Jun 7 2009, 12:23 AM

Geek / Gamers
*******
Senior Member
2,051 posts

Joined: Jun 2007
From: Kajang / Mantin
- Phenom II X3 720BE
- CPU stepping : icon_rolleyes.gif CACZC AC 0904EPQW
- Revision : RB-C2
- Max CPU clock speed : 3500Mhz (200 x 17.5)
- CPU voltage : 1.450V
- Northbridge clock : 2000Mhz @ Default (CPU-NB Voltage)
- Motherboard used : Asus M4A78T-E
- Type of cooling : Prolimatech Megahalems FM121 Pull-Push

» Click to show Spoiler - click again to hide... «


oh ya btw dun ask me about my NB temp.
i dunno

This post has been edited by bobiac: Jun 7 2009, 05:39 AM
ventrilocks
post Jun 7 2009, 01:53 PM

So Nyuh Shi Dae
*******
Senior Member
3,030 posts

Joined: Sep 2006
From: GGWP
QUOTE(bobiac @ Jun 7 2009, 12:23 AM)
- Phenom II X3 720BE
- CPU stepping :  icon_rolleyes.gif CACZC AC 0904EPQW
- Revision : RB-C2
- Max CPU clock speed : 3500Mhz (200 x 17.5)
- CPU voltage : 1.450V
- Northbridge clock : 2000Mhz @ Default (CPU-NB Voltage)
- Motherboard used : Asus M4A78T-E
- Type of cooling : Prolimatech Megahalems FM121 Pull-Push

» Click to show Spoiler - click again to hide... «


oh ya btw dun ask me about my NB temp.
i dunno
*
try 1.55v..n push till 3.9..
TSverdict
post Jun 7 2009, 04:38 PM

Time is Flying By
*******
Senior Member
2,458 posts

Joined: Apr 2008
From: M A N C A V E
QUOTE(bobiac @ Jun 7 2009, 01:23 AM)
- Phenom II X3 720BE
- CPU stepping :  icon_rolleyes.gif CACZC AC 0904EPQW
- Revision : RB-C2
- Max CPU clock speed : 3500Mhz (200 x 17.5)
- CPU voltage : 1.450V
- Northbridge clock : 2000Mhz @ Default (CPU-NB Voltage)
- Motherboard used : Asus M4A78T-E
- Type of cooling : Prolimatech Megahalems FM121 Pull-Push

» Click to show Spoiler - click again to hide... «


oh ya btw dun ask me about my NB temp.
i dunno
*

Done updating both result.... wub.gif

cwk88
post Jun 14 2009, 10:50 AM

On my way
****
Senior Member
653 posts

Joined: Dec 2006
got a sugestion here..
add "bios ver. of mobo" at database
bobiac
post Jun 18 2009, 08:24 AM

Geek / Gamers
*******
Senior Member
2,051 posts

Joined: Jun 2007
From: Kajang / Mantin
my fren's PC

- Phenom II X4 940BE
- CPU stepping : dunno
- Revision : RB-C2
- Max CPU clock speed : 3600Mhz (200 x 18)
- CPU voltage : 1.440V
- Northbridge clock : 2000Mhz @ Default (CPU-NB Voltage)
- Motherboard used : DFI DK 790FXB M2RSH
- Type of cooling : Xigmatek Achiles S1284 with Nidec High Performance Fan

Attached Image
ventrilocks
post Jun 19 2009, 12:07 AM

So Nyuh Shi Dae
*******
Senior Member
3,030 posts

Joined: Sep 2006
From: GGWP
QUOTE(bobiac @ Jun 18 2009, 08:24 AM)
my fren's PC

- Phenom II X4 940BE
- CPU stepping :  dunno
- Revision : RB-C2
- Max CPU clock speed : 3600Mhz (200 x 18)
- CPU voltage : 1.440V
- Northbridge clock : 2000Mhz @ Default (CPU-NB Voltage)
- Motherboard used : DFI DK 790FXB M2RSH
- Type of cooling : Xigmatek Achiles S1284 with Nidec High Performance Fan

Attached Image
*
dang DFI man.. drool.gif
nabilfareez
post Jun 19 2009, 09:37 PM

Casual
***
Junior Member
334 posts

Joined: Oct 2008
From: KL
QUOTE(ventrilocks @ Jun 19 2009, 12:07 AM)
dang DFI man.. drool.gif
*
hahaha.. dats my rig.. later wan oc sumore.. then wanna post again..
nabilfareez
post Jun 20 2009, 04:27 AM

Casual
***
Junior Member
334 posts

Joined: Oct 2008
From: KL
- Phenom II X4 940BE
- Revision : RB-C2
- Max CPU clock speed : 3690Mhz (205 x 18)
- CPU voltage : 1.456V
- Motherboard used : DFI LP DK 790FXB-M2RSH
- Type of cooling : Xigmatec Achiles S1284 + Nidec Fan 130cfm

Attached Image

This post has been edited by nabilfareez: Jun 20 2009, 04:27 AM
ventrilocks
post Jun 22 2009, 11:36 PM

So Nyuh Shi Dae
*******
Senior Member
3,030 posts

Joined: Sep 2006
From: GGWP
QUOTE(nabilfareez @ Jun 20 2009, 04:27 AM)
- Phenom II X4 940BE
- Revision : RB-C2
- Max CPU clock speed : 3690Mhz (205 x 18)
- CPU voltage : 1.456V
- Motherboard used : DFI LP DK 790FXB-M2RSH
- Type of cooling : Xigmatec Achiles S1284 + Nidec Fan 130cfm

Attached Image
*
i would like to know the stepping.. icon_rolleyes.gif
good job there... thumbup.gif
nabilfareez
post Jun 23 2009, 09:48 PM

Casual
***
Junior Member
334 posts

Joined: Oct 2008
From: KL
QUOTE(ventrilocks @ Jun 22 2009, 11:36 PM)
i would like to know the stepping.. icon_rolleyes.gif
good job there... thumbup.gif
*
dunno whre to check la bro.. biggrin.gif
ventrilocks
post Jun 27 2009, 01:31 AM

So Nyuh Shi Dae
*******
Senior Member
3,030 posts

Joined: Sep 2006
From: GGWP
QUOTE(nabilfareez @ Jun 23 2009, 09:48 PM)
dunno whre to check la bro..  biggrin.gif
*
it is on the proc itself..if u rajin..bukak ur pc..n check the stepping...
nabilfareez
post Jun 27 2009, 12:24 PM

Casual
***
Junior Member
334 posts

Joined: Oct 2008
From: KL
QUOTE(ventrilocks @ Jun 27 2009, 01:31 AM)
it is on the proc itself..if u rajin..bukak ur pc..n check the stepping...
*
if dats how to check it i know la.. but too lazy la bro.. hehehe..
ventrilocks
post Jun 28 2009, 12:57 AM

So Nyuh Shi Dae
*******
Senior Member
3,030 posts

Joined: Sep 2006
From: GGWP
QUOTE(nabilfareez @ Jun 27 2009, 12:24 PM)
if dats how to check it i know la.. but too lazy la bro.. hehehe..
*
laugh.gif laugh.gif
yeap..its hassle to open n reapply thermalpaste.. tongue.gif
nabilfareez
post Jun 28 2009, 03:29 AM

Casual
***
Junior Member
334 posts

Joined: Oct 2008
From: KL
QUOTE(ventrilocks @ Jun 28 2009, 12:57 AM)
laugh.gif  laugh.gif
yeap..its hassle to open n reapply thermalpaste.. tongue.gif
*
mybe later when i open da proc i'll tell da stepping..
TSverdict
post Jul 2 2009, 05:07 PM

Time is Flying By
*******
Senior Member
2,458 posts

Joined: Apr 2008
From: M A N C A V E
Guys, i will update all the details after got a new PSU...

At this moment, please update as much as you can... wub.gif wub.gif wub.gif
nabilfareez
post Jul 3 2009, 04:57 PM

Casual
***
Junior Member
334 posts

Joined: Oct 2008
From: KL
QUOTE(verdict @ Jul 2 2009, 05:07 PM)
Guys, i will update all the details after got a new PSU...

At this moment, please update as much as you can... wub.gif  wub.gif  wub.gif
*
behold 4ghz.. hahaha..
TSverdict
post Jul 4 2009, 09:00 PM

Time is Flying By
*******
Senior Member
2,458 posts

Joined: Apr 2008
From: M A N C A V E
QUOTE(nabilfareez @ Jul 3 2009, 05:57 PM)
behold 4ghz.. hahaha..
*

hmm.gif hmm.gif hmm.gif

Where is the 4Ghz SS ???
*-a|i3n-*
post Jul 4 2009, 09:11 PM

I'm who i'm
****
Senior Member
681 posts

Joined: Nov 2006
From: Lowyat.net Malacca Status: Ultra Active
wow after looking at this threads...making my hand itchy wanna change to phenom II
kuntawakaw
post Jul 4 2009, 09:18 PM

imma tag fag!
*******
Senior Member
3,795 posts

Joined: Nov 2008
From: Varies....
sis verdict...my board cant handle 1hr prime test la with sucha a high vcore..haish..
will run a lower vcore = lower cpu speed...
3.6 x2 acceptable? hehehe..stock vcore only.

wait for me to buy a tim 1st..then ill post.wakakakka..

Added on July 4, 2009, 10:59 pmuser posted image
- Phenom II x2 550be
- Revision : RB-C2
- batch : cacyc ac 0922apmw
- Max CPU clock speed : 3600Mhz (200 x 18)
- CPU voltage : 1.344v
- Motherboard used : biostar ta790gx 128
- Type of cooling :ac 64 freezer pro w/o TIM
-nb freq = 2000mhz
- nb volt =tba

anyting?

This post has been edited by kuntawakaw: Jul 6 2009, 09:17 PM
nabilfareez
post Jul 6 2009, 02:29 AM

Casual
***
Junior Member
334 posts

Joined: Oct 2008
From: KL
verdict.. y dun update my score.. so sad.. dun wan oc la cry.gif
kuntawakaw
post Jul 6 2009, 07:30 AM

imma tag fag!
*******
Senior Member
3,795 posts

Joined: Nov 2008
From: Varies....
user posted image
this can be put at suicide? i dont dare to prime it.. prime sure fail..if prime stable volt is feed,sure my board will fail..
TSverdict
post Jul 7 2009, 02:47 AM

Time is Flying By
*******
Senior Member
2,458 posts

Joined: Apr 2008
From: M A N C A V E
QUOTE(nabilfareez @ Jul 6 2009, 03:29 AM)
verdict.. y dun update my score.. so sad.. dun wan oc la   cry.gif
*

Later will update it,no PSU at this moment...

Im not going anywhere dude... doh.gif doh.gif

@kuntawakaw : good result, please make it an WOW result dude... laugh.gif

Im happy to see those Phenom II user OC result... thumbup.gif

All the best to all Phenom II user... thumbup.gif
QUOTE(*-a|i3n-* @ Jul 4 2009, 10:11 PM)
wow after looking at this threads...making my hand itchy wanna change to phenom II
*

Whut you waiting for dude ???

Lets do Phenomenal !!! wub.gif


This post has been edited by verdict: Jul 7 2009, 02:50 AM
nabilfareez
post Jul 7 2009, 08:34 PM

Casual
***
Junior Member
334 posts

Joined: Oct 2008
From: KL
QUOTE(verdict @ Jul 7 2009, 02:47 AM)
Later will update it,no PSU at this moment...

Im not going anywhere dude... doh.gif  doh.gif

*
hahaha.. juz joking bro..

This post has been edited by nabilfareez: Jul 7 2009, 08:36 PM
noobianz
post Jul 7 2009, 09:16 PM

Casual
***
Junior Member
479 posts

Joined: Sep 2006
From: Planet Earth
- Phenom II X3 720BE
- CPU stepping : CACVC AC 0904EPMW
- Revision : RB-C2
- Max CPU clock speed : 3700Mhz (200 x 18.5)
- CPU voltage : 1.464V
- Northbridge clock : 2000Mhz
- Motherboard used : MSI DKA790GX Platinum
- Type of cooling : Cooler Master V8

user posted image

This post has been edited by noobianz: Jul 13 2009, 03:41 AM
TSverdict
post Jul 11 2009, 08:07 AM

Time is Flying By
*******
Senior Member
2,458 posts

Joined: Apr 2008
From: M A N C A V E
QUOTE(noobianz @ Jul 7 2009, 10:16 PM)
- Phenom II X3 720BE
- CPU stepping : CACVC AC 0904EPMW
- Revision : RB-C2
- Max CPU clock speed : 3700Mhz (200 x 18)
- CPU voltage : 1.464V
- Northbridge clock : 2000Mhz
- Motherboard used : MSI DKA790GX Platinum
- Type of cooling : Cooler Master V8

user posted image
*

I'll post up soon! wub.gif

kuntawakaw
post Jul 11 2009, 08:22 AM

imma tag fag!
*******
Senior Member
3,795 posts

Joined: Nov 2008
From: Varies....
user posted image
- Phenom II x2 550be
- Revision : RB-C2
- batch : cacyc ac 0922apmw
- Max CPU clock speed : 3600Mhz (200 x 18)
- CPU voltage : 1.296v
- Motherboard used : biostar ta790gx 128
- Type of cooling :ac 64 freezer pro
- nb freq = 2200mhz
- nb volt =i donno where to check la..and also donno where to set
TSverdict
post Jul 13 2009, 07:31 AM

Time is Flying By
*******
Senior Member
2,458 posts

Joined: Apr 2008
From: M A N C A V E
Done updating all result! cool2.gif

Hope you guys happy with the current result as i will break it soon! brows.gif

Ha Ha Ha!!!!

JK JK JK!!! laugh.gif

(evil is good sometimes!!!)

This post has been edited by verdict: Jul 13 2009, 07:32 AM
kuntawakaw
post Jul 13 2009, 11:46 AM

imma tag fag!
*******
Senior Member
3,795 posts

Joined: Nov 2008
From: Varies....
QUOTE(kuntawakaw @ Jul 6 2009, 07:30 AM)
» Click to show Spoiler - click again to hide... «

this can be put at suicide? i dont dare to prime it.. prime sure fail..if prime stable volt is feed,sure my board will fail..
*
verdict..
my suicide run is on x4 mode... go go go...go correct the database
bobiac
post Jul 13 2009, 01:18 PM

Geek / Gamers
*******
Senior Member
2,051 posts

Joined: Jun 2007
From: Kajang / Mantin
QUOTE(kuntawakaw @ Jul 13 2009, 11:46 AM)
verdict..
my suicide run is on x4 mode... go go go...go correct the database
*
damn i am jelous. wait my WC tomolo. will win back the title haha.
TSverdict
post Jul 14 2009, 05:08 AM

Time is Flying By
*******
Senior Member
2,458 posts

Joined: Apr 2008
From: M A N C A V E
QUOTE(bobiac @ Jul 13 2009, 02:18 PM)
damn i am jelous. wait my WC tomolo. will win back the title haha.
*

Ha Ha Ha! drool.gif

i will wait for that momment bobiac! flex.gif
QUOTE(kuntawakaw @ Jul 13 2009, 12:46 PM)
verdict..
my suicide run is on x4 mode... go go go...go correct the database
*

Later i will,thanks dude...

This post has been edited by verdict: Jul 14 2009, 05:14 AM
ventrilocks
post Jul 14 2009, 09:37 AM

So Nyuh Shi Dae
*******
Senior Member
3,030 posts

Joined: Sep 2006
From: GGWP
QUOTE(kuntawakaw @ Jul 6 2009, 07:30 AM)
» Click to show Spoiler - click again to hide... «

this can be put at suicide? i dont dare to prime it.. prime sure fail..if prime stable volt is feed,sure my board will fail..
*
i tot suicide test shuld be prime test too rite? hmm.gif
kuntawakaw
post Jul 14 2009, 12:44 PM

imma tag fag!
*******
Senior Member
3,795 posts

Joined: Nov 2008
From: Varies....
» Click to show Spoiler - click again to hide... «


updated a new one..and tonight also will come a new record..
» Click to show Spoiler - click again to hide... «


- Phenom II x2 550be
- Revision : RB-C2
- batch : cacyc ac 0922apmw
- Max CPU clock speed : (254x14.5) 3.654
- CPU voltage : 1.328
- Motherboard used : biostar ta790gx 128
- Type of cooling :ac 64 freezer pro
- nb freq = 2540.4mhz
- nb volt =tba

and verdict..change my suicide mode also..ot getting faster
» Click to show Spoiler - click again to hide... «

Phenom II x4 550be
- Revision : RB-C2
- batch : cacyc ac 0922apmw
- Max CPU clock speed : (253x15.5) 3.921ghz
- CPU voltage : 1.440v
- Motherboard used : biostar ta790gx 128
- Type of cooling :ac 64 freezer pro
- nb freq = 2530.4mhz
- nb volt =tba

This post has been edited by kuntawakaw: Jul 14 2009, 10:59 PM
TSverdict
post Jul 15 2009, 11:56 PM

Time is Flying By
*******
Senior Member
2,458 posts

Joined: Apr 2008
From: M A N C A V E
Done updating Mr Kunta... laugh.gif thumbup.gif
kuntawakaw
post Jul 16 2009, 12:08 AM

imma tag fag!
*******
Senior Member
3,795 posts

Joined: Nov 2008
From: Varies....
QUOTE(verdict @ Jul 15 2009, 11:56 PM)
Done updating Mr Kunta... laugh.gif  thumbup.gif
*
thanks..but i have a stable 3.8ghz run...but the memory tab didnt snap along..can i put it here also?
the nb freq and the ht link is the same..pls notworthy.gif .....
just notice that my nb-cpu and proc volt is the same...at every setting..

» Click to show Spoiler - click again to hide... «

- Phenom II x2 550be
- Revision : RB-C2
- batch : cacyc ac 0922apmw
- Max CPU clock speed : (245x15.5) 3.801Ghz (taken when fluctuate..the exact amount shud be 5mhz lower laugh.gif laugh.gif )
- CPU voltage : 1.392v
- Motherboard used : biostar ta790gx 128
- Type of cooling :ac 64 freezer pro
- nb freq = 1962mhz
- nb volt =1.392v

this is my last max oc verdict..i swear...u dont have to update the database everyday afterthis..huhuhuh
since now more on low vcore..
thanks

This post has been edited by kuntawakaw: Jul 16 2009, 08:08 AM
TSverdict
post Jul 17 2009, 12:25 AM

Time is Flying By
*******
Senior Member
2,458 posts

Joined: Apr 2008
From: M A N C A V E
QUOTE(kuntawakaw @ Jul 16 2009, 01:08 AM)
thanks..but i have a stable 3.8ghz run...but the memory tab didnt snap along..can i put it here also?
the nb freq and the ht link is the same..pls notworthy.gif .....
just notice that my nb-cpu and proc volt is the same...at every setting..

» Click to show Spoiler - click again to hide... «

- Phenom II x2 550be
- Revision : RB-C2
- batch : cacyc ac 0922apmw
- Max CPU clock speed : (245x15.5) 3.801Ghz (taken when fluctuate..the exact amount shud be 5mhz lower  laugh.gif  laugh.gif )
- CPU voltage : 1.392v
- Motherboard used : biostar ta790gx 128
- Type of cooling :ac 64 freezer pro
- nb freq = 1962mhz
- nb volt =1.392v

this is my last max oc verdict..i swear...u dont have to update the database everyday afterthis..huhuhuh
since now more on low vcore..
thanks
*

Done updating the result,but please make sure you make it as final result before proceed to submit! whistling.gif

Thanks, this will give an issue to other party if the same action repeated! icon_rolleyes.gif

BTW nice result mate~ wub.gif

This post has been edited by verdict: Jul 17 2009, 12:27 AM
kuntawakaw
post Jul 18 2009, 11:41 AM

imma tag fag!
*******
Senior Member
3,795 posts

Joined: Nov 2008
From: Varies....
QUOTE(verdict @ Jul 17 2009, 12:25 AM)
Done updating the result,but please make sure you make it as final result before proceed to submit! whistling.gif

Thanks, this will give an issue to other party if the same action repeated! icon_rolleyes.gif

BTW nice result mate~ wub.gif
*
yeah..thats the final for x2..last time i tot 3.6 is the last but when i enhance the cooling, so i make a new one..sorry notworthy.gif notworthy.gif

and later will make oc result for x4..i hope it not trouble u since x4 and x2 result is different right? but not too soon..mebbe nxt week or nxt month..sorry
TSverdict
post Jul 18 2009, 03:09 PM

Time is Flying By
*******
Senior Member
2,458 posts

Joined: Apr 2008
From: M A N C A V E
QUOTE(kuntawakaw @ Jul 18 2009, 12:41 PM)
yeah..thats the final for x2..last time i tot 3.6 is the last but when i enhance the cooling, so i make a new one..sorry  notworthy.gif  notworthy.gif

and later will make oc result for x4..i hope it not trouble u since x4 and x2 result is different right? but not too soon..mebbe nxt week or nxt month..sorry
*

No prob dude, its my job to keep track on this thread! brows.gif

x4 need a lot of vcore when using the AM2+, while AM3 need lower one... wub.gif

bobiac
post Jul 29 2009, 08:04 AM

Geek / Gamers
*******
Senior Member
2,051 posts

Joined: Jun 2007
From: Kajang / Mantin
here my best effort.

- Phenom II x2 550be @ B50 x4
- Revision : RB-C2
- batch : cacyc ac 0922apmw
- Max CPU clock speed : (206x18) 3.708Ghz
- CPU voltage : 1.392v
- Motherboard used : DFI LP DK 790FXB M3H5
- Type of cooling : Custom Watercooling
- nb freq = 2060Mhz
- nb volt =Default

Attached Image
mozact89
post Jul 31 2009, 12:13 AM

~KAWASAKI NINJA~
******
Senior Member
1,137 posts

Joined: Oct 2007
From: ~Somewhere only we know~
hi u all.. long time no see..
cloudwan
post Jul 31 2009, 01:01 AM

- Knob -
*******
Senior Member
8,514 posts

Joined: Jan 2003
From: The Jungle Of Pahang
Verdict, u didn't update mine ka dulu?
Or did i forgot to post here?? rclxub.gif

- Phenom II x3 720be
- Revision : RB-C2
- Batch : CACZC AC 0904EPQW
- Max CPU clock speed : (220x16) 3.52Ghz
- CPU voltage : 1.488 sweat.gif
- Motherboard used : Gigabyte MA770T-UD3P
- Type of cooling : Sunbeam Core Contact Freezer
- Nb freq = 1980mhz
- Nb volt = default

» Click to show Spoiler - click again to hide... «
TSverdict
post Jul 31 2009, 10:58 AM

Time is Flying By
*******
Senior Member
2,458 posts

Joined: Apr 2008
From: M A N C A V E
Done Updating! thumbup.gif

He He He! Sorry Bang oltromen, please dont fire me! wub.gif
-pWs-
post Jul 31 2009, 02:52 PM

Look at all my stars!!
Group Icon
Elite
8,545 posts

Joined: Aug 2006
From: 224.0.0.6
- Phenom II x2 550B.E @ B50 x4
- Revision : RB-C2
- batch : CYACC AC 0922CPMW
- Max CPU clock speed : (200x19) 3.8Ghz
- CPU voltage : 1.424v
- Motherboard used : Biostar TA790G A3+
- Type of cooling : TRUE
- NB Fre = 2000Mhz
- NB Volt =Default

Attached Image

-pWs-
-pWs-
post Jul 31 2009, 03:15 PM

Look at all my stars!!
Group Icon
Elite
8,545 posts

Joined: Aug 2006
From: 224.0.0.6
Suicide Run

- Phenom II x2 550B.E @ B50 x4
- Revision : RB-C2
- batch : CYACC AC 0922CPMW
- Max CPU clock speed : (200x20.5) 4.1Ghz
- CPU voltage : 1.504v
- Motherboard used : Biostar TA790G A3+
- Type of cooling : TRUE
- NB Fre = 2000Mhz
- NB Volt =Default

Attached Image

-pWs-

This post has been edited by -pWs-: Aug 10 2009, 01:21 PM
cloudwan
post Jul 31 2009, 07:30 PM

- Knob -
*******
Senior Member
8,514 posts

Joined: Jan 2003
From: The Jungle Of Pahang
QUOTE(-pWs- @ Jul 31 2009, 03:15 PM)
Suicide Run

- Phenom II x2 550B.E @ B50 x4
- Revision : RB-C2
- batch : CYACC AC 0922CPMW
- Max CPU clock speed : (200x21) 4.2Ghz
- CPU voltage : 1.504v
- Motherboard used : Biostar TA790G A3+
- Type of cooling : TRUE
- NB Fre = 2000Mhz
- NB Volt =Default

» Click to show Spoiler - click again to hide... «


-pWs-
*
Ahhhhhh xmau tgk, xmau tgk.. sad.gif Bro -pWs- jahat, tau ah terer.. mad.gif cry.gif laugh.gif
-pWs-
post Aug 1 2009, 12:16 AM

Look at all my stars!!
Group Icon
Elite
8,545 posts

Joined: Aug 2006
From: 224.0.0.6
You can do it also bro. thumbup.gif

-pWs-
OC4/3
post Aug 1 2009, 03:39 AM

.
Group Icon
Elite
4,746 posts

Joined: Dec 2007
From: Speed rule
QUOTE(-pWs- @ Jul 31 2009, 03:15 PM)
Suicide Run

- Phenom II x2 550B.E @ B50 x4
- Revision : RB-C2
- batch : CYACC AC 0922CPMW
- Max CPU clock speed : (200x21) 4.2Ghz
- CPU voltage : 1.504v
- Motherboard used : Biostar TA790G A3+
- Type of cooling : TRUE
- NB Fre = 2000Mhz
- NB Volt =Default

Attached Image

-pWs-
*
Nice,really pwnage laugh.gif
Any more whistling.gif

bobiac
post Aug 1 2009, 04:26 AM

Geek / Gamers
*******
Senior Member
2,051 posts

Joined: Jun 2007
From: Kajang / Mantin
QUOTE(OC4/3 @ Aug 1 2009, 03:39 AM)
Nice,really pwnage laugh.gif
Any more whistling.gif
*
i'll try later when im not busy.
haha. now cannot leh.
busy like hell.

@-pws-,
pawn u, i will.
TSverdict
post Aug 8 2009, 10:46 PM

Time is Flying By
*******
Senior Member
2,458 posts

Joined: Apr 2008
From: M A N C A V E
QUOTE(bobiac @ Aug 1 2009, 05:26 AM)
i'll try later when im not busy.
haha. now cannot leh.
busy like hell.

@-pws-,
pawn u, i will.
*

He He He!

Will wait for that moment! wub.gif

ah_khoo
post Aug 11 2009, 09:33 AM

- No Action Talk Only -
Group Icon
Elite
8,103 posts

Joined: Jan 2003
From: Tanah Lot @ Dungun, Terengganu.
QUOTE(-pWs- @ Aug 1 2009, 12:16 AM)
You can do it also bro. thumbup.gif

-pWs-
*
yup, if you give me ya chip bro... tongue.gif

what a come back from you, 4.1GHz @ quad is simply awesome for a RM3xx chip. thumbup.gif notworthy.gif rclxms.gif

but then u have new fling in i5 eh? u unfaithful playboy... mad.gif vmad.gif tongue.gif

This post has been edited by ah_khoo: Aug 11 2009, 10:30 AM
-pWs-
post Aug 11 2009, 02:14 PM

Look at all my stars!!
Group Icon
Elite
8,545 posts

Joined: Aug 2006
From: 224.0.0.6
Arigatou. Tried 4140MHz. But right after SPI 1M finish, BSOD. laugh.gif

-pWs-
loong1111
post Aug 11 2009, 03:46 PM

New Member
*
Junior Member
29 posts

Joined: Mar 2008
Phenom II 940 3.6ghz
asus crosshair II formula
kingston hyperx 8500 2gb 1066
xfx 260gtx 216sp 55nm 727 1567 1165
Coolermaster V10
seagate 320gb 16mb
enermax infinity 650w modular psu

This post has been edited by loong1111: Aug 11 2009, 03:58 PM


Attached thumbnail(s)
Attached Image Attached Image Attached Image
TSverdict
post Aug 12 2009, 03:59 AM

Time is Flying By
*******
Senior Member
2,458 posts

Joined: Apr 2008
From: M A N C A V E
QUOTE(ah_khoo @ Aug 11 2009, 10:33 AM)
yup, if you give me ya chip bro...  tongue.gif

what a come back from you, 4.1GHz @ quad is simply awesome for a RM3xx chip.  :/thumbs:  :/respect:  :/clap:

but then u have new fling in i5 eh? u unfaithful playboy...  mad.gif  vmad.gif  tongue.gif
*

Ha Ha Ha! New chip coming in is it sis ah_khoo? hmm.gif

QUOTE(-pWs- @ Aug 11 2009, 03:14 PM)
Arigatou. Tried 4140MHz. But right after SPI 1M finish, BSOD. laugh.gif

-pWs-
*

Normal thing there! But if u using the WC kit it might be helpful! icon_rolleyes.gif
QUOTE(loong1111 @ Aug 11 2009, 04:46 PM)
Phenom II 940 3.6ghz
asus crosshair II formula
kingston hyperx 8500 2gb 1066
xfx 260gtx 216sp 55nm 727 1567 1165
Coolermaster V10
seagate 320gb 16mb
enermax infinity 650w modular psu
*

Can you please provide me the details on your Phenom II batch number!

Please follow the example given,thanks! thumbup.gif

- Phenom II 940
- CPU stepping : CACVC AC 0850CPMW
- Revision : RB-C2
- Max CPU clock speed : 3797MHz (245 * 15.5)
- CPU voltage : 1.552V
- Northbridge clock : 1225 Mhz @ 1.39V
- Motherboard used : DFI DK790FXB M2RSH
- Type of cooling : CUSTOM WC

This post has been edited by verdict: Aug 12 2009, 04:03 AM
TSverdict
post Aug 12 2009, 04:25 AM

Time is Flying By
*******
Senior Member
2,458 posts

Joined: Apr 2008
From: M A N C A V E
laugh.gif laugh.gif laugh.gif

- Phenom II 955
- CPU stepping : CCACYC AC 0911EPDW
- Revision : RB-C2
- Max CPU clock speed : 3829.7MHz (207* 18.5)
- CPU voltage : 1.504V
- Northbridge clock : 2070.1 MHz Mhz @ 1.29V
- Motherboard used : DFI DK790FXB M2RSH
- Type of cooling : CUSTOM WC

Attached Image


This post has been edited by verdict: Aug 12 2009, 04:27 AM
loong1111
post Aug 12 2009, 04:35 AM

New Member
*
Junior Member
29 posts

Joined: Mar 2008
QUOTE(loong1111 @ Aug 11 2009, 03:46 PM)
Phenom II 940 3.6ghz
asus crosshair II formula
kingston hyperx 8500 2gb 1066
xfx 260gtx 216sp 55nm 727 1567 1165
Coolermaster V10
seagate 320gb 16mb
enermax infinity 650w modular psu
*
- Phenom II 940
- CPU stepping : Dono (lazy open to see , hard to install that big mc V10 )
- Revision : RB-C2
- Max CPU clock speed : 3616 ( 200*18)
- CPU voltage : 1.472V
- Northbridge clock : 2400 Mhz @ auto VDDNB = 1.7v
- Motherboard used : crosshair II formula
- Type of cooling : coolermaster v10

This post has been edited by loong1111: Aug 12 2009, 04:37 AM
TSverdict
post Aug 12 2009, 07:23 PM

Time is Flying By
*******
Senior Member
2,458 posts

Joined: Apr 2008
From: M A N C A V E
QUOTE(loong1111 @ Aug 12 2009, 05:35 AM)
- Phenom II 940
- CPU stepping : Dono (lazy open to see , hard to install that big mc V10 )
- Revision : RB-C2
- Max CPU clock speed : 3616 ( 200*18)
- CPU voltage : 1.472V
- Northbridge clock : 2400 Mhz @ auto VDDNB = 1.7v
- Motherboard used : crosshair II formula
- Type of cooling : coolermaster v10
*

Thanks for the info!

You can provide me the proc batch later,really hope it! nod.gif

loong1111
post Aug 12 2009, 09:56 PM

New Member
*
Junior Member
29 posts

Joined: Mar 2008
tmr i provide u
ah_khoo
post Aug 13 2009, 12:38 AM

- No Action Talk Only -
Group Icon
Elite
8,103 posts

Joined: Jan 2003
From: Tanah Lot @ Dungun, Terengganu.
QUOTE(verdict @ Aug 12 2009, 03:59 AM)
Ha Ha Ha! New chip coming in is it sis ah_khoo? hmm.gif
new chip comin in & out sis... post details later in d morning... gonna slp now... yawn.gif


- Phenom II X2 550BE
- 0925APMW
- C2
- 4.0GHz (20 * 200MHz)
- 1.392v
- 1.25v
- 2000MHz (stock volt)
- 2000MHz (stock volt)
- Biostar TA790GX A3+
- Scythe Mugen 2 (Air)

screeny here:

http://forum.lowyat.net/index.php?act=Atta...post&id=1133821

This post has been edited by ah_khoo: Aug 13 2009, 08:47 AM
shikimori
post Aug 16 2009, 01:59 AM

Getting Started
**
Junior Member
236 posts

Joined: Jul 2007
From: Penang
My first stable oc .... tested with prime95 temp quite high at full 60c

Phenom II 955
- CPU stepping : CACYC AC 0915BPEW
- Revision : RB-C2
- Max CPU clock speed : 3712.5MHz (200* 18.5)
- CPU voltage : 1.45V
- Northbridge clock : 2006.7 MHz Mhz @ 1.3V
- Motherboard used : Asus M4A78-E
- Type of cooling : Cooler Master V8 ...zzz this cooler is gay
- Os : Windows Seven 32 bit build 7100
user posted image

pls add me lol XD at first page

This post has been edited by shikimori: Aug 16 2009, 02:14 AM
TSverdict
post Aug 18 2009, 03:51 AM

Time is Flying By
*******
Senior Member
2,458 posts

Joined: Apr 2008
From: M A N C A V E
Done updating!

Thanks for the support guys!

BTW the new result from me!

Attached Image

The official and final OC from me will come soon enough! laugh.gif

This post has been edited by verdict: Aug 19 2009, 09:44 AM
uzer85
post Aug 19 2009, 12:54 PM

love............love......
*******
Senior Member
3,812 posts

Joined: Dec 2008
From: Eden
QUOTE(-pWs- @ Jul 31 2009, 03:15 PM)
Suicide Run

- Phenom II x2 550B.E @ B50 x4
- Revision : RB-C2
- batch : CYACC AC 0922CPMW
- Max CPU clock speed : (200x20.5) 4.1Ghz
- CPU voltage : 1.504v
- Motherboard used : Biostar TA790G A3+
- Type of cooling : TRUE
- NB Fre = 2000Mhz
- NB Volt =Default

Attached Image

-pWs-
*
stable ka bro pWs? or u just do it for SPI only? laugh.gif
-pWs-
post Aug 19 2009, 12:58 PM

Look at all my stars!!
Group Icon
Elite
8,545 posts

Joined: Aug 2006
From: 224.0.0.6
Not stable. Only 1M laugh.gif

-pWs-
TSverdict
post Aug 20 2009, 01:59 AM

Time is Flying By
*******
Senior Member
2,458 posts

Joined: Apr 2008
From: M A N C A V E
QUOTE(-pWs- @ Aug 19 2009, 01:58 PM)
Not stable. Only 1M laugh.gif

-pWs-
*

he he he! all da best bro -pWs- ! laugh.gif

ah_khoo
post Aug 20 2009, 02:49 PM

- No Action Talk Only -
Group Icon
Elite
8,103 posts

Joined: Jan 2003
From: Tanah Lot @ Dungun, Terengganu.
Last entry until 2~3 month later... sad.gif

Phenom II X4 B50

- CPU stepping - 0922APMW
- Revision RB-C2
- CPU Clock - 3819MHz (201MHz * 19)
- CPU voltage - 1.472v
- CPU-NB voltage - 1.25v
- Northbridge clock - 2211MHz
- HTT link speed - 1608MHz w/ 1.2v
- Motherboard used - Biostar 790GX A3+
- Type of cooling - CM Hyper 212+ (Air)

ss here: http://forum.lowyat.net/index.php?act=Atta...post&id=1144763

This post has been edited by ah_khoo: Aug 20 2009, 02:55 PM
TSverdict
post Aug 20 2009, 09:17 PM

Time is Flying By
*******
Senior Member
2,458 posts

Joined: Apr 2008
From: M A N C A V E
QUOTE(ah_khoo @ Aug 20 2009, 03:49 PM)
Last entry until 2~3 month later...  sad.gif

Phenom II X4 B50

- CPU stepping - 0922APMW
- Revision RB-C2
- CPU Clock - 3819MHz (201MHz * 19)
- CPU voltage - 1.472v
- CPU-NB voltage - 1.25v
- Northbridge clock - 2211MHz
- HTT link speed - 1608MHz w/ 1.2v
- Motherboard used - Biostar 790GX A3+
- Type of cooling - CM Hyper 212+ (Air)

ss here: http://forum.lowyat.net/index.php?act=Atta...post&id=1144763
*

Wahh!!! good result sis!

Later when got time,sure i'll update it!

This post has been edited by verdict: Aug 20 2009, 09:18 PM
antonio
post Aug 25 2009, 12:23 PM

AMD Phenom II & Intel i7 Overclocker
Group Icon
VIP
4,032 posts

Joined: Jan 2003
From: MSR Headquaters
I want I want to play also; tongue.gif

Suicide Attempt #1 blush.gif

user posted image

- Phenom II X2 550
- CPU stepping : 0922CPMW
- Revision : RB-C2
- Max CPU clock speed : 4214MHz (200 * 21)
- CPU voltage : 1.6500V
- Northbridge clock : 2200Mhz @ 1.30v NB Voltage: 1.5v
- Motherboard used : ASUS M4A78-E (BIOS 1302)
- Type of cooling : AIR - Core Contact Freezer

This post has been edited by antonio: Aug 27 2009, 10:27 PM
TSverdict
post Aug 27 2009, 05:50 AM

Time is Flying By
*******
Senior Member
2,458 posts

Joined: Apr 2008
From: M A N C A V E
Uueeahh! cayalah bro antonio!

Best attempt so far for SUICIDE MODE!

thumbup.gif thumbup.gif thumbup.gif

This post has been edited by verdict: Aug 27 2009, 05:51 AM
-pWs-
post Aug 27 2009, 07:38 PM

Look at all my stars!!
Group Icon
Elite
8,545 posts

Joined: Aug 2006
From: 224.0.0.6
Nice clock there. wub.gifwub.gif

-pWs-
-pWs-
post Aug 29 2009, 04:15 AM

Look at all my stars!!
Group Icon
Elite
8,545 posts

Joined: Aug 2006
From: 224.0.0.6
Suicide Run

- Phenom II x2 550B.E @ B50 x4
- Revision : RB-C2
- batch : CYACC AC 0928CPMW
- Max CPU clock speed : (200x20.5) 4.1Ghz
- CPU voltage : 1.60v
- Motherboard used : Biostar TA790G A3+
- Type of cooling : TRUE
- NB Fre = 2000Mhz
- NB Volt =Default

Attached Image

-pWs-
TSverdict
post Oct 31 2009, 11:07 PM

Time is Flying By
*******
Senior Member
2,458 posts

Joined: Apr 2008
From: M A N C A V E
Tick Tock Tick Tock !!!

Where is every one gone? hmm.gif

all jump into i5 eh??? laugh.gif
kInOzAwA
post Nov 1 2009, 01:37 AM

LYN Ninja
*******
Senior Member
2,889 posts

Joined: Jul 2006
From: Intranet & Internet
hi verdict. If there any of the OCer here succeed to overclock the Phenom II 955 BE up to 4Ghz above and it's stable then? smile.gif
TSverdict
post Nov 2 2009, 04:54 AM

Time is Flying By
*******
Senior Member
2,458 posts

Joined: Apr 2008
From: M A N C A V E
QUOTE(kInOzAwA @ Nov 1 2009, 02:37 AM)
hi verdict. If there any of the OCer here succeed to overclock the Phenom II 955 BE up to 4Ghz above and it's stable then? smile.gif
*

At this moment no kInOzAwA! unless you had one good chip! wub.gif

BuckRoger
post Nov 15 2009, 02:58 AM

Sakit Perut
*****
Senior Member
903 posts

Joined: Dec 2008
mine

Attached Image

- Phenom II x4 B50
- Revision : RB-C2
- batch : CYACC AC 0928CPMW
- Max CPU clock speed : (212x18) 3.8Ghz
- CPU voltage : 1.47v
- Motherboard used : ASUS M4A785D- Pro
- Type of cooling : Thermaltake Big Water Se (Moded)
- NB Fre = 2120Mhz
- NB Volt =1.2v





Attached Image


- Phenom II x2 550B.E
- Revision : RB-C2
- batch : CYACC AC 0928CPMW
- Max CPU clock speed : (200x20) 4.0Ghz
- CPU voltage : 1.44v
- Motherboard used : ASUS M4A785D- Pro
- Type of cooling : Thermaltake Big Water Se (Moded)
- NB Fre = 2000Mhz
- NB Volt =1.2v

This post has been edited by BuckRoger: Nov 15 2009, 03:05 AM
TSverdict
post Nov 15 2009, 04:17 AM

Time is Flying By
*******
Senior Member
2,458 posts

Joined: Apr 2008
From: M A N C A V E
Yeaahh!!! kewl result! nicely done! thumbup.gif
ah_khoo
post Nov 16 2009, 11:57 AM

- No Action Talk Only -
Group Icon
Elite
8,103 posts

Joined: Jan 2003
From: Tanah Lot @ Dungun, Terengganu.
My humble attempt: smile.gif

Phenom II X4 B50

- CPU stepping - 0922CPMW
- Revision RB-C2
- CPU Clock - 3904MHz (244MHz * 16)
- CPU voltage - 1.520v
- CPU-NB voltage - 1.35v
- Northbridge clock - 2440MHz
- HTT link speed - 2196MHz w/ 1.2v
- Motherboard used - Gigabyte 790FXT-UD5P
- Type of cooling - CM Hyper 212+ (Air) in air cond room tongue.gif

ss here:
http://forum.lowyat.net/index.php?act=Atta...post&id=1302592
TSverdict
post Nov 16 2009, 04:28 PM

Time is Flying By
*******
Senior Member
2,458 posts

Joined: Apr 2008
From: M A N C A V E
QUOTE(ah_khoo @ Nov 16 2009, 12:57 PM)
My humble attempt:  smile.gif

Phenom II X4 B50

- CPU stepping - 0922CPMW
- Revision RB-C2
- CPU Clock - 3904MHz (244MHz * 16)
- CPU voltage - 1.520v
- CPU-NB voltage - 1.35v
- Northbridge clock - 2440MHz
- HTT link speed - 2196MHz w/ 1.2v
- Motherboard used - Gigabyte 790FXT-UD5P
- Type of cooling - CM Hyper 212+ (Air) in air cond room tongue.gif

ss here:
http://forum.lowyat.net/index.php?act=Atta...post&id=1302592
*

nothing to say! it just awesome bro! notworthy.gif

Luv the NB speed! thumbup.gif later will update the result!
uzer85
post Nov 27 2009, 03:33 AM

love............love......
*******
Senior Member
3,812 posts

Joined: Dec 2008
From: Eden
My noob attempt with krabby-patty mobo~

Phenom II X4 940BE

- Revision RB-C2
- CPU Clock - 3600MHz (240MHz * 15)
- CPU voltage - 1.45v
- CPU-NB voltage - 1.2v
- Northbridge clock - 1920.09MHz
- HTT link speed - 1920.1MHz w/ 1.2v
- Motherboard used - Gigabyte MA78GPM-UD2H
- Type of cooling - CCF

user posted image

dun want to push further, sked mobo dai~ laugh.gif
TSverdict
post Dec 16 2009, 11:10 AM

Time is Flying By
*******
Senior Member
2,458 posts

Joined: Apr 2008
From: M A N C A V E
Done Updating all the database! sorry for a long delay!

And One more special tag for "AMD LY.Net WR" has been added in!

For those user who want to compete for this tag! at least must post 3x 3.8Ghz and above Ocing result!

So far this tittle been given to our bro ah_khoo for his never ending OC skills!

Cheers mate! Happy Ocing!


My "seronok dua-ronok" OC result so far!

Attached Image

- Phenom II 955
- CPU stepping : CCACYC AC 0911EPDW
- Revision : RB-C2
- Max CPU clock speed : 3890.5 MHz (251* 15.5)
- CPU voltage : 1.496 V
- Northbridge clock : 2510.0 MHz MHz @ 1.40 V
- Motherboard used : MSI 790FX-GD 70
- Type of cooling : CUSTOM WC

This post has been edited by verdict: Dec 16 2009, 12:03 PM
ah_khoo
post Dec 16 2009, 11:23 AM

- No Action Talk Only -
Group Icon
Elite
8,103 posts

Joined: Jan 2003
From: Tanah Lot @ Dungun, Terengganu.
QUOTE(verdict @ Dec 16 2009, 11:10 AM)
Done Updating all the database! sorry for a long delay!

And One more special tag for "LY.Net WR" has been added in!

For those user who want to compete for this tag! at least must post 3x 3.8Ghz and above Ocing result!

So far this tittle been given to our bro ah_khoo for his never ending OC skills!

Cheers mate! Happy Ocing!
My "seronok dua-ronok" OC result so far!

Attached Image

- Phenom II 955
- CPU stepping : CCACYC AC 0911EPDW
- Revision : RB-C2
- Max CPU clock speed : 3890.5 MHz (251* 15.5)
- CPU voltage : 1.496 V
- Northbridge clock : 2510.0 MHz MHz @ 1.40 V
- Motherboard used : MSI 790FX-GD 70
- Type of cooling : CUSTOM WC
*
laa... sis, if there's someone who oc'ed @ > 3.8GHz d most, d person wud be u instead of stubborn old man like me... smile.gif

nice oc there, very gud volt & clock, not forgettin d nb freq as well... powahhh.... thumbup.gif notworthy.gif

u need a pair of 1600+ cl7 capable ram sis... nod.gif
TSverdict
post Dec 16 2009, 03:54 PM

Time is Flying By
*******
Senior Member
2,458 posts

Joined: Apr 2008
From: M A N C A V E
QUOTE(ah_khoo @ Dec 16 2009, 12:23 PM)
laa... sis, if there's someone who oc'ed @ > 3.8GHz d most, d person wud be u instead of stubborn old man like me... smile.gif

nice oc there, very gud volt & clock, not forgettin d nb freq as well... powahhh....  thumbup.gif  notworthy.gif

u need a pair of 1600+ cl7 capable ram sis...   nod.gif
*

Wuuuu! need lotsa moolllaahhh! laugh.gif

it was expensive and i cant afford it bro! doh.gif

This post has been edited by verdict: Dec 16 2009, 06:28 PM
uzer85
post Dec 17 2009, 04:49 PM

love............love......
*******
Senior Member
3,812 posts

Joined: Dec 2008
From: Eden
QUOTE(ah_khoo @ Dec 16 2009, 11:23 AM)
laa... sis, if there's someone who oc'ed @ > 3.8GHz d most, d person wud be u instead of stubborn old man like me... smile.gif
*
crap cooling,crap mobo, no moneh = veli2 restricting me to OC my rig~ sweat.gif sweat.gif
TSverdict
post Dec 17 2009, 10:41 PM

Time is Flying By
*******
Senior Member
2,458 posts

Joined: Apr 2008
From: M A N C A V E
QUOTE(uzer85 @ Dec 17 2009, 05:49 PM)
crap cooling,crap mobo, no moneh = veli2 restricting me to OC my rig~ sweat.gif  sweat.gif
*

Naked running ler bro! ekekeke! crap MOBO also can be golden once you have the tweaking skills!

No offend ok! ekekeke! All da best bro! Caiiyook! notworthy.gif

TenNix
post Dec 21 2009, 05:53 PM

Getting Started
**
Junior Member
255 posts

Joined: Nov 2009
Until now like nobody using stock coolers huh, let me show some STOCK HSF POWER

http://valid.canardpc.com/show_oc.php?id=895550

Can't provide details, it lead me to BSOD 0.5 seconds after I press validate

Added on December 21, 2009, 7:30 pmhttp://valid.canardpc.com/show_oc.php?id=895790

another not enough time to gather suicide run =.=
user posted image
4108.78 MHz (210.71 * 19.5)

- AMD Phenom II x4 955 BE C3 Stepping
- CPU stepping : C3 isnt it =.= If meant the one on the cpu ihs, unknown
- Revision : RB-C3
- Max CPU clock speed : 4108.78 MHz (210.71 * 19.5)
- CPU voltage : 1.36V <<WTF?
- Northbridge clock : 2107.07MHz @ Unknown Voltage
- Motherboard used : Asus M4A785TD-V EVO
- Type of cooling : Stock Cooling

Added on December 21, 2009, 7:56 pmhttp://valid.canardpc.com/show_oc.php?id=895893

user posted image

Hit 4.21GHz

Max CPU clock speed: 4214MHz (210.7*20)
CPU Voltage: 1.45V something around

I know the voltage isnt enough so lead to the black screen, ROFL

This post has been edited by TenNix: Dec 23 2009, 07:12 PM
TSverdict
post Dec 23 2009, 05:06 PM

Time is Flying By
*******
Senior Member
2,458 posts

Joined: Apr 2008
From: M A N C A V E
Will update it soon,thanks dude! thumbup.gif

This post has been edited by verdict: Dec 23 2009, 05:07 PM
fatalynx05
post Apr 7 2010, 11:33 PM

Fatalist
****
Senior Member
667 posts

Joined: Jan 2005
From: Johor Bahru
shifu verdict heres mine icon_rolleyes.gif
user posted image

This post has been edited by fatalynx05: Apr 7 2010, 11:34 PM
TSverdict
post Apr 9 2010, 11:41 AM

Time is Flying By
*******
Senior Member
2,458 posts

Joined: Apr 2008
From: M A N C A V E
Woahh! nice OC there mate! Wil update it soon enough!

Thanks for the support,and do submit more ok! thumbup.gif
fatalynx05
post Apr 10 2010, 10:48 AM

Fatalist
****
Senior Member
667 posts

Joined: Jan 2005
From: Johor Bahru
QUOTE(verdict @ Apr 9 2010, 11:41 AM)
Woahh! nice OC there mate! Wil update it soon enough!

Thanks for the support,and do submit more ok! thumbup.gif
*
laugh.gif thx bro...wanna try some more lol
dafreak
post Apr 19 2010, 01:33 AM

Regular
******
Senior Member
1,064 posts

Joined: Jul 2008
From: Star Stuff
» Click to show Spoiler - click again to hide... «

will do more when im free smile.gif

This post has been edited by dafreak: Apr 19 2010, 01:33 AM
fatalynx05
post Apr 19 2010, 09:51 AM

Fatalist
****
Senior Member
667 posts

Joined: Jan 2005
From: Johor Bahru
QUOTE(dafreak @ Apr 19 2010, 01:33 AM)
» Click to show Spoiler - click again to hide... «

will do more when im free smile.gif
*
woaaaaa...C3 drool.gif nice OC bro...still got room for more thumbup.gif
TSverdict
post Apr 19 2010, 04:52 PM

Time is Flying By
*******
Senior Member
2,458 posts

Joined: Apr 2008
From: M A N C A V E
@ dafreak : nicely done! still have a lot of headroom to push your 555! wink.gif

All da best! tongue.gif

@ fatalynx05 : So do you! I will wait for your latest result! Yeahh! wink.gif

OT : If you guys want your result to be added in database, please provide me your OC result accordingly! Many Thanks! wink.gif

- Phenom II type (9xx, 9x5, etc)
- CPU stepping (printed on the CPU IHS) or whatever you have.
- Revision (check CPU-Z) ( Latest )
- Max CPU clock speed, reference clock and multiplier
- CPU voltage
- CPU-NB voltage
- Northbridge clock (check CPU-Z) and voltage
- HTT link speed and voltage
- Motherboard used
- Type of cooling



This post has been edited by verdict: Apr 19 2010, 07:11 PM
fatalynx05
post Apr 20 2010, 08:17 AM

Fatalist
****
Senior Member
667 posts

Joined: Jan 2005
From: Johor Bahru
QUOTE(verdict @ Apr 19 2010, 04:52 PM)
@ dafreak : nicely done! still have a lot of headroom to push your 555! wink.gif

All da best! tongue.gif

@ fatalynx05 : So do you! I will wait for your latest result! Yeahh! wink.gif

OT : If you guys want your result to be added in database, please provide me your OC result accordingly! Many Thanks! wink.gif

- Phenom II type (9xx, 9x5, etc)
- CPU stepping (printed on the CPU IHS) or whatever you have.
- Revision (check CPU-Z) ( Latest )
- Max CPU clock speed, reference clock and multiplier
- CPU voltage
- CPU-NB voltage
- Northbridge clock (check CPU-Z) and voltage
- HTT link speed and voltage
- Motherboard used
- Type of cooling
*
i got prob with my mobo rite now sweat.gif
boss have to detailed like that ye? blush.gif

This post has been edited by fatalynx05: Apr 20 2010, 08:18 AM
TSverdict
post Apr 21 2010, 06:34 PM

Time is Flying By
*******
Senior Member
2,458 posts

Joined: Apr 2008
From: M A N C A V E
QUOTE(fatalynx05 @ Apr 20 2010, 09:17 AM)
i got prob with my mobo rite now  sweat.gif
boss have to detailed like that ye?  blush.gif
*

Yes, please...if you can provide me with those details,it will be good. wink.gif

akagidemon
post Apr 29 2010, 11:06 AM

Casual
***
Junior Member
453 posts

Joined: Nov 2007
From: Between Reality and Fantasy
Phenom II X4 955 BE
- CPU stepping (i dont know what this is)
- Revision RB-C3
- Max CPU clock speed, reference clock and multiplier (3891.5 GHz)(251.1x15.5)
- CPU voltage : 1.408
- CPU-NB voltage:
- Northbridge clock (check CPU-Z) and voltage :
- HTT link speed and voltage : 2008.5 / unknown voltage
- Motherboard used : Asus M4A785TD-V EVO
- Type of cooling : standard HSF.


side note:

1. windows 7 32 bit.

2.temperature crept up till the danger zone of 64 degrees Celsius. didn't dare to run at higher clock speed.
new pc just about 1 week from the shop.

if there is anything wrong please tell me since the terms i dont fully understand. thank you. here is a screen shot.

user posted image
TSverdict
post May 7 2010, 11:57 AM

Time is Flying By
*******
Senior Member
2,458 posts

Joined: Apr 2008
From: M A N C A V E
Thanks for the update! will update your result soon ok akagidemon! wub.gif
mpowerwind
post May 18 2010, 03:42 PM

Getting Started
**
Junior Member
99 posts

Joined: Oct 2007
Here comes mine icon_rolleyes.gif

AMD Phenom II B55 X4 3.2
CPU stepping : 1003GPMW
Revision : RB-C3
CPU clock speed : 250 x 16 = 4000.00MHZ brows.gif
CPU-VID = 1.488v
CPU-NB VID = 1.285v
NB Frequency = 2500MHZ
HT Link Speed : 2250 MHZ
Motherboard : Biostar TA790GX A3+
Type of Cooling : Xigmatek Dark Knight
Windows 7 Ultimate x64

» Click to show Spoiler - click again to hide... «
akagidemon
post May 19 2010, 08:52 AM

Casual
***
Junior Member
453 posts

Joined: Nov 2007
From: Between Reality and Fantasy
i keep getting blue screen when i try to run prime95 on a 4ghz setting.

but the thing is if i run sisandra or even other benchmark test the pc is ok. and i can play games and all but only with prime i;m getting this error.

can anyone tell me why.

i think it may be due to my cheapo ram.
TSverdict
post May 21 2010, 07:41 PM

Time is Flying By
*******
Senior Member
2,458 posts

Joined: Apr 2008
From: M A N C A V E
Thanks mpowerwind and akagidemon for the update.

@ mpowerwind - you gor better prospect with those setting. Hope that you can push it a lil bit more as your chip luv low voltage.
acap_20
post May 25 2010, 10:54 AM

Getting Started
**
Junior Member
82 posts

Joined: Jan 2010
From: Wangsa Maju, Johor Bahru
This is not the max OC but i think it is the sweetest spot for my rig to run at 24/7 setup coz it's running below stock voltage which is 1.35V.

- Processor : Phenom II X2 555 unlocked to Phenom II X4 B55.
- CPU stepping : CACAC AC 1003EPMW.
- Revision : RB-C3.
- Max CPU clock speed, reference clock and multiplier : 3600GHz (225 X 16).
- CPU voltage : 1.30V.
- CPU-NB voltage : 1.325V.
- Northbridge clock : 2700MHz.
- HTT link speed and voltage : 2025MHz @ stock voltage.
- Motherboard used : Gigabyte MA785G-UD3H.
- Type of cooling : Lapped Xigmatek Archilles S1284 with custom push pull setup.

user posted image

user posted image

This post has been edited by acap_20: May 28 2010, 05:02 AM
seanlimys
post May 29 2010, 09:56 AM

Look at all my stars!!
*******
Senior Member
2,751 posts

Joined: Jan 2003
From: Taiping
My AMD Rig..LOL'ed
AMD Athlon X2 5000 + PCCooler HP-1204
ECS A780GM-A Ultra
2 X 1GB Kingston DDR2 667 KVR
Palit 7900GS 256MB DDR3
1 X 320GB Seagate 7200rpm 16mb Cache SATA2 HDD
E-View V328 2.1 Speaker
Acer 20" X203H LCD

Attached Image

coming up more soon... XD
hyperzx
post Jun 5 2010, 01:43 AM

Getting Started
**
Junior Member
65 posts

Joined: Jun 2009
Im a newbie in oc world and this is my first oc. All pros pls gimme some advice to improve my work

- Phenom II 955 BE
- CPU stepping = Im not sure lah bro.
- Revision RB-C2
- Max CPU clock speed, reference clock and multiplier = 3700GHz (200 X 18.5).
- CPU voltage = 1.456 V
- CPU-NB voltage = 1.1V
- Northbridge clock = 2400Mhz
- HTT link speed and voltage = 2000MHz @ stock voltage
- Motherboard = M4A785TD-V EVO
- Type of cooling = Thermalright Venomous X

Attached Image
shajack
post Jun 12 2010, 11:50 PM

semi-retired@everything
*****
Senior Member
872 posts

Joined: Jun 2007
From: Kuala Lumpur(juz my body,LOl)
hate u BE userzzzzz...
945 ere,OC to 3.6,running prime 95 now
will post sc later
TSverdict
post Jun 15 2010, 03:41 PM

Time is Flying By
*******
Senior Member
2,458 posts

Joined: Apr 2008
From: M A N C A V E
wow! few result yeahh!

do post more! i will wait for it~
shinjite
post Jun 16 2010, 03:41 AM

�ŞħĬΩĵΐŦ��
********
All Stars
19,306 posts

Joined: Jan 2003
From: Klang
Here is mine verdict:

I think maybe I can lower down the Vcore for this? Full load can go till 60c sweat.gif
All settings are [Auto] in BIOS

Processor : AMD Athlon X2 5000+@AMD Phenom FX-5000
- CPU stepping : Not sure
- Revision : RB-C2
- Max CPU clock speed, reference clock and multiplier : 3.3GHz (300 X 11).
- CPU voltage : 1.44V
- CPU-NB voltage : Not sure
- Northbridge clock : 2400Mhz
- HTT link speed and voltage : 2400Mhz @ voltage unknown
- Motherboard used : MSI 785GTM-E45
- Type of cooling : Tuniq Tower 120 Extreme

Attached Image
captvizcenzo
post Jul 11 2010, 12:45 AM

Regular
******
Senior Member
1,484 posts

Joined: Feb 2009
From: Kuching - Samarahan, Sarawak
A little OC on stock voltages tongue.gif
Phenom II X4 965 BE
- CPU stepping: HDZ965FBGM
- Revision: RB-C3
- Max CPU clock speed: 3798MHz (211*18)
- CPU voltage: Stock(1.325v)
- Northbridge clock: 2115MHz @ Stock voltage (1.1v? hmm.gif)
- Motherboard used: Gigabyte GA-MA785GT-UD3H
- Type of cooling: Air cooling, Thermalright Venomous-X
Attached Image

selferino
post Jul 12 2010, 09:02 AM

joe cole = english samba!
******
Senior Member
1,219 posts

Joined: Jul 2009
Hey sis verdict, updated the list, n btw, this is my 1st OC attempt success! rclxms.gif rclxms.gif rclxms.gif

- Windows 7 Ultimate 64-bit
- Phenom II 965 BE
- CPU stepping : CACAC AC 09456PMW
- Revision : RB-C3
- Max CPU clock speed : 3917.7 MHz (200.9*19.5)
- CPU voltage : 1.472 V
- Northbridge clock : 2600.0 MHz @ 1.30 V
- HTT link speed : 2009.1 MHz
- HTT link voltage : stock voltage(shud be at 1.1v)
- Motherboard used : GIGABYTE 870A-UD3
- Type of cooling : Tuniq Tower 120 Extreme(Air)

Attached Image

This post has been edited by selferino: Jul 29 2010, 01:14 AM
lat_lonelyboyz
post Jul 15 2010, 02:07 PM

Qaizen Creative
******
Senior Member
1,625 posts

Joined: Jul 2009
From: PENANG - IPOH
someone can help me with?

http://forum.lowyat.net/index.php?showtopic=1490332

This post has been edited by lat_lonelyboyz: Jul 15 2010, 02:15 PM
captvizcenzo
post Jul 15 2010, 05:39 PM

Regular
******
Senior Member
1,484 posts

Joined: Feb 2009
From: Kuching - Samarahan, Sarawak
What should be troubleshooted if screen freezes during Prime test ? hmm.gif
zerohunter
post Jul 17 2010, 01:09 AM

M
*******
Senior Member
6,996 posts

Joined: Apr 2008
From: Bolehland
Hey everyone, new comer reporting. will try oc further when free

- Windows 7 Ultimate 32-bit
- Phenom II x55 BE
- CPU stepping : CACAC AC 1003EPMW
- Revision : RB-C3
- Max CPU clock speed : 3825 MHz (225*17)
- CPU voltage : 1.425 V
- Northbridge clock : Auto
- HTT link speed : Auto
- HTT link voltage : Auto
- Motherboard used : ASUS M4A785TD-V Evo Rev X.0x (this is what it shows in cpu-z)
- Type of cooling : XIGMATEK Red Scorpion(Air)

Attached Image

This post has been edited by zerohunter: Aug 8 2010, 10:09 PM
faiz2036
post Jul 27 2010, 08:17 PM

Regular
******
Senior Member
1,384 posts

Joined: Mar 2010
From: Ampang,Selangor
QUOTE(captvizcenzo @ Jul 15 2010, 05:39 PM)
What should  be troubleshooted if screen freezes during Prime test ?  hmm.gif
*
increase your cpu voltage in bios.
fazryle
post Aug 16 2010, 09:22 PM

Getting Started
**
Junior Member
219 posts

Joined: Dec 2005
From: around selangor
want to share mine..

- Windows 7 Ultimate 64-bit
- Phenom II x4 945
- Max CPU clock speed : 3810 MHz (254*15)
- CPU voltage : 1.488 V
- Northbridge clock : Auto
- HTT link speed : Auto
- HTT link voltage : Auto
- Motherboard used : K9A2GM-FIH
- Type of cooling : CM 212 plus
- Full load = 50c (using prime95)
- Idle = 25c

here some pic: rclxm9.gif rclxm9.gif


Attached Image
shinjite
post Aug 16 2010, 09:35 PM

�ŞħĬΩĵΐŦ��
********
All Stars
19,306 posts

Joined: Jan 2003
From: Klang
Full load at 50c, thats good smile.gif
fazryle
post Aug 16 2010, 09:38 PM

Getting Started
**
Junior Member
219 posts

Joined: Dec 2005
From: around selangor
kinda wat to oc more my proc. hahaha.it stable @ 3.8 , more then that it keep restart.. got someone oc this proc more then 3.8?
zonan4
post Sep 7 2010, 12:01 PM

On my way
****
Senior Member
561 posts

Joined: Aug 2006
From: Kajang, Selangor
hmmmm I just OC my pII x4 955 be using verdict stable prime.... 3.8GHz and so far stable.... hope u dun get angry verdict tongue.gif
TSverdict
post Sep 7 2010, 01:08 PM

Time is Flying By
*******
Senior Member
2,458 posts

Joined: Apr 2008
From: M A N C A V E
QUOTE(zonan4 @ Sep 7 2010, 01:01 PM)
hmmmm I just OC my pII x4 955 be using verdict stable prime.... 3.8GHz and so far stable.... hope u dun get angry verdict tongue.gif
*

No prob dude~ this thread is for helping other members to archive higher clock as well~ wink.gif

fazryle
post Sep 7 2010, 11:29 PM

Getting Started
**
Junior Member
219 posts

Joined: Dec 2005
From: around selangor
QUOTE(zonan4 @ Sep 7 2010, 12:01 PM)
hmmmm I just OC my pII x4 955 be using verdict stable prime.... 3.8GHz and so far stable.... hope u dun get angry verdict tongue.gif
*
mine 945 stable at 3.8Ghz also.. haha.. dare to push it more? whistling.gif
zonan4
post Sep 8 2010, 01:57 PM

On my way
****
Senior Member
561 posts

Joined: Aug 2006
From: Kajang, Selangor
wow a competitor whistling.gif well if I'm free I will do it.....
TSverdict
post Sep 17 2010, 03:55 PM

Time is Flying By
*******
Senior Member
2,458 posts

Joined: Apr 2008
From: M A N C A V E
QUOTE(zonan4 @ Sep 8 2010, 02:57 PM)
wow a competitor whistling.gif well if I'm free I will do it.....
*

Great!!! cant wait to see the score~ rclxms.gif

khfoong81
post Oct 27 2010, 03:24 AM

Getting Started
**
Junior Member
66 posts

Joined: Aug 2009
- Phenom II 955
- CPU stepping : Dont know
- Revision : RB-C3
- Max CPU clock speed : 3905.8 MHz (252* 15.5)
- CPU voltage : 1.488 V
- Northbridge clock : 2519.8 MHz MHz @ 1.30 V
- Motherboard used : Gigabyte MA790FXT-UD5P
- Type of cooling : CUSTOM WC




Attached thumbnail(s)
Attached Image
wenhow88
post Jan 24 2011, 04:13 PM

New Member
*
Junior Member
25 posts

Joined: Nov 2009
- Phenom II 965BE
- CPU stepping : i dunno how to check =.=!
- Revision : RB-C3
- Max CPU clock speed : 4000 MHz (200* 20)
- CPU voltage : (bios 1.406) but CPU-Z shown 1.45
- Northbridge clock : 2000 Mhz @ default voltage
- Motherboard used : MSI 870-G45
- Type of cooling : Air Cooling @ Arctic Cooling Freeze 13


user posted image

Uploaded with ImageShack.us


This post has been edited by wenhow88: Jan 24 2011, 04:17 PM
kuntawakaw
post Jan 24 2011, 04:38 PM

imma tag fag!
*******
Senior Member
3,795 posts

Joined: Nov 2008
From: Varies....
QUOTE(wenhow88 @ Jan 24 2011, 04:13 PM)
- Phenom II 965BE
- CPU stepping : i dunno how to check =.=!
- Revision : RB-C3
- Max CPU clock speed : 4000 MHz (200* 20)
- CPU voltage : (bios 1.406) but CPU-Z shown 1.45
- Northbridge clock : 2000 Mhz @ default voltage
- Motherboard used : MSI 870-G45
- Type of cooling : Air Cooling @ Arctic Cooling Freeze 13
user posted image

Uploaded with ImageShack.us
*
great vcore there..mind if i ask
the worker thread, set at 2 or 4?
wenhow88
post Jan 24 2011, 05:02 PM

New Member
*
Junior Member
25 posts

Joined: Nov 2009
QUOTE(kuntawakaw @ Jan 24 2011, 04:38 PM)
great vcore there..mind if i ask
the worker thread, set at 2 or 4?
*
4 workers @ default, passed 896k test (if not mistaken, the one after 10k) at 1 hour


P/S: no wonder u asked so, i checked the image found that i xtually resized the Prime95 window, dat's y worker 3 & 4 were nt there. tongue.gif i had to do so otherwise i cant SS XD

This post has been edited by wenhow88: Jan 24 2011, 05:05 PM
zuiichi
post Feb 9 2011, 04:35 AM

Casual
***
Junior Member
375 posts

Joined: Oct 2009
From: Bukit Tunku
what happen to those in suicide case? their cpu broke? or they can decrease/go back to most stabilize clock?
hmjian
post Feb 27 2011, 03:13 AM

New Member
*
Junior Member
27 posts

Joined: Sep 2009
- Windows 7 Ultimate 32-bit
- Phenom II 555BE unkock to B55
- Revision : RB-C3
- Max CPU clock speed : 3808.1 MHz (238*16.5)
- CPU voltage : 1.424 V
- Northbridge clock : 2100.0 MHz
- HTT link speed : 2142.1 MHz
- HTT link voltage : stock voltage
- Motherboard used : GIGABYTE 890GPA-UD3H
- Type of cooling : Cooler Master Hyper 212+ (Air)


Attached thumbnail(s)
Attached Image
cracker
post Mar 22 2011, 11:00 AM

New Member
*
Junior Member
26 posts

Joined: Nov 2007
All Sifu Here,

Just want to ask your opinion regarding my CPU temp. I'm using AMD Phenom II X4 955 BE overclock to 3.8 (Prime stable). idle temp is 36 and full load can reach 52 (running Prime). Right now i have increase the clock to 4.03 and idle temp is 37-38. Is my temp is ok? biggrin.gif Btw i'm using CM Hyper N520 Cooler.

Thanks!

This post has been edited by cracker: Mar 22 2011, 11:03 AM
bentayan_hijau
post Mar 30 2011, 01:17 AM

Getting Started
**
Junior Member
106 posts

Joined: Jan 2011
- Phenom II x 2 550BE
- CPU stepping (dunno)
- Revision (RB-C2 )
- Max CPU (3.83ghz : 225.7 X 17)
- CPU voltage (1.392
- CPU-NB voltage (stock)
- Northbridge clock (stock)
- HTT link (2031.7mhz)
- Mobo (Asus M4A87TD/USB3)
- Cooling (CM Hyper 101 dual fan)

user posted image

Uploaded with ImageShack.us

This post has been edited by bentayan_hijau: Mar 30 2011, 01:24 AM
prestigio
post Apr 4 2011, 10:00 PM

On my way
****
Senior Member
549 posts

Joined: Aug 2009
QUOTE(gamers maniac @ Apr 20 2009, 01:56 AM)
ace should join amd clan  thumbup.gif . many leng lui here  wub.gif  whistling.gif
*
Did have AMD CLAN? can i join it? drool.gif

Added on April 4, 2011, 10:01 pmGood discuss here. But i also wanna try My OC on Phenom ii BE X2 555.. Will tell the result later.. Dont sure it succes..Haha

This post has been edited by prestigio: Apr 4 2011, 10:01 PM
elmodistortion
post Apr 7 2011, 12:22 AM

Casual
***
Junior Member
493 posts

Joined: Nov 2008
From: Localhost : 127.0.0.1/24
Ops..abang berdict... boley join ??
fatalynx05
post May 14 2011, 01:07 AM

Fatalist
****
Senior Member
667 posts

Joined: Jan 2005
From: Johor Bahru
hi guys...my free time attempt tongue.gif

- Phenom II 1090T
- CPU stepping (unknown)
- Revision PH-E0
- Max CPU clock speed :4.1ghz 228mhz * 18
- CPU voltage :1.475v
- CPU-NB voltage :1.375v
- Northbridge clock :2964mhz
- HTT link speed :2052mhz (default volt)
- Motherboard used :Giga 890GPA
- Type of cooling whistling.gifC

user posted image
~min~
post Jun 24 2011, 08:51 AM

   SUN AND SUMMER!!
******
Senior Member
1,045 posts

Joined: Jan 2010
From: land beyond heaven and hell!!
add me to the list

- Phenom II type (9xx, 9x5, etc) - Phenom II 955
- CPU stepping (printed on the CPU IHS) or whatever you have. - dont know, cpu-z say 3
- Revision (check CPU-Z) ( Latest ) - RB-C3
- Max CPU clock speed, reference clock and multiplier - 3900.5MHz (200*19.5)
- CPU voltage - 1.440v
- Northbridge clock (check CPU-Z) and voltage -will check back later
- HTT link speed and voltage - 2000.2 default voltage
- Motherboard used - biostar TA790GX A3+
- Type of cooling - CM V10

[attachmentid=2292633]

This post has been edited by ~min~: Jun 24 2011, 09:30 AM
TSverdict
post Jun 24 2011, 08:06 PM

Time is Flying By
*******
Senior Member
2,458 posts

Joined: Apr 2008
From: M A N C A V E
Great run,will find some quality time to update the result.

Thanks again for the submission... biggrin.gif
condevil
post Jul 18 2012, 03:43 PM

New Member
*
Junior Member
23 posts

Joined: Jan 2006
penat aku baca xkan sampai sini je woii
TSverdict
post Sep 26 2012, 11:31 AM

Time is Flying By
*******
Senior Member
2,458 posts

Joined: Apr 2008
From: M A N C A V E
QUOTE(condevil @ Jul 18 2012, 04:43 PM)
penat aku baca xkan sampai sini je woii
*

This is for the database. Please find the AMD forum for more details. doh.gif

« Next Oldest · Lowyat.NET Overclocking Database · Next Newest »


Add ReplyOptions


Change to:
| Lo-Fi Version
 0.2762sec    0.27    6 queries    GZIP Disabled
Time is now: 26th November 2025 - 06:07 AM
All Rights Reserved © 2002- 2025 Vijandren Ramadass (~unite against racism~)
Removal Request
Powered by Invision Power Board © 2025  IPS, Inc.
