can't seem to find any threads bout GTX 200 series overclocking.so here is it,for users to share info bout overclocking the GTX 200 series cards

Software to OC:

Rivatuner
Nvidia System Tools
EVGA Precision
*NEW*MSI Afterburner

TO THOSE WHO HAVE PROBLEM INCREASING THEIR VCORE THROUGH NIBITOR (no higher voltage available etc),HERE'S A GUIDE.credits to nncl

PM me with the below format if i miss out anyone in the list or any updates and errors

LYN Nvidia GTX 200 series user overclock database

Username (chip size) | Clocks | 3dmark06 score | Vantage score
GTX260 (65 & 55nm)




GTX275




GTX280




GTX285




GTX295



This post has been edited by ZeneticX: Mar 27 2010, 08:53 PM

joining the club..hehe..factory clocked though..

Any benchies? 3DMark06, Vantage?

my Vantage crashed half way thru the test just now.will post up the ss once benchmark is done

This means that ur current OCed clock is not stable.

did the graphic test and the result is horrendous ,i think it might be due to the heat problem,because my comp restarted just now.i have to keep to my factory settings now and slowly go up againt.

this is the score of my factory overclocked setting

Okay. The Vantage is about 400pts more than my 4870GS 512

no other GTX 200 series overclockers?come on,share ur tips,score etc

finally did a solid stable clock for my 260

shit, and to think i just sold away a gem

wait i go korek SS and scores, mine was at 660 core, 1.6k shader, 2.6k mems

1.6k shader and 2.6k mems .waiting for ur ss and benchies

increased the mem to 1151.i guess i cant go more with my core and shader ,i tried increasing my core to 690 and shader to 1482 and theres strange pixels appearing in my benchies and causing them to crash .so i decide to down them to 687/1479,and concentrate on the mem.so far so good hoping to go higher on mem.

btw i use 3dmark vantage and DMC4 performance test as my bench.



This post has been edited by ZeneticX: Jan 2 2009, 10:48 PM

thats kindda low for ure amp2 TS

the ones i sold were doing 712/1512/1248 a breeze.. on sli..

yeah i have read about many going more thn 700 on core.but cant figure out why mine cant .tested with 695 and strange artifacts start to appear.u overclock with rivatuner?

This post has been edited by ZeneticX: Jan 3 2009, 12:53 AM

yup and then bios flashed.


hope the gtx285's clock well..
hoping to get a pair..
sishh die larr chinese new year coming soon.. have to give gf money to go shopping like mad.. kekeke


This post has been edited by cstkl1: Jan 3 2009, 01:28 AM

how to flash bios?

Bugger you lah,ask you to let me bench before sell also cannot

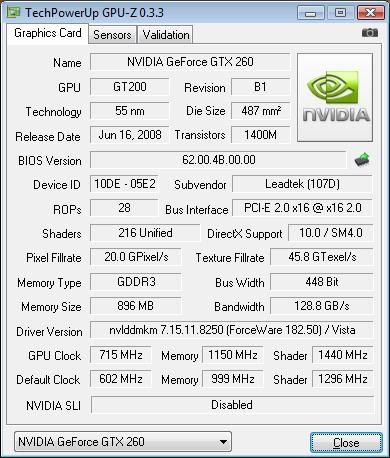

did some searching and found a guy who overclocked his GTX260 192 to 795 on core .

http://www.techpowerup.com/gpuz/aash6/


and heres a guy using a Zotac (nt amp2 thou) who can go up to 780 .

http://www.techpowerup.com/gpuz/3wcg7/


so bios flashing can rly effect overclocking performance?might try it later

This post has been edited by ZeneticX: Jan 3 2009, 03:47 PM

wow great work TS..try to oc my gtx260 to 700 but quiet scare..haha..still learning..

im going to flash my bios later to bring 1.12V to 1.18v.lets see how it goes

---

Added on January 3, 2009, 5:17 pmcant seem to boot up frm my usb to flash .nvm forget it for nw 1st,buy some time for me to read more bout bios flashing.

anyway for those hu wan it,here is the custom bios of my GTX260 im suppose to flash,I've increased the voltage value frm 1.06 to 1.15v

http://www.megaupload.com/?d=EEGBSEP0

---

Added on January 3, 2009, 6:34 pmpushed the mem up to 1202,core and shader reamined same at 687/1497





This post has been edited by ZeneticX: Jan 3 2009, 06:37 PM

can tell me how to make custom bios?

there is software called RBE bios editor that can custom edit and make ATI bios.. but dont know bout nvidia.. anyone?

there is one and its called NiBitor.

so.. basically you dump the original bios and edit it via the program..

wich means the program it self will give description on what to do??

or i have to hex code my self wich i don't know anything about

This post has been edited by lightonokira: Jan 9 2009, 05:53 PM

glad the topic is alive again

for bios flashing follow this guide
http://forums.techpowerup.com/showthread.php?t=66296

no hex-ing of code is required as NiBitor is self explanatory.

just google GTX260 voltmod for more information

Just bought this baby yesterday at ALL IT hypermarket
I manage to bargain it from 1499 to 1430..



The interesting bit is i manage to overclock this to 702/2646/1584. That's the exact same specs as
the EVGA SSC edition.
Have been running atitool artifact scan and it's error free for 7 hours
however fan speed at 70% with temp at 75C. Will try for lower fan speed.

I upgraded from 8800GT and noticed a tremendous difference.
So far, i've tried crysis warhead with enthusiast setting, 2x AA at 1900x1200 and it's flawless. Don't know the exact FPS
but there wasn't a lag at all
Also tried GTA IV, with highest texture and detail, view distance 30/60 and it's flawless too.
but anymore view distance and it crawls.


One thing i noticed is the high pitch sound it makes when i run the card full load.
when running atitool there's a high pitch sound but none at gaming.
It squeals when i run crysis but only for 10mins or so.
Read on some sites that GT200 tend to do that and it's normal.
I'm considering exchanging it....should i?

try increasing ur fan speed straight to 100%,wont do much harm except for the noise.

what is the high pitch sound u referring to?i so far heard none using my 260

have you tried running atitool?
it's a high pitch kinda squealing sound...
tried increasing the fan speed to 100%...no difference
in fact, even at default speed it makes the sound

This post has been edited by remeron: Jan 18 2009, 07:47 PM

i can't run atitool on my pc for some strange reasons.it says the gc i selected is not connected to monitor

hehe..that's odd
just found out something odd is whenever i am the menu screen of crysis warhead the sound happens but not during in-game
oh well, overall, i'm actually very happy with this card...haven't tried pushing it further as it's eating up all the games i'm throwing at it with
the current settings
will try and post some benchies later

if you don't get the sound on your card, you're one of the lucky ones..so enjoy dude.

what version of ATI tool ure using?i guess its a prob with my version

atitool 0.26
it's quite old

guys why is this thread so damn quite ..... come on let it live again....

So do you oc your card d??

-pWs-

not yet bro no time last nite only went for a default speed test run....

set the fan to 55% only the fan already humming.... and this is done with open side panel....

i've tried 700 core and 1400 shader.

i remember that cstkl1 post about this card have a 1:2 ratio but i cant find it now.

he..he.. gonna test mine with ur setting later see how it goes...

1:2 ratio better?

-pWs-

where to look for this 1:2 ratio...

IIANM, Core:Shader.
For our cards, the card's ratio should be 2.15x.

If 1:2, guess we should unlinked them.

-pWs-

yep.

need to unlink otherwise cant set them.

so any tutorial in doin this unlink thingy ....

1 = core
2 = shader

if ur core is 700 then the shader is double that at 1400.

btw i still cant find the post where cstkl1 mention bout it.

Owhhh... ok now i understand...

But why 1:2? Any reason behind?

-pWs-

just where did cstkl1 post that

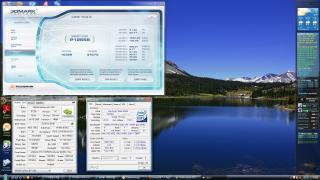

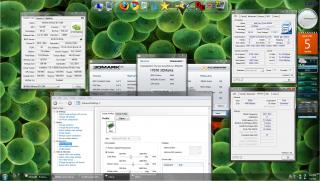

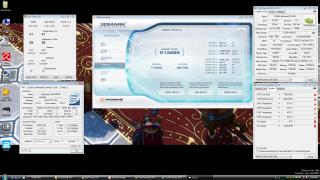

here's mine




Attached thumbnail(s)

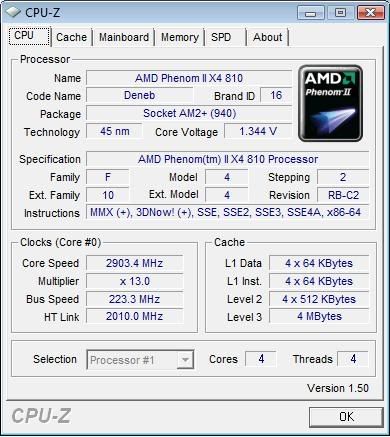

isnt ur quaddie a little too high voltage? @@ 1.45 scary, btw... i wan 3dmark06 T_T

This post has been edited by iBenQ: Apr 4 2009, 02:46 PM

my bad.

i cant find it and i think it wasnt him.
its from XS forum i think.
lemme search for it.

nvm bro take ur time then post it in here again to share....

i cant enter the XS forum la........seems like they got a problem.

maybe its bcoz of their recent SSD switching.

its been a week or so now... still havent open yet extremesystems...

nope,that's the reading in my rig i also no know why.

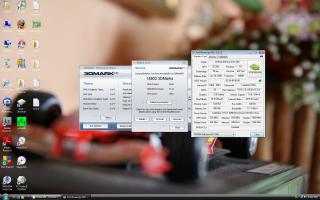

17k.

can i do better???

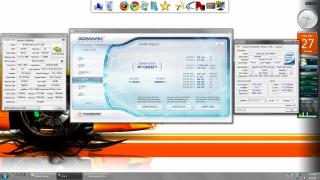

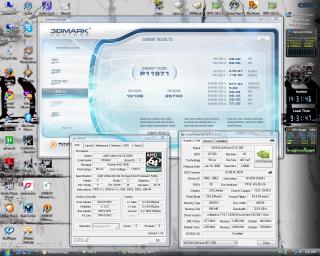

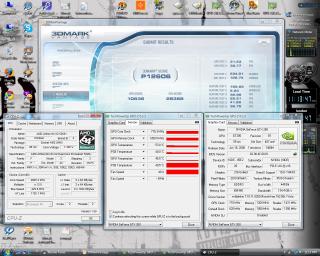

this the highest ive try on my gtx260 so far..




Attached thumbnail(s)

hii all..now just get the gtx 260 sonic..huhu so long with 4870..now try green team back..will do oc later.. now keep in stock..hope got more benefit n usefull post later from all pros..hehe will share my result later

good to see this thread running again.

i can't oc my card with the 185 beta driver installed,rivatuner doesn't seem to support it

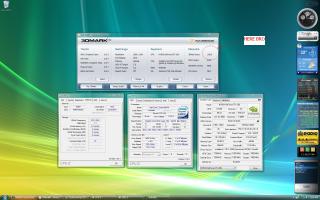

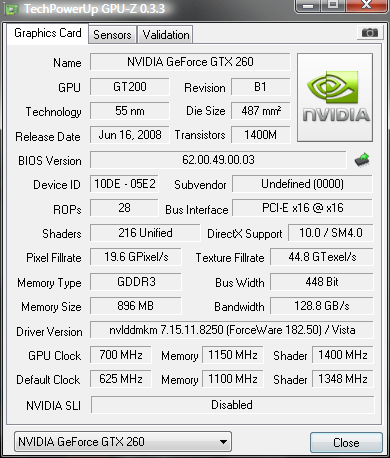

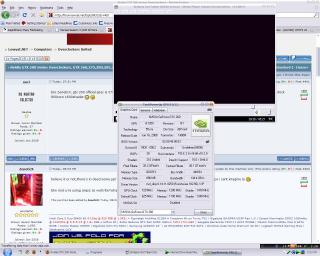

anyway this is a ss of my card on stock






Attached thumbnail(s)

but u can still use it.

im on 185 but still use the old RivaTuner.

ic.anyway how do u keep the oc permanently?like how we do it for procs in the bios.

flash the bios back.

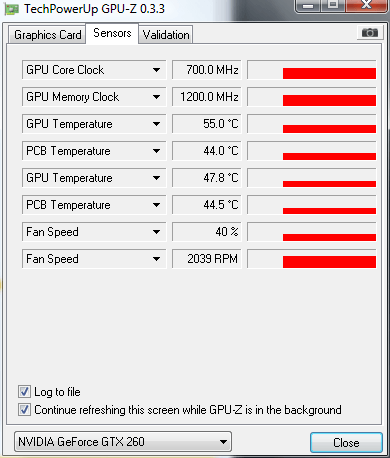

ok manage to oc my sonic to 700/1400 also....

some testing.. score lower in vista -.-

cant seem to get it working.right after i click apply then i click ok,the settings all revert back to default

ZeneticX u using the latest riva tuner is it... so its not compatible with the new 185 beta driver... and i tot wanna try it... guess i'll stick with the 182 first...

yes latest rivatuner.anyway i have nvidia system tools with me so i can still oc.here are my settings,follow u guys footsteps oni



will post a vantage 1 later

btw hilmi say flash the bios back on his previous reply to keep the oc settings,how to do tht?any guides?

This post has been edited by ZeneticX: Apr 5 2009, 03:17 PM

arrr.... which bios is he talking about bro.... mobo bios or gc bios

gc bios i think.since this thread only mention bout gc

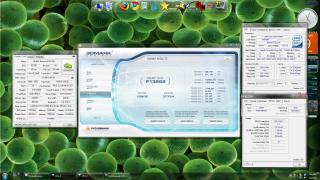

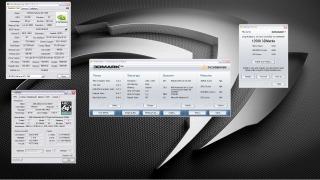

btw here's my vantage score

anyone else with higher clock gtx200 series....?

guys i see that this beta driver really have the upper hand in fps from the whql driver...

flash back the gc bios.

1st take out the bios inside the gc using Nibitor then tweak the 3d clock to the stable clock that the gc can use and flash it back using nvflash on a bootable usb drive.

---

Added on April 5, 2009, 7:32 pm@fuzore
when u run the 3dmark dont set the reso to the same reso as ur gaming reso.

run it at default setting and see how much u can get.

This post has been edited by hilmiangah: Apr 5 2009, 07:32 PM

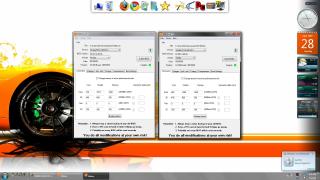

just edit the extra setting?anymore setting to tweak?




Attached thumbnail(s)

save a copy of the original bios 1st.

and do it on ur own risk.

And a extra PCI GC in case flashing fails.

-pWs-

but blind flash is cool.
i tried it once and felt like a hero after that.

a bios flash wun fail randomly rite?it will past like 70%? most of the time.unless u rly suay.

i've flash my card 2 times,both is to tweak the voltage

usually it fail bcoz of the new bios setting not the flashing itself unless when u flashing then a blackout happen.

ahh scary.means sumthg like the card doesn't like the new bios thn most probably it will fail?

Yeah. Me too

-pWs-

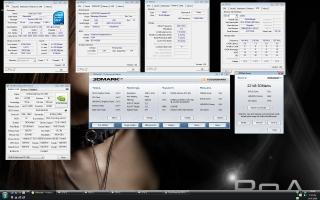

Here is mine.



-pWs-

no.
sometimes u set the boot clock too low or the idle clock to low or mess with the voltage too much only then the flashing fail.

meaning that the setting that make the wouldnt start.

---

Added on April 5, 2009, 8:56 pmno wonder u sold all those cards.

This post has been edited by hilmiangah: Apr 5 2009, 08:56 PM

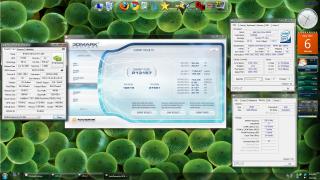

again.duno wheter is it the best my card could gv.

b4 tht i tried with 720/1130/1440 but it seems like my card was struggling to pass the test .black patches start appearing randomly in the test and sumtimes the test will like hang a bit





btw those who wan a cracked EVGA voltage tuner can pm me

This post has been edited by ZeneticX: Apr 5 2009, 09:11 PM

hi there, what is ur gtx brand?
maybe we could share if it same model

Yeah

Palit GTX260+ Sonic bro.

@ZeneticX
Is it 1:2 ratio getting more good performance??

-pWs-

i think all our card are the same except Zenetic's.

mine is Palit Sonic too.

Yea. That make me wonder how his card more performance than Palit Sonic.

-pWs-

he's maxed out at 650mhz iirc.

im still running stock and the highest i do is 700 core 1400 shader stock memory.

im afraid my huntkey go puffffffff.......

i think ZeneticX put the fan at 100% while running the test gua
ive try mine at core 715mhz with 3dmark06 cant pass, sudden the screen goes crazy.. haih
btw, i set my fan at 85% only..

then i think its the max the card can do then.

unless ur upped the memory too much.

Eh. How come?
I use 720core w 60% fan speed.

-pWs-

i use auto fan and reach 720 too last night but only for benchies and no Furmark that time.

Join Folding@Home bro.
Full speed on folding now.

-pWs-
