 Dark Knight Enlight Project, update on 18/06/09- 85% complete

views

TSirienaoki
post Dec 16 2008, 12:33 AM, updated 17y ago

Janitor
*******
Senior Member
3,428 posts

Joined: May 2008
From: Toilet


ok this is my second project after the uv bling2 one....
hahaha

bought this from a forumers

user posted image

user posted image

got this already with this side panel mods

user posted image

i will spray with gloss black interior and apply some metal + cf sticker inside....

oso will change the side panel with full acryan uv acrylic panel

user posted image
sponsored by BleedX

got some major change
the project now will be transfer and concentrate on new casing

user posted image


This post has been edited by irienaoki: Jun 18 2009, 08:58 PM
TSirienaoki
post Dec 16 2008, 12:38 AM

Janitor
*******
Senior Member
3,428 posts

Joined: May 2008
From: Toilet

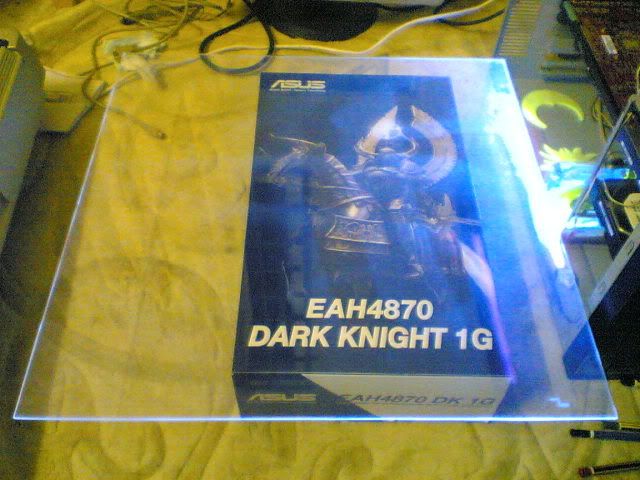

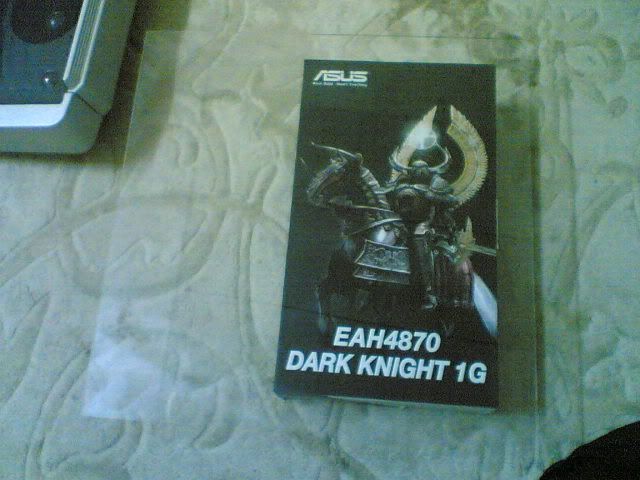

ok the idea is to engrave the acrylic panel with this guys pictca....

user posted image

TSirienaoki
post Dec 16 2008, 12:54 AM

Janitor
*******
Senior Member
3,428 posts

Joined: May 2008
From: Toilet


here it looks under the uv ccfl
btw if i hav red one is better for the ati theme
but what to do ....
people give it for free,so no complain la
hehehe
user posted image


Added on December 16, 2008, 12:55 amseems that the acrylic not clear...
so i will kasi calar-calar sama dia....

This post has been edited by irienaoki: Dec 16 2008, 12:55 AM
TSirienaoki
post Dec 16 2008, 01:00 AM

Janitor
*******
Senior Member
3,428 posts

Joined: May 2008
From: Toilet


ok
since it raining season i ll just concentrate and focus on the panel first....

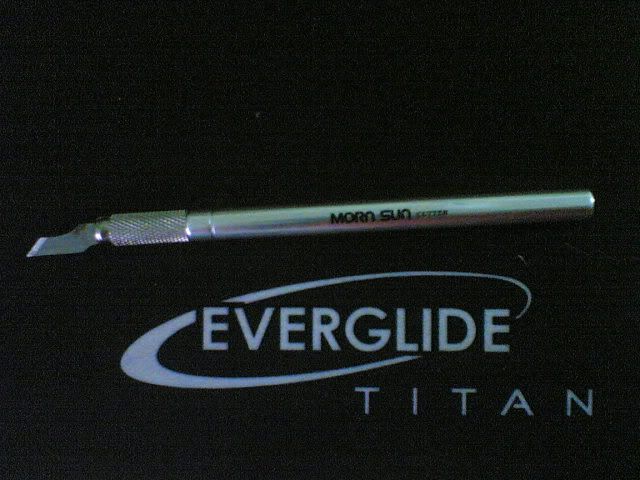

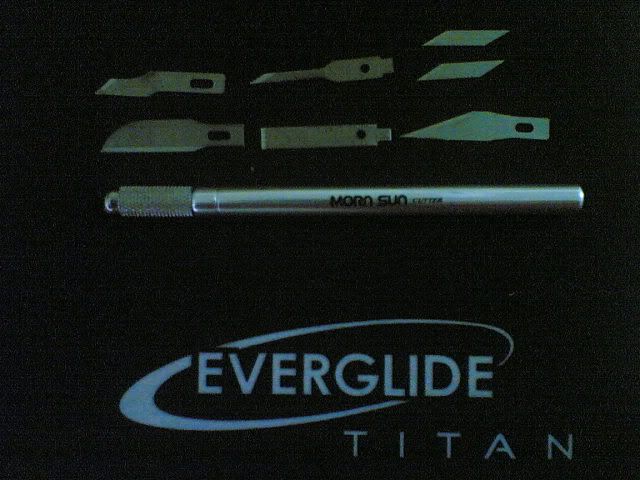

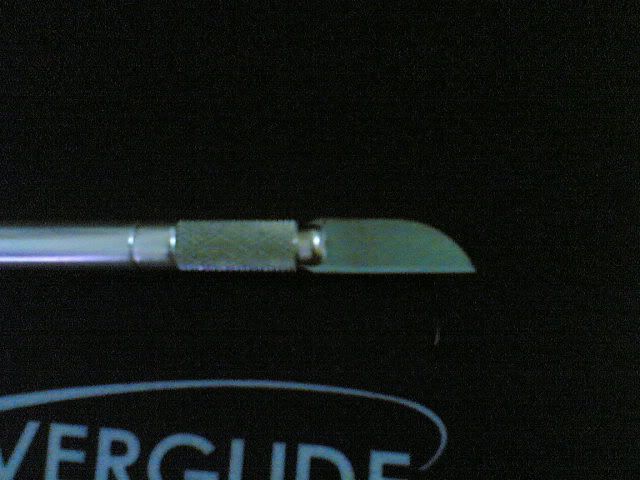

here the "tool" i ll use for engraving....
hehehe

user posted image

user posted image

user posted image

m2n-e
post Dec 16 2008, 01:03 AM

-Retired From Modding-
******
Senior Member
1,269 posts

Joined: Dec 2007
From: MoD ParaDisE



wow nice, i've done many practice doing engraving, but all sux.. teach me sifoo!! xD
TSirienaoki
post Dec 16 2008, 01:05 AM

Janitor
*******
Senior Member
3,428 posts

Joined: May 2008
From: Toilet


hahaha
this is my first trial la
even dun hav dremel to do it...
just toreh2 je....
m2n-e
post Dec 16 2008, 01:43 AM

-Retired From Modding-
******
Senior Member
1,269 posts

Joined: Dec 2007
From: MoD ParaDisE



all ur best mate. xD good luck!
TSirienaoki
post Dec 16 2008, 01:54 AM

Janitor
*******
Senior Member
3,428 posts

Joined: May 2008
From: Toilet


QUOTE(m2n-e @ Dec 16 2008, 01:43 AM)
all ur best mate. xD good luck!
*
thank you bro
hehehe
lack of proper tools means slow progrees
hehehe
now only make the line rough first

user posted image

user posted image
chyu89
post Dec 16 2008, 02:02 AM

I'm not a gynaecologist but I'll take a look
*******
Senior Member
2,465 posts

Joined: Sep 2007
From: Kuala Lumpur     Status: Freeride not dead
budak buayakatsuki's worklog huh, invade invade

Seems like u upgraded urself to the next level .If u want clear sidepanel, try

glass brows.gif
TSirienaoki
post Dec 16 2008, 02:08 AM

Janitor
*******
Senior Member
3,428 posts

Joined: May 2008
From: Toilet


QUOTE(chyu89 @ Dec 16 2008, 02:02 AM)
budak buayakatsuki's worklog huh, invade invade

Seems like u upgraded urself to the next level .If u want clear sidepanel, try

glass brows.gif
*
hahaha
i want engrave side panel
not only clear ah chyu
hehehe

also need proper tools to engrave the glass
this one ,u can toreh lidat onli
no need to worry will not broken like glass

This post has been edited by irienaoki: Dec 16 2008, 02:14 AM
mfcm
post Dec 16 2008, 02:22 AM

Look at all my stars!!
*******
Senior Member
2,765 posts

Joined: Nov 2005
From: **Hornbills**



erm bang engrave nih nnt output dia cmna ek?btw got hte case from msyafiq? laugh.gif apsal x wat printed sticker je..soh ping86 printkan then stick je..more nice tongue.gif
chyu89
post Dec 16 2008, 02:30 AM

I'm not a gynaecologist but I'll take a look
*******
Senior Member
2,465 posts

Joined: Sep 2007
From: Kuala Lumpur     Status: Freeride not dead
Simple window is nice dy, no need fancy. show mobo and cooler only, less cable shown is nicer.
TSirienaoki
post Dec 16 2008, 02:34 AM

Janitor
*******
Senior Member
3,428 posts

Joined: May 2008
From: Toilet


QUOTE(mfcm @ Dec 16 2008, 02:22 AM)
erm bang engrave nih nnt output dia cmna ek?btw got hte case from msyafiq? laugh.gif apsal x wat printed sticker je..soh ping86 printkan then stick je..more nice tongue.gif
*
hahaha
yeap syafiq low
my kolej mate
hehehe
dun wan to spoil the sapphire mod worth 200++
hahaha
so this the 1st mod for my panel....
hehehe
u will look@ the outcome later....
'myb nice'
but with that design few.....
it gonna take long time....
few days myb...
cant finish it in 1 day...

*i've asked jason in ATE b4 for non windowed panel...they dun hav it...
got windowed ready only....

This post has been edited by irienaoki: Dec 16 2008, 02:34 AM
TSirienaoki
post Dec 16 2008, 02:36 AM

Janitor
*******
Senior Member
3,428 posts

Joined: May 2008
From: Toilet


QUOTE(chyu89 @ Dec 16 2008, 02:30 AM)
Simple window is nice dy, no need fancy. show mobo and cooler only, less cable shown is nicer.
*
that what we call mods rclxms.gif
hehehe
not so fancy though
just dun wan to waste the acrylic

chyu89
post Dec 16 2008, 02:40 AM

I'm not a gynaecologist but I'll take a look
*******
Senior Member
2,465 posts

Joined: Sep 2007
From: Kuala Lumpur     Status: Freeride not dead
Extra acrylic can make fan grill ma..
TSirienaoki
post Dec 16 2008, 02:43 AM

Janitor
*******
Senior Member
3,428 posts

Joined: May 2008
From: Toilet


QUOTE(chyu89 @ Dec 16 2008, 02:40 AM)
Extra acrylic can make fan grill ma..
*
hahaha
here normal acrylic is cheap.....
900mmx600mmx3mm only around rm50....
but uv dun hav la....
TSirienaoki
post Dec 16 2008, 02:45 AM

Janitor
*******
Senior Member
3,428 posts

Joined: May 2008
From: Toilet


QUOTE(m2n-e @ Dec 16 2008, 01:03 AM)
wow nice, i've done many practice doing engraving, but all sux.. teach me sifoo!! xD
*
oo btw bro,mind to tell me,u use what tools to engraving acrylic?
dremel?
m2n-e
post Dec 16 2008, 03:27 AM

-Retired From Modding-
******
Senior Member
1,269 posts

Joined: Dec 2007
From: MoD ParaDisE



QUOTE(irienaoki @ Dec 16 2008, 02:43 AM)
hahaha
here normal acrylic is cheap.....
900mmx600mmx3mm only around rm50....
but uv dun hav la....
*
1m x 60cm? lol.. rm50??? hmm.gif quite cheap.


QUOTE(irienaoki @ Dec 16 2008, 02:45 AM)
oo btw bro,mind to tell me,u use what tools to engraving acrylic?
dremel?
*
yeah, using cheapo dremel (bought from.........gilo) xD
TSirienaoki
post Dec 16 2008, 06:15 AM

Janitor
*******
Senior Member
3,428 posts

Joined: May 2008
From: Toilet


QUOTE(m2n-e @ Dec 16 2008, 03:27 AM)
1m x 60cm? lol.. rm50??? hmm.gif quite cheap.
yeah, using cheapo dremel (bought from.........gilo) xD
*
sepulgilo?
he edi sell to you?
adoi


m2n-e
post Dec 16 2008, 02:36 PM

-Retired From Modding-
******
Senior Member
1,269 posts

Joined: Dec 2007
From: MoD ParaDisE



QUOTE(irienaoki @ Dec 16 2008, 06:15 AM)
sepulgilo?
he edi sell to you?
adoi
*
1 year d sell to me. xD if u like more pen like dremel/rotary tools, at jalan pasar got sell, around rm79-139.
the rm139 is dremel, but all the tip/bits/disk/ selling seperate for rm70. xD thats the price we(me n bro sepulgilo) saw
when we went there last week. smile.gif

This post has been edited by m2n-e: Dec 16 2008, 02:38 PM
