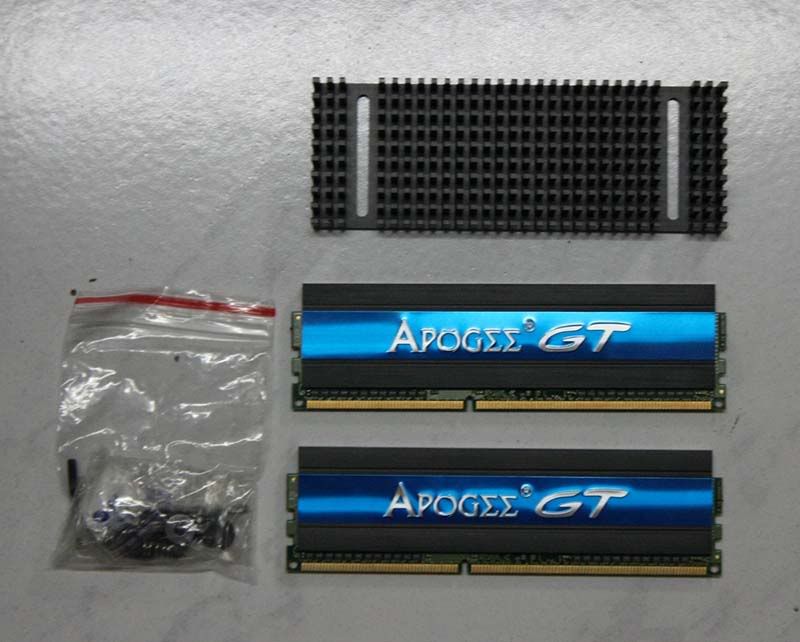

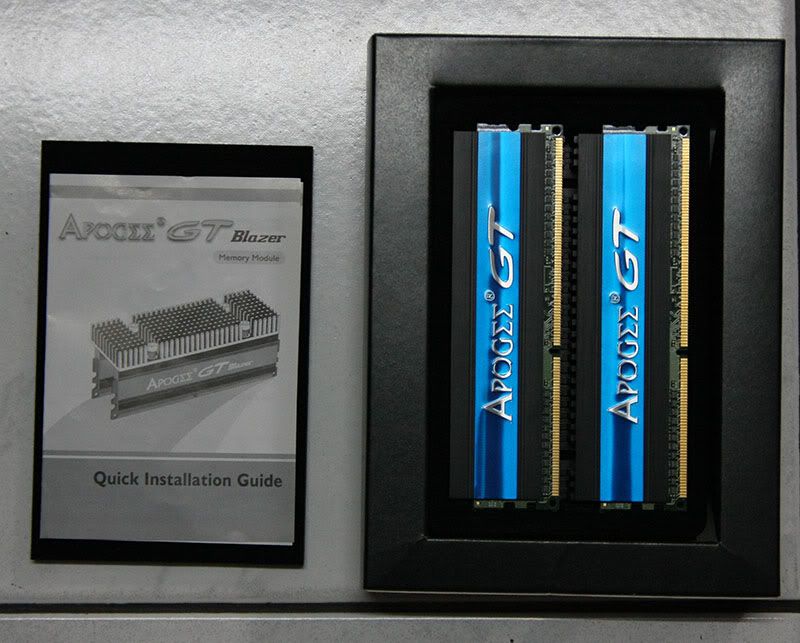

Packaging, Accesories, Build Quality

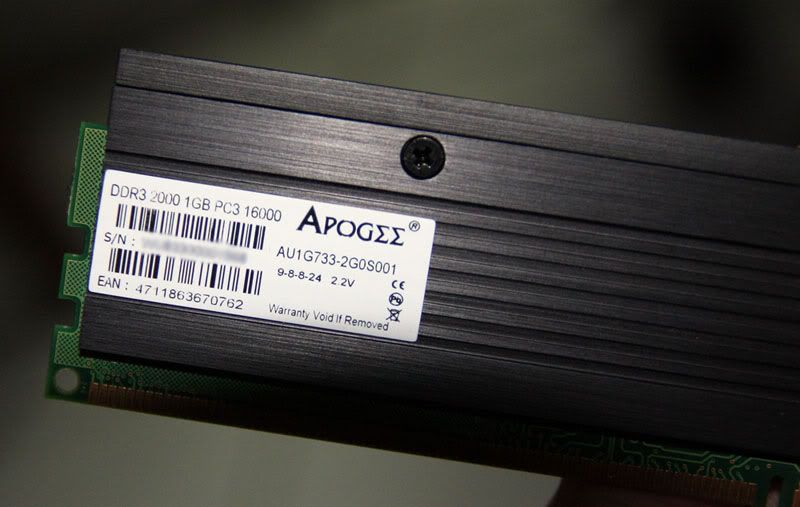

Factory Specification


Dual kit package (1GB*2 PCS)
240pin DDR3 Synchronous Un-buffered
1GB FBGA DRAM 128Mx8-bit with 8pcs
Memory Clock, Speed 2000MHz
6 Layers PCB
CL= 9-8-8-24
SSTL 2.1V (+/-0.1V)



Testbed Specification

CPU: Intel C2D E8600
Mobo: ASUS P5E3 Premium X48 (this board ROCKS!!)
RAM: ApogeeGT Blazer DDR3 2000Mhz 2GB kit + it's own heatsink
RAM fan: Corsair Dominator RAM Fan (Yes, this RAM fan FITS the Apogee very well..... )
VGA: Sapphire HD4870 512MB
HDD: WD Raptor 150GB
PSU: Corsair TX-650 (Seasonic built)

---

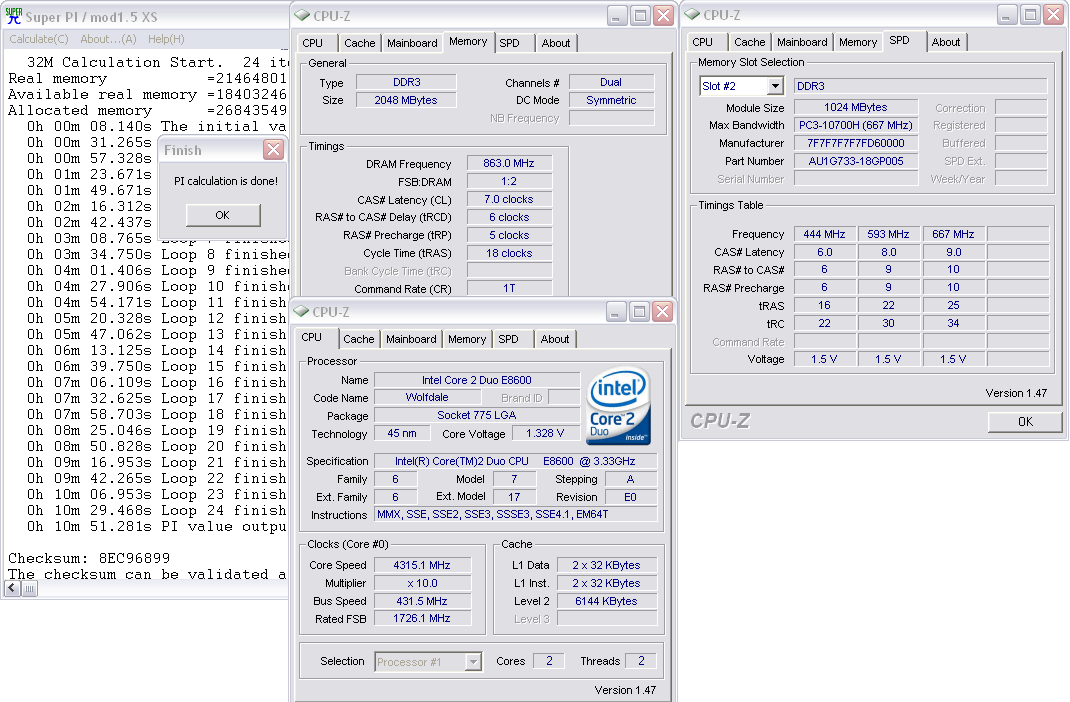

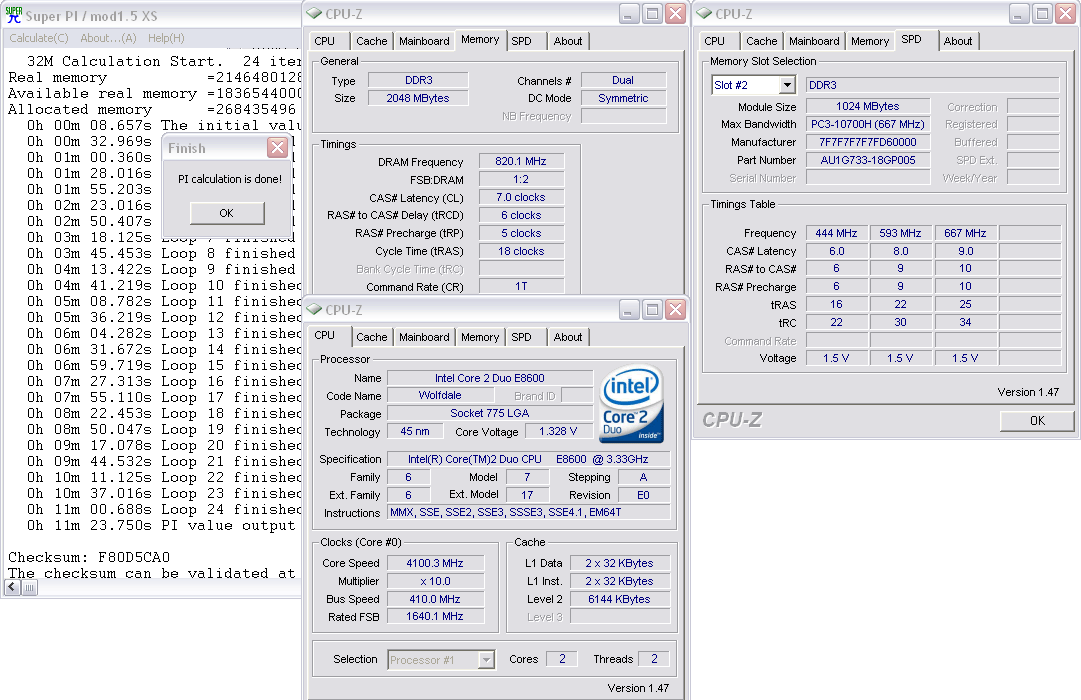

Added on September 15, 2008, 12:04 amPerformance Results

CL 7-6-5-18 1T

1.8V - 1640Mhz


1.9V - 1726Mhz


2.0V - 1806Mhz



2.1V - 1874Mhz


]

This post has been edited by M0b1us: Sep 15 2008, 12:04 AM

Is this your rig or this is the rigs that you wish to build??

This my rig bro......what's wrong with my rig???

---

Added on September 15, 2008, 12:26 amAdded............

CL 8-7-6-18 1T

1.8V - 1810Mhz


1.9V - 1870Mhz


2.0V - 1920Mhz


2.1V - 1970Mhz

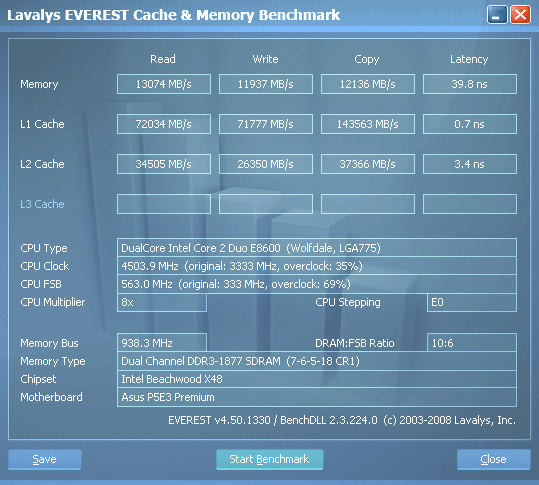

Maximum Bandwith

Best Everest Bandwith and Lowest Everest Latency (sub 40) in Indonesia.




Summary

Score:

Packaging & Build Quality: 10/10
Performance: 10/10
Value: 10/10 (I got this RAM for under $160 USD )

TOTAL SCORE : 10

---

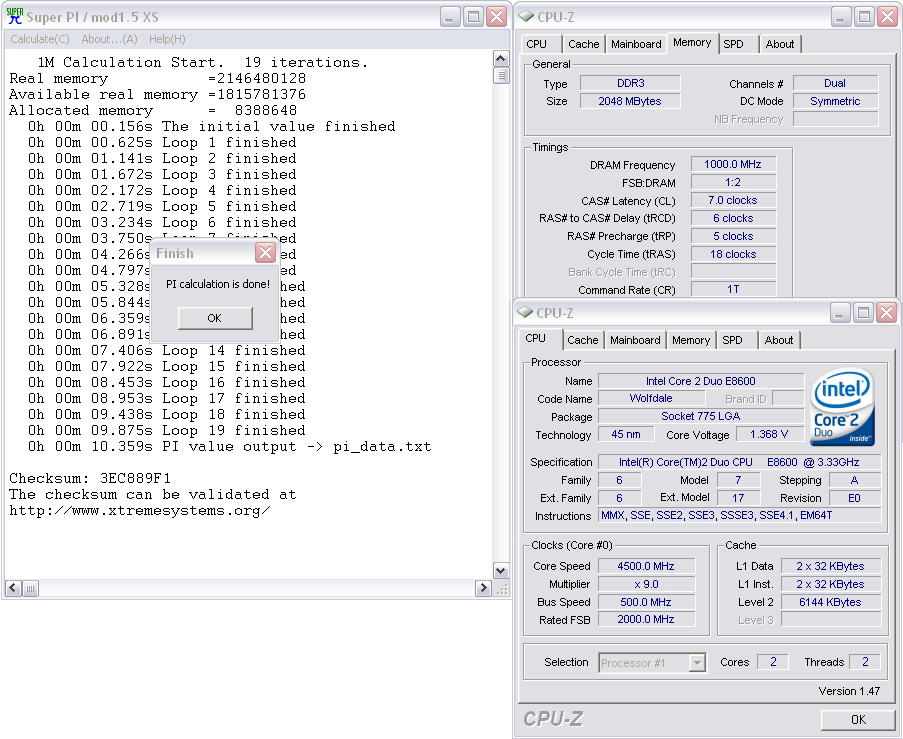

Added on September 15, 2008, 12:28 amDDR3 2000 CL7-6-5-18 1T for all of you !!!! :D



OMG this RAM ROCKSSSSSSSS !!!!!!!

This post has been edited by M0b1us: Sep 15 2008, 12:28 AM

$160? That's really cheap!

Yup...CHEAP stuff with XTREME performance

voltage used for DDR3 2000 CL7-6-5-18 1T ?

hmm.... smells like GTS? or GTR

will it give huge different for speed since it will not reach 1:1 by the time

wonder how it perform on amd machine

nice mobo and nice ram.... should be d9gtr/gts

Second that
Only D9GTR/GTS can withstand that kind of voltage
But could maybe be samsung chip also but chance is slim

DDR3 2000 CL7 vdimm also can whack untill 2.2v

btw, available in malaysia?

This post has been edited by gamers maniac: Sep 15 2008, 01:21 PM

IINM, this is neither D9GTR nor D9GTS because this ram is single sided.
D9GTR & D9GTS doesn't come on single sided 2GB ram kit.

Correct me if I'm wrong.

kind of good performance for such price........

shawty i think you are right, possible be samsung chip like the dominator series??

i wander if there is such a 4gb kit

Samsung chip cannot do 1000CL7 ler

in the future there are 4 Gb coming for sure

2.26V

The chip is Micron D9GTR

---

Added on September 15, 2008, 7:47 pmYup...that's right.

FYI, Samsung chips can't do 7-6-5-x or 8-7-6-x timings

This post has been edited by M0b1us: Sep 15 2008, 07:47 PM

why their DDR2 so sucks...
