wow.... your rear fan looks so colorful bro... any night shots?

This post has been edited by ham_revilo: Sep 20 2008, 07:24 PM

just sprayed my mobo tray and side panel black.... took hours to do the cable management but the next day my mobo lan chip got burn by thor

wasted my time coz need to change mobo now





This post has been edited by ham_revilo: Oct 12 2008, 04:07 PM

actually considering biostar tpower i45

but problem is need to do manage my cable all over again

bro suppose to spray in a ventilated area right... spray in the room later end up in hospital

sure y not... you are so welcome bro

come come show some pics bro

i like your side panel bro... how i wish cm690 comes with those side panels

cannot bro... tested it... there will be around 1/2 inch clearance problem... plus the placing for the inner fan isnt right too...



This post has been edited by ham_revilo: Oct 18 2008, 03:57 PM

@celciuz

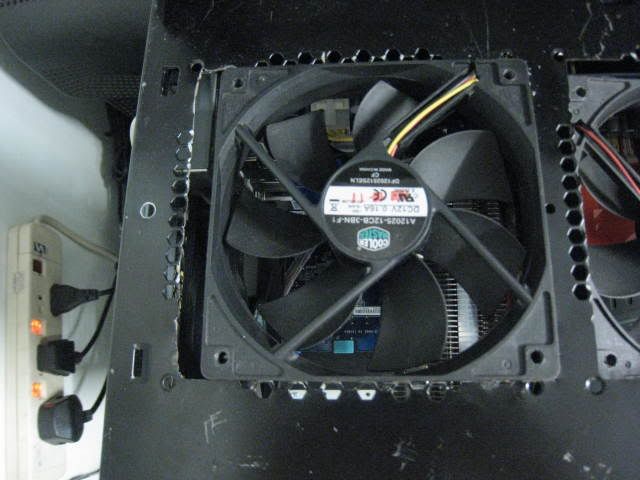

this is how i did it...

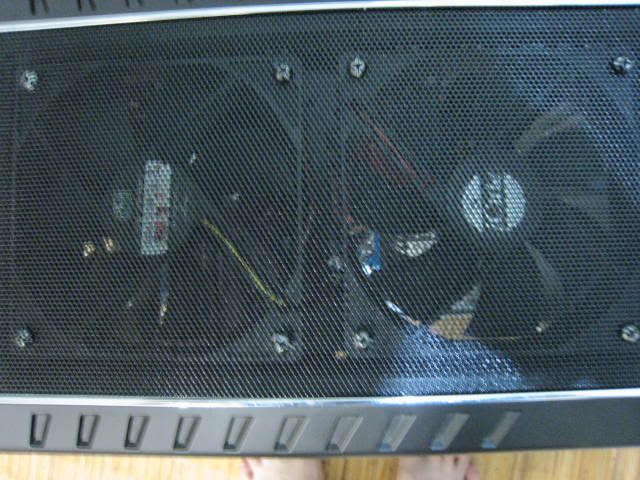

if u really wanna cut out like i did, the inner fan u have to cut it to the right a lil... around 1-1.5cm to the right... or not the top panel will be blocking...


u will actually get alot more space if the fan were not inside your casing and i think its better in term of air flow, coz the hot air is directly blown out this way...

yup... very easy... use normal "playa" can edi... just found a link in youtube for that



i did exactly the same but i dismantle everything and i file it so no sharp edges...

This post has been edited by ham_revilo: Oct 19 2008, 03:10 AM

thanks bro
dont know what was i doing just now

actually me either but we just need to see what are they doing

it is also a good idea to get more airflow

This post has been edited by ham_revilo: Oct 19 2008, 03:11 AM

u really have to make sure all the hooks are completely straighten... take note there are lil tiny hook around the usb, audio, esata port... if all is straighten then i think shouldnt be a problem bro....

the crome part u want remove or not also can...

This post has been edited by ham_revilo: Oct 19 2008, 04:53 PM

thanks alot mate

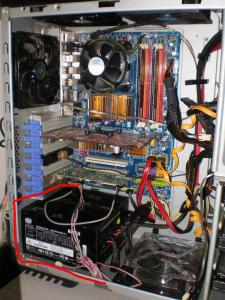

btw, i think u could do a better coz u are using a modular psu... imo there is a few things u need to do...

1. remove those plastic thingy besides your mobo which is use to hold your cables... to me, it will make you think that it is the only way your cable can be manage through that thing.... coz i think to manage your cables, you need to hide them not to show them out in front

2. try to route all your cables to the back of the casing... for those very long cable that cannot be route to the back, try hiding them at the side of the casing...
example:


3. do not ever twist your sata cable like that.... it really looks like cacing in a casing

anyway cable management takes up alot of time and effort... for me, i always "try and error" to get the best cable management and im actually still noob in this .... so keep up the good work bro

This post has been edited by ham_revilo: Oct 20 2008, 04:14 AM

yup... the 24pin cable is superbly big and its very obvious... so try to route it to the back...



nice cable management bro... nice hiding your sata cable with the red light

i love the idea that the mobo tray is removable. cooler master has bring i to the next level. lets hope the price isnt too expensive

imo its advisable to get an extension. coz usually the 4/8 pins cable is not long enough and also those extension only cost around rm10 only at lyp.

bro this isnt a sales thread

GC should be include only can see the final cabel management

but without gc it really look very nice... good job bro

This post has been edited by ham_revilo: Jan 10 2009, 06:18 PM

i think the size is quite standard with those tower hsf. in fact, thermalright ifx is much bigger that this
