bro, dont use multiple colours la.
use la only UV or coloured CCFLs

Some sleeves need heatshrink

er are u saying that some of my sleeves need heatshrink or u saying in general ?
sorry very blur in the morning..
haha cool same casing bro but u made yours nicer
did u spray your casing?
i did some modification to my case will upload tonight..
all shops close cant buy UV CCFL.. so i still have to put it in the middle

anyways nice uv effect on ur case.. can i ask what is that green line around the processor fan and the ram slots ? o.O
looks nice.. are u using 120mm for the rear?

now im just waitin to get my hyper212..no money



This post has been edited by carbonfibre: Aug 31 2008, 10:19 AM

bro , u use wad brand of ccfl /.???

yeah I did spray my casing internal to flat black, using 12CM as rear exhaust.
The green line is EL wire.

limhongwoon.. er using vizo why?
im looking for anybody who sells just one tube-_- i need one..

bro where did u buy EL wire? thats a nice setup.. any remarks on my case bro.. feel like its missing sth.. u put a glow stick in there ?

here got sale <-----EL WIRE

sepuligo.. i just posted new pics : ) please view =p

thanks bro for the link.. can some people rate me please : ))

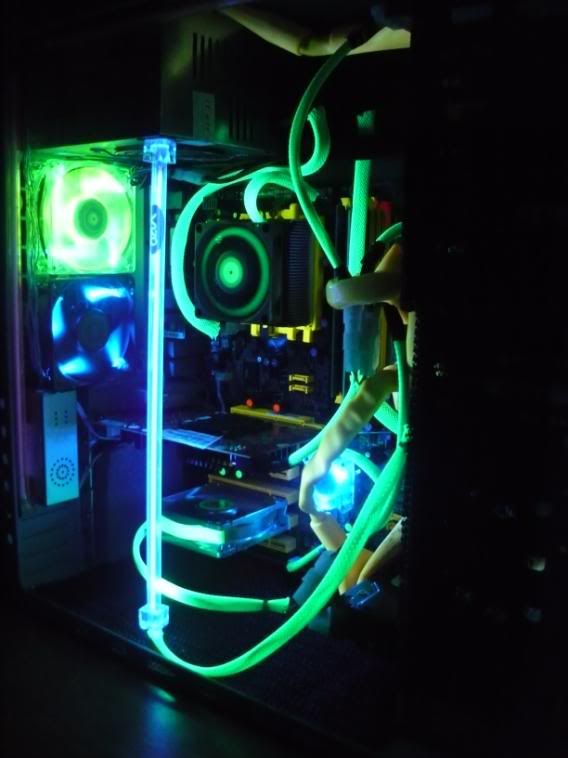

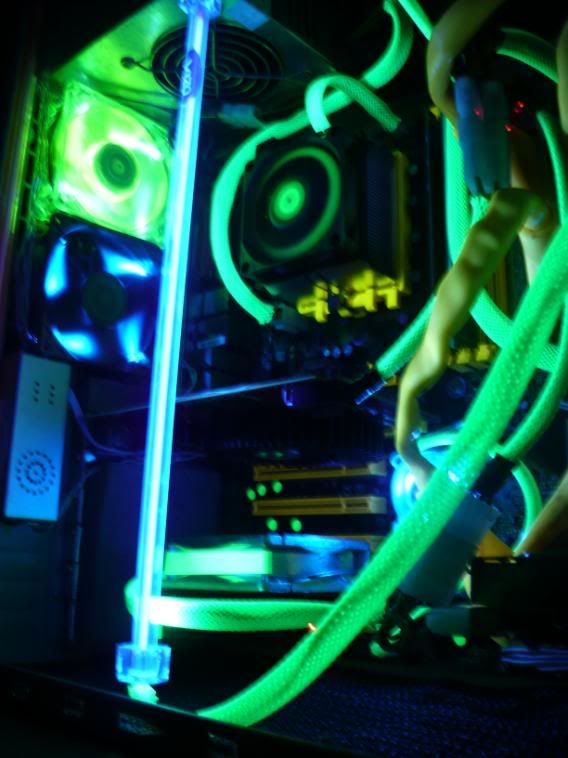

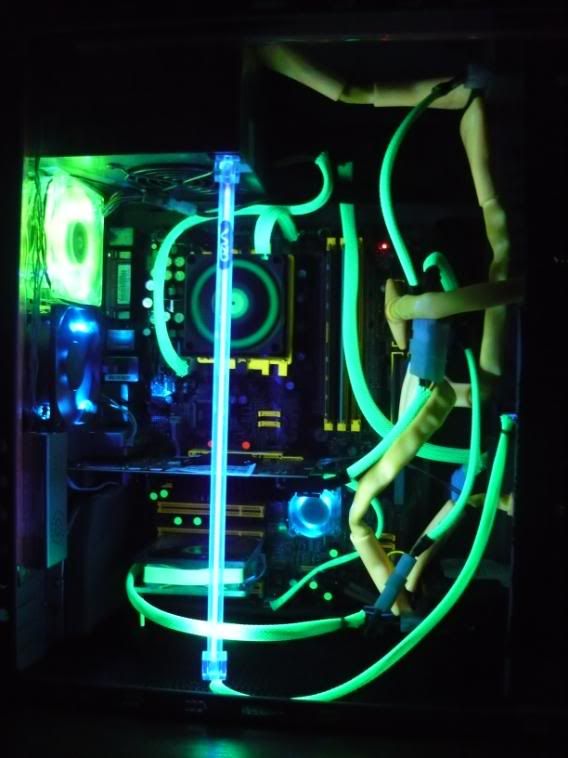

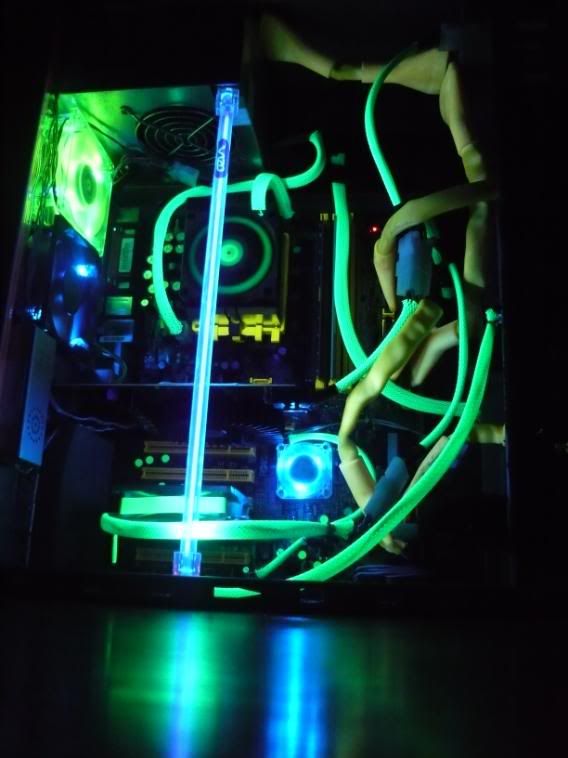

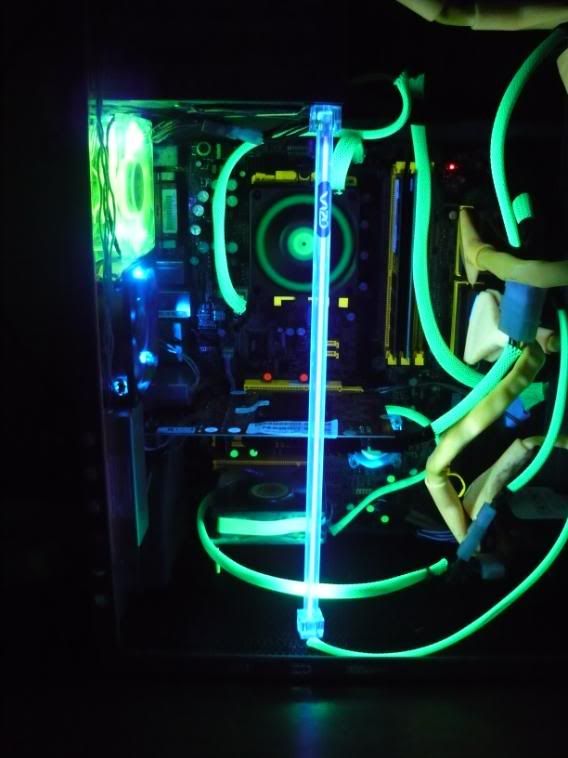

my rig after slight modification and management







sorry to the brothers that requested for me to hide the uv ccfl.. i cant hide it yet..
need one more uv ccfl then can hide or else no effect

remarks everyone ))

This post has been edited by carbonfibre: Aug 31 2008, 10:22 PM

ill give 5/10 coz if u wanna play glow in the dark better focus 100% UV
and also bro dari u biar cable like that why dont do something creative to it (NOT HIDING THE CABLE) so the uv effect can be more fun......

This post has been edited by sepulgilo: Aug 31 2008, 10:19 PM

I'm saying some of your sleeves don't have heatshrinks.

During my yester years, I did play with UV and it needs alot of patience and $$.

My advice, manage your cacing properly. Think of a theme. It doesn't mean all wires have to be sleeved. Sleeve those you think will bring out the best of the rig. Hint~ look for those wire which are long in between the molex or connectors. those extra insignificant wires can be kept hidden or unsleeved. Particularly the ones for the UV CCFL.

As for UV CCFLs you can get a pair or 2 pairs. top bottom back & front(near the HD).

Theme wise is important. once you have a theme you will grow or improvise from there. If you simply just chuck in a multicolored UV it might look haywire. I can't find my old pics but i have my friend's to share. this was like ages ago when we started playing on my old rig, now its more on standard CCFL on my stacker to lit up the floor in the dark room. Some hint on helping you up.



For yours i would say stick to normal UV components. get rid of the CCFL fans as well as the IDE cables. Hid it. play with green and yellow or double sleeve it (means both colours on the wires, refer to the image on top).

Molex connectors for extension are best kept hidden. if not possible, just do some wiring extension, make everything long and sleeve it. They look ugly. Get some UV molex to bring out the connectors connecting to hard disk or disk drives. it really shows that power is following through the connector and along the wires.

as for the CPU fan you did a good job. but I dislike the center fan being coloured green. why not remove it and add another yellow ring at the fins. place it near to the center of the propeller and remove the remaining green spots in the middle. Should remove the gloomy green effects and bring out some yellow contrast.

Above are some comments which I've provided and might conflict with some forumers. these are merely my point and view and i'm open to criticism. Well we're here to learn. Thanks

wow bro thats was seriously something to read man..
well dont worry not really offended i think what you said is quite true..
i think i would do the center fan to yellow.. is orange alright?
the thing is i dont have enough space to hide my ide..
bro that board in the pic is a LANPARTY isnt it..
lets just say my theme is actually green and yellow..
cant really think of anything..
u got some suggestions maybe you could pm me : )
need it thanks !

bro google around and see some others uv works who knows ur idea will come hehehehehehe (for example if i cant think of anything i google see read and u gain knowledge and ideas)

check out my posts in the first page of the UV league thread....

my old UV setup is there....same mobo as urs... DFI Lanparty UT NF3 250gb.

mebbe u can get some ideas from there.

I did use multiple colours lol.. UV for highlight fangrills, fans, some cables, and Red CCFL mix with Blue LEDs, got the purple effect.

bradder, sudah karat la. as what madman has mentioned, check out some previous UV rig mod. Take them as a reference. you can really learn alot from there. Getting the right combination and right UV ccfl is critical too. I remember my Sunbeam UV CCFL was so intense that it turn my UV IDE cable which was suppose to be orange to pink.

Its merely trial and error. if you wish to do an orange center is also good, but question is, would it fit? try it. explore the colour combination. alternatively you can do a yellow orange to red gradient. means center bright yellow to orange slowly gradient blend to red at the far end of the fins. I bet brother allngap is mighty good at these. This will show your CPU is burning hot. placing a UV fire grill definitely turns it even more sexy. Well thats What i can imagine. But it might turn out ugly. Just run through all the previous mod done on the net. it will definitely give you an idea.

yup. its a lanparty board. Not mine, but my friend's. During that era, we both share the same passion on UVs but sadly nowadays not many people interested on playing such mod as its a bit expensive and addictive.

7/10 since so colorful lor..heheh...better stick to 1/2 color only

needs some cabbie management skills tho...

Cable management...and 2 colours will be sufficient, jz like what Bulanar said.

haha thanks everyone.. yea i need some help.. need some ideas -__-
well now saving up for a UV CCFL and a new core fan..
can somebody point out which part i need to manage?

change ur casing to new one...lol...i give ur 10/10 because u ready to learn..
