I think should have no issue with abit 35.
u'd most probably hit 3.2ghz at 1.15v... (or less volts, hopefully ur bios can undervolt)

wa...40 loop so much ka?

better not be over stress till *touchwood* *touchwood*

i tried on 5 loops config only.... but it can only pass 2 loops when i already tested my proc to pass prime95 small fft for 7hours

I put 40 loops then go sleep. Wake up, my pc still running. Click close program, and open IE, it hang. Then i restart run another 5 loops, drink coffee, it finished and success. Then i on microsoft word, hang again. Not sure why this happen, but problem solve after increase voltage.

wth, how come ur vcore all so low wan
my q9300 @ 3.41ghz need vcore 1.44 lol ><
i put my
fsb = +0.35
mch = + 0.35

using gigabyte ga-x48-dq6
wats the prob ar...
max temp when play games around 62celcius
wats the prob ar, shud i put the fsb higher and vcore lower?

This post has been edited by xpresside: Aug 25 2008, 08:57 PM

first of all, Q9300 VID is higher than X3320, that's why it require lower voltage to OC, at least at lower speed.

for my board, i didnt touch my vFSB and vMCH, only slight bump in vCore. FSB max around 450. any higher require VTT/GTL/etc which is not available on my P35 board

VTT/GTL/etc <-- is it available in x48 boards? coz i dont remember anything like it in my bios..or i've missed it

btw,,,vid and vcore is 2 different things eh?

This post has been edited by xpresside: Aug 25 2008, 11:24 PM

http://forum.lowyat.net/index.php?showtopi...&#entry19473608

check out my oc here on 9450

VID is intel specified voltage. vCore is the voltage u set in BIOS. x48 should have those setting, as some P35 boards also have it.

Hmmm with board that capable to adjust the VTT/GTL how far more then can push the fsb? I was thinking to change to DFI P35 Iron because it has that features in the bios .

what we need to change for??

Change the board so we can break the FSB barrier. I got problem looking at my Cpu speed below 3.4ghz. My target is close to 4.0ghz actually. Disappointed when got touch my processor.

ok...but if my mobo got that func, what specific things dat i need to change??

impossible la bro..even hitting 3.6ghz is already a challenge. unless u don mind LN2 24/7

Hi all, noobs here...
my current config on X3320 on p45-ds3 mobo & DDR2 6400 ram

@3GHZ (400x7.5)
20 tests passed with flying colours.



@3.375 (450x7.5)
5 tests passed.



but,
20 tests failed. all the norm value not equal.



seems to hit fsb wall on 450MHz. anyone has any suggestion to get higher?
i'll be very happy if it can stable & tested on IBT @ 3.5GHz.

Since when X3320 got L3 cache?? @@

Btw, nice result you have there.
Mind to share your setting?

-pWs-

think he got it from suppaman. Like some of the Xeons, i think it's misreported

yup, correct. i also shocked when saw it the first time. lol
hopefully just misread & not defect or something.

@-pWs-:
i use default/auto setting for all except the FSB. dont have time to tweak more. just build this rig last night & straight away OC.

will try to tweak the vcore & ram timing for higher result.
but kinda scared as now the temp is already passed 70C for 20 tests.
hopefully can get "rock solid heart touching" stable at 3.5GHz.

Read from other sources, the wall for my mobo is 460-470 MHz, proc is 460-480 MHz & RAM up until 500 MHz. if can get stable around 460 then 3.5 GHz, baby!

nice....
will try to play my x3320 tonite and see d result...
but i'm oni using P35 mobo oni...

^
p35 enough la bro. seen some review OC the quad proc using p35 board.
if can get above 450MHz, let me know the "secret" ok.

^
^
Lol... let me in on the secret too ya...

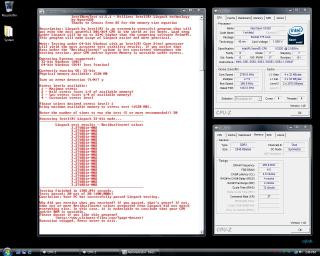

For now... I show small overclock only
