Mantap. this is the advantage of modular psu.

This post has been edited by kazairol: Aug 22 2008, 02:05 PM

r u saying those who sleeve their psu can ignore cable management? then what happen to the air flow? cable management purpose is to improve ventilation inside the casing, if u sleeve psu doesn't mean u improve ventilation ler.. still need cable management.

my cable management

before;


after;


cacing;



This post has been edited by kazairol: Apr 22 2009, 01:30 AM

bole2.. will update later. di mata aku ni nmpak ok je.. haha..

ya ya, still got no time to sleeve though.

u can see page 12 and other page as ur references

u can route the 24pin cable behind mobo tray for better cable management

how long u take to do this?

better than both i would say.

hmm rare to see intel user put the cpu heatsink like that. cable management still can be improve.. try to fully utilize space behind mobo tray, still can see cable there.

cm690 la. many reference here.

u can refer here;

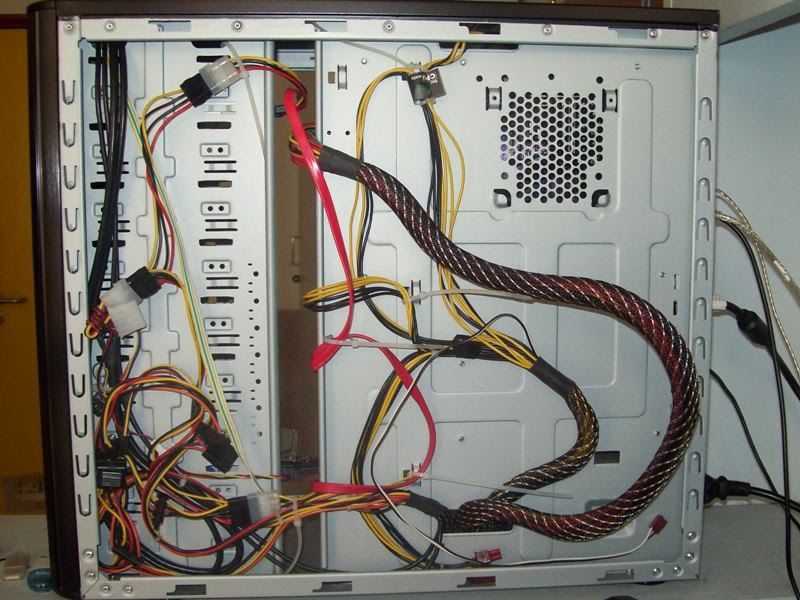

hiding the cable;

yours also not bad..

yup.

why dont u put the hdd cage like zerohunter? u use L shape sata, it shouldn't be a problem i guess. i can see plenty of space..
also the 4 pin cable to mobo, u can route it below the gc, left side of the pci-e slot. but got radiator there, can be quite challenging.

This post has been edited by kazairol: Apr 1 2009, 09:43 AM

ur 4 pin atx not long enough ke bro, why not put at back mobo tray. also ur sata cable, it would be nice if all 3 go through the same hole..
