did my best with the iphone camera

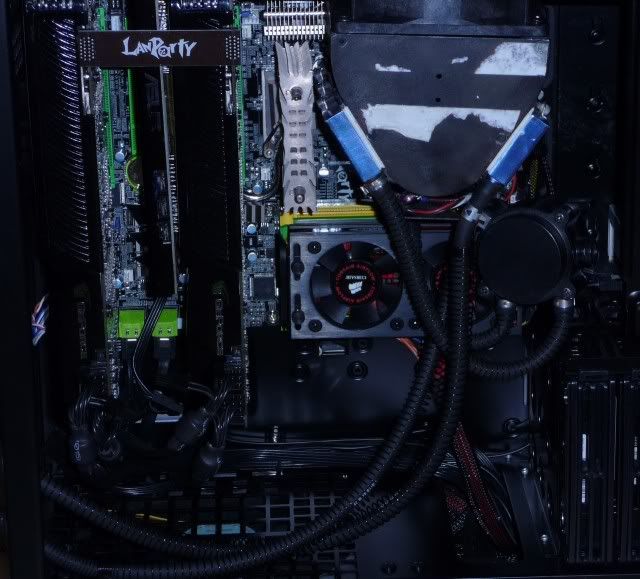

almost complete.. just need to buy pci areca raid controller and some sleevings for the fan wires.

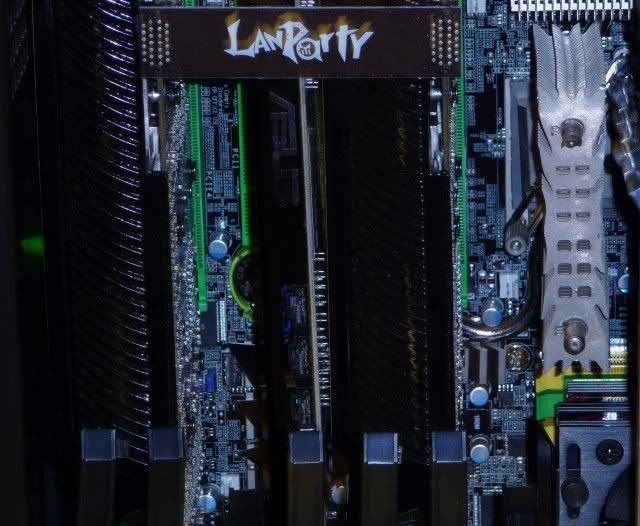

temps are now excellent with the hr05

edit

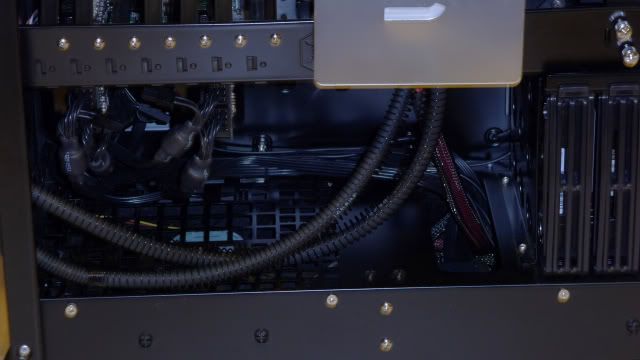

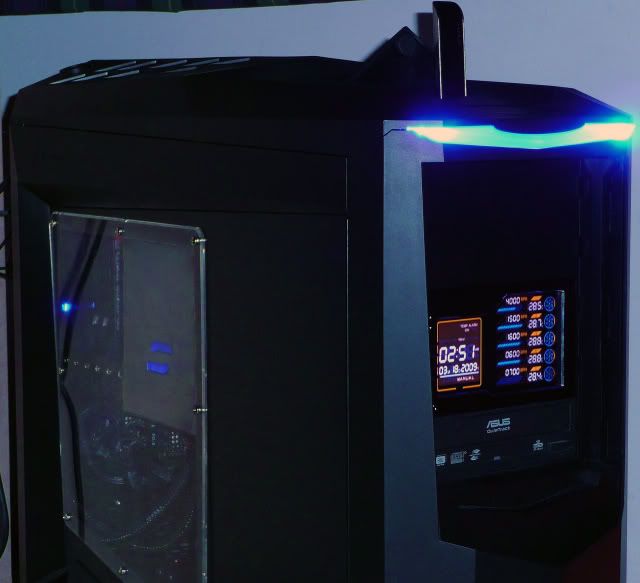

redid the fan cables and lowered the lcd fan controller .now all hidden at the back.


removing the coolit alu.. just a double sided tape..


will be painting the coolit alu later black.

This post has been edited by cstkl1: Mar 18 2009, 03:06 AM

U can get it from CEX. Think he has one left
Price RM2++

---

Added on March 19, 2009, 6:11 amedit did a few extra things
added a 70mm fan on the HR05 + 2 more 120 mm fans on the Rad for a push pull.



This post has been edited by cstkl1: Mar 19 2009, 06:11 AM

took out the fan from hr05.. no difference

and decided to run with the coolit alu

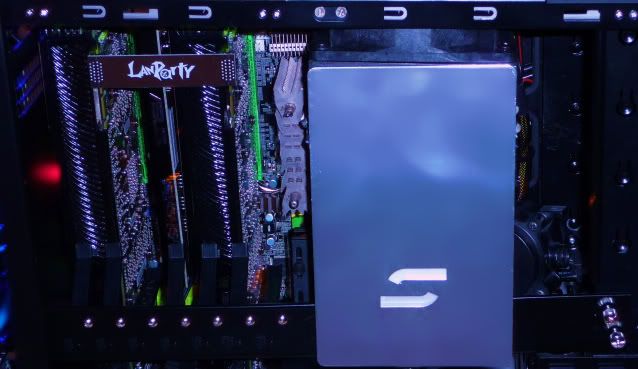

cleaned and remove all the double sided tape.. so now everything si black ..

might get one bright ccfl in there.. but loking for a shorter one . not the long ones. having a hard time getting those.

This post has been edited by cstkl1: Mar 19 2009, 09:12 PM

dunno whats the mm but yup... again repeat the shorter one. on the long ones that everybody seems to stock up.
cant seem to find them.

this was another than i was looking for.
http://www.vizo.com.tw/front/product/get_p...t_detail/35/5/1

This post has been edited by cstkl1: Mar 19 2009, 09:24 PM

as per request

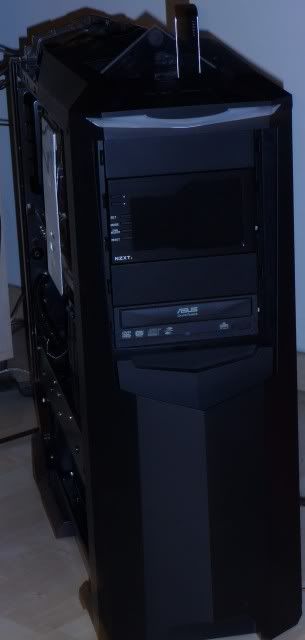

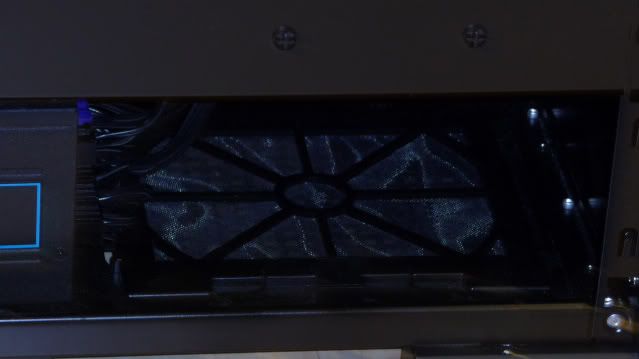

Drive Bay

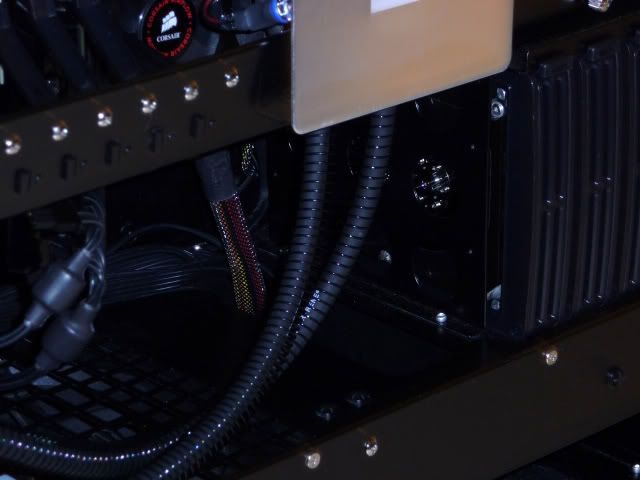

Back

they wont.

masking tapes dont.
infact masking tapes actually cleans off any dirt..

i actually use masking tape to clean off certain hardwares.. like gc cooler etc..

i always prefer every wire to be hold down by masking tapes.. dont like wires/molex etc to stack on each other..
this is to prevent side panel deformation and any long term pressure.

---

Added on March 27, 2009, 10:41 amblue thingy = waterblock
white thingy on blue thing= tec
fins above blue thingy = heatsink
above heatsink = nmb delta fan.

This post has been edited by cstkl1: Mar 27 2009, 10:42 AM

dude
having masking tape on windscreen which goes true hot/cold on malaysian climate is plain stupid..

masking tapes leaves no residue for alu casing..
been doing this a long time. and with me who change casing/hardware on sometimes monthly to yearly basis can atest to this.
