After few days surveying on case design... yesterday i started on doing the alu frame for my casing...

1st of all.. this is my projected design..




and in front of my case... i wanna put this tattoo in front of it... glowing... and my case will be glossy black...


This post has been edited by omara86: Jul 23 2008, 02:00 PM

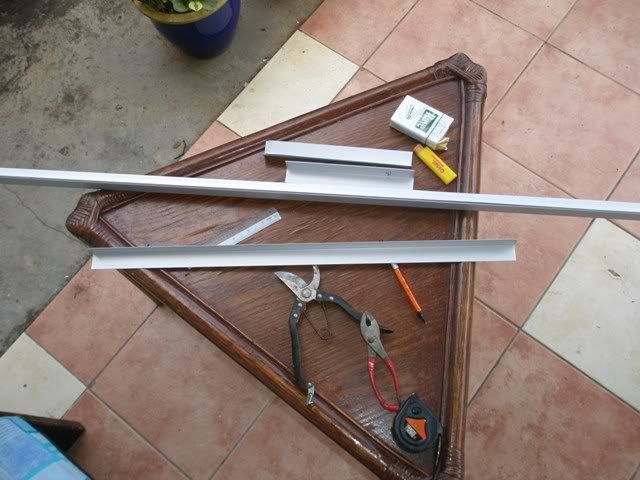

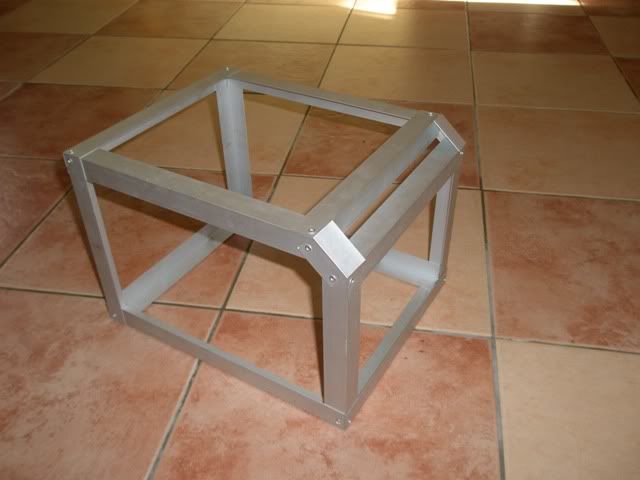

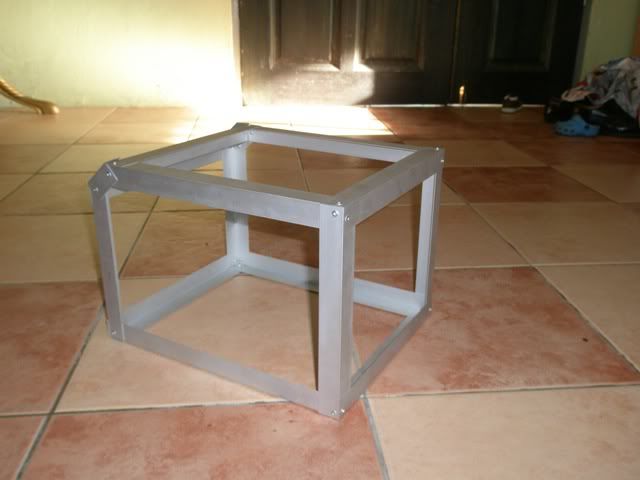

so start with standing up the alu frame...

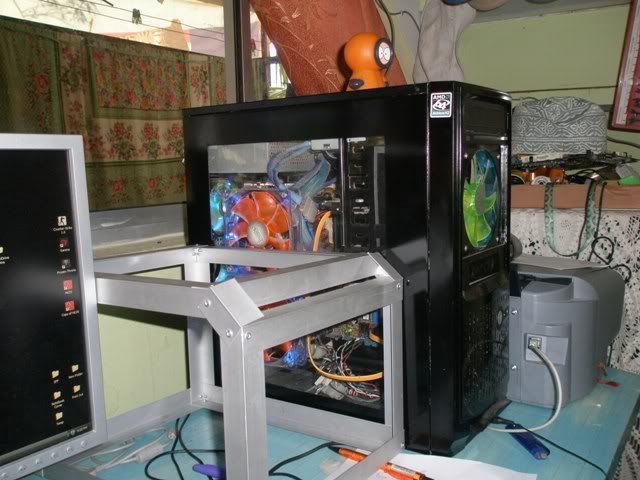

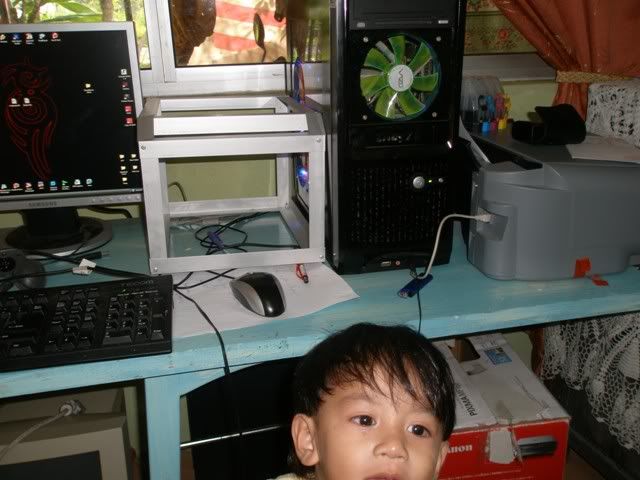

this is the comparison picture between my current e-view case and my new case...

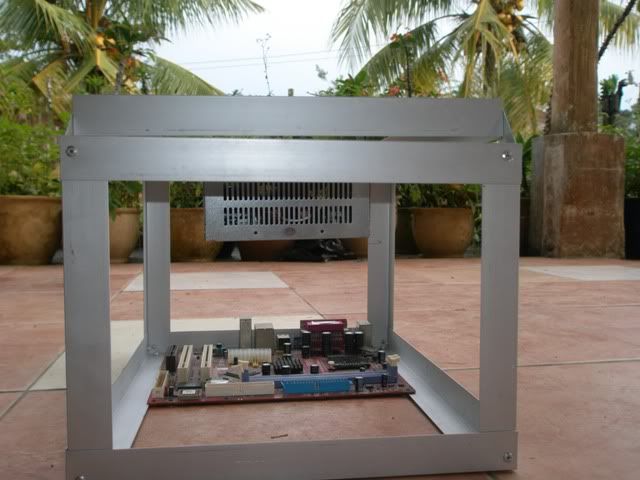

and this is how the hardware stuffed inside... juz a rough idea...

looking forward for this project. i am also in the process of building my sff rig...

you sure its a SFF?
seems like the width is bigger than normal casing

he he... hope to ur's too... looking for more ideas

i'm using SG02 measurement... SG01 and SG02.. both r wider than normal case...

as long the case only fits mATX & not ATX then its SFF

you should google PC Lab Design case

the case is kinda big for a SFF, still they call it SFF case

rave spotted

This post has been edited by Mooneyes: Jun 20 2008, 08:56 PM

You might want to change the way you mount the fan.
You're making the airflow super messy.

bajet... ha ha ha~

yeah... the air flow has been changed... but havent draw anything about it... ekekekeke

bro...a noob suggestion here xD
how bout u mount ur mobo to the front part of the pc, put a air intake blowhole above it, and maybe maintain the fan positon, but both side exhaust fan to channel the hot air out?
or top panel put exhaust fan and den bottom put 2 intake fan??

just my 2 cents...hope u dont mind

wanna ask,where to get dat material??dat u used for ur body of ur casing

hahaha
omara senpai....
startin new mod...'not mod...hehehe
building new one.....
dem nice if u can stick to the sketchup....
btw gud lak my fellow eview user
hehehe

Juz now... so free and feel like wanna cont my abandoned project... so here r some updates....

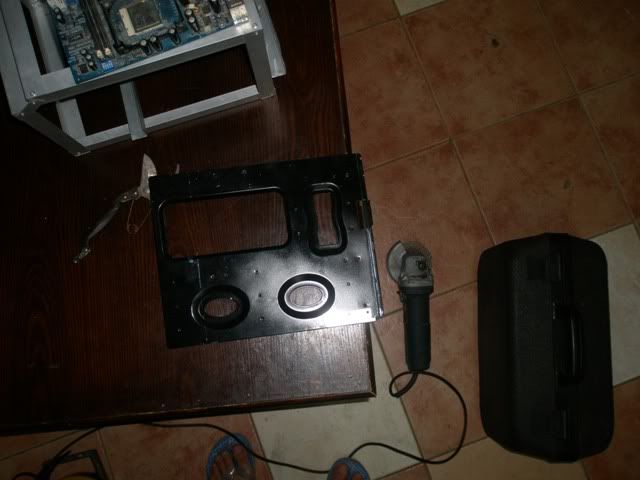

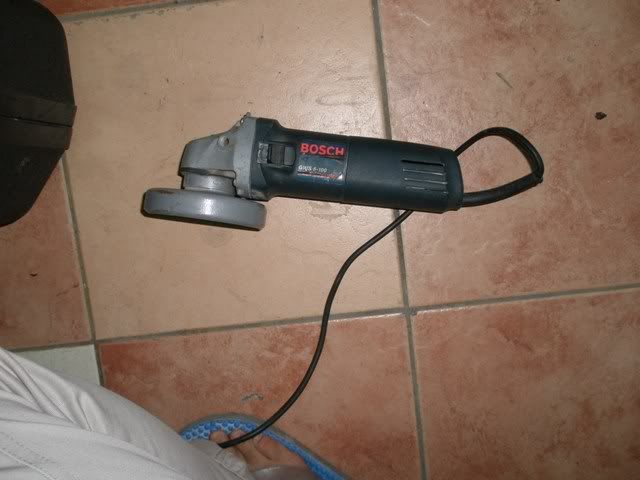

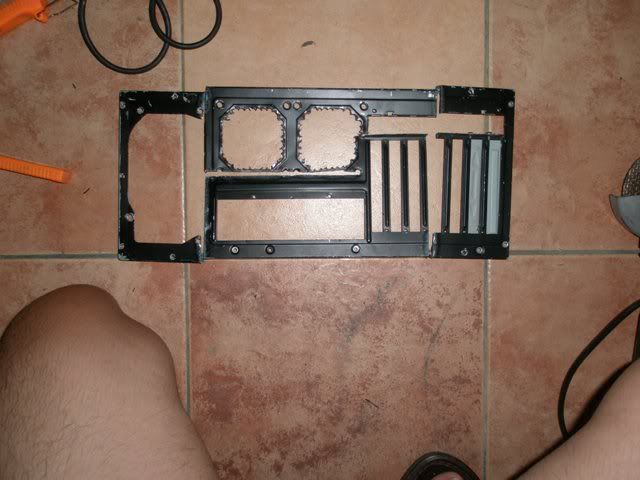

Cutting my old mobo tray, taken from old e-view case (my 1st mod)...

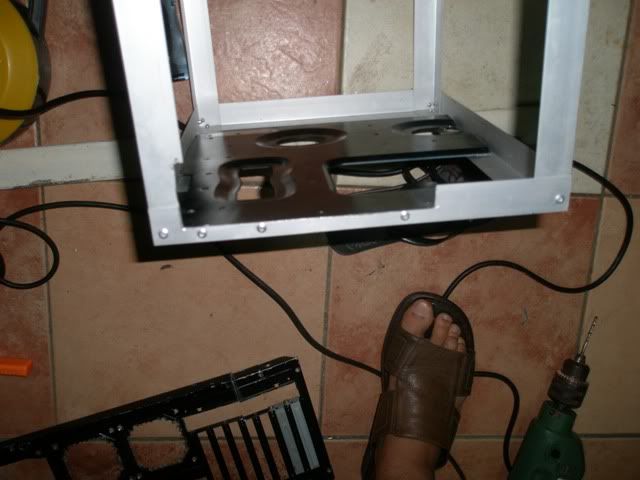

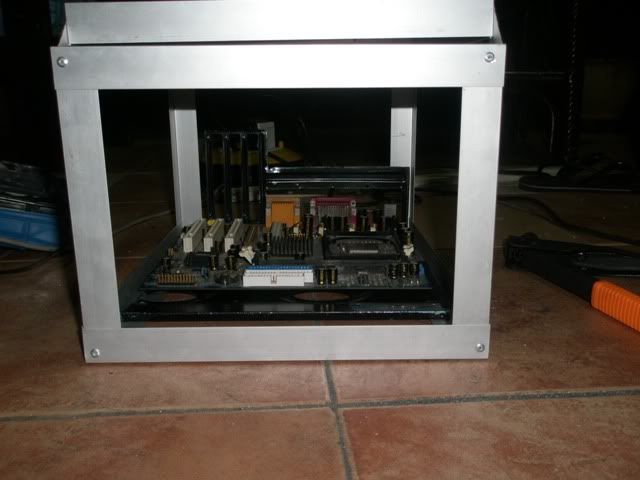

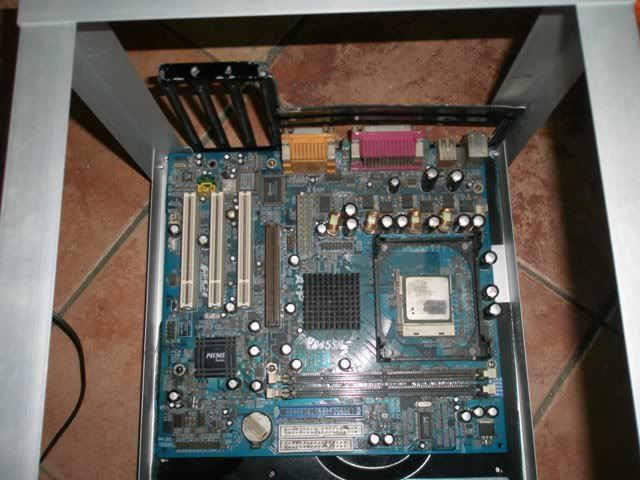

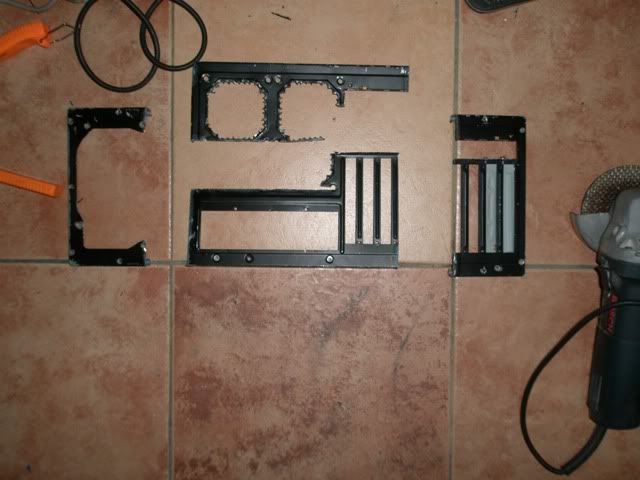

and this is the result

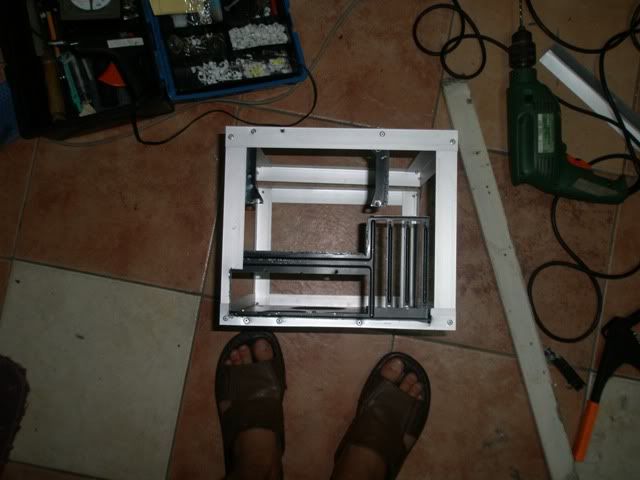

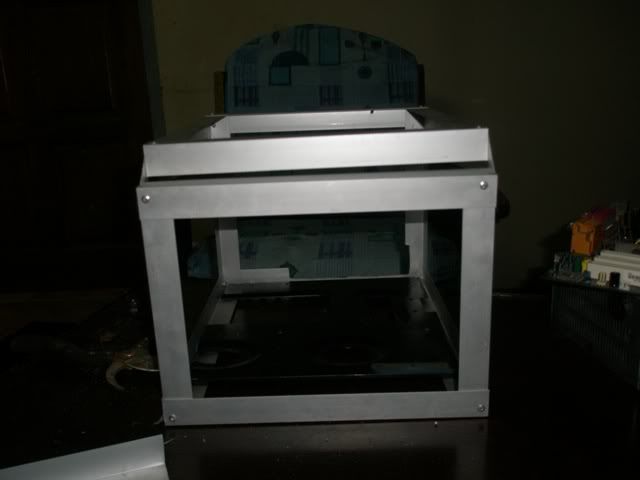

and this is for rear panel mounting

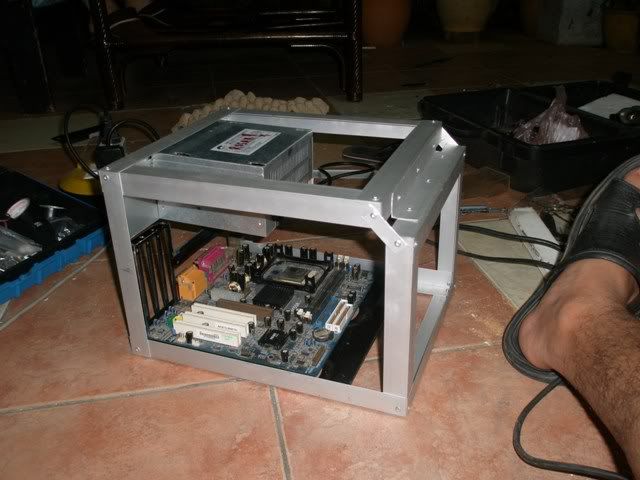

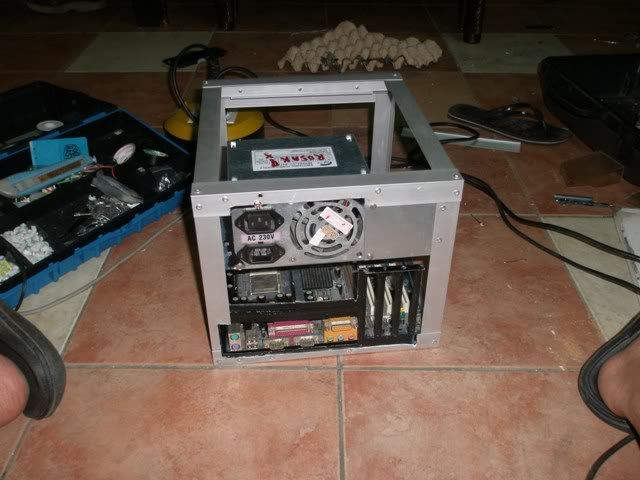

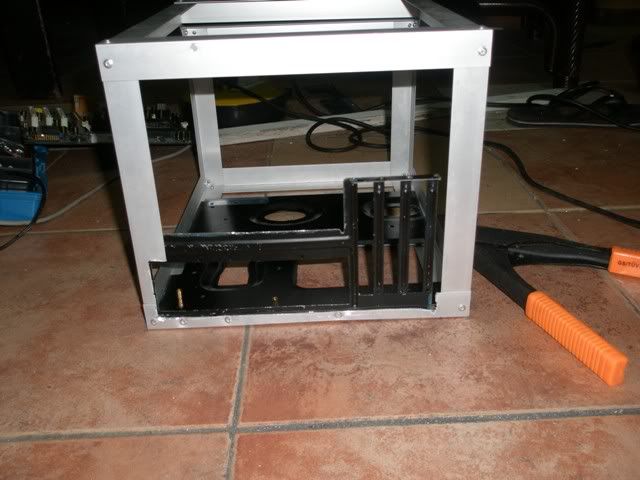

next is... PSU mounting







That's all for today... my back now is in pain and have to rest... start from 7:30pm till 11.00pm... and it was very tiring.. ekekeke... continue later~

thx for viewing

finally an update fast2 finished lor bro..

he he~ cannot coz it's gonna be cincai later... my current pc using other case..

now already sakit belakang~ rest 1st for 1 - 2 days.. ekekekeke

ekekeke u got not enough calcium for ur bone le?

Try Anmum gold good for bones

i hav no prob with calcium... but i'm married... so hav extra stress on my back.. he he he~

today i'm done with dvd-rw and hdd mounting hole... will upload pic later... wanna go out 1st.. so tired after doing it whole afternoon...

This post has been edited by omara86: Jul 23 2008, 07:17 PM
