Amedion, when i turn on the mobo bios setting is 6x multipler then i change to 12x after cpuz show 1200mhz , issit ok? so is 200mhz x 12 but cpuz is 1200Mhz will auto turn up when running something heavy?

and my vcore like got problem. hmmm later i show u the HWmonitor graph....8pm @@"

Vdrop is basically a mechanism promoted by intel to reduce the sudden surge of voltage when a processor goes on load. The Vdroop is higher when in full stress if u notice, not because of heat but because of the load that it experiences and the higher the voltage you pump, the bigger the Vdroop is, simple law of balancing.  Vdrop/droop is a good thing in fact for the health of the processor. ONly that it affects us all, overclockers coz we want every inch of juice we can get.

Abit IP35-E has a bigger vdroop on higher Vcore. Which is totally normal for mid-end 4-phase motherboards. If u do circuit mods on the lga775 built to the board, not only u lose a mechanism to save your proc, in case of a sudden surge of load, but also burn the proc in an instant.

Consider Foxconn Mars then

Increase only when FSB is high and makes the system unstable?

When you hit 440fsb or so,you need to increase vmch to 1.33v

Of course not stable lar .. You use cap ayam PSU !

Woah bro still din buy new PSU ah?

very nice pic you have at the siggy dude

hmm ABIT IP35-E has a creepy BIOS reset.. especially when you clear and it doesnt work maybe my board is gonna die soon

Anyone on E2180? What your maximum clock on stock vcore.I found mine just reach 2.8Ghz. So bad

what is the maximum safe overvolt for e2180? i tried 1.425v (more than this i tak berani edi), can reach 3.1ghz onli on my e2180. temp load is 52c max, hyper 212. i wanna try 3.6ghz...

Did u do bsel mod?

how to make the e2180 go 3.5ghz?
the most stable i can go is 3.0ghz 9x333 using vcore 1.5

i tried 10x333 and put vcore 1.6, i get blue screen during loading windows

btw... i always put the divider to match my ram which 800mhz.. my ram is sensitive so i always make sure it dont go beyond 800mhz

i am using gigabyte p35-d3sl motherboard and cm sphere cooler

---

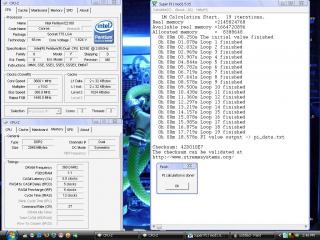

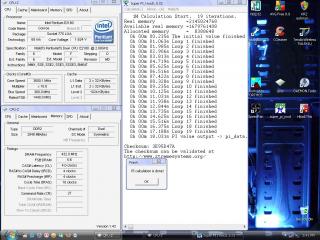

Added on June 8, 2008, 10:24 amanyone interested in racing to see who has the fastest super pi32m, i mean second fastest behind dblooi

i am using kingston value ram. default clock speed is 800mhz.

it shouldn't be the ram causing the problem. cuz i cannot do 9x333mhz which ram is running at 800mhz

u cant do 9* rozz because your default multiplier for the e2180 is 10*.. remember the NB ratio i told u once ?

@coolice
hmmm ur just world class bro, we all kampung class but does hwbot validate a non-existant G0 stepping for e2140? Intel database doesnt give the G0, i only see M0 and L2..

the double booting issue will be fixed by BIOS ver14 and above.. but the OCing bios is Bios ver10.... very nice to oc then

Shit that's the nice one man!
what's max temp u getting pal..

*Waiting my hsf and rams delivered by tonight [1 hour left]*
wooot!
cant wait to "molest"!!
