Receive new Gigabyte motherboard, GA-X48T-DQ6 with Intel QX9770 ES.

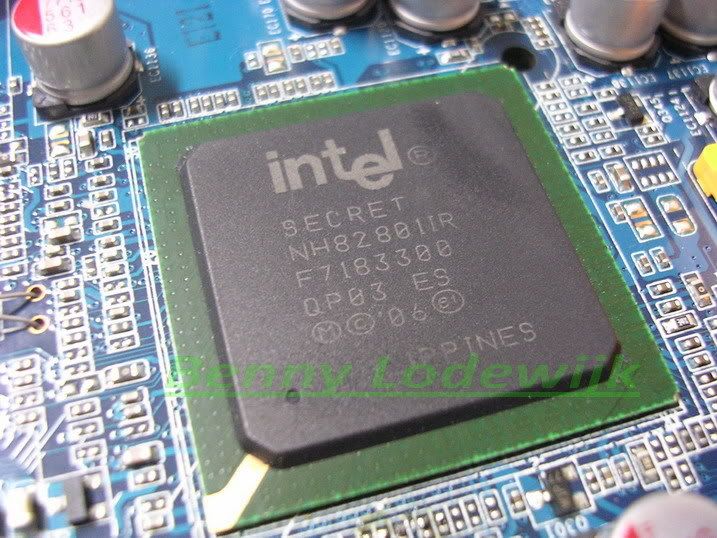

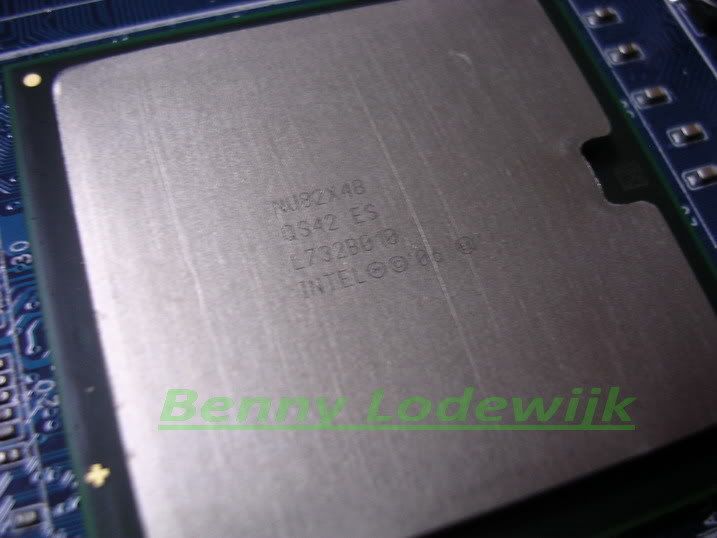

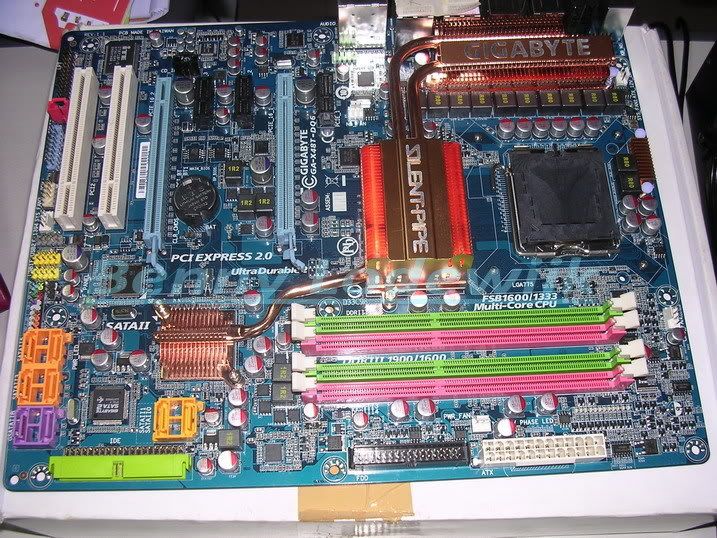

Some picture

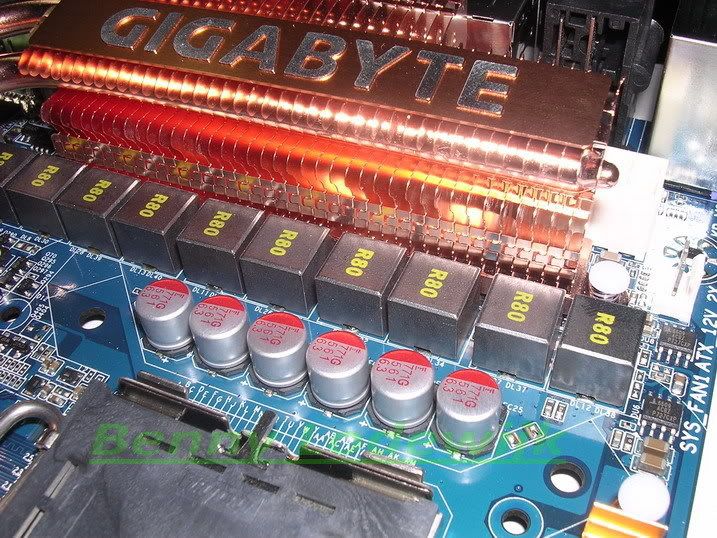

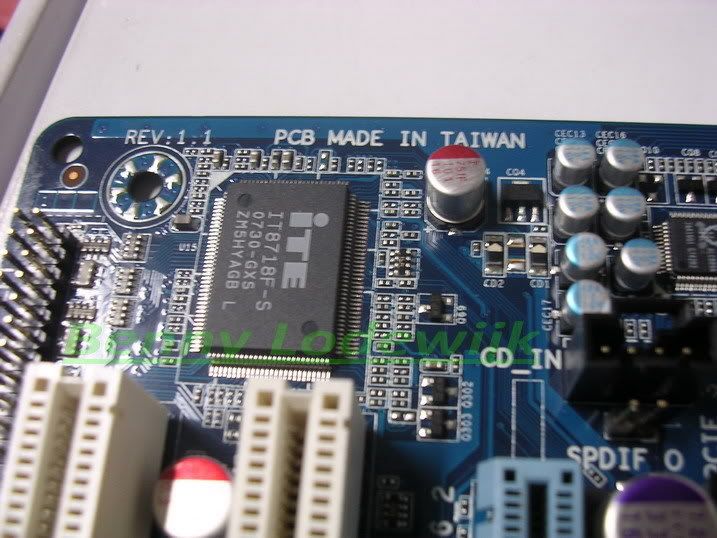

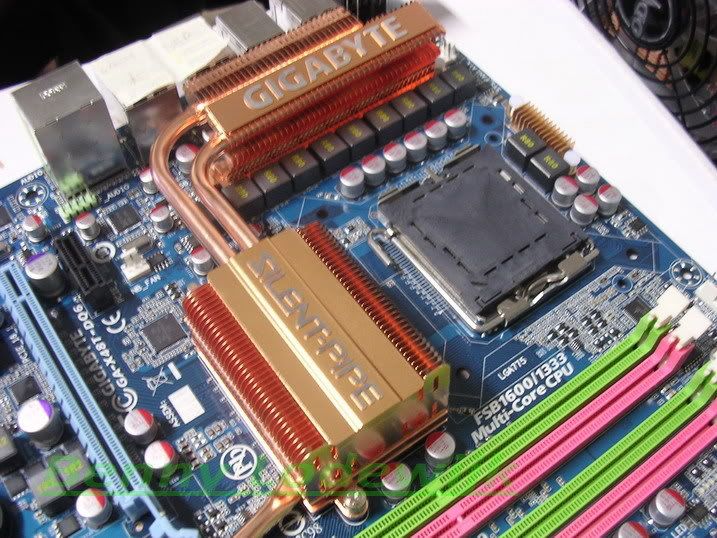

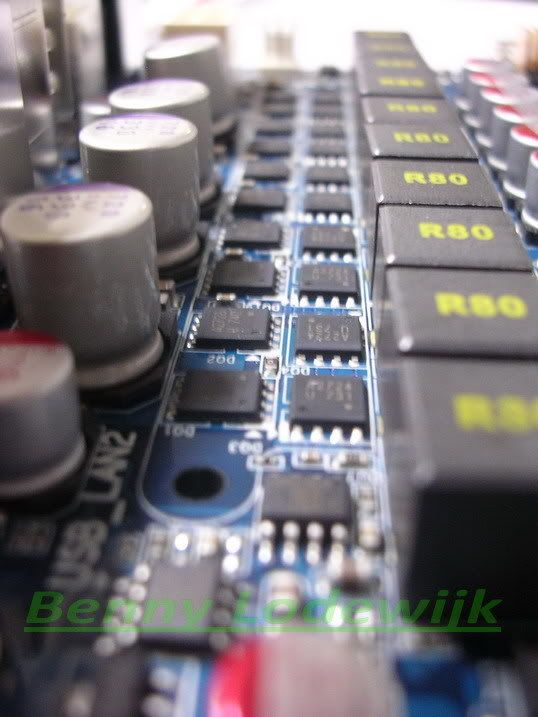

Gigabyte using Ultra Durable2 Components, including All Low ESR Solid Capacitor made in Japan, Ferrite Core and Low (RDS) ON Mosfet. Also PWM design still Virtual 12 phase like all DQ6 series from Gigabyte.

GA-X48T-DQ6 supports up to DDR3-1900 MHz with Intel XMP (Extreme Memory Performance),and Native FSB 1600 CPU. Gigabyte start to implement 2 power phase for Northbridge and Memory, this kind of technology provide more clean and pure supply power both for chipset and memory modules. Another feature implemented is DES (Dynamic Enery Saver), this feature helps you to reduce the PC power consumption by utilize the 12 phase PWM module.

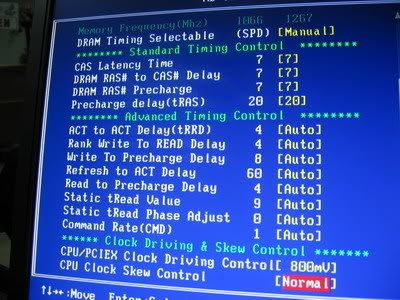

You can experience with a lot of tweaking option, starting from CL, TRCD, TRP, and subtimings.

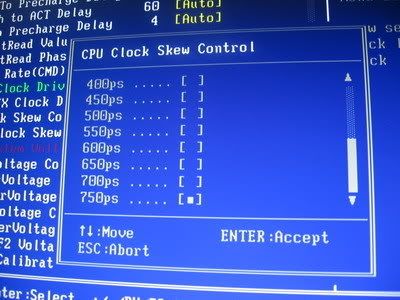

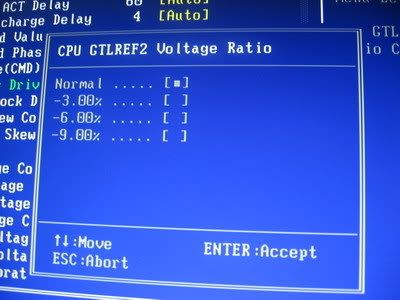

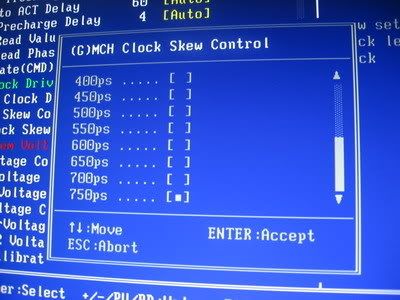

3 option above used for tuning the CPU, especially Quad Core CPU.

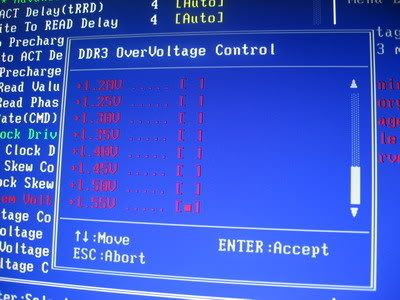

Very extreme voltage memory option !!!. You can juice your DDR3 up to 3.05 volt !!! Beware using this option or you DDR3 will die easily

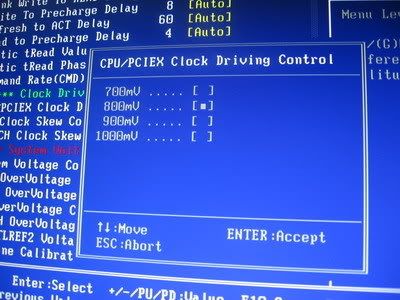

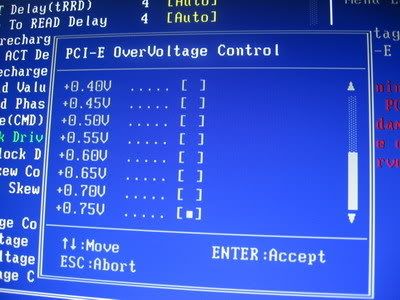

Do you think this option only for PCI-E volt ?? And then you are wrong. This feature also related to CPU PLL and SB Volt, as we know CPU PLL impact very significant to reach more and more FSB and offcourse related to CPU total clock. Use this option to reach higher CPU clock

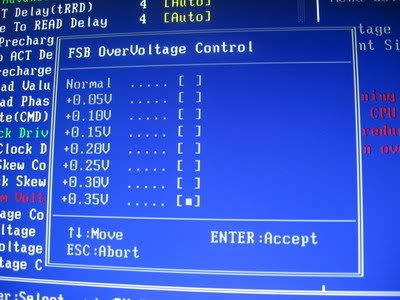

Combined with PCI-E Overvoltage, FSB Overvoltage gives you more stability when operated in high clock.

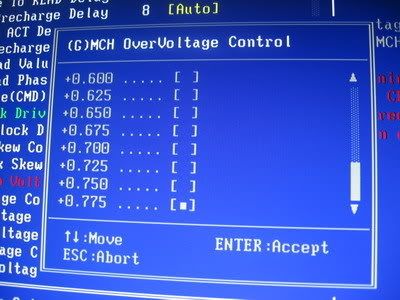

MCH Overvoltage or Northbridge overvoltae available up to 1.975 !!! this is damn crazy for sure...





And offcourse GPU GTL Calibration for fine tuning CPU, especially quad core CPU


This post has been edited by Lodewijk: Jan 18 2008, 11:35 AM

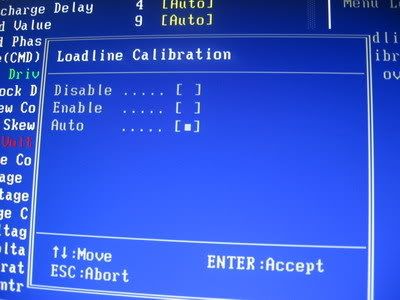

Loadline Calibration functioning to decrease vdroop, but in my testing this option not functioning at all.

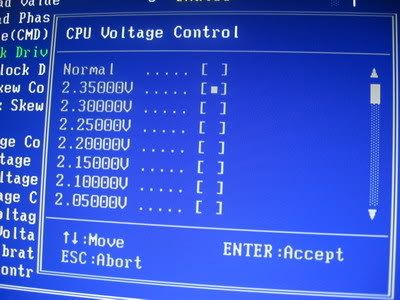

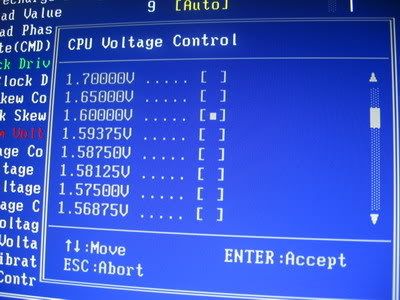

Up to 2.3 volt but sadly the increment is too big after 1.6 volt. Be carefull with this option.





For test, i use this hardwares :

* Processor Intel Core2 Quad Xtreme X9770 Engineering Sample
* Motherboard Gigabyte GA-X48T-DQ6 F4B BIOS
* VGA Card Gigabyte GV-RX387512H 512 MB GDDR4
* Memory Team Xtreem DDR3 1600C7 2 GB Kit
* PSU Gigabyte Odin GT 550 Watt
* Heatsink Thermalright Ultra Extreme 120 + Thermaltake Smart Fan 12cm



Not difference with QX9650, this QX9770 reach 4.3 GHz (430 Mhz x 10) with vcore 1.46 volt, air cooling offcourse.

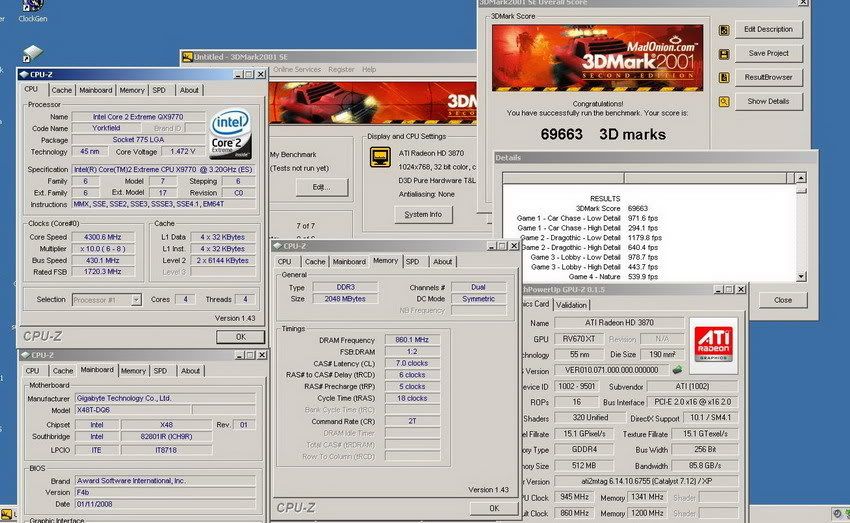

3DMARK 2001

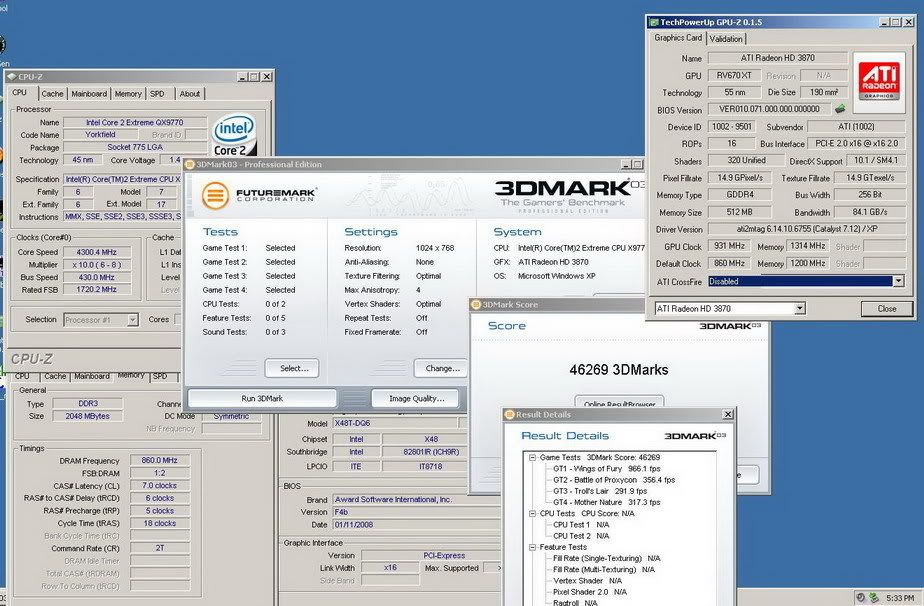

3DMARK 2003

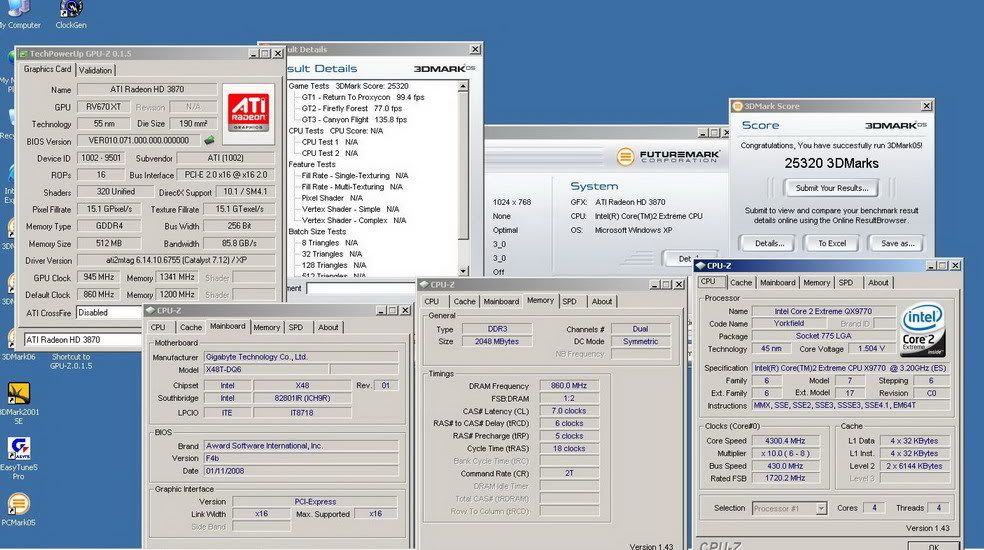

3DMARK 2005

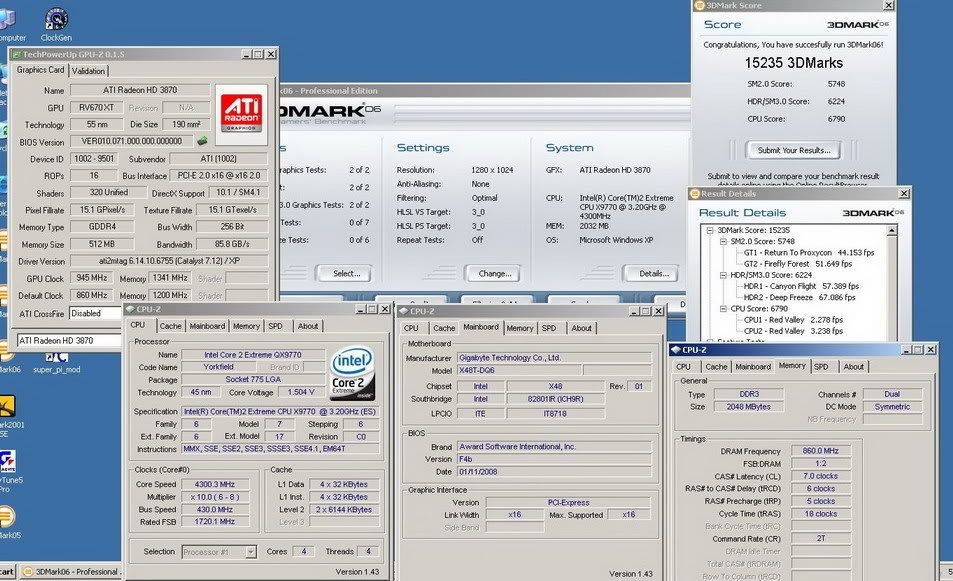

3DMARK 2006

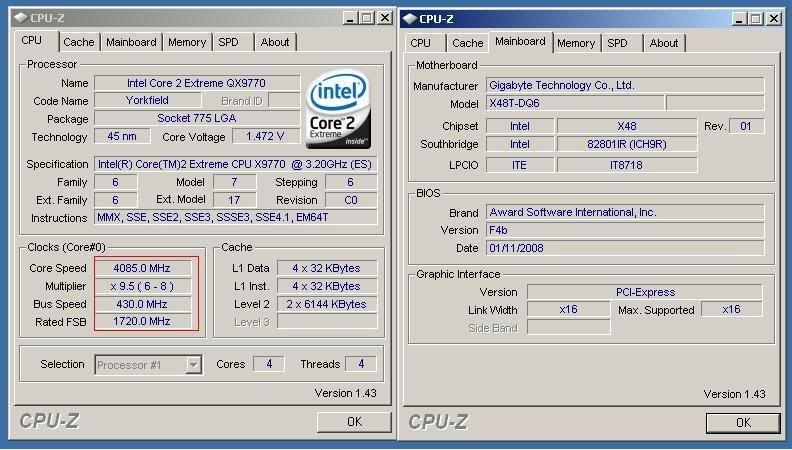

0.5 multiplier works great !!!

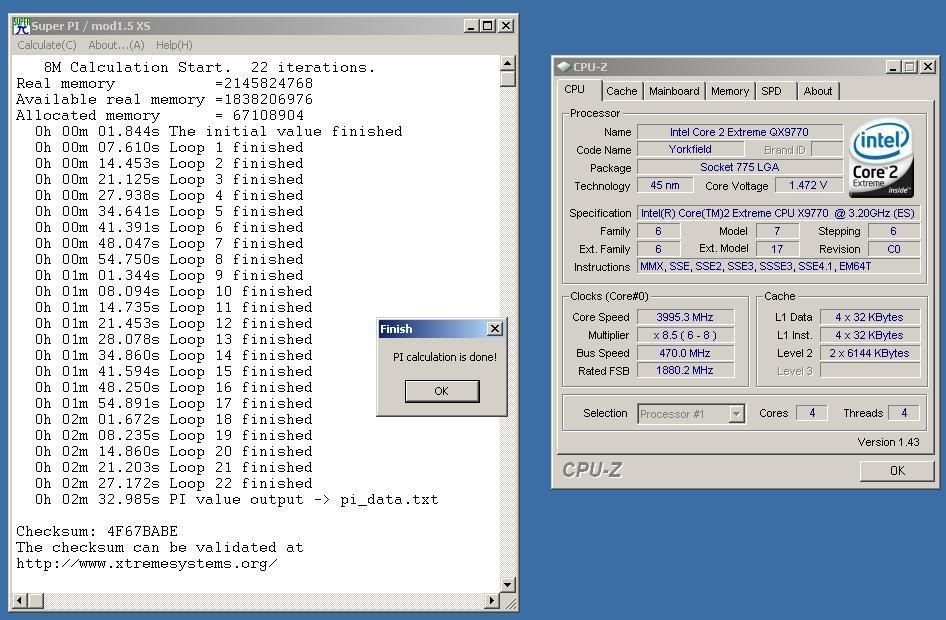

Highest FSB for now... 470 Mhz





to be continued.....

Amazing! If only it had SLI support ...

Did you try those .5 multipliers? If it works, why not reducing them to have a higher FSB?

Here comes X48 and first review seems awesome

Yes i did, please take a look at 3rd post. I did post some screenshot with 8.5 Multiplier. For FSB, i'm stuck at 470 Mhz for stability, 475 Mhz only for suicide, no matter what multiplier used.

very nice stuff bro.. keep us updated all the time. Love your reviews

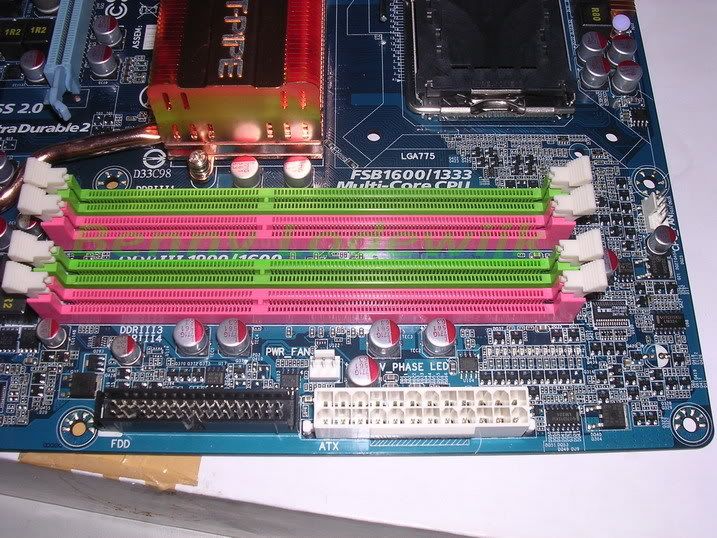

OMG,pink color ram slot
anyway,it's a nice shot for quad with 470mhz for now,
i think TS just need to fine tune and 550MHz should be no problme

Thats Gaygaybite's style lolz


Gd review..i see plenty of tweaking options..interesting..

That's a nice overclock I wonder why X38 doesn't do FSB's as high as P35's.

Thanks bro

---

Added on January 19, 2008, 8:33 amYeah, i hate that pink color too

This post has been edited by Lodewijk: Jan 19 2008, 08:33 AM

Previously, i've always called Gigabyte to have a very ugly color.
But this X48 DQ6 is even worse!

Look at the ram slot. Ugghh..

yeah some review on q9450 on X38 just manage to get 478 only...

my fren's p35 can go for 500++ with his e6550....

gonna try q9450 on p35 on next month

Dry Ice result.... sorry don't have much time to play, because i only got 3 kgs of dry ice...

3DMARK 2006 CPU Score @ 5.1 GHz




Super PI 1M (my first sub 9sec )




This post has been edited by Lodewijk: Jan 20 2008, 08:18 AM

gigabyte not really capable for 465+ fsb ..??
my p35 DQ6 stuck @ 465 any multiplier ...q66... e66... e2160 also same ...
anyone share ?

4Ghz for 45nm is not a dream anymore

That's cpu fsb wall, not because the mobo is not capable. I managed to get my p35-ds3 to pass the 500mhz point but i encountered with the cpu which is E6300 at 515mhz.

This board capable doing more than 550MHz. Maybe must use extreme edition proc.
