Dudes..


kinda fun doing it, however I'm unable to provide any work logs coz i malas take pictures while doing it,
anyway it was a simple project only and a few has done it also..

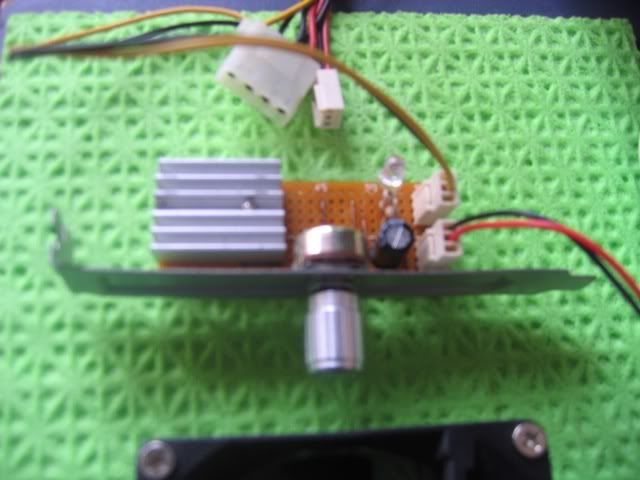

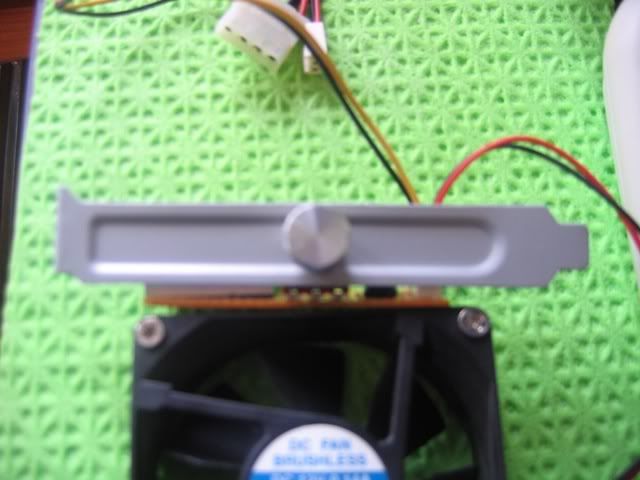

here are some pictures for you diy modders out there..

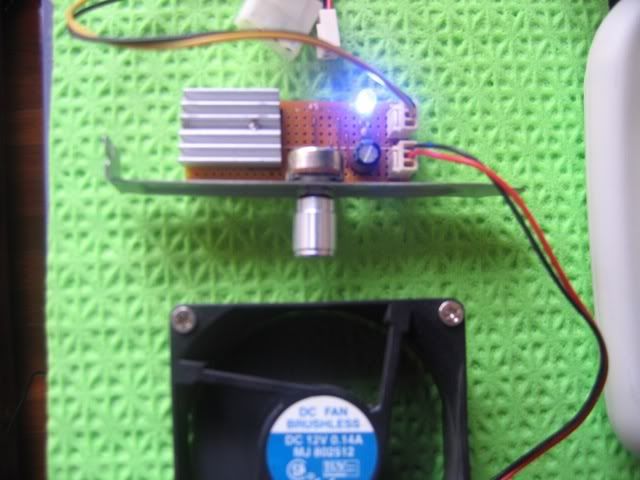

hahaaa.. got blue LED somemore u know!!













Edit by mod: Advertising content deleted.

This post has been edited by ianho: Dec 1 2007, 02:13 AM

Got any schematic diagram?

http://img306.imageshack.us/my.php?image=schematic4he.png

wats the max ampere the controller can take?

well, not quite sure bout that, tested on 12v 0.32A, and the fan works fine, the fan wont go full speed at any rating coz using LM317 doesn't give exact 12v output, u'll get ~ 95% of the speed.

LM317 is 1.5A.. if u dont exceed, it should work fine.. anyway, RM40, u earn quite a lot wor.. haha..
u might wanna consider active cooling as well for the LM317 cause it can get very hot when u load it @ around 1A..


This post has been edited by kevin613: Nov 30 2007, 07:38 PM

U r absolutely right about the the LM317, thanx for commenting, i was also not sure exactly, just followed the diagram, electronics newbie here..





Edit by mod: Ad content deleted.

This post has been edited by ianho: Dec 1 2007, 02:14 AM

haha.. no thanx.. i'm running all my fans @ 5V now, completely silent setup.. besides, i can build them on my own also as i have all the components in my inventory.. also have the LM1084 that supports 5A.. used them for my project.

LM1084.. Interesting.. I'll keep that in mind..

does the LM1084 use the same circuitry design? just exchange the LM317.. works?

same design, but different values of caps and resistors.. download the spec sheet of LM1084, there's application circuit inside..

thankx mate... btw check ur pm.. got a few questions..

btw
@zeuser

ur circuit looks very nice simple... but i notice that the pcb solder side is a bit higher than the slot area.. and wil come to contact with pci slot areas components... not a problem if its insulated .. ut just to point out to u

If you guys want to DIY a normal and non-fancy one, just solder a resistor would do.

Mine i did quite a while back, uses a TIP122 , which will hold up to 5 amps if the heatsink is big enough

walauweh.. advertising content deleted.. hahahahaaa.... never knew that.. thanx ianho


anyway @ lolhalol

nice controller dude..

about the clearence, i suppose if i put it between pci slots it may touch.. but if put at the lowest slot, the clearence is enough not to be touching with anything, plus any adjustment is minor, .. D.I.Y. maaa.... heheheee..

Cheers peeps!

tat one is graphic, cant see clear, u add one fan to it right?

graphic? cannot see clear? what r u talking about?

he means the schematic

Can also use LM338 for 5A supoort usin' the exact circuit as LM317, replacing only da voltage regulator

got sell this?
